FLG-5200TPS34E
-
Dongfeng
-
8705909990

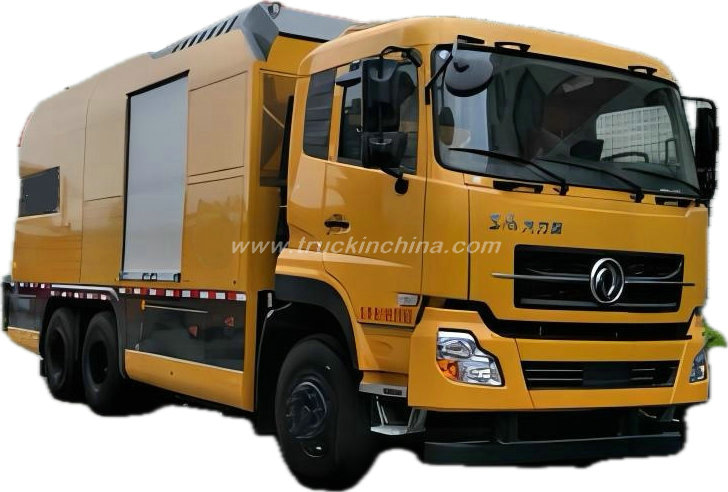

DFAC Drainage Water Rescue Truck 3000m3/h
Special vehicle used for emergency Water supply or Flood drainage pumping
item | Pump Options | ||||
Flow rate m3/h | 1000 | 1500 | 1500 | 3000 | 5000 |
Lift Head (m) | 22 | 17 | 35 | 15 | 10 |
Purpose:
Drainage pump, drought, water supply
Application field:
Municipal and highway emergency drainage; Surprise flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Aquaculture; Pumping and drainage in areas without fixed pumping stations and power supply. Especially suitable for well drainage operations, urban roads, overpasses, underpass Bridges, tunnel drainage, highway main line and access ramp and other places of water removal.
Full hydraulic, no electricity safety, easy to operate
Overall dimensions: | 9150×2500×3725(mm) | Fuel Type: | Diesel oil |
Gross Weight | 19595,19530(Kg) | ||
Net weight | 19400(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 25/15(°) | Front/rear overhang: | 1500/2300(mm) |
Axle Load: | 5595/14000 ,5530/14000 | Wheelbase: | 3800+1350,4000+1350,4250+1350,4600+1350,5700+1350,3650+1350,5350+1350(mm) |
Axle Number | 3 | Maximum speed: | 90(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 11.00R20 18PR,12.00R20 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 10/13,10/10,9/13 |
Front wheel track: | 2040,2010(mm) | Rear wheel track: | 1850/1850,1860/1860,1880/1880(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
ISL9.5-340E51A | Dongfeng Cummins Engine Co., LTD Dongfeng Commercial Vehicle Co., LTD Guangxi Yuchai machinery Co., LTD | 9460 | 251 |
Functional requirements:
Without additional power source, the engine on the automobile chassis can be directly used as the power source to drain water for moving
The remote control of the pumping station can make the mobile drainage pump station enter the low environment such as underground garage, subway or muddy environment such as farmland, so as to achieve the purpose of drainage.
1.2 Applicable occasions:
Municipal and highway emergency drainage; Assault flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Drainage to clean up polluted water surface; Pumping and drainage in areas without fixed pumping stations and power supply, etc. Requirements should be especially suitable for urban underground garage drainage, expressway tunnels, culverts, subways, factories and mines, and other drainage occasions in low environments that are not suitable for personnel to enter. The life safety of rescue and relief personnel is guaranteed to the greatest extent.
Main components:

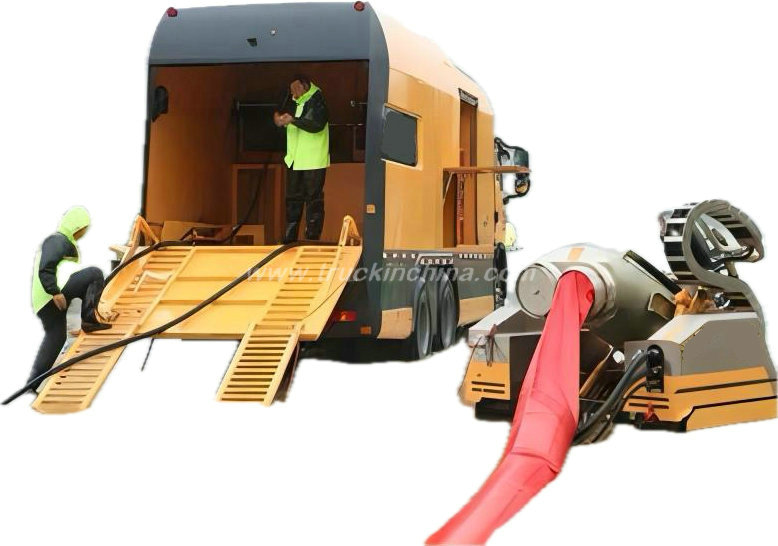

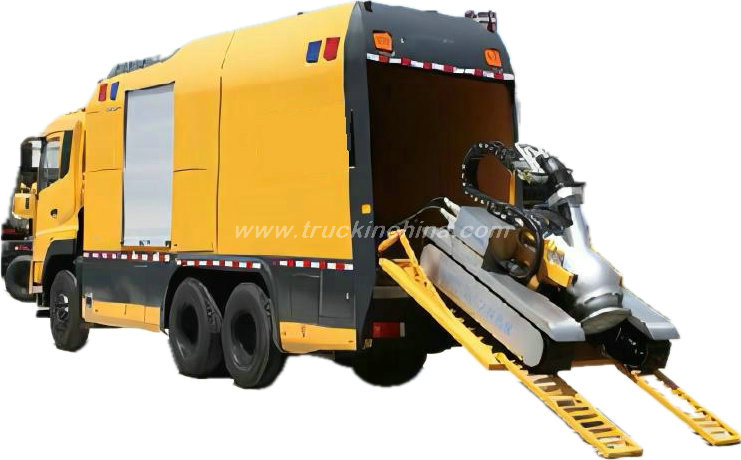

The whole vehicle is composed of a compartment car and a mobile drainage pump station. The compartment car integrates hydraulic system, tubing winch, water pipe hydraulic winch, electronic control unit, etc. The mobile drainage pump station is mainly composed of rubber track chassis, hydraulically driven water pump and pumping station hydraulic system, hydraulic pipeline, control system, etc. It is connected with the compartment car through an external tubing interface to form a drainage car system
Operational control system
(1) It adopts full hydraulic mechanism control, electronic module key operation, and can realize wireless remote control operation;
(2) The operation control system should be able to clearly reflect the speed of the automobile engine and have clear marks for the control of each system. The operation is simple and convenient.
Water pump cooling system
The cooling structure is reasonable and the cooling effect is good.
Operational remote searchlight
(1) More than two lamp caps, which can rotate 360 degrees left and right;
(2) Up and down direction: 0-180 degrees rotation, can adapt to all weather.
Tank capacity
More than 350L, can meet the pump full load operation for 6 hours of oil.
Polyurethane drain hose
The drain pipe is a polyurethane hose with anti-aging;
Dimensions: Internal diameter of hose: 300 ± 3 mm, thickness of pipe wall: 2.3 ± 3. 3 mm;
Length: 540 metres in 18 sections of 30 metres each;
Bearing pressure: working pressure 0.3 MPa, burst pressure not less than 1MPa;
Anti-aging: Keep in a cool and dark place, and the service life is not less than 10 years;
Other requirements: Pipe orifice incision should be flush, single pipe pipe diameter should be consistent.
It needs to be used with the corresponding quick connector.
Quick joint
Aluminum alloy, 300mm caliber, 18 sets in total, one set for each section of water pipes. Installed at both ends of the drain hose to facilitate the connection between water pipes.
Drain hose winch
The car is equipped with 4 pairs of hose winches, each pair of hose winches can retract and place 30 meters of drain hoses, and the winches are driven by hydraulic pressure. When drainage work needs to retract and place drain hoses
When, the hose winch can be operated to retract and release the drain hose which has been installed with quick connectors easily, and the drain hose can also be pulled by manpower when releasing the hose.
Tubing winch
The vehicle is equipped with oil pipe winch, which is driven by hydraulic pressure. When the mobile drainage pump station leaves the car, the winch can be driven by the pull force of the mobile drainage pump station itself, so that the manpower of controlling the winch is eliminated.
Others
(1) The service life is ≥ 10 years;
(2) The vehicle accessories and tools are complete;
(3) 2 hand-held dry powder fire extinguishers, placed in an easy-to-take place on the car.
Technical requirements for mobile drainage pump station
Main technical parameter requirements
1. Mobile drainage pump station form
The pumps and other special equipment for drainage are integrated on the track chassis, and rubber track is adopted, which will not cause damage to the ground. It is a walking track-type mobile pumping station.
2. Power source
The power of the mobile drainage pump station comes from the chassis, and it is quickly connected with the drainage truck through the rapid connection of the oil pipe to form the pumping and drainage capacity. The longest working distance can reach 50 meters.
3 .Water pump
(1) Drive mode of water pump: hydraulic direct drive;
▲ (2) Rated flow rate of a single water pump: ≥ 3000m ³/h;
▲ (3) Rated head of a single water pump: ≥ 15 m;
(4) The minimum working depth of the water pump suction port from the water surface: ≤ 0.2 m;
(5) The power source of the water pump comes from the engine on the original car chassis and is output through the full power power take-off.
4. Outline dimensions
Small volume, environmental protection and energy saving, length x width x height ≤ 2100 x 1800 x 1500 (mm), pass generally low environment .
5. Net weight of mobile drainage pump station ≤ 2000 kg.
6. Walking performance
(1) Hydraulic control, self-propelled, can climb 35-degree ramps or stairs;
(2) walking speed ≥ 2 km per hour;
7 Important operating performance parameters
(1) The pumping position of the pump can be remotely adjusted according to the actual water accumulation conditions on site;
(2) Without any manual handling or other auxiliary equipment, remote operation can be realized. The maximum drainage distance of the mobile pumping station away from the drainage operation of the compartment truck is ≥ 50 meters.
8. System control
Remote control + wired control, wireless remote control radius 100 meters.
9. Hydraulic Pipe quick-changing joints are used to connect with the car body.
10. Mobile Drainage Pumping Station
Protection performance grade equal to or higher than IP66.
