FLG-5230TGP70Z
-
SITRAK
-
8705909990

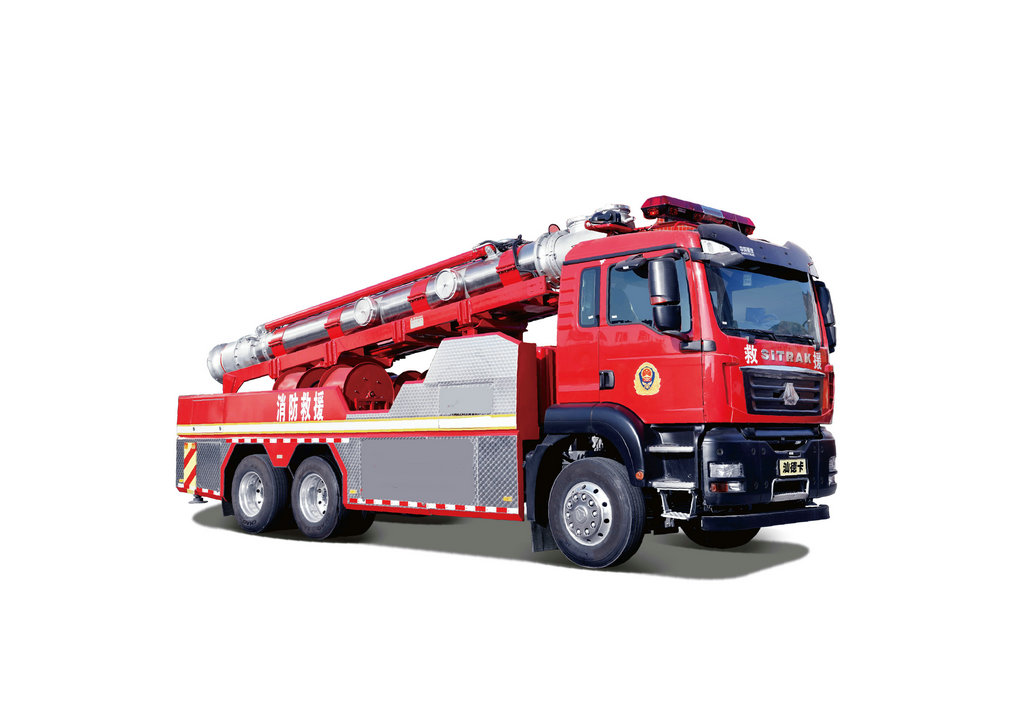

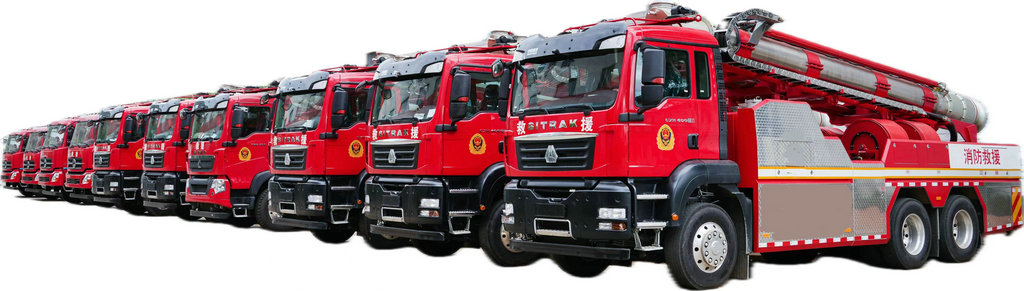

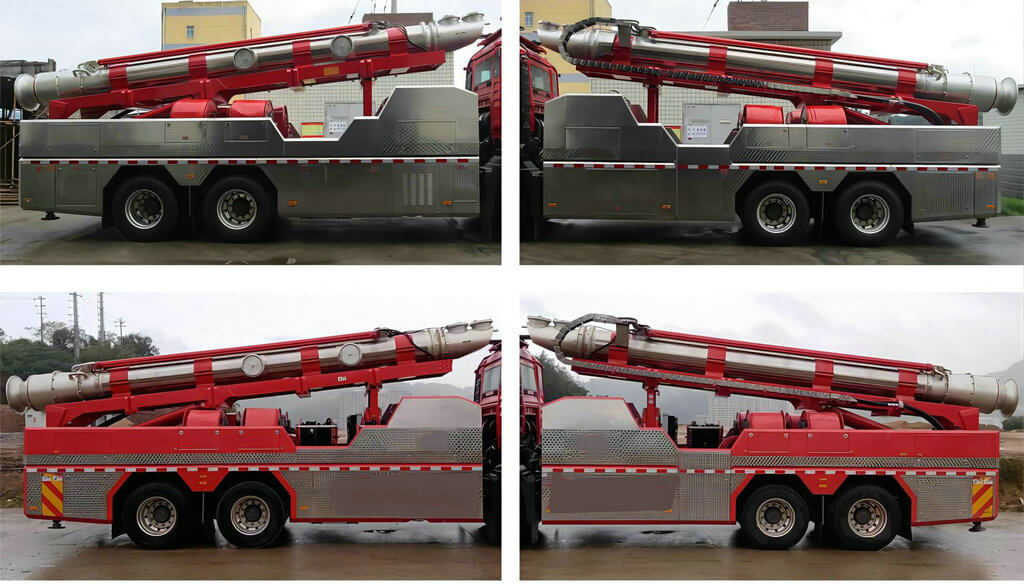

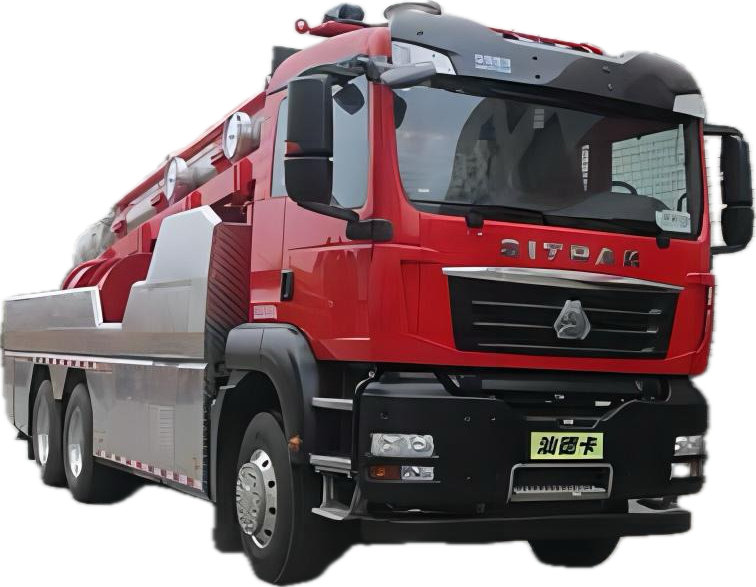

SITRAK Vertical Pump Water Supply Drainage Rescue Truck
Special vehicle used for emergency Water supply or Flood drainage pumping
item | Pump Options | ||||
Flow rate m3/h | 1000 | 1500 | 1500 | 3000 | 5000 |
Lift Head (m) | 22 | 17 | 35 | 15 | 10 |
Purpose:
Drainage pump, drought, water supply
Application field:
Municipal and highway emergency drainage; Surprise flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Aquaculture; Pumping and drainage in areas without fixed pumping stations and power supply. Especially suitable for well drainage operations, urban roads, overpasses, underpass Bridges, tunnel drainage, highway main line and access ramp and other places of water removal.
Full hydraulic, no electricity safety, easy to operate
Water pumper system
Water pump drive mode: hydraulic drive
Total flow: ≥ 3000 m3/h
Head: ≥ 15 m
Minimum working depth of water pump suction port from water surface: ≤ 0.5 m
The water pump power comes from the engine on the original car chassis, and no additional power source is required
Fouling caps are installed at the pump port to effectively intercept floating objects and stones with a diameter of more than 3cm
The pump is penetrated into the water through the upper mechanical structure without the need for manpower or other auxiliary equipment
In vertical ground pumping and drainage operation, the maximum effective depth of pumping water can be achieved when the pump is extended below the ground
The working mechanism of the water pump shall be able to work over the municipal guardrail, and the crossing height shall not be less than 1m, and the crossing distance shall not be less than 1m
Lighting system
Multi-light source arrangement to meet the lighting needs of different working areas
LED light source, total power: 100w
Water supply system
It has the function of supplying water to the fire engine: the water can be diverted from the water outlet diameter of the water intake system to the water belt of 80 diameter (or 65 diameter) through the water separator of DN80 (or DN65), and then conveyed to the fire engine with no less than 2 adapters
It has the function of supplying water to the remote water supply system: it can directly supply water to the remote water supply system through the adapter from DN250 to DN300, and there are no less than 2 adapters
Drainage Water Fire Hose
Dimensions: Caliber: DN300
Material: Polyurethane material
Bearing pressure: The working pressure is not less than 0.3 MPa, and the burst pressure is not less than 0.9 MPa
The total length of water hoses: ≥ 240m, and the length of each plate is 30m, of which the length of the vehicle is ≥ 120m, and the length of the spare water hose is ≥ 120m
Connectors and Accessories
Material: aluminum alloy (technical specification verification); Model: Specific model is equipped according to the requirements of the user unit
Quantity: According to the water belt length of 240m, the standard equipment is used
Drain hose winch
Winch reels: 4 pairs
Length of drain pipe: at least 30 meters drain hose/pair
Winch Drive: Hydraulic Drive
Parts List
Water intake strainer 2 pcs.
4 width indicator lamps
Equipment door induction 2pcs
10 pcs fuses of various models
4pcs relays
Diesel filter cartridge 1pcs
1 x oil filter element
Oil seal 1pcs.
Main technical parameters
Overall dimensions: | 10000×2520×3690(mm) | Fuel Type: | Diesel oil |
Gross Weight | 22650(Kg) | ||
Net weight | 22520(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 19/14(°) | Front/rear overhang: | 1492/2028(mm) |
Axle Load: | 5650/17000 | Wheelbase: | 4300+1400,4325+1350,4600+1400, 4625+1350,5200+1400,5225+1350, 5800+1400,6000+1400,5165+1470, 3800+1400(mm) |
Axle Number | 3 | Maximum speed: | 80,89,110(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 315/80R22.5 18PR/315/80R22.5 16PR, 295/80R22.5 18PR,12R22.5 18PR, 11.00R20 18PR,12.00R20 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/5,4/5,10/12,3/-/-,-/-/- |
Front wheel track: | 2022,2041(mm) | Rear wheel track: | 1830/1830(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
WP10H400E62;MC11.40-60;MC13.50-61;MC11.43-61;WP10.5H460E62;MC11.46-61;MC13.54-61;MC13.50-60;MC11.44-60;MC13.48-60;WP10.5H430E62;MC11.40-61;MC13.46-61 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD | 9500;10518;12419;10518;10520; 10518;12419;12419;10518;12419;10520;10518;12419 | 294;297;371;319;338;341;400;371; 327;356;316;297;341 |
