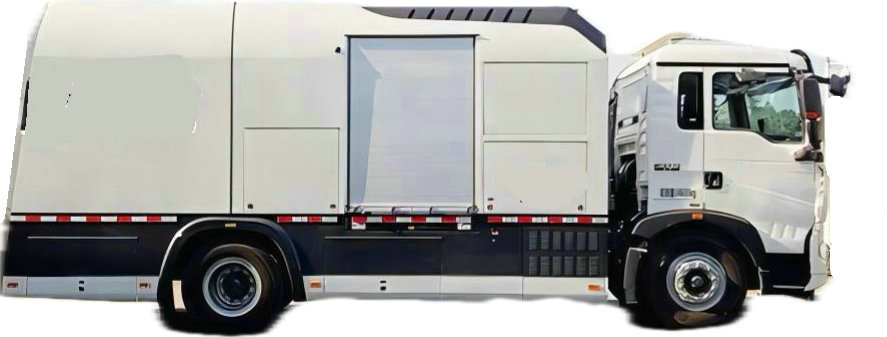

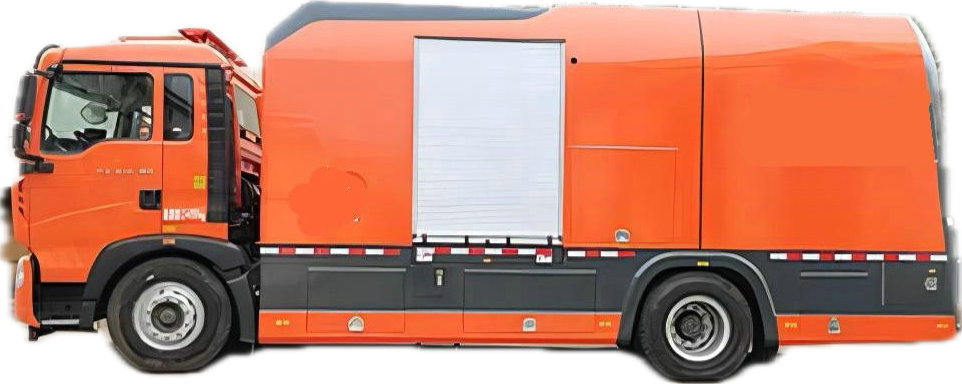

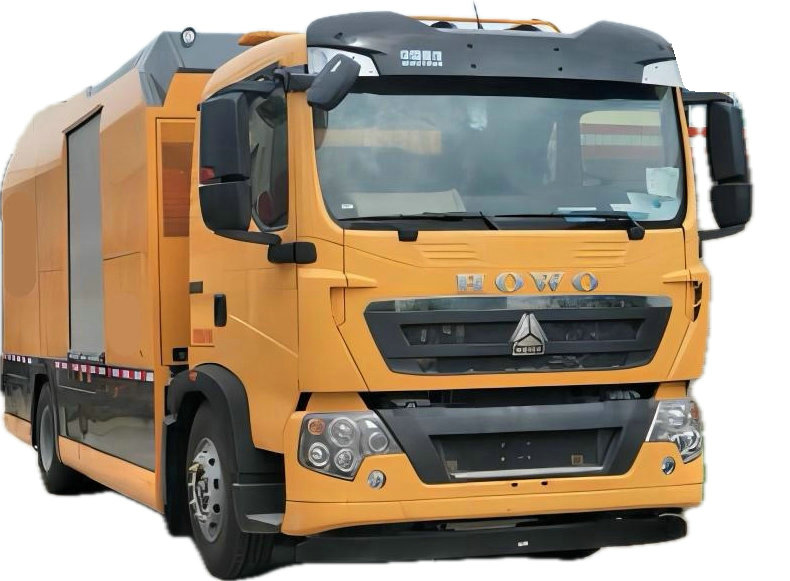

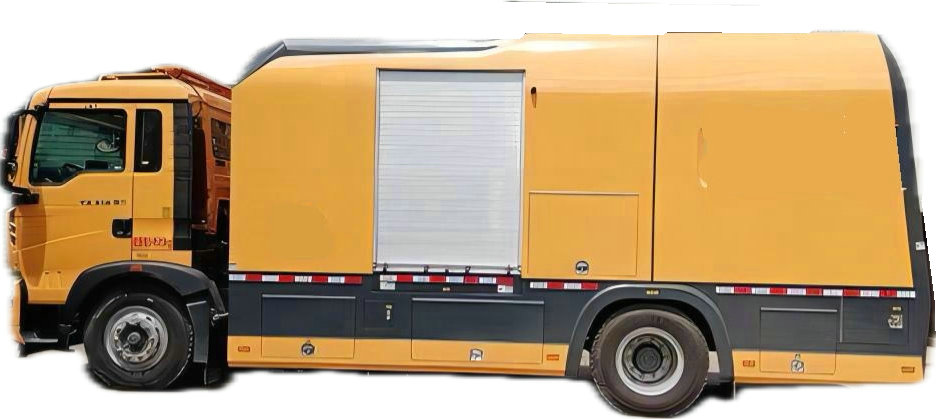

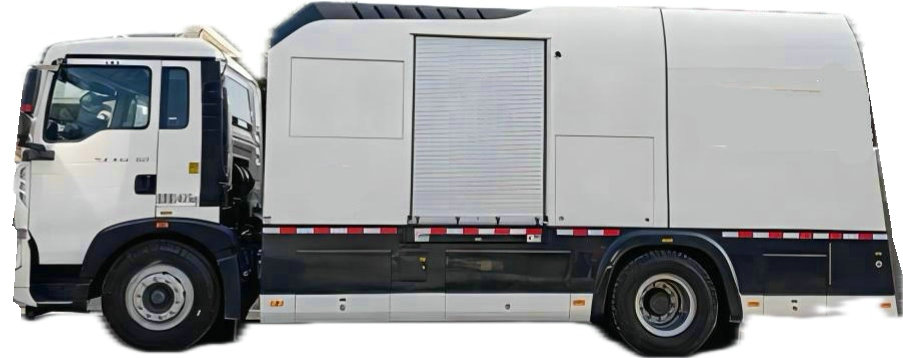

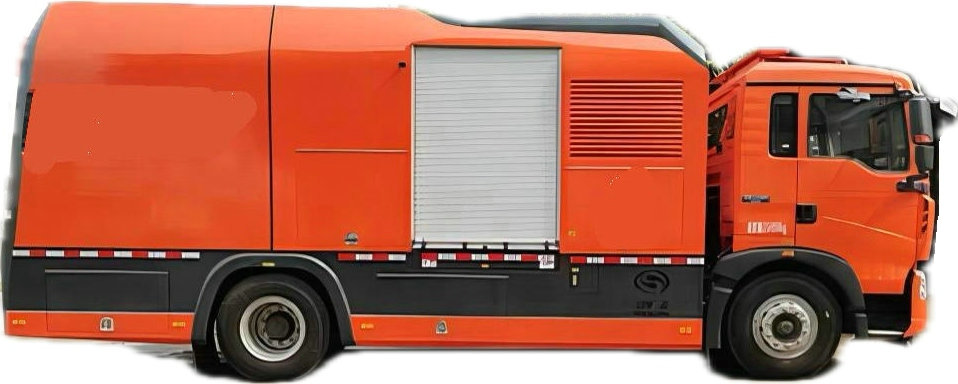

Custom HOWO Flood Rescue Truck Mobile Drainage Pumping Station 1500m3/h
Crawler-type mobile water pump (sub-vehicle), single water pump flow ≥ 1500 m ³/h, single water pump head ≥ 15 m
Special vehicle used for emergency Water supply or Flood drainage pumping
item | Pump Options | ||||
Flow rate m3/h | 1000 | 1500 | 1500 | 3000 | 5000 |
Lift Head (m) | 22 | 17 | 35 | 15 | 10 |
Purpose:
Drainage pump, drought, water supply
Application field:
Municipal and highway emergency drainage; Surprise flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Aquaculture; Pumping and drainage in areas without fixed pumping stations and power supply. Especially suitable for well drainage operations, urban roads, overpasses, underpass Bridges, tunnel drainage, highway main line and access ramp and other places of water removal.
Full hydraulic, no electricity safety, easy to operate
Functional requirements:
Overall dimensions: | 8525,8630×2510×3540,3500(mm) | Fuel Type: | Diesel oil |
Gross Weight | 14635,14700,15490(Kg) | ||
Net weight | 14505,15360,15295(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 19/12,19/11(°) | Front/rear overhang: | 1430/2395,1430/2500(mm) |
Axle Load: | 5535/9100,5600/9100,5710/9780 | Wheelbase: | 3800,4200,4500,4700,4800,4900,5000,5200,6050(mm) |
Axle Number | 2 | Maximum speed: | 80,89,101(km/h) |
Tire Number | 6(PCS) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/9+8,3/9+8,3/3+2,2/3+2,3/-,2/-,7/7+6,7/7+3,3/7+6,3/7+3,2/3 |
Front wheel track: | 1950,2035,2070(mm) | Rear wheel track: | 1848,1860(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
WP8.350E61;MC07H.35-60;MC07H.33-60;MC07.33-60;MC07.31-60;MC07.27-60;MC07.34-60;MC07H.29-60;WP9H350E62;WP7H270E62;WP7H300E62;WP7H320E62;MC07.25-61;MC07.27-61;MC07.29-61;MC07H.33-61;MC07H.35-61;WP8.350E62;MC07H.35P-61 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD | 7800;7360;7360;6870;6870;6870;6870;7360;8800;6800;6800;6800;6870;6870;6870;7360;7360;7800;7360 | 257;257;240;240;228;202;251;213;257;199;221;235;190;202;213;240;254;257;258 |
Operation control system requirements:
1. Adopt full hydraulic mechanism control, electronic module key operation, wireless remote control operation can be achieved.
2. The operation control system should be able to clearly reflect the speed of the automobile engine and the control of each system is clearly marked, and the operation is simple and convenient.
Hydraulic system requirements:
1. The hydraulic motor is used to drive the pump, and the hydraulic motor is the inclined axial piston quantitative motor. (Proof materials: provide the corresponding hydraulic motor and equipment nameplate pictures)
2. Hydraulic pipe fittings: there are 3 hydraulic pipes connected to the car and the mobile pump station during operation, each of which is not less than 50m in length, of which 1 is a high pressure pipe with a diameter of ≥32mm (1.25 inches), 1 is a low pressure pipe with a diameter of ≥38mm (1.5 inches), and 1 is a motor shell return pipe with a diameter of ≥16mm (3/4 inches).
Water pump cooling system requirements: water cooling structure.
Operation remote control searchlight requirements: equipped with more than two lamp heads, can rotate around 360 degrees; Up and down direction: 0-180 degrees of rotation, can adapt to all-weather work.
Fuel Tank capacity requirements: Equipped with enough oil to run the on-board pump fully for 6 hours.
Drain pipe requirements:
1. Polyurethane anti-aging material.
2. Size: hose inner diameter: 300±3mm, tube wall thickness: 2.3±0.3mm.
3. Length: not less than 210 meters, divided into 7 sections, each section not less than 30 meters.
4. Pressure: working pressure is not less than 0.3MPa, bursting pressure is not less than 1MPa.
5. Other requirements: The incision of the pipe mouth should be flush, and the diameter of a single water pipe should be the same, and it should be used with the corresponding quick connector.
6. Quick connector requirements: Aluminum alloy, 300mm diameter, a total of 7 sets, each section of water pipe equipped with a set. It is installed at both ends of the drainage hose to facilitate the connection between water pipes and water pipes.
Drainage hose winch requirements:
1. The vehicle is equipped with no less than 4 pairs of hose winches, each pair of hose winches can receive no less than 30 meters of drainage hose, and the winch is driven by hydraulic pressure. When the drainage hose needs to be retracted, the hose winch can be used to retract the hose that has been installed with the quick connector, or the hose can be pulled manually. The speed of each winch can be adjusted individually.
2. Winch platform: The water pipe winch is placed on two movable platforms, the left platform is not less than 2 pairs, the right platform is not less than 2 pairs. The platform can be extended to the left or right side horizontally to facilitate water pipe collection and discharge; The bottom of each platform should be equipped with a movable ladder for emergency personnel to get on and off the platform.
Tubing winch requirements:
1. Quantity: 3 independent tubing winches, including 1 high pressure pipe, 1 low pressure pipe, and 1 motor shell return pipe, respectively installed in different positions. (Proof materials: provide the corresponding physical picture of the tubing winch)
2. Structure: The overall use of high-quality carbon steel, the overall powder spray treatment, with strong corrosion resistance and wear resistance.
3. Winch performance parameters: The hydraulic motor is driven by gear reduction. When the mobile drainage pump station is driven away from the car body, the winch turns with it, eliminating the manpower to control the winch.
4. Rope guide device: the tubing winch of the high pressure pipe and the low pressure pipe is configured with a rope guide device to realize the automatic sequential winding of the tubing, and the pipe guide device is made of all-metal material. (Certification materials: provide the corresponding guide rope device and equipment nameplate picture)
Other Requirements:
1. Vehicle service life ≥10 years.
2. Vehicle accessories and tools are complete.
3. portable dry powder fire extinguishers should be placed in the car.
Mobile Drainage Pumping Station Requirements:
1. Form requirements: The special drainage equipment such as the water pump is integrated on the track chassis, the rubber track is used, and it is a walkable track mobile pump station.
2. Power source requirements: The power of the mobile drainage pump station comes from the chassis, which is quickly connected with the drainage car through the tubing quick connector to form the pumping and drainage capacity, and the maximum distance of the operation is not less than 50 meters.
3. Pump requirements:
4. Pump drive mode: hydraulic direct drive; Rated flow of a single pump: ≥1500m³ / h; Rated lift of a single pump: ≥15m.
5. Minimum operating depth of water pump suction: ≤0.2m.
6. Pump power source: PTO on the chassis
NO | Item | Main technical parameter requirements |
1 | Automobile Chassis | (1) Equipped with engine PTO diesel engine, can meet the load requirements of the pump system and drainage vehicle; (2) E mission standards; (3) Engine power ≥ 220KW; (4) The cab is equipped with warm air and air conditioning, and power steering; (5) The maximum vehicle speed ≥90 km/h. |
2 | Vehicle Form | Integrated fully enclosed carriage, the system is integrated in a domestic well-known brand of the second class car chassis, complete special vehicle. |
3 | Overall Dimensions | (1) vehicle length: ≤9000mm; (2) vehicle width: ≤2,550 mm; (3) Height:≤ 3800mm. |
4 | Operation Control System | (1) Full hydraulic mechanism control, electronic module button operation, and can realize wireless remote control operation; (2) The operation and control system shall be able to clearly reflect the automobile engine speed and clearly identify the control of each system. It is easy and convenient to operate. |
5 | Pump Cooling System | Water-cooled structure is adopted to achieve a good cooling effect. |
6 | Operation Remote Control Searchlight | (1) More than two lamp heads, can rotate around 360 degrees; (2) Upper and lower direction: 0-180 degrees rotation, can adapt to all-weather work. |
7 | Fuel Tank | water pump full load operation for 6 hours. |
8 | Polyurethane Drain Hose | (1) Material: polyurethane, anti-aging; (2) Dimension: inner diameter of hose: 300 ± 3mm, pipe wall thickness size: 2.3±0.3mm; (3) Length: 210 meters, divided in 7 sections, and 30 meters in each section; (4) Pressure: working pressure is 0.3MPa, blasting pressure is not less than 1MPa; (5) Other requirements: the pipe incision should be flat, the diameter of a single water pipe should be the same, which needs to be used with the corresponding quick joint. |
9 | Quick Fitting | Aluminum alloy system, 300 caliber, a total of 7 sets, each section of the water pipe is equipped with one set. Install at both ends of the drainage hose to facilitate the connection between the water pipe and the water pipe. |
10 | Drainage Hose Winch | The car is equipped with 4 pairs of hose winch, each pair of hoses winch can put 30 meters of drainage hose, the winch through the hydraulic drive. When the drainage operation needs to receive and release the drainage hose, the hose winch can be operated to easily collect and put the drainage hose that has been installed with the quick connection, and the drainage pipe can also be pulled by manpower. |
11 | Oil Pipe Winch | The car distribution pipe winch, hydraulic drive, when the mobile drainage pump station leaves the box car, the winch can be dragged by the pulling force of the mobile drainage pump station, without the manpower to control the winch. |
12 | Else | (1) The service life of the vehicle ≥ 10 years; (2) Complete vehicle accessories and tools; (3) Two portable dry powder fire extinguishers are placed in the easy to take place on the car. |
Technical for mobile drainage pump station
NO | Item | Main parameter |
1 | Mobile drainage Pump station form | Water pump and other special drainage equipment integrated in the crawler chassis, using rubber crawler, will not cause damage to the ground, crawler mobile pump station. |
2 | power supply | The power of the mobile drainage pump station comes from the chassis, and it is quickly connected with the drainage car through the tubing rapid joint, the longest distance of the operation can reach 50 meters. |
3 | water pump | (1) Water pump drive mode: hydraulic direct drive; (2) Rated flow rate of a single pump: ≥1500m³ / h; rated head of a single pump: 15m; (3) The minimum depth of the pump suction outlet from the water surface: ≤0.2m; (4) Water pump power source:PTO |
4 | outline dimension | Small volume, length, width and height ≤2300x1800x1500 (mm), generally low environment can pass through. |
5 | quality | The mass of the mobile drainage water pump station≤ 2,000 kg. |
6 | Walking performance | (1) Hydraulic control, self-propelled type, can climb a 35-degree ramp or stairs; (2) Speed ≥2km per hour; |
7 | Important performance | （1） The pumping position of the pump can be adjusted remotely according to the actual water condition on site; (2) Without any manual handling or other auxiliary equipment, the remote operation of the mobile pump station away from the box car drainage operation of the maximum drainage distance of 50 meters. |
8 | SC | Remote control + wired control, wireless remote control radius of 100 meters. |
9 | oil pipe | Use the hydraulic quick change joint to connect with the box car. |
10 | Mobile drainage pump station Protection performance level | Equal to or higher than the IP66. |
