NJJ-5042XXH6
-
YUEJIN
-
8705909990

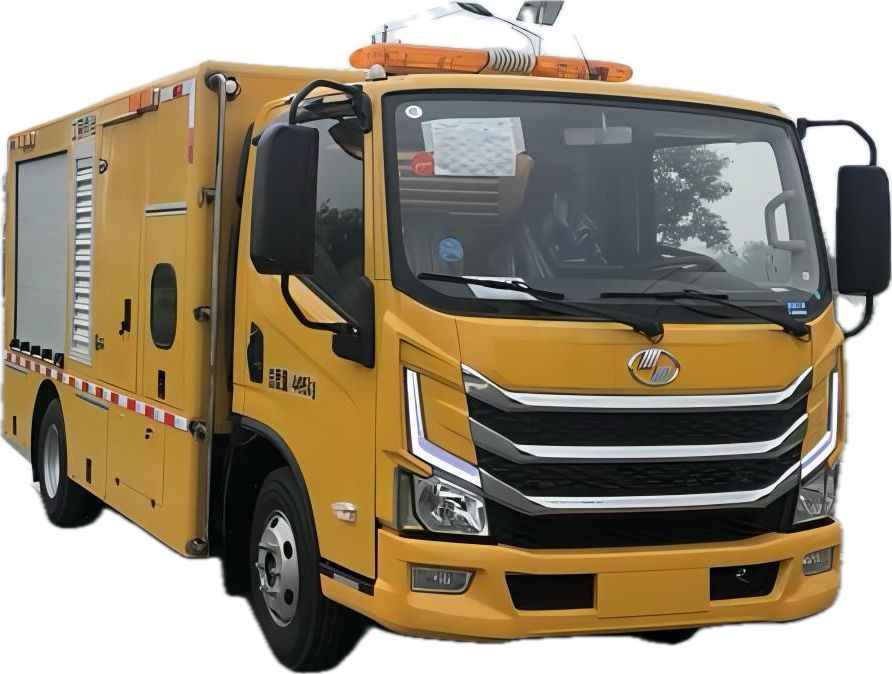

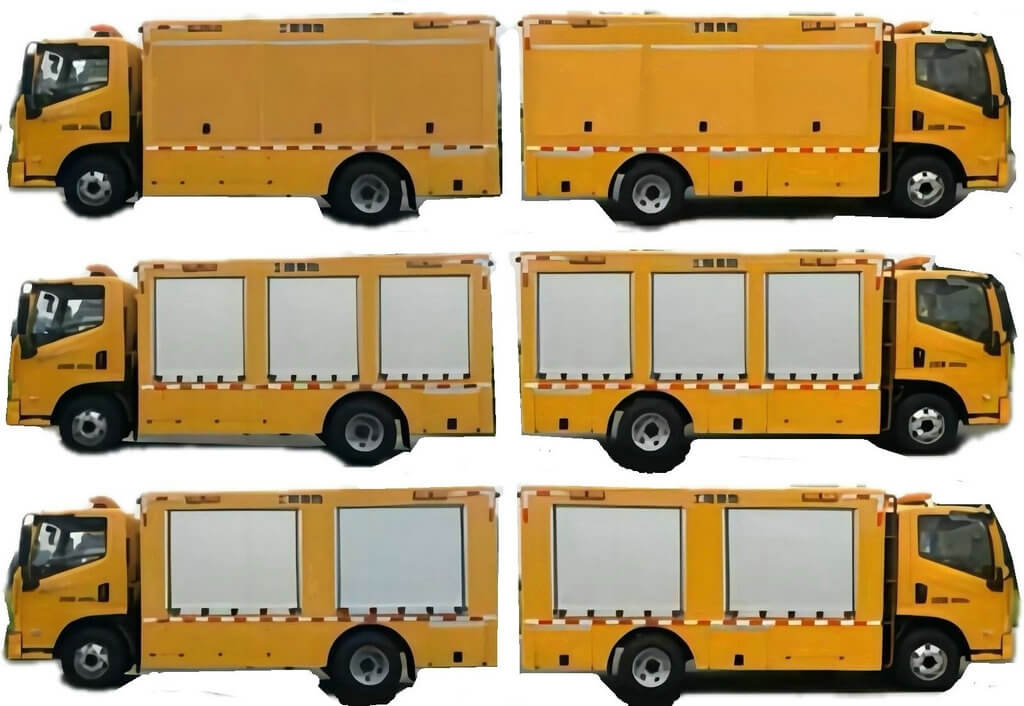

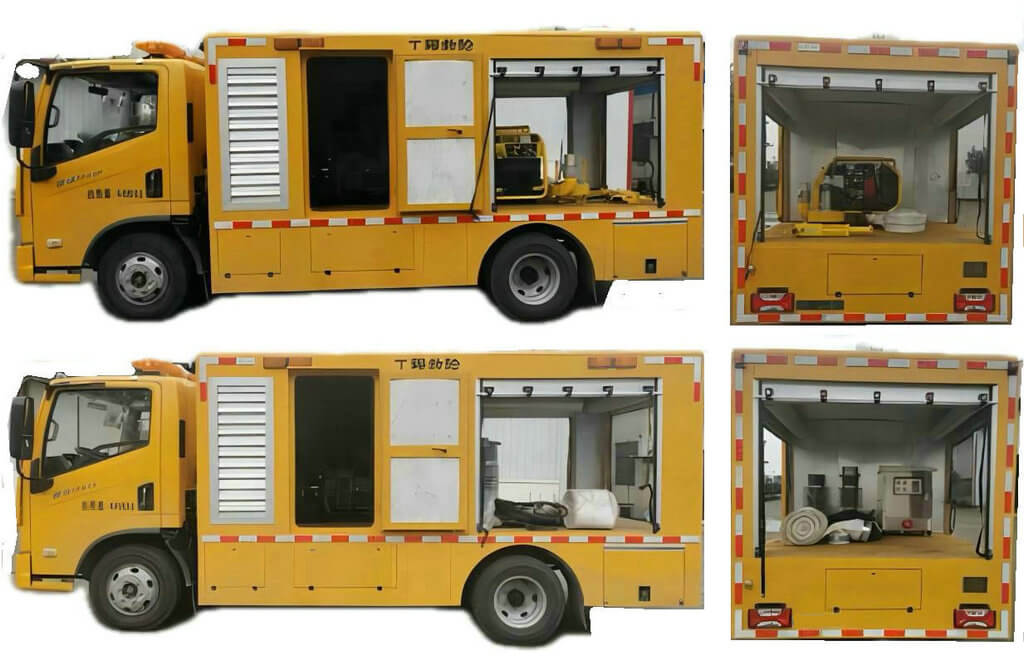

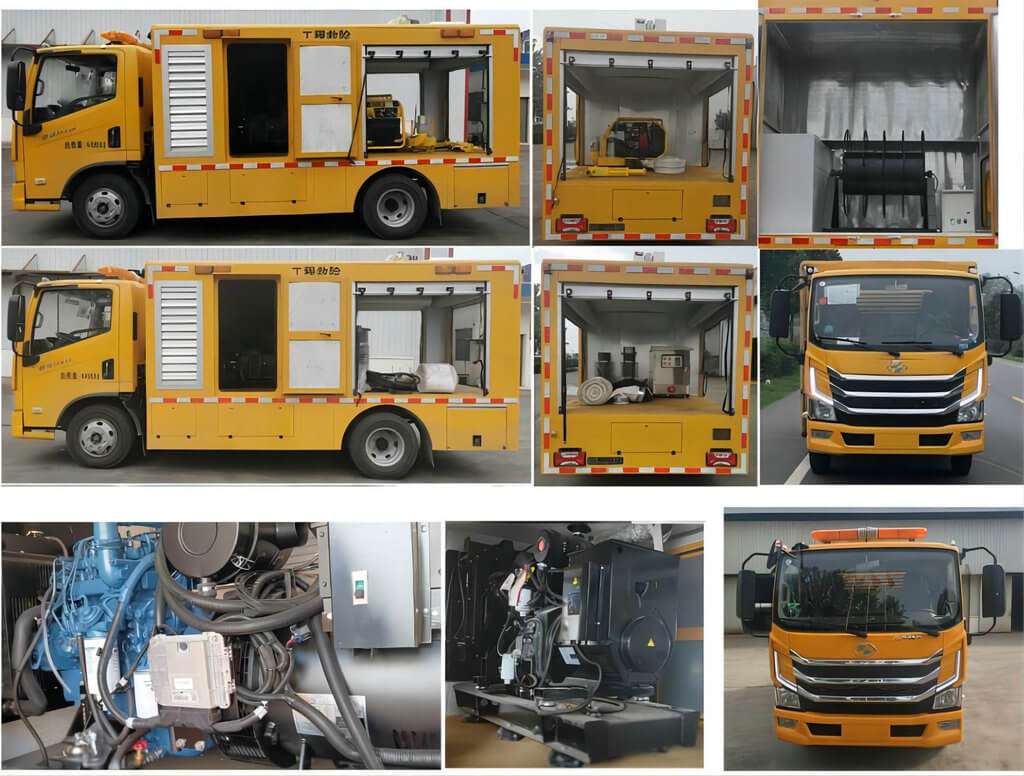

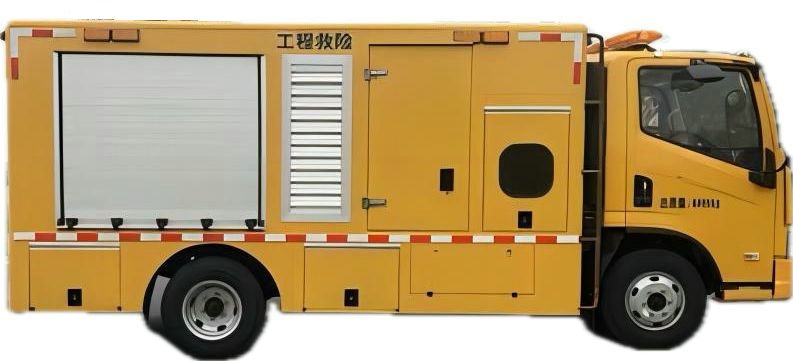

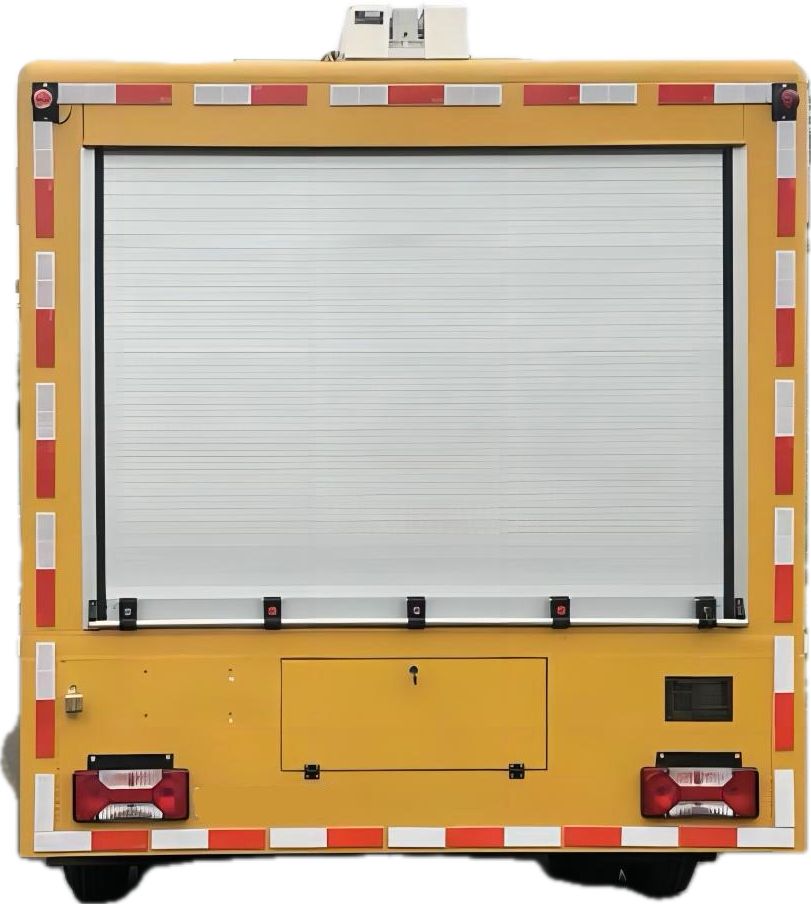

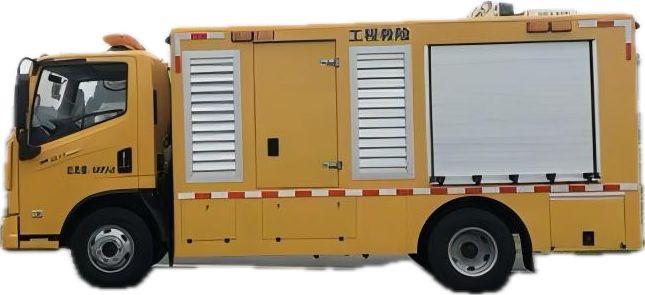

YUEJIN Flood Control And Emergency Drainage Equipment Trucks
Strong mobility, truly realize the concept of rescue, the equipment can meet the needs of emergency drainage and rescue, and mobile power supply
Special device: emergency power supply drainage device,
Generator set model :YG-50-GF;
Portable submersible pump model :200JBQF500-8-18.5(150JBQF150-35-22);
Hydraulic power station model :HP28;
Hydraulic slurry pump model :FTP08;
Hydraulic crushing pick model :BR45;
Submersible pump control cabinet :LX-QSK;
DN200 drainpipe .
Mainly used for emergency rescue needs, emergency power generation, emergency rescue pumping sewage;
Optional hydraulic, electric emergency tools, portable submersible pump.
Complete vehicle model | 5042XXH6 |
Chassis type | YUEJIN SH1043ZFDCMZ |
Engine power | 110kw |
Quality of service | 4300kg |
Gross mass | 4495Kg |
Overall dimension | 5980×2180×2750mm |
Pump flow | 500-600m³/h (optional multiple portable submersible pumps) |
Suction range of pump | 6-8.5 m |
Pump head | 8m |
Generator power | 50-90kw |
Configuration | Generator sets and pumps can be selected according to customer needs well-known brands |
Overall dimensions: | 5980×2180,2090×2550,2650,2750(mm) | Fuel type | Diesel |
Gross Weight | 4495(Kg) | ||
Approach Angle/Departure Angle: | 24/15(°) | Front/rear overhang: | 1118/1554(mm) |
Axle Load: | 1765/2730 | Wheelbase: | 3308(mm) |
Axle Number | 2 | Maximum speed: | 105(km/h) |
Fuel consumption: | (L/100Km) | Suspension Spring : | 8/6+6,7/5+5,3/5+5,3/6+6,4/5+5, 4/6+6,10/9+7,3/9+7,4/9+7,8/9+7,7/9+7,3/3+3,3/4+3 |
Number of tires: | 6(PCS) | Tire : | 7.00R16LT 8PR |
Front wheel track: | 1584(mm) | Rear wheel track: | 1620(mm) |
Engine | Model horsepower (ps) | Displacement (ml) | Power (kw)/ horsepower (ps) |
SC28R150Q6 | Shanghai New power Automobile Technology Co., LTD | 2776 | 110/149 |
SC20M150Q6C | Shanghai New power Automobile Technology Co., LTD | 1996 | 110/149 |
1, total flow: ≥1000m³/h;
2, single pump specified point flow: ≥500m³/h;
3, the specified point flow head: ≥12m;
4, speed: ≤3600 revolution;
5, motor power: ≤20KW;
6, pump efficiency: ≥60%;
7. Motor energy efficiency level: Level 1;
8, pump protection grade: ≥IP68;
9, pump weight: ≤32kg;
10, the pump should come with a length of ≥20m JHS diving cable, and equipped with a length of greater than 100mm steel cable sheath;
11, portable pump control system integrated in the control cabinet, can accurately display the pump operating voltage, current and fault;
12, the control cabinet has high safety, use and bad weather outdoor rescue operations, with waterproof and dustproof function, protection level ≥IP44;
13, water pump navigation with high safety, suitable for bad weather outdoor rescue operations, with waterproof and dustproof function, protection level ≥IP65;
14, the control system can achieve soft start and soft stop of the pump, adjustable speed in operation, and has a precise leakage protection device;
15, the control cabinet and the water pump can use the diesel generator set and the mains drive two modes, the control cabinet and the water pump can work normally within 0-500m from the car, to achieve long-distance drainage work, screw fixed, easy to disassemble when the car is used;
16. The inlet and outlet lines of the control cabinet adopt the way of forward and forward, and maintain sufficient safety distance to avoid mixing;
17, each pump is equipped with a separate control system, inverter full control, with a variety of electrical safety specifications certification, in line with the quality certification system and other standards;
18, the pump shell should be made of high-strength lightweight aluminum alloy or stainless steel; The impeller shall be made of wear-resistant and corrosion-resistant stainless steel with a Vickers hardness value of HV > 1400;
19. Each pump equipped with a high-strength floating ring and a traction rope.
20. Each pump equipped with ≥ 75m drainage pipe (divided into multiple pipes), The drainage hose is made of warp and weft twill and high-density braid, lined with waterproof polyurethane hose through high temperature vulcanization, with good wear resistance, pressure resistance (10KG) and puncture resistance, and can be folded up and stored. It has excellent weather resistance, wear resistance, acid and alkali resistance and oil resistance, and the burst pressure of the drainage pipe ≥3.0MPa.
21, the drain pipe and the drain pipe need to use high-quality stainless steel quick joint connection, the joint needs to be equipped with stainless steel locking device.
External power supply :380V and 220V mobile external power output sockets
Grounding device :The grounding pile and grounding cable are connected to the ground pile head specially arranged in the car box for convenient connection.
Internal lighting AC and DC lighting power .
External lighting equipment needs to install two remote control lights on the top of the back of the carriage to provide lighting for night construction. The lights can be used at an adjustable Angle, and the horizontal adjustment Angle is 360 ° and the vertical adjustment Angle is 180 °. Remote control is required for easy use.
Keystone Vessel Manufacturing Co., Ltd
