CFQ-5230TPS6DS
-
SITRAK
-
8705909990

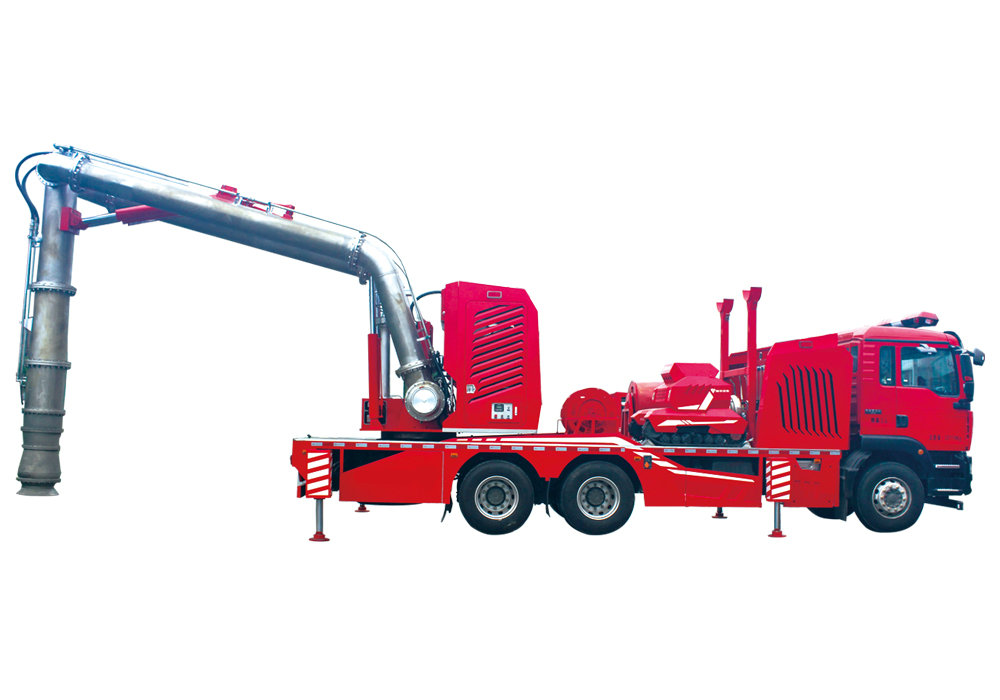

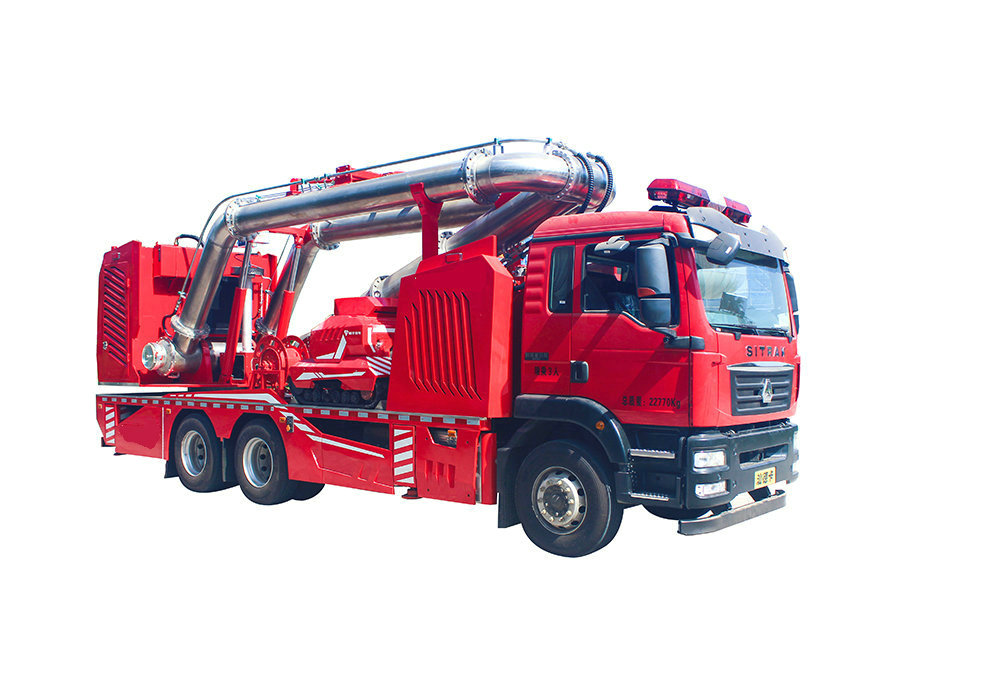

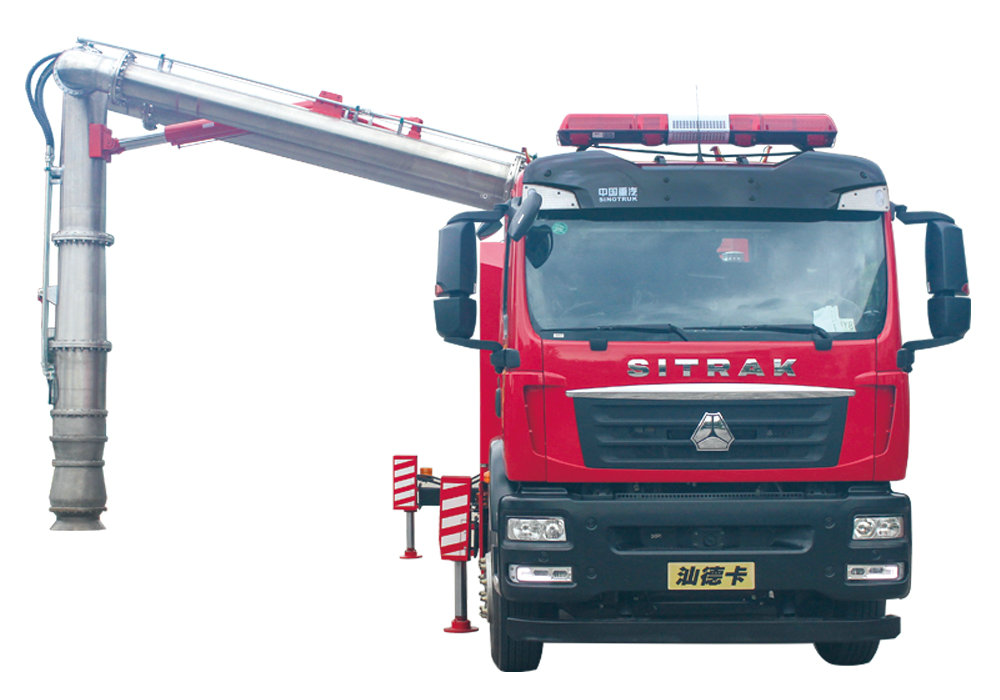

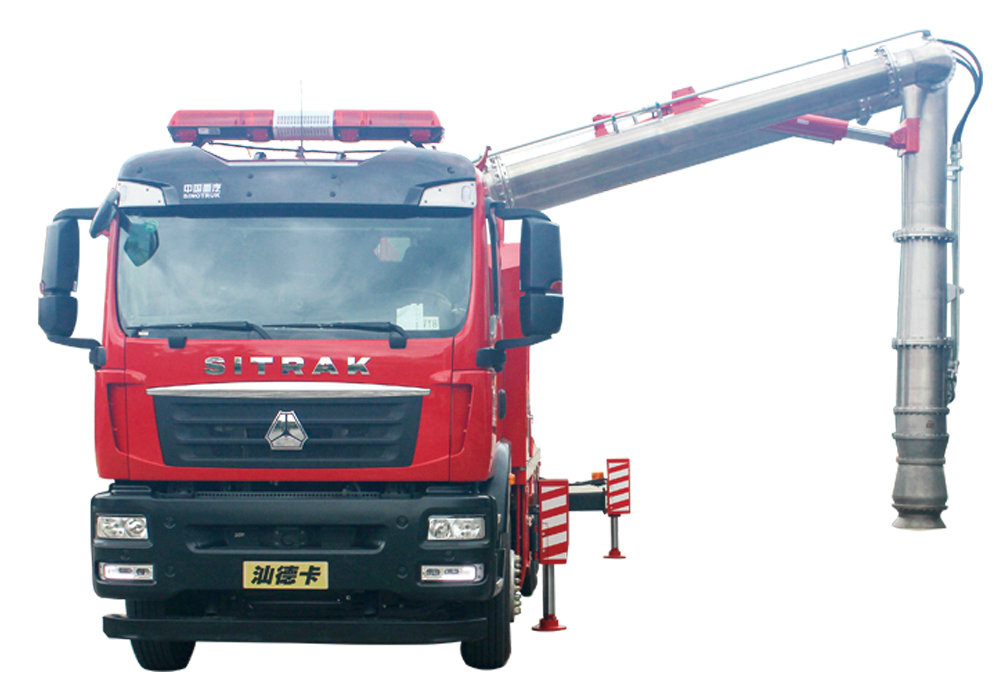

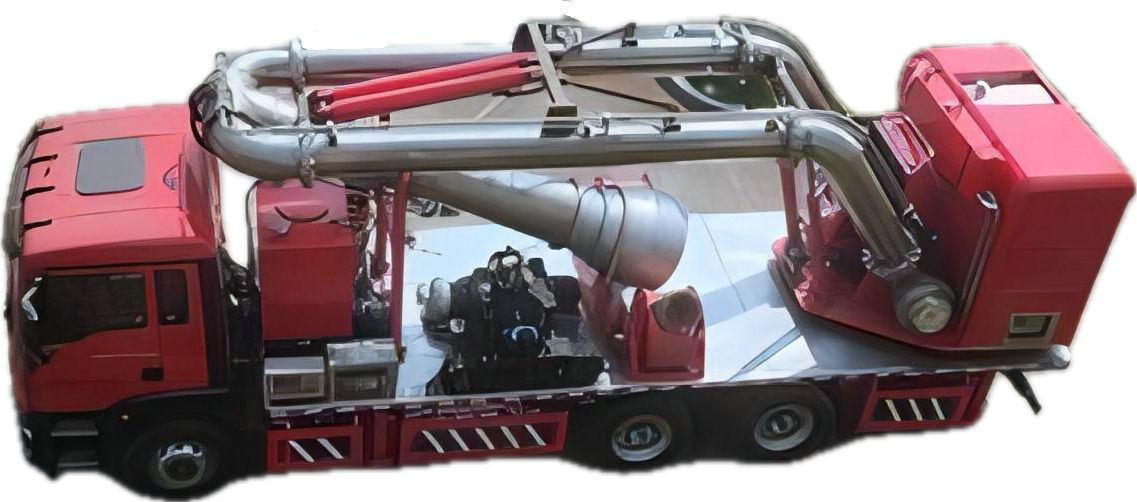

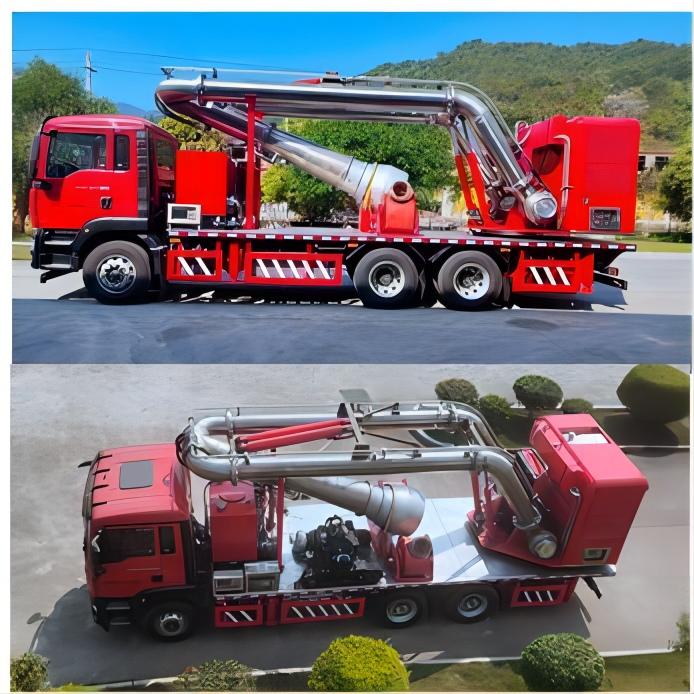

Hydraulic Large Flow Drainage Pump Rescue Vehicles 3000m3/h
Special vehicle used for emergency Water supply or Flood drainage pumping
Purpose:
Drainage pump, drought, water supply
Special equipment for hydraulic system, crawler drainage equipment, rotary drainage equipment, mainly used for emergency drainage
The maximum displacement of the vehicle is 3200-6200m³/h.
The maximum drainage flow of the main pump is 3200m³/h, maximum head 22 meters.

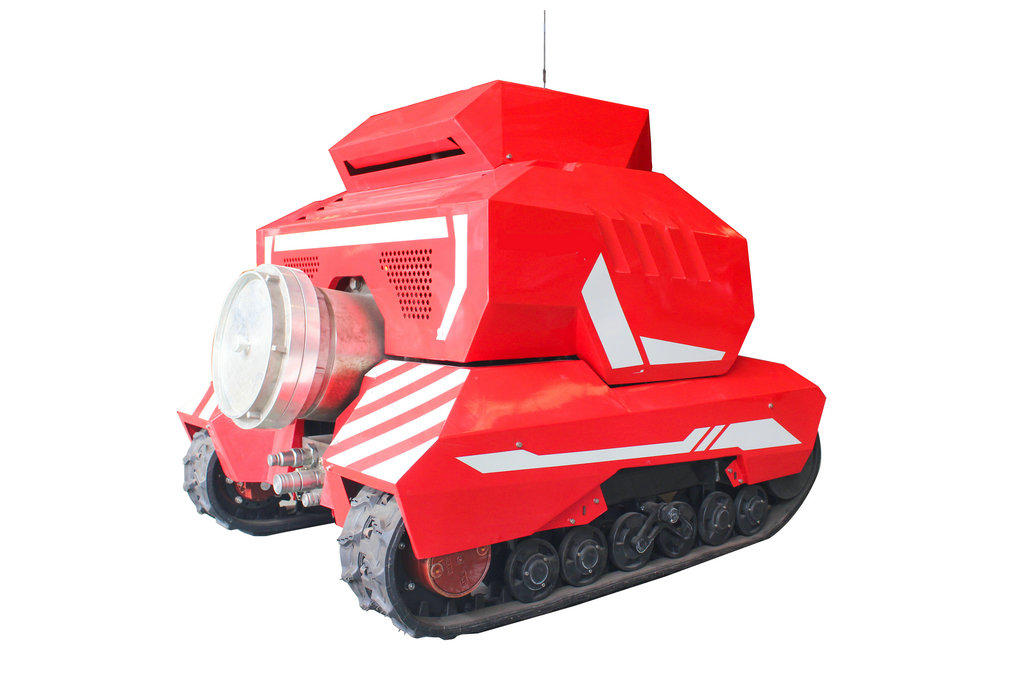

Optional: Intelligent submersible drainage robot, maximum flow of 1500m³/h, maximum lift of 28m (1-2 sets optional)
Main technical parameters
Overall dimensions: | 9880,10000×2520×3960(mm) | Fuel Type: | Diesel oil |
Gross Weight | 23495,23000,22510(Kg) | ||
Net weight | 23365,23300,22870, 22805,22380,22315(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 16/9,16/8(°) | Front/rear overhang: | 1450/2755,1450/2875(mm) |
Axle Load: | 6700/16795,6550/16450,6380/16130 | Wheelbase: | 3875+1400,3900+1350, 4275+1400,4300+1350, 4575+1400,4600+1350, 4975+1400,5000+1350, 5375+1400,5400+1350, 5775+1400,5800+1350(mm) |
Axle Number | 3 | Maximum speed: | 80,89,110(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 12.00R20 16PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR/315/80R22.5 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,3/5,3/10,11/10,11/12,3/-/- |
Front wheel track: | 1998,2035(mm) | Rear wheel track: | 18 |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
WP7.270E61;WP7.300E61;MC07H.35-60;MC07H.33-60;MC07H.29-60;MC07.33-60;MC09.35-60;MC07.31-60;MC07.27-60;MC07.34-60;WP8.350E61;WP6H270E61;MC09.38-60;MC07.25-60;WP8.320E61;WP7H270E62;WP7H300E62;WP7H320E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7470;7470;7360;7360;7360; 6870;8765;6870;6870;6870;7800;6220;8765;6870;7800;6800;6800;6800 | 199;220;257;240;213;240; 260;228;202;251;257;199;279;188;235;199;221;235 |
