FYL-5170TPSSDK
-
SITRAK
-
8705909990

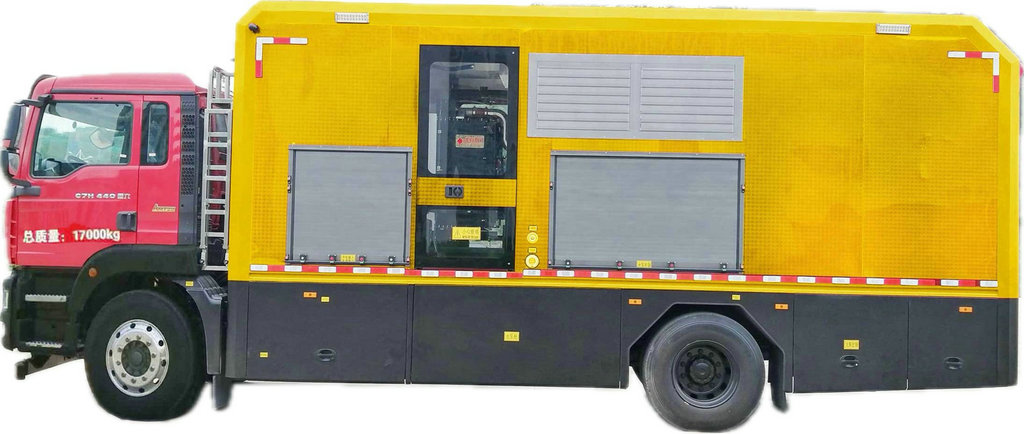

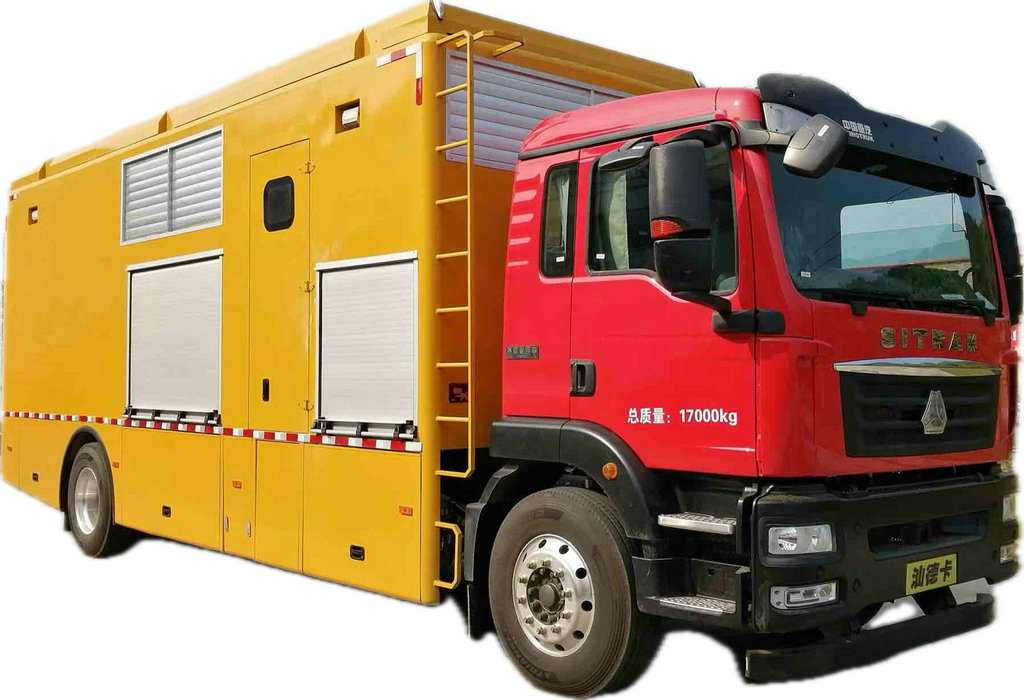

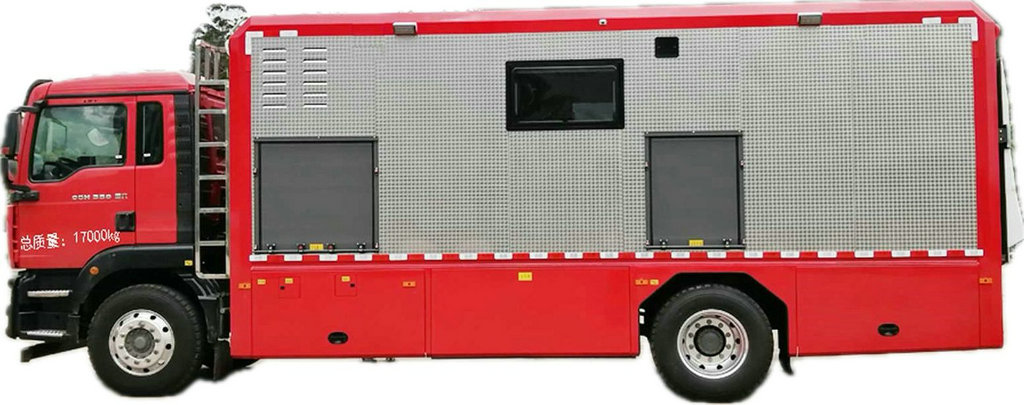

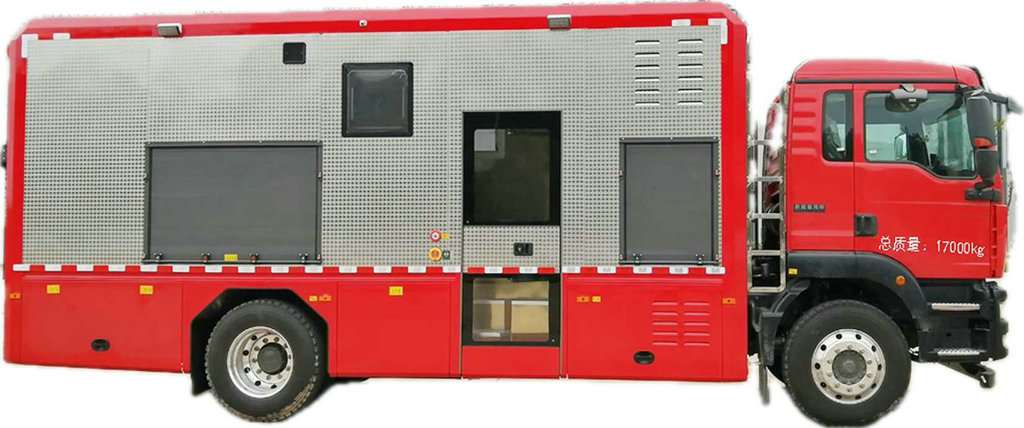

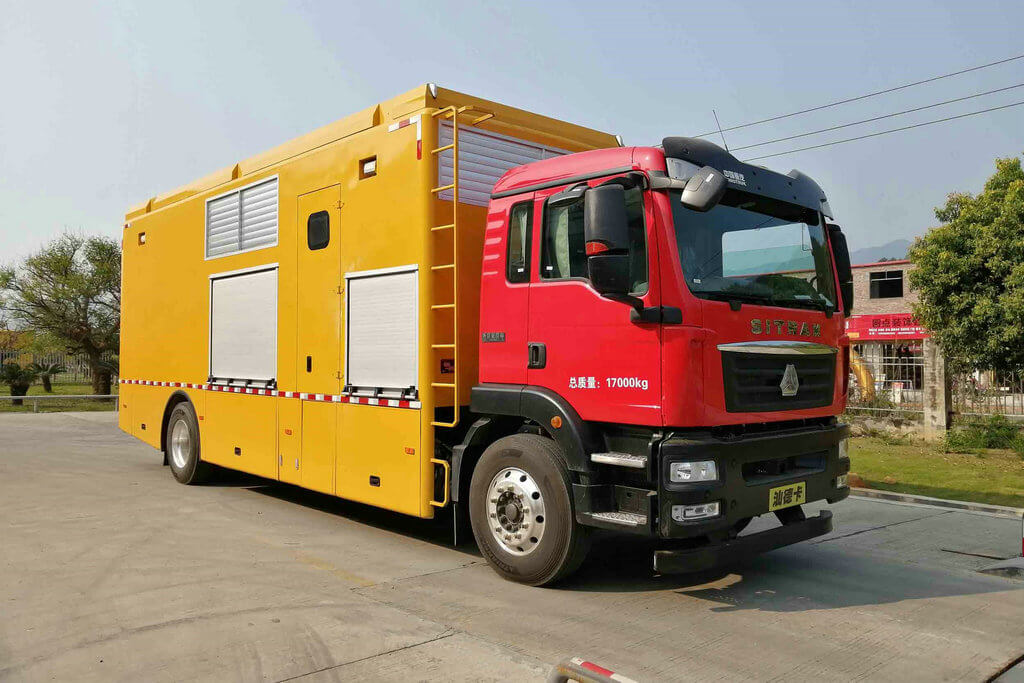

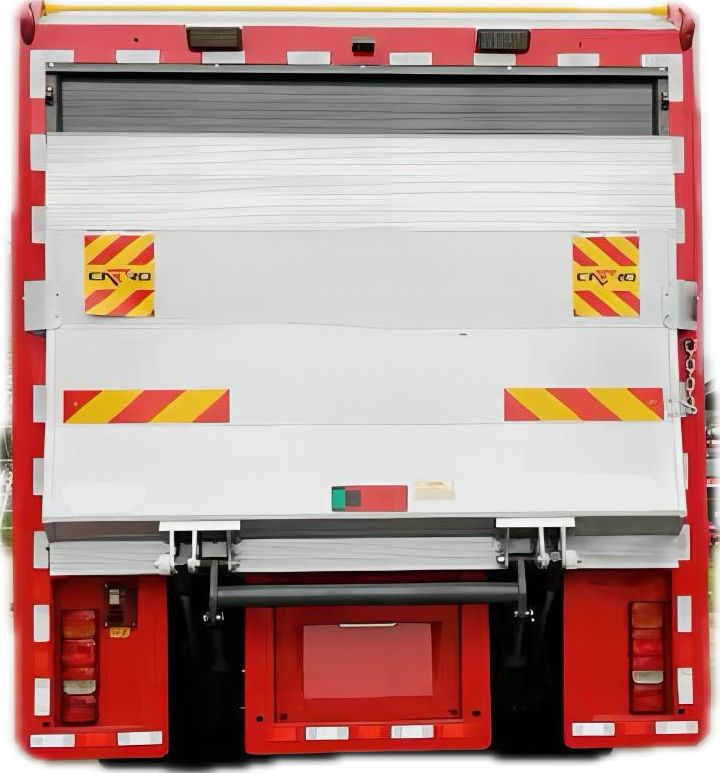

SITRAK Large Flow Electric Power Drainage Truck 4800M3/h
Chassis model: ZZ5206N501GF1
Generator set: rated power ≥ 200kW, wiring mode: three-phase four-wire
The rated voltage should meet: line voltage 380V, phase voltage 220V; It can support the output of 220V/380V voltage to other electrical equipment.
Electric Drainage Pump Maximum Flew : ≥4800m³/h
Drainage Vehicle (Mobile Pump Station) is composed of drainage rescue unit, power systems and auxiliary lighting, with the advantages of integration design, reasonable layout, high efficiency, high speed and lightweight, etc. Emergency operating radius is large (0-500m distance or farther), and 8 sets of water drainage units can be configured as per customers’ requirements (the max. water-output is 400m³/h per set, the lift is 6-12m). The vehicle is also equipped with vehicle-mounted power generation system, to resolve the rescue equipment’s dependencies on power system and act as a back-up power to supply external power and lighting
Overall dimensions: | 8870,8600,9470,9200,9670,9400,9920,9650 ×2500,2550×3400,3500,3600,3650,3700,3750,3800,3900(mm) | Fuel Type: | Diesel oil |
Gross Weight | 17000(Kg) | ||
Net weight | 16870,16805(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 16/12,16/13(°) | Front/rear overhang: | 1450/2420,1450/2150(mm) |
Axle Load: | 6000/11000 | Wheelbase: | 4500,4700,5000,5200, 5600,6050,4200,3900, 5800,6300(mm) |
Axle Number | 2 | Maximum speed: | 110(km/h) |
Tire Number | 6(PCS) | Tire Specifications: | 315/80R22.5,295/80R22.5,12R22.5, 12.00R20,11.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3+2,3/3+2,3/9+8,11/9+8 |
Front wheel track: | 1998,2035(mm) | Rear wheel track: | 1850(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
MC07H.35-60;MC07H.33-60;MC07H.29-60;MC07.34-60;MC07.33-60;MC07.31-60;MC07.27-60;WP7.270E61;WP8.350E61;WP7.300E61;WP7H320E62;MC07H.31-61;MC07H.35-61;WP8.350E62;MC07.27-61;MC07H.35P-61 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD | 7360;7360;7360;6870;6870;6870;6870; 7470;7800;7470;6800;7360;7360;7800;6870;7360 | 257;240;213;251;240;228;202;199;257; 220;235;228;254;257;202;258 |
Mobile water supply and drainage system

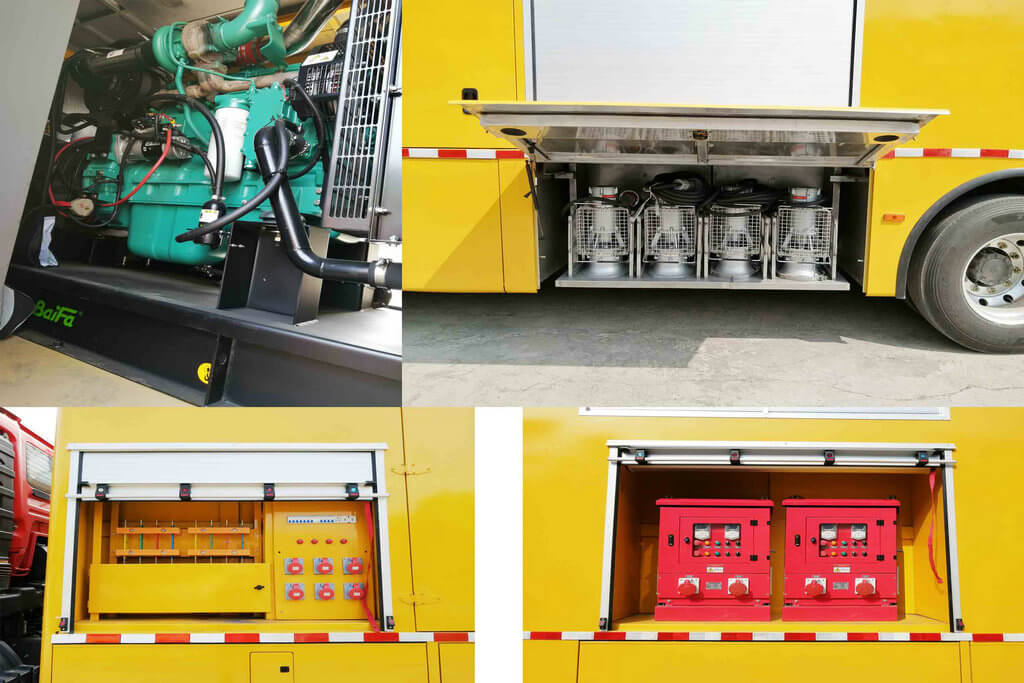

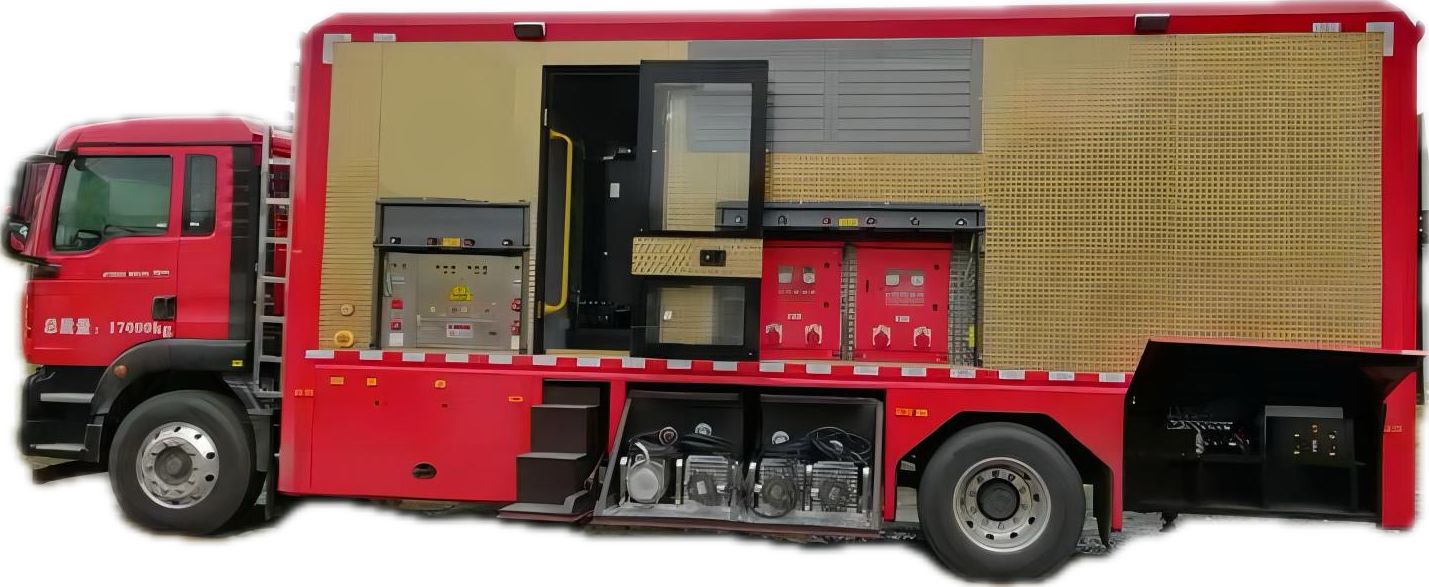

The mobile water supply and drainage system consists of 8 portable submersible electric pumps equipped with 2 sets of high-lift hydraulic modules.
19. The supply and displacement of the whole vehicle is ≥ 4800 m3/h.
20. The mobile water supply and drainage control system has the function of stepless speed regulation, and the water supply and drainage can be adjusted when the submersible pump is working; Moving water supply and drainage system and control system are modular design, convenient loading and unloading.
21. The performance parameters of a single portable submersible pump are: flow rate ≥ 600 m3/h, head ≥ 8 m, power ≥ 22 kw, rotational speed ≤ 3500rpm, weight ≤ 35 kg.
22. The portable submersible electric pump can be quickly replaced with the hydraulic module at the work site, realizing large-flow pumps (when the flow rate is ≥ 600 m3/h, the head is ≥ 8 m) and high-lift pumps (when the flow rate is ≥ 150 m3/h); In order to meet the demand of water supply and drainage under different working conditions, the head is more than 37 m.
23. The impeller of the portable submersible pump is made of 2Cr13 steel, and the material of the main passing hydraulic components (integral fluid, impeller chamber) is made of 0cr18ni9 steel or 304 stainless steel. The surface is treated with wear-resistant hard coating, and the Vickers hardness (HV) is above 1600.
24. The diameter of the portable submersible electric pump is ≤ 350 mm, the length is ≤ 600 mm, and the pump body is equipped with a handle; With stainless steel strainer, with butterfly nut.
25. Portable submersible electric pump equipped with high-strength fast floating ring, integrated. Soft fixed sling with bayonet suspension ring connection
26. Using JHS submersible cable, each portable submersible pump has its own cable of 10m, 2 extension cables, the length of a single cable is 20 meters, and the total length is more than 50m. Both ends of the extension cable are equipped with fast aviation joints, and the protection level of the joints reaches IP67.
27. The drain water belt for the whole vehicle: the material is woven with a long axis of synthetic fiber, and it is coated with wear-resistant and waterproof resin. The length of the water belt (pipe diameter 250mm) is ≥ 400m, and the length of a single pipe is ≤ 20m. Both are equipped with drain pipe clamps, and quick pipe joints are provided between the drain pipes, and conversion joints are equipped according to user needs;
28. The mobile water supply and drainage control system is integrated in the water pump control cabinet. The weight of the control cabinet is ≤ 50kg. The control cabinet is equipped with professional hoisting components. The water pump control cabinet is detachable and movable, and can work normally in the area within 0-500m from the generator set.
29. The liquid crystal display of the water pump control cabinet can display the operating voltage, current, speed and fault of the water pump in real time; The control system can control the starting, stopping and running speed of the water pump, and also has the function of self-checking and self-checking.
30. The control cabinet and water pump can be driven by diesel generator or mains power.
31. The mobile water supply and drainage control system is equipped with a leakage protection device according to the double-layer protection standard.
3. Power generation system
32. The vehicle is equipped with an independent diesel generator set, equipped with a power conversion device, and equipped with 6 sets of 380V industrial aviation sockets and 220V sockets.
33. The main output rated power of the diesel generator set is ≥ 200 KW, and the spare power is ≥ 220 KW.
34. Diesel engine emissions: meet the requirements of National III.
35. The air inlet and exhaust heat dissipation design of the generator set is reasonable, and the volume of the fuel tank can meet the use requirements of the generator set for more than 8 hours.
4. Lighting system
36. Install lodging lifting lighting equipment on the top of the vehicle.
37. It can realize two kinds of operation, remote control and wire control, and the remote control operation distance is more than 25m; If the lifting height is greater than 1.8 m, the searchlight can rotate up, down, left, and right, 360 ° horizontally, and 330 ° vertically; Horizontal and vertical rotation speed: 4r/min, protection grade ≥ IP66; Lamp cap power ≥ 500 W, working voltage 220V, luminous flux ≥ 90000lm, working current less than 15A; Working environment temperature:-40 ° ~ 55 °; Wind resistance of ≥ 50km/h;
