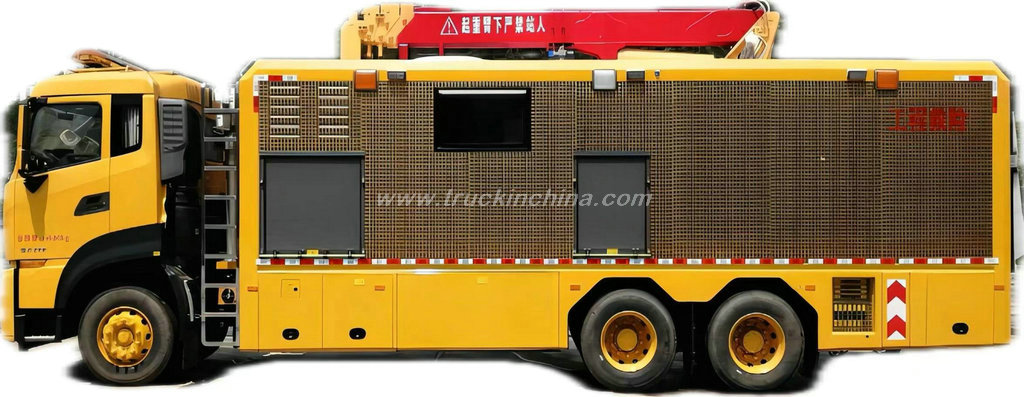

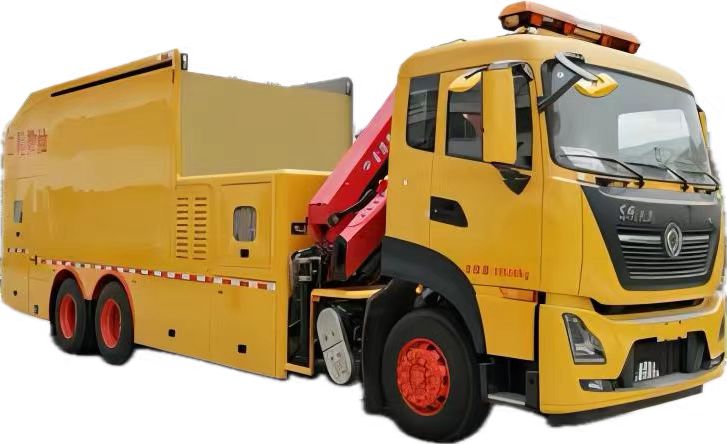

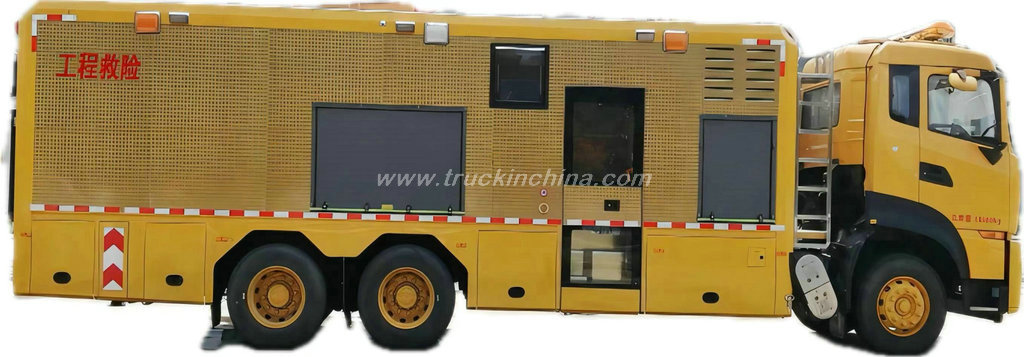

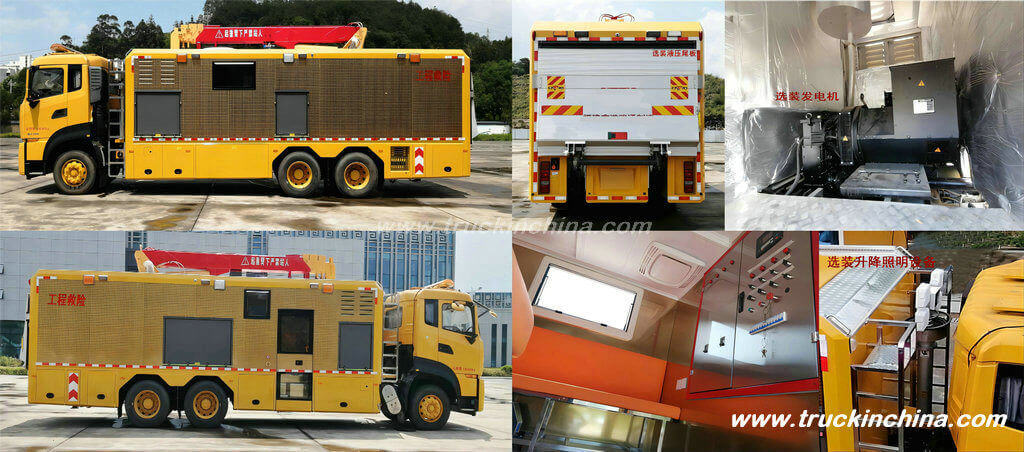

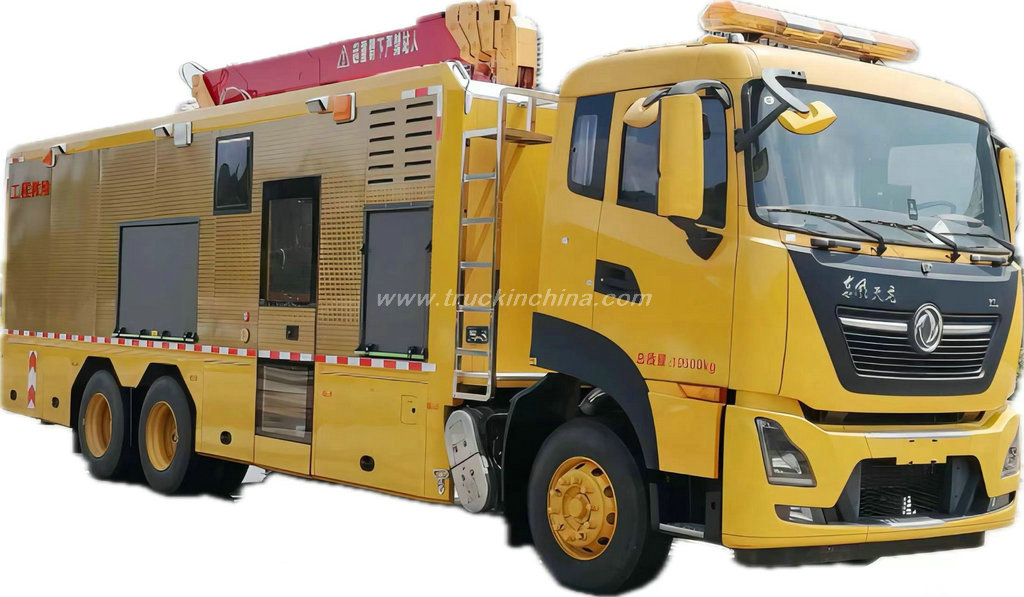

DFAC Customized Multi-functional Waterlogging Vehicle with Crane & Crusher
Folding Crane boom lifting capacity ≥ 6 T;
Drainage systems ≥ 2000 m ³/h, ≥ 10 m.
Generators power ≥ 100kw;
Crusher crushing diameter ≥ 25 cm， ≥ 25 m ³ /h
Wast storage tank ≥ 13 m ³; Compressible transfer and automatic discharge.
Lighting system lifting lighting height ≥ 2.5 m, ≥ 3500lm, 360-degree rotation.
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
FYL-5200XXHDF6
-
DFAC
-
8705909990
DFAC Customized Multi-functional Waterlogging Vehicle with Crane & Wast Crusher
Dongfeng Chassis ：DFH1250D4
Used for emergency power supply, emergency drainage rescue, emergency typhoon and other natural disasters after the tree straightening and crushing operations, the car equipped with special devices generator, large flow portable rescue drainage pump, boom and slicing machine and other supporting systems
Main technical parameters
Overall dimensions: | 10900,10150×2500,2550×3900,3800,3700,3600,3500,3400,4000(mm) | Fuel Type: | Diesel oil |
Gross Weight | 19500(Kg) | ||
Net weight | 19370,19305(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 20/11(°) | Front/rear overhang: | 1480/2720,1500/2700(mm) |
Axle Load: | 5500/14000 | Wheelbase: | 4350+1350,5350+1350, 5700+1350,4600+1350, 4800+1350(mm) |
Axle Number | 3 | Maximum speed: | 89(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 295/80R22.5 18PR,11.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/10,3/4,9/10 |
Front wheel track: | 2010,2040,2070(mm) | Rear wheel track: | 1860/1860,1880/1880(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
D6.7NS6B290;DDi75E350-60;DDi75E300-60;DDi75E340-60;D6.7NS6B320 | Dongfeng Commercial Vehicle Co., LTD.; Dongfeng Cummins Engine Co., LTD | 6700;7500;7500;7500;6700 | 213;257;220;250;231 |
1 Chassis:
1.1High-quality chassis made in China, referring to or equivalent to Isuzu, SAIC Hongyan Iveco, Shandeka, Dongfeng
1.2 Maximum speed ≥ 90km/h;
1.3 chassis load capacity ≥ 18 t.
1.4 rated power ≥ 200 kW,
1.5 diesel-driven, direct injection turbocharged, water-cooled engine
1.6 Steering: Left-hand driving, power-assisted steering.
1.7 Braking: Dual-circuit braking system with ABS.
1.8 Gearbox: Synchronous manual shift gearbox.
1.9 Battery: 24V DC, volume ≥ 200Ah; There is a circuit master switch in the cab. 1 set of clamshell charging system, located on the left side of the cab, with an external power socket (220V). When not in use, the waterproof baffle should cover the socket. When the fire truck starts, the charging plug can automatically fall off.
1.10 Oil tank ≥ 200 L (oil tank injection port with filter)
1.11 Vehicle specific power ≥ 10 kW/t
1.12 Maximum speed ≥ 90km/h
1.13 Other equipment: low beams, high beams, front fog lamps, rear fog lamps, reverse lamps, turn signals, profile lights, adjustable steering wheel, automatic brake adjustment device, reverse alarm sound, mudguard, front and rear tow hooks, spare tire, oil-water separator for fuel system, air dryer for brake system, jacks, vehicle tools, etc.
1.14 Emissions: China VI
2.1 Structure: flat head, with hydraulic turning mechanism, electric lifting windows. The driver's seat is adjustable. Not less than 7 inches color reversing monitor, the body is equipped with a 360-degree panoramic camera. A 12V on-board radio and driving recorder power interface are reserved in the cab. LED warning lights are installed on the roof of the cab, and sirens are installed on the roof.
2.2 Instruments and sensors: The cab is equipped with a main power switch, a power take-off switch, an alarm light switch, a power inverter, a warning light display, an alarm switch display, and a shouting device.
Other equipment: radio, wipers and liquid glass, interior lighting of the cab, heating and cooling air conditioning, ventilation unit, windshield defrosting, rearview mirror, sun visor, light adjustment, power connection socket.
It has the requirements of transportation, rainproof, anti-corrosion, fire prevention and rust prevention. The upper body should maintain a certain degree of flatness, simplicity and beauty, and all welds should be firm, smooth and smooth; All gaps must be coated with silicone gel, the silicone gel is flat and sealed well. All small hardware should be made of stainless anti-corrosion material. The doors on both sides of the compartment are fully enclosed, and the doors on both sides can be turned up or opened on the side.
4. Folding Crane boom:
4.1 Maximum rated lifting capacity ≥ 6 T;
4.2 Working radius ≥ 12m;
4.3 Working height ≥ 14m;
4.4 Turn speed ≤ 1 r/min
4.5 It has both vehicle control and wireless remote control functions.
5. Drainage systems
5.1 The total displacement is ≥ 2000 m ³/h, and the head is ≥ 10 m.
5.2 The flow rate of a single pump is ≥ 500 m ³/h. The weight is ≤ 32 kg. The pump body is equipped with a handle and a high-strength floating ring;
5.3 Equipped with 10 drain hoses with a length of 20m and a diameter of 25cm, with a pressure resistance of more than 1Mpa, the material can be folded and rolled up, and it is wear-resistant and puncture-resistant.

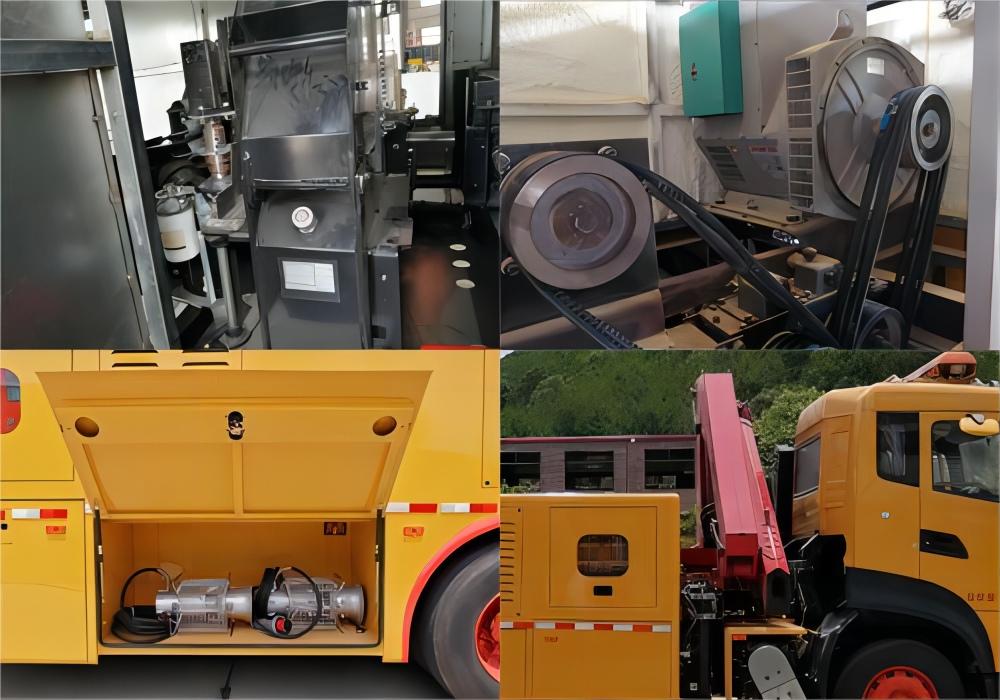

6 Generators
6.1 rated power ≥ 100kw;
6.2 Generators of high quality, comparable to or equivalent to Marathon, Stanford, Yacos or not less than equivalent;
6.3 The volume of the fuel tank can meet the continuous use time of the generator set for no less than 8 hours;
7 Crusher;
7.1 Maximum crushing diameter ≥ 25 cm
7.2 Maximum crushing volume ≥ 25 m ³ per hour
7.3 Continuous working hours not less than 24 hours.
8 The volume of the storage tank is ≥ 13 m ³; Compressible transfer and automatic discharge.
9 Lighting system: lifting lighting height ≥ 2.5 m, power ≥ 250W, searchlight luminous flux ≥ 3500lm, all support 360-degree rotation.
10. Control system: Operation The control system should support wired and remote control operation.
