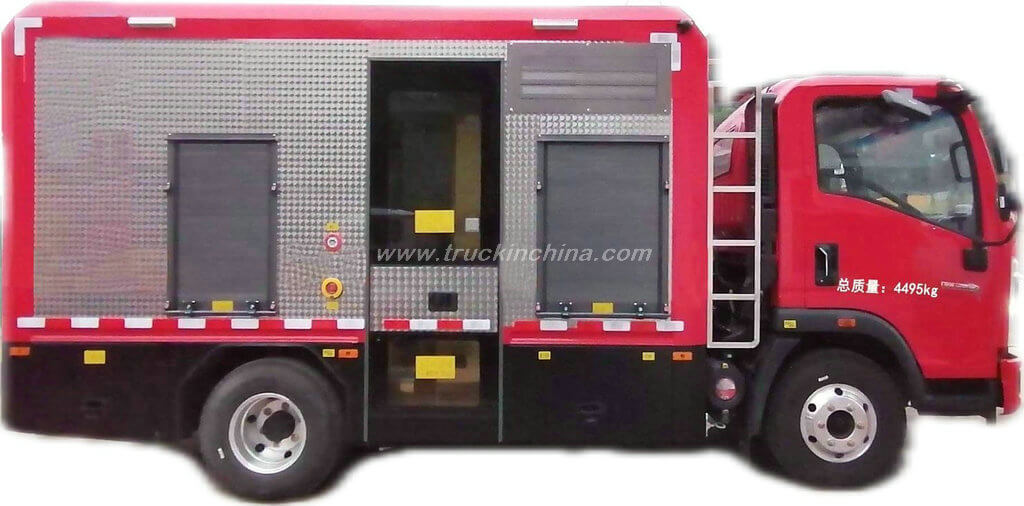

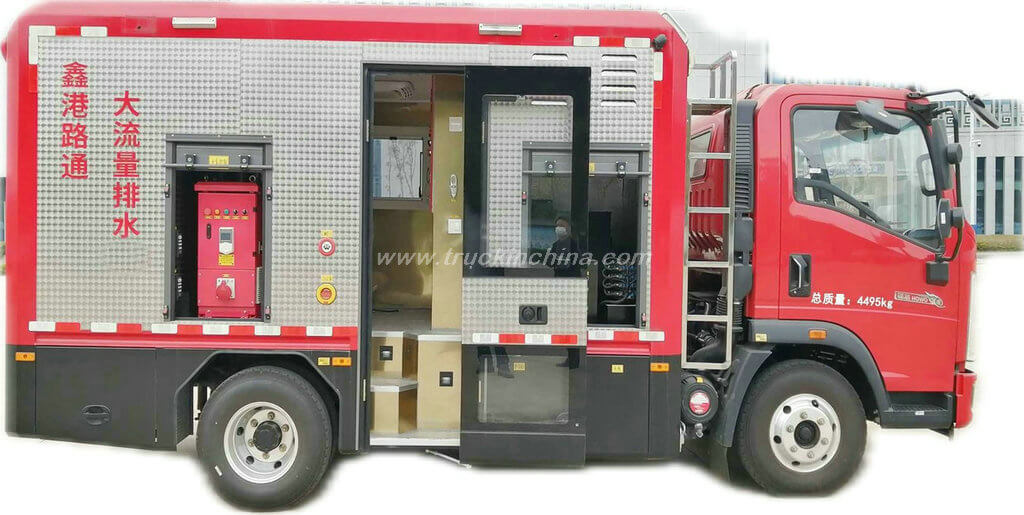

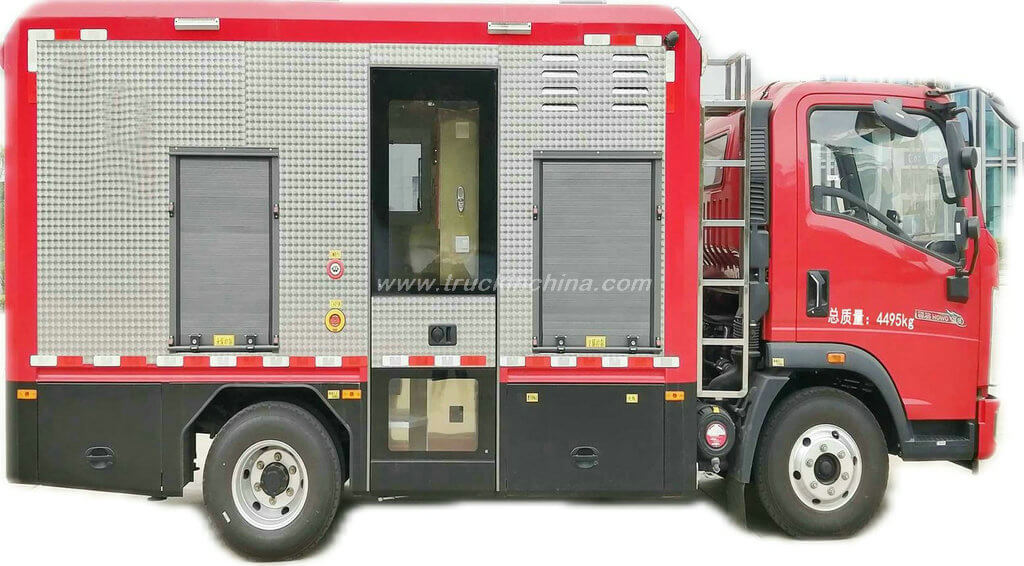

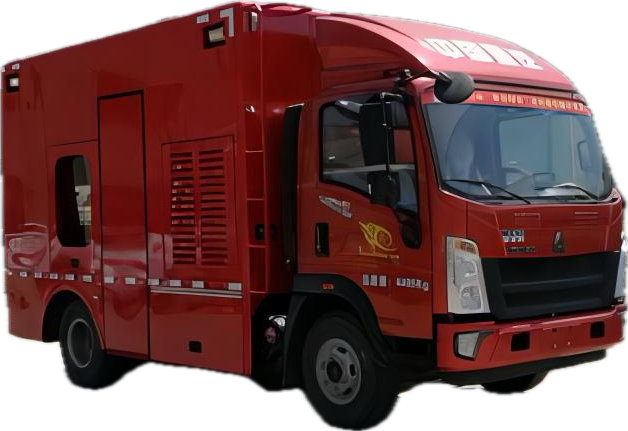

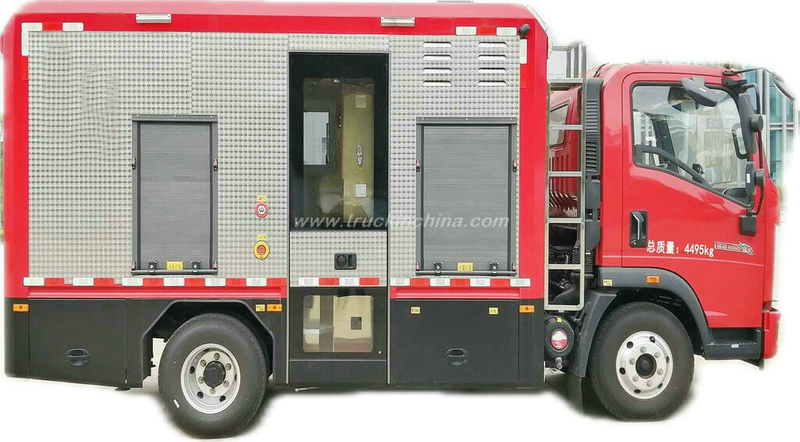

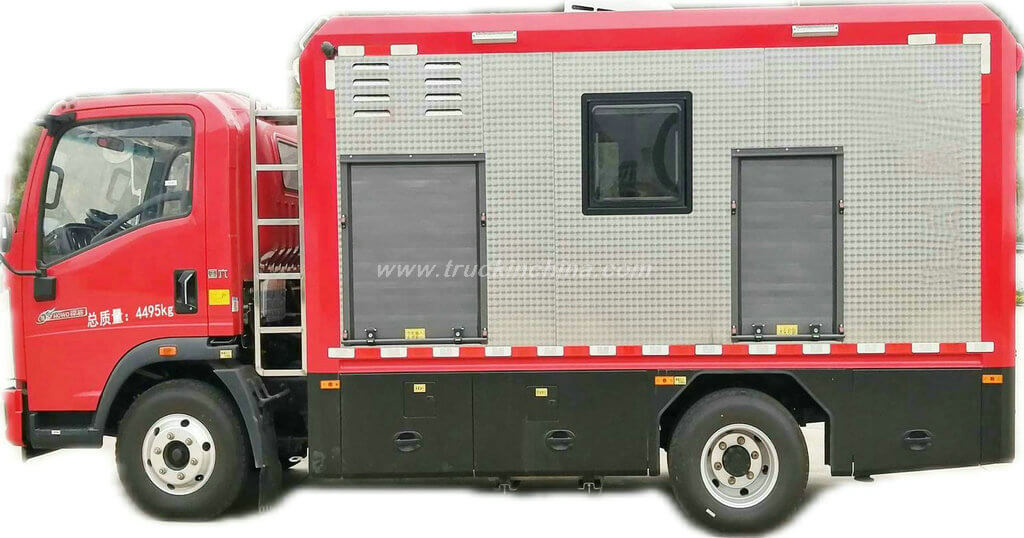

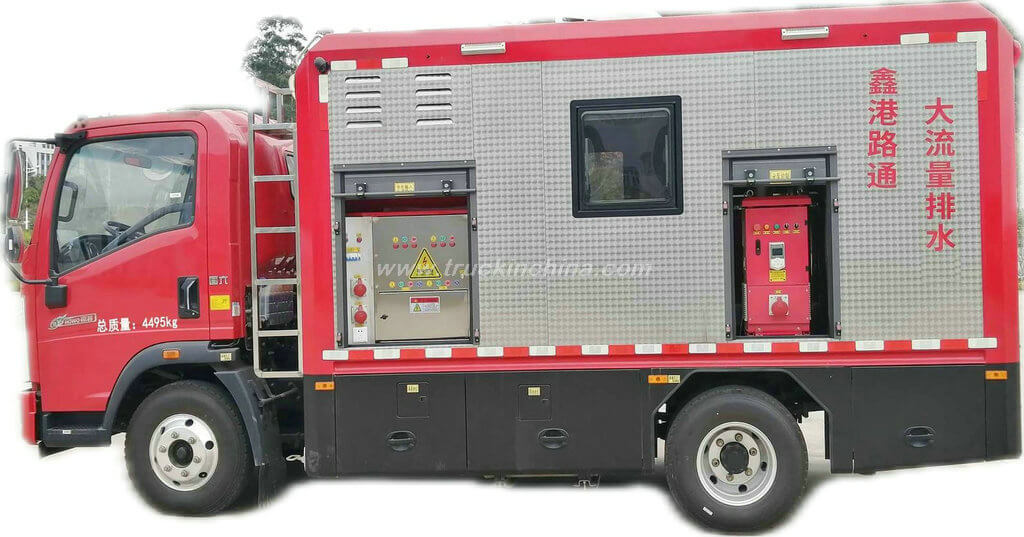

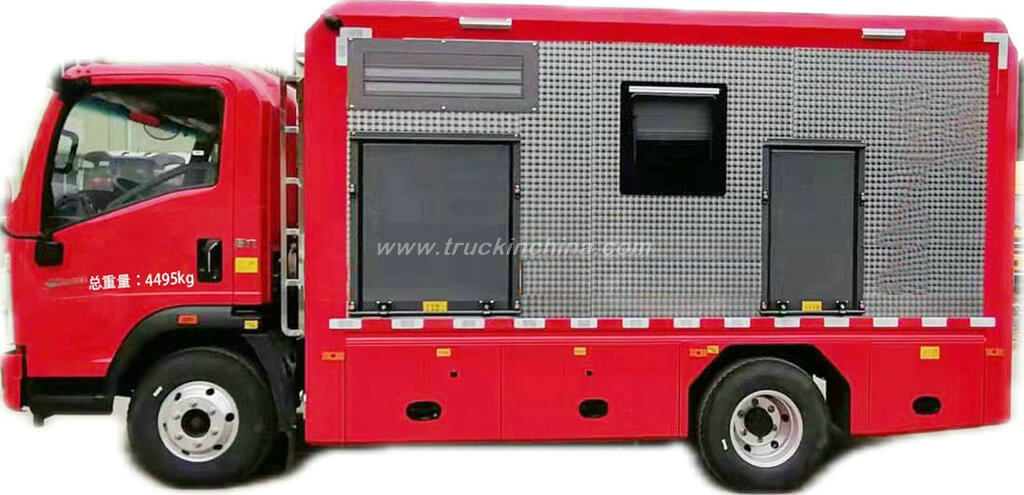

HOWO Flood Rescue Truck with Mobile Drainage Pump1000 m3/h
Generator power ≥50kw voltage 380V/220V,
3 large flow portable submersible drainage pumps, 2 main and 1 standby.
Single pump flow ≥500m³/h
High Water Rescue Flood Truck
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
FYL-5040TPSJNHW6
-
HOWO
-
8705909990
HOWO Flood Rescue Truck with Mobile Drainage Pump1000 m3/h
HOWO Chassis : ZZ1047H3315F144

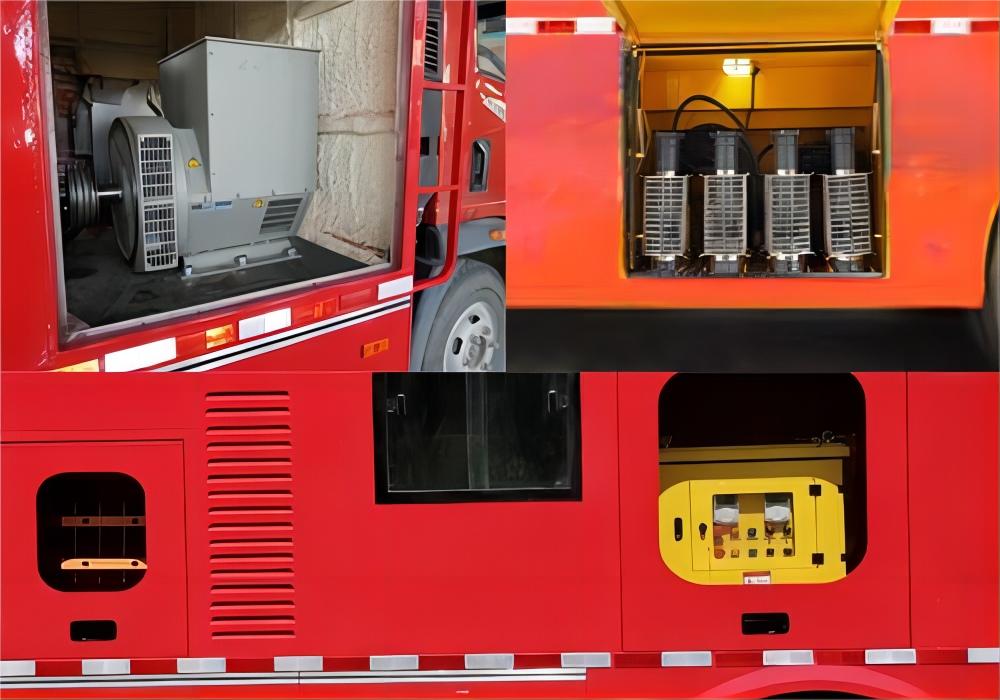

Rescue Truck used for emergency power supply, emergency supply, drainage and emergency operation. The car is equipped with special equipment such as generator, large flow portable emergency drainage pump and other supporting systems
Main technical parameters
Overall dimensions: | 5980×2200,2250,2300,2350,2400,2450,2500 ×2200,2400,2600,2800,3000,3200,3400(mm) | Fuel Type: | Diesel oil |
Gross Weight | 4495(Kg) | ||
Net weight | 4300,4365(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 18/16(°) | Front/rear overhang: | 1180/1520(mm) |
Axle Load: | 1790/2705 | Wheelbase: | 3280,3360,3600(mm) |
Axle Number | 2 | Maximum speed: | 95(km/h) |
Tire Number | 6(pcs) | Tire Specifications: | 7.00R16LT 10PR,7.50R16LT 8PR, 205/85R16LT 8PR,215/85R16LT 8PR, 8.25R16LT 6PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3+2,2/2+1,2/2+2,3/4+3, 2/3+2,1/1+1,11/9+7,11/11+7,3/5+3 |
Front wheel track: | 1776,1796,1815(mm) | Rear wheel track: | 1595,1695,1795(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
D40TCIF1 | Kunming Yunnei Power Co.,Ltd Dongfeng Zhaochai power Co., LTD Weichai Power Co., Ltd. Beijing Foton Cummins Engine Co., LTD | 4052 | 135 |
1 Chassis:
1.1 Domestic high-quality chassis, referring to or equivalent to Isuzu,
1. Chassis
1.1 Emission standards, engine power ≥ 130 KW;
1.2 Maximum speed ≥ 90km/h;
1.3 Hydraulic power steering, equipped with heating and cooling air conditioning;
1.4 Wheelbase ≤ 3500 mm;
1.5 The exterior of the vehicle is equipped with marking lights or reflective signs according to the needs of the purchaser and national standards.
2. Car form
2.1 Cabin body: It has the requirements of transportation, rain protection, corrosion protection, fire protection, rust protection and sound insulation. The external steel is high-quality cold-rolled steel plate or not less than the same performance material, and the inner is lined with high-quality cold-rolled steel plate bending frame or not less than the same performance material;
2.2 The doors on both sides of the compartment are fully enclosed, and the doors on both sides need to be noise-reduced, and the doors on both sides can be turned up or opened sideways.
2.4 The carriage needs to have a ladder to facilitate maintenance; The rear door can be closed;
2.5 Strict anti-leakage protection measures should be installed, and the marks of the control parts of each system should be clearly identified;
2.6 The carriage is equipped with an operation room, and the generator set control and monitoring panel is installed in the lounge, and the operation room door is equipped with an observation window. It is equipped with top-mounted heating and cooling air conditioners, etc.
2.7 360-degree images and driving recorders are installed in the cab.
3. Vehicle size
3.1 Vehicle length: ≤ 6000mm;
3.2 Vehicle width: ≤ 2500 mm;
3.3 Vehicle height: ≤ 3200mm.
4. Luminaires and warning signs
4.1 Internal lighting: AC and DC dual lighting power supply, no dead ends in the light inside the car;
4.2 External lighting system: lifting lamp height ≥ 2.5 m, power ≥ 150 W; Light source form: LED lamp; Wired remote control and wireless remote control can rotate 360 degrees left and right;
5. Generators
5.1 Rated power ≥ 50kw, equivalent to or better than Marathon, Stanford, Yakos, etc.;
5.2 The whole vehicle is equipped with the power output terminal of the generator set, the voltage is 380V/220V, and the output power ≥ 50kw;
6. Drainage systems
6.1 Equipped with 3 large flow portable submersible pumps, 2 main and 1 standby.
6.2 The vehicle can meet the requirements of two high-flow submersible pumps working at the same time. When the head is ≥ 10 m, the flow rate of a single pump is ≥ 500 m ³/h; When the head is more than 40m, the single pump flow rate is more than 100m ³/h.
6.3 The weight of a single pump is ≤ 32 kg, and the power is ≥ 22 kw.
6.4 Pump impeller, integral fluid, impeller chamber and other components are made of 304 stainless steel or no less than the same performance material;
6.5 The pump body is equipped with a handle, which is convenient for single handling; Portable submersible pump is equipped with stainless steel wire filter (one for one), with quick installation, easy to assemble, disassemble and clean, single pump is equipped with high-strength floating ring, each pump is equipped with one.
6.6 Drainage hose: Adopt soft material, long shaft weaving, synthetic fiber, wear-resistant and waterproof resin coated inside and outside, foldable rolled up, wear-resistant and puncture-resistant. Water distribution belt of each main pump is ≥ 80m, divided into four sections, each section is 20m in length, 250mm in diameter, weight ≤ 32kg, pressure resistance ≥ 1Mpa, material of drainage pipe is foldable rolled up, wear-resistant and puncture-resistant.
6.7 Use frequency conversion to start, and can also use mains power; Each control cabinet controls no more than 2 submersible pumps, and the weight of the control cabinet is less than 50KG. The visual window interface of the control cabinet can accurately display the operating voltage, current, speed and failure of the pump.
6.8 The total length of the cable from the control cabinet to the water pump is ≥ 30 meters, equipped with quick connectors, and the waterproof grade of the connectors reaches IP67.
6.9 Control system: The control system has a visual operation interface, and the control instrument can clearly read the operating parameters in darkness or sunlight; Real-time monitoring of operating parameters, with leakage, current overload, phase loss, overvoltage, undervoltage, overfrequency, underfrequency, motor overheat and other display functions, and with corresponding safety protection measures; The control system is controlled by frequency converter, and the speed of water pump motor can be adjusted. The control system can be disassembled from the car.
6.10 The equipment box layout form is customized according to the needs.
7. Quick connectors 250 caliber, 4 sets in total, each section of the water pipe is equipped with a set. Installed at both ends of the drainage hose to facilitate the connection between water pipes.
