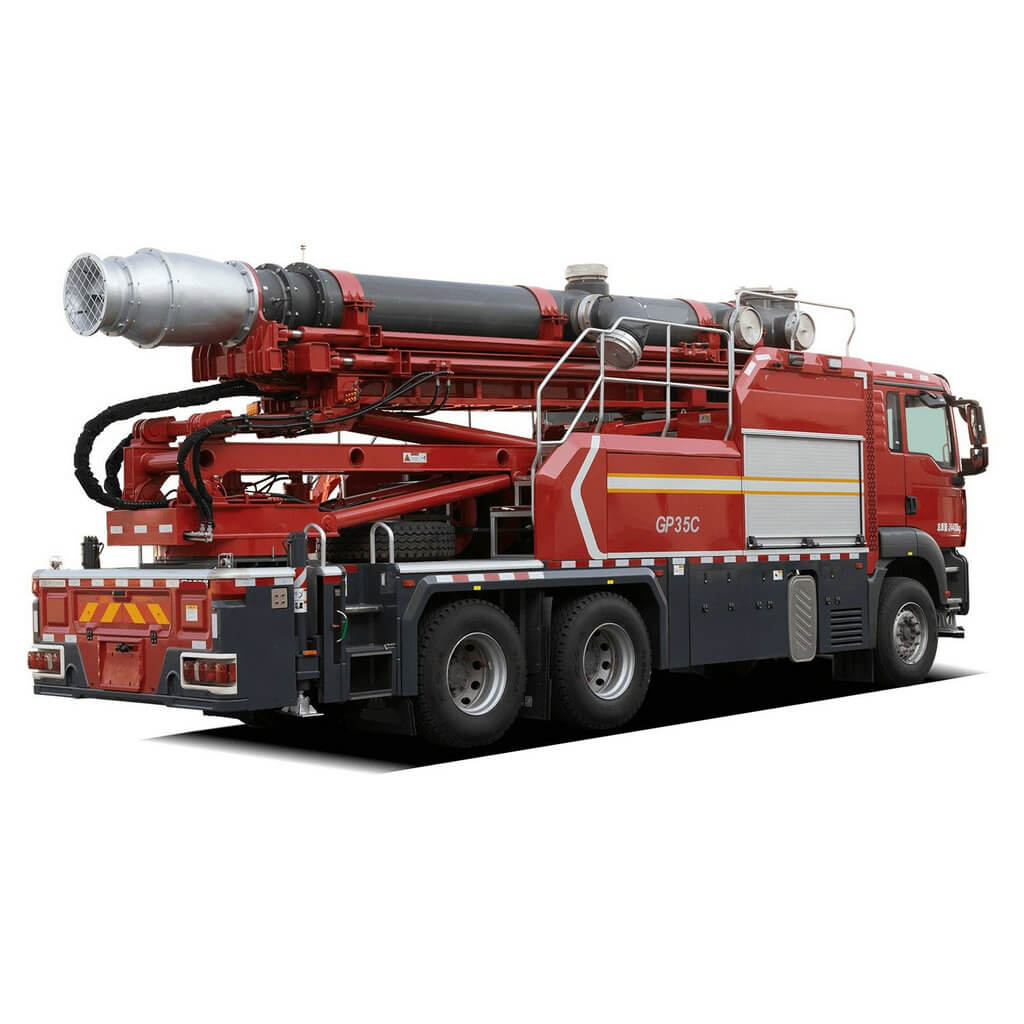

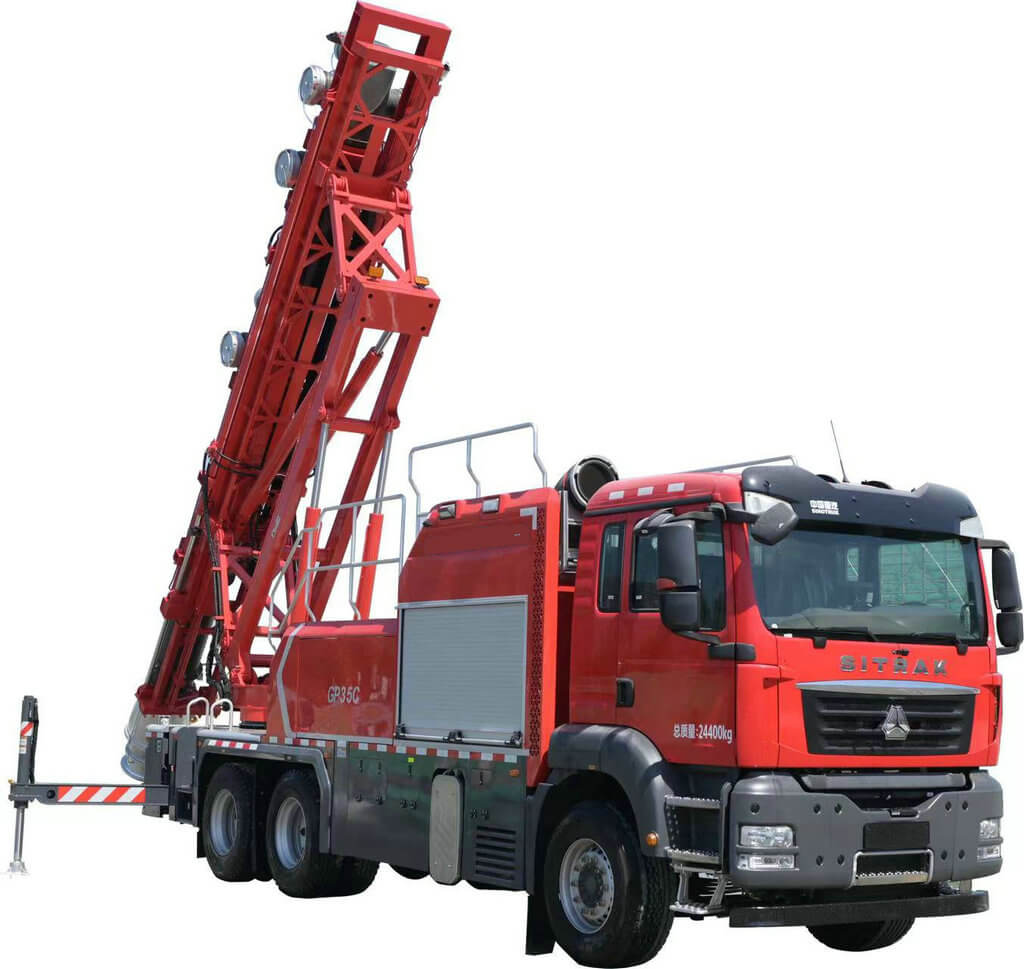

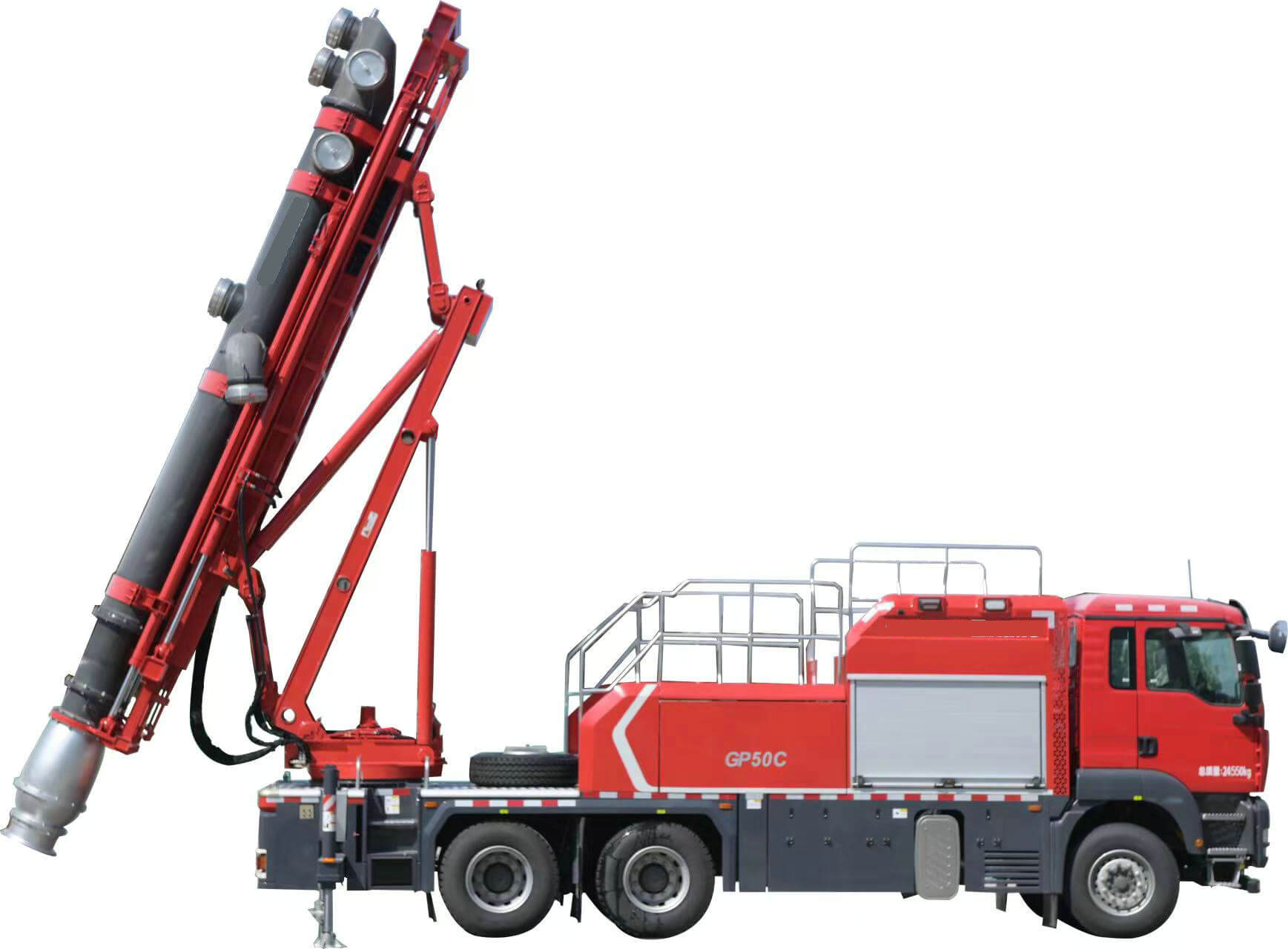

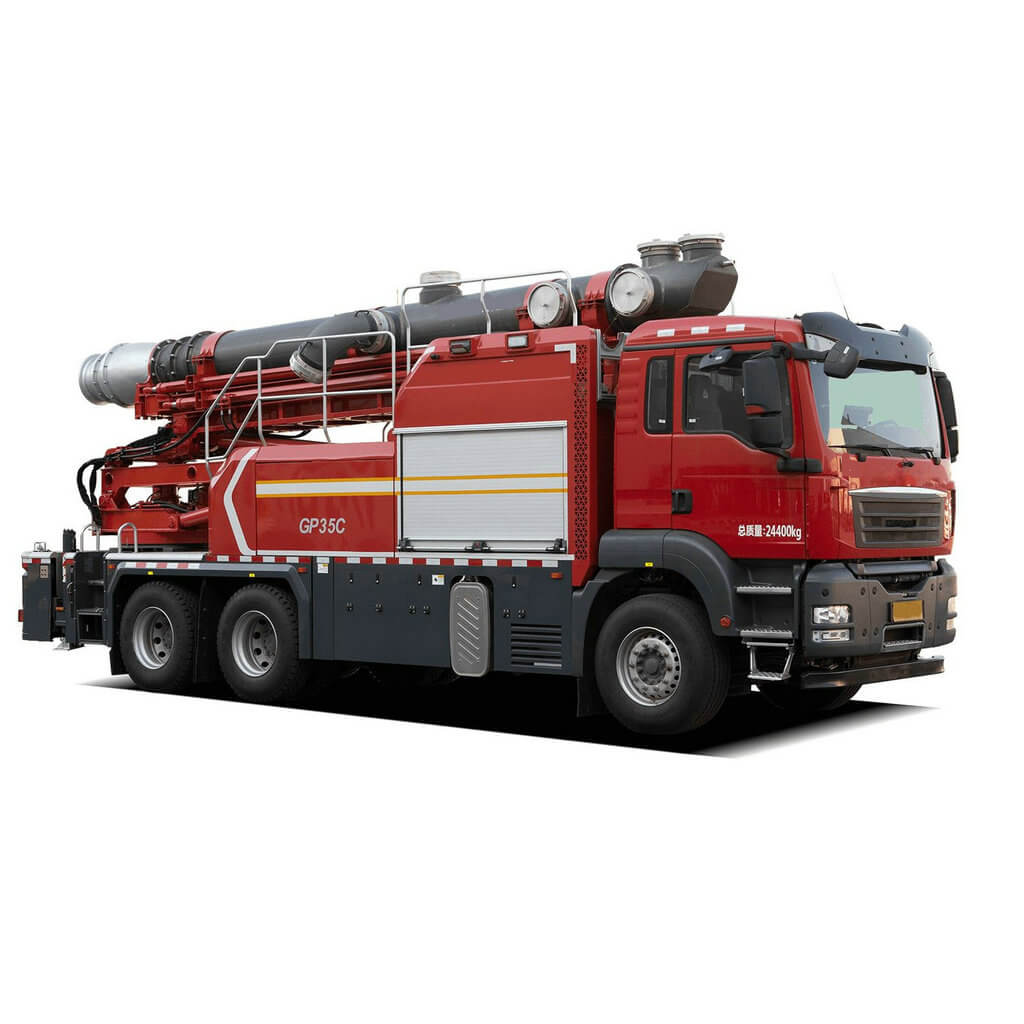

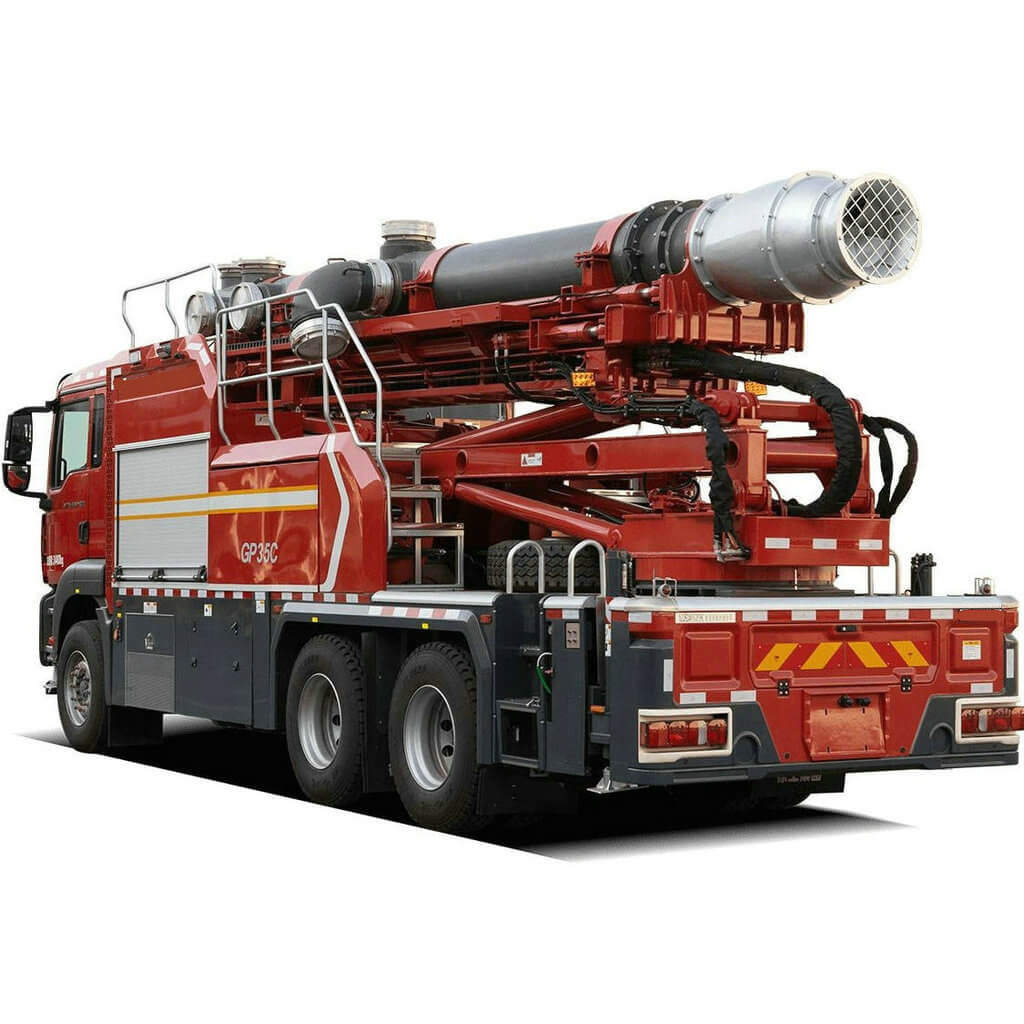

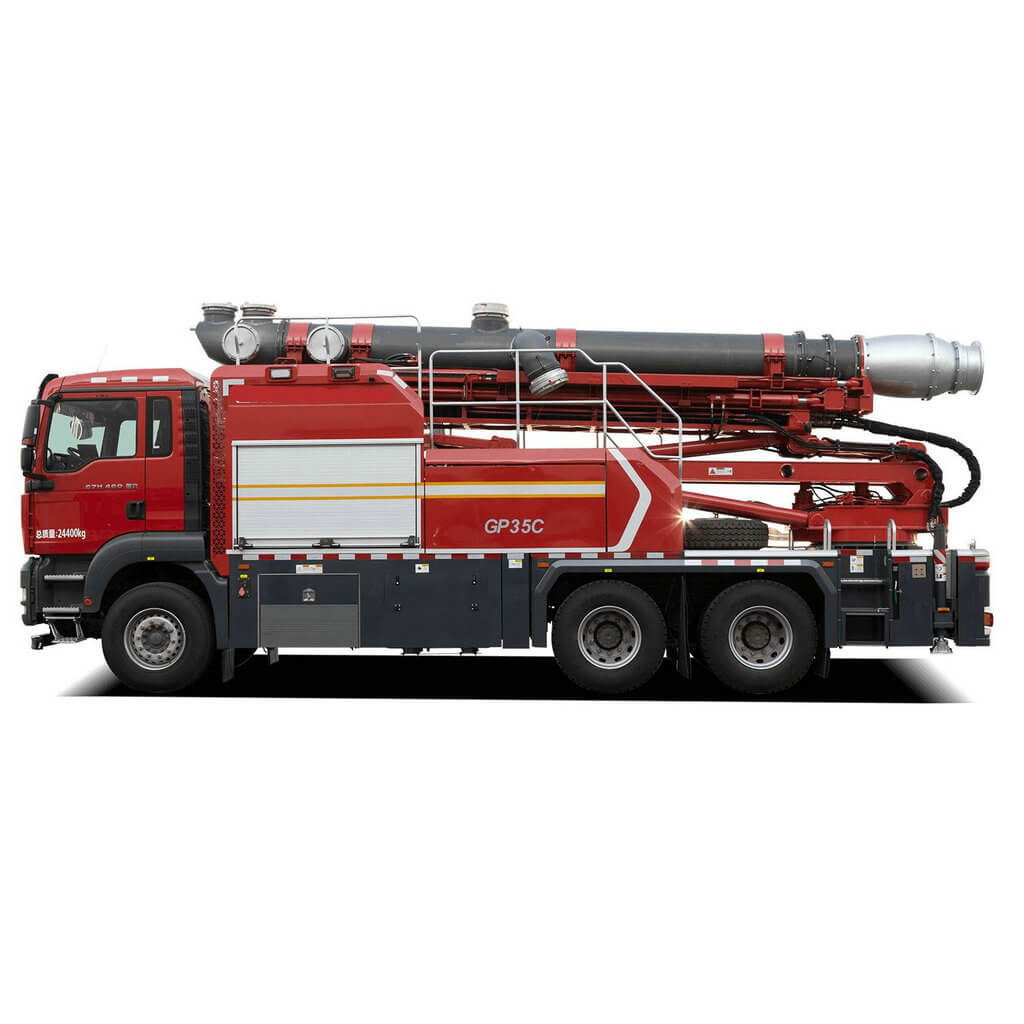

SITRAK Vertical Drainage Pump Rescue Truck 3500m3/h

Share to:

SITRAK Vertical Drainage Pump Rescue Truck 3500m3/h

SITRAK Vertical Drainage Pump Rescue Truck
Pump Flow 3500m3/h
Engine power 341 KW
Head 16m
Max vertical working depth 9.4m
Price for refer only. Final Price Offer Discount.

Price: $ 488000

Discount Price: $ 470000

Availability:

Quantity:

Model:
XZJ-5240TGP35C
Brand:
SITRAK
Code:
8705909990

Product Description

SITRAK Vertical Drainage Pump Rescue Truck 3500m3/h

Drainage Water Pump	Flow rate	m'/h	3500
	head	m	16
	The minimum depth at which the pump absorbs water	mm	200
	Maximum allowable particle diameter	mm	60
Water Belt	Type specification		DN300
Water Belt	Length	m	450	30 meters/set a total of 15 set, each section with a set of fast joints (2)
Operational range	Translational maximum extension	m	1.56
	Rear Vertical Operation Barrier Height	m	1.82
	Maximum Rear Vertical Operating Depth	m	9.4
	Maximum horizontal operating distance behind	m	10.9
	Maximum effective lateral working depth	m	5.4
	Maximum horizontal working distance on the side	m	9.1

Overall dimensions:	9610×2550×3900(mm)	Fuel Type:	Diesel oil
Gross Weight	24400(Kg)
Net weight	24270(Kg)	Rated load	(Kg)
Approach Angle/Departure Angle:	19/11(°)	Front/rear overhang:	1492/2170(mm)
Axle Load:	6880/17520	Wheelbase:	4325+1350,4300+1400, 4625+1350,4600+1400, 4675+1350,4650+1400, 4825+1350,4800+1400, 5025+1350,5000+1400, 5200+1400,5525+1350, 5500+1400,5800+1400,6000+1400(mm)
Axle Number	3	Maximum speed:	90(km/h)
Tire Number	10(PCS)	Tire Specifications:	385/65R22.5/315/80R22.5,385/65R22.5/12.00R20
Fuel consumption:	(L/100Km)	Number of spring pieces:	4/5,10/12
Front wheel track:	2110(mm)	Rear wheel track:	1850/1850(mm)

Engine

Engine manufacturer

Displacement (ml)

Power (kw)/ horsepower (ps)

WP10.5H430E62;MC11.46-61;MC11.43-61;MC11.40-61;MC13H.60-61;MC13H.57-61;MC13.54-61;MC13.50-60;MC13.48-60;MC11.44-60;MC11.40-60;MC13.50-61;WP10.5H460E62;MC13.46-61;MC13H.51-61;MC13H.54-61;MC11H.46-61

China Heavy Duty Automobile Group Co., LTD.;

Weichai Power Co., LTD.

10520;10518;10518;10518;13020;13020;

12419;12419;12419;10518;10518;12419;10520;12419;13020;13020;11050

316;341;319;297;444;422;400;

371;356;327;297;371;338;341;378;400;341

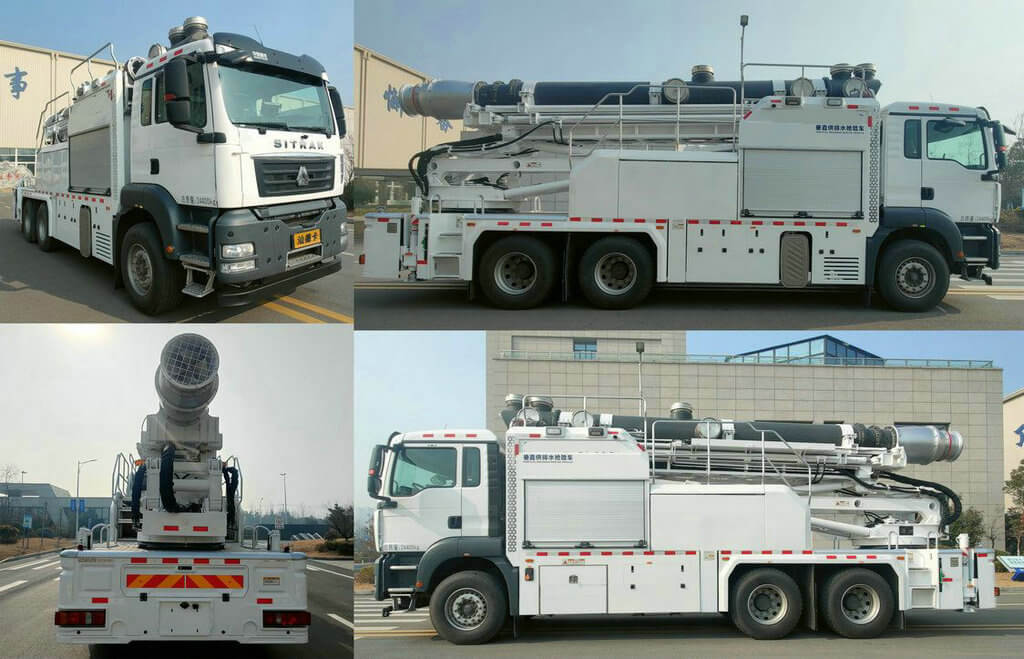

Vertical drainage emergency vehicle (70)_1 Keystone Vessel Industrial Gas Cylinders| ISO Tank|Pressure Vessel| UN Portable Tanks- Dong Runze Special Vehicle
