NJJ-5043XXH6
-
JAC
-
8705909990

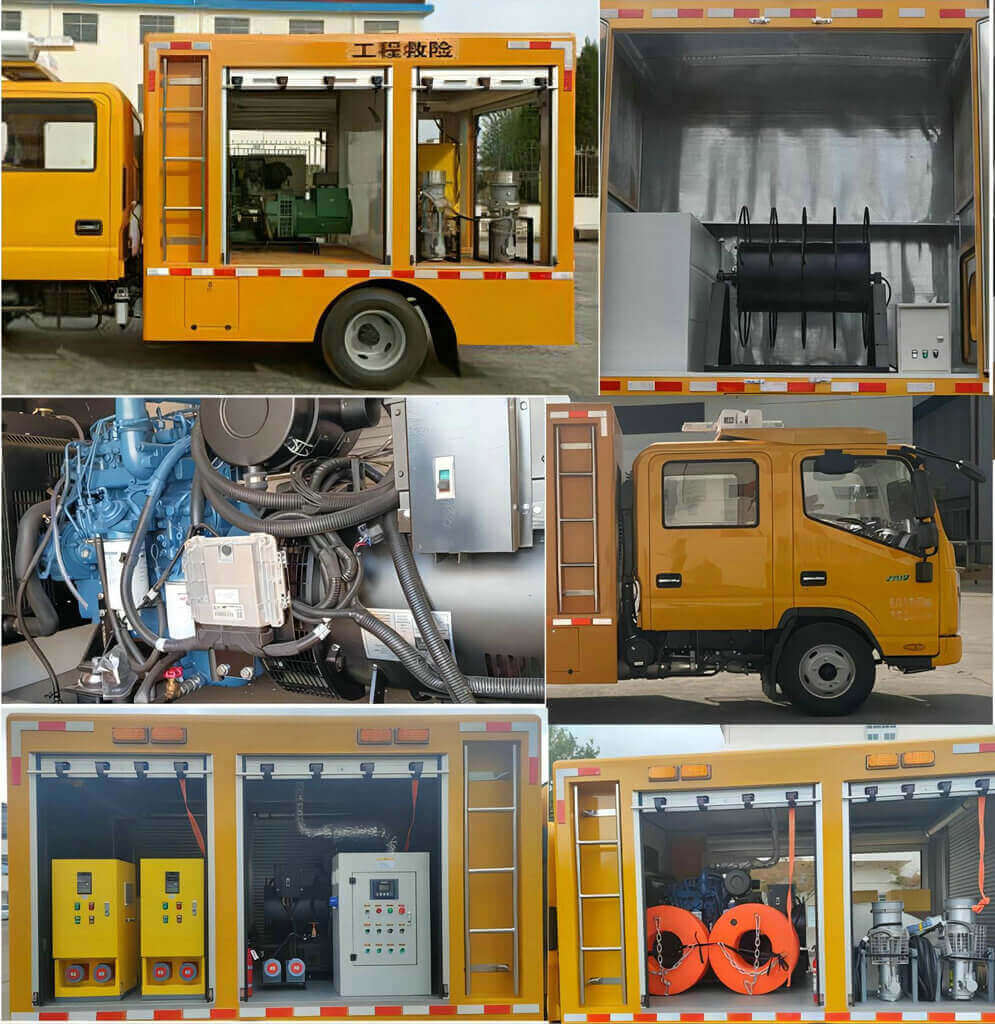

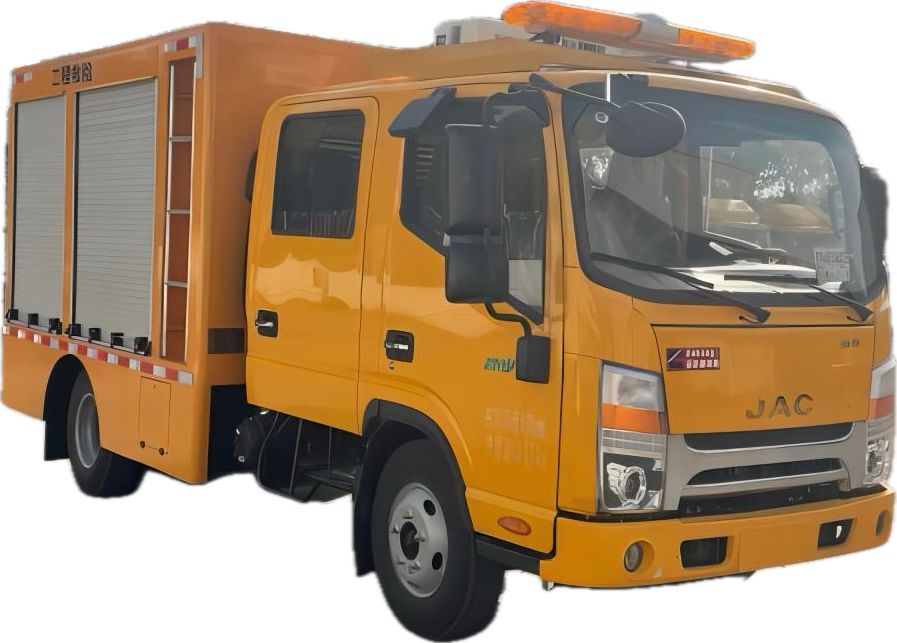

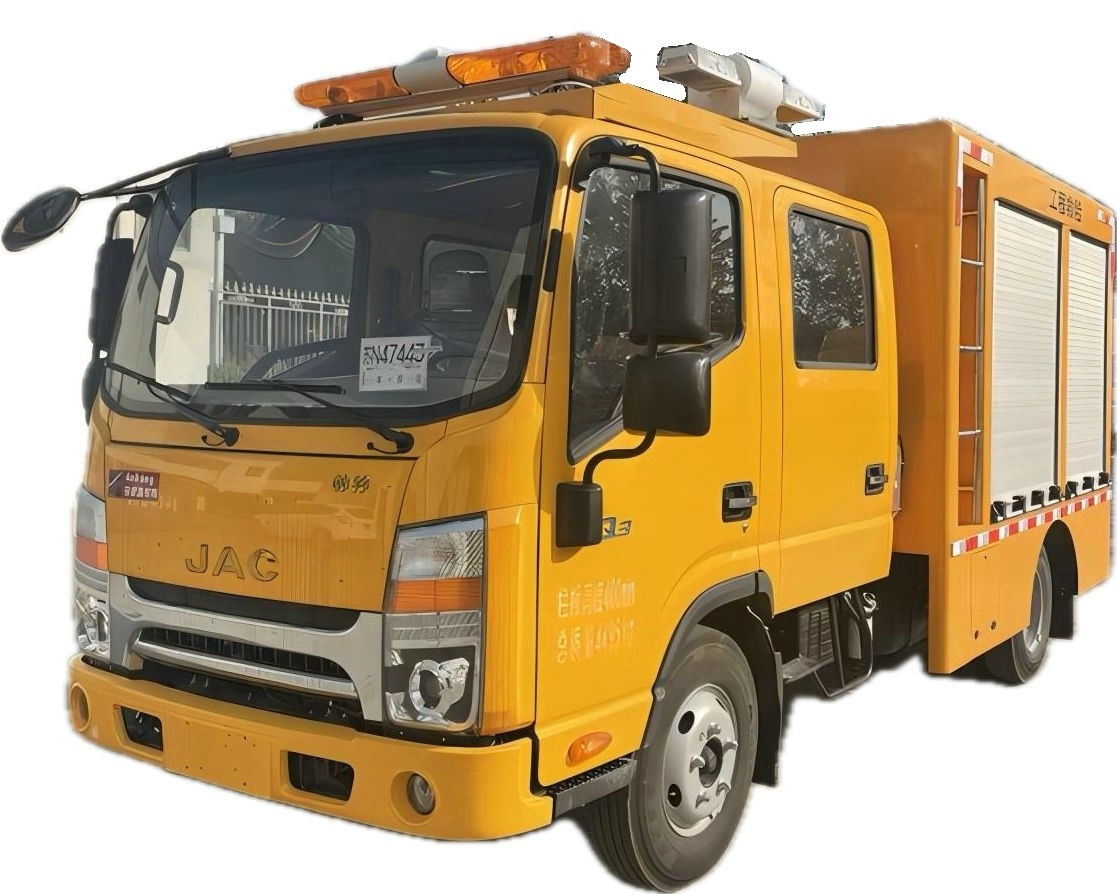

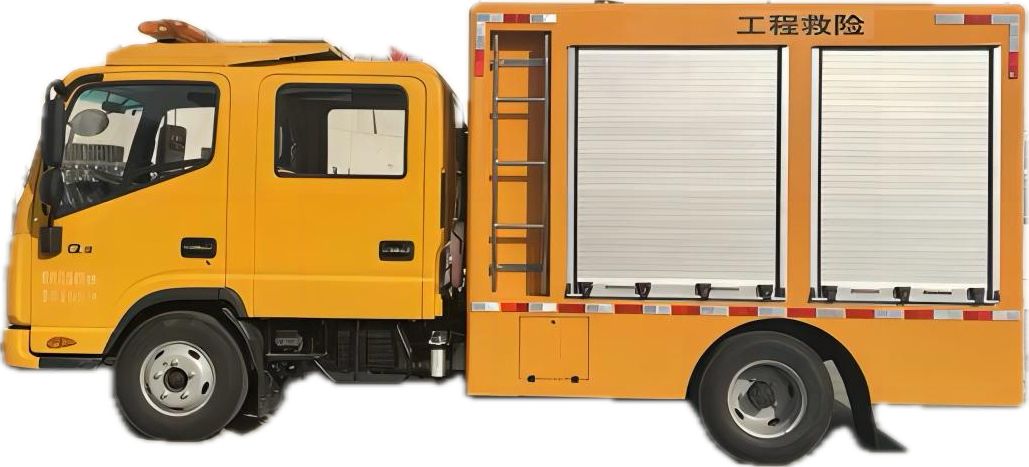

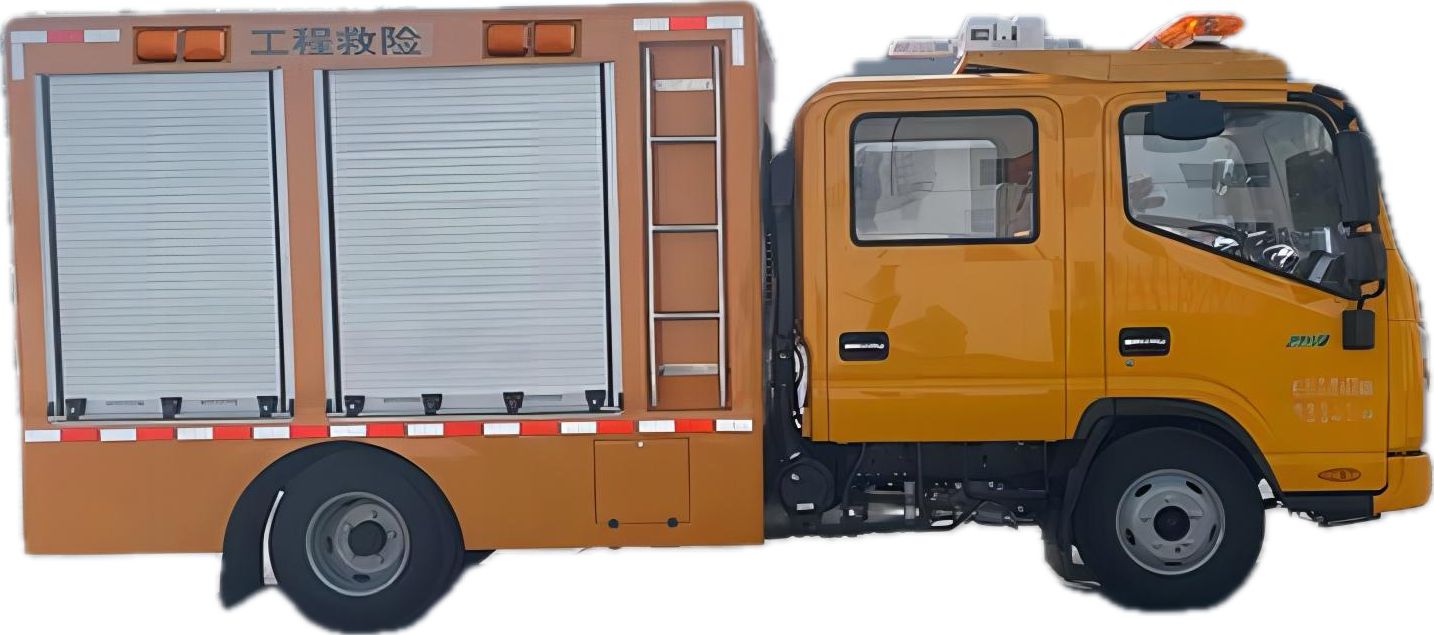

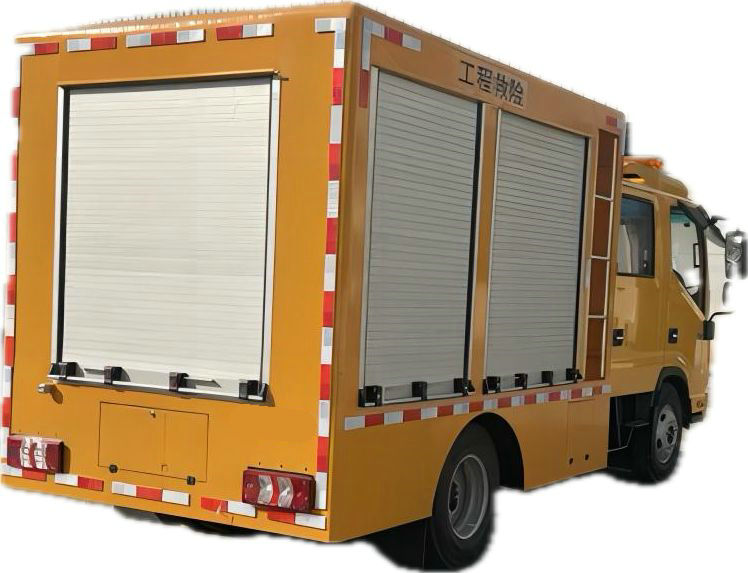

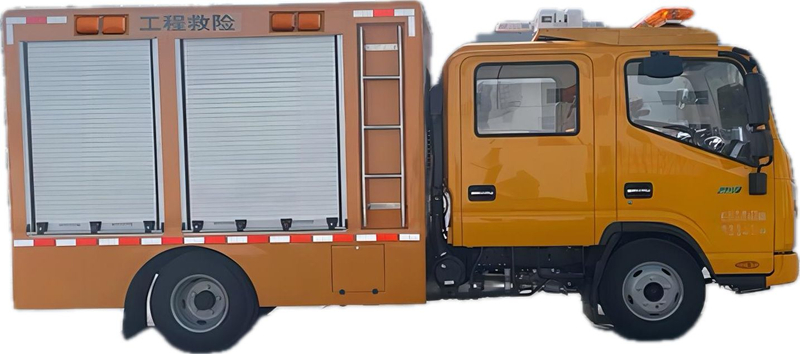

JAC Drainage Rescue Pump Trucks
Emergency vehicle has strong mobility, truly realize the concept of mobile water pump, the equipment can meet the needs of emergency drainage; The equipment can work normally and reliably, with good ventilation and heat dissipation functions; With power output function, can meet 230/400V power needs; Lighting for night operation.
JAC Chassis ：HFC1041R73K1C7S
Technical parameters:
Vehicle model | 5043XXH6 |
Chassis type | JACHFC1041R73K1C7S |
Engine power | 95kw |
Net Weight | 4170kg |
Gross mass | 4495Kg |
Overall dimension | 5920×2090×2680mm |
Maximum discharge | 500m³/h |
Maximum lift | 7m |
Motor power | 18.5 KW |
Configuration requirements | Generator sets and pumps can be selected according to customer needs well-known brands |
Main technical parameters
The special device of the vehicle: emergency power supply and drainage device, installed generator set and drainage water pump, mainly used for emergency rescue needs, emergency power generation, emergency rescue pumping sewage
Overall dimensions: | 5920×2090,2010×2680(mm) | Fuel Type: | Diesel oil |
Gross Weight | 4495(Kg) | ||
Net weight | 4170(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 22/14(°) | Front/rear overhang: | 1110/1445(mm) |
Axle Load: | 1700/2795 | Wheelbase: | 3365(mm) |
Axle Number | 2 | Maximum speed: | 110(km/h) |
Tire Number | 6(PCS) | Tire Specifications: | 7.00R16LT 8PR,6.50R16LT 8PR,7.00R16LT 10PR,195/65R16LT 10PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 5/4+3,5/5+6,4/5+6,4/4+2 |
Front wheel track: | 1450(mm) | Rear wheel track: | 1425,1560(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
HFC4DB3-2E;HFC4DB3-2E3;JE493ZLQ6M;HFC4DE3-2E5;Q25A-150E60;HFC4DB3-2E5 | Jiangxi Isuzu Engine Co., LTD.; Anhui Cummins Power Co., LTD. | 2183;2184;2499; 2499;2496;2183 | 95;89;95;111;110;95 |
Keystone Vessel Manufacturing Co., Ltd
