DNJJ5180TXQ6
-
Dong Run ze
-
8705909990

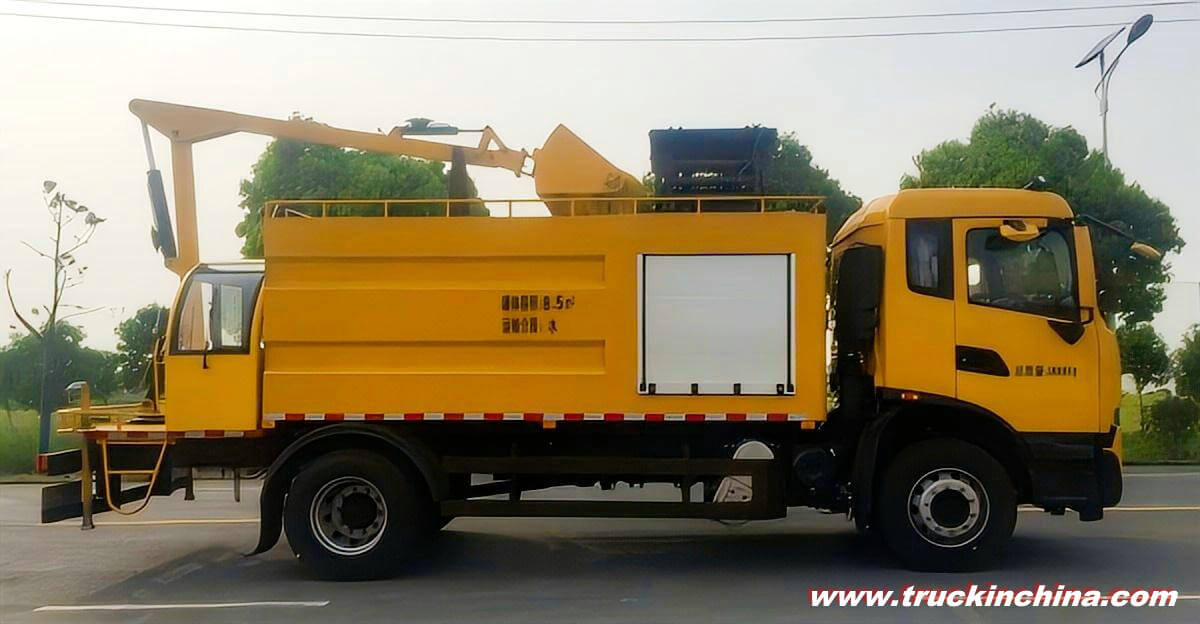

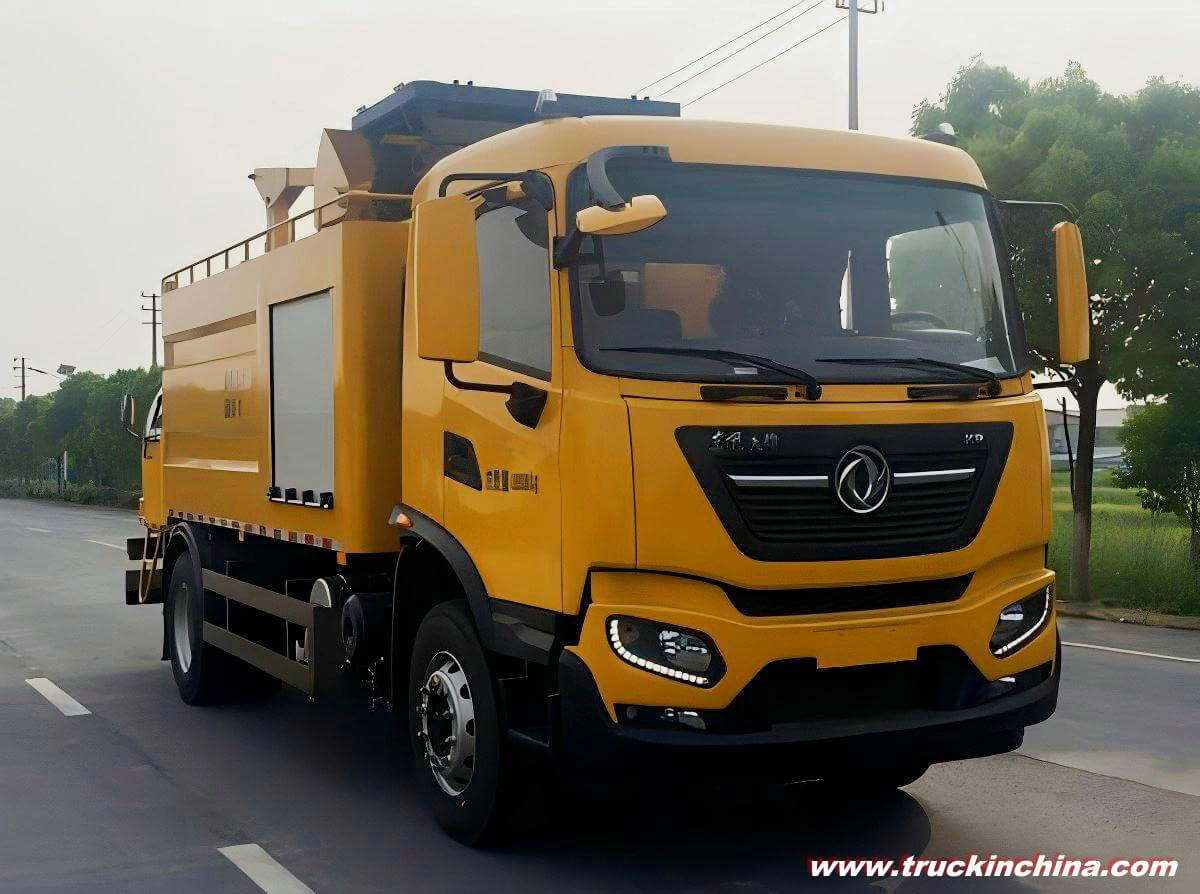

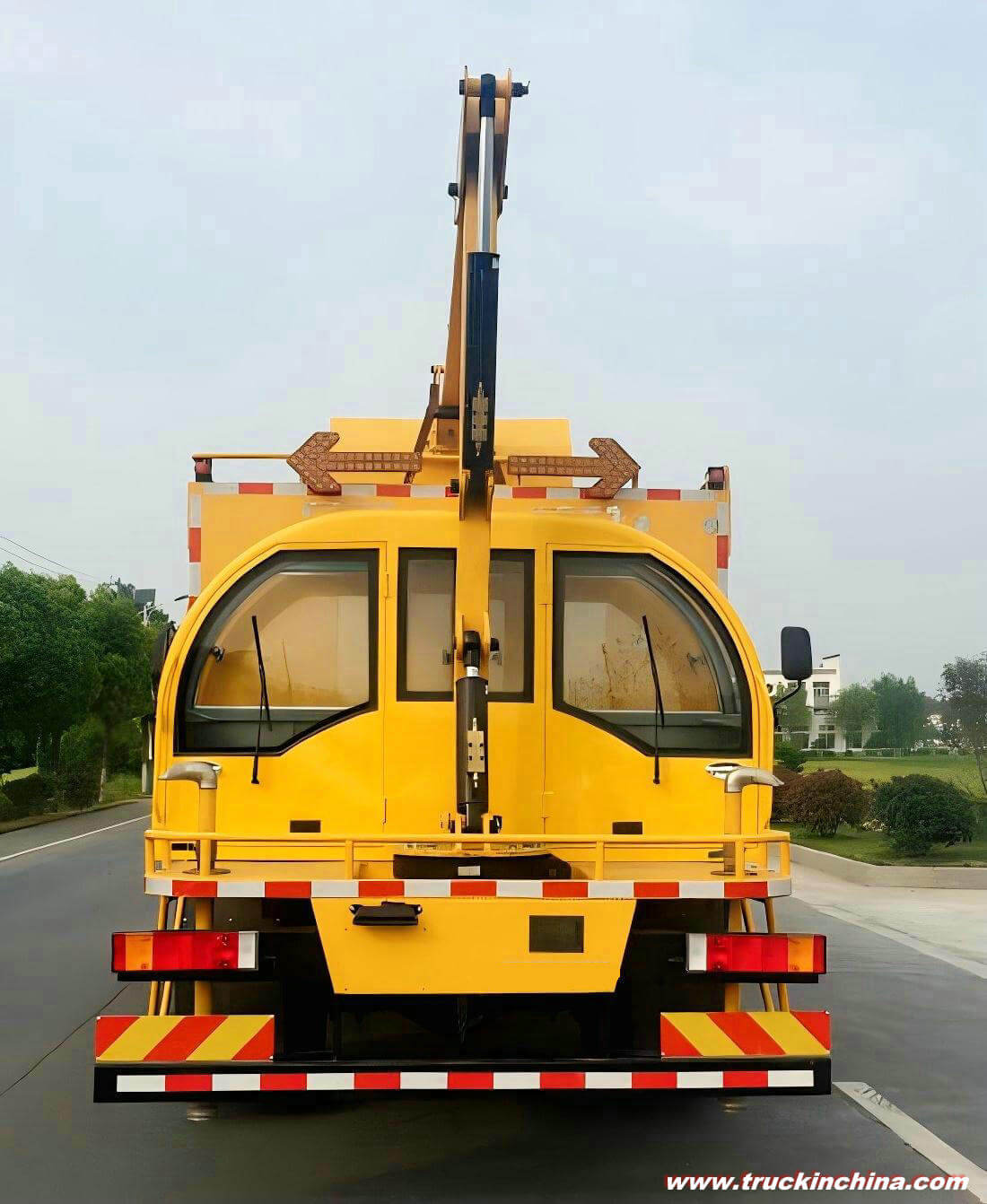

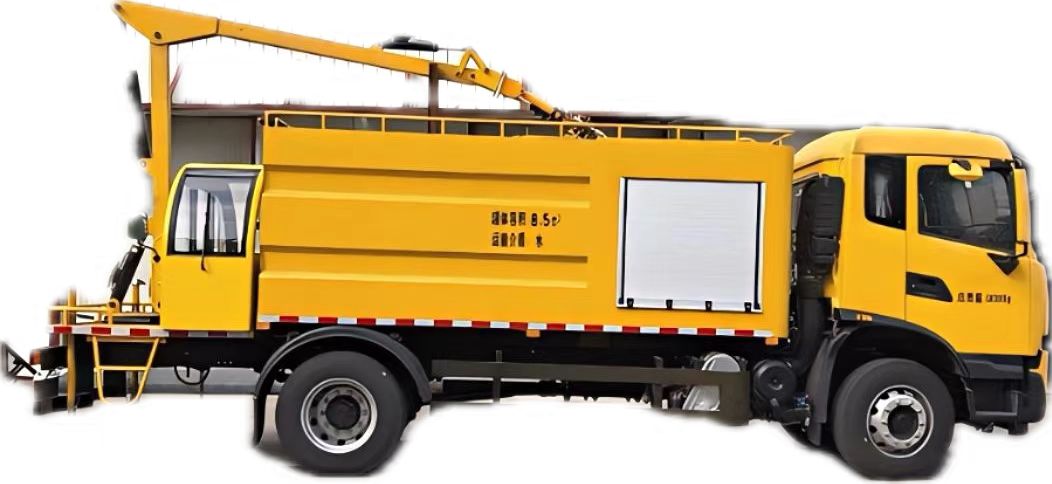

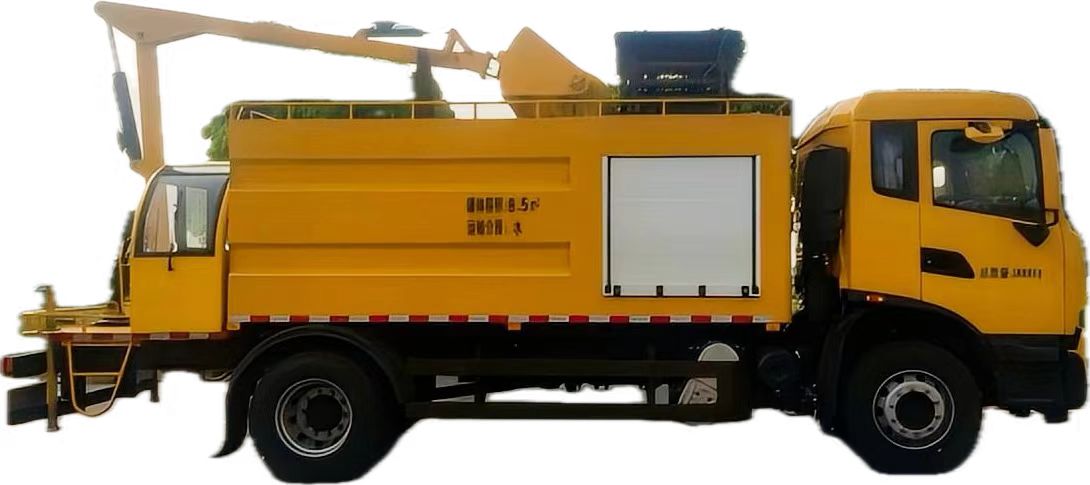

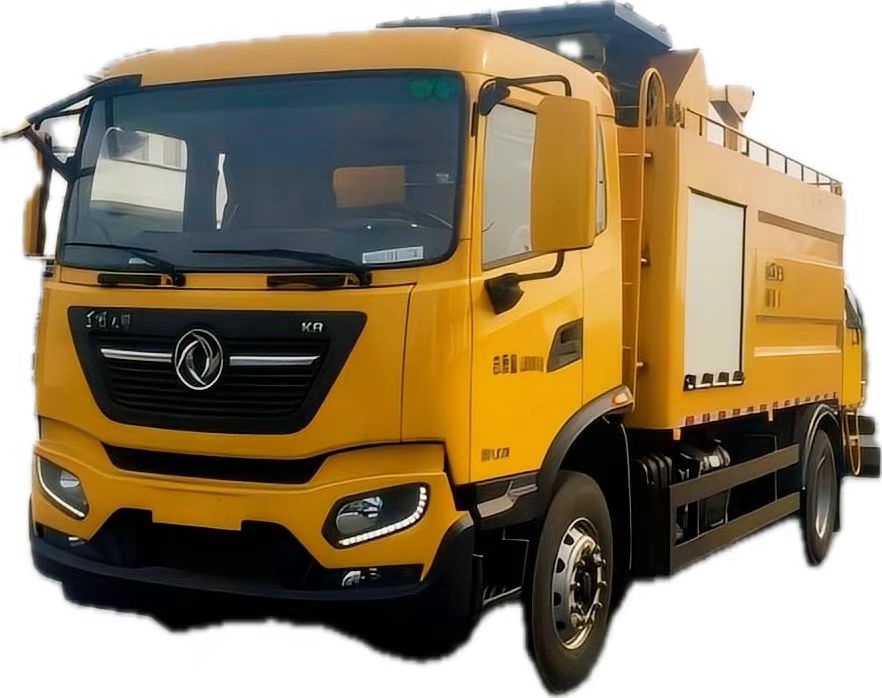

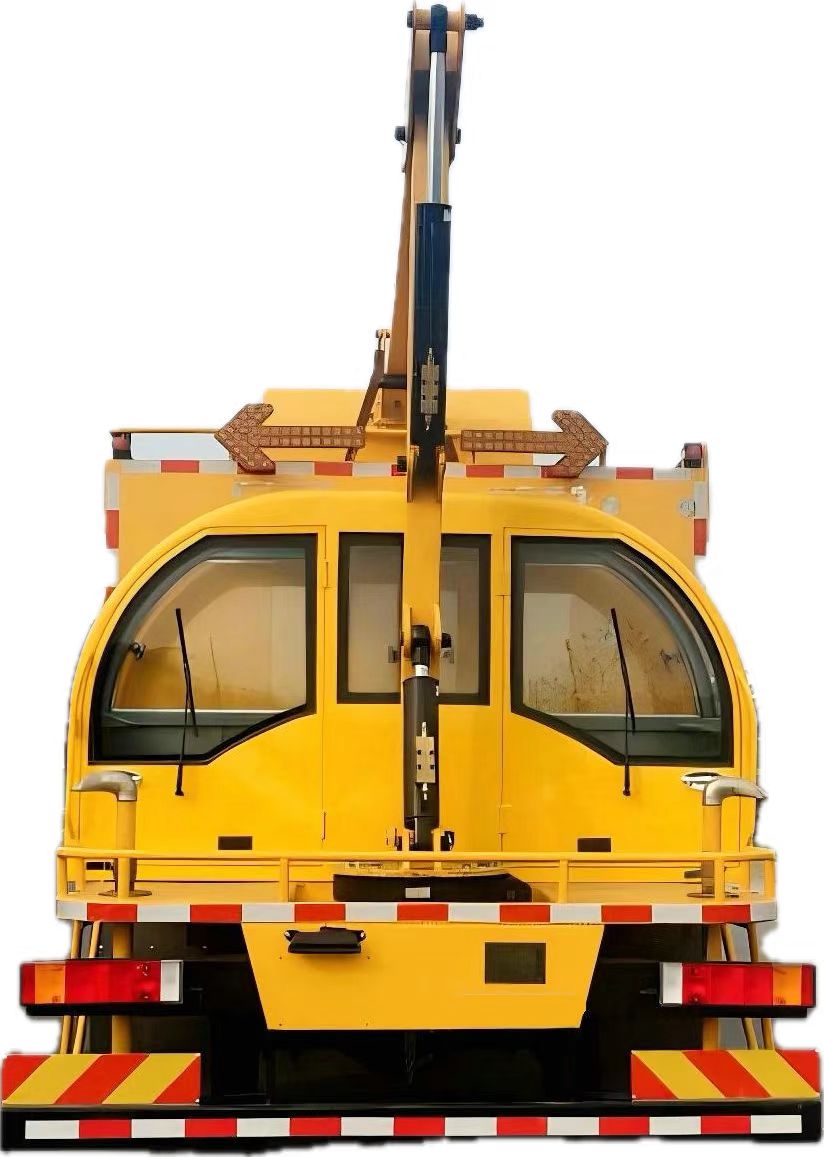

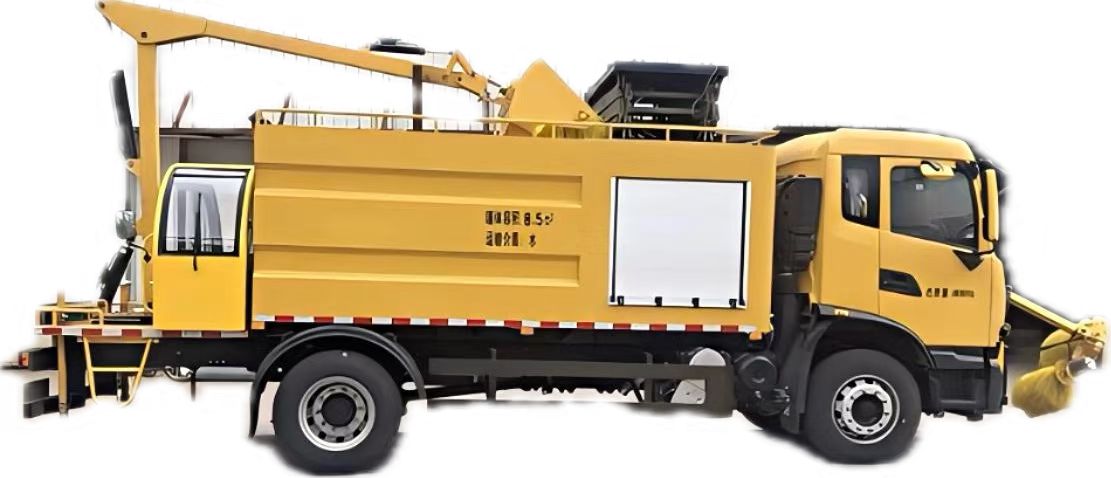

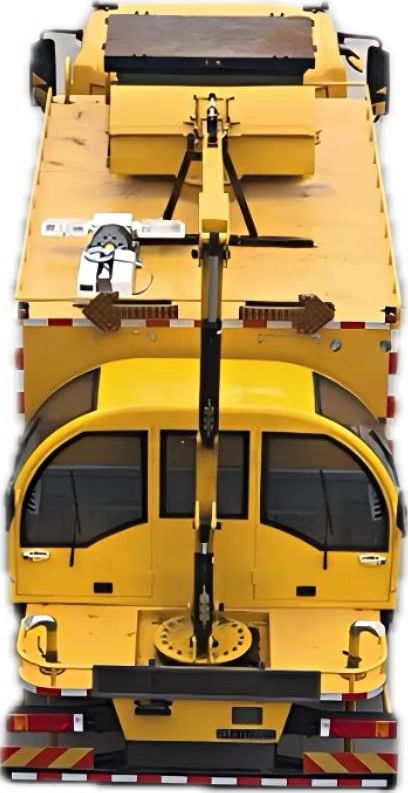

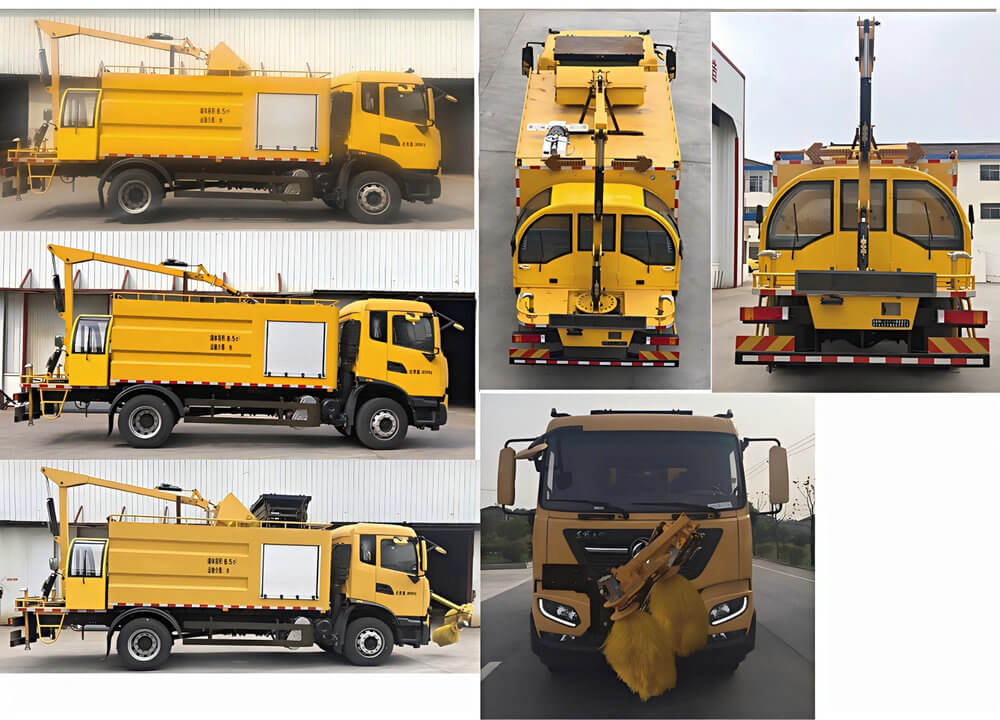

Dongfeng Guardrail Tunnel Wall Cleaning Truck (8.5 M3 Water Tank)
The main special devices: wall cleaning device, anti-glare net cleaning device, and lifting platform, which are mainly used to clean walls, signs, highway guardrails, and anti-glare nets;
Total capacity of the tank is 8.5 cubic meters; The effective volume of the tank is 8.1 cubic meters
Road tunnel cleaning vehicles
Vehicle model | DNJJ5180TXQ6 |
Chassis model | Dongfeng DFL1180EX8 |
Engine power | 169kw |
Engine model | D6.7NS6B230 |
Curb weight | 9705kg |
Total mass | 18000Kg |
Water tank volume | 8.5m³ |
Washing width | 1200mm |
Maximum cleaning height | ≥6000 mm |
Cleaning arm rotation range | 360° |
vehicle is used for cleaning the tunnel wall, wall and other facades. The special devices are water storage tank and tunnel cleaning brush device. Total tank capacity :8cubic meters
Tunnel Cleaning Vehicles formed by main components such as water tank, sandwich power take-off, high-pressure water pump, low-pressure water pump, tunnel cleaning arm, etc. It is widely used in tunnel cleaning, fire fighting, sprinkling and other functions.
Product Features:
This car has complete functions, including low-pressure cleaning and high-pressure cleaning functions, and can carry out road watering, washing, greening irrigation and cleaning of road walls.
2. This car is equipped with a water shortage alarm function, which can avoid damage to the water pump caused by idling due to water shortage;
3. This car is equipped with a high-pressure water gun to facilitate washing the vehicle and the road.
4. This car is centralized in the cab to intelligently manage various cleaning devices, and the operating procedures are simple and humanized.
5. The water supply system adopts high and low pressure systems, which supply cleaning brushes and road sprinkler systems respectively. The water pump is an internationally renowned brand, and the equipment has the ability of front and rear sprinklers.
Engine | Displacement (ml) | Power (kw)/ horsepower (ps) |
D4.5NS6B190 | 4500 | 140/190 |
D6.7NS6B230 | 6700 | 169/229 |
B6.2NS6B210 | 6200 | 154/209 |
D4.0NS6B185 | 4000 | 136/184 |
DDi50E220-60 | 5000 | 162/220 |
B6.2NS6B230 | 6200 | 169/229 |
DDi50E190-60 | 5000 | 147/199 |
D4.0NS6B195 | 4000 | 143/194 |
D6.7NS6B260 | 6700 | 191/259 |
D4.5NS6B220 | 4500 | 162/220 |
DDi47E210-60 | 4750 | 154/209 |
B6.2NS6B260 | 6200 | 191/259 |
B6.2NS6B245 | 6200 | 180/244 |
DDi47E240-60 | 4750 | 177/240 |
