5120XJSC
-
Dong Run Ze
-
87059099900
-
Shanghai, China
-
3000
-
T/T

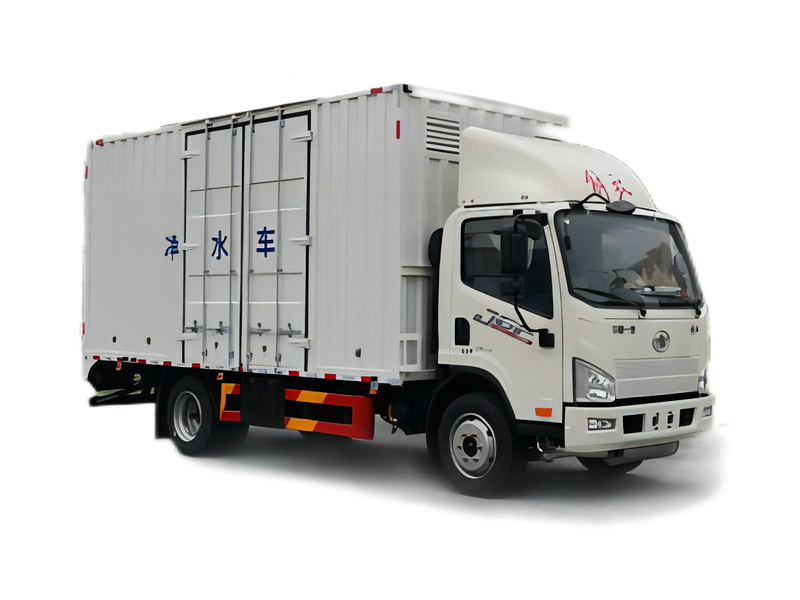

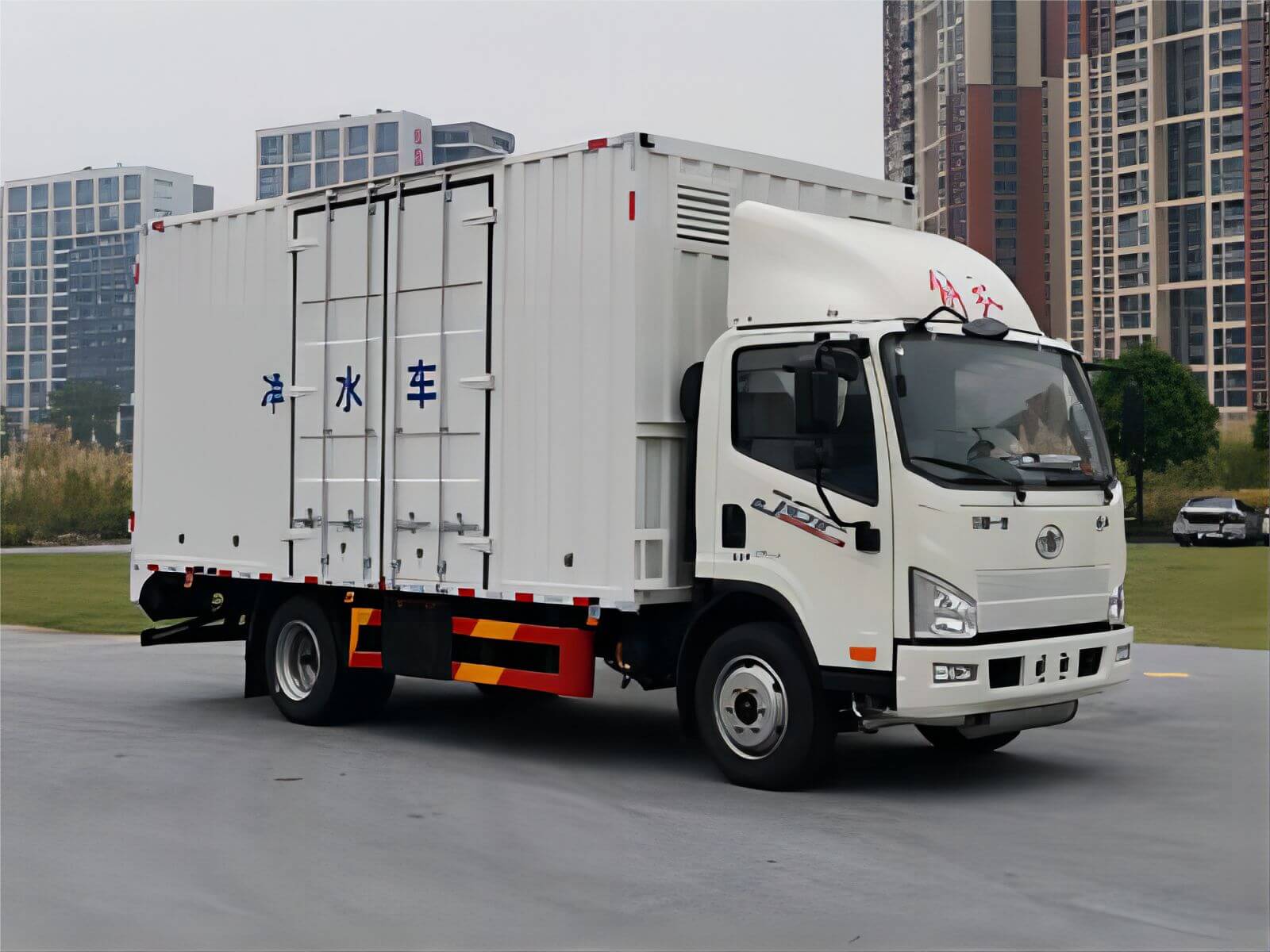

Customizing FAW Water Purifier Truck with Filtration Purification System
FAW Chassis : CA1129P40K2L2BE5A84 Main technical parameters
Overall dimensions: | 7070×2380×3480(mm) | Cargo size: | 5200×2300×2400(mm) |
Total mass: | 11995(Kg) | Net | 9000(Kg) |
Approach Angle/Departure Angle: | 20/9(°) | Front/rear overhang: | 1150/2020(mm) |
Axle Load: | 4360/7635 | Wheelbase: | 3900(mm) |
Number of shafts: | 2 | Maximum speed: | 115(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 8.25R20 14PR,8.25R20 16PR,245/70R19.5 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 7/10+3,3/4+3,3/3+3,3/7+9,3/4+4,3/10+4,7/10+4 |
Front wheel base: | 1640,1665,1706,1730,1800(mm) | Rear wheel base: | 1600,1740,1630,1658(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP3.7 Q130E50 | Weichai Power Yangzhou Diesel Engine Co., LTD | 3660 | 96 |

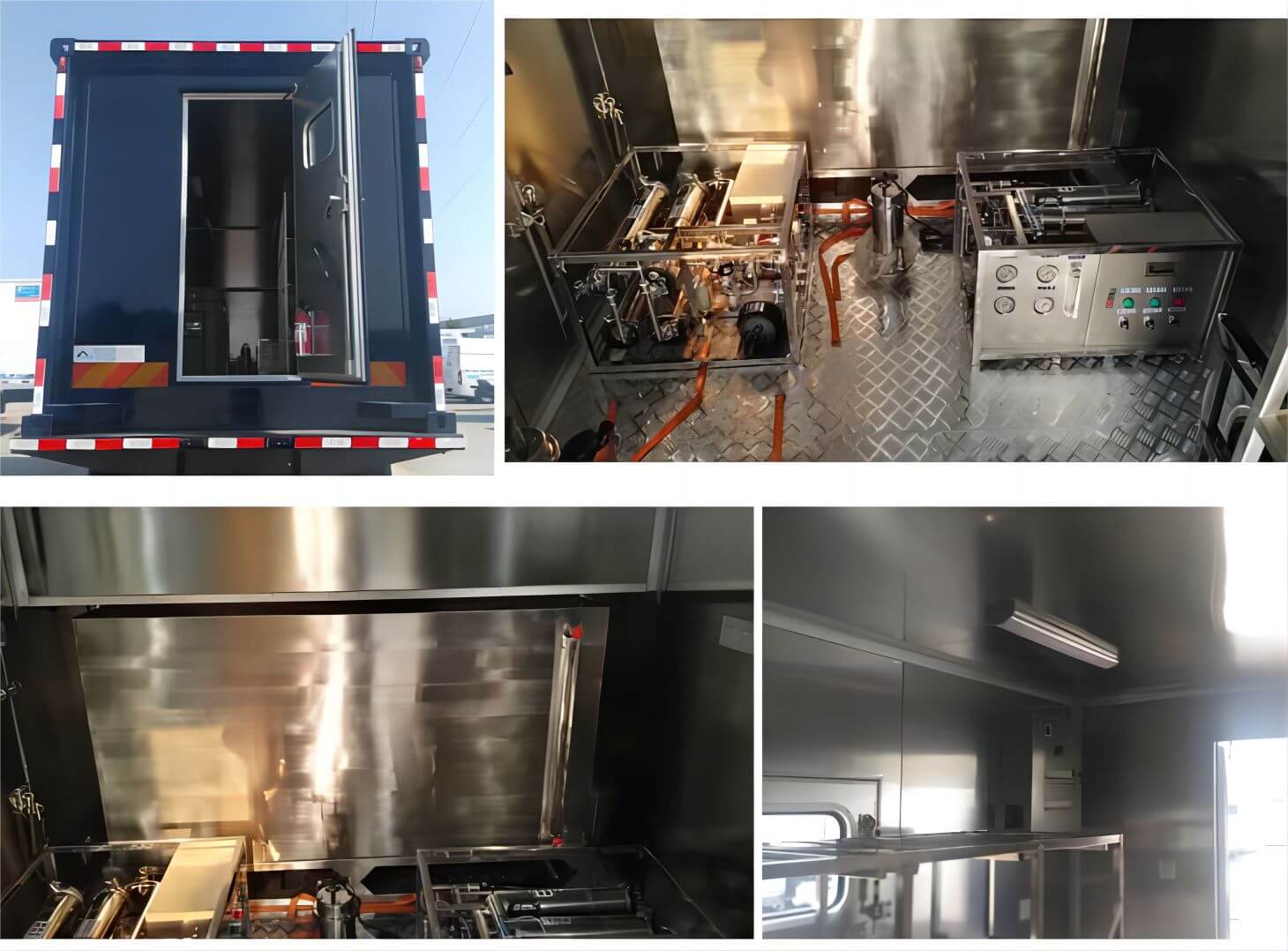

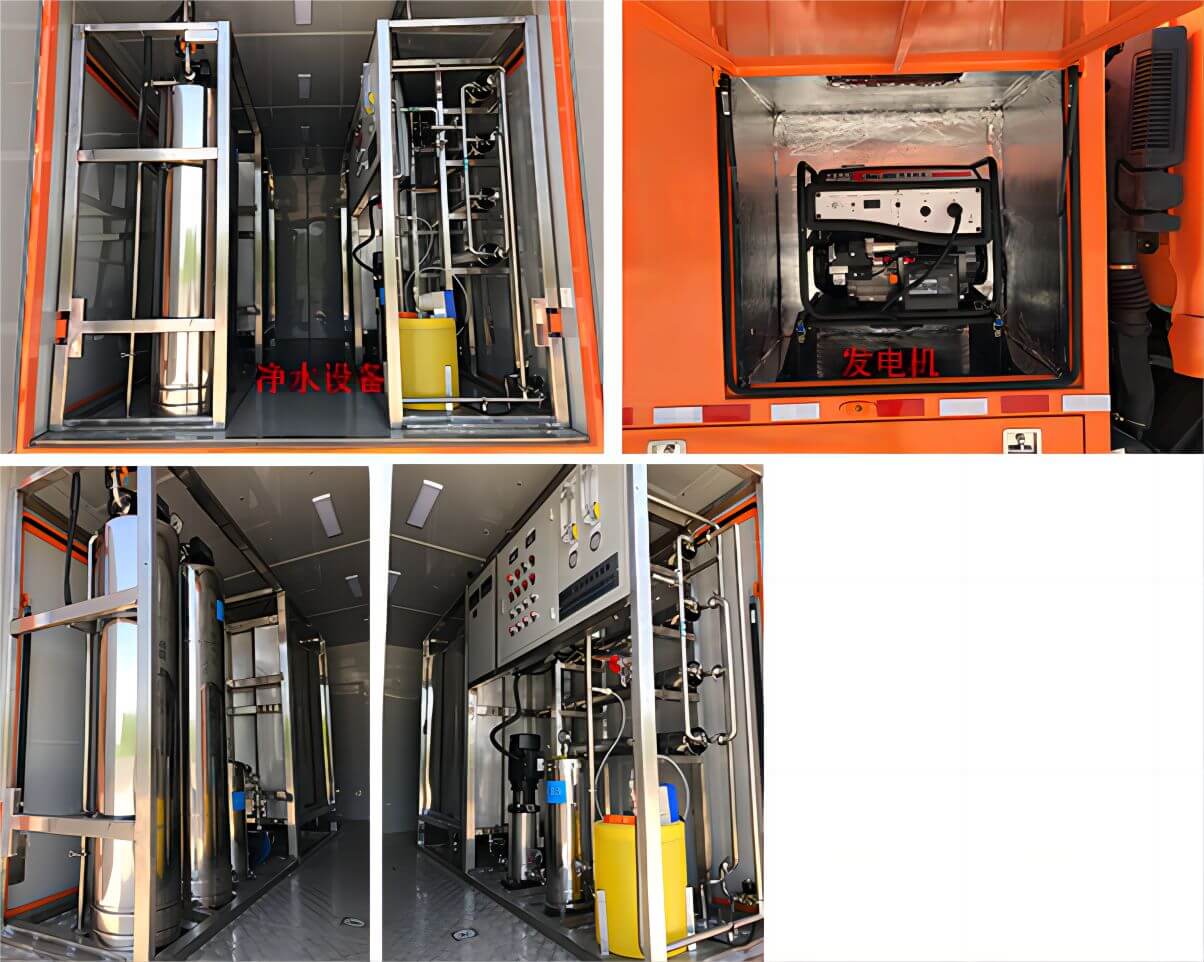

vehicle through fine filtration, activated carbon, ultrafiltration, reverse osmosis membrane and other devices to achieve micro-pollution surface water purification, seawater (brackish water) desalination
