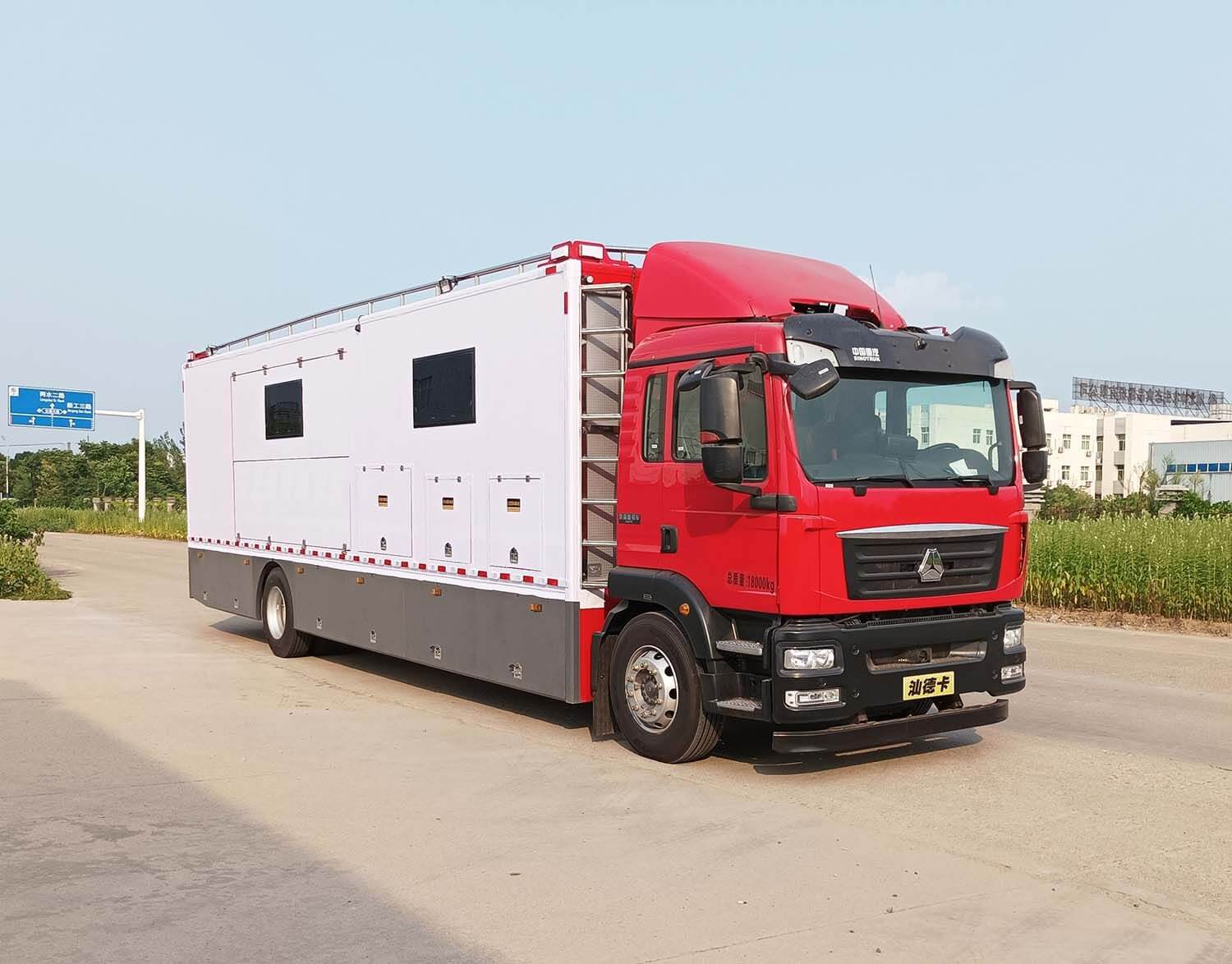

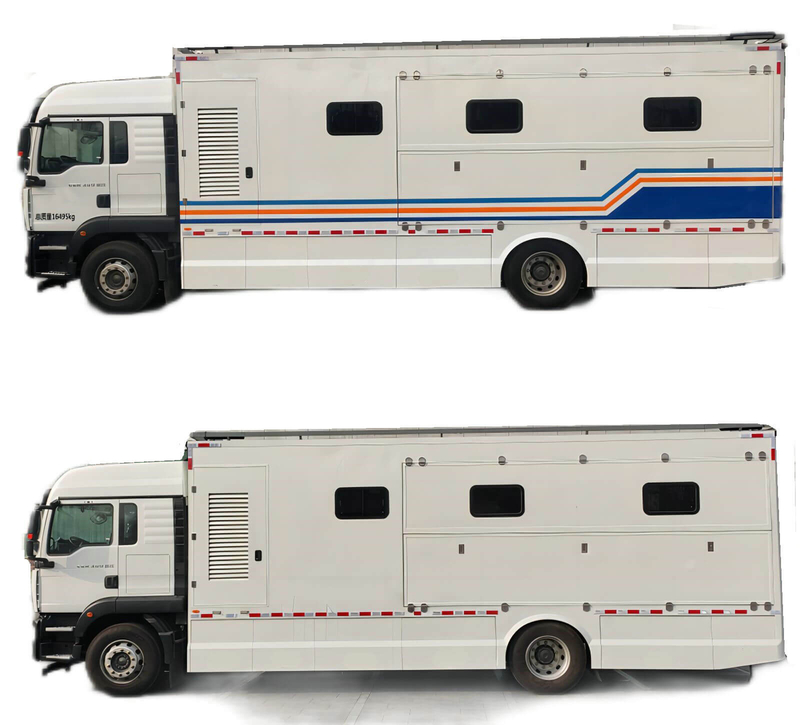

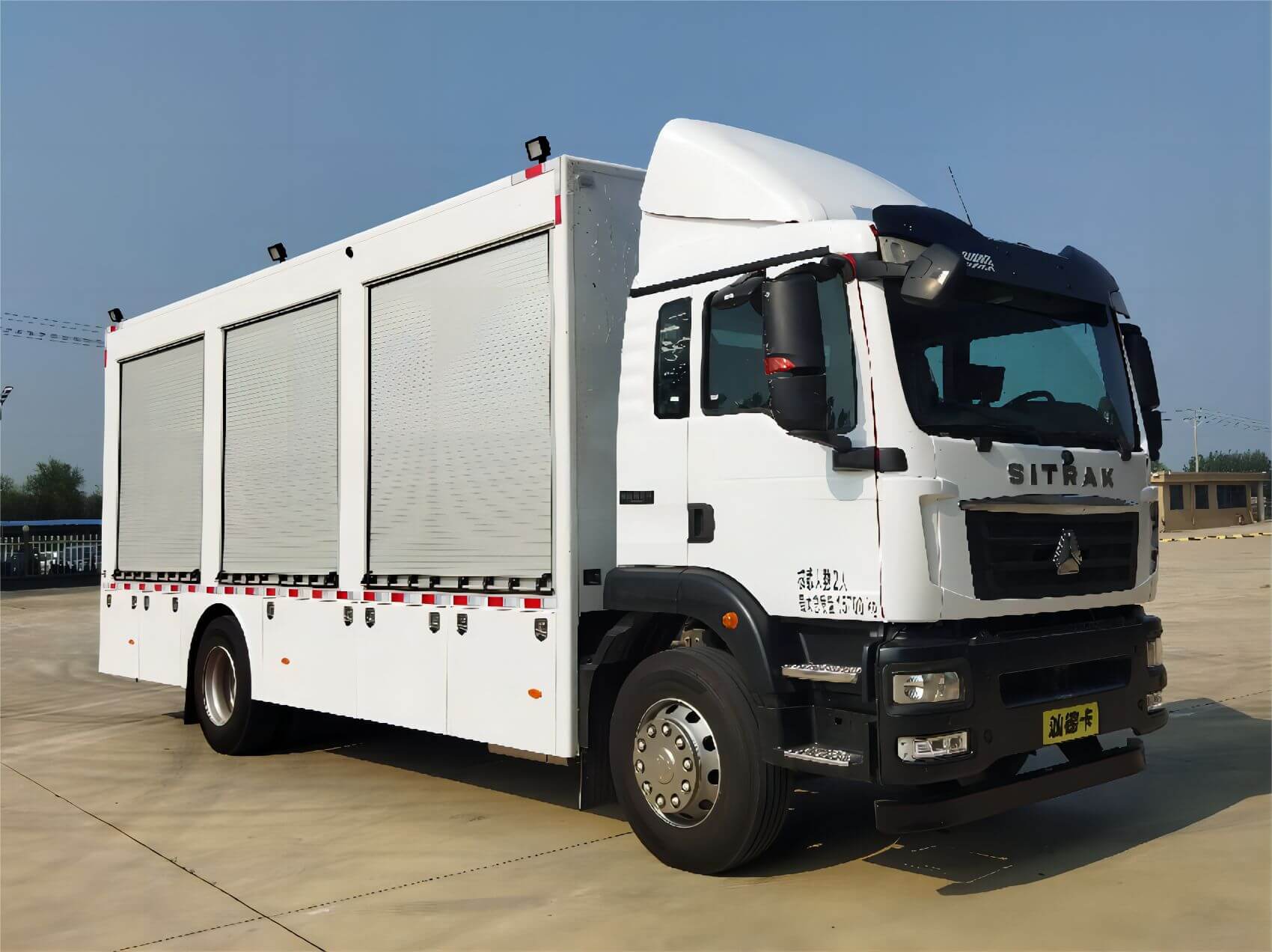

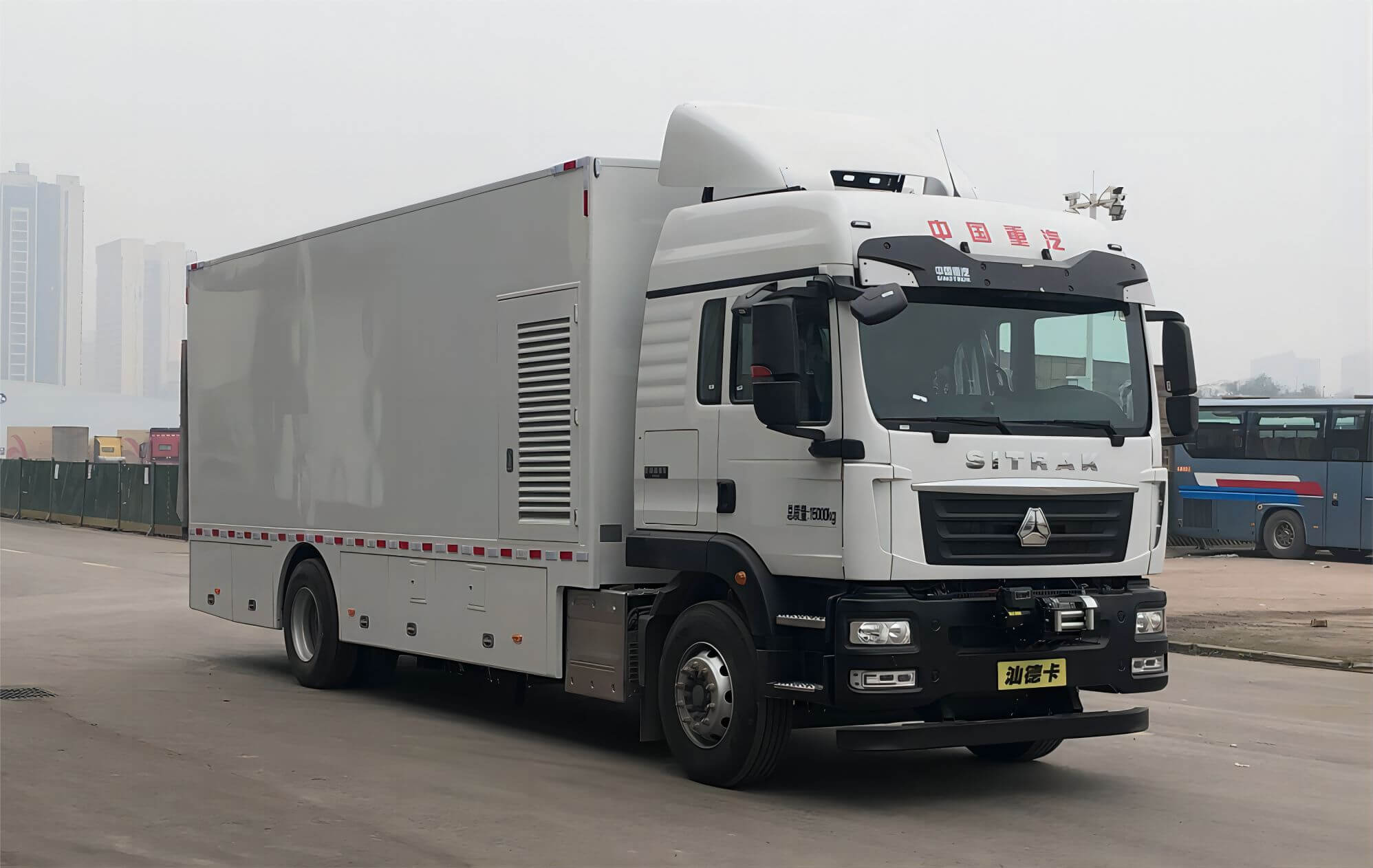

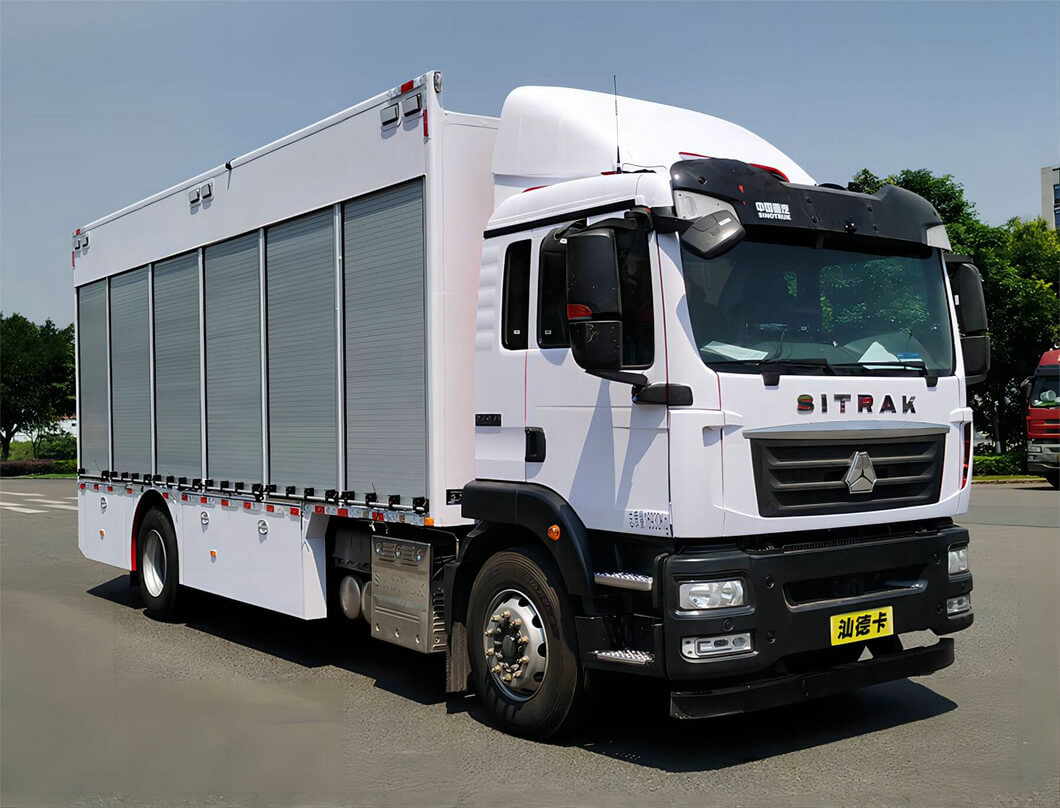

Customizing SITRAK Water Treatment Truck with Water Purification Equipment
Truck Mounted Water Filtration Purification System
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5160XJSS6
-
SITRAK
-
87059099900
-
Shanghai, China
-
3000
-
T/T
Customizing SITRAK Water Treatment Truck with Water Purification EquipmentTruck Mounted Water Filtration Purification System
specialist truck that takes water straight from the river and purifies it to drinking standards, which is then used in the many flood refugee camps in the Shire valley.
Instant purified water from truck for drought, emergencies, disasters ...
SITRAK Chassis:ZZ5206N501GF1 or ZZ5186XXYN561GF1
ZZ5186XXYN561GF1 Main technical parameters

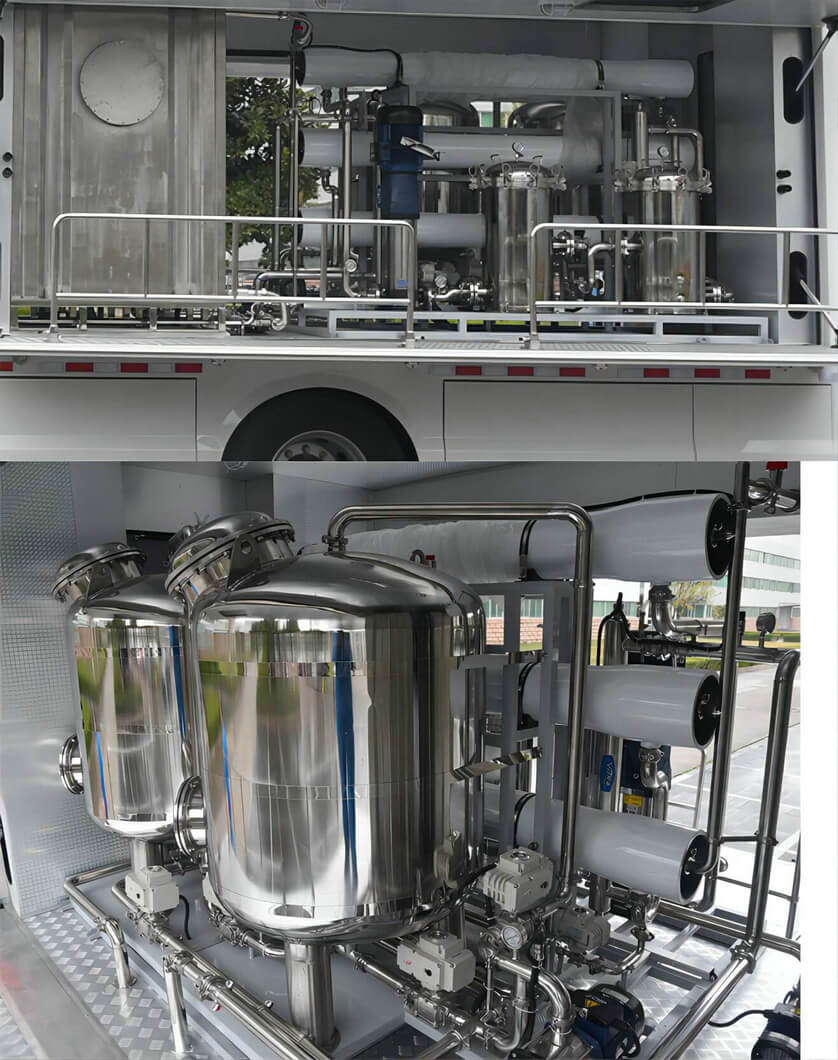

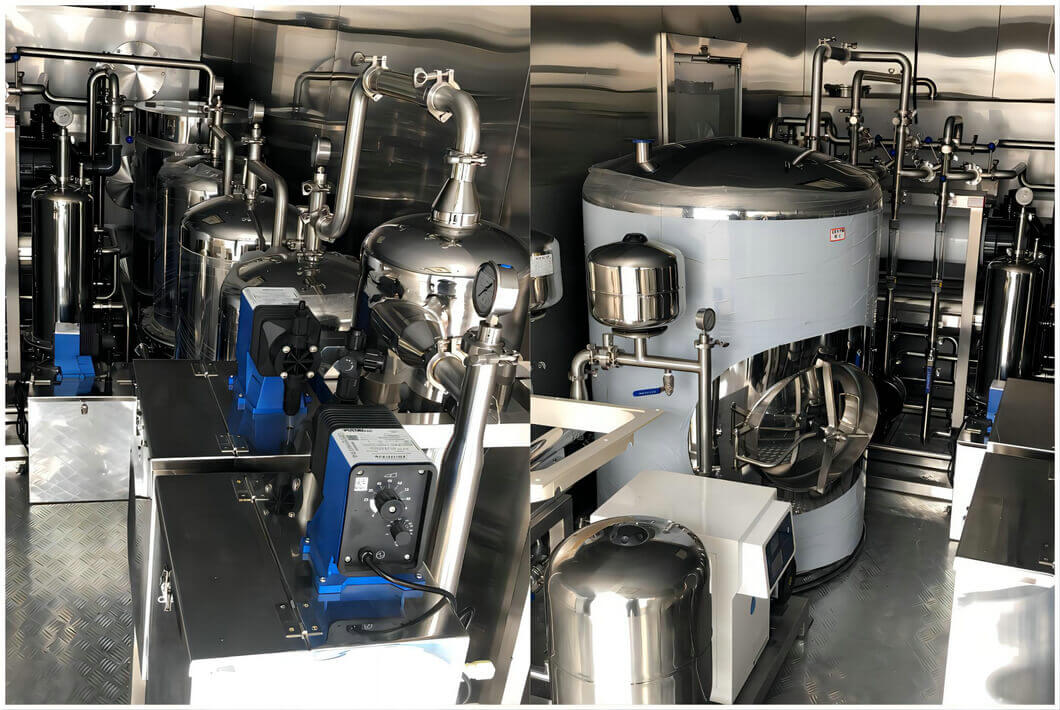

This vehicle is mainly used for purifying water quality in the wild, with specialized devices such as water storage tanks, water purification systems, and water pumps
Overall dimensions: | 9460×2500×3780(mm) 10660,10460×2550×3610(mm) 10400×2500×3830(mm) | Cargo size: | DMT5160XJS;SMQ5160XJSS6; XC5150XJSSDA1;BCL5160XJS |
Total mass: | 16480(Kg) | Net | 16350(Kg) |
Approach Angle/Departure Angle: | 16/12(°) | Front/rear overhang: | 1450/2410(mm) |
Axle Load: | 5980/10500 | Wheelbase: | 4500,4700,5000,5200,5600,5800,6300,3600,3800,4200(mm) |
Number of shafts: | 2 | Maximum speed: | 110(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/- |
Front wheel base: | 1900,1950,1998,2015,2035(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC05H.25-60 | China Heavy Duty Automobile Group Co., LTD Weichai Power Co., Ltd. | 4910 | 180 |
Vehicle fuel parameter
1, the main special equipment: drinking water storage tank, water purification system, etc. 2, skirt structure side protection, side protection from the ground height of 360mm; The rear protection is made of Q235A material, the section size is 120×60 moment pipe, the rear protection and support are bolted to the frame, and the rear protection is 500mm above the ground; 3. The manufacturer/model of the ABS system controller installed with the original car is WABCO (Shanghai) Management Co., LTD /4460046300. |
Used for water source purification, ensuring domestic water demand, equipped with high-pressure pumps, water purification equipment and other specialized devices; Main specialized devices: drinking water storage tanks, water purification systems, etc
Equipped with specialized devices such as water purification tanks, high-pressure pumps, and water purification equipment, mainly used for water source purification to ensure domestic water demand. Multiple water purification equipment and pumps are optional
Overall dimensions: | 9690,10000,10370,10690,11200×2550×3990(mm) | Cargo size: | AQZ5180XJSZ6 |
Total mass: | 18000(Kg) | Net | 17870,17805(Kg) |
Approach Angle/Departure Angle: | 16/14,16/13(°) | Front/rear overhang: | 1450/3240,1450/3350,1450/3320,1450/3440,1450/3450(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,4700,5000,5200,5600,5800,6300,3600,3800,4200(mm) |
Number of shafts: | 2 | Maximum speed: | 110(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/- |
Front wheel base: | 1900,1950,1998,2015,2035(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC05H.25-60 | China Heavy Duty Automobile Group Co., LTD | 4910 | 180 |
Vehicle mainly used for water purification, to ensure the demand for domestic water, equipped with high pressure pump, water purification equipment and other special devices.
