5200XJSZ6
-
SITRAK
-
87059099900
-
Shanghai, China
-
3000
-
T/T

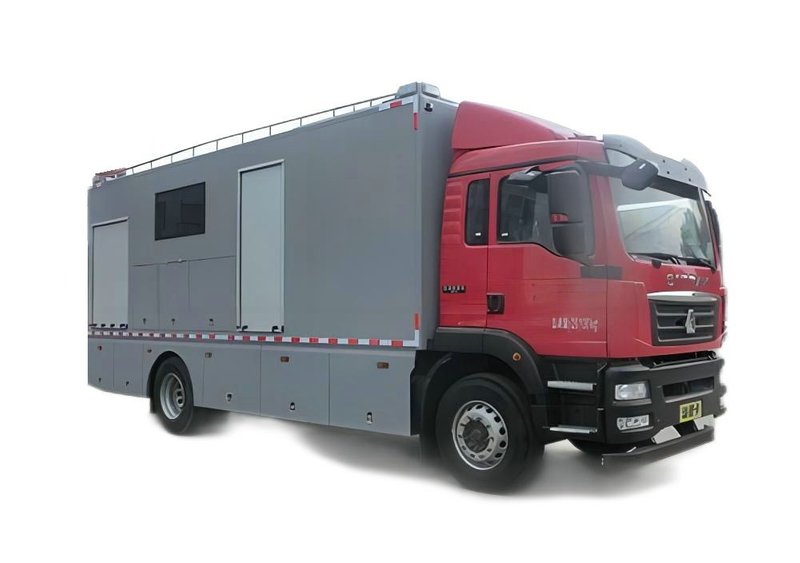

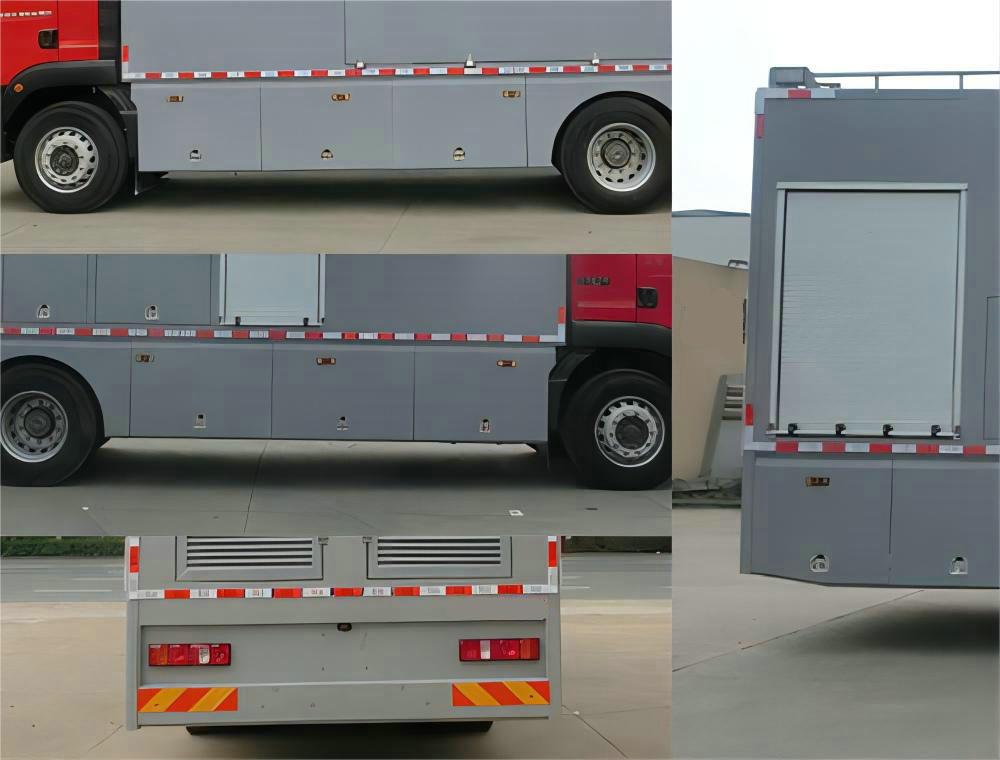

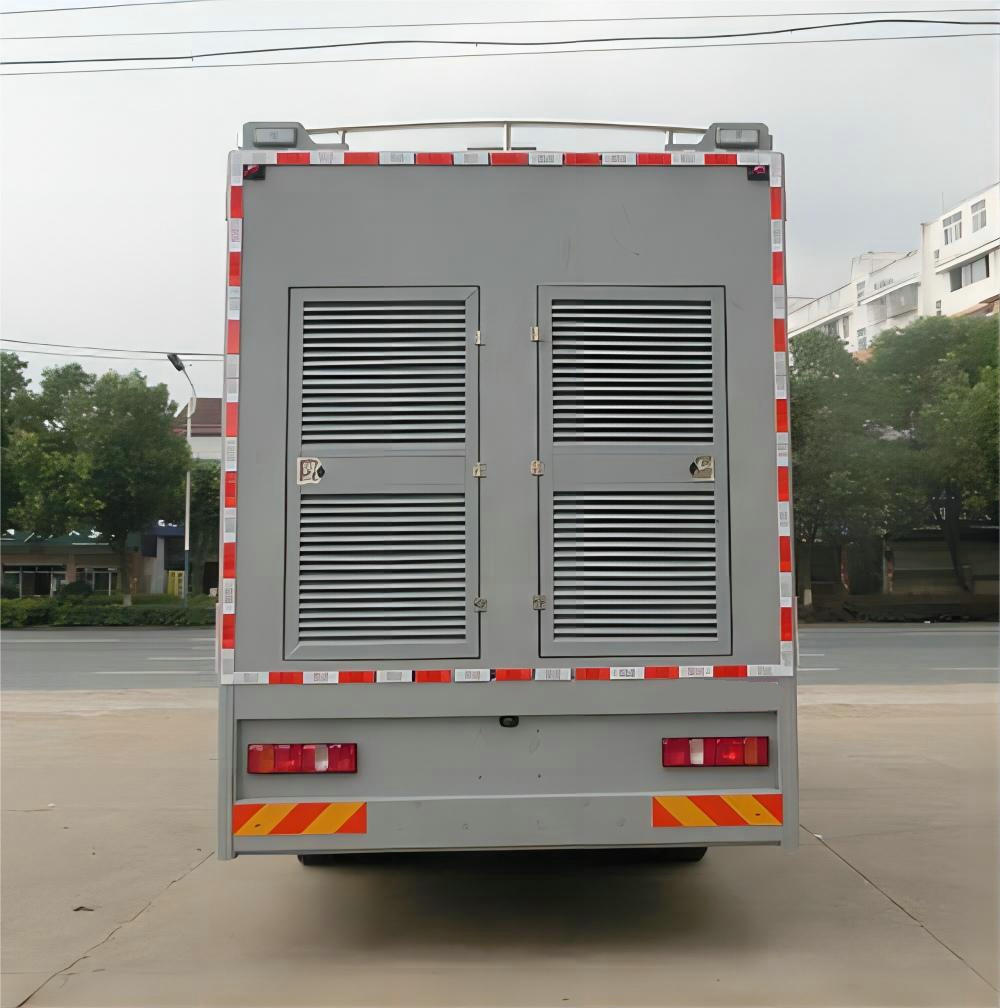

SITRAK Mobile Water Purification Truck
ZZ5206N501GF1
Main Cahssis SITRAK ZZ5206N501GF1 technical parameters
Overall dimensions: | 9800/10050 * 255 * 3890 (mm) | ||
Total mass: | 20100(Kg) | ||
Quality of service: | 18500(Kg) | Rated load mass: | 1470 1405Kg) |
Approach Angle/Departure Angle: | 16/16 (°) | Front/rear overhang: | 1450/2550(mm) |
Axle Load: | 7100/13000 | Wheelbase: | 4500,4700,5000,5200,5600,6050,4200 ,3900,5800,6300 (mm) |
Number of Axles: | 2 | Maximum speed: | 110(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 315/80 r22. 5; 295/80 r22. 5, 12 R22.5, 12.00 R20, 11.00 R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3+2,3/3+2,3/9+8,11/9+8 |
Front wheel base: | 1998/203 5 (mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.27-60 | China Heavy Duty Automobile Group Co., LTD | 6870 | 202 |
Sinotruck mounted Water Filtration
1. China high-quality chassis, reference or equivalent to Isuzu, SAIC Hongyan Iveco, SITRAK or not lower than its grade chassis, the gearbox uses international famous brands to refer to Fast, Aixin, ZF.
2. Main technical requirements
2.1 Drive form: 4x2
2.2 Cab: a single row with the original car air conditioning
2.3 Engine: diesel engine
2.4 Rated power:: 220KW, specific power: 11 Kw / T
2.5 Emission standard: not lower than the national VI emission standard
2.6 Fuel tank capacity is 260L
2.7 Transmission form: automatic transmission
2.8 Leave Angle is 12°, and the approach Angle is not lower than the original chassis design
3. The crew room
3.1 Single row, double door with double deck sleeper cab, number of passengers 2
3.2 Central control door lock + key control
3.3 Electric window, rearview mirror with electric + electric heating function, parking air conditioning system
3.4 Requirements: overall anti-corrosion treatment to ensure the vehicle durable, comfortable, safe and reliable
4 Deputy frame
4.1 The high strength moment pipe made of special steel
5. The carriage
5.1 The box wall board, floor and roof of the upper compartment are all designed with insulation box, and the floor is made with decorative aluminum plate with anti-skid function
5.2 Structure The carriage is of high quality aluminum alloy or high strength steel skeleton structure
5.3 The carriage door adopts the overall van design, the two sides of the board can be folded up and down, the top covers the rain and sunshine, and the operation area is increased below
5.4 Strobe alarm lights and exterior lights are installed on the outside of the roof enclosure
5.5 A removable aluminum alloy safety ladder leading to the lower version is set on each side of the back of the car
Water purification system
6.1 The water purification system can purify and disinfect the raw water, remove the impurities in the raw water, kill the pathogenic microorganisms, and make the water production meet the hygienic standards of drinking water. The water purification system is composed of front-stage submersible pump, pretreatment, reverse osmosis system, ultraviolet sterilizer and other parts.
6.2 The water purification system can treat the surface water above class III (including Class III).
6.3 Main configuration requirements of the water purification system
6.3.1 Water purification pretreatment: raw water tank 3000L; raw water pump is made of 304 stainless steel, power 0.7 Kw; filter contains multiple media, activated carbon, scale resistance, precision filter, etc.
6.3.2 Reverse osmosis system: rated flow of primary high pressure pump 4 m3/h, rated head 129 m; rated flow of secondary high pressure pump 4 m3/h, rated head 112 m; no less than secondary reverse osmosis water design.
6.3.3 Power of ultraviolet disinfection lamp is 30W
6.3.4 Purified water tank: material PE or 316 stainless steel; volume 2000L
6.3.5 Water quality detector: it can routinely test the purified water, including ammonia, nitrogen, residual chlorine, phosphate, nitrite, sulfide, hexavalent chromium, fluorine, cyanide, mercury, lead, barium, cadmium and other indicators.
6.3.6 Purified water quality index: meet GB5749 " Domestic and Drinking Water Sanitation Standard
6.3.7 Water yield and water storage index: purified aquatic water: 1000 L/h; purified water storage: 2000L;
7 The boiling water supply system
7.1 Fully automatic atmospheric oil-fired boiler:
7.2 Production of boiling water: 1000 L/h (300 L / 25min)
7.3 Water capacity: 300L
7.4 Rated output water temperature: 95℃ (ambient temperature 20℃)
7.5 Rated return water temperature: 70℃ -75℃
7.6 Rated thermal power: 100000 Kcal / h
7.7 Thermal efficiency: 92%
7.8 Fuel consumption: 9.45kg / h
7.9 Equipped with microcomputer technology to implement automatic measurement and control of water level, water temperature and pressure gauge; digital display and touch panel, easy to observe water temperature and set parameters at any time, and simple and accurate operation; the boiler has various protection functions of program start and stop, combustion automatic adjustment, water level control, overpressure protection, automatic alarm and furnace shutdown protection, so as to make the boiler operation safe and reliable, and ensure the supply of boiling water.
8. Power supply mode
8.1 Municipal power supply: municipal power supply is 380V / 50Hz. With no less than 30 meters of mains cable, can be connected to AC380V / 50 HZ power supply to the car equipment, the power supply is connected by aerial plug, safe and reliable. The power supply introduction device is equipped with leakage protection when the leakage current in the cabin exceeds 30 mA or the short circuit fault occurs, the power supply is automatically cut off to ensure the safety of personnel and equipment.
8.2 Generator set: without external power supply, use the generator set in the car to supply the power to the equipment in the car, and provide ultra-silent generator. The generator power can meet the power supply demand of electrical appliances in the car, and the continuous power supply time is 72 hours
9. Electrical appliances and warnings
9.1 Alarm: The top of the front car is equipped with monotone 100W alarm, alarm light and circuit are independent additional circuits, and the control device is installed in the cab
9.2 The upper sides of the carriage shall be equipped with no less than three LED lights, no less than three flashing lights, and no less than two LED lights at the rear of the carriage
9.3 The car is equipped with LED white light lighting belt, which can meet the lighting of the whole box
9.4 Warning lights: Built-in yellow warning lights are installed on the sides of the car
9.5 equipped with 360° panoramic dashcam, memory no less than 32G, shooting time no less than 6 hours, night vision function, clear night image, automatic loop recording, with no less than 7-inch HD display screen equipped with reversing radar with no less than 4 probes
10 Spray paint
10.1 The outer surface of the vehicle body: paint according to the uniform requirements of the fire department. In order to ensure the safety of night work, the body is equipped with a fluorescent reflective belt that meets the requirements of safety standards
