5080XJS6
-
DFAC
-
87059099900
-
Shanghai, China
-
3000
-
T/T

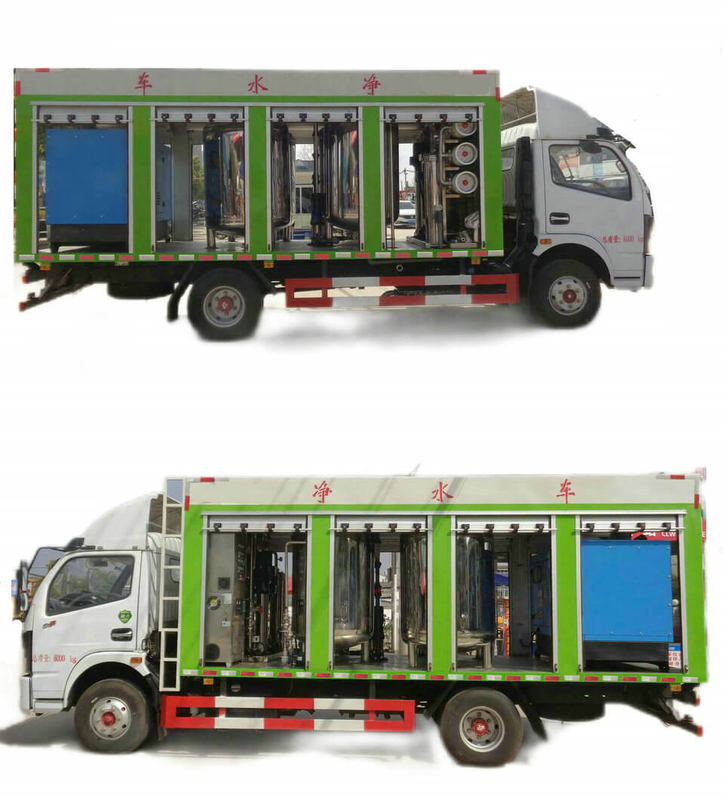

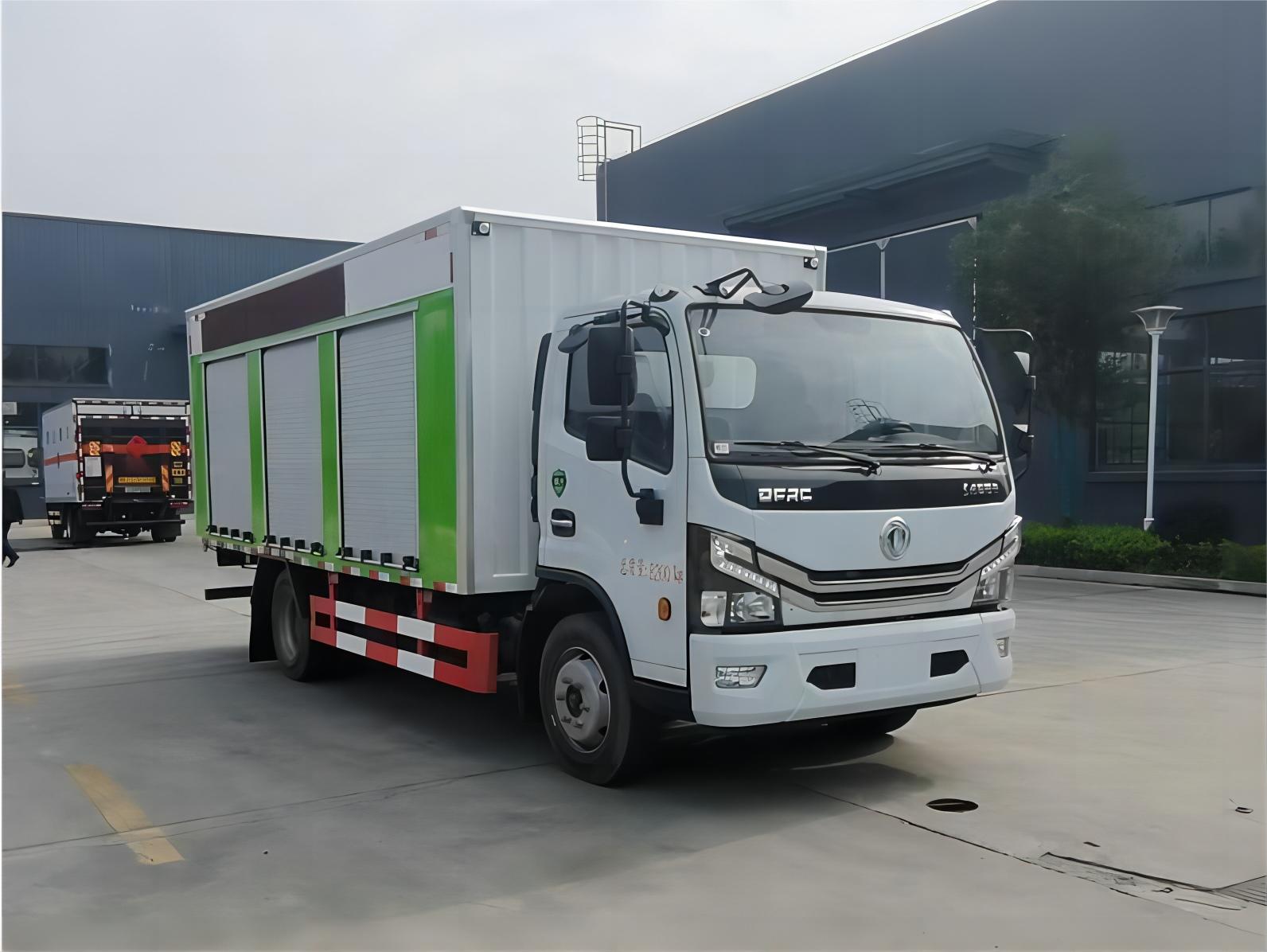

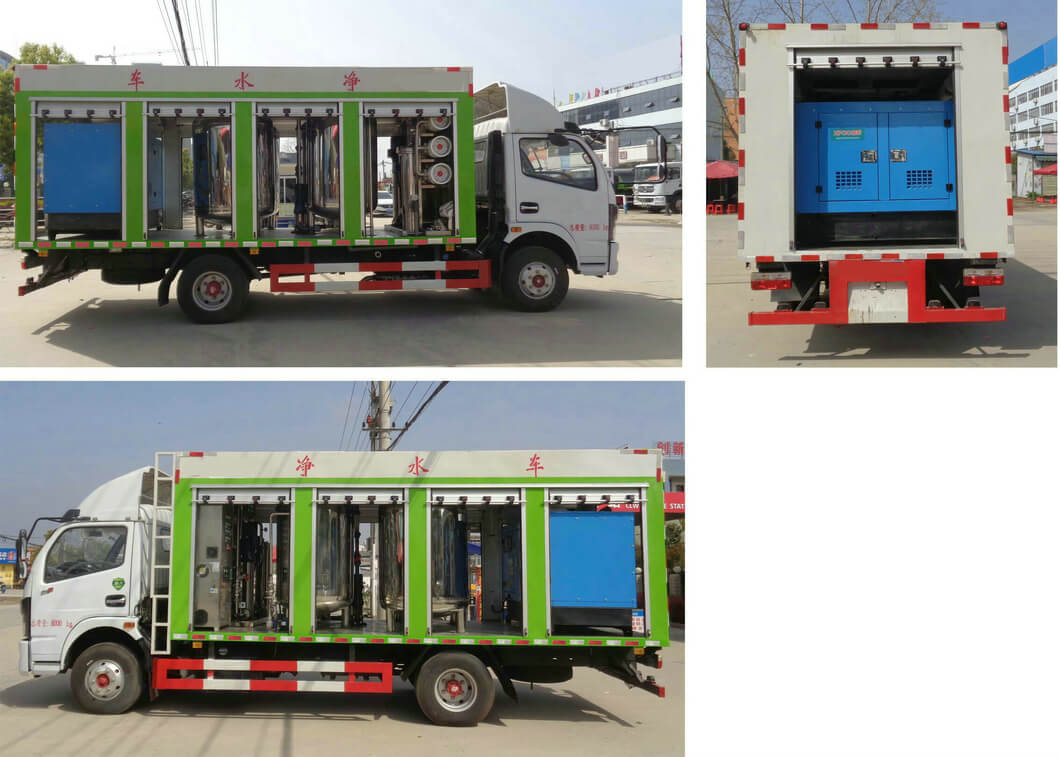

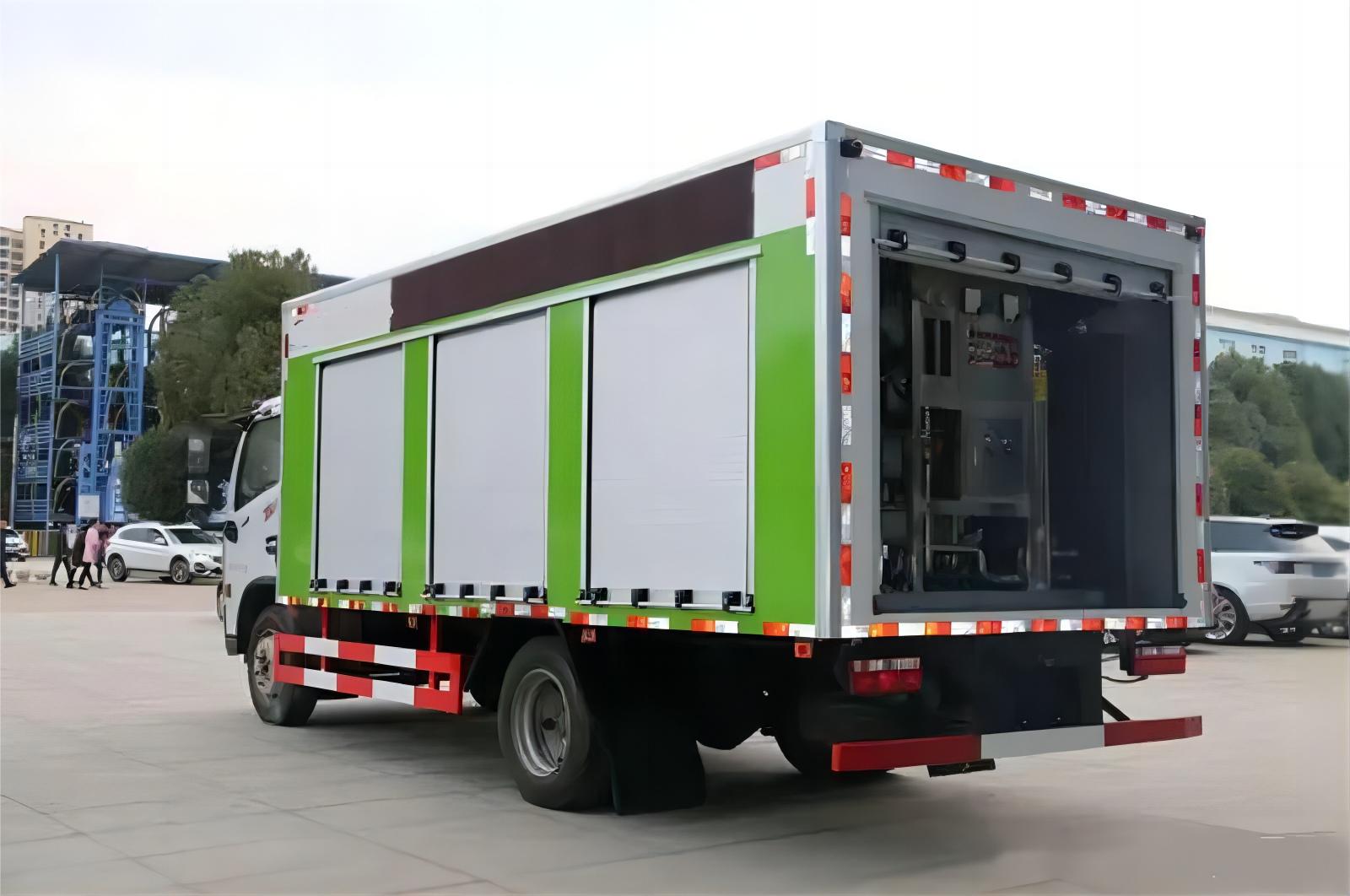

DFAC Mobile Purified Water Supply Vehicle
Applicable places for water purification vehicles:
Total mass 8000
Overall Dimensions 7100X2400X2950
Curb mass 7805kgs
Number of people in cab 3
Maximum speed 103
Chassis model EQ1095SJ8CD2;EQ1125SJ8CDC
2 axes 6tyres 4x2
Wheelbase 3800mm
This vehicle is suitable for mining development, tunnel construction, military field training, military operations, field operations, field hospitals, island defense, border defense forces, desert and edge areas for oil and mineral exploration, earthquake and flood natural disasters, outdoor camping, etc. It can purify 4 tons of pure water per hour

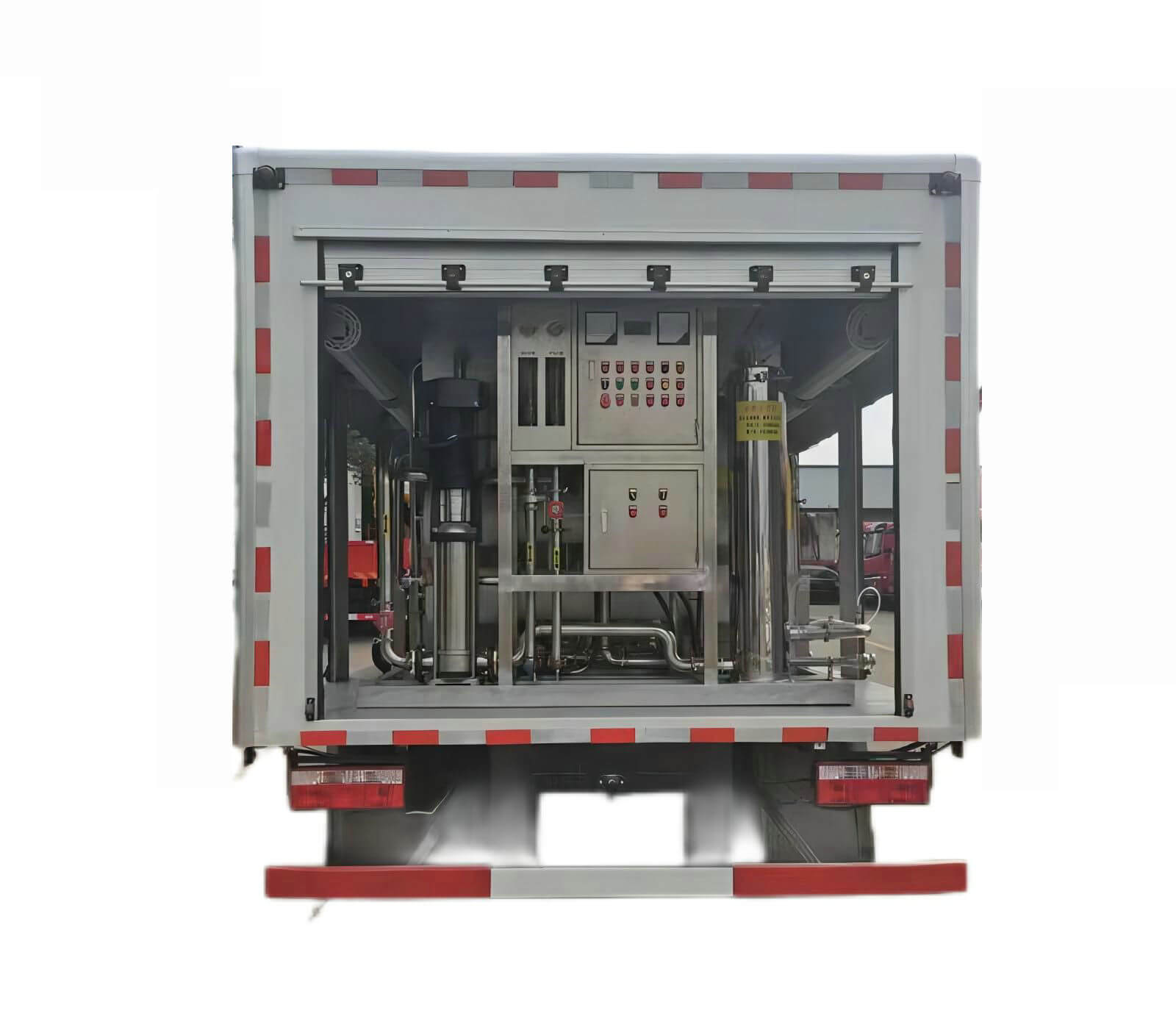

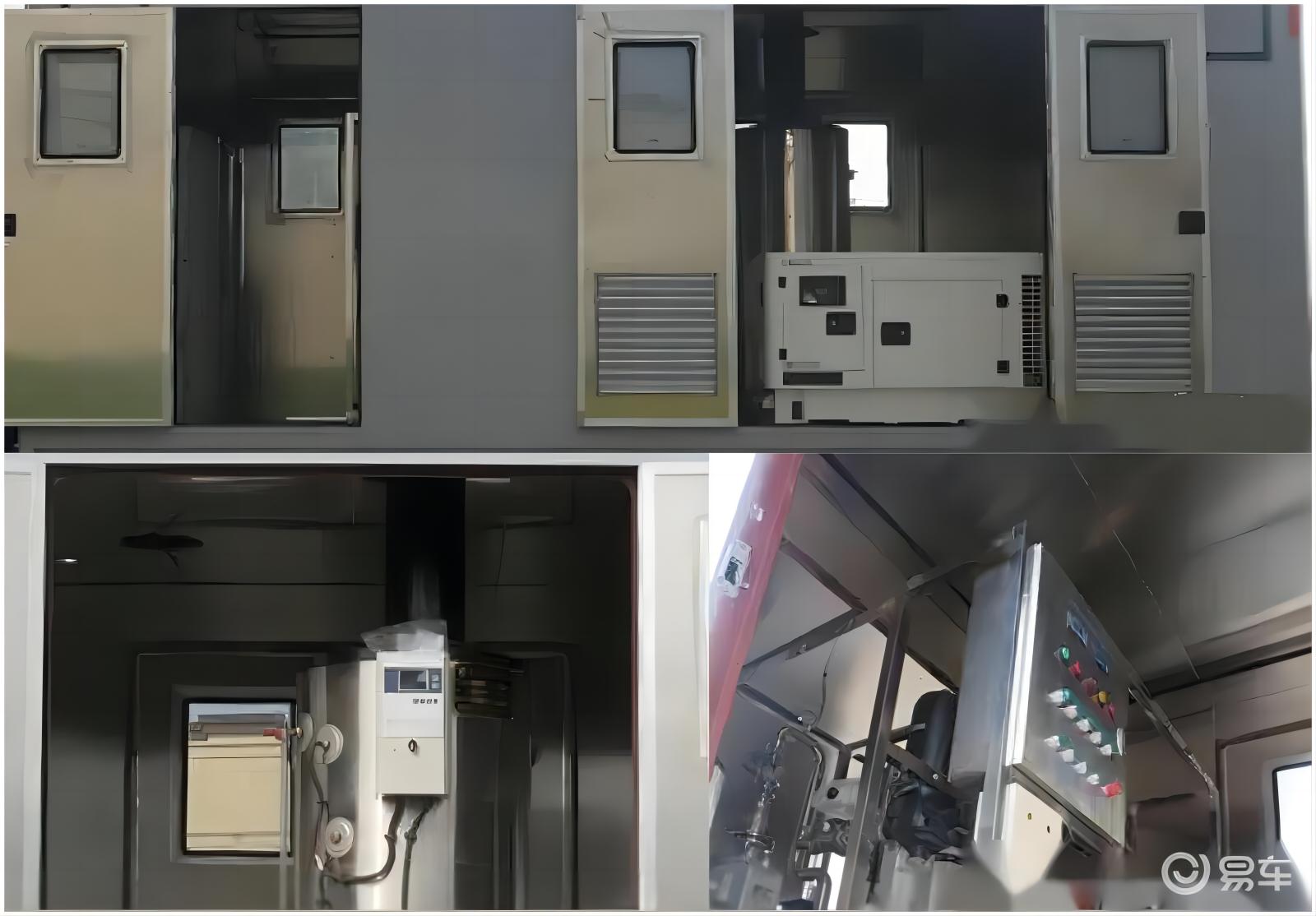

The upper garment consists of the following parts:
1. Raw water booster pump (controls automatic water replenishment when the raw water tank is short of water)
2. Quartz sand filter (filter impurities to reduce SDI value (pollution index) and improve water turbidity)
3. Activated carbon adsorber (removes some organic matter and free residual chlorine from water, and can effectively reduce the chromaticity of raw water)
4. Automatic dosing device for scale inhibitor (capable of continuous operation for 24 hours. Scale inhibitor is a consumable material for equipment that is regularly added)
5. Precision filters (security filters. PP melt blown filter cartridges are equipment consumables that are regularly replaced)
6. Reverse osmosis device
7. Electronic control system
8. Purified water and water supply system (used to store pure water processed by equipment; the liquid level controller controls the water level of the water tank, the equipment automatically stops when the water is full, and the low liquid level equipment in the water tank automatically starts to produce water)
9. Online cleaning system
10. High and low pressure pipelines, filter racks, ozone generators, etc
Main technical parameters
Overall dimensions: | 7700 * 2550 * 2950 (mm) | ||
Total mass: | 8200(Kg) | Net | 8005 8070 (Kg) |
Approach Angle/Departure Angle: | 21/12 (°) | Front/rear overhang: | 1130/2170 1180/2120 1317/1983 1310/1990 (mm) |
Fuel Type: | Diesel oil | Emission standard: | Euro 3-6 |
Axle Load: | 3250/4950 | Wheelbase: | 3800395, 0405, 0410, 0440, 0360 (mm) |
Number of shafts: | 2 | Maximum speed: | 103 (km/h (in Chinese) |
Number of tires: | 6(PCS) | Tire Specifications: | 245/70 r19. 5,8.25 R20, 245/70 r19. 16 pr 5, 8.25 R20 16 pr, 8.25 R20 14 pr |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 8/10 + 7, 12/12 + 9 |
Front wheel base: | 1745180, 2182, 0184, 2176, 5189 (mm) | Rear wheel base: | 1630165 0180 0172 0 (mm) |
Engine parameter
Engine type | Engine (ml) | Power (kw) | |
YCY30165-60; Q28-130E60; D30TCIF1; CY4SK361; NV30-C6D; ZD30D16-6N; D25TCIF1; YCY24140-60; CY4SK161; CY4SK261; NV30-C6G; D4.0 NS6B185; CA4DD2-18E6-30; YCS04190-68; D40TCIF1; D4.0 NS6B195; D4.0 NS6B170; CY4BK261; H30-165E60; D45TCIF1; D4.0 NS6B160; NV30-C6C; Q28-156E60 | 2970; 2800; 2977; 3856; 2968; 2953; 2499; 2360; 3856; 3856; 2968; 4000; 3230; 4156; 4052; 4000; 4000; 3707; 3000; 4461; 4000; 3093; 2800 | 121; 96; 125; 125; 120; 120; 110; 103; 135; 125; 115; 136; 132; 140; 135; 143; 125; 100; 120; 162; 118; 120; 115 |
Chassis 1 : EQ1125SJ8CDC Technical Parameters | |||
Chassis Model: | EQ1125SJ8CDC | Maximum Speed: | 103（km/h） |
Total Mass: | 11995(Kg) | Curb Quality: | 7640(Kg) |
Emission Standards: | GB17691-2018 China Ⅵ | ||
Chassis Parameters | |||
Chassis Model: | EQ1125SJ8CDC | Fuel Type: | Diesel Oil |
Number of Axes: | 2 | Wheelbase: | 3800,3950,4050,4100,4400,3600(mm) |
Number of Tires: | 6 | Axle load: | 4350/7645 |
Tire Specifications: | 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR | ||
Chassis 2 : EQ1095SJ8CD2
EQ1095SJ8CD2 Chassis technical parameters | |||
Chassis model | EQ1095SJ8CD2 | Chassis name | Truck chassis |
Trade name | Dongfeng | manufacturer | Dongfeng Motor Co., Ltd. |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3800 | ||
Tire specifications | 7.50R16LT 16PR, 8.25R16LT 16PR | ||
Number of leaf spring | 8/10+7 | Front track (mm) | 1745 |
Fuel type | Diesel oil | Rear track (mm) | 1586 |
Emission standard | GB17691-2018 National Ⅵ /Euro 5-6 | ||
engine model | Engine manufacturer | engine capacity | Engine power |
YCY24140-60 ZD30D16-6N D25TCIF1 D30TCIF1 NV30-C6G NV30-C6D D4.0NS6B160 Q28-130E60 YCY30165-60 | Guangxi Yuchai Machinery Co., Ltd. Dongfeng Light Engine Co., Ltd. Kunming Yunnei Power Co., Ltd. Kunming Yunnei Power Co., Ltd. Dongfeng Chaoyang Chaochai Power Co., Ltd. Dongfeng Chaoyang Chaochai Power Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Anhui Quanchai Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. | 2360 2953 2499 2977 2968 2968 4000 2800 2970 | 103 120 110 125 115 120 118 96 121 |
