5180XJSDF6
-
KING RUN
-
87059099900
-
Shanghai, China
-
3000
-
T/T

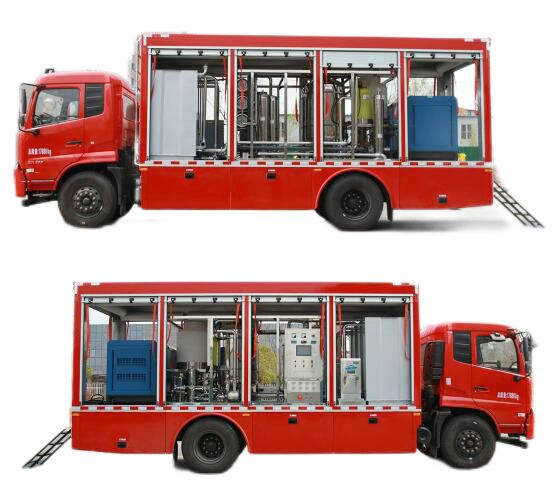

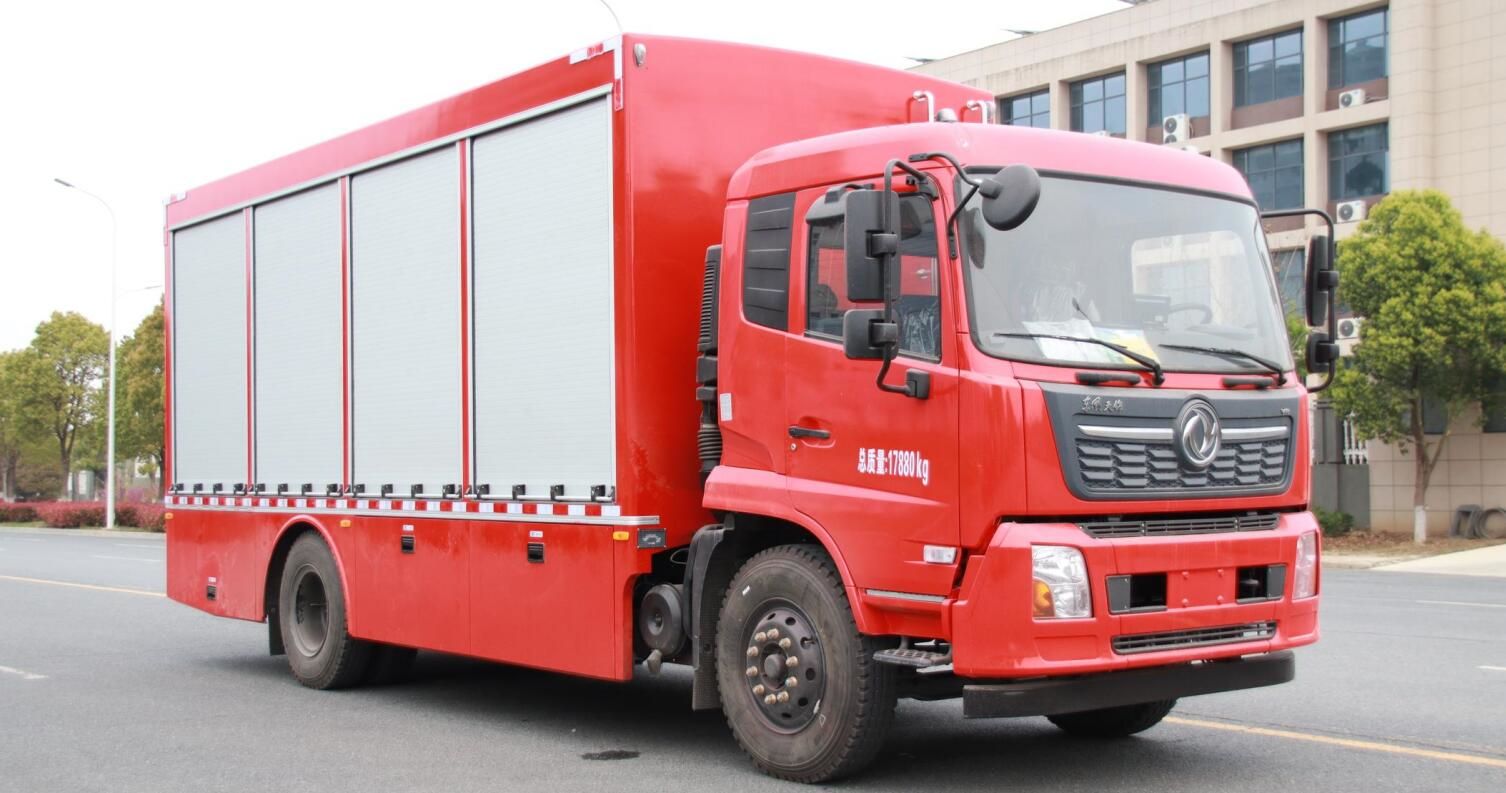

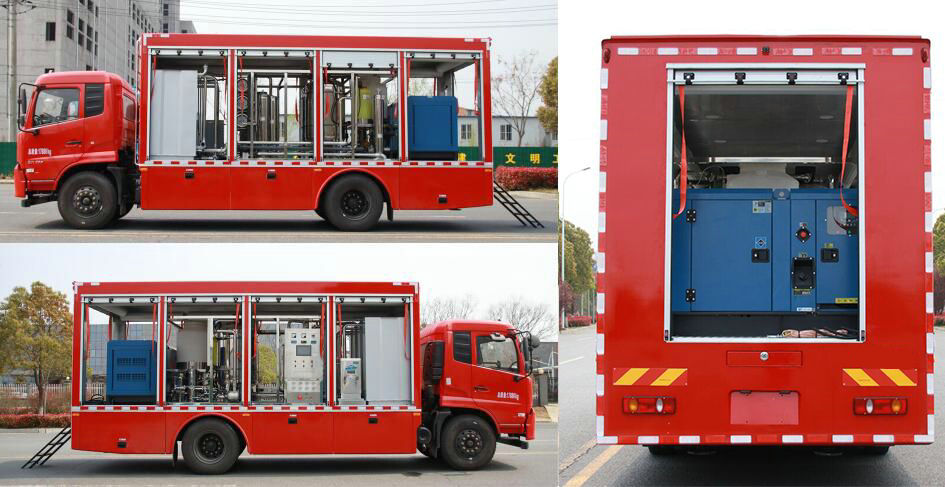

DFAC Water Purification Vehicle 1.5 m3/H
Water purifier
Net water flow rate: ≥ 1500L/h (25 ℃);
Rolling shutter door force customization
1.5 t process force customization of water purifier equipment
Generator force customization
Programming customization
Pumping pump
Programming customization
Inlet hose
Programming customization
Drainage hose
Programming customization
Raw water tank 2T
Programming customization
Pure water tank 1.5 t
Dedicated function
Programming customization
Control system
Process force customization of waterway system
Programming customization
Climbing ladder
Programming customization
Simple side protection + rear bumper
Programming customization
Water storage tank
Programming customization
Hydraulic control system
Programming customization
Boiling water boiler
Main technical parameters
Overall dimensions: | 8460,8660,8950 × 2480,2550 × 3500,3650,3800(mm) | ||
Total mass: | 17880(Kg) | ||
Unladen mass: | 14000,15000(Kg) | Rated load mass: | 3750,3685,2750,2685(Kg) |
Approach angle/departure angle: | 17/11,17/10(°) | Front/rear suspension: | 1400/2560,1430/2530,1400/2850,1430/2820(mm) |
Fuel type: | diesel oil | Emission standard: | Euro 5/6 |
Axle load: | 6250/11630 | wheelbase: | 3800,3950,4200,4500,4700,5000,5300,5800,5600,5100(mm) |
Number of axles: | 2 | Maximum speed: | 89(km/h) |
Number of tires: | 6 | Tire specification: | 10.00R20 18PR,275/80R22.5 18PR |
oil consumption: | (L/100Km) | Number of springs: | 7/9+6,8/10+8,8/9+6,11/10+8,3/10+8 |
Front track width: | 1876,1896,1920,1950,1914,1934,1980,2000,1815,1860(mm) | Rear track width: | 1820,1860,1800,1840(mm) |
Steering type: | Steering wheel | Starting mode: | |
Vin VIN: | LGAX3A12 ××××××××× LGAX3B12 ××××××××× LGAX3C12 ××××××××× LGAX3A13 ××××××××× LGAX3B13 ××××××××× LGAX3C13 ××××××××× LGAX3A14 ××××××××× LGAX3B14 ××××××××× LGAX3C14 ××××××××× | ||
Engine parameters
Engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
D4.5NS6B190; D6.7NS6B230; B6.2NS6B210; D4.0NS6B185; DDi50E220-60; B6.2NS6B230; DDi50E190-60; D4.0NS6B195; D6.7NS6B260; D4.5NS6B220; DDi47E210-60; B6.2NS6B260; B6.2NS6B245 | Dongfeng Cummins Engine Co., Ltd | 4500; 6700; 6200; 4000; 5000; 6200; 5000; 4000; 6700; 4500; 4750; 6200 | 140; 169; 154; 136; 162; 169; 147; 143; 191; 162; 154; 191; |
water tank
The water tank is divided into a clean water tank and a raw water tank, both of which are made of 304 stainless steel. The total effective volume of the water tank is ≥ 4.5m ³
Number of configured clean water tanks: 1, with a capacity of ≥ 1.5m ³ ， Internally, it is treated with drinking water through water purification equipment;
Number of configured raw water tanks: 1 unit, with a capacity of ≥ 3m ³ ， Internally, there are three types of surface water;
The boxes are all welded from 304 stainless steel plates. The top of the box is equipped with an opening that can serve as a water filling hole for injecting water into the box. The hole cover and opening are sealed with rubber rings and connected with bolts;
There are 3-4 folding wave guards inside the box. The box is equipped with inlet filtration, outlet filtration, overflow, and sewage discharge devices;
A drainage outlet is set at the lowest point of the water tank to ensure that the water in the tank can be discharged completely during storage;
Basic Information | |
Usage | Vehicle for Special Work |
Fuel Type | Diesel |
Emission Standard | GB3847-2005,GB17691-2005 national Ⅳ emission standards |
Length | 9280mm |
Width | 2500mm |
Height | 3950mm |
Curb Weight | 12300kg |
Gross Weight | 12495kg |
Seats | 3 |
Max Speed | 100km/h |
Chassis | |
Chassis Model | DFL1120B13 |
Front/Rear Overhang | 1430/2850mm |
Number of Leaf Springs | 7/9+6,8/10+8 |
Number of Axles | 2 |
Wheelbase | 4700,5000mm |
Axle Load | 4400/8095kg |
Front Wheel Track | 1880,1924mm |
Rear Wheel Track | 1800mm |
Approaching/Departuring Angle | 20/15° |
Tire | |
Number of Tires | 6 |
Tire | 9.00-20,9.00R20,255/70R22.5 |
