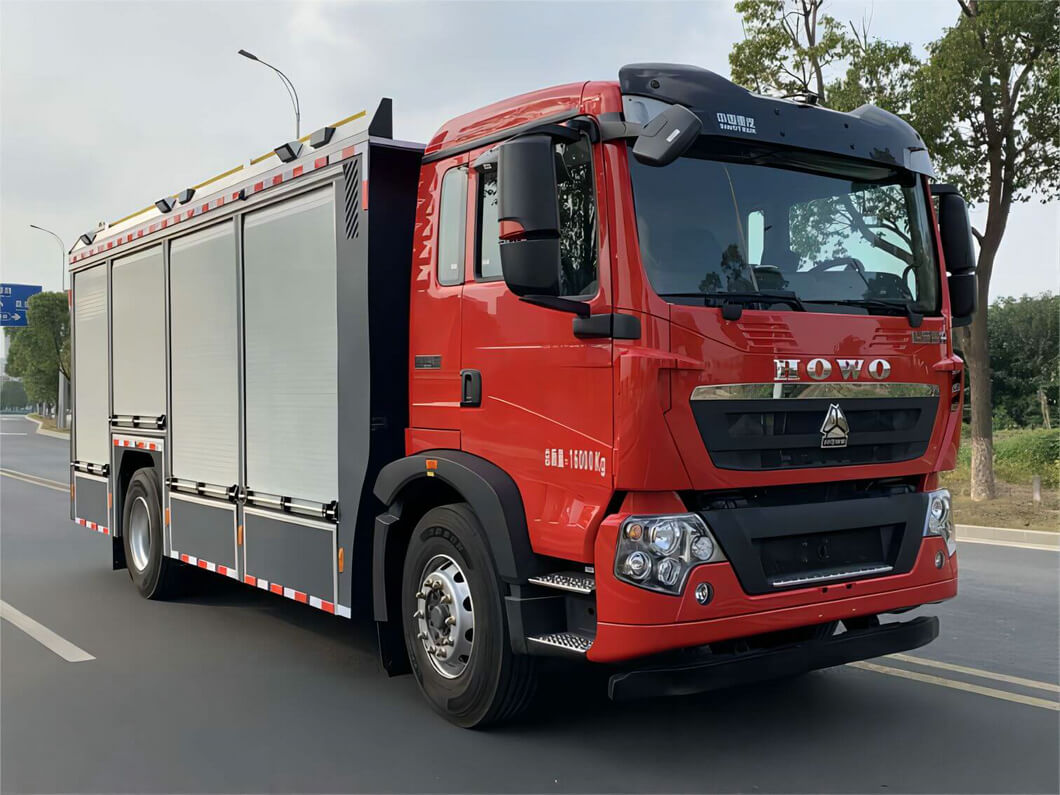

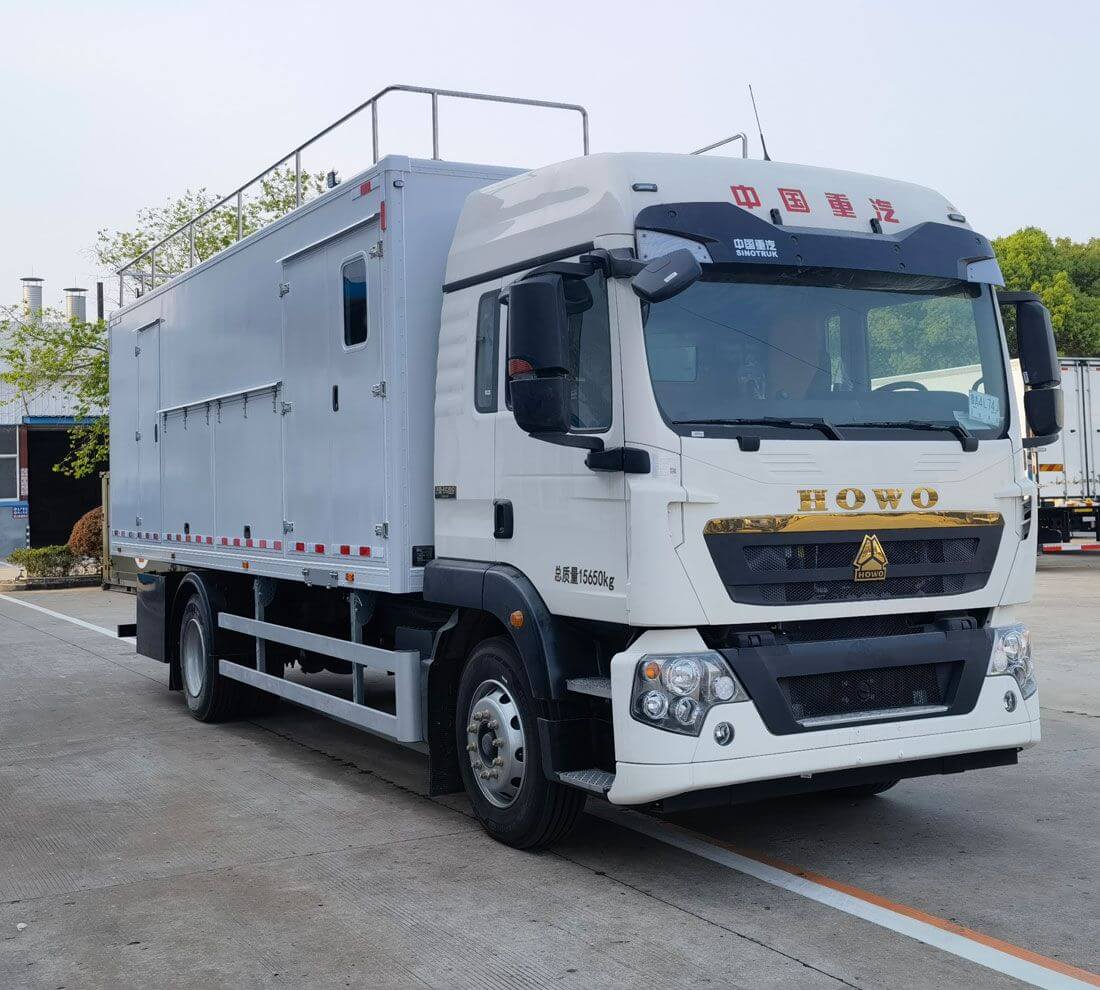

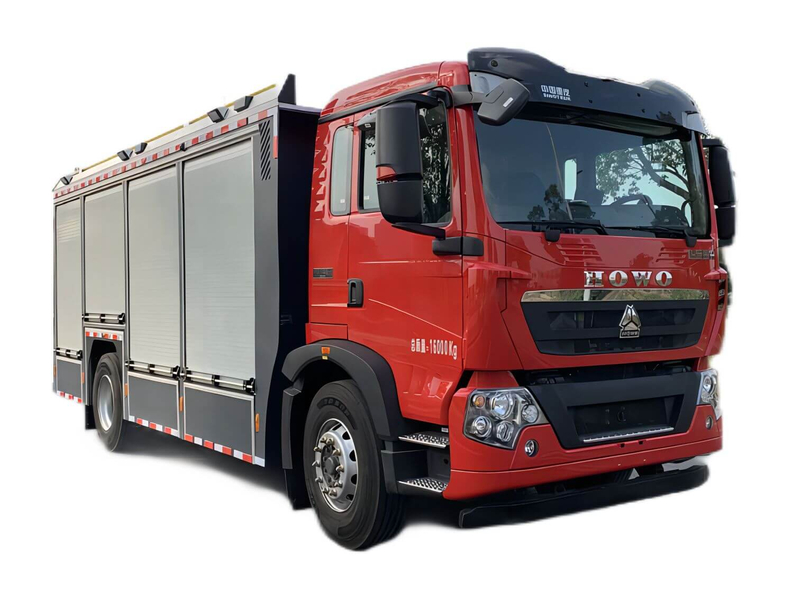

Customizing Sinotruck HOWO Water Purifier Trucks For Emergency Water Filtration Treatment
Sinotruck Mobile Purifying Water Truck Chassis HOWO : ZZ5207TXFV471GF1 or ZZ1187K501GF1
Main technical parameters
Overall dimensions: | 8590×2500×3350(mm) | Cargo size: | ZXT5160XJS40E6 |
Total mass: | 16000(Kg) | Net | 11870(Kg) |
Approach Angle/Departure Angle: | 19/9(°) | Front/rear overhang: | 1430/2460(mm) |
Axle Load: | 5600/10400 | Wheelbase: | 4200,4500,4600,4700,5000,5600,5600,6000,5200(mm) |
Number of shafts: | 2 | Maximum speed: | 101(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 315/80R22.5,12.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/9+8,10/9+6,4/9+6,4/5,3/9+8,3/3+2 |
Front wheel base: | 1950,2035(mm) | Rear wheel base: | 1848,1860(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC11.40-60; MC07H.35-60; MC07.34-60; MC07.31-60; MC11.44-60; WP9H350E62; WP8.350 E61. MC11.40-61; MC11.43-61; MC11.46-61. | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 10518; 7360; 6870; 6870; 10518; 8800; 7800; 10518; 10518; 10518 | 297; 257; 251; 228; 327; 257; 257; 297; 319; 341 |
Vehicle Special functions and device description: mainly equipped with water purification equipment, for the temporary water purification function of field support .
Install a 360 ° driving recorder (with a memory of no less than 32G), reverse radar, and imaging system;
1. Overall dimensions of the vehicle (mm): 8000 ≤ length ≤ 9000; 2450 ≤ width ≤ 2550; 3300 ≤ high ≤ 3500;
Engine power: ≥ 240kw;
2. Maximum speed: ≥ 100km/h;
3. Fuel type: diesel;
4. Maximum total mass (Kg): ≥ 16000;
5. Wheelbase (mm): ≥ 4700;
6. Approach angle/departure angle ≥ 19 °/7 °;
7. Single row double doors in the passenger compartment, with a minimum of 2 passengers allowed;
8. Standard intelligent monitoring system: It can locate and troubleshoot occasional electronic control faults in vehicles; It can determine the engine status and detect faults during engine operation.
9. Frame: Steel outer frame and special connection structure for aluminum alloy profiles;

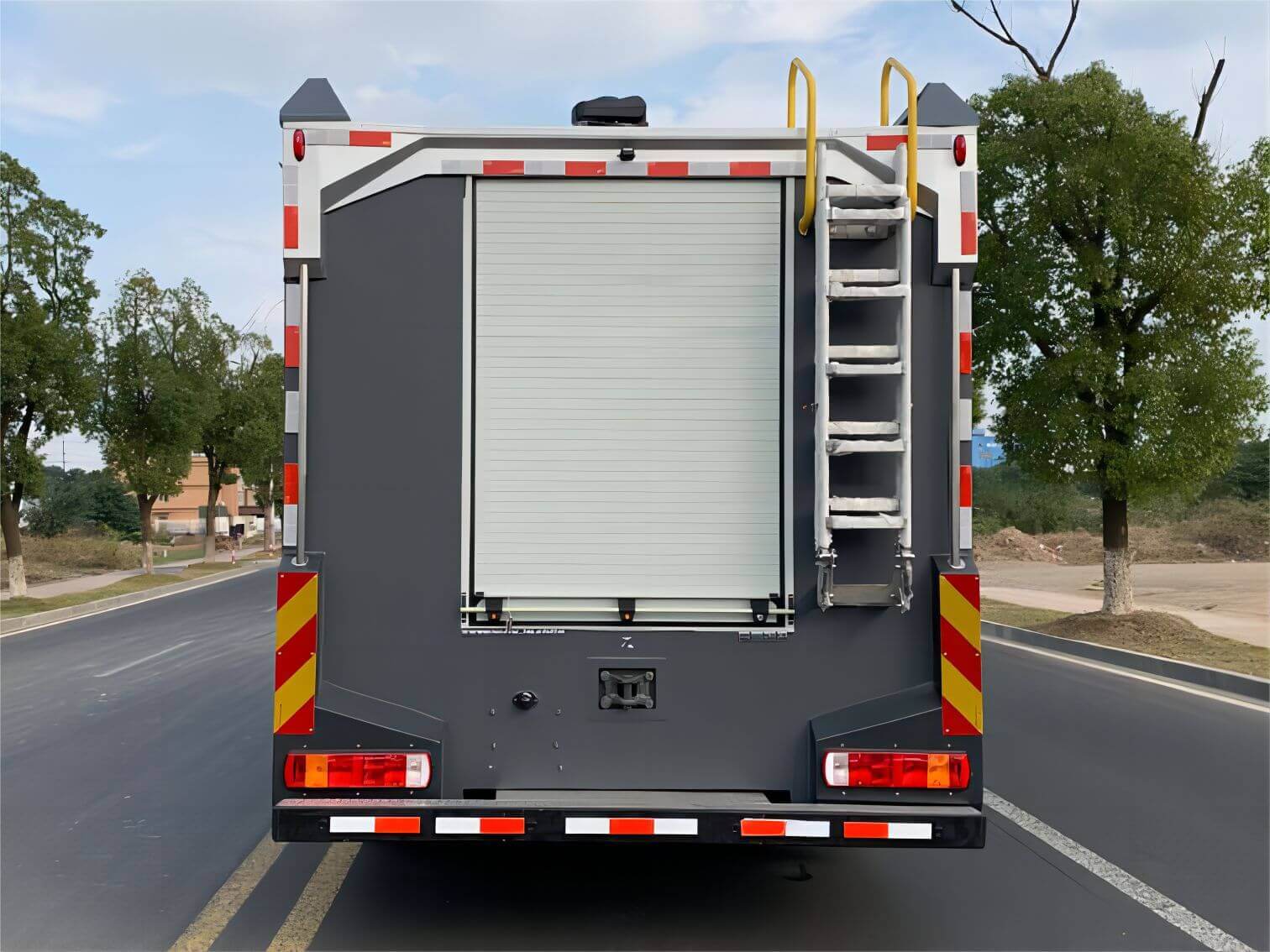

10. Number and material of box doors: box doors are set on both sides, and there are 1 box door at the back, using aluminum alloy pull rod type;
11. Each equipment compartment has 2 LED lighting strips, and the internal illumination of each equipment compartment is ≥ 50Lx;
12. Flip door pedal: Install flip pedals on both sides of the lower part, using a steel frame integrated welding structure, with a static load of ≥ 150kg;
Requirements for internal environmental facilities
★ Net water flow rate: ≥ 5 tons/hour; The treated drinking water quality should meet the requirements of the "Hygienic Standards for Drinking Water" (GB 5749-2022);
13. Number of tanks: 2, divided into raw water tanks and purified water tanks;
14. Total capacity: ≥ 4 tons; Among them, raw water tank: ≥ 2 tons; Water purification tank: ≥ 2 tons;
15. Material: Food grade stainless steel, thickness ≥ 3mm;
16. The service life and validity period of the filter elements included in the water purification system shall not be less than 12 months, and it is necessary to ensure that all filter components of the water purification system are replaced free of charge within three years after the vehicle is put into use;
17. The water intake device consists of one submersible pump and one floating lift pump; Submersible pump power ≥ 5 KW, flow rate ≥ 25m3/h, head ≥ 40 meters, electrically driven; The floating pump has a power of ≥ 5 KW, a flow rate of ≥ 50m3/h, a lift of ≥ 40 meters, and is driven by a gasoline engine.
Independent power supply system
18. Configure self generating and external power supply (mains) power supply methods;
19. Rated power of generator: ≥ 20kW;
20. Rated voltage of generator: 380V/220V;
21. Generator frequency: ≥ 50Hz;
22. Equipped with 1 manual cable reel, with a cable length of ≥ 50m, and must meet the output power requirements of the generator;
23. Equipped with an independent power supply system with a power of ≥ 2KW and two 120AH energy storage batteries;
Warning system
24. Install a long row of warning lights on the top of the cab;
25. Install LED strobe light strips on the left and right sides of the box.
26. Fire extinguisher: 4 dry powder fire extinguishers, with a specification of ≥ 4 kilograms
Main technical parameters Special functions and devices: The rear cabin of the vehicle is equipped with water tank, water purification device and submersible pump and other auxiliary equipment facilities, the front cabin is equipped with a generator, the generator provides power support for the rear cabin water purification equipment, is used to meet the field rescue water purification and drinking water special operation vehicle
Overall dimensions: | 8500×2500×3560(mm); 9420×2500,2530×3920(mm) | Cargo size: | KFT5169XJS60;HZT5120XJSE6 |
Total mass: | 12100(Kg) | Net | 11350(Kg) |
Approach Angle/Departure Angle: | 19/13(°) | Front/rear overhang: | 1430/2070(mm) |
Axle Load: | 5300/6800 | Wheelbase: | 3800,4200,4500,4700,5000,5200(mm) |
Number of shafts: | 2 | Maximum speed: | 89,80,101(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,11R22.5 18PR,295/60R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/9+8,3/9+8,3/3+2,2/3+2,3/-,2/-,2/3,7/7+6,7/7+3,3/7+6,3/7+3 |
Front wheel base: | 1950,2035(mm) | Rear wheel base: | 1848,1860(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.25-60; WP4.6 NQ220E61; MC07.27-60; MC07.29-60; MC05H.25-60; MC05H.23-60; MC05H.20-60; WP6H245E61; MC07H.29-60; WP6H270E61; WP7H220E62; WP7H245E62; WP7H270E62; WP7H300E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD | 6870; 4580; 6870; 6870; 4910; 4910; 4910; 6220; 7360; 6220; 6800; 6800; 6800; 6800 | 188; 162; 202; 213; 180; 166; 147; 180; 213; 199; 162; 180; 199; 221 |
