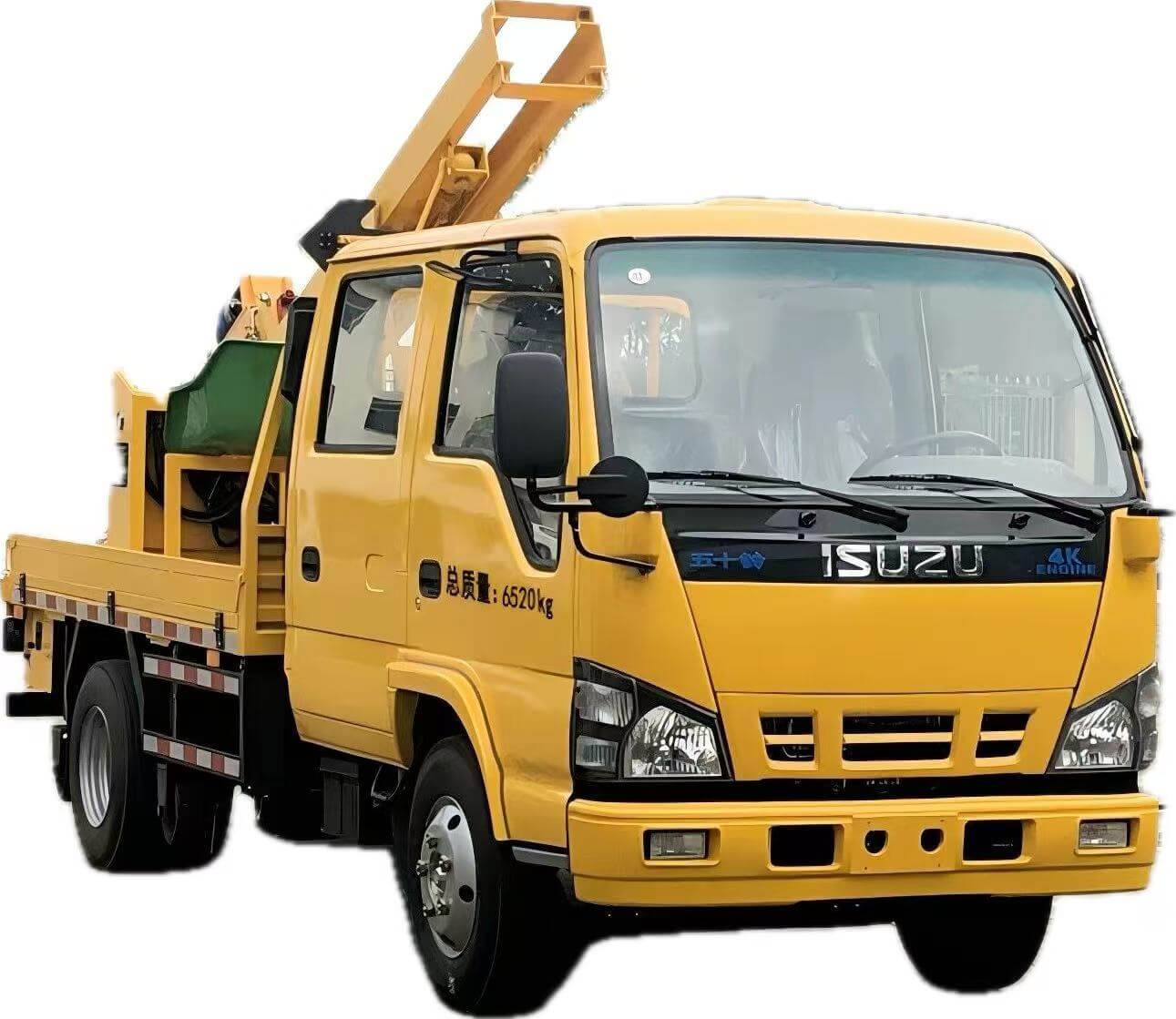

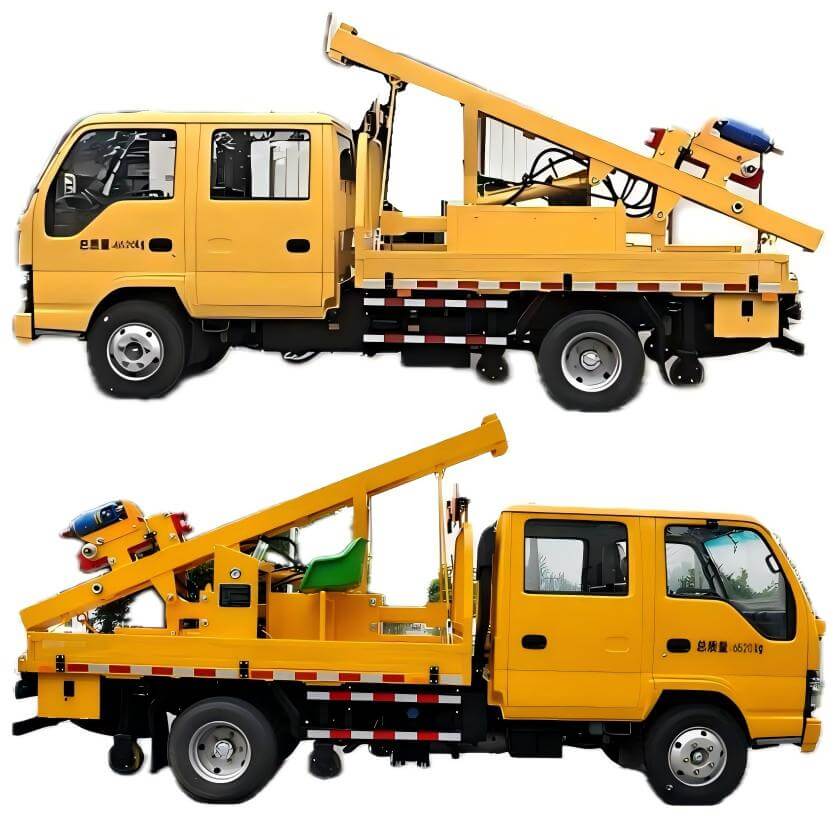

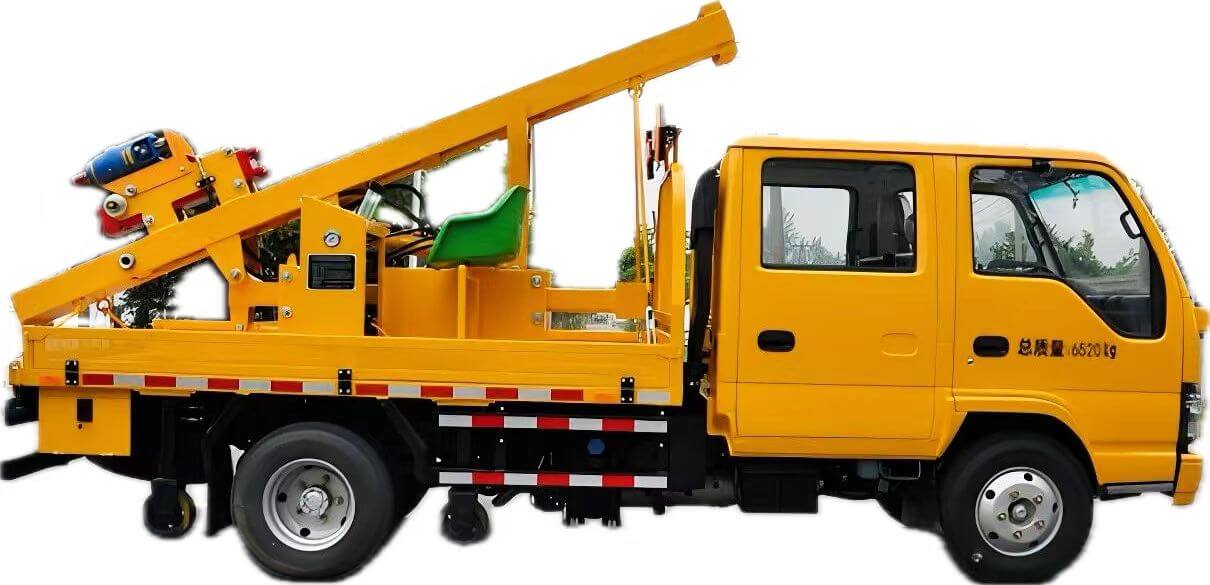

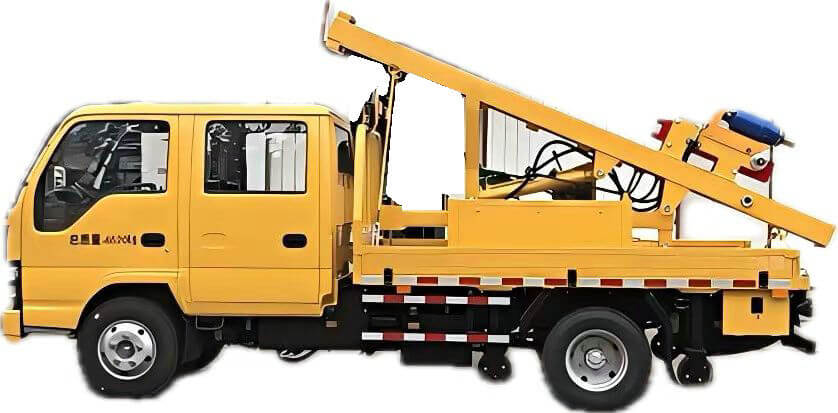

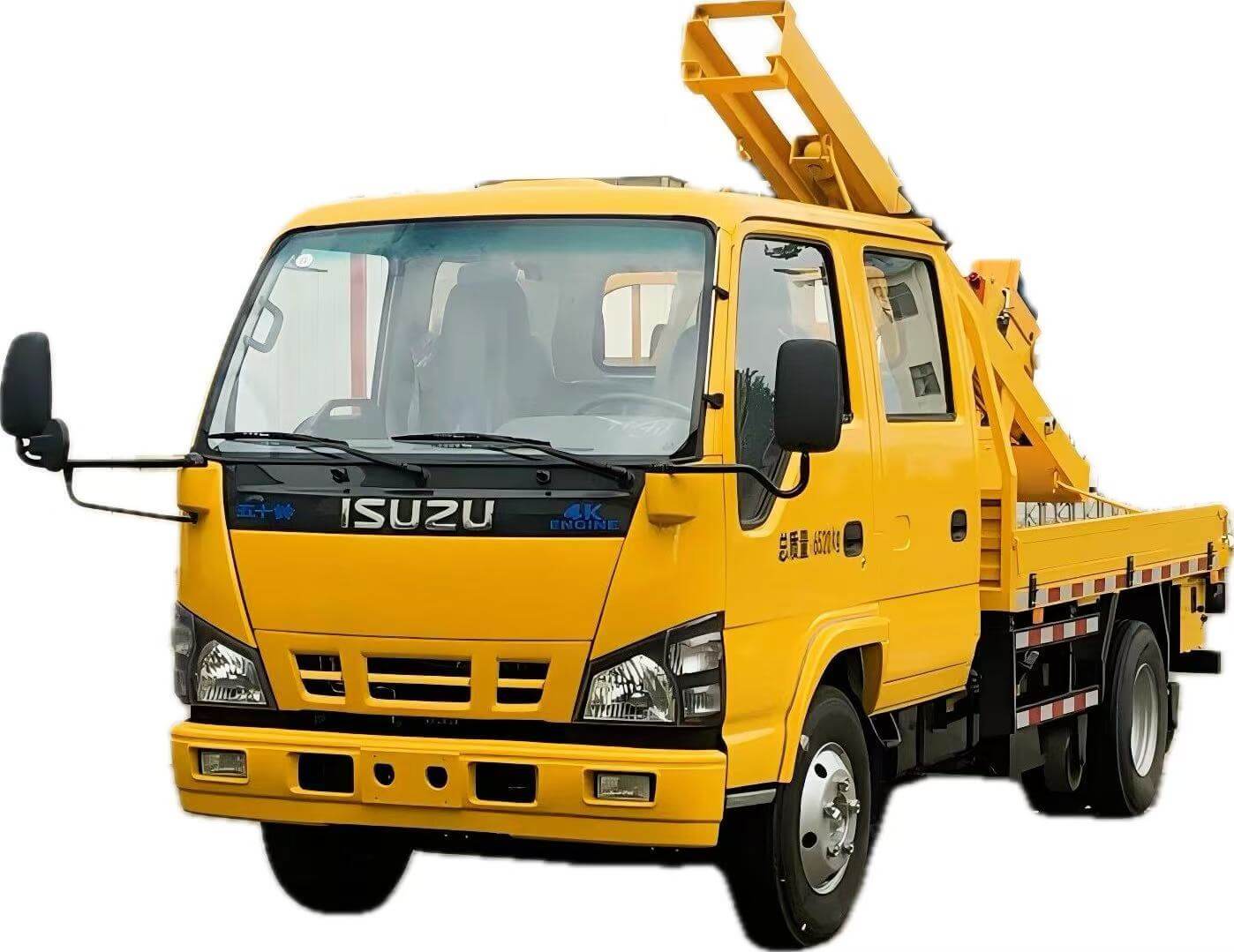

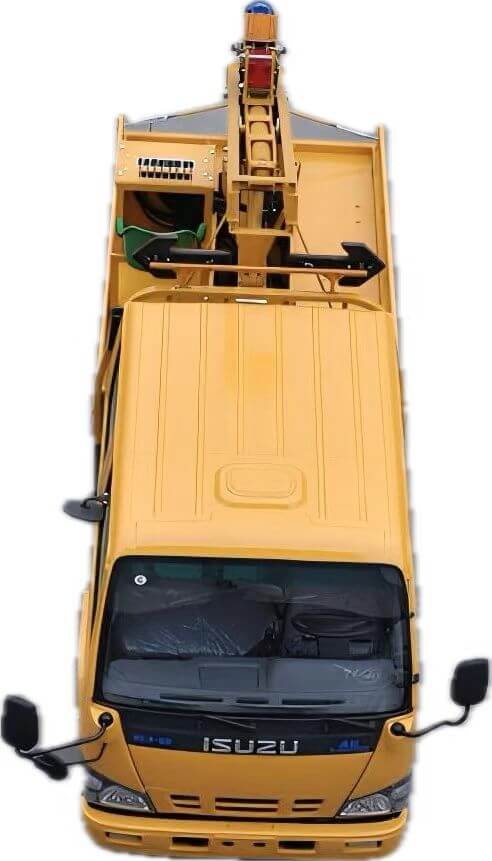

Customize ISUZU Truck Mounted Guardrail Post Driving And Drilling Equipment
Special device :Highway Guardrail Drilling Machine vibro machine piling machine
Driving, pulling and drilling the guardrail repair
Project | DNJJ5070TQX6 |
Chassis model | ISUZU QL1070BUHWY |
Curb weight | 6195kg |
Maximum total mass | 6520kg |
Overall dimensions of vehicle | 6200×1880×2950mm |
Engine power | 87kw |
System working pressure | 16 Mpa~20Mpa |
Hydraulic hammer model | YC230 |
Pile pulling force | 20t (with 78.4 KN/96. 5KN frequency vibration)
|
Hydraulic hammer working height | 600-2700 mm |
Optional: hydraulic auger drilling machine, YC260 hydraulic hammer, body safety fence | |
* Equipped with hydraulic pile and extraction device, the equipment can be used to pull out damaged post and replaced new one completely with hydraulic system.
* The vehicle can be rotated 240°and no need to be turned the direction during driving and extracting guardrail post work.
* The truck mounted pile driver become more effeciency and save labour cost thanks to its capacity of carrying more than 1T repair materials like guardrail post as well as the necessary road signs, make it best solution for small jobs in different location.
Highway Fence Collision Barrier Repair Vehicle for Guardrail Maintenance Highroad Guardrail Repair Vehicle
truck mounted highway hydraulic guardrail pile driver is designed for road maintanence work specially on highway with function of pile driving and pile extraction. It is composed of JMC JX1061TSG25 chassis, pile driving & extracting device, hydraulic systems,hydraulic hammer,control system, security systems,as well with warning lights on top. It has the characteristics of strong engine power, low fuel consumption, reliable braking performance, aesthetic appearance, spacious comfortable interior and wide vision.
Model | Unit | DNJJ5060TQX5 | DNJJ5061TQX5 | NDJJ5070TQX5 | |
Dimension(l×w×h) | mm | 6240×1962×2820 | 6260×1880×2890 | 6250x1880x2850 | |
chassis | JMC JX1063TSGA25 | JMC JX1061TSG25 | ISUZU QL1070A5HWY | ||
Seat capacity | 3+3 | 2+3 | 2+3 | ||
Max speed | km/h | 110 | 100 | 110 | |
Engine power | kw | 90 | 85 | 96 | |
Displacement | ml | 2402 | 2771 | 2999ml | |
Gross weight | kg | 5995 | 5995 | 6750 | |
Curb weight | kg | 4710 | 4550 | 4700 | |
Max Load | kg | 895 | 1170 | 1725 | |
Drive mode | Hydraulic drive | ||||
Pile drive device | Radius | mm | 2100mm | ||
Side distance | mm | 860mm | |||
Max working height | mm | 4680mm | |||
Working pressure | Mpa | 16MPa | |||
Hydraulic hammer(optional) | YC180 | YC230 | |||
kg | Weight | 180 | 230 | ||
Hydraulic Motor |
| Model | JAM6-800D40 | ||
Gear oil pump |
| Model | CBN-F540-BFPL | ||
multiway valve |
| Model | ZSI-L15E-T00000000 | ||
Functions
1.1 Pile Driving Function: NJ Series Highway Guardrail Post Driver Truck is specially designed for road maintenance work for the road safety barriers and guard rail posts.
1.2 Pile Extracting Function: With the same equipment and hydraulic system for extracting poorly driven or incorrectly positioned posts or road maintenance work, it is a professional machine for extracting the posts out of any conditions of ground.
2. Features
2.1 NJ Series Highway Guardrail Post Driver Truck is composed of truck chassis, upper column, hydraulic system, hydraulic hammer, control system, post driving and extracting equipment. It has the characters of good mobility, low oil consumption, reliable brake system, quick and exact positioning, humanized design, easy operation, high efficiency.
2.2 The up and down, longitudinal and transverse shift, horizontal slide and rotation of the column are realized through hydraulic system.
2.3 The hydraulic hammer is installed onto the upper column and be downward and upward along the track of the column for pile driving and extracting working by hydraulic system. When extracting guard rail posts, the extractable supporting foot is hydraulically positioned on the ground, for enhanced stability and safe pile extraction.
2.4 The control system is equipped with multiple directional control valve and centralized hydraulic control rods which makes the operation simple and convenient.
2.5 It can install piles up to 3m (9.84’) in length, but on request the machine can be supplied with extension columns which can install piles up to 3.5m (11.48’) or even 4m (13.12’) long.
2.6 The equipment does not need to turn the direction during driving and extracting the guardrail posts on both sides because of its 240° ~260°rotating device.
2.7 Its fast mobility and the capability of carrying piles and guard-rails as well as the necessary road signs with around 2 tons, make the truck-mounted pile driver the perfect solution for small jobs in different locations.
3. Main Technical Specifications
Type | 5052 | 5072 |
Type of Chassis | JX1050 | NKR77 |
Weight | 4075 KG | 4350 KG |
Max. Weight | 5500 KG | 6500 KG |
Person Capacity of Driving Cab | 5 Persons | 5 Persons |
Size (L×W×H) | 6090×1870×2560 mm | 6250×1880×2850 mm |
Max. Speed | 100 km/h | 100 km/h |
Rated Power | 85 KW | 96 KW |
Rotating Speed | 3600 r/min. | 2999 r/min. |
Weight of Hydraulic Hammer | 300 KG | 300 KG |
Dia. Of Drill Shank | 70 mm | 70 mm |
Hydraulic System Pressure | >16 MPa | >16 MPa |
Hydraulic System Flow | 50-60 L/min. | 55-65 L/min. |
Displacement | 60 ml/r | 70 ml/r |
Impulsive Pressure | 10-16 MPa | 10-16Mpa |
Impulsive Frequency | 10-16 Hz | 13-18 HZ |
Rotation Angle of Equipment | 240° | 240° |
Extracting Stroke | 1600 mm | 1600 mm |
Lateral Stroke | 350 mm | 350 mm |
Supporting Foot Stroke | 400 mm | 400 mm |
Pile Driving Force per Stroke of Hammer | Around 250 KN | Around 250 KN |
Pile Extracting Force | Around 250 KN | Around 250 KN |
Working height of hydraulic hammer | ≤3000 mm | ≤3000 mm |
Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
