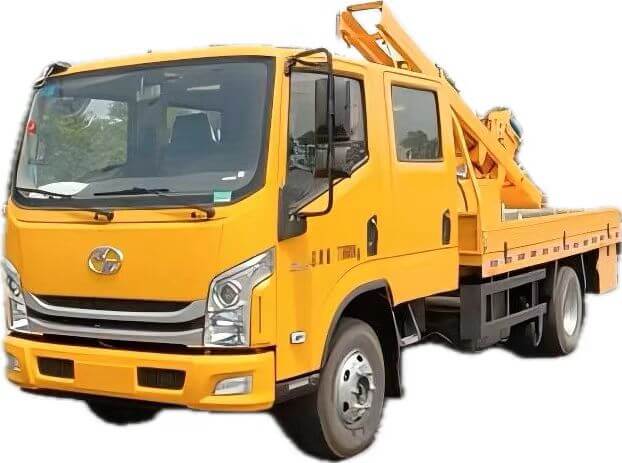

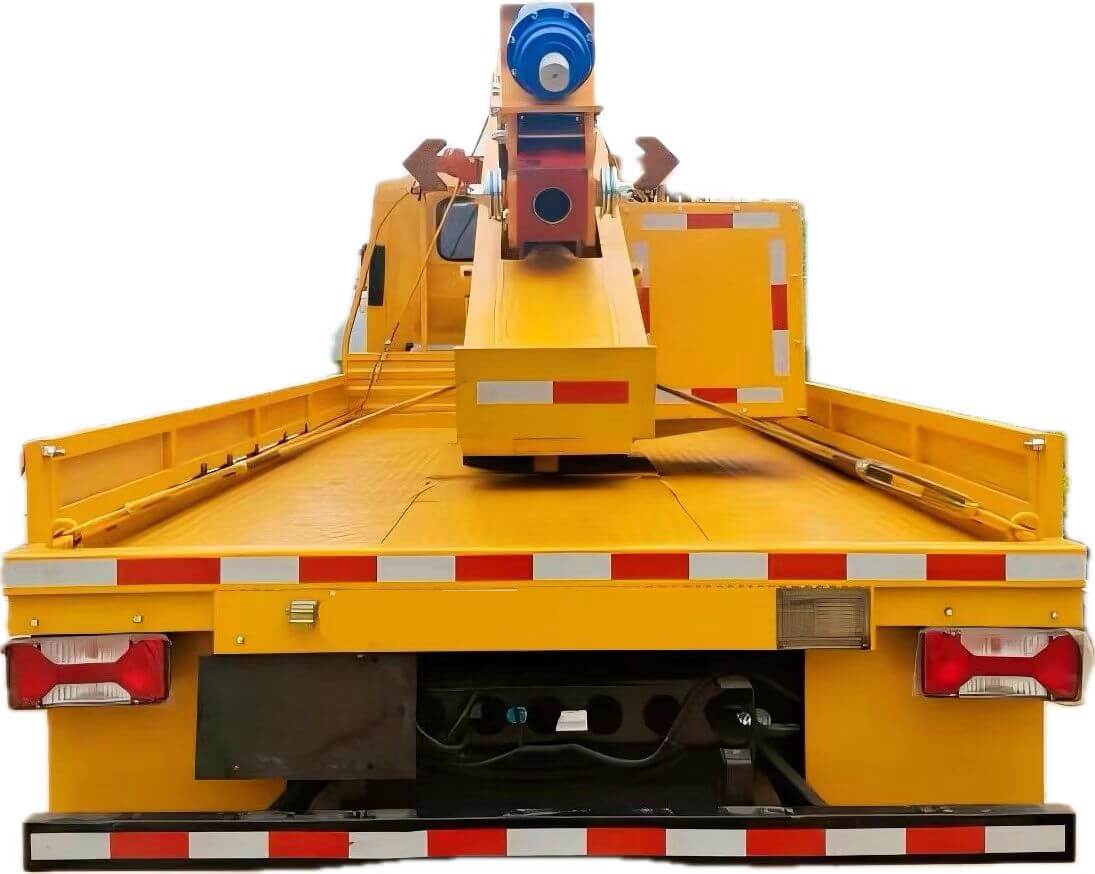

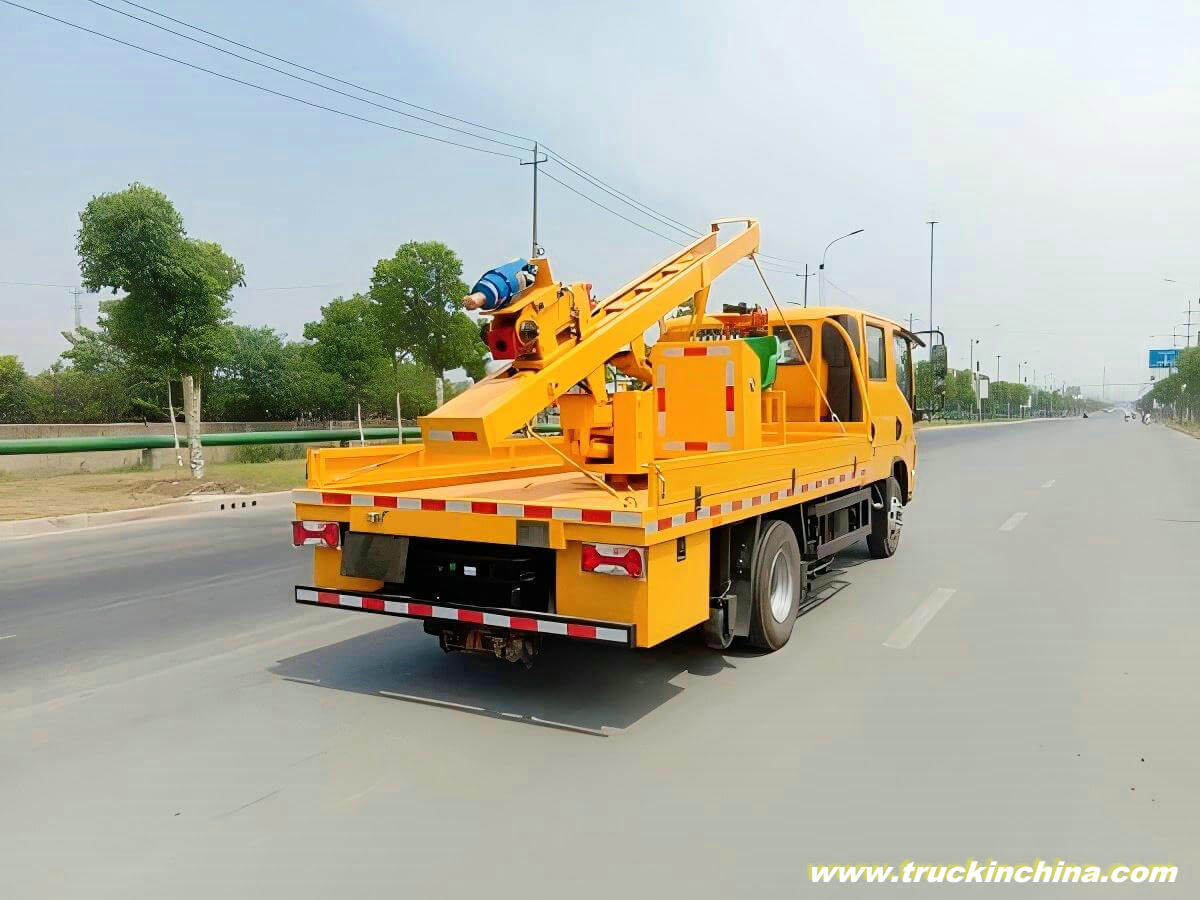

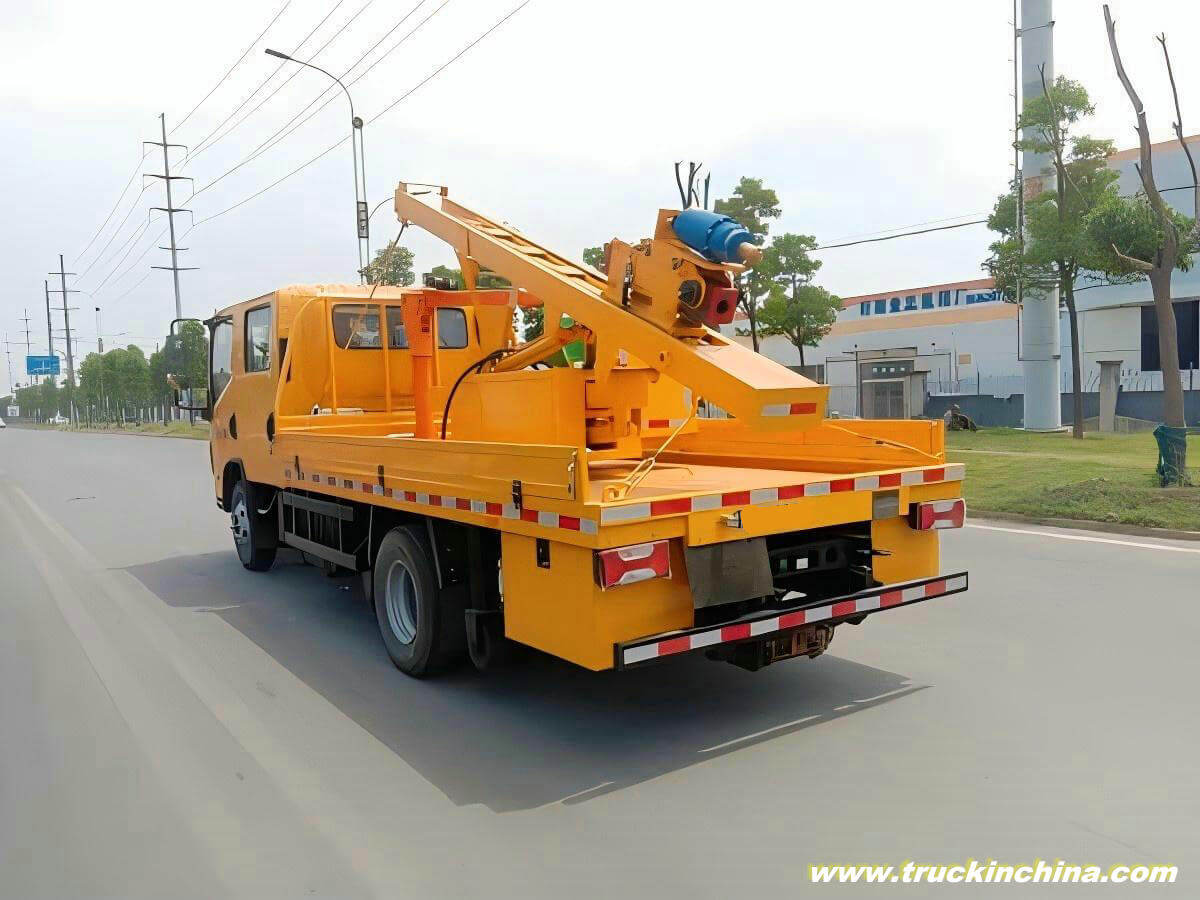

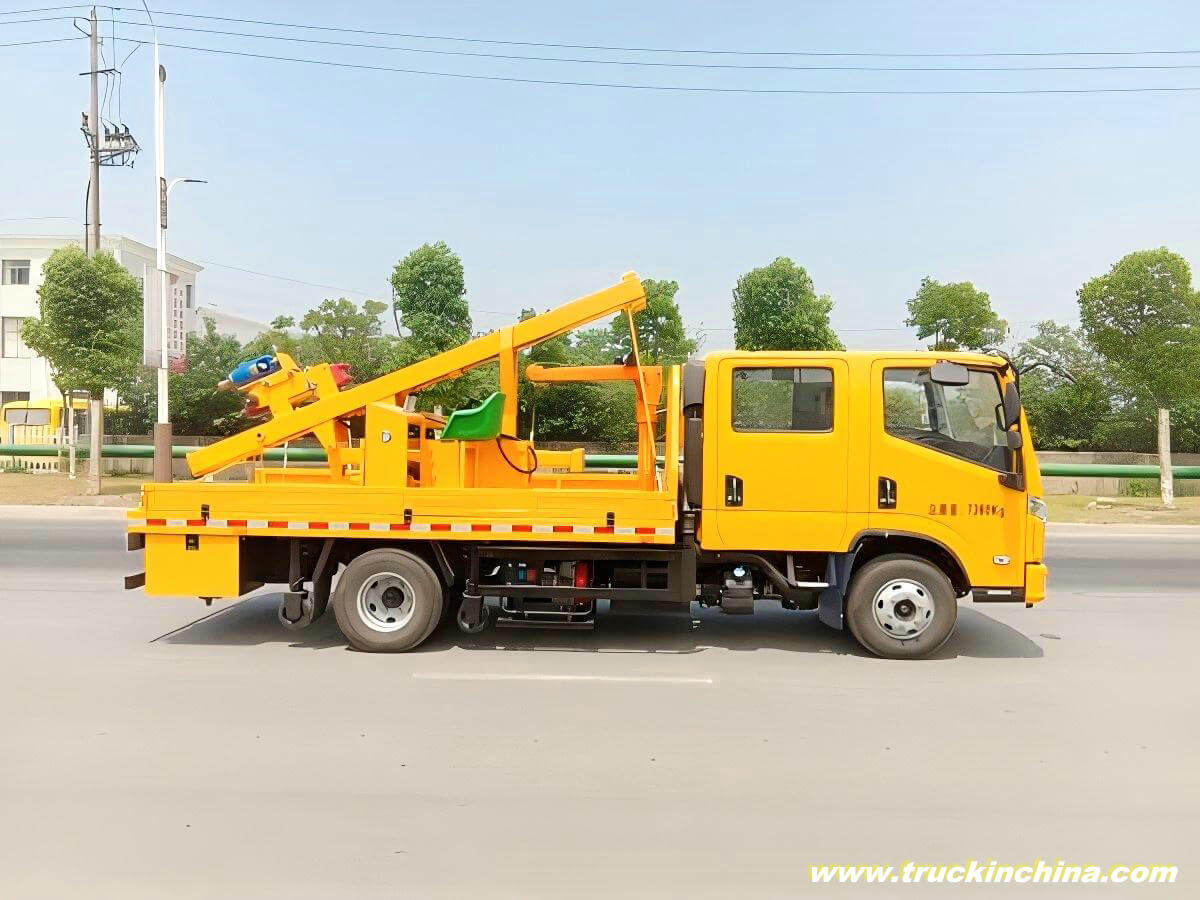

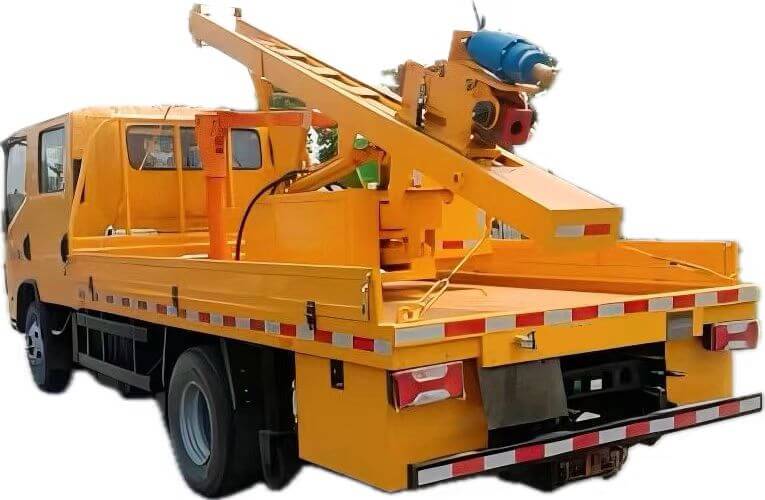

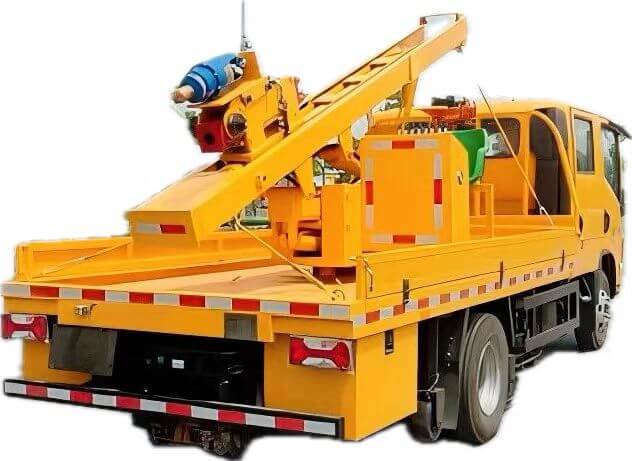

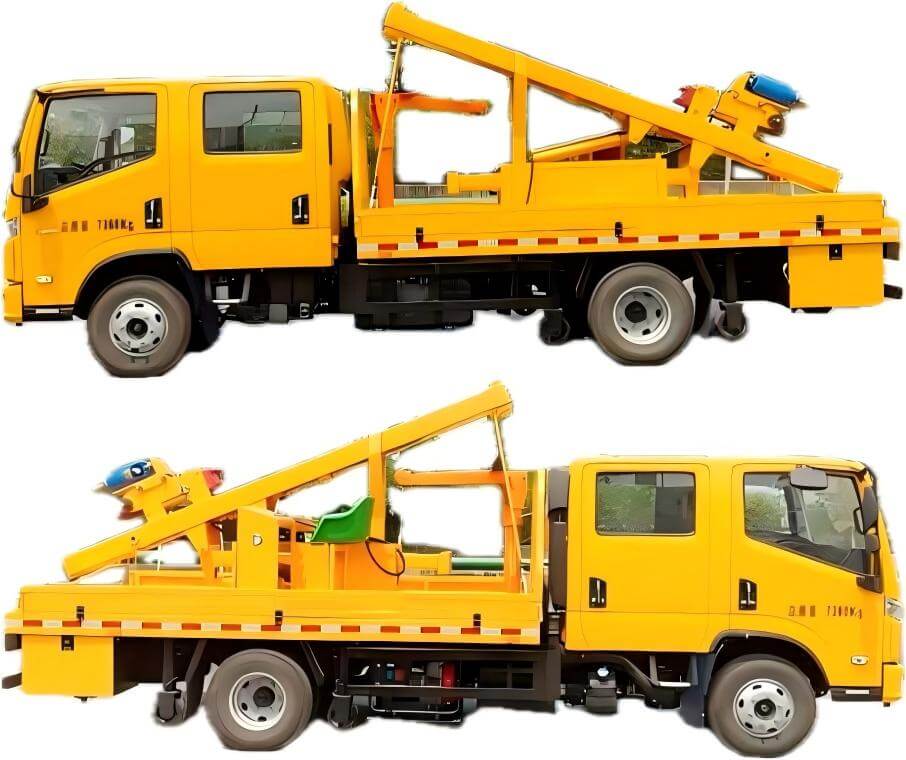

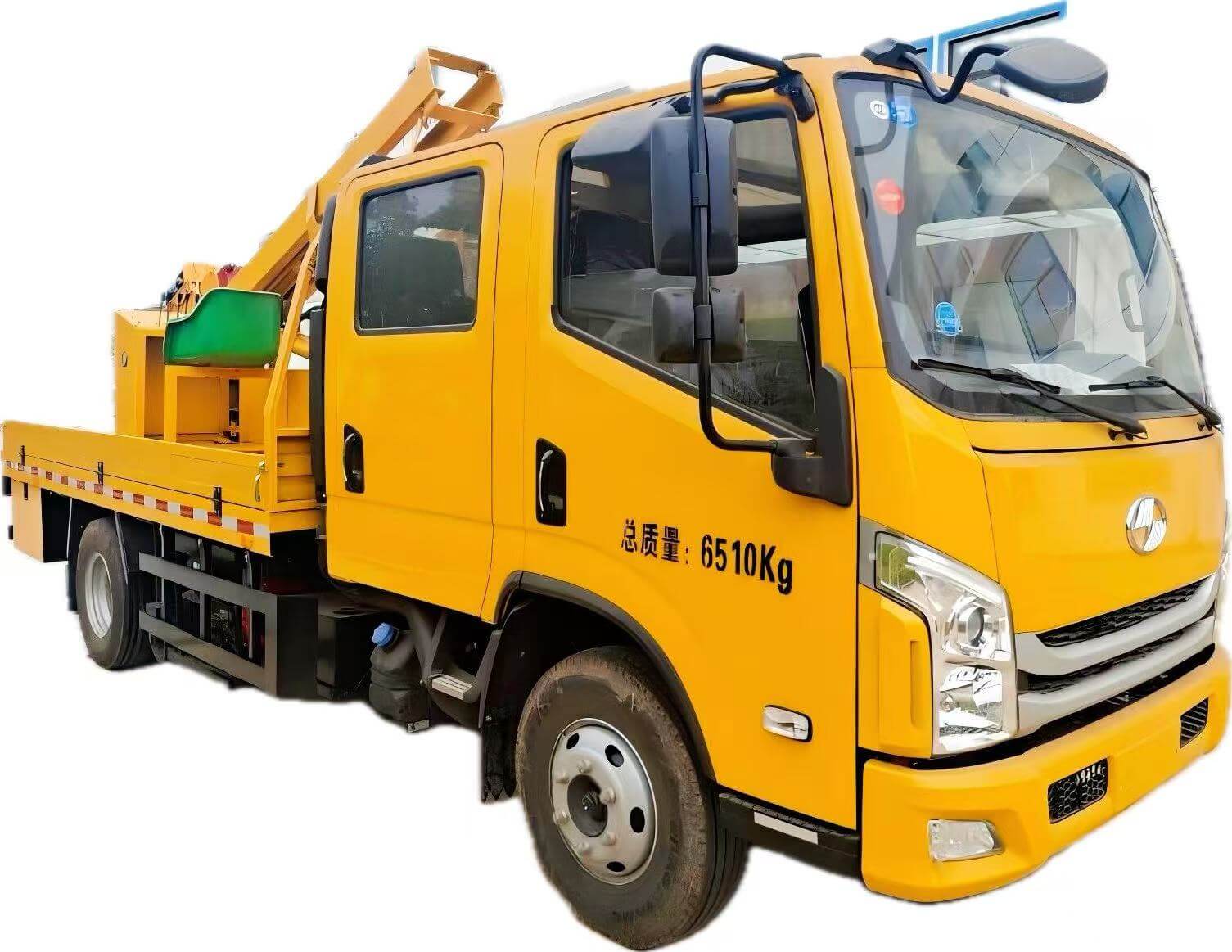

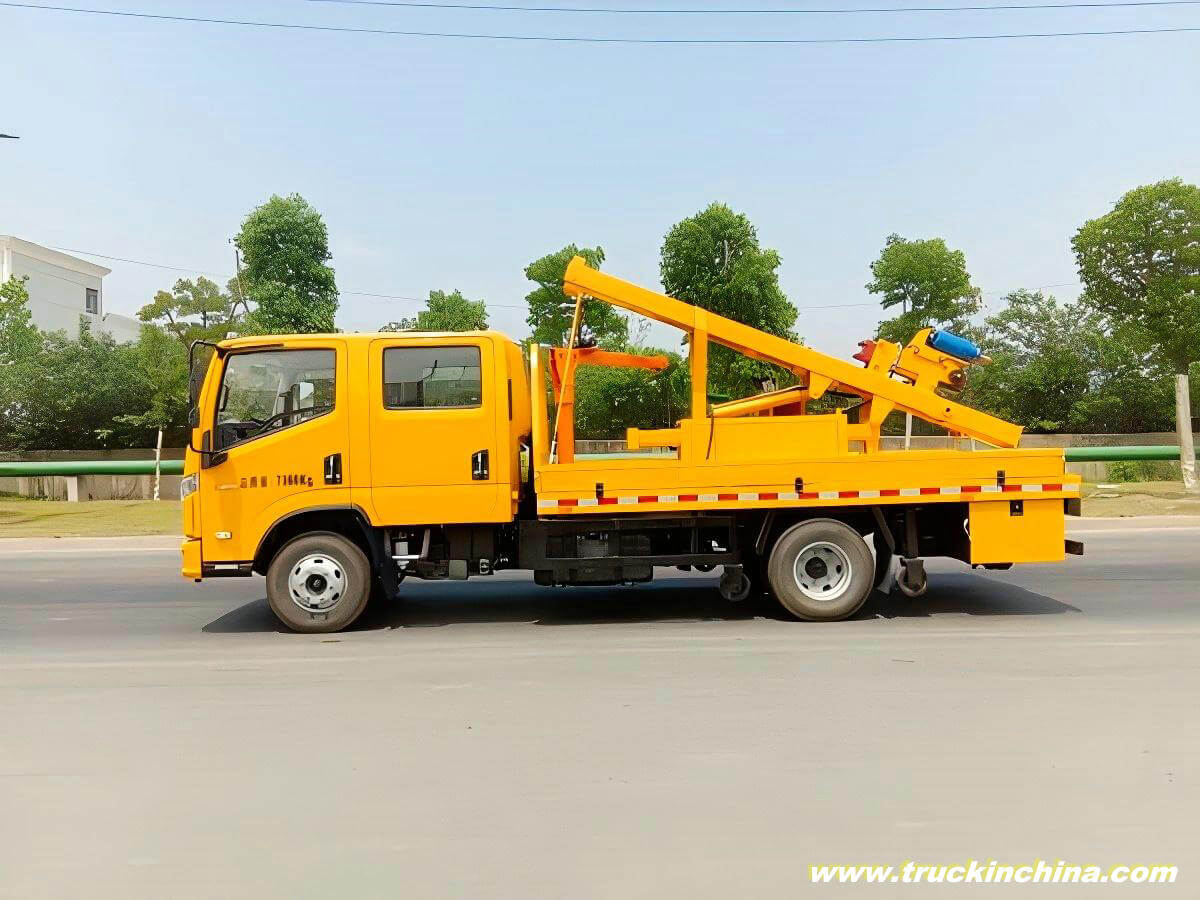

Customize SAIC YUEJIN Highway Guardrail Installation & Removal Repair Trucks
Guardrail repair:Guardrail Installation & Removal
20t Pile pulling Hydraulic Hammer
Price for refer only. Final Price May Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
DNJJ5071TQX6
-
DFAC/FAW/SHACMAN/HOWO/JAC /ISUZU/JMC
-
8705909990
Customize SAIC YUEJIN Highway Guardrail Installation & Removal Repair Trucks
Special device :Highway Guardrail Drilling Machine vibro machine piling machine
Driving, pulling and drilling the guardrail repair
Product model | DNJJ5071TQX6 |
Chassis model | SAIC YUEJIN SH1083ZFDDMS2 |
Curb weight | 5070kg |
Maximum total mass | 7360kg |
Overall dimensions of vehicle | 6900×2090×3000mm |
Engine power | |
System working pressure | 16 Mpa~20Mpa |
Hydraulic hammer model | YC230 |
Pile pulling force | 20t(with 78.4 KN/96. 5KN Frequency vibration) |
Hydraulic hammer working height | 600-2700 mm |
Optional: hydraulic auger drilling machine, YC260 hydraulic hammer, body safety fence | |
Guardrail repair:Guardrail Installation & Removal Special functions and devices: the special device of the car is: guardrail repair device, anti-collision buffer device, mainly used for high-grade highway anti-collision guardrail piling, pulling pile, maintenance of the left and right side guardrail, anti-collision buffer device is mainly to avoid the rush repair operation, the rear vehicle rear-end of the repair vehicle caused by the repair personnel casualties;
Highway Fence Collision Barrier Repair Vehicle for Guardrail Maintenance Highroad Guardrail Repair Vehicle
Vehicle Number | DNJJ5081TQX6 | Axle load | 3000/5275 |
Type | Guardrail repair vehicle | Rated Loading | 975 |
Total Mass | 8275 | Net Weight | 6910 |
Fuel Type | diesel oil | Emission Basis Standard | Euro 6 |
Axis Number | 2 | Wheelbase | 33,08; 3,808 |
Vehicle Length | 69,40;6,440 | Vehicle Width | 2330 |
Vehicle Height | 3350 | Maximum Speed | 105 |
Chassis | SH1083ZFDDMS2 | Front and Rear Suspension | 1118/2014 |
Engine NO. | CC | Power | Engine-assembling Enterprise |
D30TCIF1 | 2977 | 125 | Kunming Yunnei Power Co., Ltd |
The power of the whole working device is taken through the chassis, which has low use cost and simple structure.
Adopting full hydraulic control technology, it is easy to operate and control and realize overload protection, with smooth work and high working efficiency.
The vehicle-mounted working platform can rotate 260 degrees, so the whole vehicle does not need to turn around during construction on the left and right sides.
Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
