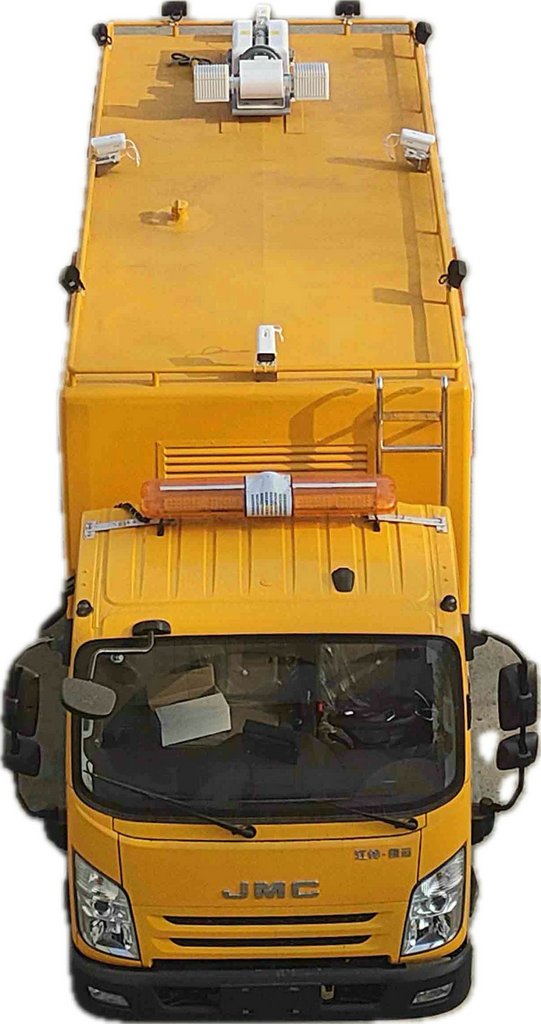

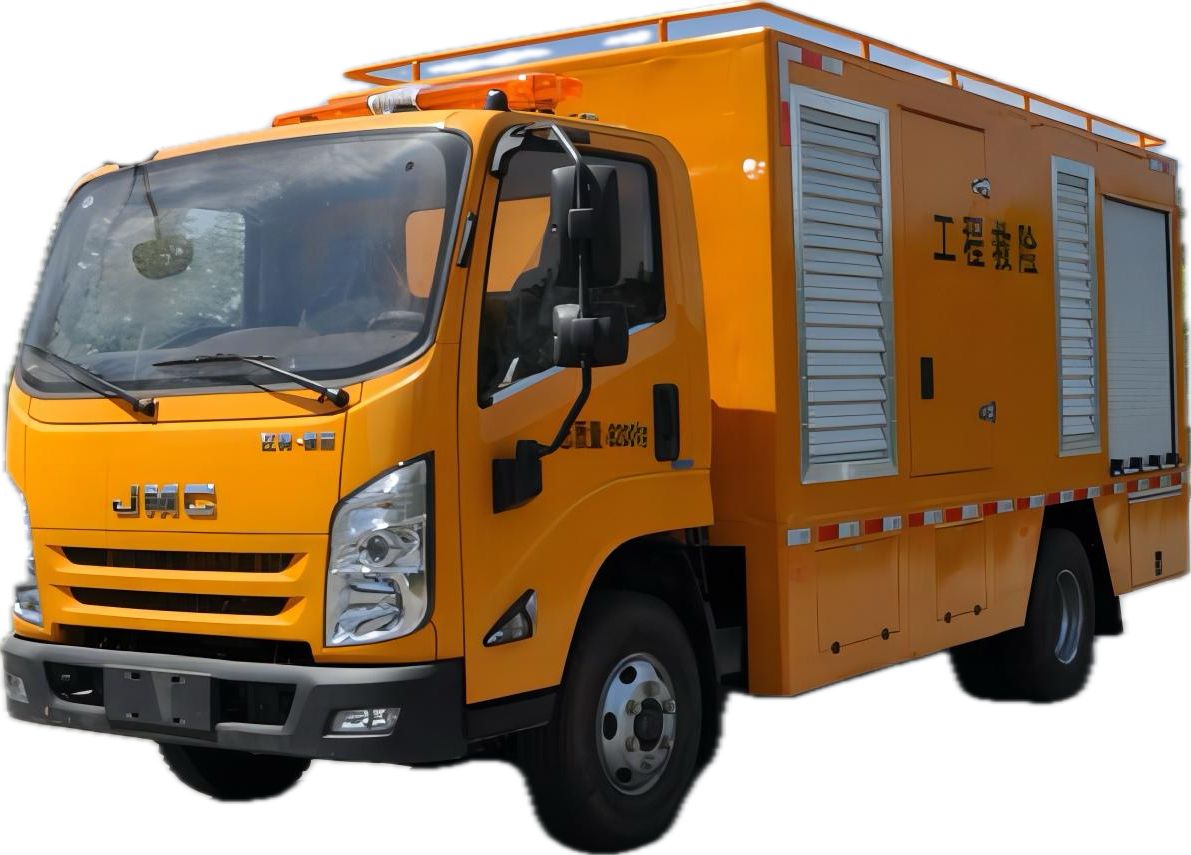

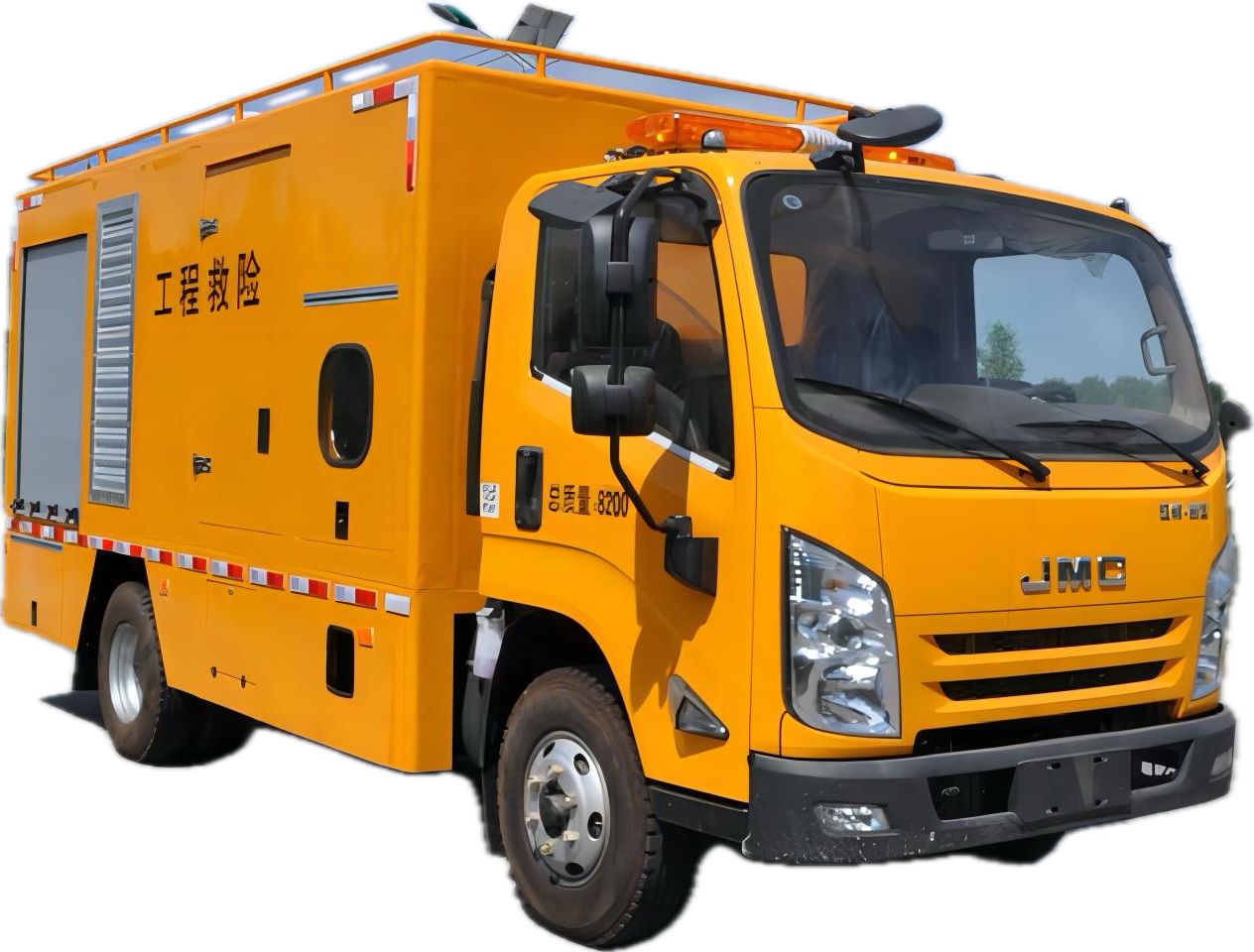

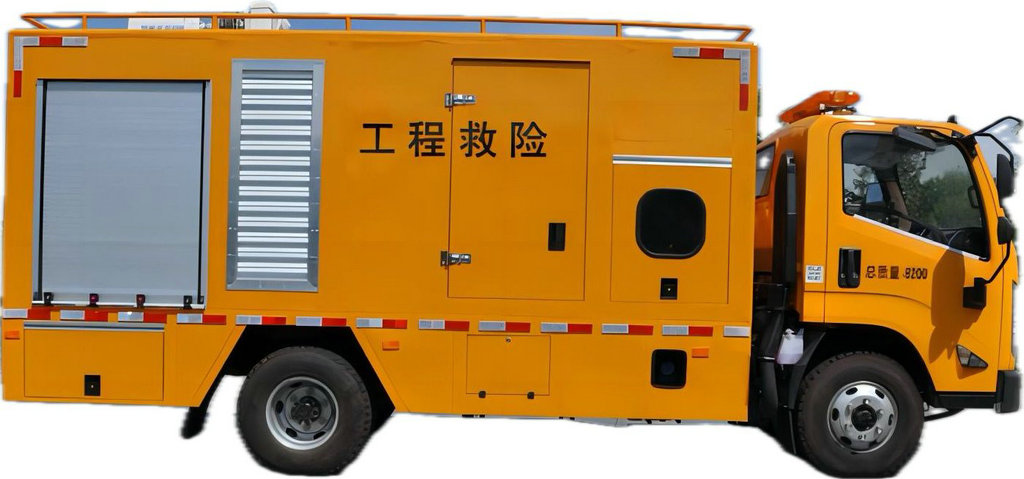

JMC Emergency Rescue Vehicle

JMC Emergency Rescue Vehicle Chassis :  JMC  JX1083TG26

  Equipped Portable submersible pump for drainage ; It is also equipped with a diesel-powered generator set. The vehicle is suitable for flood drainage, drought resistance, mine rescue, forest fire fighting, highway bridge bottom culvert drainage, irrigation and other fields.

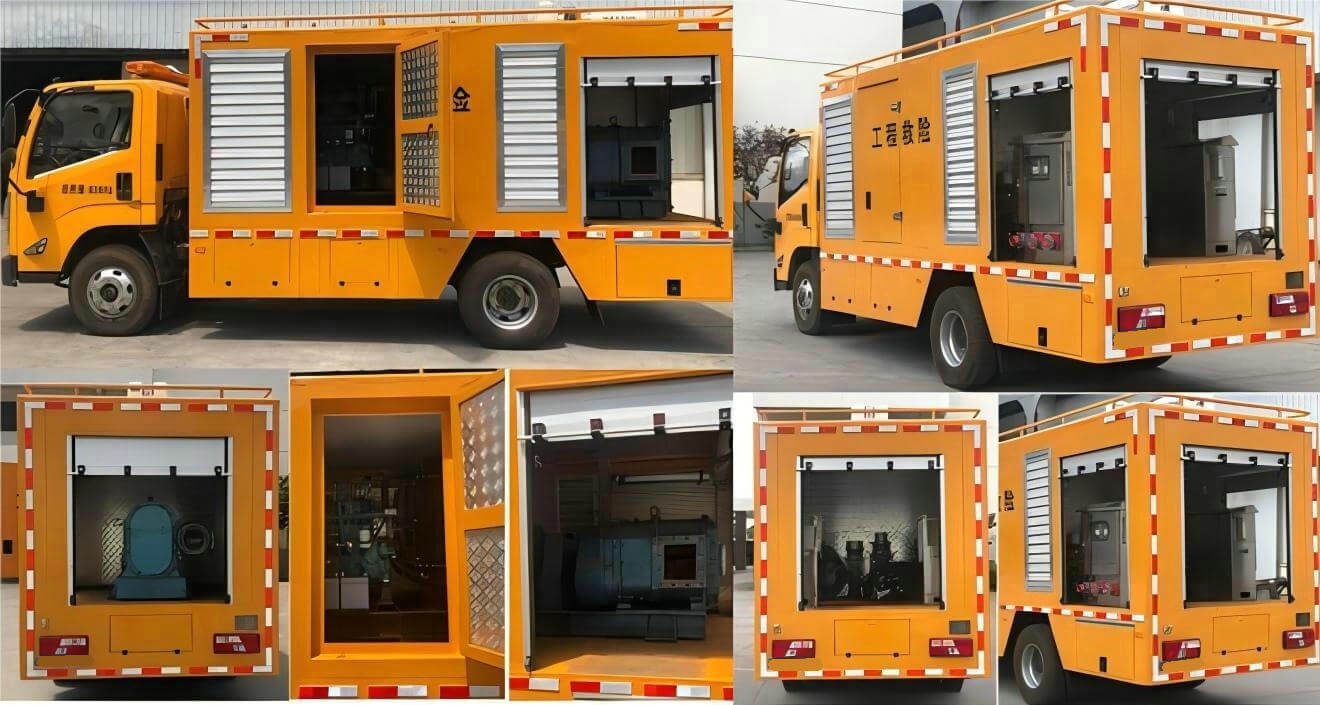

The special device of the vehicle: generator set, water pump, control system, etc., mainly used for emergency rescue  , emergency power generation, emergency rescue pumping sewage；

Main technical parameters

Carriage length ≥4500mm

The skeleton of the carriage is welded as a whole, the exterior is surrounded by high-quality steel plates, the box is lined with noise reduction materials with sound insulation and flame retardant performance, and the entire box has the requirements of rain prevention, corrosion prevention, fire prevention, rust prevention and noise prevention.

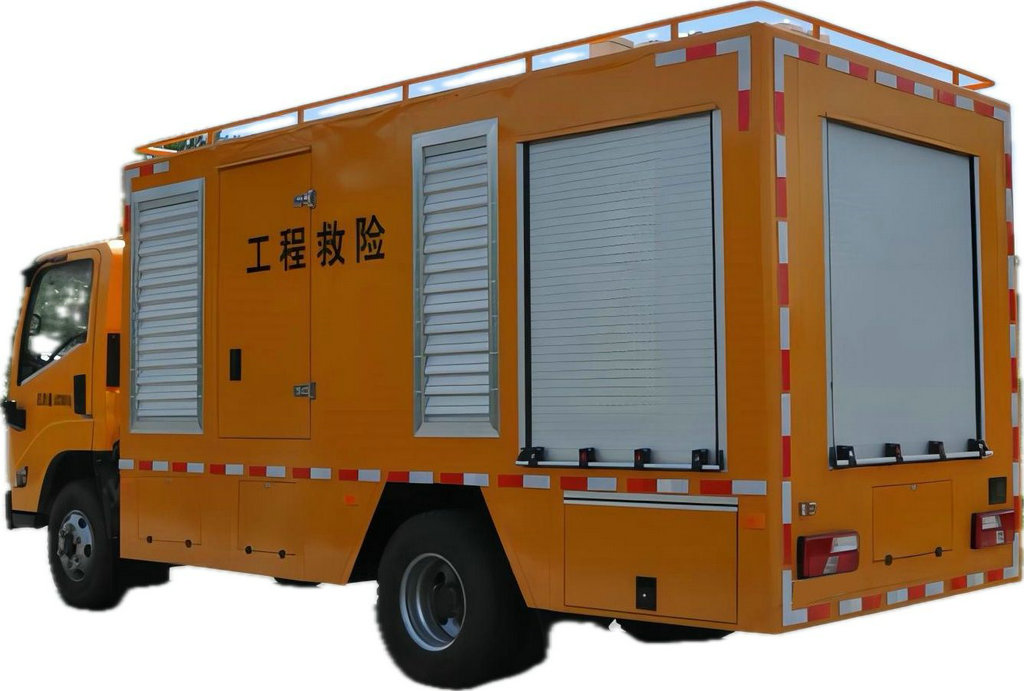

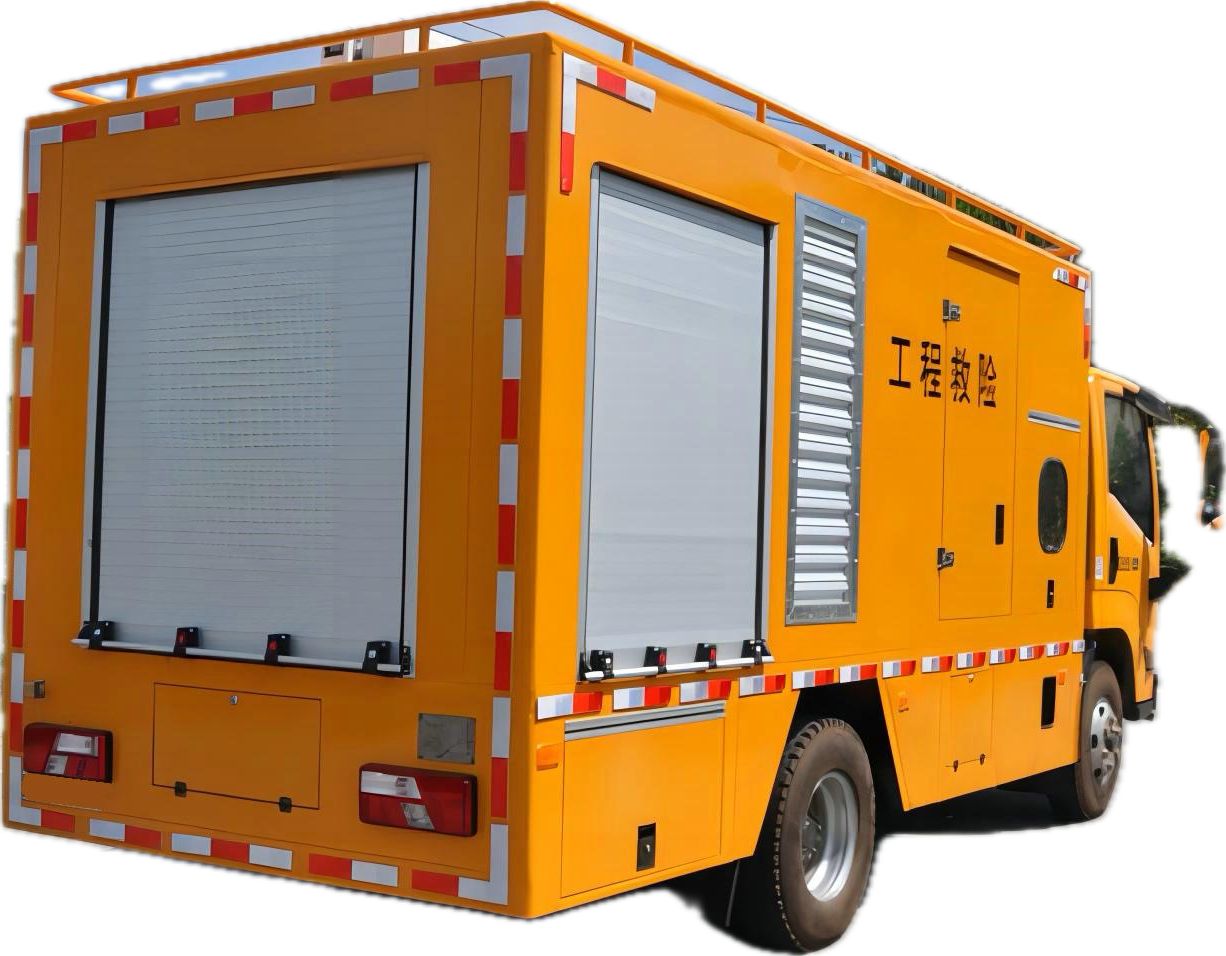

The left and right sides or the back of the carriage shall be required to be rolling shutter doors.

The lower skirt is provided with a hidden pedal step, and both sides of the generator compartment are equipped with aluminum alloy electric shutters.

Silence effect ≤70 dB (1 m)

Generator set

1, rated power ≥50 KW

2, The generator set comes with integrated base tank (it can safely carry out uninterrupted refueling during the operation of the unit, and the full load operation is not less than 24 hours.)

The diesel generator set should have the function of automatic shutdown and alarm: no signal from the speed sensor, high cylinder temperature, charging failure, high water temperature, low oil pressure, low oil volume, overspeed, failure, etc.

3, the control system is intelligent PLC control, can automatically speed, so that the output is stable. Each function is started with one click. All Chinese liquid crystal display water temperature, oil temperature, oil pressure, operating hours, speed, battery voltage, three-phase current, three-phase voltage, frequency, power, etc.

4, with mobile distribution cabinet, 4 loop zero potential, with remote cable use

Blow cleaning machine (1)

1. The weight of the machine is less than 10.2kg

2. Engine displacement ≥75.6cc

3, outlet air flow ≥ 0.46m³/s

4, engine power ≥3.1kw

5, engine working speed ≥7000r/min

6, starting temperature: -30℃ ~ 40℃

7, fuel consumption rate ≤544g/kw.h

8. Form: knapsack

9, a refueling continuous working time ≥55min

Impact rammer (1 set)

1, weight: ≤67kg

2. Base plate size: ≥340×285mm

3, exciting force: ≥15.5KN

4. Fuel tank volume: ≥3.5L

5, compaction depth: ≥610mm

6, compaction efficiency: ≥300m²/h

7. Air filter system: three-stage filtration technology

Double circuit hydraulic power station (1)

1, technical performance: double circuit hydraulic power station, can meet two

Output requirements for 30lpm hydraulic circuits

2, engine form: gasoline air cooling

3, engine power ≥27HP

4, weight ≤165kg

5, Overall size: length ≤1100mm; Width ≤630mm; Height ≤860mm

6. Working pressure ≥140bar

7, heat dissipation power ≥9HP

8, Configure ATM temperature activation throttle technology (to ensure that the equipment can still work normally in extreme bad weather)

9. Connection mode: flat quick connector

10, valve form: automatic valve

11, equipped with 12V DC socket

12, mobile tire: solid tire

13, hydraulic hose: length 10m (2 pay, 1 pay 2, including hydraulic quick connector)

14, hydraulic hose: length 15m (2 pay, 1 pay 2, including hydraulic quick connector)

15, hydraulic hose explosion-proof properties: have

Hydraulic crushing pick (2 sets)

1, and hydraulic power station for the same brand and supporting use

2, weight ≤23kg

3, hydraulic flow: 26-34lpm

4. Impact frequency: 1800-2400bpm

5, handle: shock absorber handle

6, pick drill: tip, flat each one

Hydraulic cutting machine (1)

1, and hydraulic power station for the same brand and supporting use

2, hydraulic flow: 26-34lpm

3. Working pressure: ≥140bar

4. Weight ≤10kg

5. Handle material: cast aluminum

6. Saw blade brake: Yes

7. Saw blade: one wheel saw blade and one diamond saw blade

8, the maximum cutting depth: ≥125mm

9, supporting trolley: one (to assist the road cutting function)

Hydraulic exhaust fan (1 set)

1, and hydraulic power station for the same brand and supporting use

2. Weight ≤9kg

3, hydraulic flow: 15-45lpm

4, fan type: centrifugal blower

5, exhaust air volume: ≥48000 lpm

6, outlet size: 20cm

7, exhaust pipe length: ≥6m

Hydraulic hand pick (1 set)

1, and hydraulic power station for the same brand and supporting use

2, Weight ≤8kg

3, impact frequency: ≥1800bpm

4, hydraulic flow: 26-34lpm

5, pick drill: tip, flat each one

Portable submersible pump (one)

1, Single pump flow: 400-600m³/h, flow 600m³, lift ≥10.5 meters, flow 400m³, lift ≥14 meters, single pump weight ≤28KG, speed ≤3000RPM, pump efficiency ≥75%.

The impeller is made of wear-resistant and corrosion-resistant material.

2, The pump body is made of high-strength lightweight aluminum alloy material, dry permanent magnet frequency conversion motor, diving depth ≥20m.

3, the pump is installed 20m diving cable, the pump outlet line is installed with a length of more than 100mm steel cable sheath, the use of IP67 waterproof joints between the cables, the displacement of the submersible pump is adjustable.

4, pump body diameter ≤220mm (excluding cable sheath), length ≤600mm.

The water supply pump is equipped with stainless steel wire filter screen, which can be quickly installed and convenient for installation, disassembly and cleaning. The filter net of the water pump is equipped with handle and support leg, which is convenient for single handling and placement.

5, Single pump with polyurethane high strength floating ring, forming in one body, meet the buoyancy requirements of pump work, with bayonet ring connection soft fixed sling, floating ring outer diameter ≦φ550mm, floating ring weight ≦4KG.

6, pump motor power ≤22kw, with China energy-saving product certification, energy efficiency level one.

7, the control system adopts well-known brands at home and abroad, with leakage, current overload, phase loss, over voltage, under voltage, over frequency, under frequency, motor overheating and other protection. The control system can monitor the operating parameters in real time, and can accurately display the operating voltage, current, speed and fault situation.

8, the control cabinet adopts protective base, with seismic function, movable installation position, can be fixed on the carrier and can be outdoor rain proof, both sides are installed with handles, waterproof level IP44.

9, the control system can achieve soft start and soft stop of the water pump, the operation can adjust the speed in real time, and has a precise leakage protection device.

10, the control system has the function of stepless speed regulation, the displacement of the water supply pump is adjustable, the control system adopts modular design, convenient loading and unloading.

Lighting, warning, security

1, lodging type lifting light, lodging height 1.2m. System operating voltage :AC220V, horizontal rotation 380°, vertical rotation 330°, power 2×150W, wired and wireless control.

2, the front is equipped with long plate engineering warning light.

3, the vehicle is equipped with a driving recorder and visual reversing video and radar.

4, The whole vehicle is installed with four hydraulic support legs, one key telescopic, automatic leveling.
