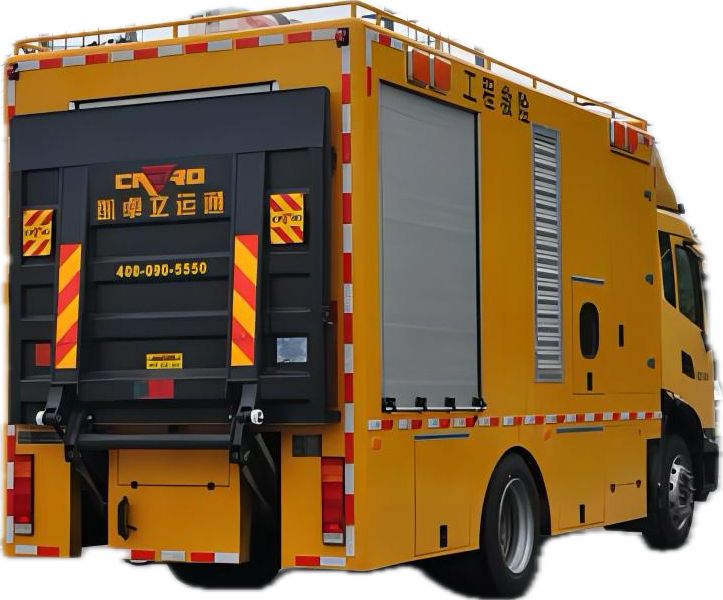

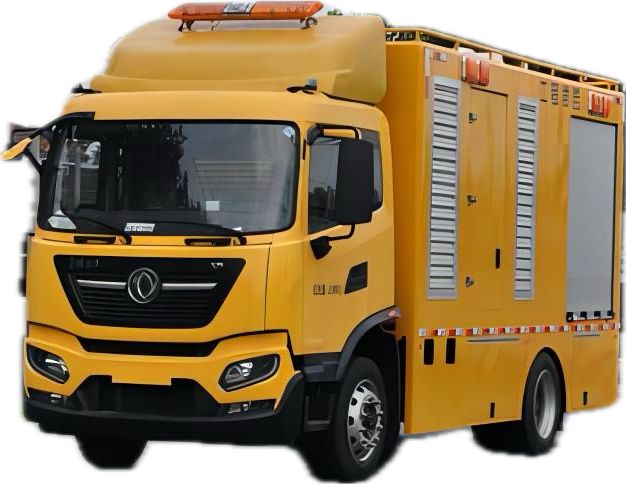

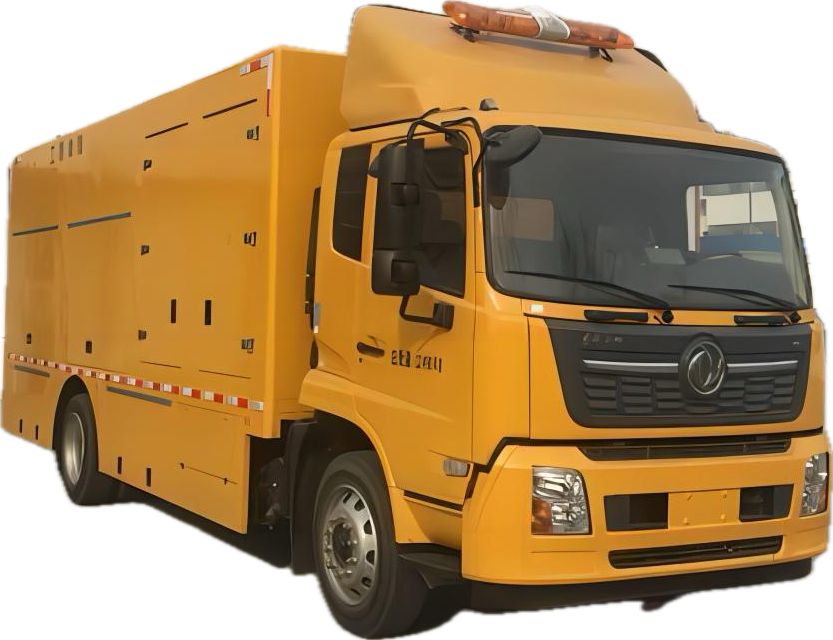

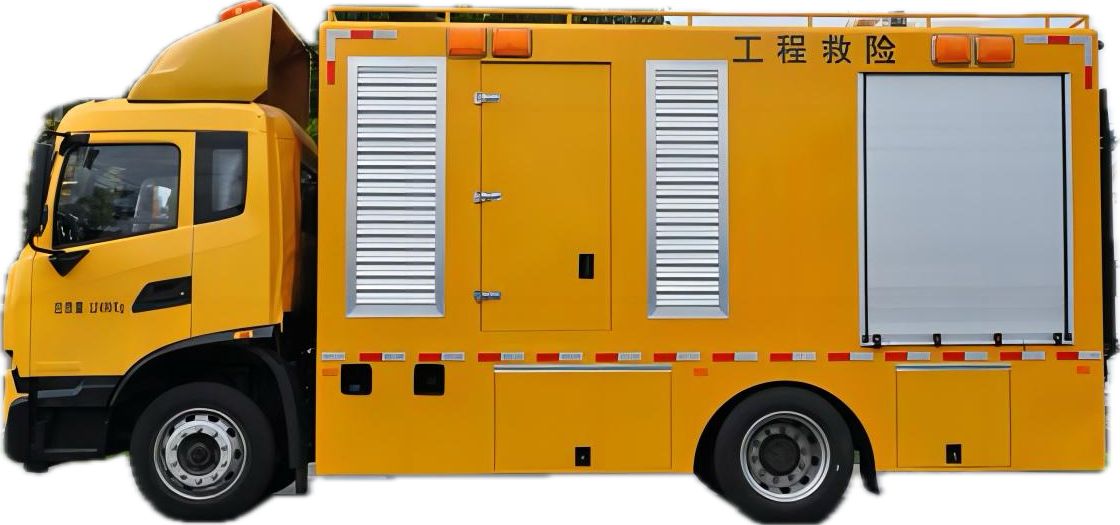

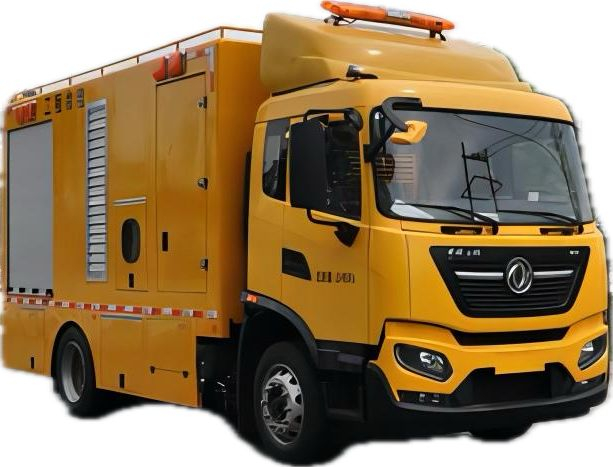

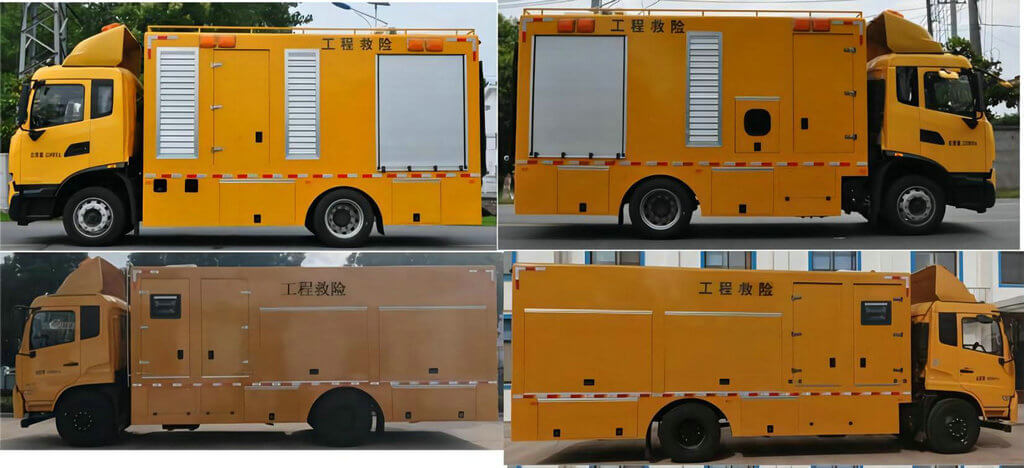

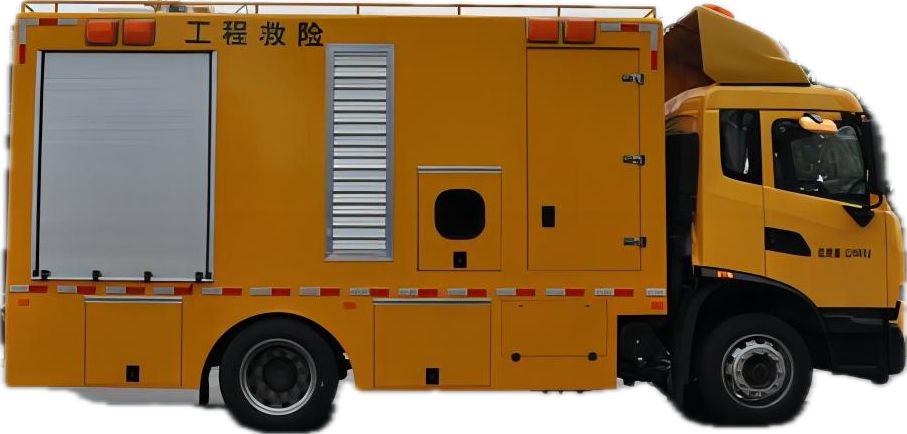

DFAC Emergency Drainage Rescue Trucks with Generator 150kw Pump 3000m3/h
Generator output power 150kw
Total drainage Pump ≥3000m3/h
Optional Rescue Crane
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
NJJ-5120XXH6
-
Dongfeng
-
8705909990
DFAC Emergency Drainage Rescue Trucks with Generator 150kw Pump 3000m3/h
Vehicle model | 5120XXH6 |
Chassis type | Dongfeng DFH1120E1 |
Engine power | 147kw |
Quality of service | 12295kg |
Gross mass | 12490Kg |
Overall dimension | 7630×2450×3330mm |
Generator power | 90-300kw |
Suction range of pump | 6-9.5m |
Pump head | 10-40m |
Pump flow | 600-2000 m³/h |
Equipped Portable submersible pump for drainage ; It is also equipped with a diesel-powered generator set. The vehicle is suitable for flood drainage, drought resistance, mine rescue, forest fire fighting, highway bridge bottom culvert drainage, irrigation and other fields.
Overall dimensions: | 7630,8990×2450,2490,2550 ×3330,3430,3480,3650,3500(mm) | Fuel type | Diesel |
Gross Weight | 12490(Kg) | ||
Net weight | 12295,12360(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 17/10(°) | Front/rear overhang: | 1400/2430,1400/2890, 1430/2400,1430/2860(mm) |
Axle Load: | 4400/8090 | Wheelbase: | 3800,3950,4200, 4500,4700,5000,5100(mm) |
Axle Number | 2 | Maximum speed: | 89(km/h) |
Fuel consumption: | (L/100Km) | Suspension Spring : | 7/9+6,8/10+8,8/9+6 |
Number of tires: | 6(PCS) | Tire : | 9.00R20 16PR,255/70R22.5 16PR,10R22.5 16PR |
Front wheel track: | 1876,1896,1935,1950,1914,1815(mm) | Rear wheel track: | 1820,1860,1800,1840(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw)/ horsepower (ps) |
DDi50E190-60 | Dongfeng Commercial Vehicle Co., LTD | 5000 | 147/199 |
B6.2 NS6B210 | Dongfeng Cummins Engine Co., LTD | 6200 | 154/209 |
D4.5 NS6B190 | Dongfeng Cummins Engine Co., LTD | 4500 | 140/190 |
DDi50E220-60 | Dongfeng Commercial Vehicle Co., LTD | 5000 | 162/220 |
DDi47E210-60 | Dongfeng Commercial Vehicle Co., LTD | 4750 | 154/209 |
B6.2 NS6B230 | Dongfeng Cummins Engine Co., LTD | 6200 | 169/229 |
D4.5 NS6B220 | Dongfeng Cummins Engine Co., LTD | 4500 | 162/220 |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw)/ horsepower (ps) |
DDi50E190-60 | Dongfeng Commercial Vehicle Co., LTD | 5000 | 147/199 |
B6.2 NS6B210 | Dongfeng Cummins Engine Co., LTD | 6200 | 154/209 |
D4.5 NS6B190 | Dongfeng Cummins Engine Co., LTD | 4500 | 140/190 |
DDi50E220-60 | Dongfeng Commercial Vehicle Co., LTD | 5000 | 162/220 |
DDi47E210-60 | Dongfeng Commercial Vehicle Co., LTD | 4750 | 154/209 |
B6.2 NS6B230 | Dongfeng Cummins Engine Co., LTD | 6200 | 169/229 |
D4.5 NS6B220 | Dongfeng Cummins Engine Co., LTD | 4500 | 162/220 |

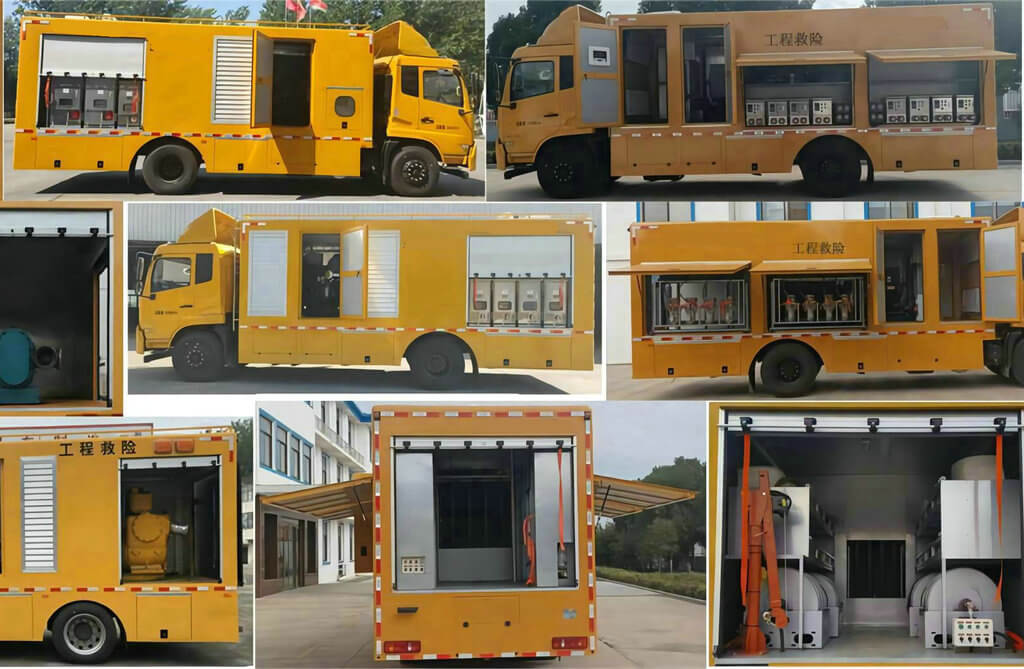

The special device of the vehicle: generator set, water pump, control system, etc., mainly used for emergency rescue , emergency power generation, emergency rescue pumping sewage；
Equipped with a hydraulic power station, slurry pump, CAM rotor pump, portable pump, and handling mechanism
1, total flow: ≥3000m³/h;
2, single pump specified point flow: ≥500m³/h;
3, the specified point flow head: ≥12m;
4, motor power: ≤20KW;
5, pump efficiency: ≥60%;
6. Motor energy efficiency level: Level 1
7, pump weight: ≤32kg;
8, the pump should come with a length of ≥20m JHS diving cable, and equipped with a length of greater than 100mm steel cable sheath;
9, the control cabinet has high safety, with waterproof and dustproof function, protection level ≥IP44;
10, the control system can achieve soft start and soft stop of the pump, adjustable speed in operation, and has a precise leakage protection device;
11, the control cabinet and water pump can use diesel generator set and mains two modes, the control cabinet and water pump can be remote control from the car drainage work;
12, Each pump equipped with a separate control system, inverter full control, in line with quality certification system and other standards;
13, the pump shell should be made of high-strength lightweight aluminum alloy or stainless steel; The impeller shall be made of wear-resistant and corrosion-resistant stainless steel with a Vickers hardness value of HV > 1400;
14. Each pump equipped with a high-strength floating ring and a traction rope:
15. Each pump equipped with ≥ 75m drain pipe (divided into multiple pipes), drain pipe wear-resistant, pressure resistant (10KG), anti-puncture performance, folding and rolling up for storage, drain pipe bursting pressure ≥3.0MPa;
16, Drain pipe need to use high-quality stainless steel quick joint connection, the joint needs to be equipped with stainless steel locking device.
