DNJJ5180TCX6
-
DFAC/FAW/SHACMAN/HOWO/JAC /ISUZU/JMC
-
8705909990

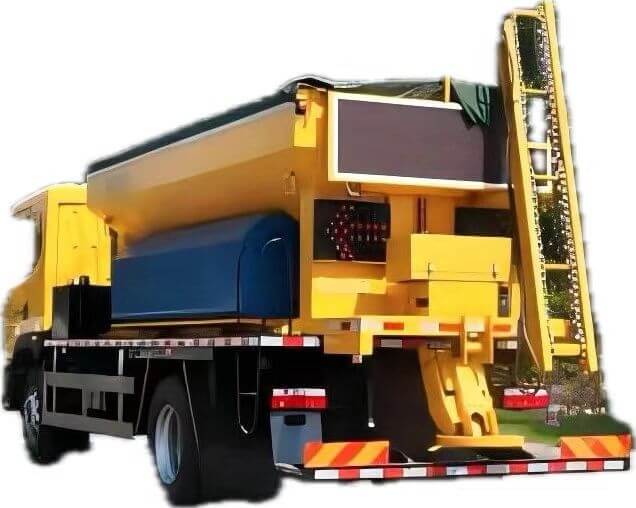

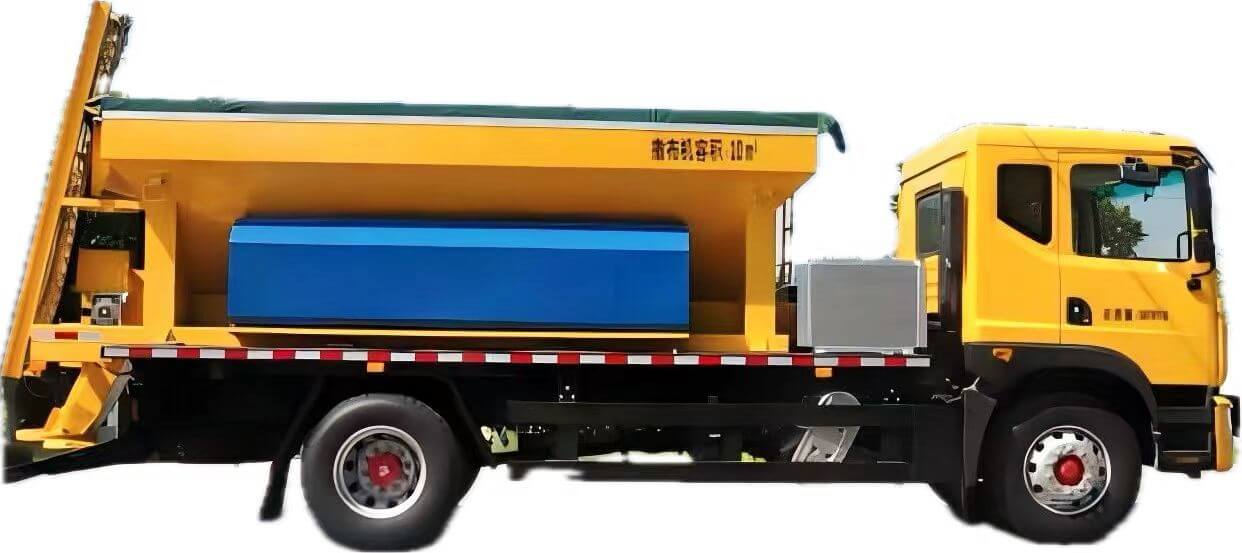

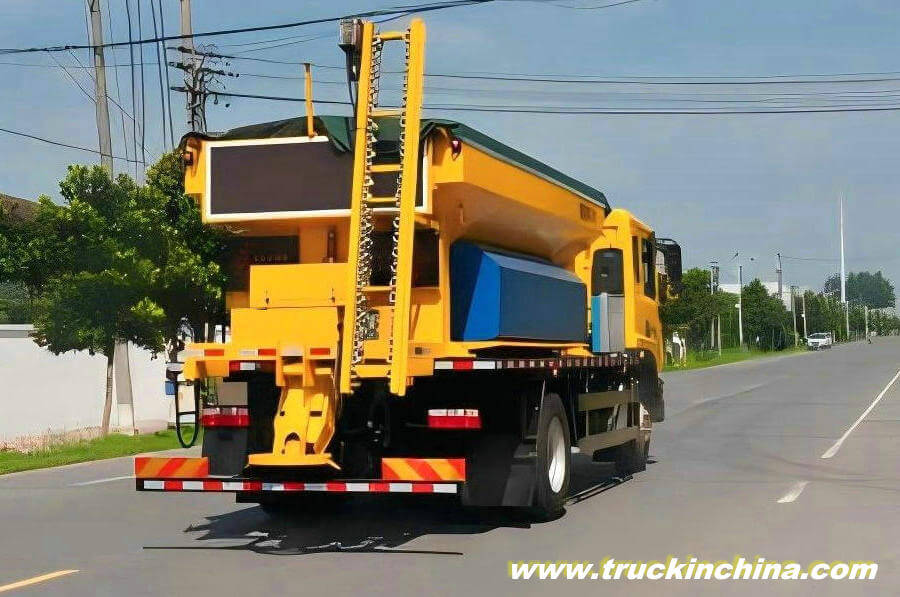

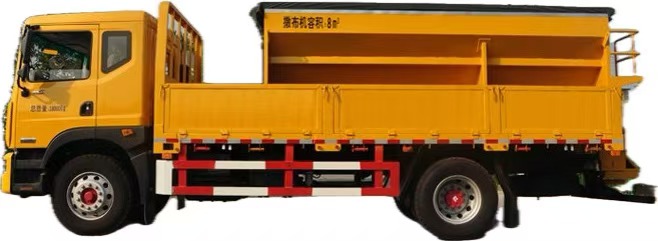

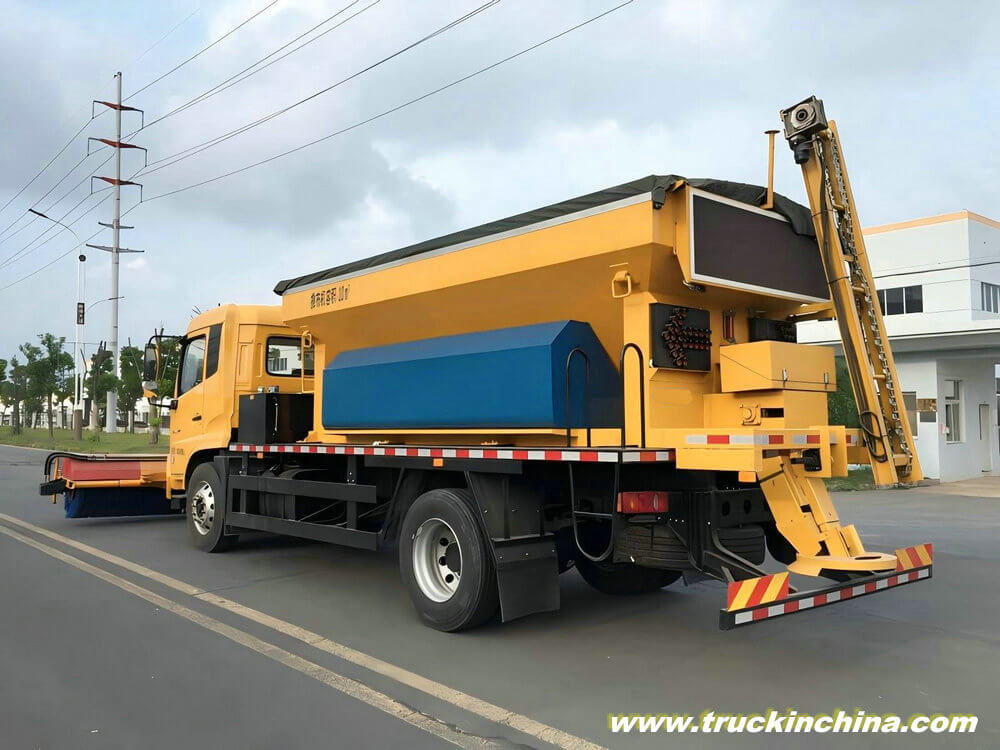

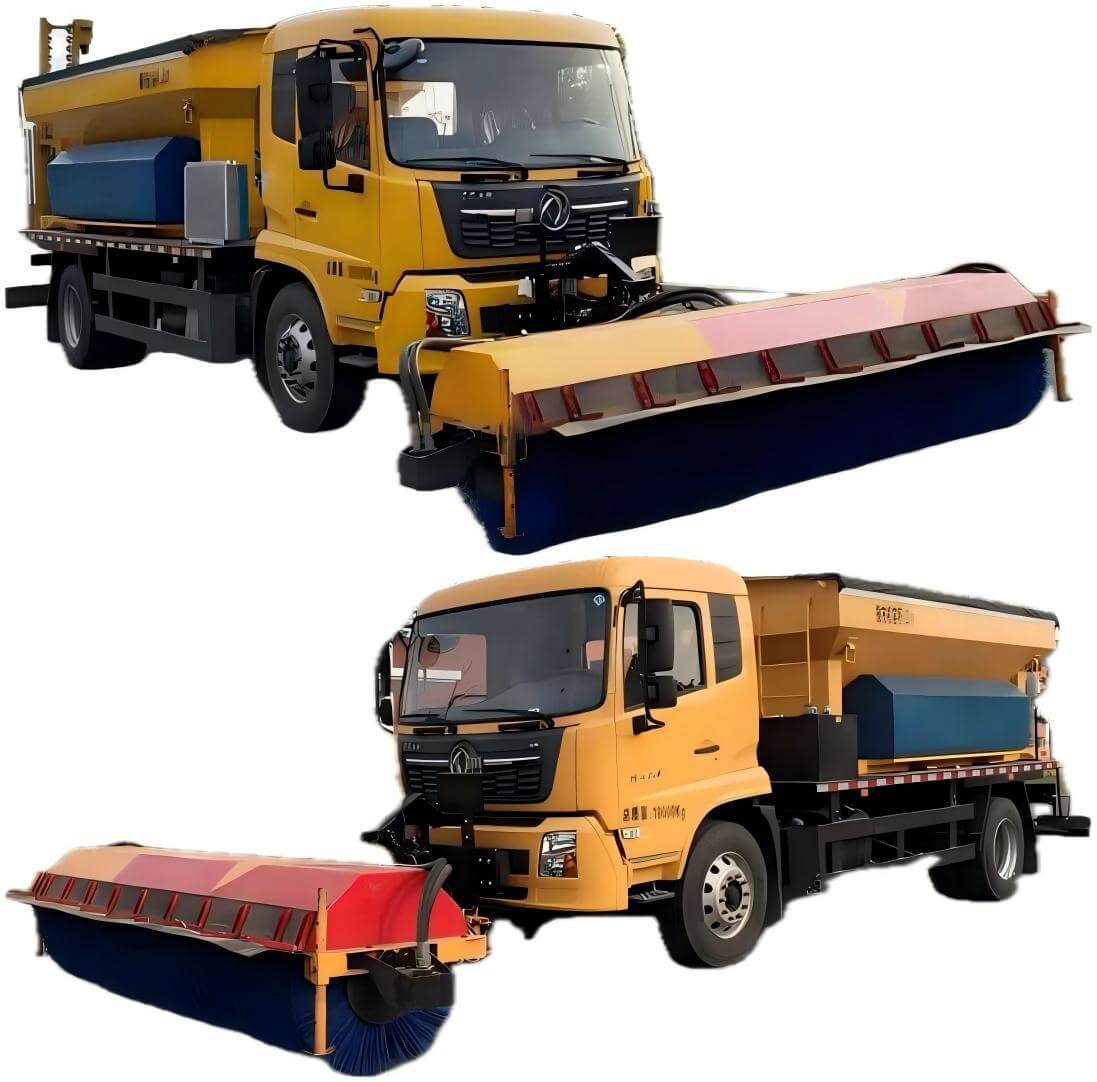

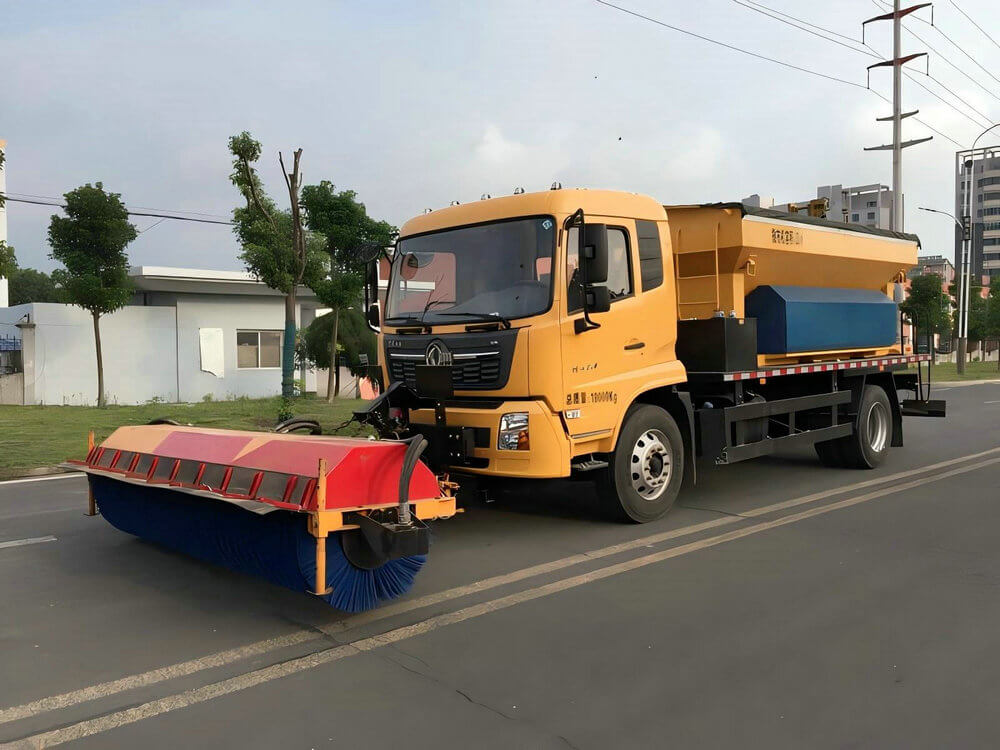

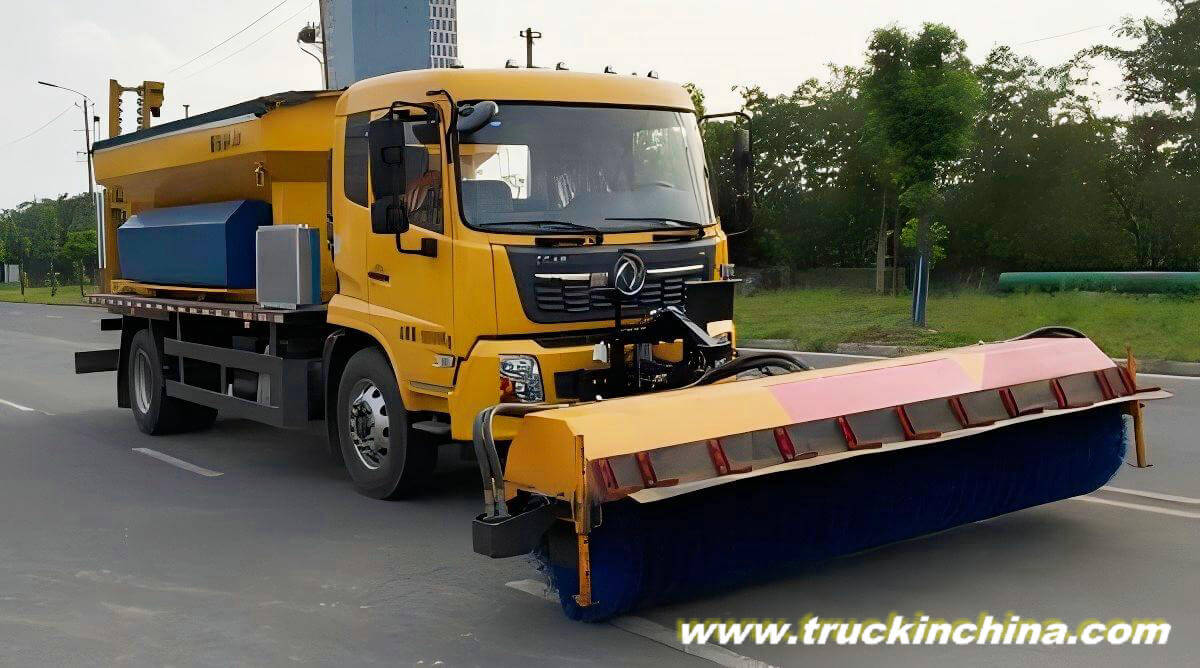

Customize Multi-Functional Dongfeng Snow Sweeper Truck With Snow-Melting Agent Dispenser
Vehicle model | DNJJ5180TCX6 |
Chassis model | DFAC EQ1185LJ9CDE |
Vehicle shape | 8650×2520×3790mm |
Engine power | 154kw |
Gross mass/curb mass | 18000kg/9195kg |
Spreader Volume | 8-10m³ |
Spreading width | 0～12mAdjustable |
Amount of salt spread | 20-250g/㎡ |
Pre-wet system (optional) | 1-5m³ |
Snow melting agent delivery form | Chain plate conveying or crawler conveying |

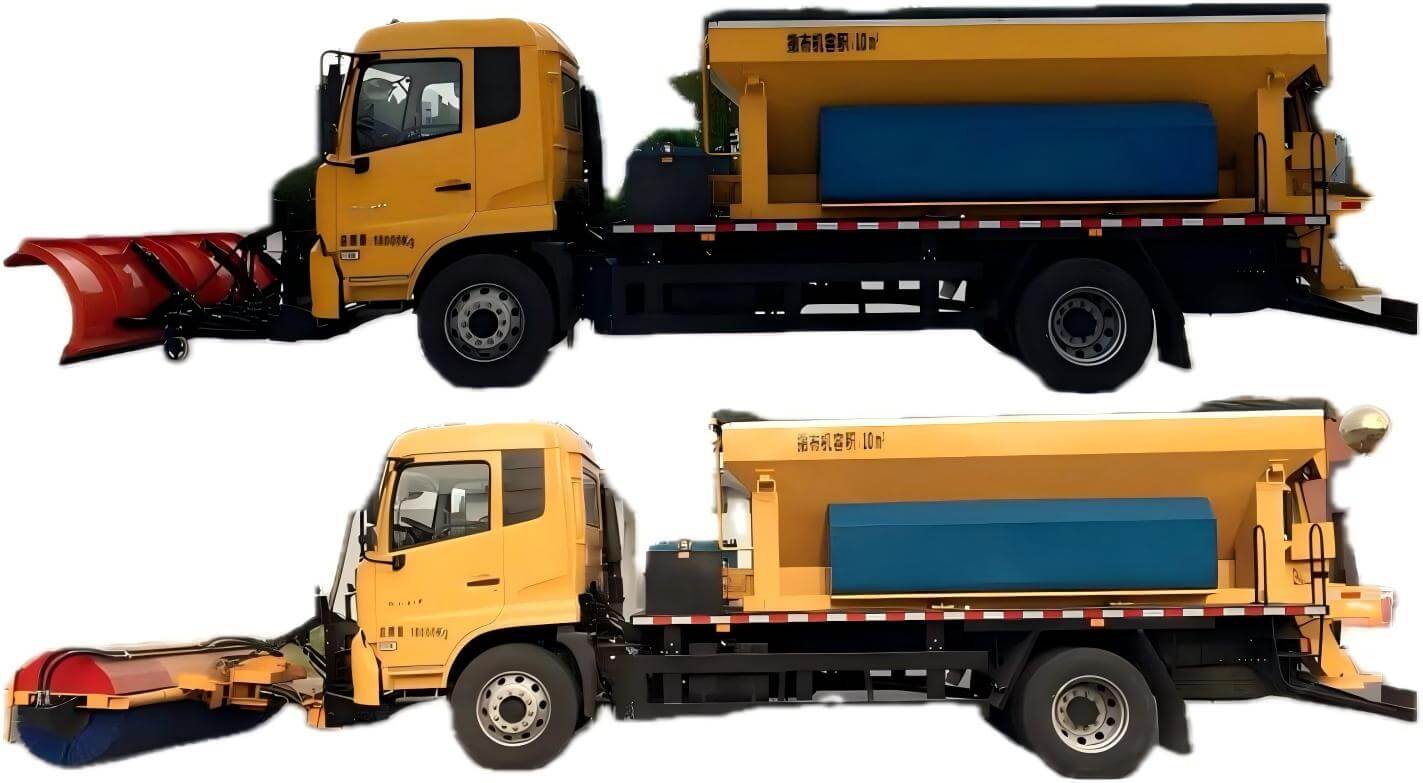

Options | Snow shovel or snow roller brush |
| 1.1 Main functions and requirements: |
| It has the functions of pushing snow, sweeping snow and spreading snow melting agent; It has independent control functions of spreading and sweeping snow to the left and right sides. The operator can complete the operation in the cab, and the connection and assembly of the working device and the main engine are convenient and quick. |
| 1.2 Chassis: |
| (1)E3-6 Emissions; Equipped with a cooling and warming air conditioning device; |
| (2) Total mass ≥ 18000kg |
| (3) Engine power ≥ 154KW |
| (4) Number of passengers allowed in the cab: 3 |
| (5) Wheelbase ≥ 4500 mm |
| (6) Load mass ≥ 8000 kg |
| (7) Vehicle length ≥ 8430 (± 100) mm |
| (8) Vehicle width ≥ 2520 (± 25) mm |
| (9) Vehicle height ≥ 3280 (± 50) mm |
| (10) It has anti-skid tires and is equipped with warning lights and working lights to ensure safe operation; |
| (11) The circuit system should have anti-corrosion and moisture-proof measures; |

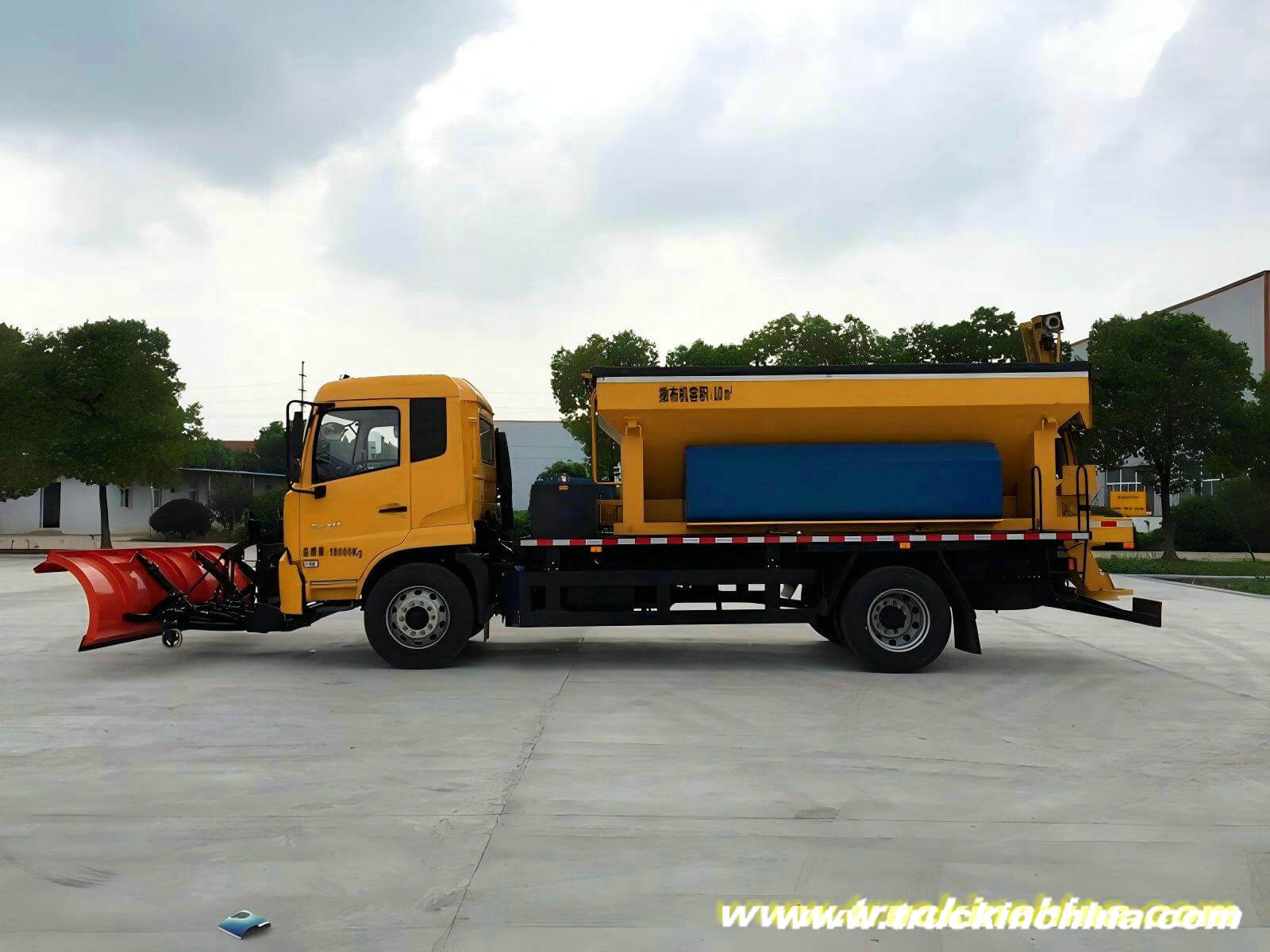

| 1.3 Snow Push Shovel |
| (1) Front-mounted, width ≥ 3. 2 meters, effective width of snow pushing ≥ 2. 8 meters; |
| (2) The snow removal speed is ≥ 50 km/h, and the dead weight is ≥ 1000 kg. The snow shovel can be lifted and lowered, swing left and right, with a swing angle of 0 ~ 30 °, flexible and reliable operation, and has a safety locking mechanism during transportation; |
| (3) It has automatic obstacle avoidance function, and the obstacle avoidance height is ≥ 150 mm; There are anti-collision devices on both sides. |
| (4) The snow shovel is easy and quick to replace, disassemble and assemble, and the blade has good wear resistance, ensuring that it can be used for 500Hours, easy to replace; |
| (5) The chassis engine does not start, and various actions of pushing the snow shovel can be completed; |
| (6) Obstacle avoidance method: It has obstacle avoidance functions of automatic flipping and automatic reset (clear color pictures are required and its principle is explained). |
| (7) The connecting frame of the snow shovel adopts a parallel four-link structure. |

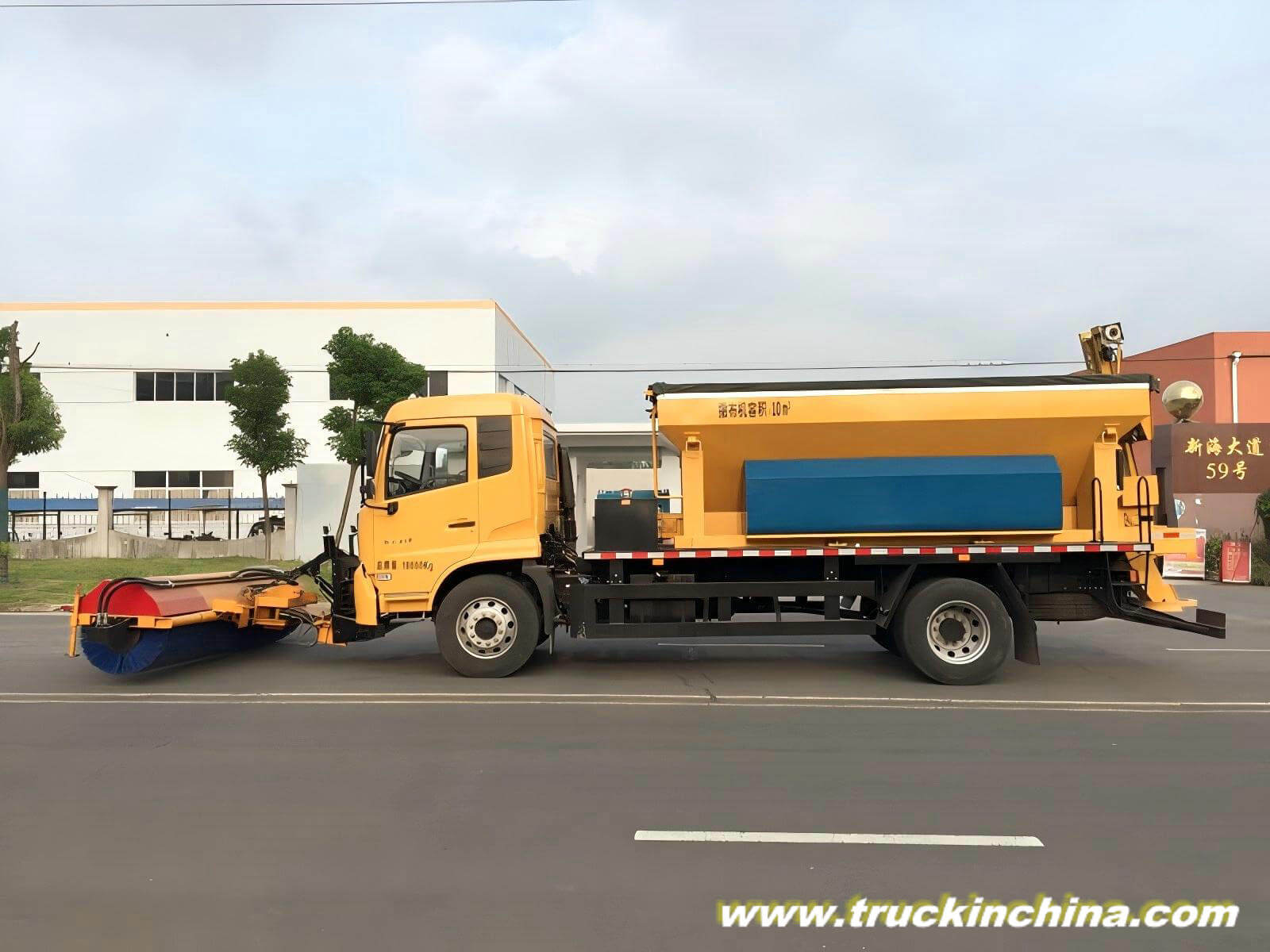

| 1.4 Front roller brush |
| (1) The roller brush connecting frame adopts a parallel four-link structure, and the roller brush has an expandable function (it can be used interchangeably with a snowboard; It can be connected with a water tank and has the function of cleaning and dust reduction; The connecting frame and physical pictures before and after expansion must be provided); |
| (2) The hydraulic motor drives the roller brush to rotate through chain transmission, so as to avoid scratching the hydraulic motor and the chain belt tensioning device during the working process |
| (3) The roller brush turning must be adjusted by an oil cylinder, and there is an obstacle avoidance buffer device; |
| (4) There are width warning lights on both sides of the roller brush, and there is a ground pressure alarm system, which can grasp the contact status between the roller brush and the ground at any time in the cab. |
| (5) It has the function of copying with the road surface; |
| (6) The brush filament adopts a piece structure, and the brush filament is made by mixing polypropylene bristles and elastic steel wire with a ratio of 3: 7; |
| (7) The support wheel adopts four heavy-duty rubber pneumatic tires, which can make the roller brush float up and down with the ups and downs of the road surface in a fully floating state. |
| (8) The support wheel has automatic deviation correction function; |
| (9) The length (m) of the roller brush is ≥ 3. 6, the effective snow sweeping width of the roller brush is ≥ 3100 mm (the snow sweeping width when the roller brush swings left and right to the maximum angle), the diameter (mm) is ≥ 800, the left and right deflection angle is ≥ 30 degrees, the rotating speed is ≥ 200 rpm, the snow sweeping thickness (mm) is ≥ 100, and the snow sweeping speed is ≥ 30 km/h; |

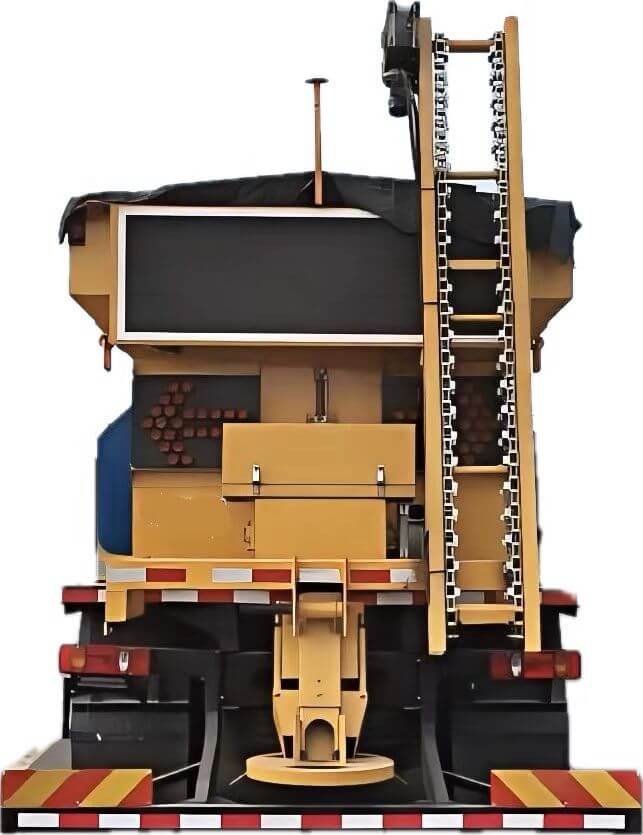

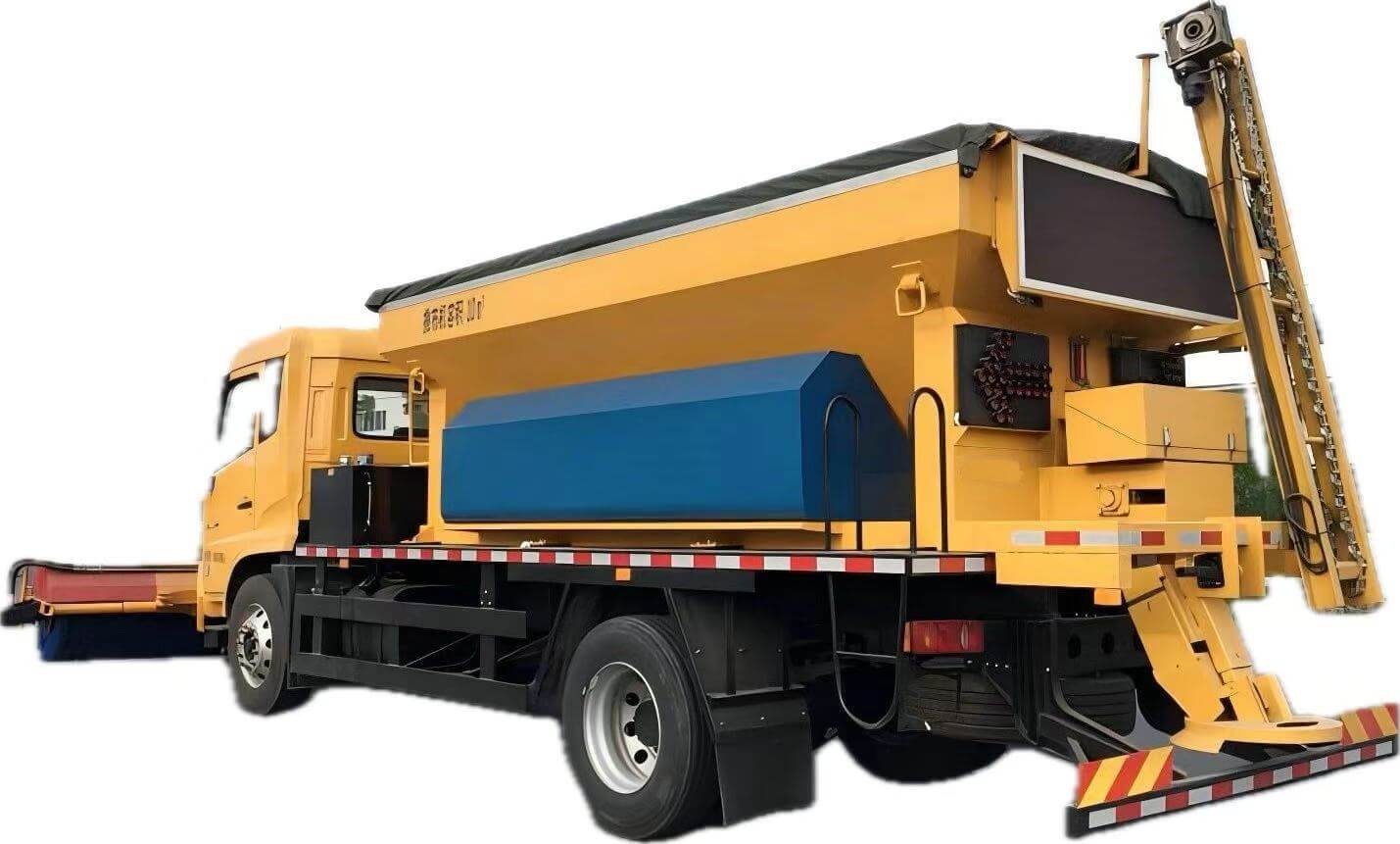

| 1.5 Spreading System |
| (1) The disc spreader is equipped with a light-controlled material empty alarm device ; |
 (2) It has symmetrical and asymmetrical spreading functions, and the spreading direction can be adjusted in the cab; |
| (3) The adjustment of the discharge control panel adopts electric control mode, and the size of the discharge port can be adjusted in the cab; |
| (4) The volume of the silo is ≥ 8 m3, and the silo and the working mechanism in contact with salt (snow melting agent) have good anti-corrosion performance; |
| (5) Spreading width: 3 ~ 15 meters, spreading speed ≥ 40 km/h; |
| (6) Spreading amount: salt (snow melting agent) 5-80g/m2, and the spreading amount per unit area does not change with vehicle speed after setting. The spreading density, width, direction, etc. of the spreader can be set and monitored in the cab, and can be adjusted at any time according to the working conditions. Various working parameters of spreading can be displayed; |
| (7) The snow melting agent is transported by anti-corrosion rubber belt, which must be equipped with a cleaning device ; |
| (8) The working device is fully hydraulically driven; The replacement, disassembly and assembly of machines and tools are convenient and quick; |
| (9) The spreader can be easily disassembled and installed, which is convenient for cleaning the remaining materials in the box and storing the spreader in non-use seasons; |
| (10) The spreading system is equipped with lighting and safety warning devices; |
| (11) The spreader is made of stainless steel, and the height of the spreader to the ground can be adjusted arbitrarily. Spreader tray and |
| The spreading plate cover is integrally pressed; |
| (12) The spreader turns upward with a booster device, which has the function of emptying the remaining materials ; |
