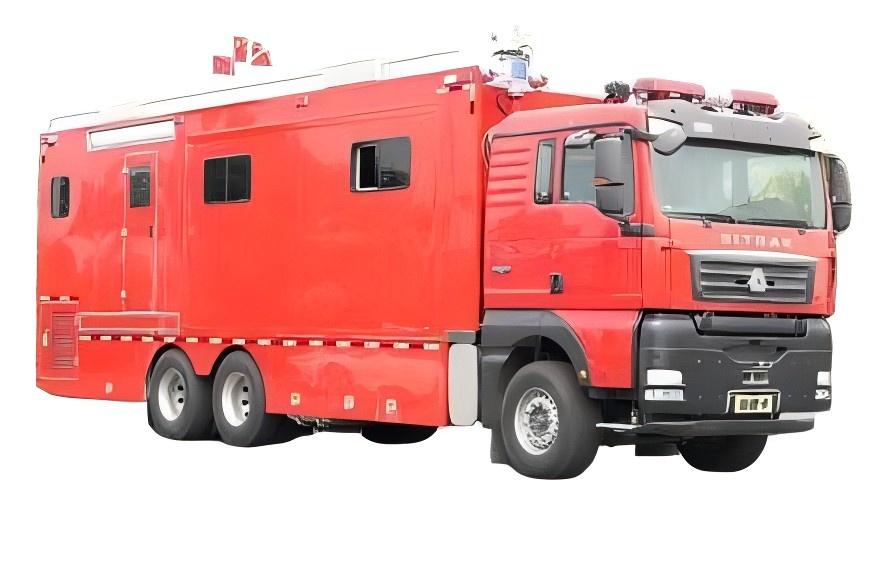

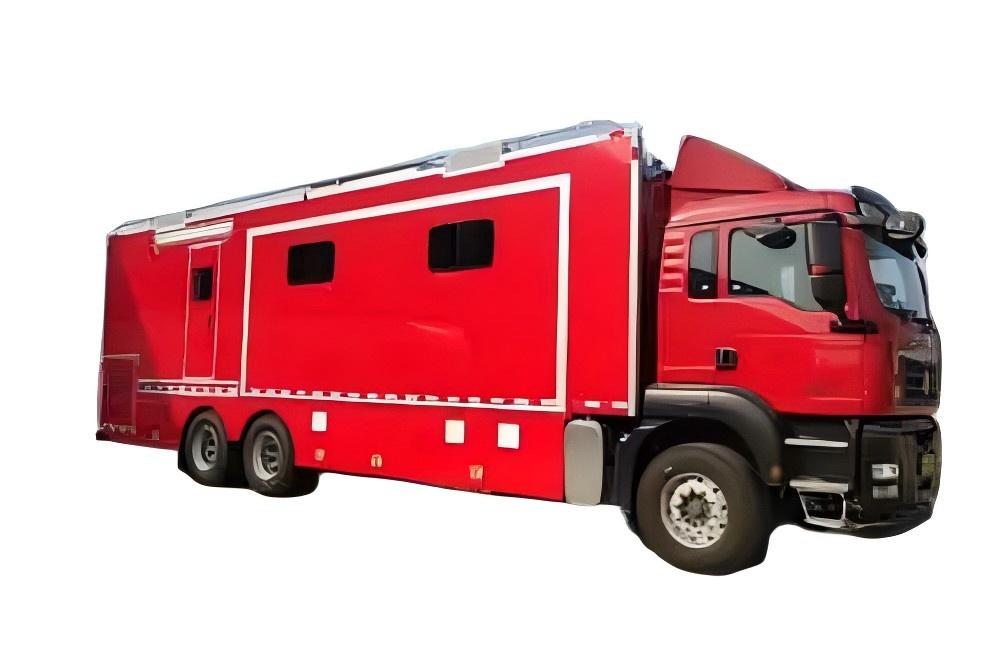

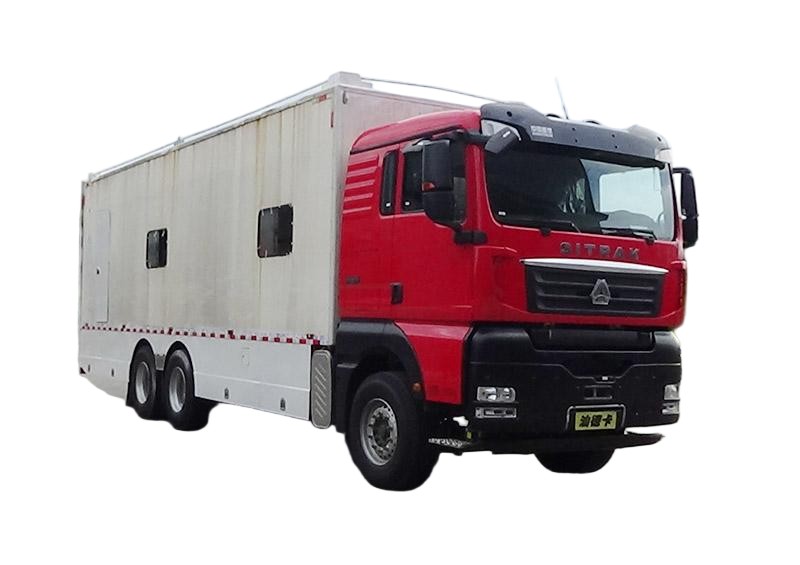

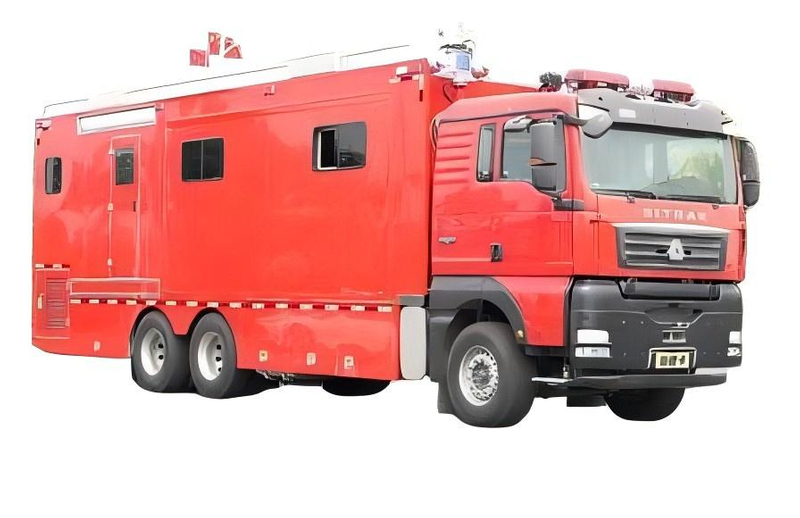

Sinotruck Sitrak Mobile Communications Command Truck Chief Vehicles

Command Vehicle

Main Technical Parameters

Engine Parameters

Communication Command Fire Truck & SINOTRUK SITRAK Emergency Command Vehicle

SINOTRUK SITRAK Command Vehicle

I. Chassis

• Vehicle model: 5210XZHZ6CLW Command Vehicle

• Chassis model: SINOTRUK SITRAK ZZ5356V524MF1

• Drive type: 6×4

• Gross mass: 27000 Kg

• Engine power: 327 kw / 445 hp

• Emission standard: Euro 6

• Fuel type: Diesel

• Displacement: 10518 ml

• Engine model: MC11.44-60

Cab

• Adopts high-roof cab; air-suspended driver's seat, central control door lock with key

• Electrically adjustable rearview mirrors with electric heating function; electric window lifters

• Equipped with 64G 360° panoramic driving recorder, reverse monitoring and radar system in the cab

• Approved passenger capacity: 2 persons

• Cold start electric heating system, water tank radiator with mosquito and dust protection net, cruise control function

1. Overview

2. Design Principles

1. Standardization: All hardware and software of the system shall comply with relevant international and domestic standards, industry specifications and regulations of the public security system.

2. Practicality: All technical means and functions of the system shall be based on meeting actual operational needs, with simple, convenient and easy operation and maintenance.

3. Reliability: The system shall have high reliability and stable operation capacity under various conditions.

4. Openness: Except for some special equipment, the system shall adopt general technologies and equipment and be compatible with other communication platforms.

5. Scalability: The system shall have expandability for technological development and business expansion, as well as strong business migration capability.

6. Security: The system shall provide high protection for information, equipment, vehicles and personal safety.

7. Economy: The system shall be rationally configured, make full use of and integrate existing resources and communication means to save investment.

8. Efficiency: Each subsystem of the system shall be scientifically and rationally configured for fast and efficient commissioning and operation.

3. System Functions

1. Basic Vehicle ModelThis basic vehicle model is refitted based on the user's existing vehicle model, ensuring a spacious and comfortable working environment for staff and providing technical-compliant environmental conditions for system operation and maintenance. The vehicle is refitted on the premise of maintaining the excellent performance of the whole vehicle, and is a customized special vehicle that meets the user's working environment and functional requirements.
2. Communication SystemEquipped with structural positions, power supply interfaces, communication interfaces and signal wall boxes for easy installation of communication networking equipment, supporting the expansion of communication functions.
3. Video Acquisition SystemCapable of real-time acquisition of video and data from operational equipment.
4. Video Display SystemEquipped with liquid crystal displays arranged inside the vehicle respectively.
5. Video Switching SystemEquipped with a video matrix with video switching matrix function.
6. Office SystemEquipped with ruggedized notebook computers arranged inside the vehicle.

4. Design Basis

• GB7258: Technical Specifications for the Operation Safety of Motor Vehicles

• GB1495: Permissible Noise for Motor Vehicles

• JB/Z111: Automobile Paint Coatings

• JB/ZQ3011: General Welding Technical Specifications for Construction Machinery

• JB2864: Electroplated and Chemically Treated Layers for Automobiles

• ZBT35001: Basic Technical Specifications for Automobile Electrical Equipment

• ZBT50001: Type Approval Test Procedures for Special Purpose Vehicles

• ZBT50002: Periodic Quality Inspection Test Specifications for Special Purpose Vehicle Products

• ZBT50003: Road Test Methods for Special Purpose Vehicles

• JB/T12478: Test Methods for Dust Sealing Performance of Buses

• GB/T12480: Test Methods for Rainproof Sealing Performance of Buses

• JT3103－82: Technical Requirements and Inspection Standards for the Refitting of Highway Passenger Vehicles

• GB9378－88: Design Standards for Power Distribution Systems

• GB 1589－1989: Outer Dimension Limits for Motor Vehicles

• QC/T 29106－2004: Technical Specifications for Automobile Low-Voltage Wire Harnesses

• QC/T 413－2002: Basic Technical Specifications for Automobile Electrical Equipment

• QC/T 707－2004: Technical Specifications for Automobile Electrical Junction Boxes

• QC/T 420－2004: Fuses for Automobiles

• QC/T 708－2004: Technical Specifications for Automobile Air Conditioning Fans

2.1 Overview

2.2 Overall Technical Requirements

1. Deployment and Retraction TimeAt an ambient temperature of -10 ℃～35℃, operated by 1～2 persons, the deployment time of the communication command vehicle shall not exceed 5 minutes, and the retraction time shall not exceed 5 minutes.
2. MobilityAble to pass through dirt roads and gravel roads normally; all equipment is reinforced and fixed, and shall not be damaged when the vehicle travels 200 km at a speed of 25 km/h on gravel roads. At the same time, ensure that the technical indicators of the mobile command communication platform (e.g. vehicle speed, turning radius, climbing gradient, braking distance, trench crossing width, approach angle, departure angle, wading depth) are the same as or close to those of the original carrier vehicle.
3. Environmental Adaptability

• Temperature: -20℃～40℃; Relative humidity: 40%～98%

• Working environment inside the vehicle: Temperature 0℃～40℃, Relative humidity 40%～85%

• Wind speed: Able to work normally under a stable wind speed of 21m/s, and no damage under a stable wind speed of 32m/s.

2.3.2 Vehicle Refitting Design

• Welding: Spot welding is adopted for parts, and arc welding for the reinforced parts of the vehicle body to ensure reliable strength.

• Painting: All sheet metal parts are treated with cathodic electrophoresis to greatly improve anti-corrosion and anti-rust performance; DuPont medium-temperature baking paint (USA) is used for the topcoat.

• Final Assembly: All seals and adhesives use imported Sika glue for automobiles.

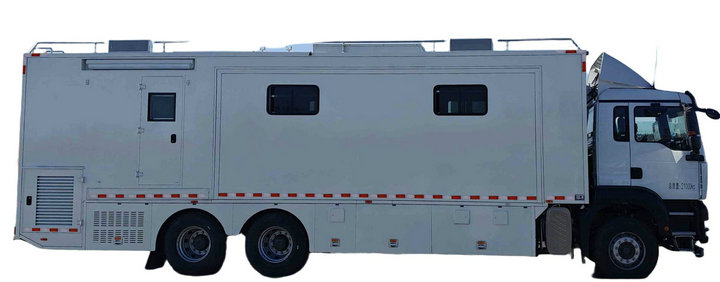

Vehicle Layout

2.4 Scheme Design

• Overall external dimensions of the vehicle: 10522 (L) * 2450 (W) * 4000 (H) mm

• Operating temperature of equipment used outside the vehicle: －20℃～55℃

• Operating temperature of equipment used inside the vehicle: －10℃～50℃

• Storage temperature: －20℃～55℃

• Relative humidity of the whole vehicle: (95±3)% (at 40℃)

2.5 Design Principles

• The equipment compartment and seats inside the vehicle are made of high-strength metal material with plastic-sprayed surface (beige color). Silicone rubber shock absorbers are installed when fixing the equipment compartment and seats to the vehicle body. The rated bearing capacity of the shock absorbers is determined according to the total weight of the equipment compartment with installed equipment, and the surplus bearing capacity of the shock absorbers is between 8% and 13% of the actual bearing capacity, giving full play to the effect of silicone rubber shock absorbers to achieve an optimal overall shock absorption effect for the equipment compartment and seats.

Vehicle Fire Resistance

• The interior decoration of the command vehicle is mainly steel decoration with a small amount of wood decoration. Steel decoration has strong fire resistance; wood decoration is processed according to the shape of the vehicle body and strictly following woodworking painting processes and procedures to ensure smooth and beautiful lines, fire retardancy and environmental protection inside the vehicle, complying with YD/T5003-2005 Design Specifications for Telecommunication Special Buildings for processing to ensure safety.

• The interior filling materials, floor and other interior materials and auxiliary materials of the vehicle adopt flame-retardant, anti-static and environmentally friendly materials without harmful substances such as formaldehyde and benzene. The floor uses imported anti-static plastic floor with anti-skid and wear-resistant performance, which has no thermal expansion and contraction problem, keeping the floor flat and beautiful regardless of the temperature change inside the vehicle.

Vehicle Safety

• All performances of the command vehicle have undergone strict commissioning with qualified inspection reports issued by professional institutions.

• The load of the vehicle is strictly configured in accordance with the allowable load of the vehicle body chassis.

• The external dimensions of the vehicle body and the configuration of roof equipment strictly comply with the relevant vehicle management systems of the ministry.

Equipment Safety

• The safety requirements for the equipment inside the vehicle comply with the relevant provisions of GJB663-89.

• The command vehicle adopts an air circuit breaker with leakage protection device as the main power switch to prevent personal injury caused by equipment leakage and damage to equipment caused by line overload and short circuit faults.

• Attention is paid to the self-protection function of the equipment in configuration; all selected equipment can make corresponding protection actions in case of failure, effectively improving the stability and reliability of the system.

Information Security

• Equipped with independent communication transmission means to ensure the reliability and security of information transmission in any harsh working environment.

• Encryptors or firewalls can be used in the process of information transmission and reception to ensure the security of data transmission.

• All system software has encryption functions; users can select encrypted files according to their own requirements to prevent data loss and theft and ensure information security.

Grounding Design

• Three types of grounding points must be set on the vehicle body: equipment safety grounding, vehicle body protection grounding and lightning protection grounding. Beryllium bronze grounding rods are used for grounding.

• Equipment grounding and power supply grounding are collected at the cabinet grounding copper bar with equal-length grounding wires; the computer is grounded independently. A large cross-section flat copper wire is connected to the "protection column" of the external interface board of the vehicle body to form a closed equipotential system.

• All grounding wires are copper insulated wires with a cross-section of not less than 4mm².

• When the structured cabling system uses shielded cables for wiring, the grounding of information sockets can use the cable shielding layer as the grounding wire connected to the distribution cabinet of each floor.

• If the cables of the structured cabling are laid through steel pipes or metal trunking, the steel pipes or metal trunking shall maintain continuous electrical connection and be well grounded at both ends.

2.6 Waterproof and Anti-Corrosion

1. Optimization in Design: Optimize anti-corrosion design, and improve the corrosive environment. Attention shall be paid to the optimization of metal parts in terms of part structure selection, material matching, rationality of structural layout, rationality of structural connection, and prevention of gap generation.

2. Optimization in Materials: Improve the thermodynamic stability of materials, adjust the alloy composition of part materials, increase anode polarization, etc.; replace existing ordinary materials with materials with strong anti-corrosion performance, or with non-corrosive materials such as aluminum-magnesium alloy and engineering plastics.

3. Optimization in Coating: Improve the coating of metal parts and enhance electrochemical protection; replace ordinary paint coatings with coatings with strong anti-corrosion performance (e.g. cathodic protection, anodic protection, Dacromet coating); add protective coatings to the gaps, interlayers and cavity bottoms of parts.

4. Optimization in Processes: Formulate reasonable manufacturing processes for parts to prevent bumps and scratches during manufacturing, and adopt manufacturing processes and measures that do not damage the protective layer as much as possible.

2.7 Fastening Performance

• Reinforced skeletons are added on both sides and the top of the vehicle body for support; the side wall skeleton and top skeleton are connected with the antenna support skeleton, so that the acting force of the internal and top parts of the vehicle is fully applied to the skeleton and floor, ensuring the anti-torsion, anti-shear deformation and anti-seismic capacity of the refitted vehicle.

• To ensure the fastening of the vehicle inner wall, important parts inside the vehicle body are reinforced with steel pipe profiles and elbows, and high-strength steel skeletons are used for welding reinforcement during the vehicle processing.

• A buffer gasket is installed between the mounting surfaces when assembling the antenna mounting base and the antenna; the processing tolerance of the antenna mounting base is formulated according to the specific requirements of the microwave antenna.

• U-shaped steel plate profiles and welding processes are used at the antenna positions on the top inside the vehicle to ensure the good structural strength of the original vehicle roof and improve the local bearing capacity of the vehicle roof.

• The vehicle roof adopts an aluminum structure with patterned aluminum plates paved on the platform surface for anti-skid performance; a circle of 3mm thick aluminum plate guard plate processed according to the shape of the vehicle roof with a closed edge is installed around, which has anti-skid performance, sufficient bearing capacity, uniform force, beautiful appearance, meets the use strength requirements and has good corrosion resistance, satisfying the installation requirements of roof-mounted equipment.

• The vehicle roof is designed with drainage and is equipped with a stainless steel low fence.

2.8 Vehicle Body Balance Design

1. Through the rational layout inside the vehicle, the front and rear axle load distribution of the refitted vehicle is controlled within the vehicle technical requirements.

2. In the layout of equipment, both axle load distribution and the left and right counterweight requirements of the vehicle are highly valued to ensure that the center of gravity of the vehicle is always within a reasonable range and the vehicle is safe and stable during travel.

3. After the final confirmation of all equipment, the balance of the vehicle will be calculated, and the layout of the equipment will be fine-tuned according to the calculation results to maximize the satisfaction of the vehicle's driving requirements and the convenience of equipment operation.

4. After the completion of the vehicle body, the load-bearing test of each point of the wheels is carried out to clarify the bearing capacity of each point, so as to ensure the overall counterweight balance of the whole vehicle during parking and driving, and ensure the reasonable and balanced axle load and stable driving of the refitted vehicle.

3. Main Equipment Optional

Core Functions & Structural Features

1. Special EquipmentEquipped with core high-tech equipment including ultra-short wave vehicle-mounted radio communication system, vehicle-mounted static satellite communication system, image monitoring and storage system, remote video conference system, as well as supporting systems such as power supply guarantee, lighting and multimedia interactive terminal.
2. Vehicle Body & Zonal Design

• Warning system: Long row of 8 red and blue strobe warning lights on the roof, two sets of red and blue strobe lights on each side of the vehicle body.

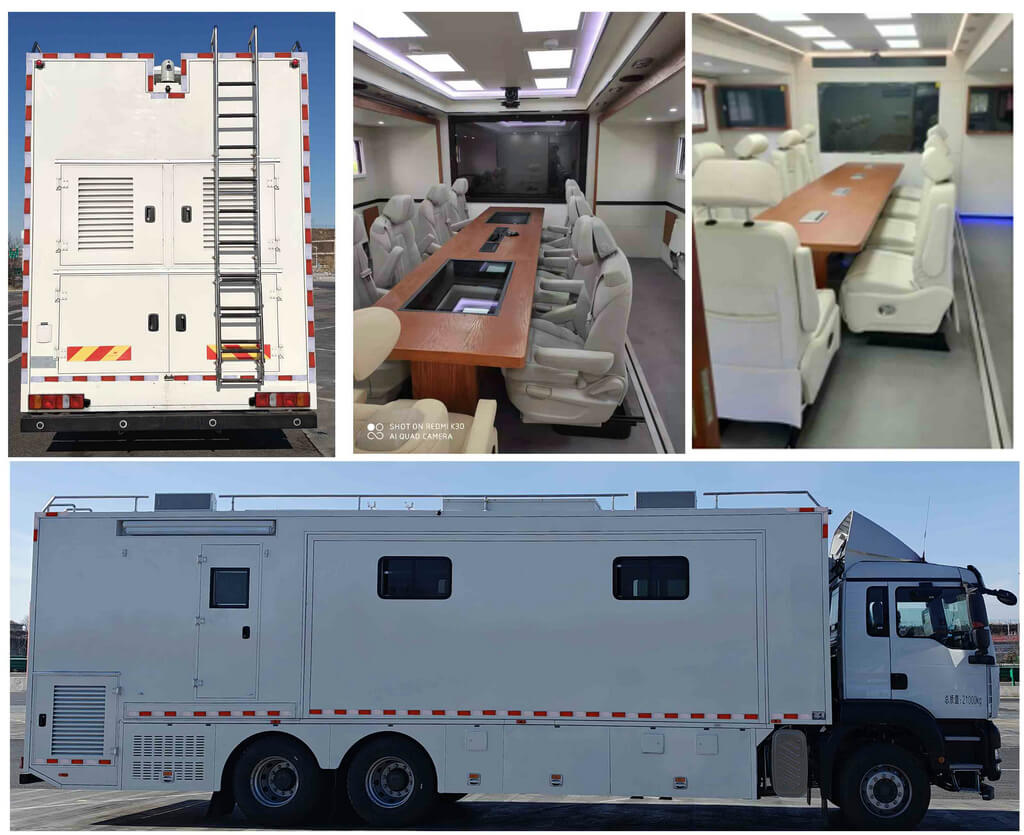

• Conference area: Luxury interior with foldable conference table/chairs, video wall and video conference equipment, meeting the needs of command and office work.

• Technical operation area: Integrated information collection, transmission and processing platform for centralized information processing and feedback.

• Roof platform: Foldable lifting lighting system + PTZ night vision camera, ensuring all-weather information collection.

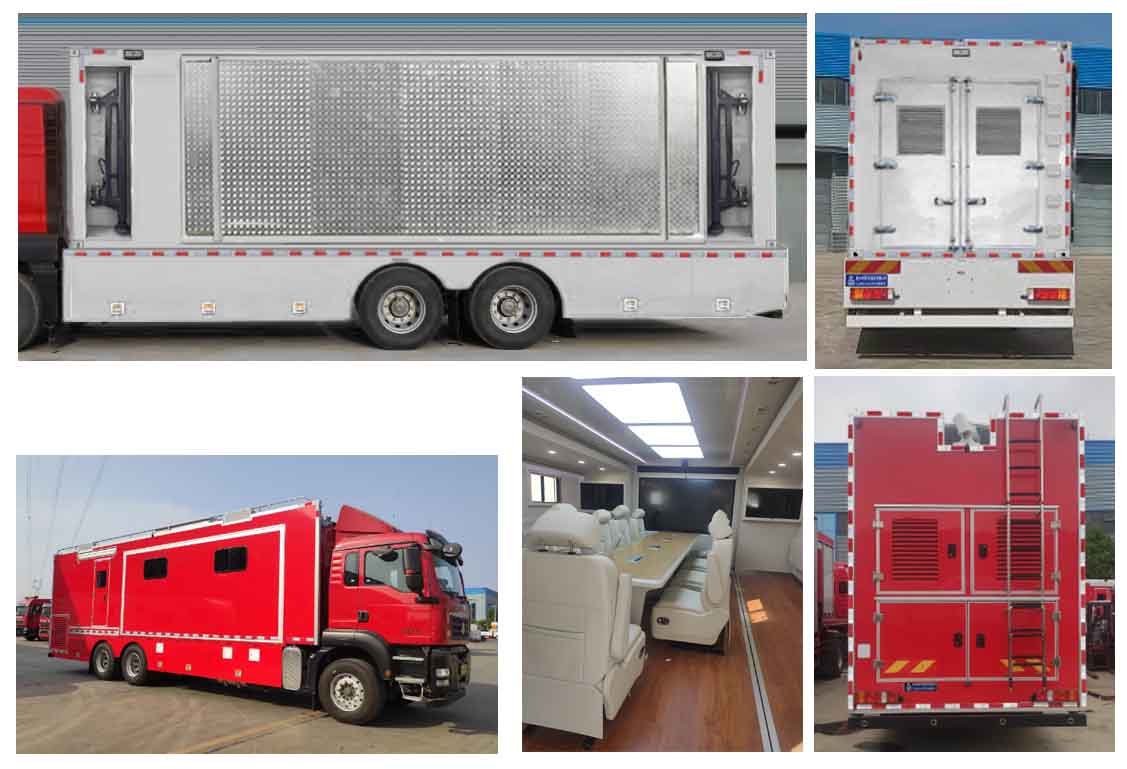

• Rear equipment area: Vehicle-mounted ultra-quiet generator, cable reel and equipment storage shelves, meeting on-site power supply and equipment storage needs.

Communication Command Core System

 Shelter and Office Configuration

 Power and Support System

  Fire-fighting and Warning System
