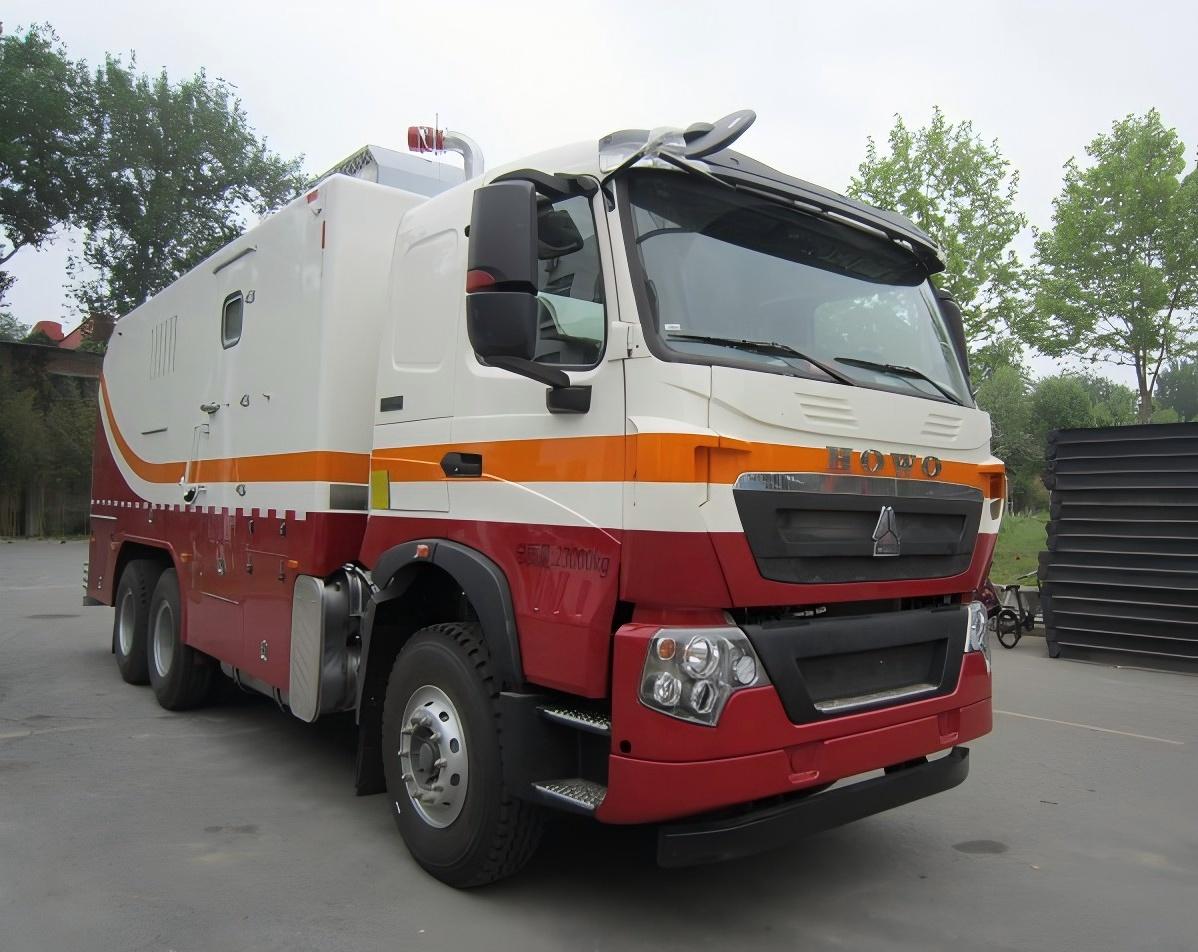

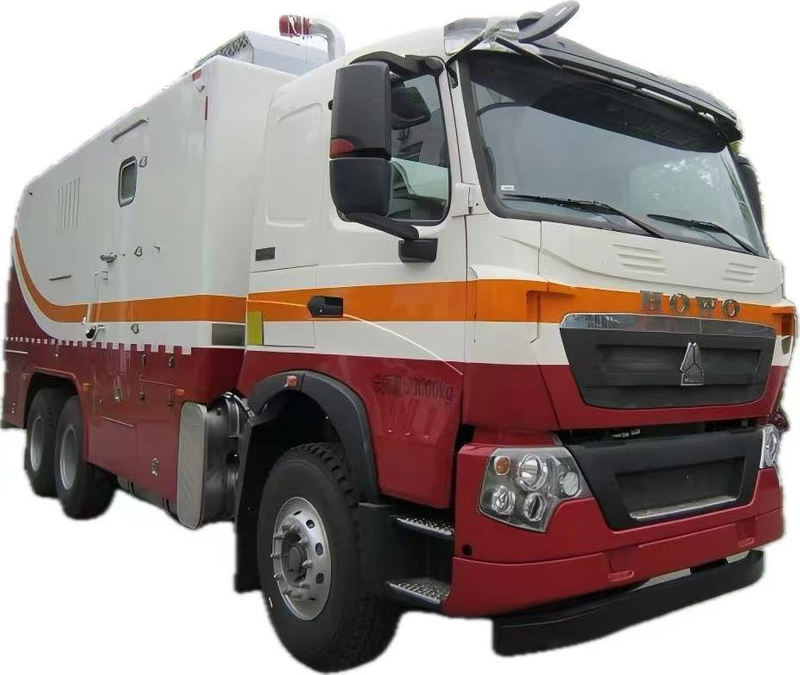

Sinotruck HOWO Well Testing Logging Truck

Sinotruck HOWO Well Testing Logging Truck
Availability:
Quantity:
  • DNHM5230TCJ

  • HOWO

  • 8705909990

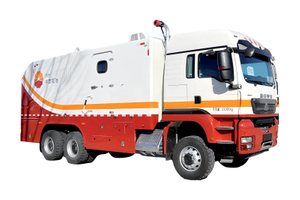

Sinotruck HOWO Heavy Duty Off-road 6X6 / 4x4 Chassis Logging Truck

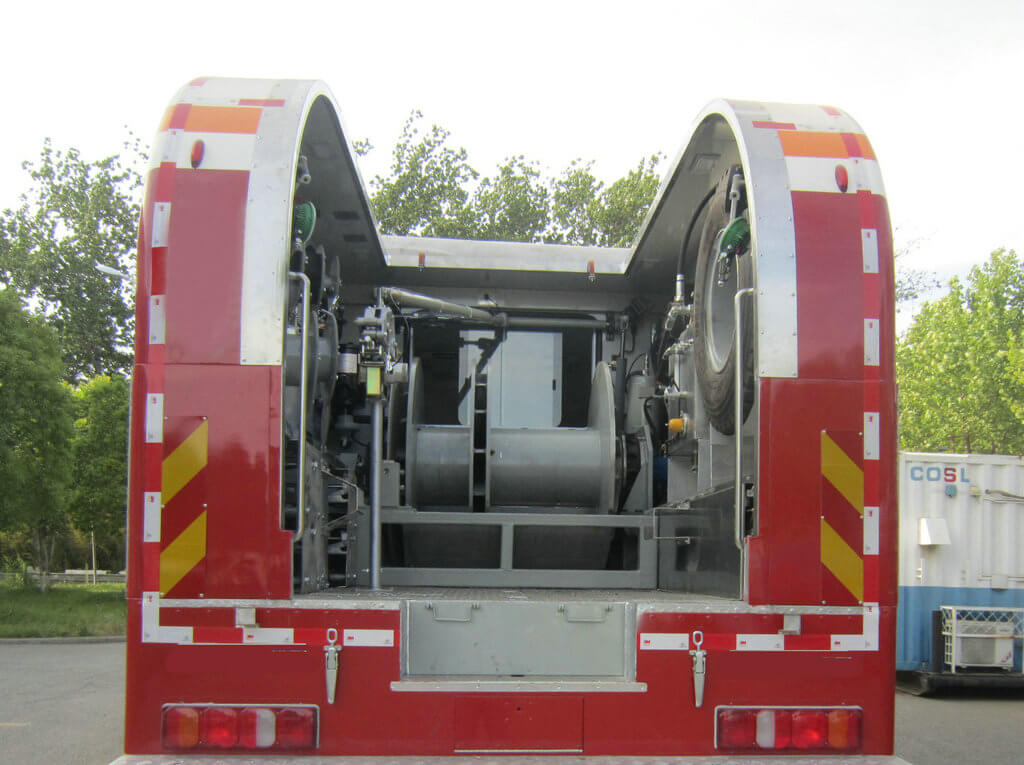

 The oilfield special operation vehicle mainly consists of cable winch, power take-off, hydraulic system and winch measurement system. It is suitable for well testing operations of various types and specifications of logging steel wires. With different downhole instruments, it can perform downhole pressure measurement, temperature measurement, logging slope, bottom hole sampling, sand surface detection, wax removal and small salvage operations

Product Model

DNHM5230TCJ

DLHM5257TCJ62

Chassis model

ZZ2186V452MF1

ZZ2257V455GF1

Drive form

6*4

6*6

Engine Model

MC11.40-60

MC11.36-60

MC11.44-60

WP10H400E62

WP9H350E62

MC11.40-61

MC11.43-61

MC11.46-61

WP10.5H430E62

WP10.5H460E62

MC11H.46-61

MC11H.49-61

WP12.430E62

WP12.460E62

WP12.490E62



MC13.48-60

Generator Displacement (ml)

10518

11596

12419

Maximum engine power (KW/HP)

297/403

268/364

327/444

294/399

257/349

297/403

319/433

341/463

316/429

338/459

341/463

363/493

316/429

338/459

360/489

356

Maximum engine torque (N.M)

1900~2300

2300

Fuel Type

Diesel

Diesel

Wheelbase (mm)

4325+1350,4300+1400,

4625+1350,4600+1400,

4925+1350,4900+1400

4500 +1400

Front suspension/rear suspension (mm)

1792/2763

1492/2500

Approach angle/departure angle

32° /12°

32° /14°

Minimum ground clearance (mm)

296

296

Minimum turning diameter (m)

22

20

Maximum speed (km/h)

99

89

Overall dimension L×W×H(mm)

9563×2550×3772,3742(mm)

9892*2550*3900

Total mass of equipment (kg)

25000

25000

Tyre model

315/80R22.5 16PR,

295/80R22.5,

12R22.5,

12.00R20 16PR,

11.00R20

315/85 R22.5

Cable specification (mm)

Φ12.7

Φ12.7

Maximum capacity (m)

5000

7000

Logging speed (M/h)

20-8000

20-8000

Lifting capacity (KN)

65

65

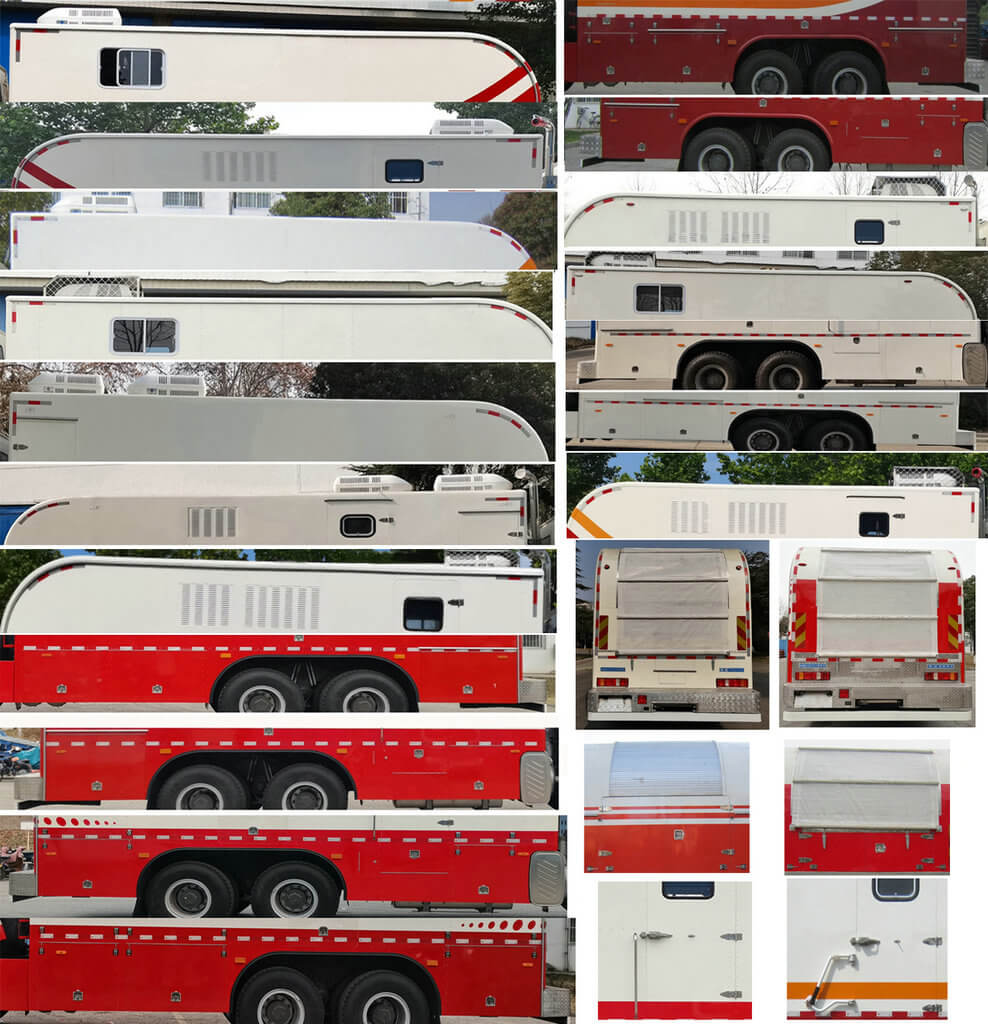

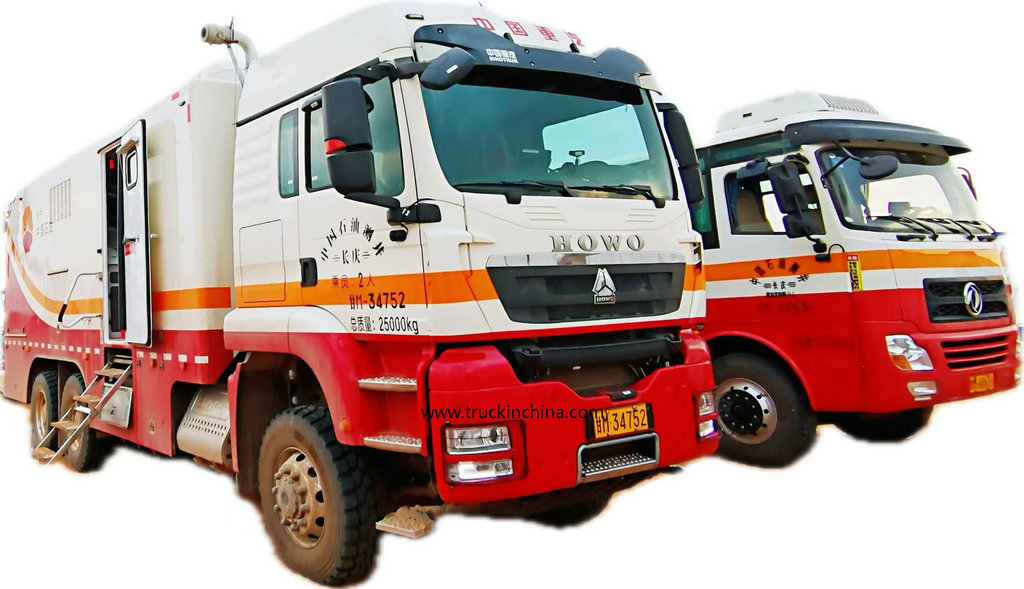

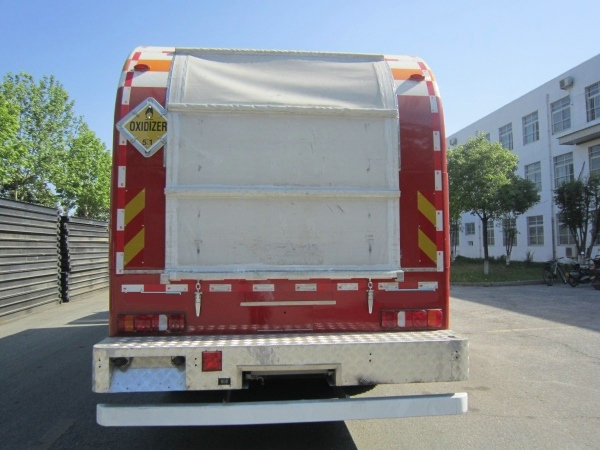

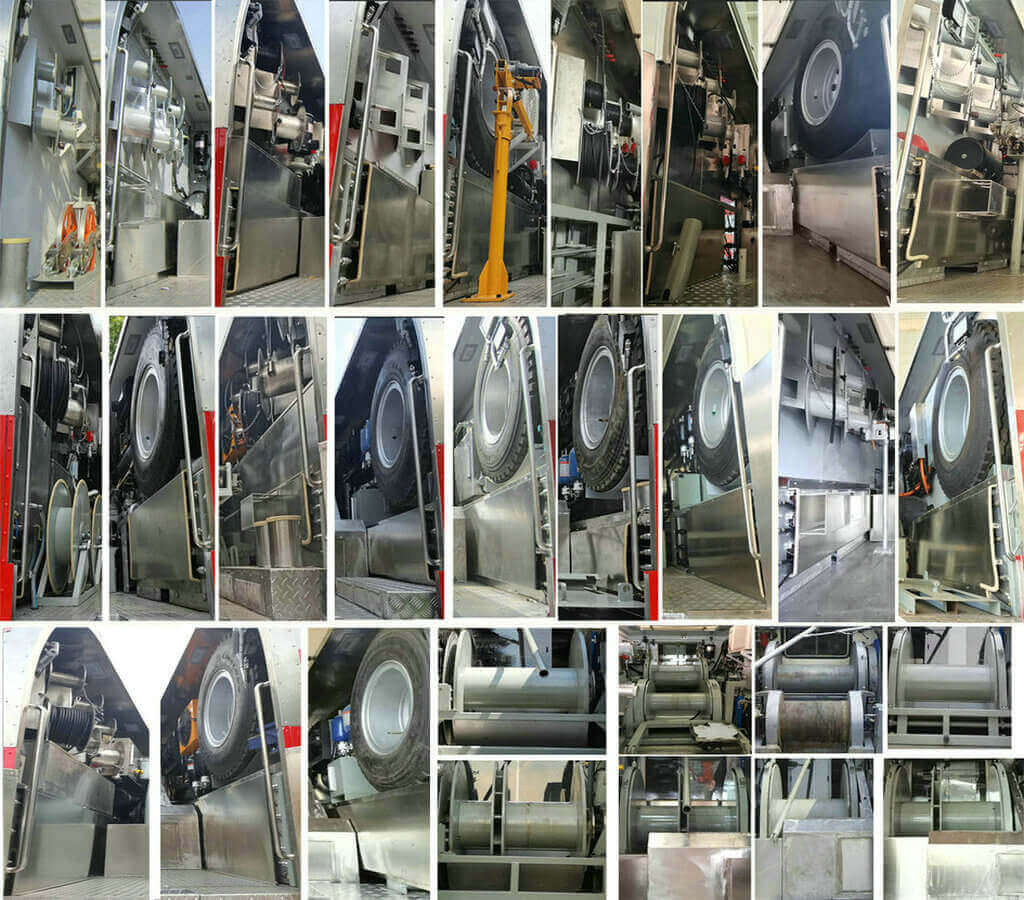

HOWO Petroleum Special Vehicle Well Oilfield Testing Wireline Logging Truck (40)Sinotruck HOWO Logging trucks (4)Sinotruck HOWO Logging trucks (5)Sinotruck HOWO Logging trucks (3)

Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
