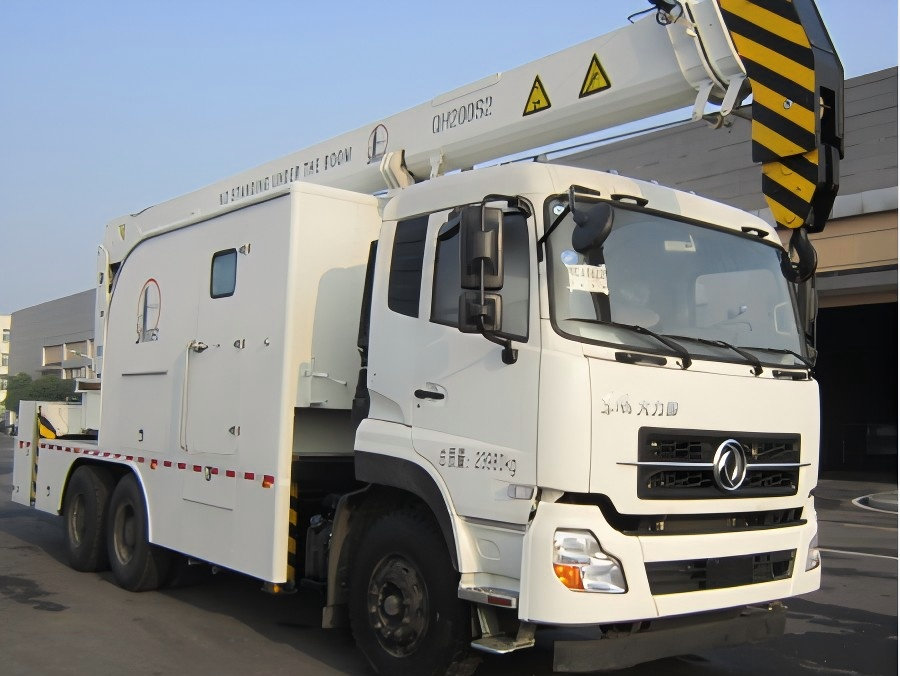

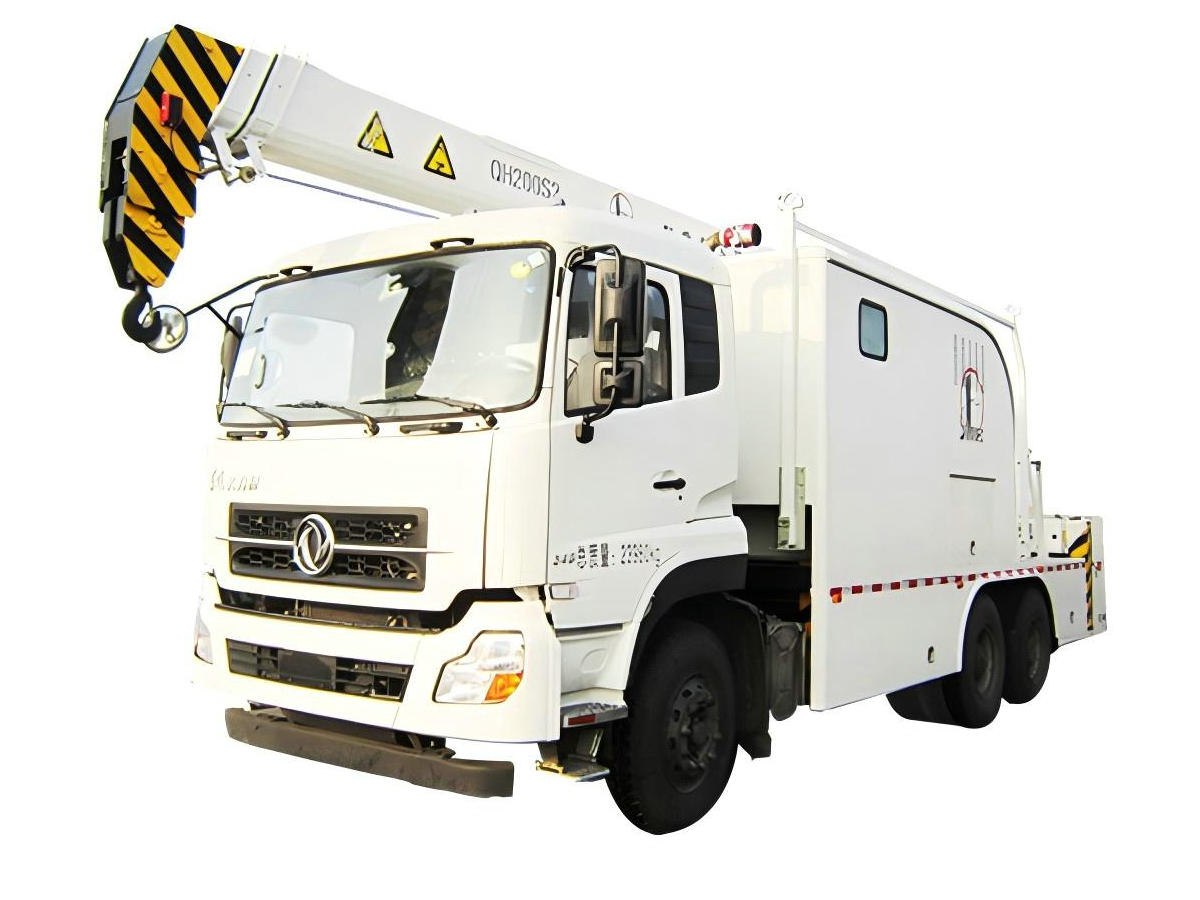

Dongfeng Mast Derrick Test Truck Mounted Crane Slickline 7000m
| Quantity: | |
|---|---|
-
DES5240TCS
-
Dong Run Ze
-
8705909990
Dongfeng Mast Derrick Test Truck Mounted Crane Slickline 7000m
Mast testing Truck
logging truck used in the oil and gas industry for well logging operations. Logging trucks are essential for transporting equipment and personnel to and from drilling sites, as well as for conducting various logging activities.
Specialized Equipment: Equipped with tools and instruments for collecting data from oil and gas wells, including pressure and temperature gauges, geophysical sensors, and data logging systems.
All-Terrain Capability: Designed to navigate rough and remote terrains commonly found in drilling locations, often featuring four-wheel drive and rugged suspension systems.
Payload Capacity: Built to carry heavy loads, including logging equipment, supplies, and personnel.
Safety Features: Includes safety equipment such as fire extinguishers, first aid kits, and emergency signaling devices.
Workstation: Often has a designated area for data analysis and processing, with necessary power supplies and connectivity for logging instruments.
Parameters
Drawworks | Capacity | 7500m(Φ0.125”) 7000m（Φ5.6mm） |
Lifting capacity | 25KN/30KN | |
Speed | 200– 30000m/h/30--8000m/h | |
Transmission type | PTO+Hydraulic system+planetary reducer | |
Chassis Model | DFH1258AX1V | |
Drive | 6×4 / 6X6 | |
Dimension | 10720×2500×3870(mm) | |
wheel base | 4250+1350(mm) | |
Engine | model | ISL9.5-340E51A |
power | 251kW/1900rpm | |
Max torque | 1500N.m/1300rpm | |
Transmission box | 9JS150T-B | |
Total Mass | 23980Kg | |
Max Speed | 90Km/h | |
approach angle | 25° | |
departure angle | 12° | |
Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
