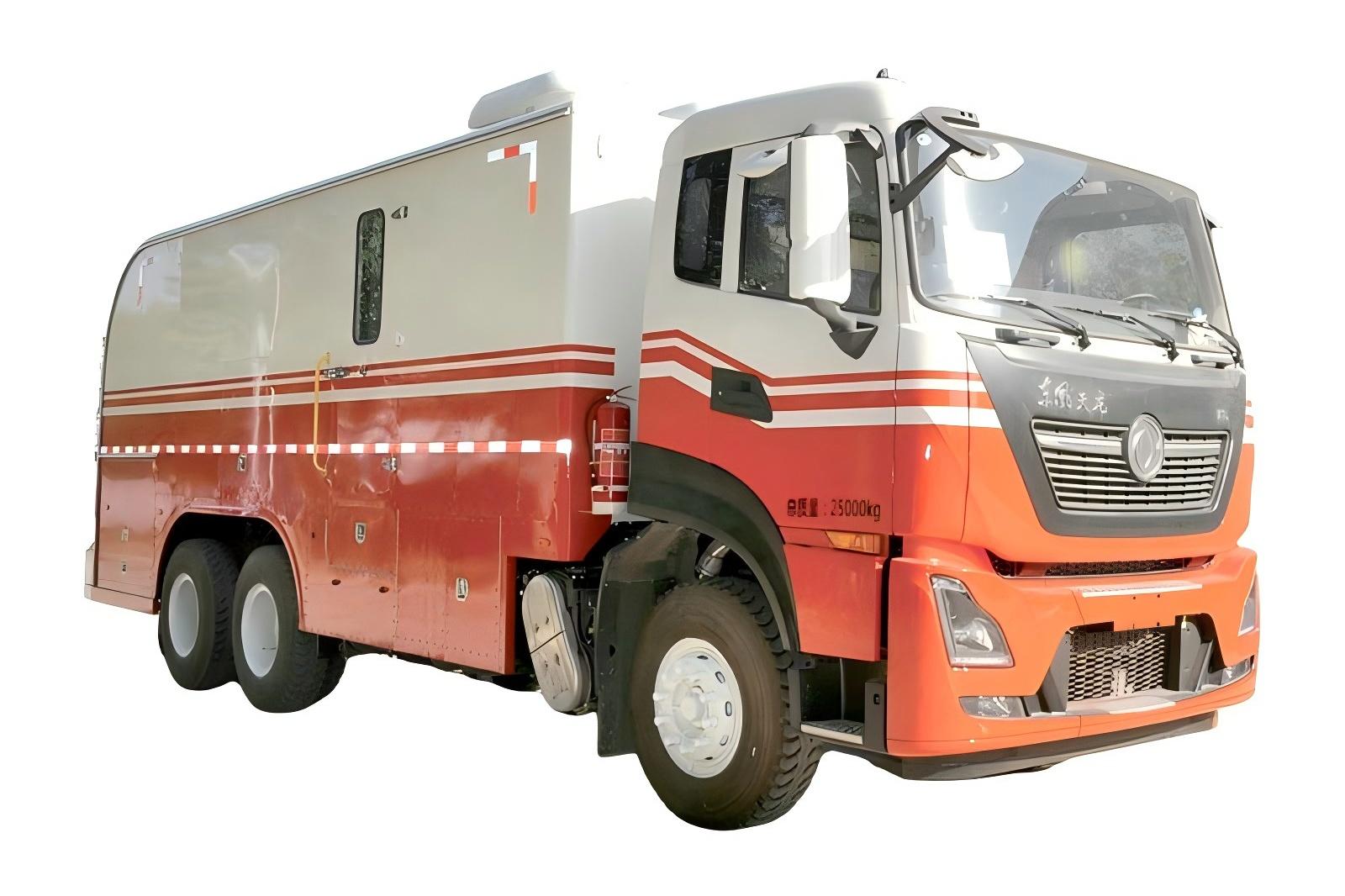

Dongfeng Well Test Vehicle with 7500m Wireline

Dongfeng Well Test Vehicle with 7500m Wireline
Availability:
Quantity:
  • DLHM5252TSJ61

  • HOWO

  • 8705909990

Dongfeng Well Test Vehicle  with 7500m Wireline

Dongfeng chassis well test vehicle Engine power: 169-257kw
Winch transmission mode: full hydraulic, hydraulic chain
Maximum capacity of drawworks:(∅ 3.2 steel wire) 7500 m
Winch speed: 0-10000 m/h

Product ModelDLHM5252TSJ61DLHM5161TSJ61
Chassis modelDFH1250D4DFH1180EX8
Drive form6*44*2
Engine ModelD6. 7NS6B290;DDi75E350-60;D6. 7NS6B230
DD175E300-60
Generator Displacement (ml)6700;7500;75006700
Maximum engine power (KW)213;257;220169;140
Maximum engine torque (N.M)1100;1400;1250888
Fuel TypeDieselDiesel
Wheelbase (mm)4350 13505000
Front suspension/rear suspension (mm)1480/24001430/2545
Approach angle/departure angle20* /12*17° /11°
Minimum ground clearance (mm)495495
Minimum turning diameter (m)2016
Maximum speed (km/h)8989
Overall dimension L×W×H(mm)9580*2550*37608975*2550*3650
Total mass of equipment (kg)2500016000
Tyre model295/80R22.5 18PR;11.00R20 18PR10.00R20 18PR;275/80R22.5 18PR
Steel wire specification (mm)Φ3.2Φ3.2
Maximum logging depth (m)70007000
Logging speed (M/h)0-100000-10000
Lifting capacity (KN)1515


Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
