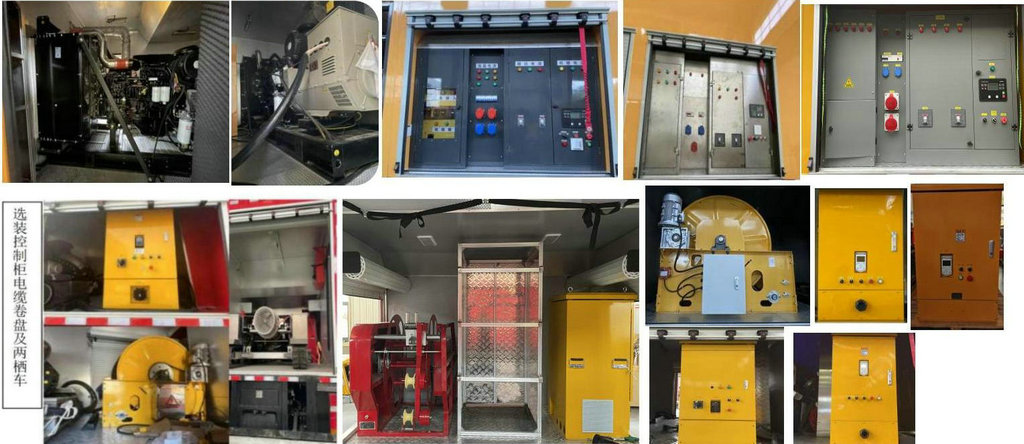

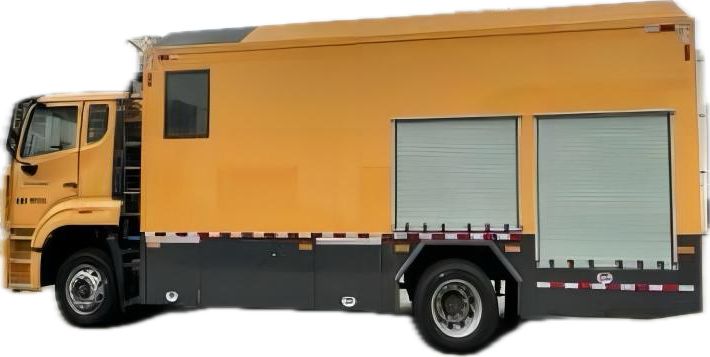

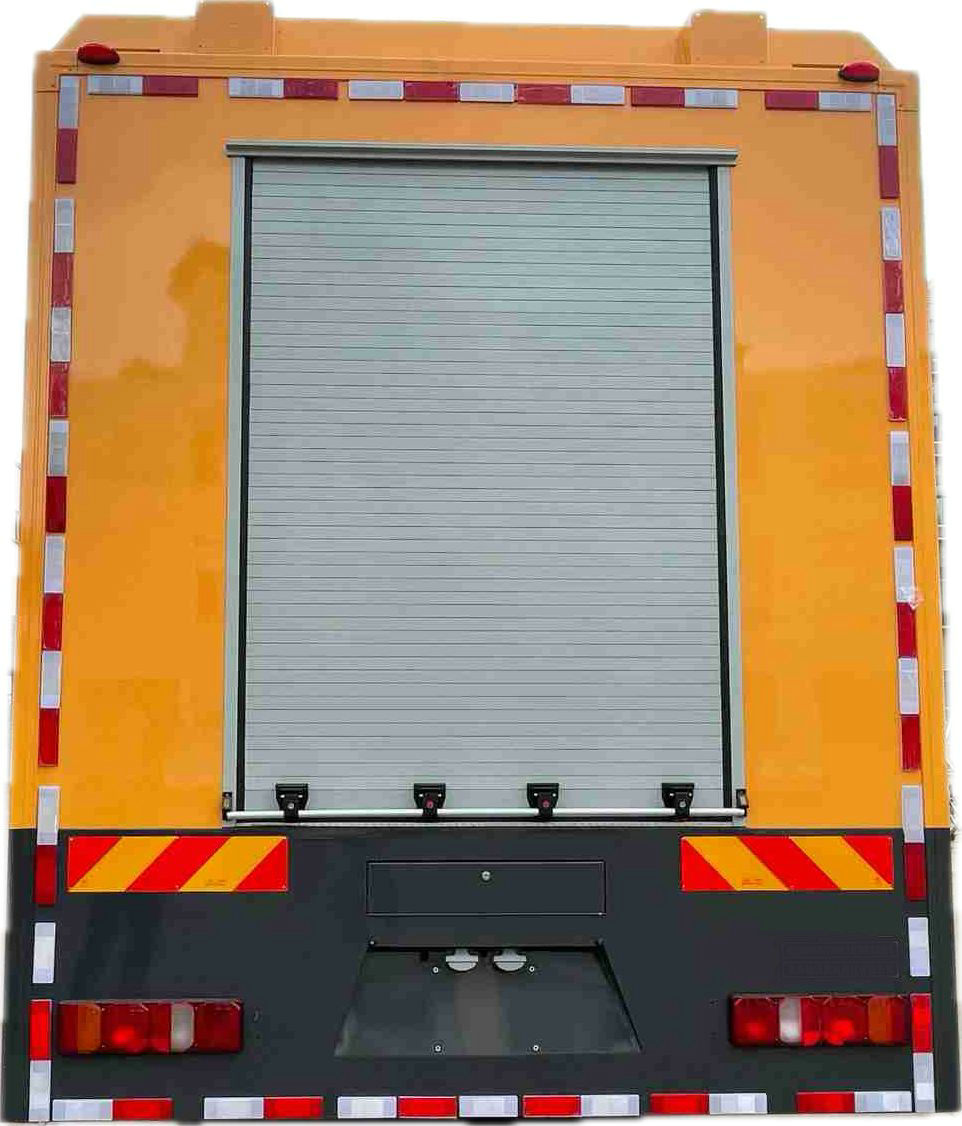

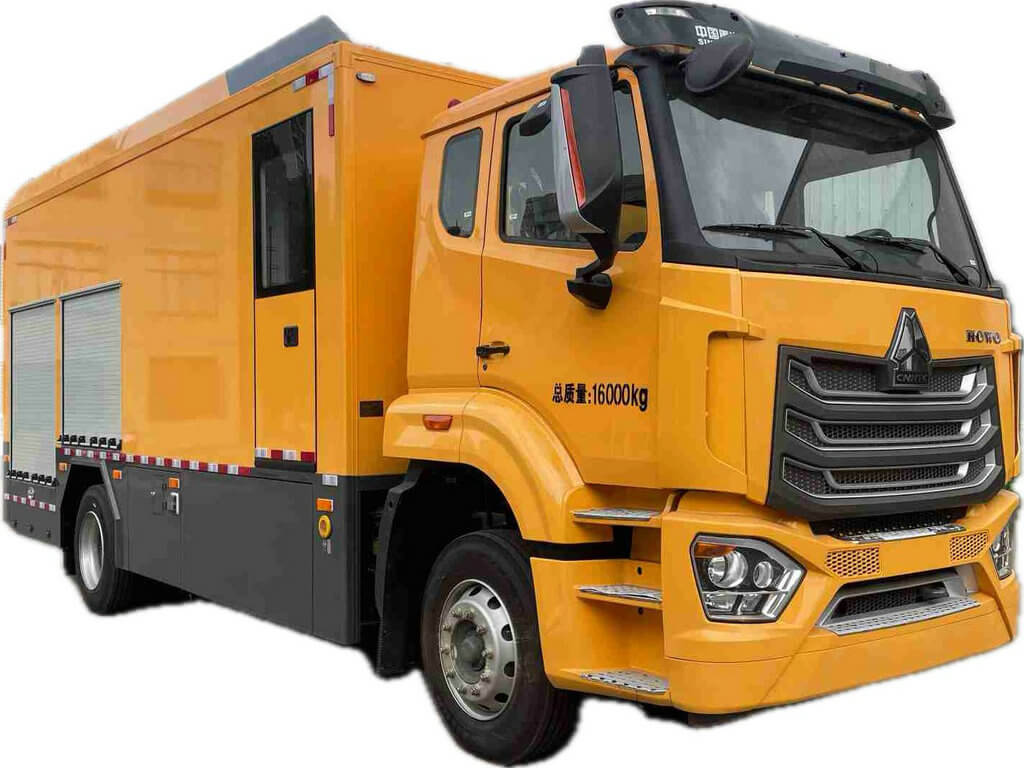

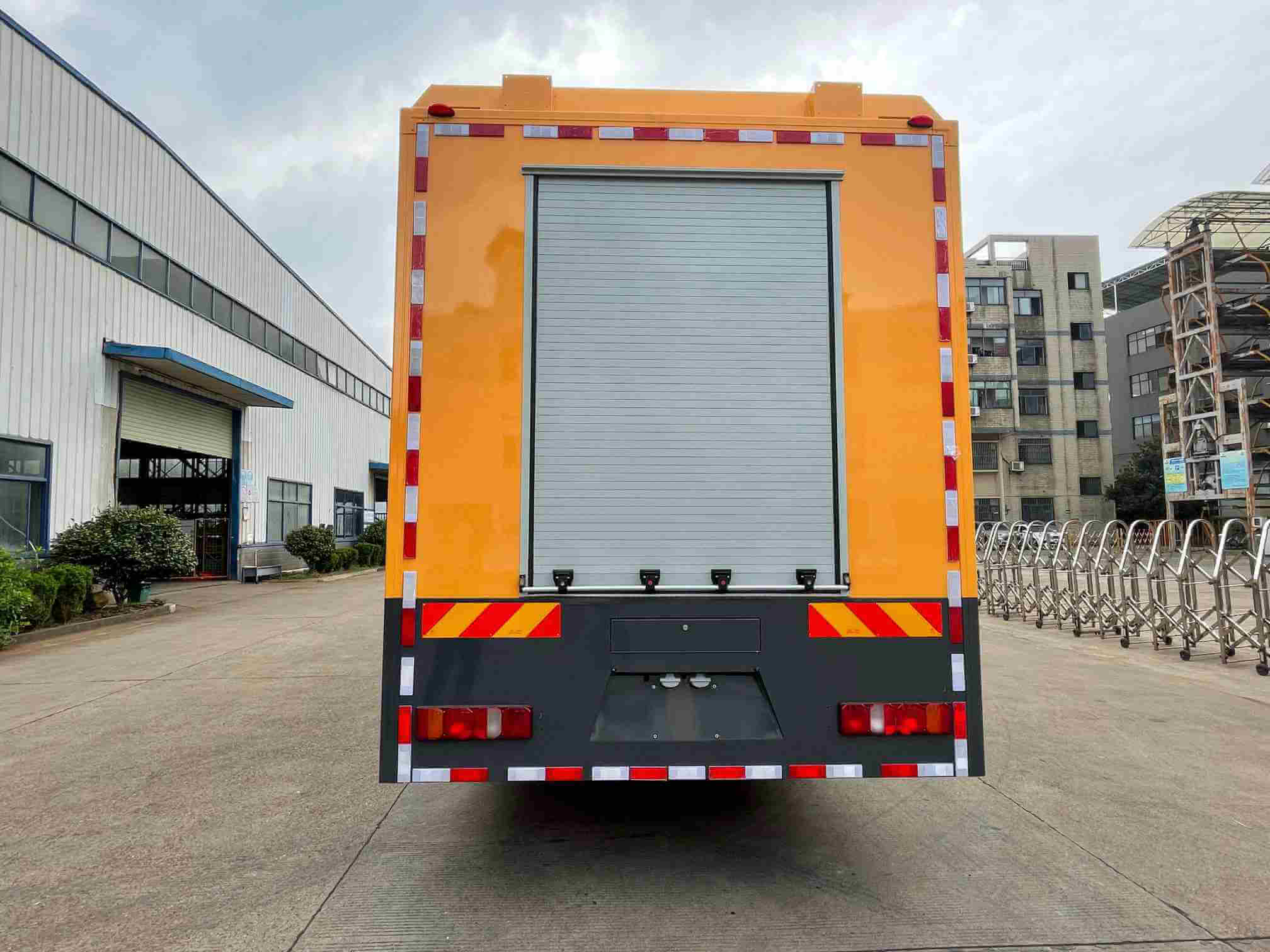

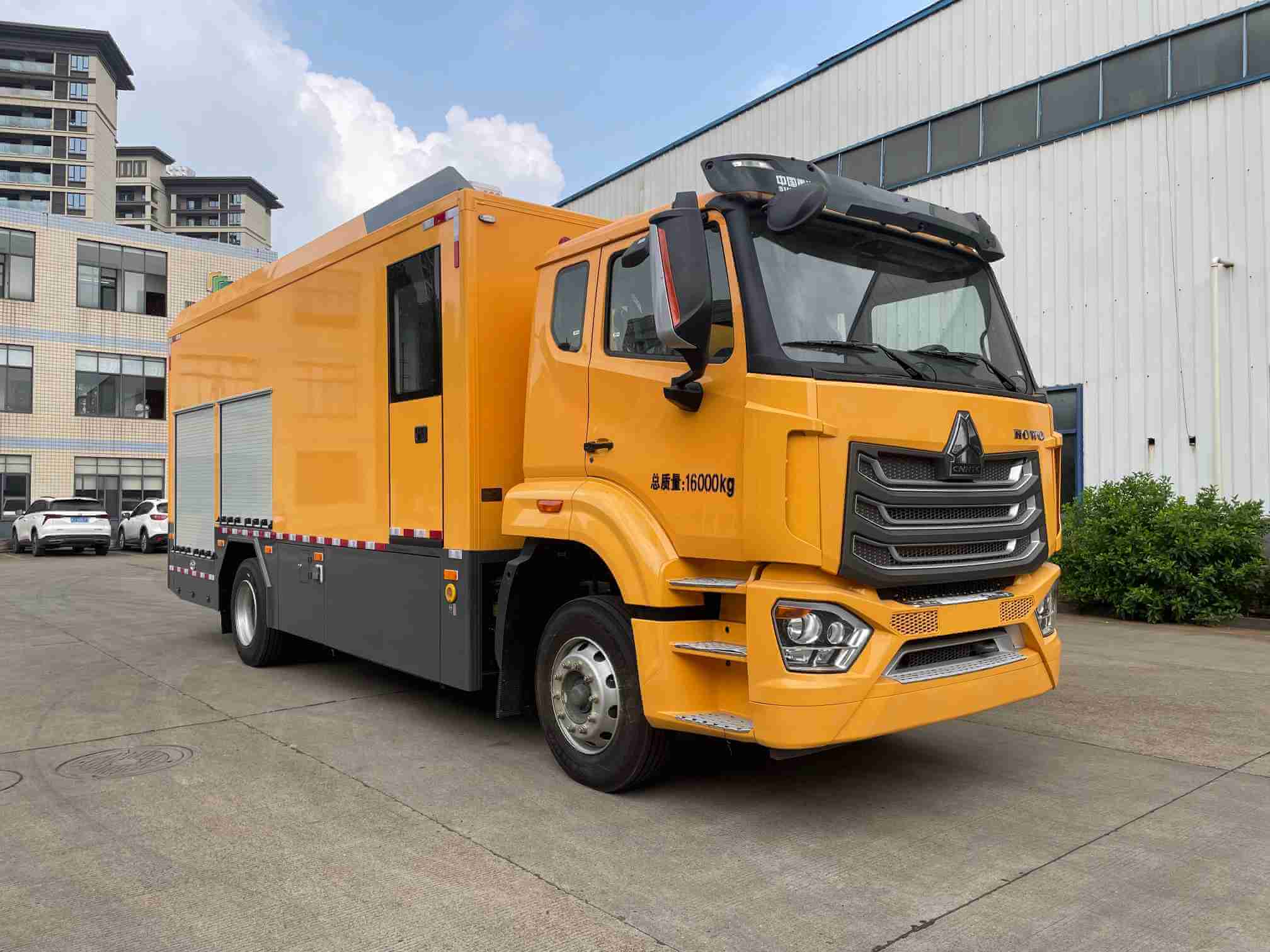

HOWO Drainage Rescue Truck ( Pump Flow 5000m3/h）

Vehicle system

1. Provide the special vehicle modification announcement of the invested model and the announced model shall be consistent with the model of the invested product;

2. Engine power (kW): 160; maximum speed: 100 km/h, fuel: diesel, Euro 5-6 emission  ;

3. Vehicle dimensions: length 9900mm, width 2500mm, height 3850mm, wheelbase 5600mm, total mass 16000kg; 3 passengers; color: engineering yellow;

4. The body is divided into equipment cabin and central control room, the length of the body is 7.5m. The car is fully enclosed structure with sound insulation function, fireproof, flame retardant, rain proof, dust, rust proof, noise reduction, shock isolation, with long-term seismic structure, high outer strength, smooth and beautiful appearance, reasonable vehicle weight, operating noise national standard 75dB; equipped with automatic hydraulic leg, vehicle four corner bearing design, one key switch, leg can bear 20 tons, can be manually leveled;

5. The central control room is an independent space separated from the equipment compartment, 1m long, 2m height, 2 ㎡, with separate door, open glass window, and the central control room is equipped with a general control panel to operate and control the generator set, lighting elevator and other equipment. Equipped with indoor lighting, soft double-deck seats, workbench, water dispenser, etc.

6. Reasonable structural layout of the vehicle (technical drawings and color physical pictures provided in the bidding documents), the pump and accessories have fixed positions, and the height of the pump is 500mm; convenient access and exit for personnel. The chassis height can meet the requirements of 0.5m wading depth;

7. The vehicle installation centralized control system can centrally control the operation and data of the generator set, water pump, lifting lighting, hydraulic legs and network camera.

8. The vehicle centralized control system concentrates the data, status and start-stop operations of multiple unit modules such as generator set, water pump, lifting lamp, hydraulic leg and network camera on the 7-inch 24-bit touch color screen control screen. Users only need to click the corresponding button on the centralized control screen or the special tablet computer to realize the control and operation of these devices, which greatly improves the use efficiency and effect of the drainage rescue vehicle. At the same time, the above devices can be remotely controlled through wireless connection to realize intelligent control and contactless control and management.

9. The vehicle centralized control system can realize remote control: through the remote distribution of the control and operation instructions of the equipment, to realize the remote operation and control of the corresponding equipment, such as the start and stop of the generator set.

10, the vehicle centralized control system can provide active maintenance: equipment active maintenance reminder and equipment alarm notification and other messages, all messages support mobile phone SMS reminder.

Drainage Pump system

1. When 5 large flow portable submersible pumps are used, the vehicle flow is 5000m³ / h and the head is 10 meters. The drainage control system has the stepless speed regulation function, and the displacement of the submersible pump can be adjusted when working.

2. When the flow rate of a single pump is 10.6m, the displacement is 1000m³ / h, the reference point electric pump efficiency is 60%; at 17m, the displacement is 580m³ / h, the reference point electric pump efficiency is 58%;

3, the submersible pump adopts the permanent magnet synchronous motor, the motor insulation level: F, the motor protection level: IP68, the electric pump lead cable length of 20 meters.

4. Single pump weight is 72 KG, rated power is 45KW; pump speed is 2500 r/min.

5. Pump body diameter 320mm, length 850mm; submersible pump with stainless steel filter for easy installation, disassembly and cleaning;

6, submersible electric pump parameters: ① submersible electric pump main overcurrent core components (impeller) should use 2 Cr 13 or stainless steel wear-resistant material, the surface of the wear-resistant hard coating treatment, Vickers hardness (HV): 1000 degrees.② The submersible pump is made of 2 Cr 13 steel integrated forming impeller, the pump shaft is 40 Cr steel, the pump bearing is NSK, SKF, FAG or original bearing of the same quality; ③ submersible pump is 20m; [test report or supporting documents and stamped with the official seal of the bidder].

7. The length of single pump cable is 40 m (single pump with 20 m cable, extension cable 20 m / root), and IP67 or above waterproof joint between cables (scanned copy of product certification certificate of China Quality Certification Center with bidder seal); single pump with outlet diameter 300MM. The material is synthetic fiber long axis weaving, coated with wear-resistant waterproof resin, wear-resistant and anti-puncture resistant, single pump hose length of 40 meters (20 meters one, with stainless steel fast water pipe joint).

8, single pump with polyurethane high strength floating ring, integrated forming, to meet the buoyancy requirements of the pump work, with bayonet lifting ring connection soft fixed sling. Install the hanging rings on the pump to provide manual handling solutions, which are portable and fast.

generating system

1.  An independent diesel generator set with a main power of 270 kW, 220V / 380v, three-phase four-wire system; the engine and generator performance meet the technical specifications, meet the requirements of vehicle electrical design and installation, meet the power demand of pump and vehicle equipment, and the national 3 emission standard;

2, with ATS automation unit control panel: by LCD LCD display control (also available LED display controller). All Chinese operation and display menu; the unit has automatic, manual, shutdown (emergency stop) and other control functions (provide the scanned copy or copy with the official seal of the bidder in the bidding document)

3, the vehicle with dual power switching system, diesel generator set and mains can be smooth switch. Without the use of generator sets, the drain unit can use mains, with mains input interfaces. At the same time, the unit reserved 220V, 380V output interface for convenient construction power; the tank volume can meet the full power operation for more than 8 hours;

4. There are access doors and repair channels on both sides of the generator set room. In case of serious failure of the generator set, the whole unit can be moved out of the car or replaced.(Scheme and pictures are provided in the bidding documents).

Control system

1. Protection grade of control cabinet IP44 or above (scanned copy of the bidder), color engineering yellow, handle installed on both sides; protective base, with seismic function, movable installation position can be fixed on the carrier;

2. The pump control system is integrated in the control cabinet, the weight of the control cabinet is below 60kg, the control cabinet visual window interface, convenient to remove from the car, the outlet and the control cabinet are backward and out, keep enough safe distance and avoid mixing;

3, the drainage unit control system should adopt the technical specifications or performance equivalent to or similar to the domestic first-class brand inverter whole process control, with a variety of electrical safety specification certification, in line with the quality certification system ISO9001 and ISO4001 standards;

Hydraulic pump mechanism

1. Mechanism position: side and tail of the vehicle body; mechanism power: unit power and hydraulic cylinder;

2. The minimum height from the ground is 550mm; the mechanism pump placement platform can extend from the rear to the ground and remove the pump.

3. The maximum load of the platform is 400kg or above; the completion time of the platform: 1min;

4. Mechanism control mode: wired remote control or operation panel;

Intelligent drainage equipment operation system

1. Provide and transmit the vehicle path and real-time positioning.

2. Quantitative collection and real-time monitoring of equipment operation data:

Important parameters of the generator set (generator voltage, current, frequency, power, speed, oil pressure, water temperature, battery voltage, fuel level, active power, reactive power, running time, start times);

Important parameters of drainage pump (speed, frequency, current, torque percentage, power, IGBT temperature, interval, kWh measurement, pump flow, real-time flow of the vehicle, the displacement of the vehicle,);

3. The management platform adopts real-time positioning on-board terminal, adopts three-dimensional map for intuitive display, and provides 24-hour uninterrupted vehicle status online service. The terminal can connect real-time WIFI monitoring screen, with the function of photo and video tape;

4. The vehicle management platform adopts three-dimensional map to visually display, and provides 24-hour uninterrupted vehicle status online service. The terminal adopts 64-bit architecture CPU, which can connect monitoring pictures with real-time WIFI, and has the function of taking photos and video tape. The operation platform management system has man-machine interface, three sets of independent serial ports, supporting simultaneous communication with three different protocols, and fast operation.

5. Full life cycle management of equipment: cumulative running time of equipment, total historical displacement, historical record parameters and alarm faults can be exported and intelligently analyzed as an important reference for maintenance.

6, real-time interaction, can download the APP, apply for account login to view the real-time parameters and status of online equipment. For facilitate repair and maintenance;

7. Select product model and implementation path of intelligent drainage equipment.

supplementary system

1, external lighting: can lift the lamp frame, when not in use can be recovered, not exposed outside the box, lifting height 1.1m, searchlight can rotate up and down left and right, horizontal rotation Angle: 360° vertical rotation Angle: 330°, horizontal and vertical rotation speed: 4 r/min, power 2X250W, light flux 40000 LM or above. Can be remote control and wire control two operations, adapted to the night working environment. The vehicle is equipped with two portable MFZ / ABC4 ammonium phosphate dry powder fire extinguishers, placed in the easy to take place on the vehicle. The vehicle is equipped with common maintenance tools and special tools to meet the daily maintenance needs.

Gross Weight

15500,16000(Kg)

Net weight

15305,15370,15805,15870(Kg)

Rated load

(Kg)

Approach Angle/Departure Angle:

15/10,15/11,15/13,17/10,17/11,17/13(°)

Front/rear overhang:

1550/3020,1550/2650,1550/2450(mm)

Axle Load:

5200/10300,5500/10500

Wheelbase:

4500,4700,5100,4200(mm)

Axle Number

2

Maximum speed:

89,102(km/h)

Fuel consumption:

(L/100Km)

Suspension Spring :

-/-,2/-,2/4,3/-,3/4,3/5,3/9+6,4/-,4/5,4/9+6,9/9+6,-/2+-,2/2+-,3/2+-,4/2+-,7/7+3,3/7+3,2/1+-,3/1+-,4/1+-

Number of tires:

6(PCS)

Tire :

9.00R20 16PR,10.00R20 18PR,10R22.5 16PR,275/80R22.5 18PR,295/80R22.5 18PR

Front wheel track:

1956,2022,2058,1996(mm)

Rear wheel track:

1800,1830,1860(mm)

MC07.25-60

WP4.6NQ220E61

WP6H245E61

WP7.300E61

WP6H270E61

MC07.31-60

MC07.27-60

MC05H.25-60

MC07H.33-60

MC07.29-60

WP7H220E62

WP7H245E62

WP7H270E62

WP7H300E62

WP7H320E62

WP4.6NQ220E62

MC07.25-61

MC07.27-61

MC07.29-61

WP4.6NQ240E62

Weichai Power Co., LTD. China Heavy Duty Automobile Group

6870 4580 6220 7470 6220 6870 6870 4910 7360 6870 6800 6800 6800 6800 6800 4580 6870 6870 6870 4580

188/255

162/220

180/244

220/299

199/270

228/310

202/274

180/244

240/326

213/289

162/220

180/244

199/270

221/300

235/319

162/220

190/258

202/274

213/289

177/240
