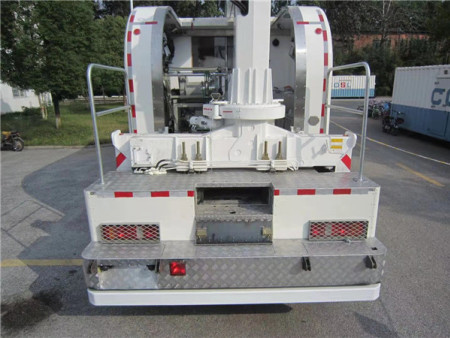

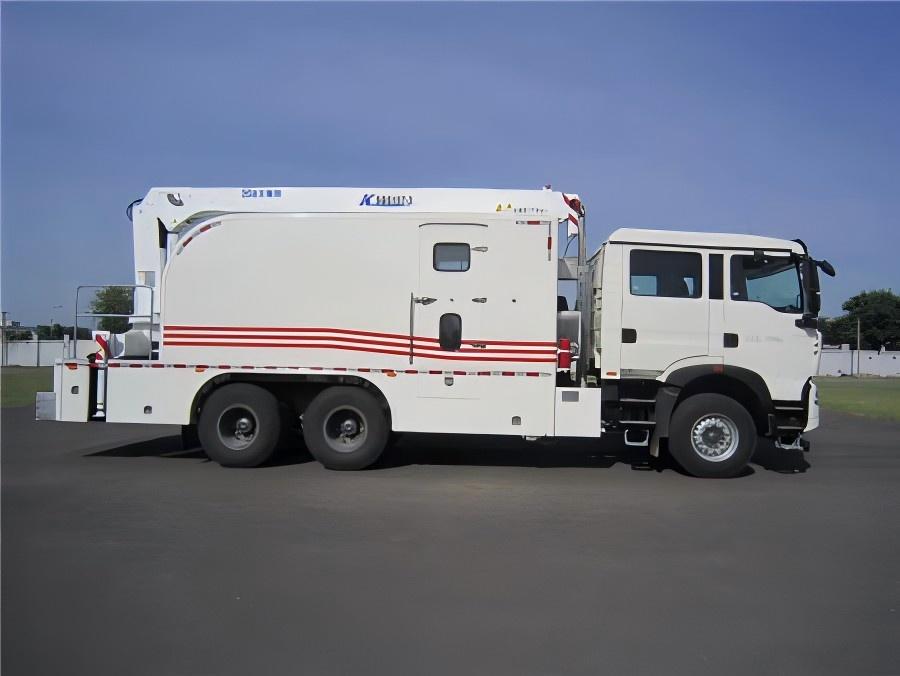

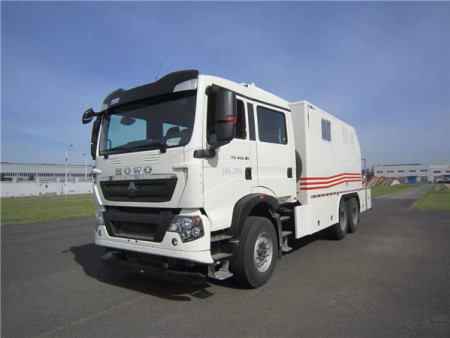

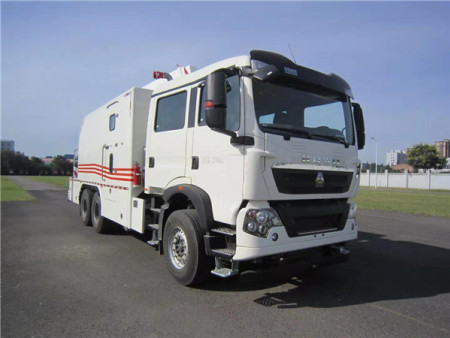

HOWO 6x4 Logging Truck with Crane
The rear-mounted truck-mounted crane is used instead of the derrick. According to the actual working conditions of the test operation, a reasonable transmission route is designed, so that the power of the chassis engine can be transmitted to the winch, hydraulic generator, truck-mounted crane and return pump at the same time
| Quantity: | |
|---|---|
-
D5250TCJ4
-
Dong Run Ze
-
8705909990

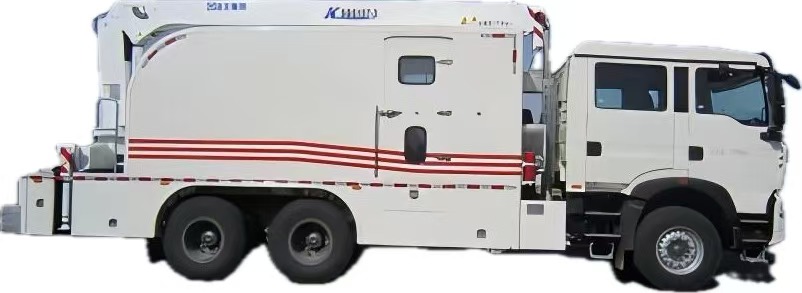

Sinotruck HOWO 6x4 Well Logging Vehicle with Crane
The rear-mounted truck-mounted crane is used instead of the derrick. According to the actual working conditions of the test operation, a reasonable transmission route is designed, so that the power of the chassis engine can be transmitted to the winch, hydraulic generator, truck-mounted crane and return pump at the same time
Special functions and devices: This model is a special operation vehicle for oilfields. It is mainly composed of cable winches, power take-offs, etc. It is mainly used for midway testing and well testing in oilfields. The measuring instruments and surface computer systems that go into the well are used to measure downhole parameters (such as temperature, pressure, flow, etc.) for direct surface reading, and the signals are converted and processed
Specialized Equipment: Equipped with tools and instruments for collecting data from oil and gas wells, including pressure and temperature gauges, geophysical sensors, and data logging systems.
All-Terrain Capability: Designed to navigate rough and remote terrains commonly found in drilling locations, often featuring four-wheel drive and rugged suspension systems.
Payload Capacity: Built to carry heavy loads, including logging equipment, supplies, and personnel.
Safety Features: Includes safety equipment such as fire extinguishers, first aid kits, and emergency signaling devices.
Workstation: Often has a designated area for data analysis and processing, with necessary power supplies and connectivity for logging instruments.
HOWO 6x4 Well Logging Vehicle Parameters | ||
Drawworks | Capacity | Single: ≤5500m(Φ12.7mm) |
Dual: ≤3500m(Φ12.7mm)≤7000m(Φ2.4mm) | ||
Lifting capacity | 50KN(Φ12.7mm /30KN(Φ5.6mm) | |
Speed | 30--8000m/h | |
Transmission type | PTO+Hydraulic system+planetary reducer | |
Chassis Model | ZZ1257N464ME1;ZZ5357TXFV464MF5 | |
Drive | 6X4 OR 6X6 | |
Dimension | 9536×2496×3742(mm) | |
wheel base | 4300+1400,4325+1350,4600+1400, 4625+1350,5200+1400,5225+1350,5800+1400, 5825+1350(mm) | |
Engine | model | MC11.32-50 MC11.40-60 |
power | 238kW/1900rpm | |
Max torque | 1600N.m/(1000~1400)rpm | |
Transmission box | HW19710T | |
Total Mass | 25000Kg | |
Max Speed | 90Km/h | |
approach angle | 20° | |
departure angle | 14° | |
Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
