Customize Truck-mounted Hydraulic Water Well Drilling Rig 300-1500M
| Quantity: | |
|---|---|
-
DR15-DR60
-
Dong Run Ze
-
8705909990

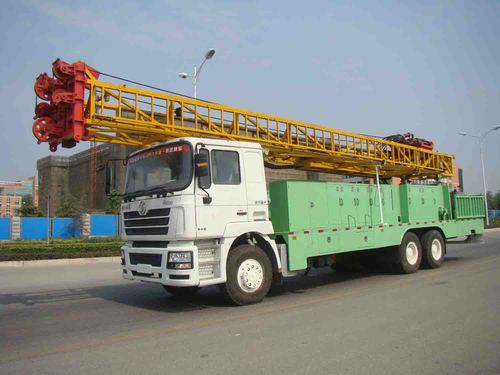

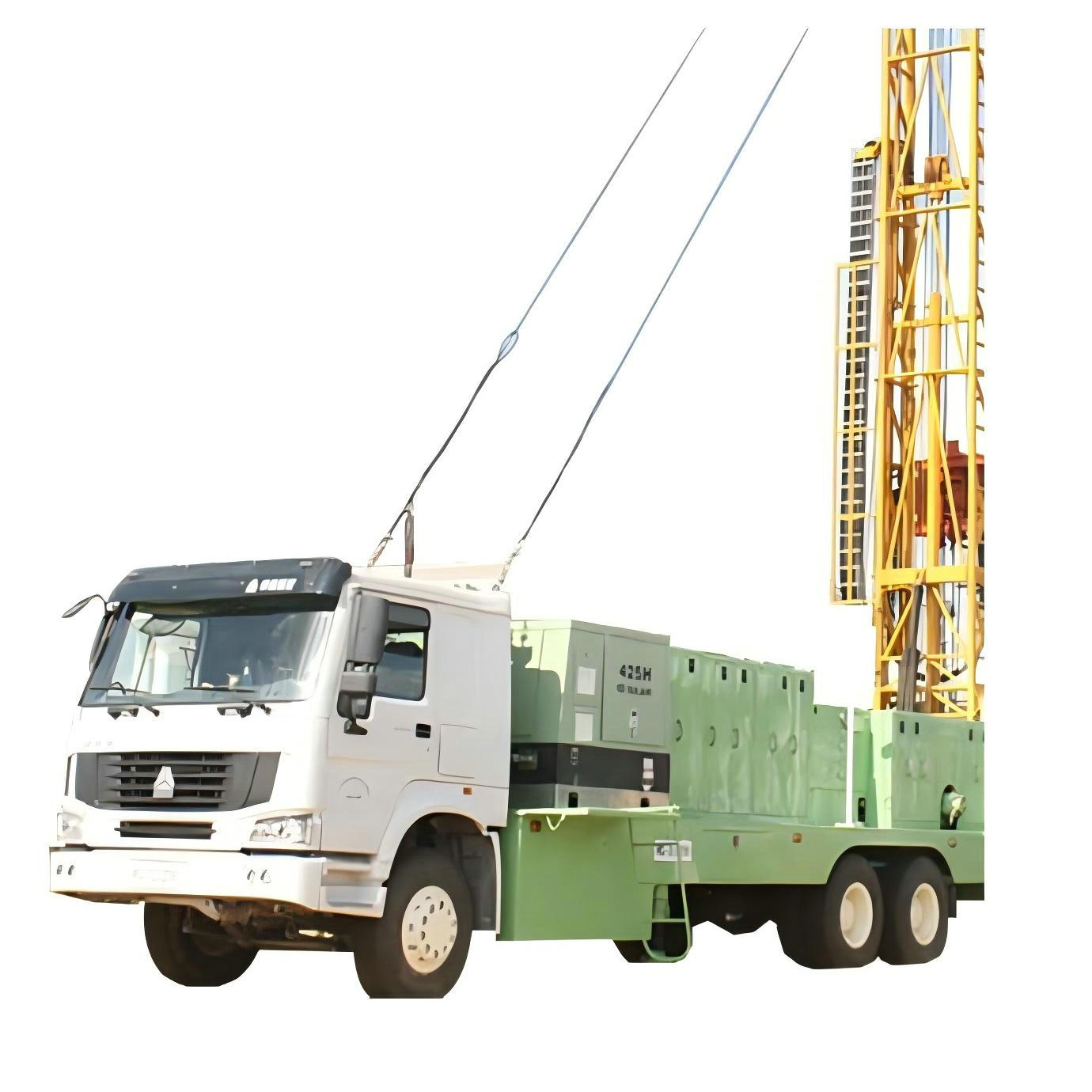

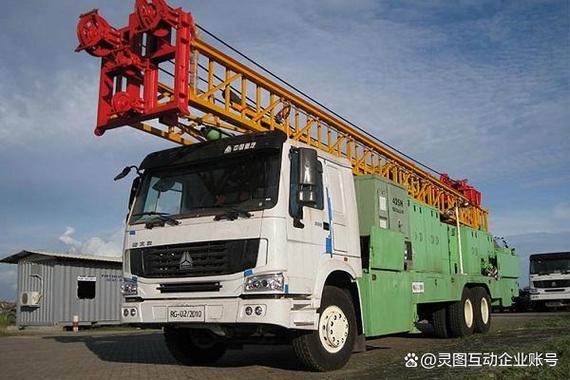

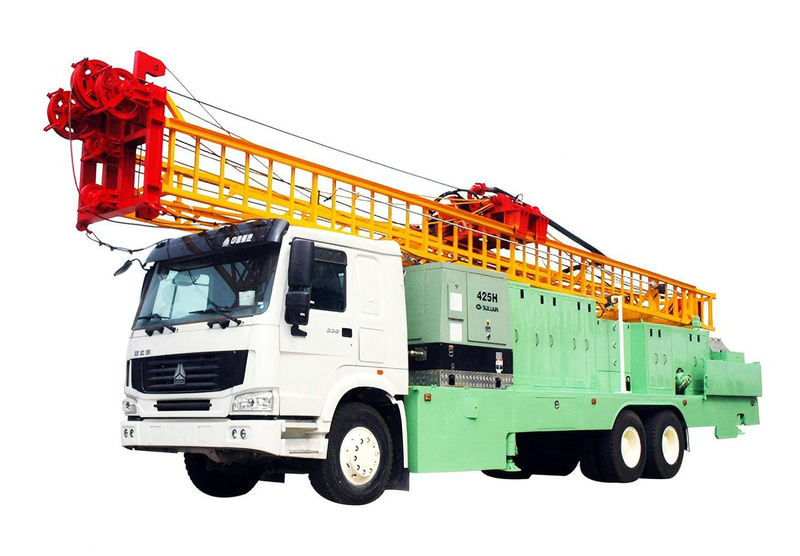

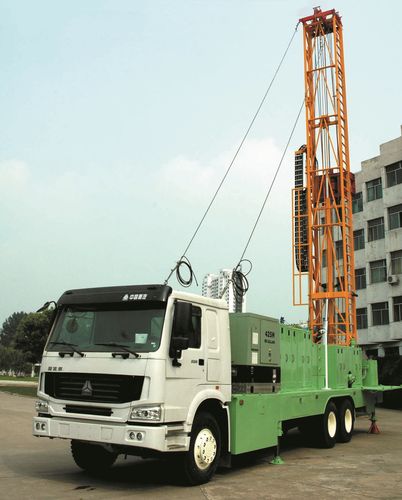

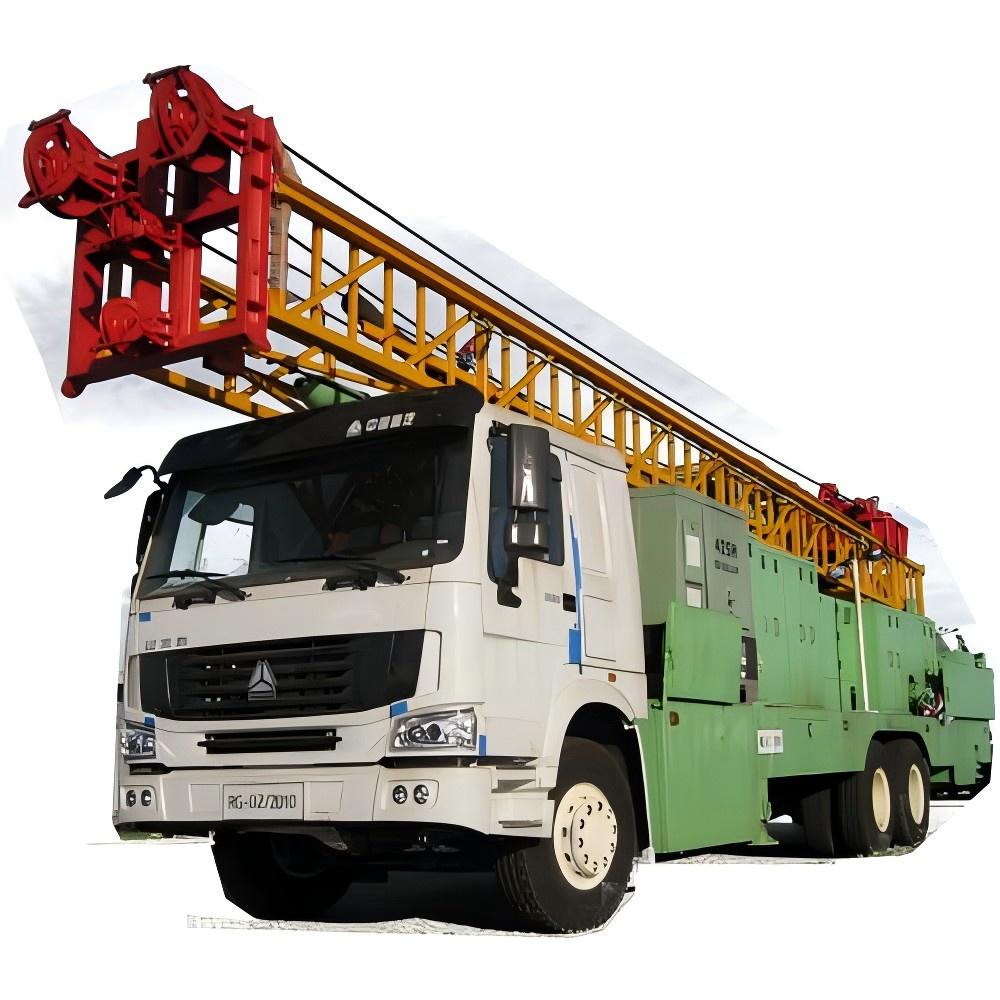

Customize Truck-mounted Hydraulic Water Well Drilling Rig 300-1500M
DR series water well drilling machine is a vehicle-mounted hydraulic water well drilling machine, which adopts the national V vehicle chassis with strong cross-country performance, integrates the lifting, rotating and circulating systems on the auxiliary frame, and has good maneuverability.It is suitable for drilling Wells in plain, desert, swamp and gobi area.
The drilling machine can adopt air drilling hammer drilling, mud drilling and other construction techniques, which have the advantages of fast drilling speed and good drilling effect.
Can be listed on the road according to the national announcement.
Parameters
model | DR15 | DR25 | DR36 | DR49 | DR60 |
max drilling depth (m) | 300 | 500 | 800 | 1000 | 1500 |
max drill hole dia.(mm) | 450 | 650 | |||
DP dia.(mm) | 89,102,114 | ||||
max lifting force (kN) | 150 | 250 | 360 | 490 | 600 |
max pushing force (kN) | 60 | 80 | 120 | 40 | 80 |
max lifting speed (m/s) | 26 | 30 | 36 | 36 | 36 |
power swivel max torque (kN.m) | 7.5 | 10 | 13 | 10 | 15 |
power swivel max speed (r/min) | 170 | 160 | 160 | 170 | 160 |
power head dia.(mm) | 76 | ||||
Desert cross-drilling rig

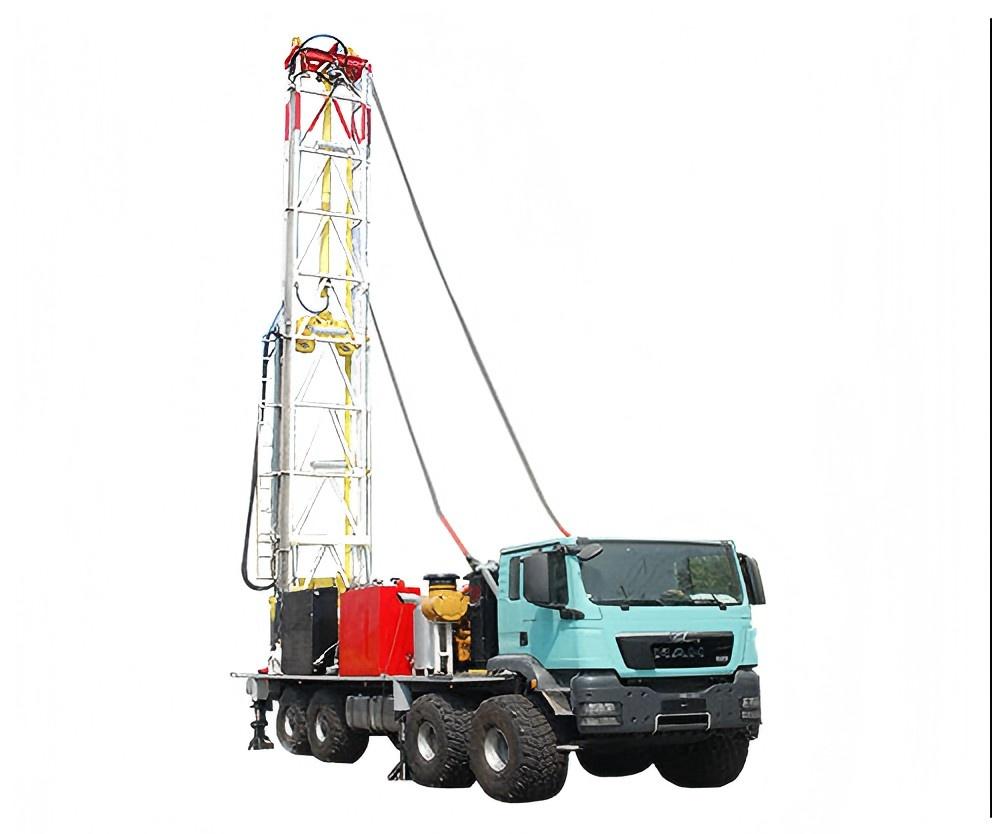

Drilling&Workover Rig
XJ450 (100t) Drilling&Workover Rig has a workover depth up to 5,800m and a service depth up to 7,000m. Equipped with rotary table, swivel and drilling tools, they can perform as a mobile drilling rig up to 2,000m depth. The main rig can be customized with well control, solid control and other systematic setup to become your complete solution to workover and drilling operations.
Features:
1. The mast is available in 31m, 29m or 25m.
2. The chassis has good cross-country performance. The single drum work-over rig is with 8×8 full-driven chassis. The double drum
work-over rig is with 10×8 chassis.
3. Workover unit is with the characteristic of reasonable arrangement, compact structure, good transportation performance and easy
for field installation and maintenance, etc.
4. The drawworks auxiliary brake is water brake. Pneumatic tong brake and pneumatic water cooling disc brake are optional.
5. Substructure and simple working platform are optional.
Description | XJ450 Workover Rig |
Workover Depth | 4,500m (14,760ft, 2-7/8" DP)3,500m (11,480ft, 3-1/2" DP ) |
Servicing Depth | 5,500m (18,045ft, 2-7/8" EUE Tubing) |
Rated Hook Load | 800kN (179,850lbf) |
Max. Hook Load | 1,125kN (252,900lbf) |
Traveling System | 4×5 (Φ26mm/1" Wireline) |
Hook Hoisting Speed | 0.25-1.4m/s (0.82-4.6ft/s) |
Overall Dimensions (L×W×H) | 18.5×3.1×4.2 m 60.7×10.2×13.8ft |
Weight | 55,000kg (121,250lbs) |
Max. Travel Speed | 45km/h (28mph) |
Carrier | Self-propeller 10×8 |
Transmission | Allison 4700 OFS |
Max. Static Hook Load | 1,125kN (252,900lbf) |
Racking Board Capacity | 5,500m (18,045ft, 2-7/8" EUE Tubing) |
Racking Board Height | 20.9m (68.6ft) |
Drawwork Rated Power | 235kW(320hp) |
Main Drum | Φ406×947mm(Φ16"×37.3") |
Max. Faster Line Pull | 180kN (40,500lbf) |
Sanding Drum | Φ965×264mm (Φ38"×10.4") |
Air Assist Brake System | KOBELT Disc 4-7-48″Caliper 5026-CM |
Drill Floor ( L×W×H) | 6.74×5×5m (22.1×16.4×16.4ft) |
Swivel Model andMax. load | SL1101,100kN (247,290 lbf) |
ZP175 Rotary Table | Max. Load 1,350kN (303,500 lbf ); Max. Open Dia. 444.5mm(17.5") |
Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
