HOWO All-drive Off-road 4X4 Emergency Rescue Fire Truck Mounted with Excavator Breaking Device
Hydraulic Shears, Bulldozing Shovel, Crushing Hammer, Grabber
winch / emergency rescue equipment
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
DXGF5190TXFJY20/G4
-
HOWO
-
8705909990

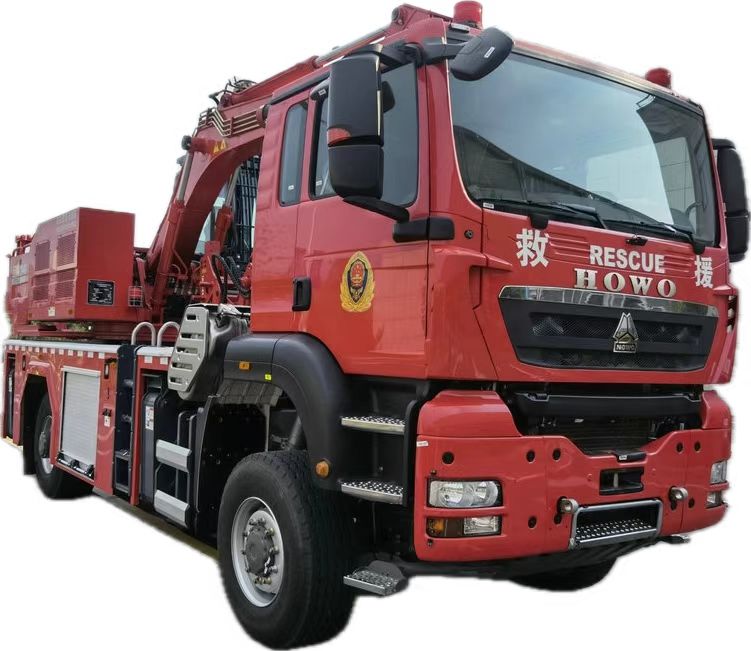

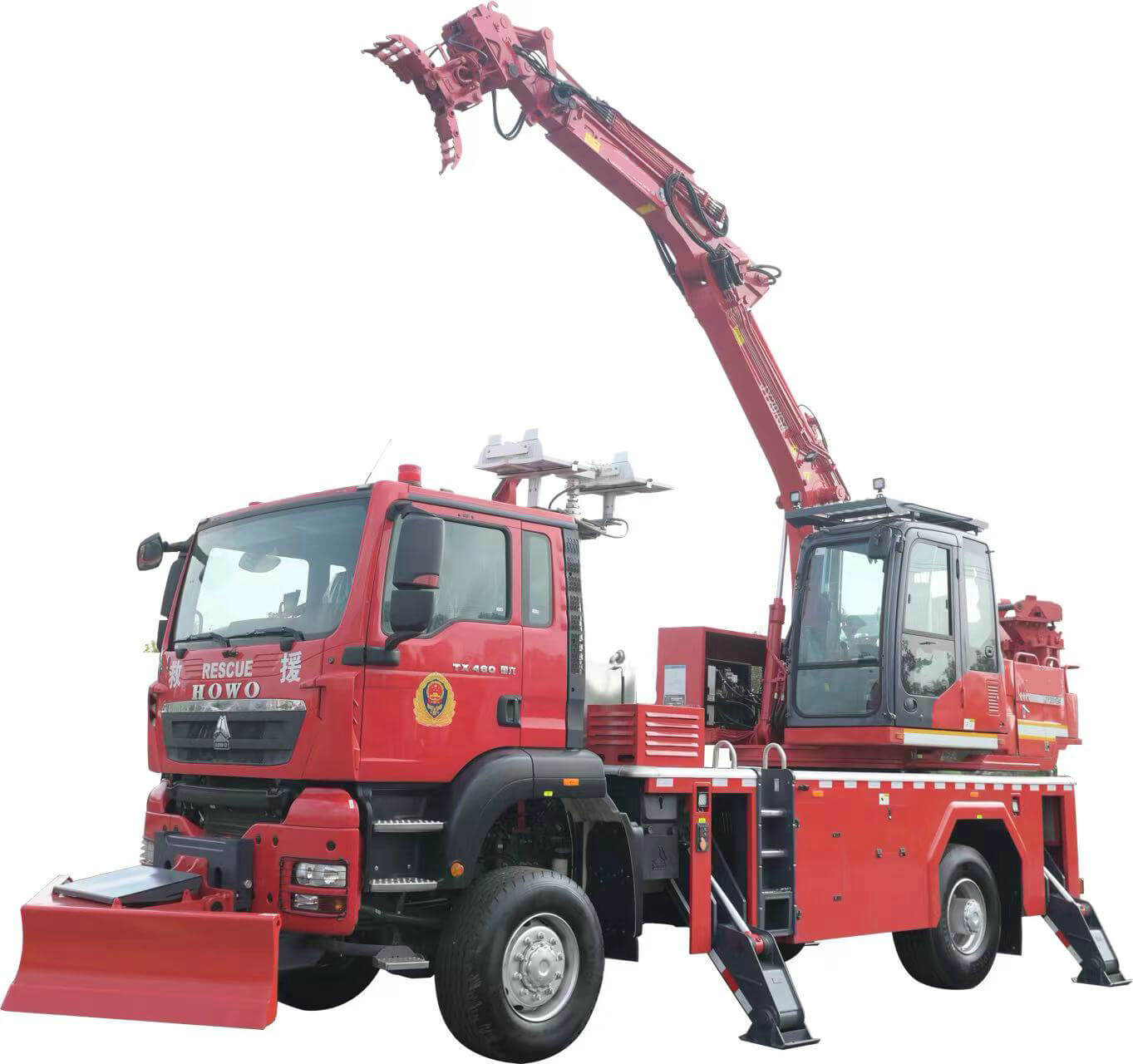

HOWO Emergency Rescue Fire Truck Mounted with Excavator
OFFROAD 4X4 Chassis :SINOTRUCK HOWO ZZ5207TV452GF1X
off-road, lifting, excavation, crushing, grabbing, shearing, cutting, obstacle breaking, towing, etc., and can quickly switch working tools on the vehicle. In addition, it is equipped with special needs modules such as water mist fire extinguishers.
Rescue vehicle suitable for geological disasters, urban, roadside rescue and other emergencies
All-drive off-road chassis Main technical parameters
Overall dimensions: | 8620×2550×3960(mm) | Fuel Type: | Diesel oil |
Gross Weight | 19000(Kg) | ||
Net weight | 18850(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 30/14(°) | Front/rear overhang: | 1492/1893(mm) |
Axle Load: | 8050/10950 | Wheelbase: | 3600,3900,4200,4500,4800,5100(mm) |
Axle Number | 2 | Maximum speed: | 95(km/h) |
Tire Number | 4(PCS) | Tire Specifications: | 14.00R20,385/65R22.5/445/65R22.5,16.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3,4/3 |
Front wheel track: | 2096,2092(mm) | Rear wheel track: | 2125,2006(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
MC11.40-61 | Sinotruck | 10518 | 297 |
Project | U | JY20/G4 |
Chassis | - | Sinotruk 4X4 |
Engine power | kW | 341 |
Bucket Volume | m³ | 0.3 |
Maximum grasping weight | t | 1 |
Maximum shear force | kN | 500 |
Blow frequency of crushed drill rod | bpm | 500-950 |
Flat ground/barrier breaking width | m | 2.5 |
Maximum traction force of winch | t | 7.5 |
Power of lifting lighting lamp | kW | 4×1000 |
Fire special operation vehicle, integral side protection structure, rear protection device
The main special devices are excavator, winch, lighting system, breaking device.
Optional vehicle logo.
Wading depth ≥ 600 mm;
Fuel tank ≥ 300L, equipped with fuel filter, fuel tank cover with lock.
Power take-off: Chassis original power take-off;
Outrigger
1. The vehicle is equipped with outriggers to carry the weight of the whole vehicle when the vehicle is operating;
2. The lateral span of the outrigger is ≥ 3175mm.
3. It has one-click expansion and retraction function;
4. Operating console
1. The turntable is equipped with a rotary structure, which can make the turntable rotate 360 ° continuously to meet the needs of rapid rescue in multiple scenarios. At the same time, a boarding control room is set on the left side;
2. The control of the vehicle control room has the functions of controlling the excavation arm, turntable rotation, and machine tool switching. The chassis cab has the functions of controlling driving and bulldozing shovel. The disembarkation operation box has the functions of controlling winch, outriggers, lifting lighting, etc.
5. Working accessories
1. The head of the boom is equipped with a quick-change device, which can quickly replace the breaking and dismantling attachments;
2. Hydraulic shears: equipped with jaw mouth, can be used to crush reinforced concrete structures, maximum cutting force: ≥ 450 kN;
3. Bulldozer and barrier-breaking shovel
When the vehicle is running, the bulldozer shovel can be retracted and an anti-fall protection device can be installed;
The height of the bulldozer and obstacle breaking shovel is adjustable;
Flat ground barrier breaking width: ≥ 2400mm.
4. ▲ Lifting capacity: maximum lifting capacity: ≥ 3000kg, lifting capacity of the boom at the maximum operating range: ≥ 800kg;
5. Breaker hammer
The crushing hammer adopts hydraulic impact crushing;
▲ Drill rod diameter: ≥ 45 mm;
Strike frequency: not less than 500-800bpm;
6. ▲ Stone grabber: maximum grabbing weight ≥ 1000kg;
7. ▲ Bucket: Bucket volume: ≥ 0. 3 m ³, maximum excavation height ≥ 7 m, maximum excavation depth: ≥ 3 m;
6. Lifting lighting system
1. Generator
Rated power: ≥ 10 kW;
Start mode: electric start;
Continuous operation time: ≥ 8 h;
2. Lifting lighting
Control mode: electronically controlled air pressure type;
Equipped with no less than 4 lamp panels, the lighting power is ≥ 4 × 1000 W;
The maximum height of the lamp head above the ground is ≥ 6. 0 meters.

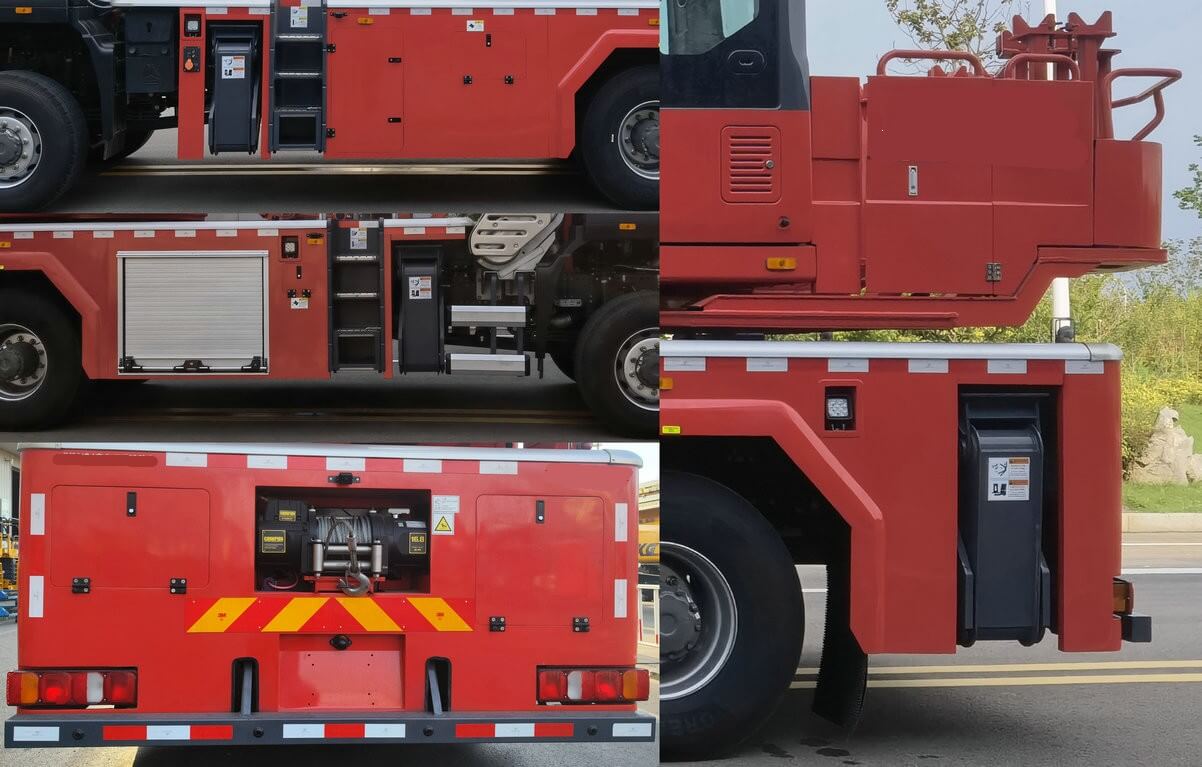

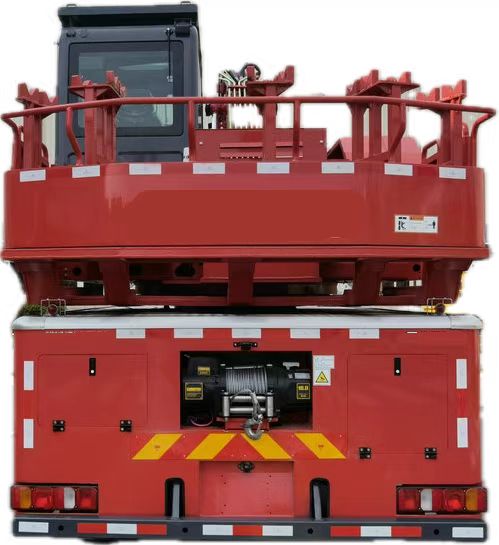

Winch
1. Drive form: electric;
2. Rated traction force: ≥ 75 kN;
3. Effective working length of steel wire rope: ≥ 35 m.
Electrical system
The on-board control room is equipped with a color LCD screen, which can display the status information of the chassis engine and the working status information of the digging arm, switch the working mode, control the movement of the outrigger, and query the fault through the display screen.
Red circular warning lights are installed above the cab of the vehicle;
The vehicle is equipped with digging arm lighting and the front side lighting of the control room;
Equipped with an automatic detachment charging device, it can automatically pop up when the engine is started;
Other
1. The whole body of the vehicle and the cab of the vehicle are fire red, and the main part of the chassis frame is gray.
2. Lubrication system: Lubrication points are set at the slewing platform and boom hinge points to lubricate key hinge points such as vehicle slewing bearings, turntable luffing hinge points, and boom luffing hinge points;
3. Body: There is a getting on and off ladder on each side of the car body, and an anti-skid aluminum alloy plate is laid on the upper platform of the car body;
Vehicle-mounted equipment
1 piece of flat sling 1T × 2M (two-end buckle), 1 piece of flat sling 2T × 2M (two-end buckle), 1 piece of straight-shaped screwdriver 150 × 6, 1 piece of cross-shaped screwdriver 150 × 6, 1 piece of adjustable wrench 6 inches, 1 piece of adjustable wrench 12 inches, 1 piece of allen wrench 3-17, 1 piece of lever grease gun, 4 pieces of wheel wedge.
Optional Equipment:
A :Wood grabber: Maximum grabbing weight 1000kg;
Lifting capacity: Maximum lifting capacity: 3500kg,
The lifting capacity of the boom at the maximum operating range
Force: 800 kg;
Hydraulic shears: Maximum cutting force: 500kN;
Bucket volume: 0.3 m ³, maximum digging height
Degree 7.4 m, maximum excavation depth: 3m
Sinotruk all-wheel drive
B :1.9 Vehicle is equipped with rescue operation accessories such as breaker hammer, stone grabber, hydraulic shears, bucket, winch, obstacle breaking shovel and lifting lighting, and has cross-country, demolition, lifting rescue, excavation, grabbing, shearing, dragging and obstacle clearing functions;
C: 2.9 bulldozing and barrier-breaking device: the width of the bulldozing and barrier-breaking shovel is ≥ 2300mm, and the maximum thrust is ≥ 40kN;
2.10 Excavation device: bucket volume ≥ 0. 25 m ³, maximum excavation height ≥ 7 m, maximum excavation depth ≥ 2. 5 m, operating radius: ≥ 6 m;
2.11 Crushing device: hydraulic breaker, drill rod diameter ≥ 40 mm;
2.12 Grasping device: fork-type stone grasper, maximum grasping weight ≥ 0. 8 t; Open gear size ≥ 800 mm;
★ 2.13 Hydraulic shears: maximum shearing ≥ 200kN, can shear round steel with a diameter of 10mm;
▲ 2.14 Lifting weight: maximum lifting weight ≥ 3 t;
▲ 2.15 Traction device: electric drive winch, rated tension ≥ 70 kN, wire rope length ≥ 35 m;
▲ 2.16 Lifting lighting system: generator ≥ 10 kW; The pneumatic lifting lighting lamp is ≥ 4 × 1000 W, and the height of the lamp head from the ground is ≥ 6 m;
2.17 has 4 hydraulic support legs to ensure the stability of excavation, crushing, grabbing and shearing operations, and the legs have one-button extension and leveling;
2.18 Electro-hydraulic proportional control is adopted, and the control system has high reliability. The vehicle cab and boarding control room have various control function switches and parameter displays, and there are lighting devices at night;
2.19 The boarding control room controls the functions of digging arm, swing, quick change of machine tools, etc., the chassis cab controls the functions of driving and bulldozer, and the boarding operation box controls the functions of winch, outrigger, lifting lighting, etc., the boarding control box controls the functions of winch, outrigger, lifting lighting, etc.
