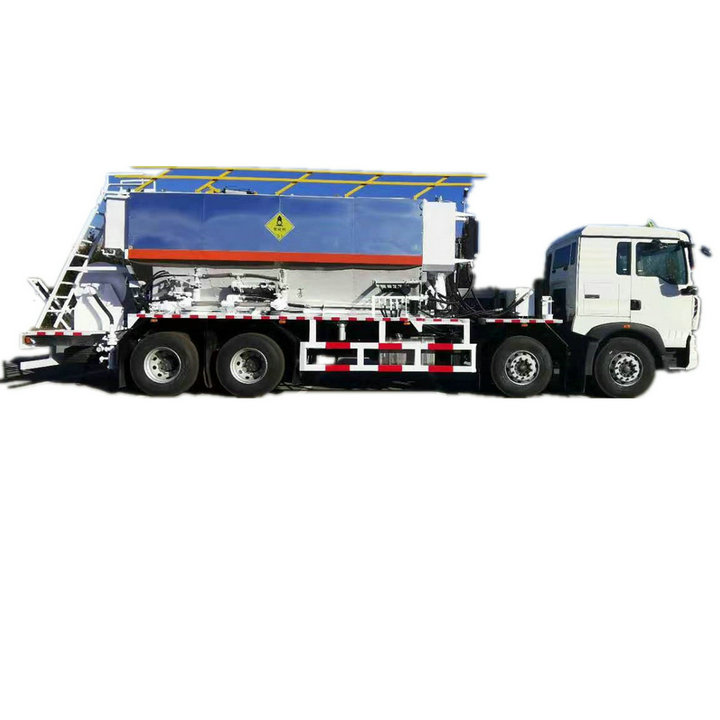

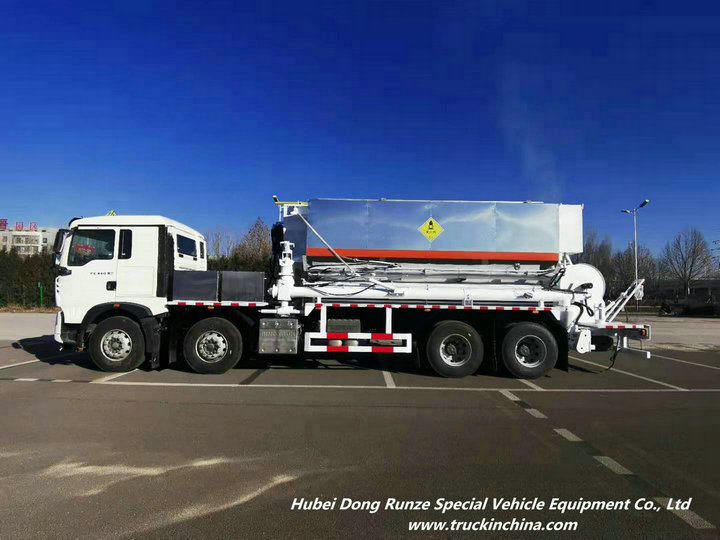

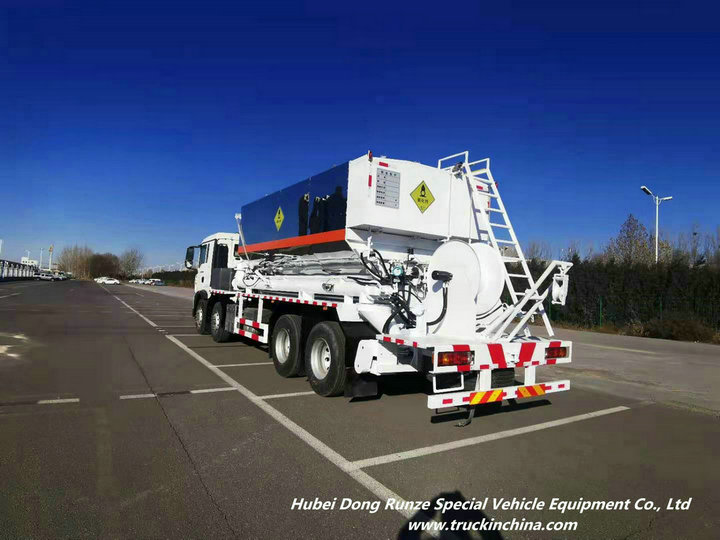

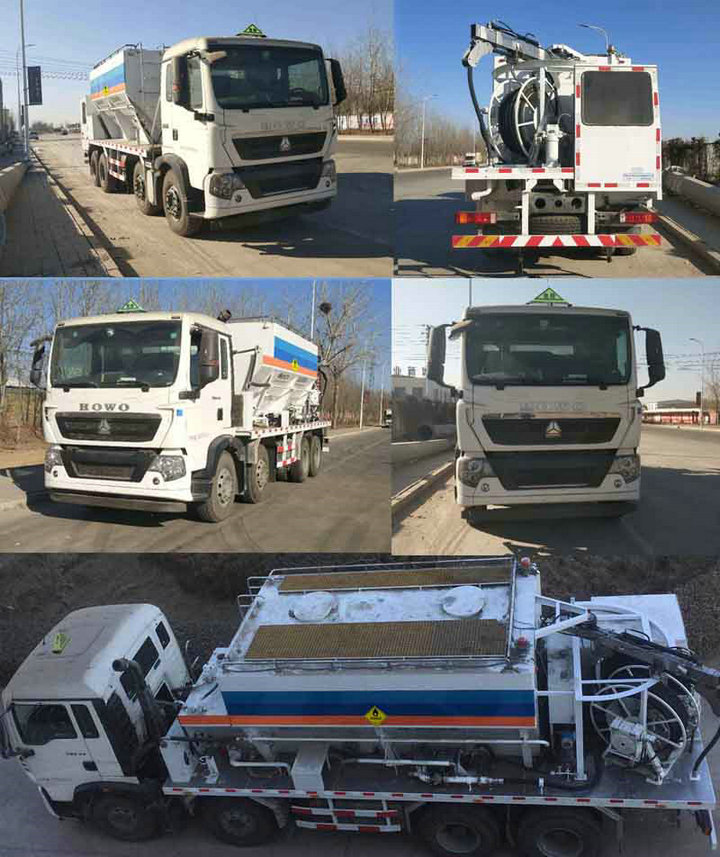

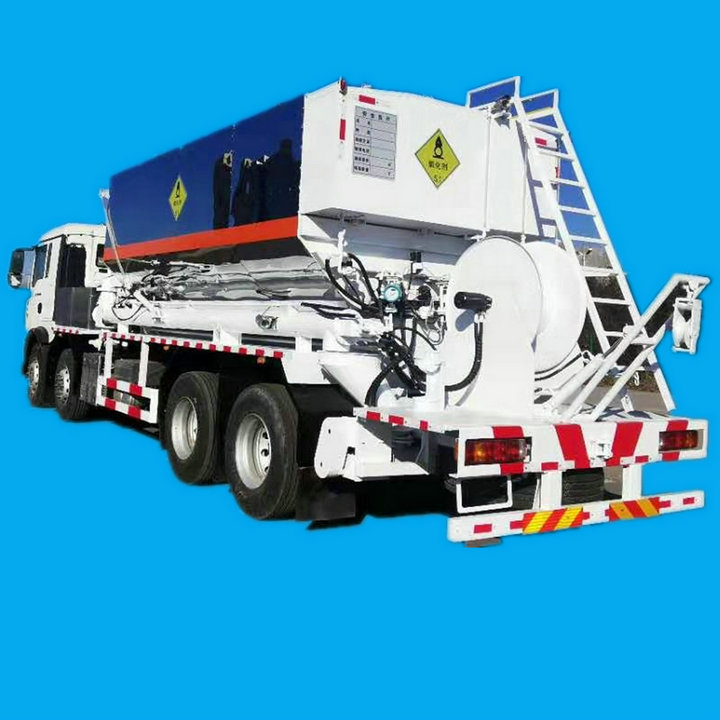

Sinotruck HOWO BCZH-15 HEAVY ANFO TRUCK 8X4
Explosive Mixing and Charging Truck BCZH-15
15t Heavy Anfo Sinotruk Howo 8x4 Truck BCZH-15G On - Site Mixed Heavy Ammonium Explosive Truck
Site mixed explosives vehicle
ANFO / Explosive Delivery Trucks
ANFO mix units
Bulk Explosives Loading Trucks
↵
BCLH-15G Field mixed loading granular ammonium frying truck
On site mixing of granular ammonium frying vehicle ( BCLH Series of products can be mixed with porous granular ANFO in the field. It is mainly used for dry hole loading explosives in open-pit mines. It adopts the diagonal spiral drug delivery system, with high efficiency and full computer operation control. 450kg/min It has the function of stopping material and shutting down, and is safe and reliable.
BCLH-15 The field mixed loading of granular ammonium has explosives.
| Main technical performance parameters | ||||
project Model | BCLH-15 | BCLH-12 | BCLH-8 | BCLH-4 |
| Loading capacity (ton) | 15 | 12 | 8 | 4 |
| Charge efficiency (kg/min) | 450 | 400 | ||
| Measurement error | 2% | 2% | 2% | 2% |
| Outline size: length * width * height (mm) | 10010×2500×3680 | 9105×2480×3470 | 7216×2450×3280 | 6728×2400×2670 |
BCZH-15 on-site mixed HEAVY ANFO TRUCK
BCZH-15 Field mixed HEAVY ANFO TRUCK
BCZH-15 The on-site mixed heavy ammonium explosive truck integrates the transportation, mixing and loading of raw materials, and can mix pure emulsion explosives, various proportion of heavy ammonium explosive and ammonium nitrate explosives in the field. It is suitable for open hole mines with water hole and dry hole charge. This kind of vehicle is a multi-functional vehicle with good silo configuration performance. It can be mixed with emulsion explosives in the field. 15t Or ammonium nitrate explosive. 15t Or heavy ammonium explosive. 15t The advanced computer operation system can accurately load two different explosives in the same hole. It has a safety guarantee system with over temperature, over pressure, and material alarm and shutdown. The system is safe and reliable.
11470 × 2500 × 3900
BCAH-15 Model field mixed heavy ammonium explosive truck
ANFO MIX MODULES AND UNITS
Heavy ANFO Units
Nonexplosive-Until-Pumped Bulk Explosives ANFO units
BCZH-15 is mainly composed of automotive chassis, power system, hydraulic system, emulsion delivery system, fuel oil system, PPAN delivering system, gasser system, and blender, air cleaning system, MONO pump, electric control system and extinguisher.
Automotive chassis
Automotive chassis HOWO
Main technical parameter (vehicle modification)
Technical specification of Sinotruk Howo 8x4 15t Heavy Anfo Truck BCZH-15G On-Site Mixed Heavy Ammonium Explosive Truck
| Chassis | |||||
| Brand&Model | SINOTRUK HOWO ZZ1317N3867A | ||||
Engine | Model | WD615.47 | |||
| Manufacture | Sinotruk | ||||
| Type | Diesel, water-cooled, four strokes, 6 cylinders, in line with water cooling, turbo charged, And inter-cooling & direct injection. | ||||
| Engine capacity | 371hp | ||||
| Emission standard | Euro II | ||||
| Drive wheel formulation | 8x4 | ||||
| Wheelbase | 1800+3800+1350mm | ||||
| Cabin | HW70, no sleeper | ||||
| Transmission | HW19710 transmission + HW70 flange type power take-off | ||||
| Front axle | MAN VPD060QB front axle (disk) | ||||
| Loading: 6000kg | |||||
| Chimney system | Smoke evacuation (with fire lid) | ||||
| Tires | 12.00R20 /steel tires/, 12+1 pcs | ||||
| Fire extinguisher | one pieces for machine, two pieces for equipment | ||||
| Warnings | Hazardous freight warnings according to Mongolian law and regularity must be sticked /4 sides of the machine / | ||||
| Amber light | On the cabin-1 pieces Equipment -1 pieces | ||||
| Other directions |
| ||||
| Brake system | ABS (4S / 4M) | ||||
| Fuel tank | Min-200 L / aluminum alloy fuel tank/ | ||||
| Others | / The vehicle meets the conditions of adapting to the working conditions of the plateau and cold regions./ | ||||
| Steering wheel | Left HT457 rear dual drive axle (drum) | ||||
| Axle’s loading capacity | kg | 6500 / 7000 / 17500 | |||
| Loading | kg | 25000 | |||
| Over all weight | kg | 35000 | |||
| Dimension of the machine and equipment | mm | 11360×2500×3750 | |||
| Mixing charger device of material | Stainless steel | ||||
| Amount of explosives | kg | 15000 | |||
| Emulsion/ANFO ratio | % | 70/30 | |||
| Borehole charging depth | m | 20-30 | |||
| Borehole charging speed | kg/min | Wed Borehole: 200--280kg/min Dry Borehole: 300--450kg/min | |||
| Measurement error, | % | ± 2 | |||
| Borehole charging diameter | mm | 70-320 | |||
Storage tank for produced emulsion /equipment/ | M3/kg/ | Min-8,4 /10500/ | |||
Porous ammonia container /equipment/ | M3/kg | Min-3,4 /4500/ | |||
Water tank volume, /equipment/ | м3 | Min-0.4 | |||
Sensor tank volume /equipment / | м3 | Min-0.5 | |||
Volume of sodium nitrite storage tank /equipment/ Thre are two. | 1 | 0.15m3/150kg | |||
| 2 | 0.15m3/150kg | ||||
Diesel fuel tank volume, /equipment/ | м3 | Min-1.0 | |||
| Charger hose length | м | Min-25 | |||
| Location of tank loading | Pour over the tank loading | ||||
Other detail equipment:
| Item | Name | Quantity |
| 1 | Axial piston pump 83032917 FR-R-090C-LS-20-20-NN-N-3-S1A2-A1N-NNN-NNN-NNN | 2 |
| 2 | Rear pump KR-R-038C-LS-26-20-NN-N-3-C2AG-A6N-PLB-NNN-NNN | 1 |
| 3 | RAVEN pump R1-10-3-0/STD/SS | 1 |
| 4 | Screw pump NM063SY02S18V | 1 |
| 5 | Cycloid motor 101-1028(RAVEN pump) | 1 |
| 6 | Cycloid motor OMS-160(reel) | 1 |
| 7 | Cycloid motor 112-1066(MONO pump) | 1 |
| 8 | Gear motor EM4(Fuel motor) | 1 |
| 9 | Hydraulic components | 1 set |
| 10 | Hydraulic cylinder | 1 |
| 11 | Cycloid motor 104-1068 | 1 |
| 12 | Cycloid motor 104-1065 | 1 |
| 13 | Cycloid motor 104-1063 | 2 |
| 14 | Cleaning pump:CC7010 | 1 |
| 15 | Cleaning motor:EM21 | 1 |
| 16 | Fuel pump:EM25 | 1 |
| 17 | Fuel Y type filter:YWU-160×180-J | 1 |
| 18 | Peristaltic pump:253Y-PPS/ZL-24V | 2 |
| 19 | Metal tube float flowmeter CP50R1DN20M2CI | 1 |
| 20 | Metal tube float flowmeter CP50R1DN15M2CI | 1 |
| 21 | Temperature Transmitter WZPJ-240 PT100 0~100℃ | 1 |
| 22 | 2.5MPa Explosion relief valve | 1 |
| 23 | Two-wire pressure transmission 0-2.5MPa: YSZ-100BH2F7 | 1 |
| 24 | 2”Explosives delivery hose | 30m |
| 25 | Industrial computer | 1 |
| 26 | Programmable Controllers | 1 |
| Front overhang: 1500/2305, 2280mm | ||
| Front track: 2022,2041 / 2022,2041mm | ||
| Rear track: 1830mm | ||
| Approaching departure angle: 16/15. |
Sinotruk Howo 8x4 15t Heavy Anfo Truck BCZH-15G integrates the transportation, mixing and filling of raw materials. It can mix pure emulsified explosives, heavy ammonium explosives and ammonium explosives of various proportions on site. The vehicle is a multi-function vehicle with good silo configuration performance. It can mix 15t of emulsified explosives or 15t of ammonium explosives or 15t of heavy ammonium explosives on site. The advanced computer operating system can accurately load two A variety of explosives with different formulas have a safety guarantee system for over-temperature, over-pressure, material shutdown alarm and shutdown, which is safe and reliable.
| NO. | Code | Title | Qty. |
| 1 | BCZH20.6-1 | Centre plate wood block | 1 |
| 2 | BCZH20.6-2 | Polystyrene plate | 1 |
| 3 | BCZH20.6-3 | Strengthen channel steel | 6 |
| 4 | BCZH20.6-4 | Lower horizontal channel steel | 2 |
| 5 | BCZH20.6.1 | Tank shell unit assembly | 1 |
| 6 | BCZH20.6-5 | Polystyrene filler block | 54 |
| 7 | BCZH20.6-6 | Middle horizontal channel steel | 2 |
| 8 | Polyurethane coating | 1 pail | |
| 9 | BCZH20.6-7 | Coupling flange | 4 |
| 10 | GB5782-86 | Bolt M18×160 | 4 |
| 11 | GB6170-86 | Nut M18 | 4 |
| 12 | GB97.1-85 | Washer 18 | 4 |
| 13 | GB93-87 | Washer 18 | 4 |
| 14 | BCZH20.6.2 | Walk bedplate assembly | 1 |
| 15 | BCZH20.6.3 | Vent cap | 1 |
| 16 | BCZH20.6-8 | Vent cap connection tube | 1 |
| 17 | BCZH20.6.4 | Manhole cover assembly | 1 |
| 18 | CKB/J01-87 | Quick tie-in: DC-ZG2 | 1 |
| 19 | BCZH20.6-9 | 2Tie-in | 1 |
| 20 | Quick tie-in: A-ZG2 | 1 | |
| 21 | BCZH20.6-10 | Upper horizontal channel steel | 2 |
| 22 | BCZH20.6-11 | U-shaped bolt M24 | 4 |
| 23 | GB6170-86 | Nut M24 | 8 |
| 24 | GB97.1-85 | Washer 24 | 8 |
| 25 | GB93-87 | Washer 24 | 8 |
| 26 | BCZH20.6-12 | Cushion block | 4 |
| 27 | DEMCO3X175PST | Butterfly valve 3 | 1 |
| 28 | BCZH20.6.5 | Emulsion tank assembly | 1 |
| 29 | BCZH20.6-13 | Lower backing channel steel | 6 |
| 30 | BCZH20.6-14 | Upper vertical channel steel | 2 |
| 31 | BCZH20.6-15 | Lower vertical channel steel | 2 |
| 32 | BCZH20.6-16 | Girder backing channel steel | 2 |
| 33 | BCZH20.6-17 | Bottom channel steel | 6 |
| 34 | BCZH20.6-18 | Wood stopper | 70 |
| 35 | BCZH20.6-19 | Lower erect channel steel | 14 |
| 36 | BCZH20.6-20 | Upper erect channel steel | 14 |
| 37 | BCZH20.6.6 | Tank inner lining assembly | 1 |
| 38 | BCZH20.6-21 | Pass wire pipe | 1 |
| 39 | Clearance lamp side light | 2 | |
| 40 | BCZH20.6-22 | Clearance lamp side light frame | 2 |
| 41 | BCZH20.6-23 | Middle vertical channel steel | 2 |
| 42 | BCZH20.6-24 | Sealing plateδ4 | 1 |
