Customize SITRAK Heavy ANFO Units Bulk Blend Emulsion Explosive Trucks
BCZH-15 ,Bulk Explosive trucks include trucks that produce ammonium nitrate – fuel oil (ANFO),
Heavy ANFO explosive charge 300-400kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCZH-15 , 5320THZ
-
SITRAK
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1

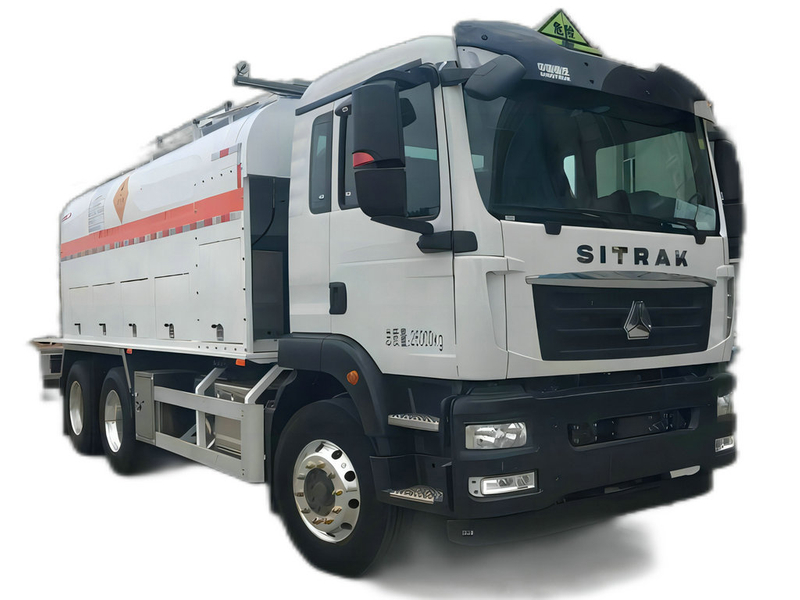

Customize SITRAK Heavy ANFO Units Bulk Blend Emulsion Explosive Trucks
HEAVY ANFO Explosive Mixer Delivery Trucks
BCZH-15 intelligent on-site mixed loading heavy ammonium fried explosive truck integrates transportation, mixing and loading of raw materials. It can mix pure emulsion explosive, 0-100100-0 heavy ammonium fried explosive, 0-100100-0 heavy emulsion explosive and ammonium oil explosive on site. It is suitable for water bearing blast hole and dry hole charging in open pit mine.
This truck is a multi-functional truck with good silo matching performance It can mix 15t of heavy emulsion explosive, 15t of ammonium oil explosive and 15t of heavy ammonium fried explosive on site. With advanced computer operating system, itcan accurately load two different formulations of explosives inthe same blast hole. It has a safety guarantee system of over temperature, over pressure, material breaking alarm and shutdown, which is safe and reliable.

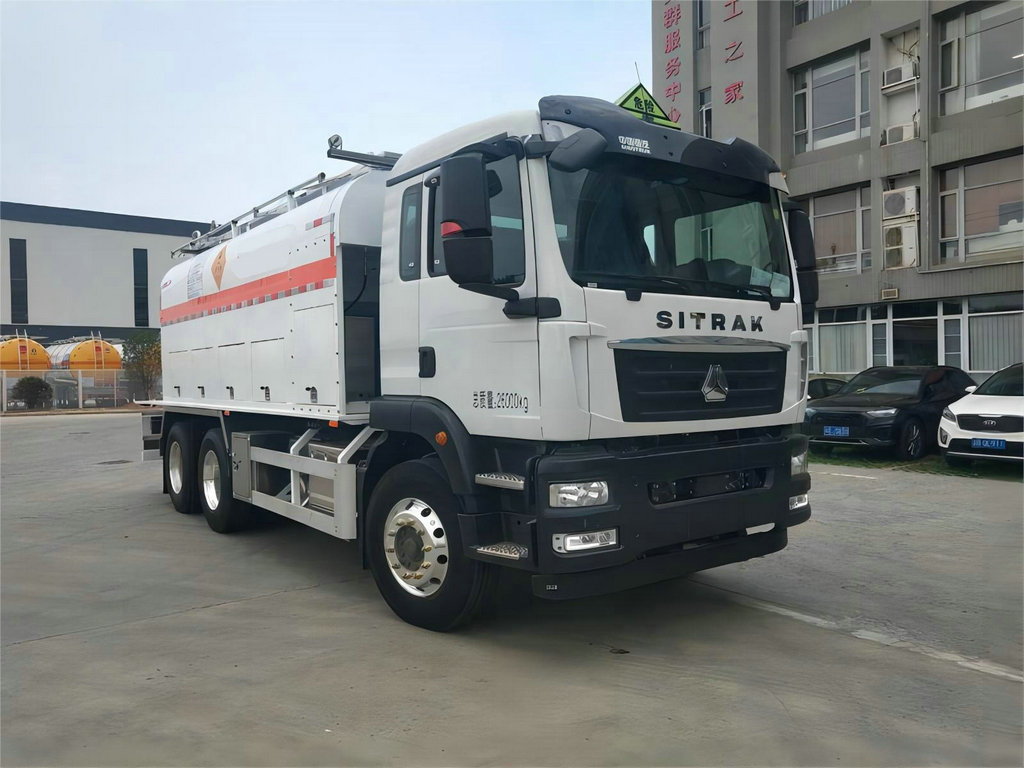

SITRAK mixing and charging truck Euro 6 Chassis : ZZ5266XXYN504GF1K
Overall dimensions: | 8805×2520×3350(mm) | Fuel Type: | Diesel oil |
Total mass: | 26000(Kg) | Load mass utilization factor: | |
Quality of service: | 13650(Kg) | Rated load mass: | 12155,12220(Kg) |
Approach Angle/Departure Angle: | 16/13(°) | Front/rear overhang: | 1450/2080(mm) |
Axle Load: | 7000/19000(Two axes) | Wheelbase: | 3875+1400,4275+1400, 4575+1400,4975+1400, 5375+1400,5775+1400, 5975+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR |
Fuel consumption: | 33.79(L/100Km) | Number of spring pieces: | 2/-/-,3/-/-,3/1+-/1+-, 2/1+-/1+-,11/-/- |
Front wheel base: | 1998,2035,2065(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
MC09.35-60;WP8.350E61;MC07.33-60; MC07.27-60;MC11.40-60;WP7.270E61; MC07.34-60;MC09.38-60;MC07.31-60; WP6H270E61;MC07H.35-60;MC07H. 33-60;WP7.300E61;MC07H.29-60; WP7H320E62;WP7H300E62;WP7H270E62; MC07H.31-61;MC07H.35-61;WP8.350E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 8765;7800;6870;6870;10518;7470; 6870;8765;6870;6220;7360;7360;7470;7360;6800;6800;6800;7360;7360;7800 | 260;257;240;202;297;199;251;279; 228;199;257;240;220;213;235;221;199;228;254;257 | |

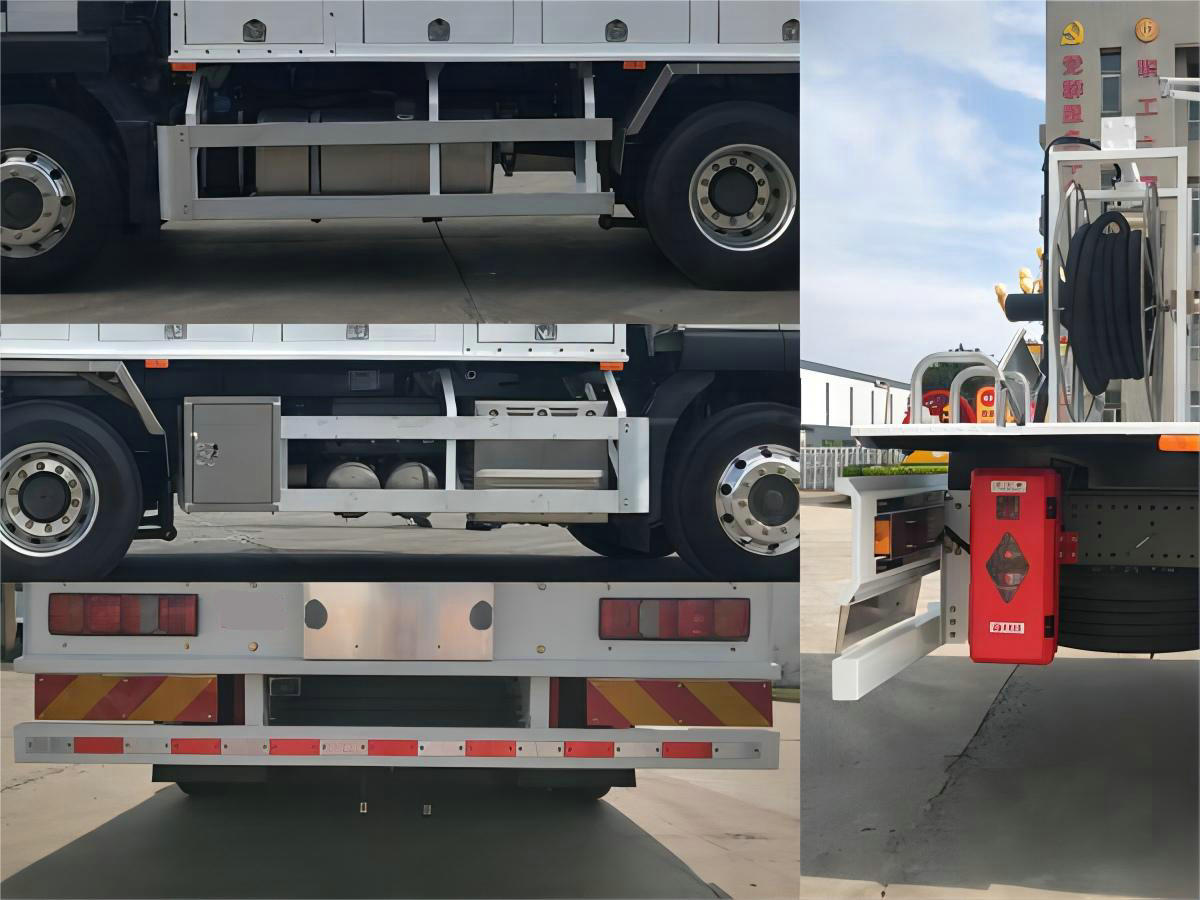

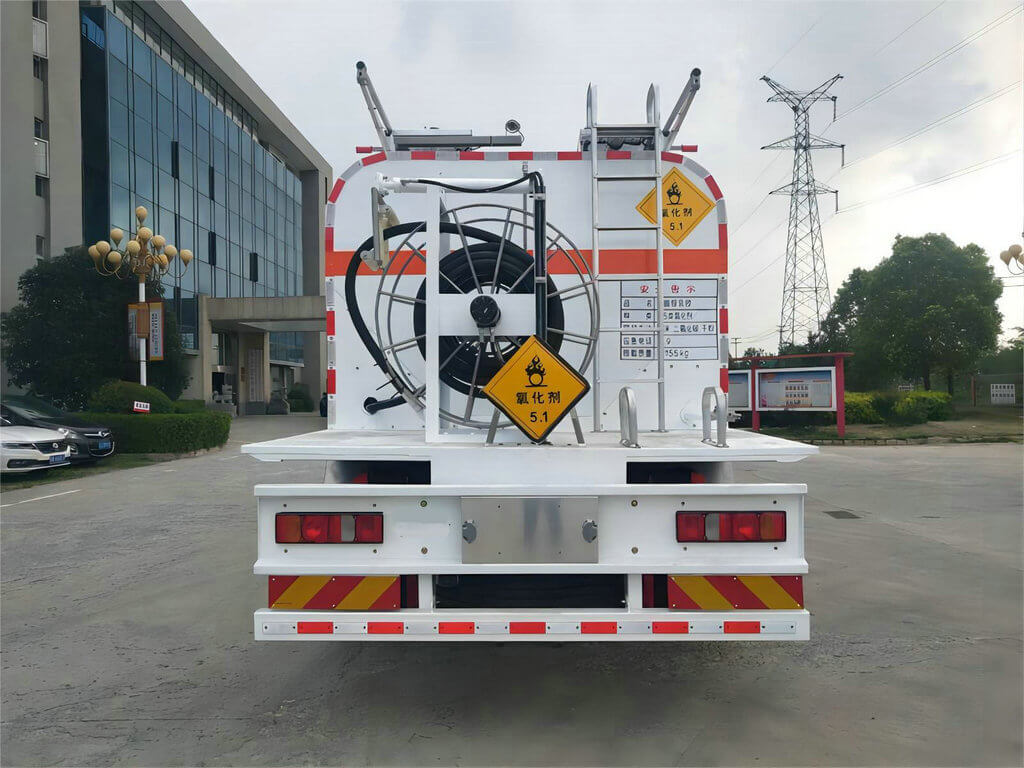

The vehicle transport medium is ammonium nitrate latex, category number 5.1. Dangerous goods transport vehicle type AT. The special device is composed of screw pumping system, hydraulic system and electrical control system. Controlled by electrical system, various raw materials are mixed according to a certain proportion and loaded into the drill hole, and the mixture reacts with each other to form emulsion explosive Bulk Explosive trucks include trucks that produce ammonium nitrate – fuel oil (ANFO), Heavy ANFO (ANFO & Emulsion Blend), Quads to produce Heavy ANFO as a pumpable product and finally, Pumper Trucks that pump emulsion, which is a pre-mixed blasting agent. | ||||
The load of emulsion explosive is 15000kg, charging efficiency is 250-280kg/min (2 "pipe transportation)
The load of oil-spread explosive is 15000kg, charging efficiency is 300-450kg/min (spiral transportation)
Heavy oil explosive has a load of 15000kg , charge efficiency of 300-400kg/min (spiral transportation)
Heavy emulsion explosive has a load of 15000kg ,charge efficiency of 200-280kg/min (2 "pipe transportation)
The effective volume of 1000kg fuel tank is 1.14 m3
Trace element box A 150kg effective volume 0.15 m3
Trace element box B 150kg effective volume 1.15 m3
The effective volume of cleaning water tank 600kg 0.6 m3
Measurement error ≤ 2%
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Heavy ANFO units manufacture
Our heavy ANFO units are designed to fit your cab chassis and can be fully fitted up and commissioned shortly after delivery. As with our ANFO mix module units, the heavy ANFO unit consists of an ammonium nitrate storage tank and a process fuel oil tank. The product is discharged using a side-mounted auger, with convenient electronic controls placed in the cabin of the unit. A single person can operate a heavy ANFO unit; specialised controllers provide ingredient percentages and individual ingredient rates, which allow batch and total amounts to be recorded, with a second operator monitoring the loading.
Heavy ANFO is a blend of ANFO and Emulsion, which is made to increase the bulk density of normal ANFO, with the ability to be loaded into partial wet holes. By using these blends you increase the density of ANFO, thereby increasing the energy in the borehole. It provides water resistance to ANFO and is priced somewhere between the cost of ANFO and pumpable emulsion, ultimately reducing your mining costs.
There are many benefits to the manufacture of heavy ANFO and using the blend including:
Water resistance for ANFO in wet formations
Save on drilling costs
Increased production per hole
Specialised bulk trucks are used for the loading of heavy ANFO. These trucks allow for the mixing of components prior to loading and provide for the loading of either ANFO or heavy ANFO.
