Customize Explosive Porous Granular Ammonium Nitrate ANFO Mixing Charging Truck 15 Ton
BCLH-15 ,Bulk Explosive ANFO charging efficiency 300-450kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCLH-15 , 5320THAZ6
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
Customize Explosive Porous Granular Ammonium Nitrate ANFO Mixing Charging Truck 15 Ton
On site mixing of granular ammonium frying vehicle ( BCLH Series of products can be mixed with porous granular ANFO in the field. It is mainly used for dry hole loading explosives in open-pit mines. It adopts the diagonal spiral drug delivery system, with high efficiency and full computer operation control. 450kg/min It has the function of stopping material and shutting down, and is safe and reliable.
●Hydraulic pumps : PVG-100-F1UV-RGFY-P-1NN/FNN Auguire USA
● Hydraulic motors : Box Screw 1068 Straight Screw 1065 Top Screw 1063 Eaton USA
● Diesel oil pump : DM25 and DM4 Eaton USA
● Hydraulic valve : BCLH-15 Japan Oil Research Institute China
● Pressure sensor and flow sensor: Main part of the electrical system (contactor, PLC, LCD screen, ...)
Pressure Sensor BCLH-15 Shanghai Hydraulic Sensor Factory China
Flow sensor TFA/R1/M5/d/k2/L-20 Shanxi Honghe China
PLC: Mitsubishi Japan
Contactor DM8 Mitsubishi Japan
LCD screen 12 inch Mitsubishi Japan
ANFO Explosive Mixer Trucks
mixing and charging truck Main technical parameters HOWO Euro 6 Chassis : ZZ1327N466GF1K
Main technical parameters
Overall dimensions: | 11100×2550×3900(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 15505(Kg) | Rated load mass: | 15005,15070(Kg) |
Approach Angle/Departure Angle: | 19/10(°) | Front/rear overhang: | 1430/3195(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12R22.5 18PR,295/80R22.5 18PR |
Fuel consumption: | 36.9,36.9,37.44(L/100Km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-,3/3/1+-/1+-,3/3/2+-/2+-,4/4/2+-/2+- |
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
MC07.34-60;MC07.31-60;MC07H.35-60 | China Heavy Duty Automobile Group Co., LTD.; | 6870;6870;7360 | 251;228;257 | |

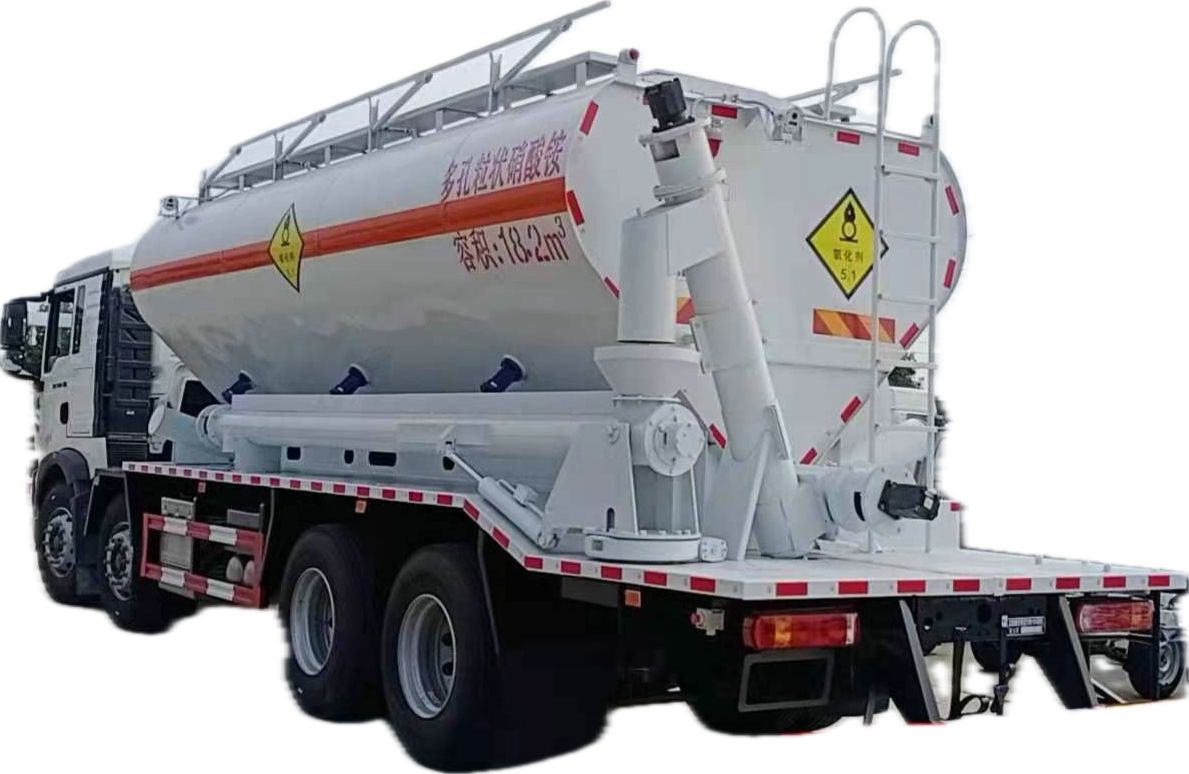

The main special device:PTO , dry material box, fuel system, screw conveying system, hydraulic system, computer digital control system and other parts, which is mainly suitable for dry hole filling explosives in open pit mines. It is operated by quantitative screw, vertical screw and top screw three-stage screw conveying system, which can accurately fill reasonable proportion of explosives in the drill hole. The transportation medium is Porous granular ammonium nitrate, effective volume of tank 18.2 cubic meters | ||||
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
