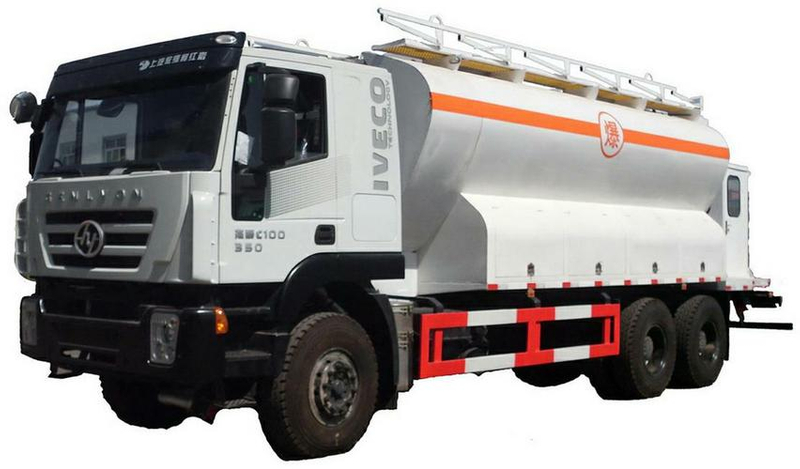

Customize Saic-Iveco Hongyan Genlyon Emulsion Pumper Explosive Truck
BCRH-8 Emulsion explosive mixing truck
Charge efficiency 250-280kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCRH-15, 5256THRHTG504
-
HOWO
-
8705909990
-
China
-
300
-
T/T
-
1
Customize Saic-Iveco Hongyan Genlyon Emulsion Pumper Explosive Truck
Emulsion ANFO Explosive Transport Trucks
on-site mixed emulsion explosives truck Main technical parameters
Saic-Iveco Hongyan Genlyon Chassis : CQ1256HTVG50-594
Overall dimensions: | 10885×2550×3713,3640(mm) | Fuel Type: | Diesel oil |
GW | 25000(Kg) | ||
NW | 16700(Kg) | Rated load | 8170(Kg) |
Approach Angle/Departure Angle: | 19/11 (°) | Front/rear overhang: | 1435/3050(mm) |
Axle Load: | 7000/18000(two-axis group) | Wheelbase: | 5000+1400,5900+1400(mm) |
Number of shafts: | 3 | Maximum speed: | 80(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 11.00-20,11.00R20,12.00-20 18PR,12.00R20 16PR,12R22.5,315/80R22.5 18PR/315/80R22.5 16PR/315/80R22.5 16PR,295/80R22.5 |
Fuel consumption: | (36.7 L / 100 km) | Number of spring pieces: | 3/4,3/6,3/12,9/12 |
Front wheel base: | 2006,2020,2070(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
F2CCE611A*L | Saic Fiat Red Rock Powertrain Co., LTD | 8709 | 287 | |
1: Optional installation without operating room; 2. The transport medium is ammonium nitrate latex, class item :5.1, the type of dangerous goods vehicle is EX/Ⅲ, working principle: ammonium nitrate latex enters the screw pump, the latex is pressed into the conveying hose by the pressure of the screw pump, and the sensitizer is added to the conveying hose by the mixer, the sensitizer plays the role of water ring lubrication in the conveying, the latex and the sensitizer are mixed by the static mixer at the end of the conveying hose After entering the drill hole, after 10 to 15 minutes of foaming into explosives; 3. engine fuel consumption is 36.7L/100km. | ||||

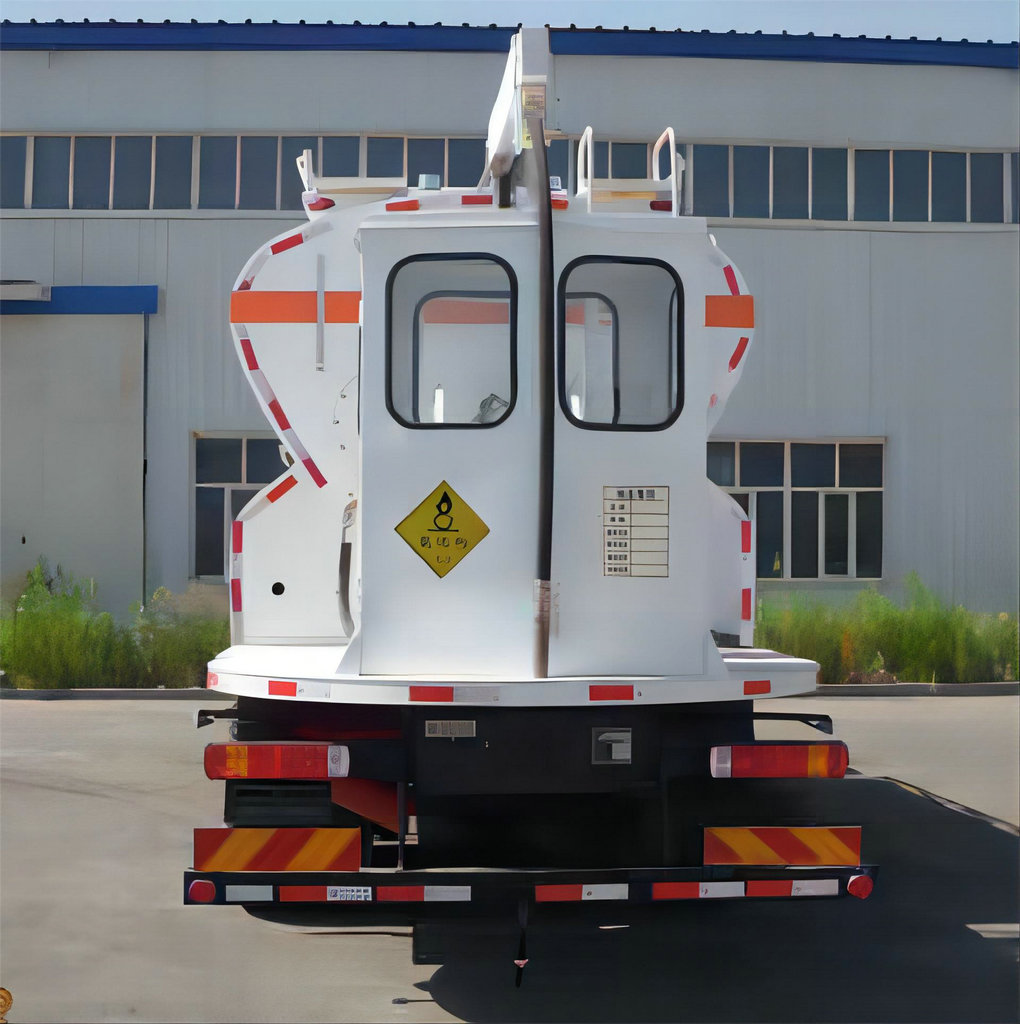

ANFO, HEAVY ANFO, EMULSION PUMPER TRUCKS
Dimension(mm) | 11800×2550×3713 |
Max. Speed | 80 km/h |
Max. Capacity | 15000 kg |
Charging Quantity | 15000 kg |
Charging Speed | 110～300 kg/min |
Measurement Errors | ≤1% |
Water Tank Capacity | 0.5m³ |
Gassing Tank Capacity | 0.8m³ |
Borehole Diameter | ≥φ32mm |
Flexible Hose Specification | Standard configuration: 1.5″; 1″ and 2″ are also available |
Flexible Hose Length | 40 meters |
Max. Rotation Angle of Rotary Arms | 180° |
BCRH emulsion pumper is designed for on-site mixing and charging of bulk emulsion.
Main characteristics:
– With a standard capacity of 15 metric tons, production rates from 110-300 kg/min
– A completely automated control system to maintain a high degree of accuracy across the production rate range
– The pre-set function in the control system allows the operator to input the hole charging quantity based on mass or depth
– All metering devices operate in closed-loop control to eliminate manual adjustments
– Water ring friction reduction technology and hose end static mixing
– Rotatable and retractable arms
– Handheld remote control PDA
Our design team is experienced in a wide range of products and applications, allowing easy customization of equipment to precisely fit your needs.
QUALITY CONSTRUCTION
Utilizing high quality materials and name-brand components guarantees products that last. Stainless and mild steel bodies are standard, utilizing aluminum for weight savings.
CUSTOMIZED PERFORMANCE
Tank and component configurations can be modified to meet particular requirements, based on the service requirements and local spare parts availability.
ENERGY EFFICIENCY
Available load-sensing hydraulic systems lower fuel consumption, resulting in considerable savings over the life cycle of the equipment.
DATA LOGGING
Automatically record loading data and equipment parameters to optimize your loading and maintenance operations.
OPTION PACKAGES
Options to tailor standard equipment to specific operating requirements including hose reels, lighting, and cold weather packages.
Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
