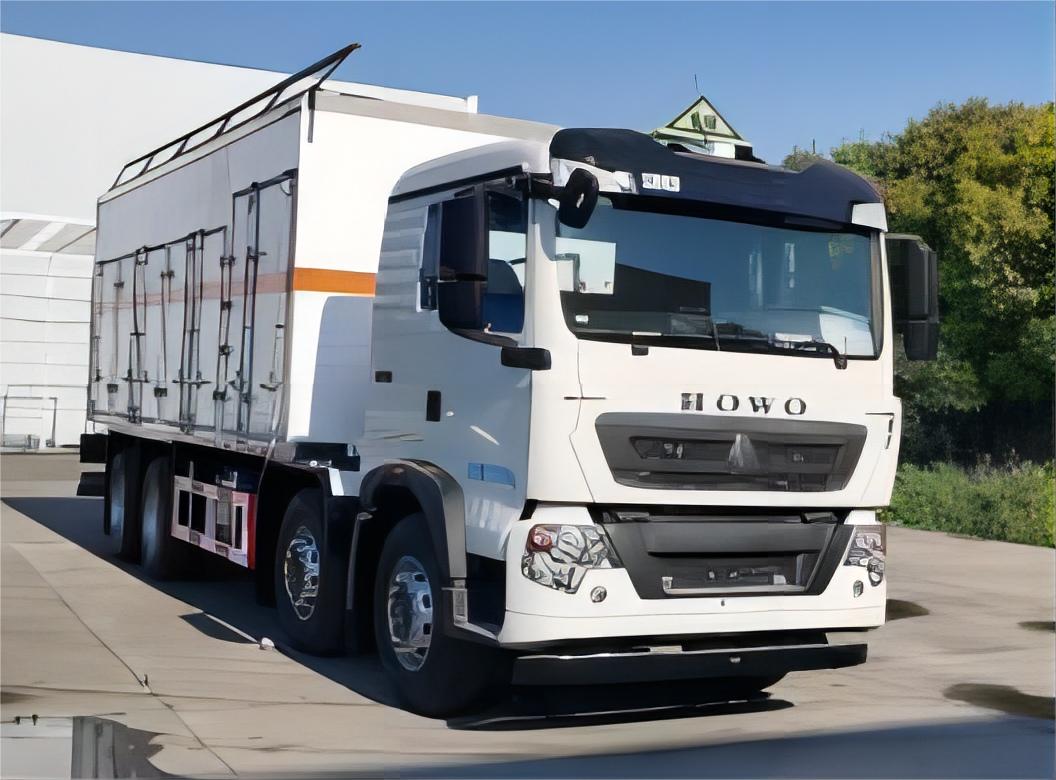

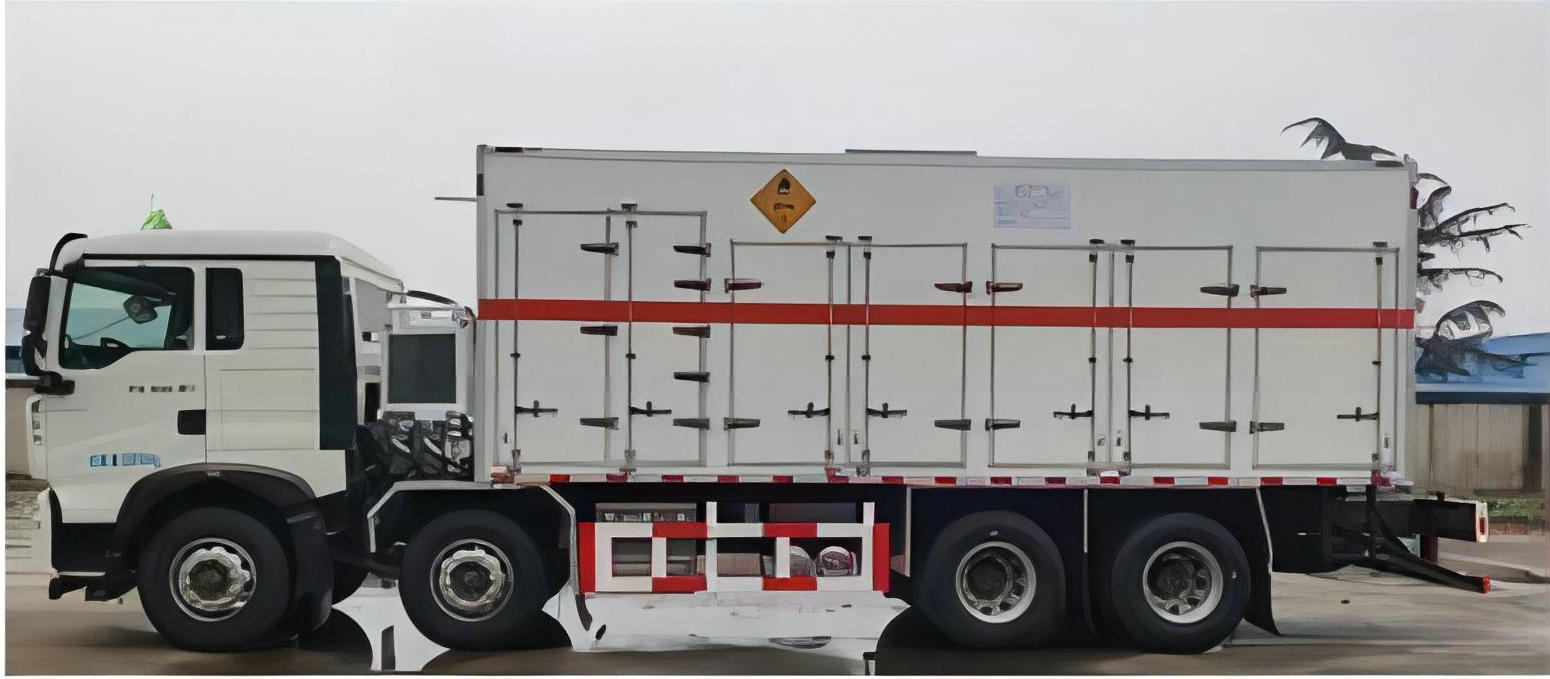

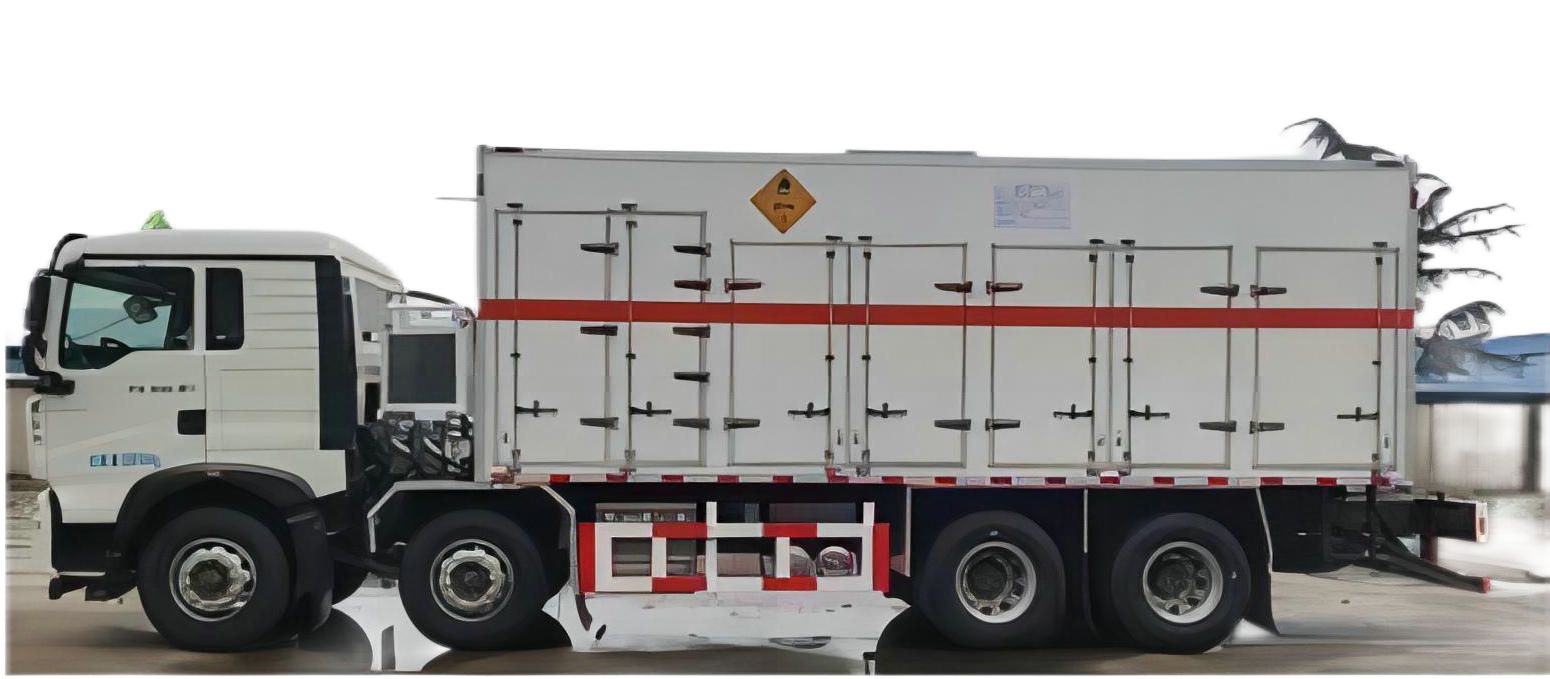

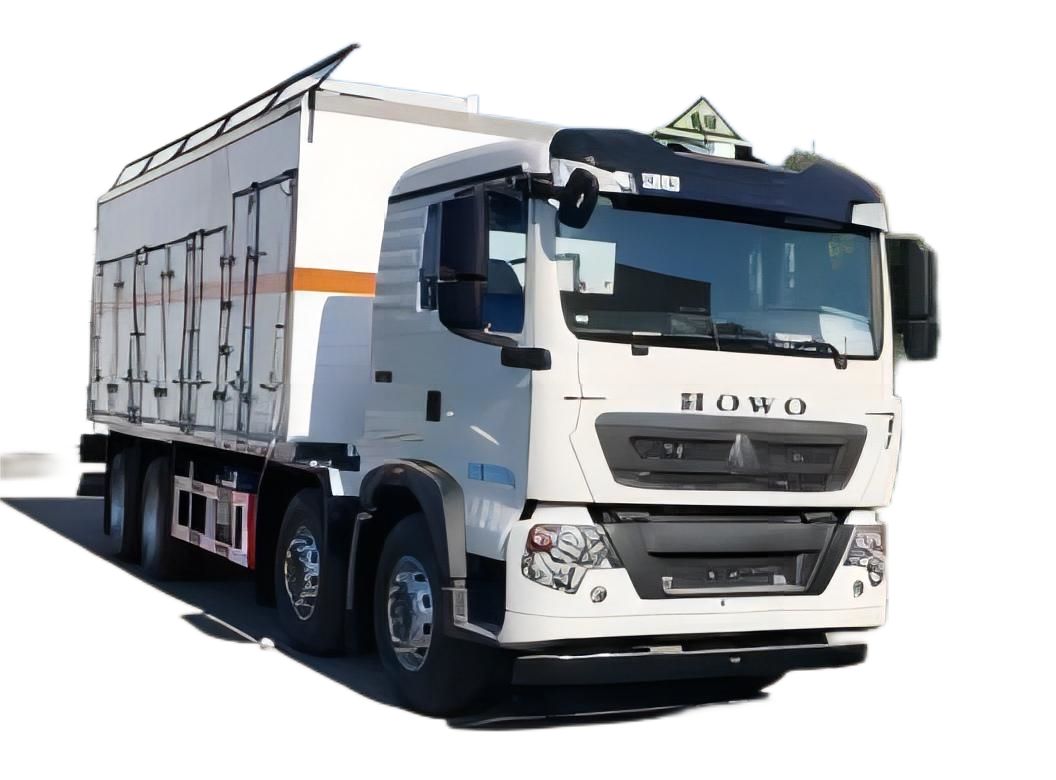

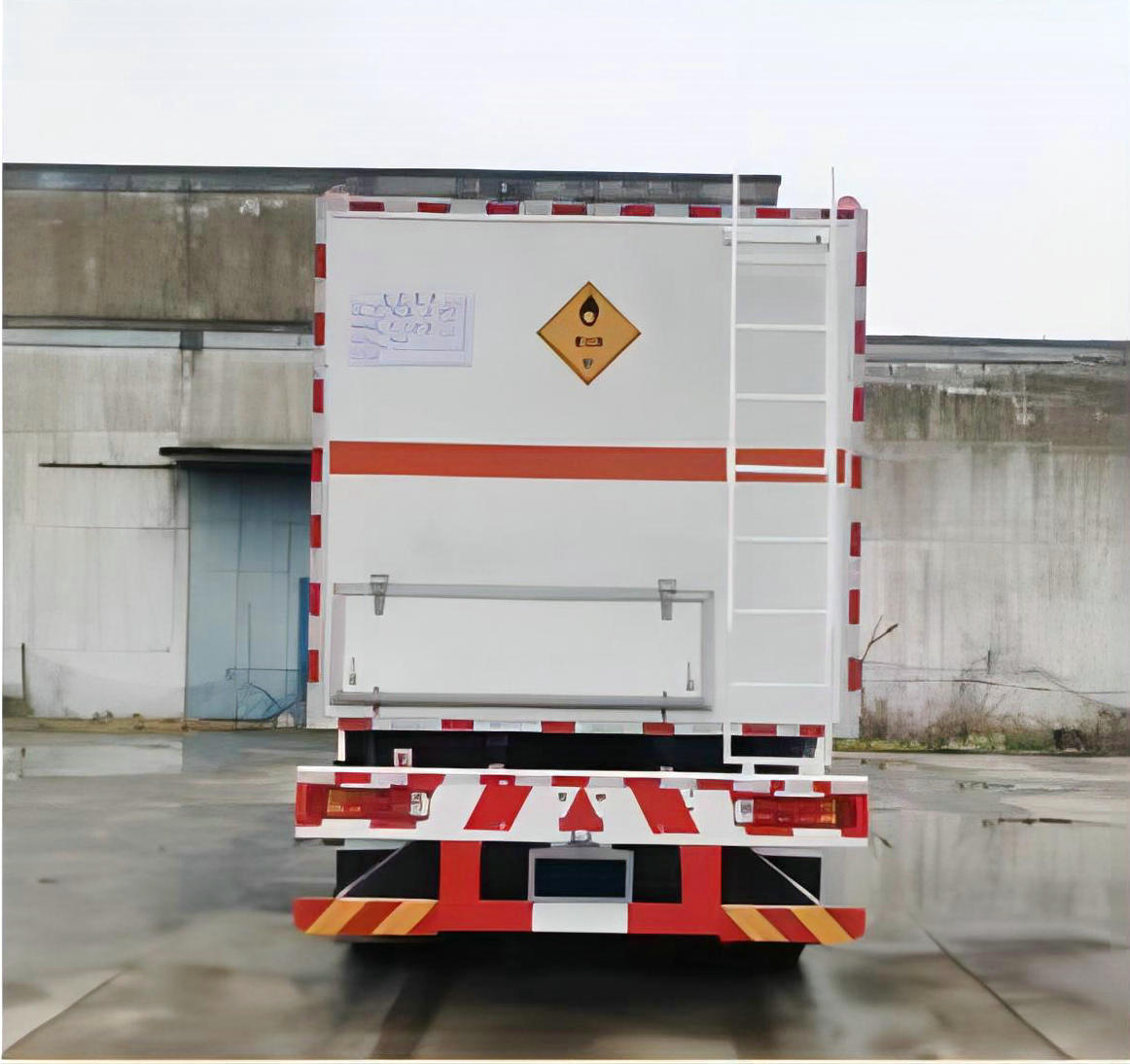

Customize 12T Bulk ANFO & Emulsion Explosive Truck
Emulsion ANFO Explosive Transport Trucks
BCRH-15 on-site mixed emulsion explosives truck is to install the latex matrix prepared b the ground station in the latex matrix box on the vehicle, and at the same time load the
sensitizer and catalyst on the vehicle. This vehicle has two sets of process equipment Two sets of sensitization systems, one is sensitization catalysis before the pump; the other is sensitization catalysis at the end. At the same time, it adopts a double water pump system with low pressure and long conveying distance. It is suitable for blasting projects such as highways and tunnels. This kind of car has a large service radius and can be used to build stations at one point and deliver to multiple points. Advanced computer operating system,with over-temperature, over-pressure, material-breaking alarm and shutdown safety guarantee system, safe and reliable work.
PERFORMANCE PARAMETER
The maximum loading capacity of the matrix box 12m3, and the latex matrix 16000kg
The volume of sensitizer box 0.12 m3 and sensitizer 120kg
The volume of catalyst tank 0.12 m3 and the catalyst 120kg
The volume of water ring and cleaning water tank is 1m3, and the water is 1000kg
Charge efficiency 250-280kg/min
Measurement error ≤ 2%
Overall dimensions length/width/height (10860 × 2500 × 3930mm)
Gross Weight 32000Kg
Net weight 16000Kg
Main technical parameters HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 10790×2500×3830(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 19070(Kg) | Rated load : | 12800,12735(Kg) |
Approach Angle/Departure Angle: | 19/10 (°) | Front/rear overhang: | 1430/2385(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400,1800+4275+1400,1800+4575+1400,1950+3800+1400,1950+4600+1400,1800+3200+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5,12.00R20 18PR,11.00R20 |
Fuel consumption: | 38.0,37.4(L/100Km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-,3/3/1+-/1+-,3/3/2+-/2+-,4/4/2+-/2+- |
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35 B - 60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350 E61. MC11.46-61; MC11H.46-61; WP10.5 H430E62; WP12.430 E62; WP12.490 E62; WP12.460 E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., Ltd. | 10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596 | 319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338 |

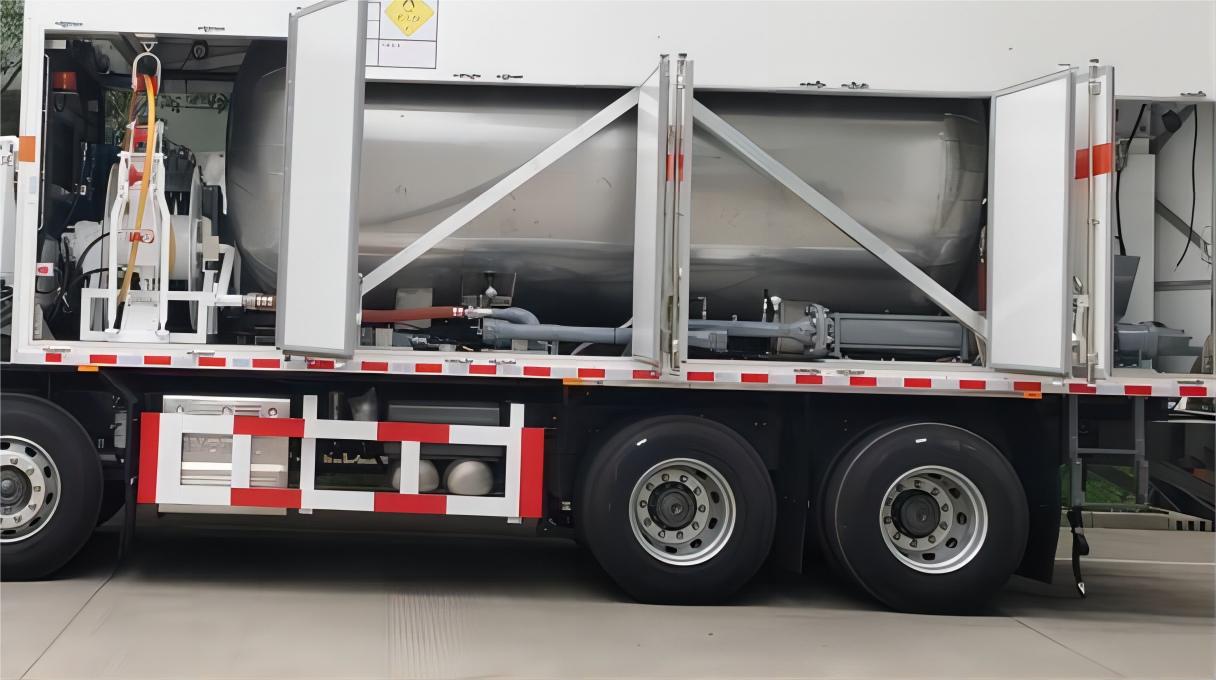

The main special device of the vehicle is PTO , anfo emulsion matrix box, fuel system,Auger screw pumping system, hydraulic system, computer digital control system, etc., which is mainly suitable for filling explosives in water holes in open-pit mines. The system operation is carried out by conveying pump, rear telescopic cantilever and feed pipe, and the reasonable proportion of explosives can be accurately filled in the boreholes Quality, Dangerous goods vehicle type AT, equipped with dangerous goods sign plate and dangerous goods sign light, equipped with disc brake, all steering wheels installed tire burst emergency protection device. Radial tires, body equipped with fire extinguisher. |
