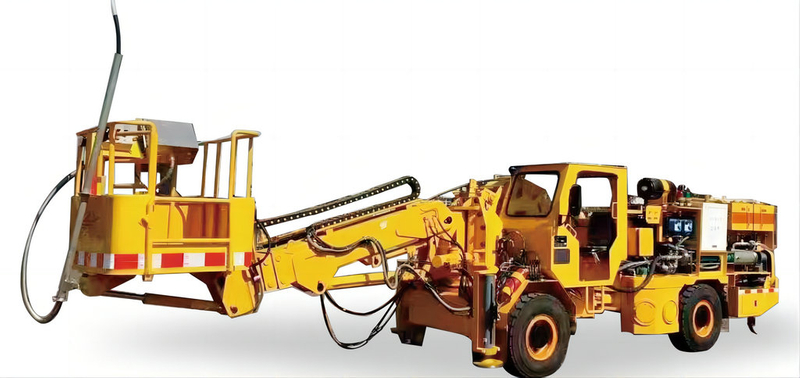

BCJ-1000 Underground ANFO Emulsion Explosive Charging Vehicle
Safe and efficient explosives charging and blasting processes are essential to productive mining and tunnelling operations,the underground charging process productive and safe whether you are using Emulsion or ANFO explosives
Drug loading ：1000kg
Rated total mass ：9200kg
Servicing quality of charging truck ：8200Kg
Drug delivery distance ：60m
Drug delivery head ≥ 37m
Drug delivery error ≤ 2%
Charge efficiency ：20kg/min-35kg/min
Overall dimensions ：8390 × 2448 × 3500mm
(Length × Width × Height)
Highly efficient ANFO charging options for underground mining and tunnelling
BCJ-1000 ANFO Emulsion Explosive charging vehicle can be operated according to the user's requirements and blasting site conditions by selecting the vehicle power transmission mode or external power supply; it can also increase or decrease functions according to the user's requirements, or select the vehicle chassis according to the user's requirements. The charging vehicle is suitable for underground blasting operation.
BCJR-1000 underground articulated field mixed emulsion explosive truck can meet the requirements of upward hole and horizontal hole charging. At the same time, bulk emulsion explosive is used, which can achieve the full coupling charging of hole charging, and the charging density can reach 1.1. Without changing the hole network parameters, the driving depth of bulk explosive is 400mm-500mm more than that of finished explosive (with the hole diameter of 40-50 and the hole depth of 3.5m-3.7m) According to the calculation of hole depth, the observation of blasting effect with hole diameter of 50 - 70 and hole depth of 20m-30m shows that the roof is flat and the blasting pile is even, which saves 10% - 30% of the drilling and blasting cost compared with the finished explosive.
The effective volume of emulsion explosive matrix box : 0.9 m3, charge 1000Kg
The effective volume of sensitizer box :0.06 m, charge 60Kg
The effective volume of catalyst box :0.03 m3, charge 30Kg
The effective volume of cleaning water tank: 0.06 m3, charge 60Kg
Charge efficiency :5kg/min ~ 80kg/min
Measurement error ：≤ 2%
Length/width/height :(8100 × 2140 × 1800mm)
(It can be adjusted according to the actual underground working environment)
Customizing emulsion explosive Truck
