Customize FOTON Underground Mining Blast Emulsion Mixing Charging Explosive Truck
BCJ-2000,Preparation of pure emulsion explosive by underground mixing 10kg/min~60kg/min
Charge 3000kg
Charge efficiency 10-60kg\ mim
Measurement error ≤ 2%
Overall dimensions length/width/height (6120 × 2115 × 2700mm)
Diameter of hose (inner diameter × outer diameter) φ 22 × 334 mm or medium 25 × 40 mm
The diameter of loading hole is 40-100mm
Loading depth 40m
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCJ-2000, BCJ-2000, 5081THRJ3
-
FOTON
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
Customize FOTON Underground Mining Blast Emulsion Mixing Charging Explosive Truck

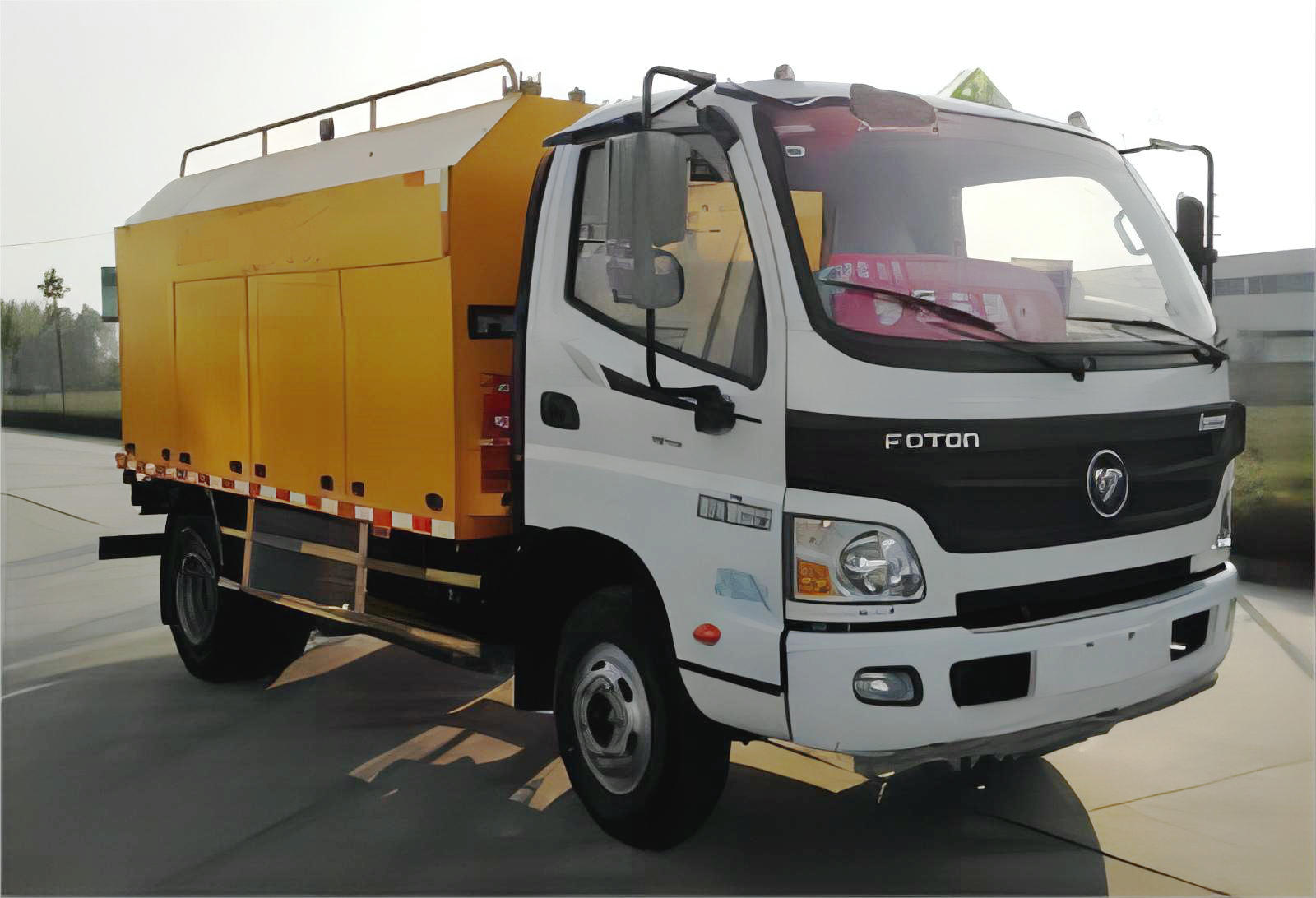

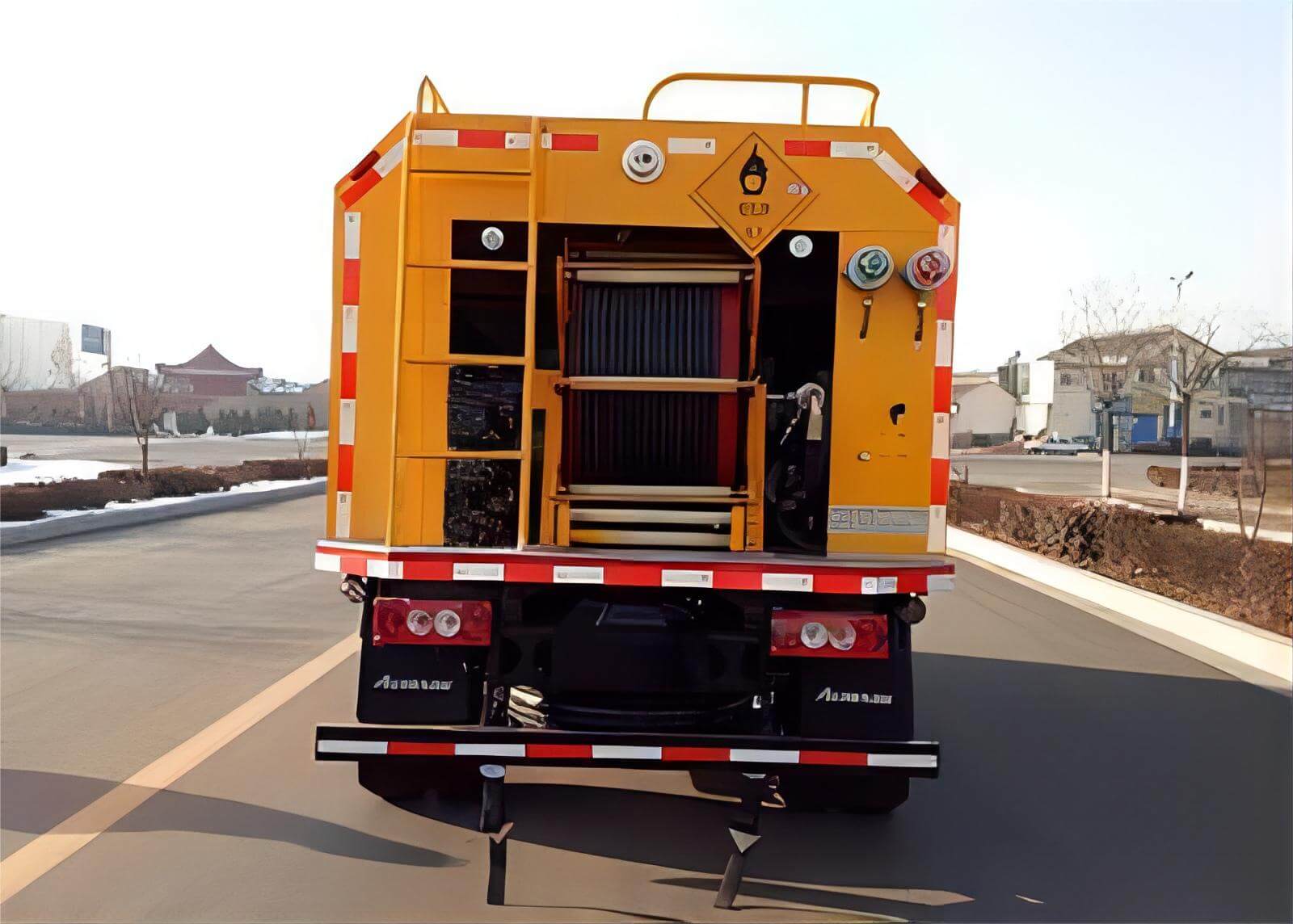

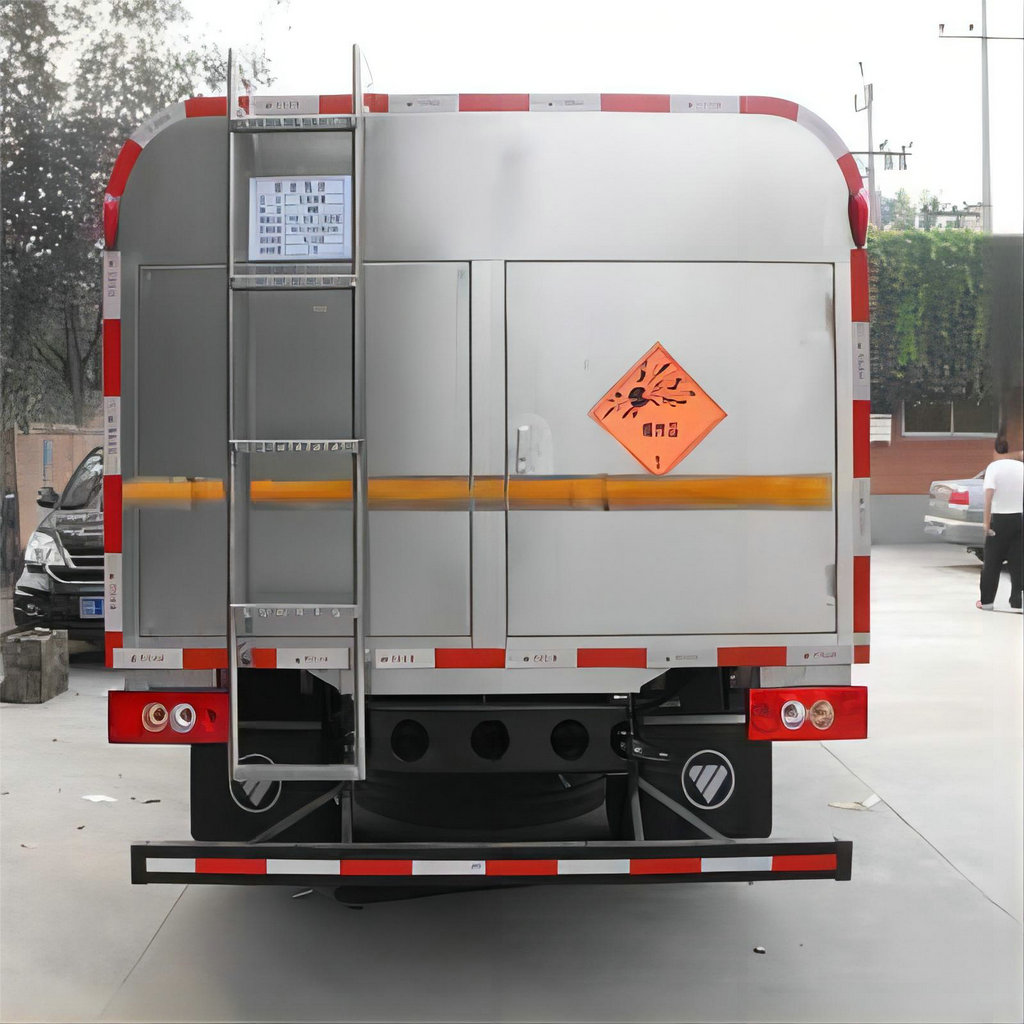

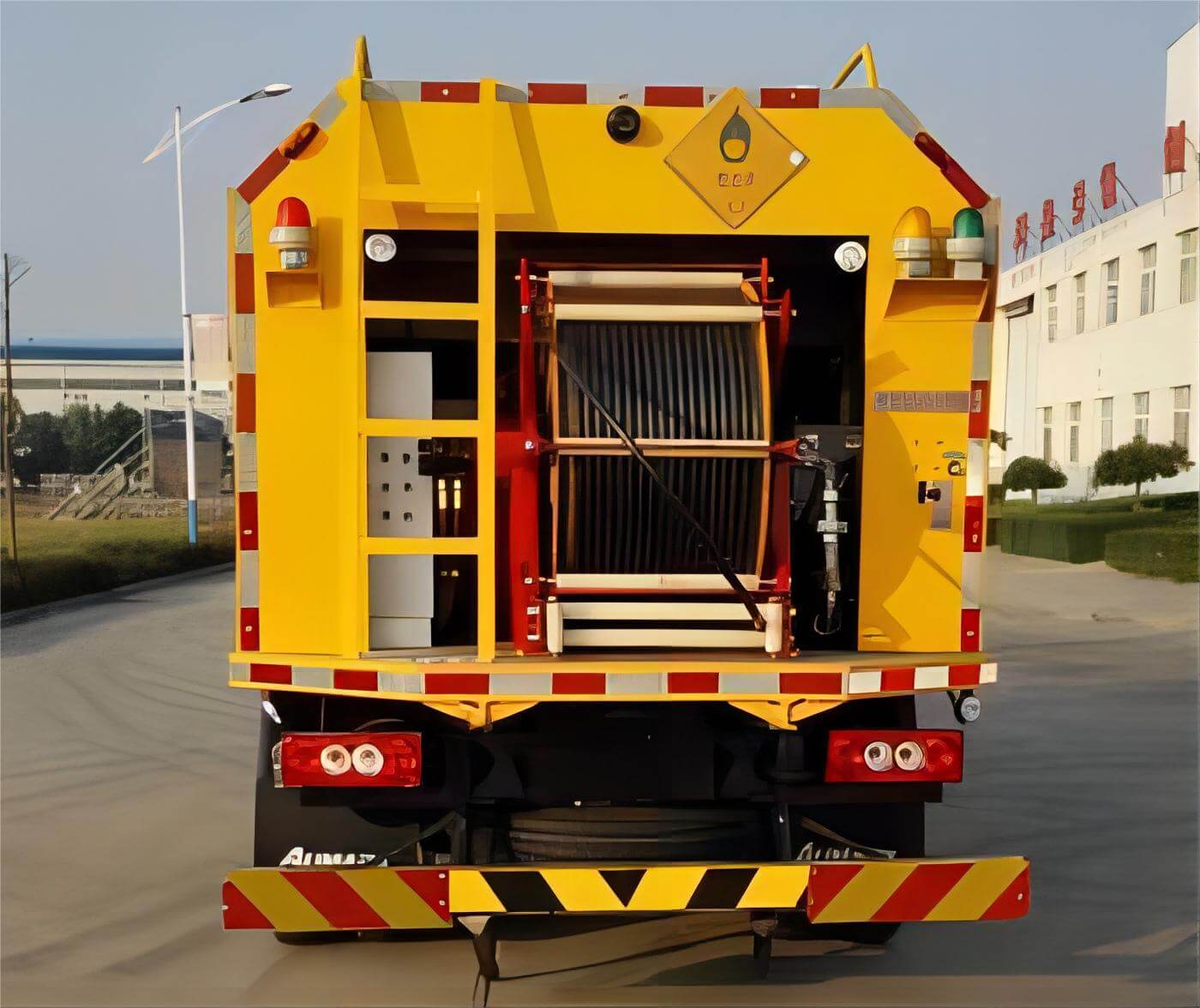

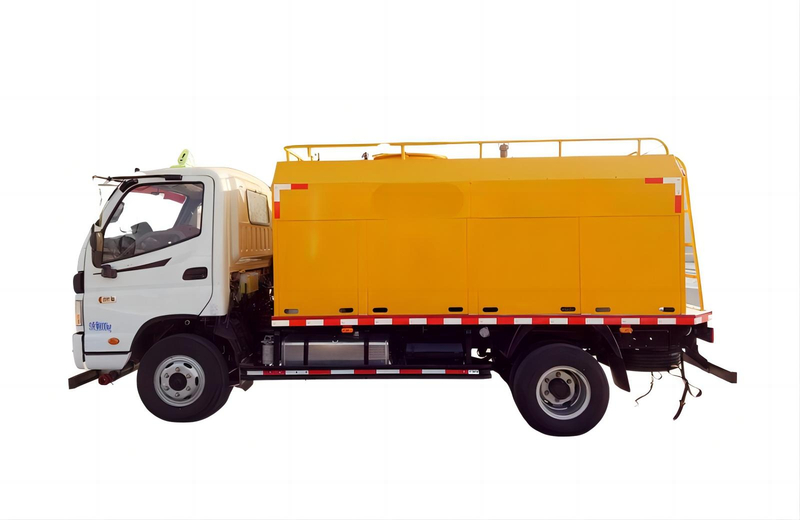

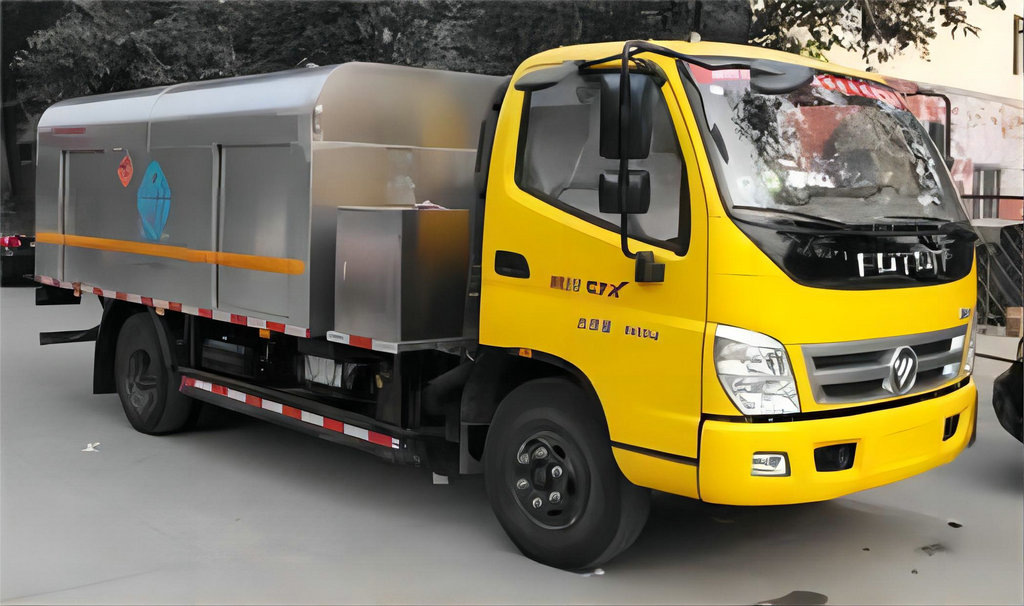

BCJ-2000 underground on-site mixed loading light emulsion explosive truck (hereinafter referred to as underground truck is a small underground on-site mixed loading emulsion explosive truck refitted on the basis of special light truck chassis. It is a high-tech product of mechanical and electrical integration integrating raw material transportation, explosive mixing and blasthole loading. It can be described as a mobile micro efficient explosive processing plant.
Charge 3000kg
Charge efficiency 10-60kg\ mim
Measurement error ≤ 2%
Overall dimensions length/width/height (6120 × 2115 × 2700mm)
Diameter of hose (inner diameter × outer diameter) φ 22 × 334 mm or medium 25 × 40 mm
The diameter of loading hole is 40-100mm
Loading depth 40m
The direction of filling holes is omni-directional
Inlet and outlet hose speed 0-0.5 m/s (adjustable)
BCJ-1000 /BCJ-2000 /BCJ-3000 Main Tech | |
Delivery efficiency | 10kg/min~60kg/min |
Measurement error | ±2% |
Dimensions Length × width × height (mm) : | 6120×2115×2700 |
Car chassis | FOTON BJ1089VFJEA-F3 / 4×2 |
Engine type | ISF3.8s4141 |
Engine power | 105KW |
displacement | 3760ml |
mixing and charging truck FOTON Euro 5 Chassis : BJ1089VEJEA-A2
Main technical parameters
Overall dimensions: | 6000×2100×2620(mm) | Fuel Type: | Diesel oil |
GW | 8000(Kg) | ||
NW | 5805(Kg) | Rated load mass: | 2000(Kg) |
Approach Angle/Departure Angle: | 21/13 (°) | Front/rear overhang: | 1095/1545,1110/1530(mm) |
Axle Load: | 2840/5160 | Wheelbase: | 3360,3800(mm) |
Number of shafts: | 2 | Maximum speed: | 80(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 7.50-16LT 14PR,7.50R16LT 14PR,8.25-16LT 14PR,8.25R16LT 14PR |
Fuel consumption: | (18.2 L / 100 km) | Number of spring pieces: | 3+1/6+7,9/11+7,3/7+6,3/8+6 |
Front wheel base: | 1730,1685,1590(mm) | Rear wheel base: | 1590,1615,1485(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
ISF3.8 s5154 | Beijing Foton Cummins Engine Co., LTD | 3760 | 115 | |
For Mixing Charging ammonium nitrate emulsion and ammonium nitrate, equipped with front exhaust system The special operating device PTO emulsion matrix box, pumping and feeding hose system, etc. The semi-finished products and various raw materials are mixed in a certain proportion and loaded into the borehole, and the mixture reacts with each other to form emulsion explosive. | ||||
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
FOTON Euro 4 Chassis : BJ1099VEJEA-FC
Main technical parameters
Overall dimensions: | 6925×2200×2600(mm) | Cargo size: | 3900×1375×2100(mm) |
GW | 9485(Kg) | Fuel Type: | Diesel oil |
NW | 5890(Kg) | Rated load mass: | 3400(Kg) |
Approach Angle/Departure Angle: | 22/14 (°) | Front/rear overhang: | 1120/2005(mm) |
Axle Load: | 2845/6640 | Wheelbase: | 3800(mm) |
Number of shafts: | 2 | Maximum speed: | 80(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 8.25-16, 8.25r16,8.25-20 12PR,8.25R20 12PR |
Fuel consumption: | 27.4, 27.5 (L / 100 km) | Number of spring pieces: | 9/11 + 7 |
Front wheel base: | 1665,1685,1710(mm) | Rear wheel base: | 1625,1680 (mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
ISF3.8 s4154 | Beijing Foton Cummins Engine Co., LTD | 3760 | 115 |
Special device: chamber body, tank body, special function: for the synthesis of explosives. | |||
