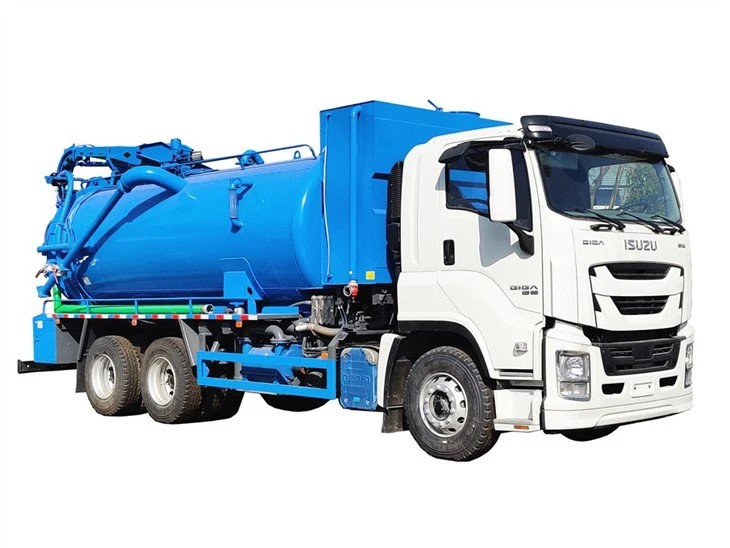

Isuzu Combined Vacuum High Pressure Jetting Tanker Truck 14KL Sewage+4KL Clean Water

Isuzu Combined Vacuum High Pressure Jetting Tanker Truck 14KL Sewage+4KL Clean Water
Tank capacity can be customized 16KL- 18KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 101000
Discount Price: $ 98800
Availability:
Quantity:

  • DRZ5290GXWQ

  • Dong Run Ze

  • 8705909990

 Isuzu Combined Vacuum High Pressure Jetting Tanker Truck 14KL Sewage+4KL Clean Water

Isuzu Combined Vacuum High Pressure Jetting Drainage Cleaning Truck | 14m³ Sewage + 4m³ Clean Water Integrated Sewer Jetter Vacuum Tanker
 Isuzu GIGA Chassis Truck Mounted High Pressure Water Jetter System for Municipal Sewer, Drainage & Culvert Maintenance

Product Overview

The Isuzu drainage cleaning truck is a heavy-duty, all-in-one sanitation vehicle engineered exclusively for urban sewer network maintenance, drain unclogging, culvert dredging and wastewater treatment. Built on reliable Isuzu GIGA 6×4 heavy-duty chassis, this combined sewer jet vacuum tanker integrates high-pressure water jet flushing and powerful sewage vacuum suction functions in one unit, eliminating separate flushing and suction vehicles to cut municipal operation costs drastically.
Powered by the robust Isuzu 6UZ1-TCG 380HP industrial diesel engine meeting Euro  5/6 emission standards, the truck delivers stable torque, strong climbing capacity and long-distance driving reliability. Perfectly suited for sanitation bureaus, municipal engineering departments, property management groups and environmental service companies, it effortlessly tackles clogged storm drains, underground sewer pipelines, sediment-filled culverts and septic tank sludge cleaning with outstanding efficiency.

Core Model Specifications


Item Standard Parameter
Main Model No. DRZ5290GXWQL
Total Tank Volume 18,000L (14m³ sewage tank + 4m³ clean water tank, customizable 14–18m³)
Chassis Brand & Type Isuzu GIGA 6×4 heavy chassis
Drive Mode 6×4, Left-Hand Drive (LHD)
Engine Model Isuzu 6UZ1-TCG
Rated Power 380HP / 279KW
Emission Standard   Euro 5 / Euro 6 Optional
Maximum Travel Speed 90km/h
Standard GVW 25,000kg / Optional 33,000kg heavy-duty version

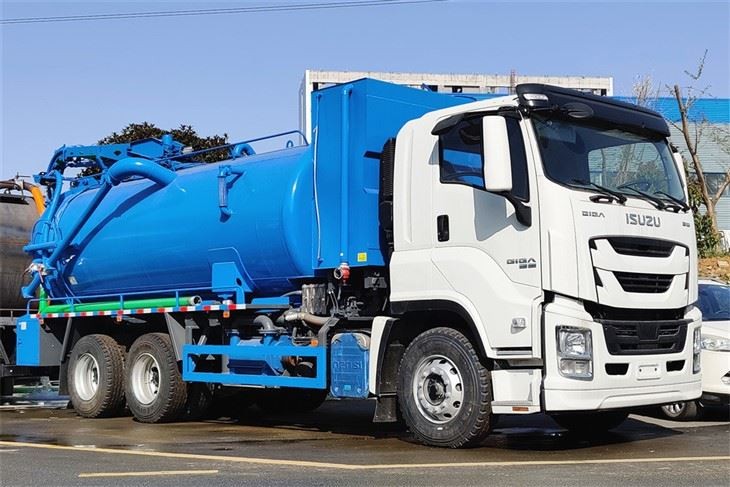

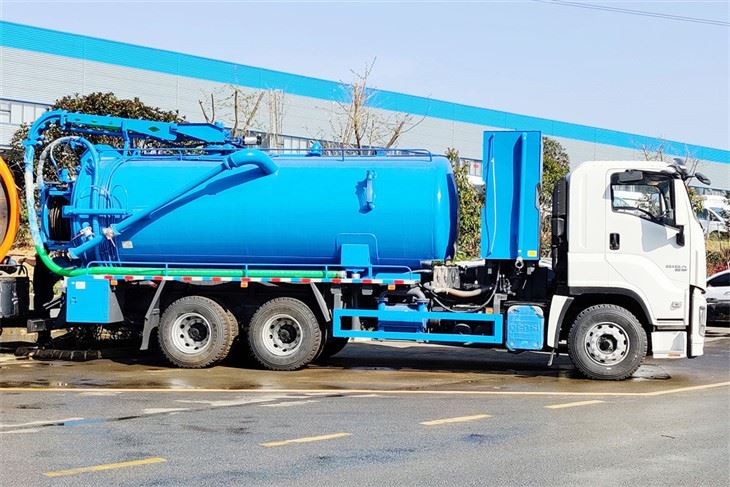

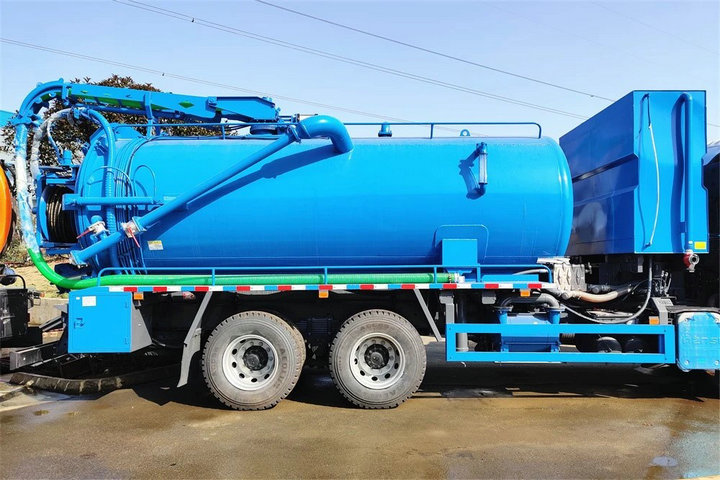

Vacuum tanker Combined Jetting Sewage Trucks (11)Vacuum tanker Combined Jetting Sewage Trucks (10)Vacuum tanker Combined Jetting Sewage Trucks (7)

Core Product Advantages & Features

1. High-Pressure Water Jetting Flushing System

The truck adopts an adjustable full-automatic high-pressure jetter system as its core flushing module. Operators freely adjust water pressure and flow rate to match pipeline blockage conditions. High-speed pressurized water blasts mud, tree roots, gravel, grease and hard sediment adhered to pipe inner walls, thoroughly breaking up stubborn clogs without damaging sewer pipelines. Fast flushing greatly shortens on-site construction downtime and boosts daily cleaning throughput.

2. Heavy-Duty Integrated Vacuum Suction System

Equipped with either top-tier Chinese dual vacuum pumps or imported Italy/Spain original vacuum pumps as optional upgrades, the suction unit reaches a theoretical vacuum rate of 99% with low noise and high rotation efficiency (500rpm). The 6–8m extended suction hose rapidly extracts broken sludge, sewage and floating waste cleared by the jetting system, achieving one-stop dredging and waste collection.
  • Hydraulic tipping tank design: Tank lifts over 45° for convenient sludge discharge

  • Hydraulic automatic opening/closing rear tank door for easy waste unloading

3. Complete Intelligent Safety Protection

  • Overfill alarm system with music horn: Automatically alerts operators when the sewage tank reaches full capacity, preventing sewage backflow and vacuum pump damage

  • Multi-stage separation devices: Built-in water-gas separator and oil-gas separator to filter impurities and extend pump service life

  • Ergonomic Isuzu GIGA flat roof cabin: 2 seats + 1 rest bed, panoramic wide vision, anti-slip floor and safety handrails to protect operators during on-site work

  • Standard driving recorder, central locking, power windows and air conditioning for long-shift driving comfort

4. Durable Corrosion-Resistant Tank Body

The sewage and clean water tank body is constructed with 5mm/6mm thick high-strength carbon steel as standard. Stainless steel tank lining and internal anti-rust coating are available as optional upgrades to resist long-term corrosion from acidic, alkaline sewage sludge. Custom tank exterior paint colors are supported to match client corporate or municipal uniform standards.

5. Full Standard Configuration & Customizable Optional Parts

Standard Factory Configurations

  1. 400L large-capacity fuel tank for long continuous operation

  2. Full hydraulic PTO drive system (engine power take-off to drive vacuum pump & jet pump)

  3. Multi-way hydraulic control valve, real-time pressure monitoring gauges

  4. Independent hydraulic oil tank, inspection observation window, hand washing tank

  5. 6m wear-resistant suction hose, side maintenance climbing ladder

  6. Tubeless tires, reflective safety markings, maintenance-free battery, power steering

Upgradable Optional Equipment

  • Imported Italian/Spanish high-efficiency vacuum pumps

  • Full stainless steel tank body

  • Internal tank anti-corrosion epoxy coating

  • Auxiliary independent diesel engine to drive pump units (no chassis engine power consumption)

Complete Chassis Technical Data

Version 1: 25-ton GVW Isuzu 6×4 Chassis

  • Overall Dimension (L×W×H): 10000×2560×3700mm

  • Wheelbase: 4565+1370mm

  • Tire Spec: 12.00R22.5 (315/80R22.5 optional), total 10 tires (1 spare)

  • Curb Weight: 12,305kg; Rated Payload: 12,500kg

Version 2: Heavy-Duty 33-ton GVW Chassis (Model QL5340GXFU2SDZY)

  • Overall Dimension (L×W×H): 9895×2540×3055mm

  • Wheelbase: 4565+1370mm

  • Front track: 2065mm; Rear track: 1855/1855mm

  • Curb Weight: 9,260kg; GVW: 33,000kg; Axle load: 7000kg front / 26000kg rear tandem axle

  • Tire count: 11 tires including spare wheel

What Is a Truck Mounted Jetter System?

The truck-mounted jetter system is the core flushing assembly integrated on the Isuzu drainage cleaning truck, consisting of high-pressure water pumps, control valves, retractable jet hoses and power transmission parts. Different from separate trailer jetters, this integrated design shares the truck chassis power via PTO, requiring no additional transport vehicles. It realizes flexible on-site mobile sewer cleaning, ideal for narrow urban roads, residential community pipelines and remote rural drainage networks. Combined with the matched vacuum suction tank, it forms a dual-function jet-vac all-in-one sanitation vehicle to finish pipeline dredging and waste collection in a single trip.

Application Scenarios

  • Municipal city sewer pipeline dredging & blockage removal

  • Stormwater drain, underground culvert, flood discharge channel cleaning

  • Septic tank, grease trap, sewage sediment tank sludge suction & transportation

  • Highway roadside drainage ditch maintenance

  • Industrial park wastewater pipeline desilting

    Vehicle Brand ISUZU
    Overall Dimensions L*W*H 10000x2560x3700mm
    Weights GVW. 25000kgs
    Kurb Weight 12305kgs
    Rated Payload 12500kgs
    Chassis Chassis Brand ISUZU
    Drive Type 6x4
    Steering LHD
    Engine Brand ISUZU 6UZ1-TCG 380HP
    Power 380HP/279KW
    Emmission Level EURO 4, 5, 6
    Performance Max. Speed 90km/h
    Wheel base 4565+1370mm
    Tyre Specifications 12.00R22.5 , 315/80R22.5 for option
    No. of Tyre 10 pcs (1 spare tyre included)
    Cab Cab Capacity ISUZU GIGA Flat roof cab, 2 seats+1 bed,
    Body/Superstructure Tank Capacity 14-18 m³
    Material 5mm or 6mm high quality carbon steel
    Vacuum pump China famous vacuum pump
    Vacuum rate 99% thorically
    Suction head 6m-8m
    Rotation speed 500 rpm,low noise,high efficiency
    Basic Install vacuum pumps and hydraulic systems driven by engine through
    Equipments PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand

    washing tank and a piece of 6m suction hose
    Paint
    Tank color is according to client's requirements.
    Optional Equipments Italy or Spain vacuum pumps
    Stainless steel
    Anti-rust coating inside tank

Hot Tags

isuzu drainage cleaning truck, isuzu sewer jetter vacuum truck, isuzu combined high pressure jet vacuum tanker, china isuzu drainage cleaning truck manufacturer, isuzu GIGA sewer cleaning truck, 16000L isuzu sewer jet vacuum truck, 14m³ sewage 4m³ clean water jetter truck, municipal sewer dredging truck, HOWO sewer jetter cleaning truck, 12000L HOWO combined sewer jetting vacuum truck, integrated sewer cleaner truck, truck mounted high pressure jetter system, isuzu sewage suction tanker


Chassis Model

Horsepower

Wheelbase

Engine Model

Transmission Option

Cab Configuration

ISUZU FVR (4x2)

240 HP

4500/5550/5800

/6300/7150

6HK1-TCG61

FAST 8-speed Transmission

New ISUZU VC61 Series Cab

ISUZU FVZ (4x2 /6x4)

300 HP

4500/   7150

4350+1370/4650+1370

5100+1370/5800+1370

1850+2980+1370

1850+4575+1370

6HK1-TCG60

FAST 9-speed Transmission

New ISUZU VC61 Series Cab

ISUZU VC66 Series 6x4

350 HP

1850+4575+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series (4x2 /6x4/8x4)

380 HP

3900/4600/5600

3900+1370

3985+1370

4600+1370

1850+3000+1370

1850+2980+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series(6x4 )

420 HP

4800+1370

5200+1370

6WG1-TCG60

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series

460 HP

4600

4600+1370

4800+1370

5200+1370

5400+1370

2100+4325+1370 1850+4575+1370

6WG1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series( 6x4/8x4)

520 HP

4800+1370

5400+1370

2100+4325+1370

6WG1-TCG62

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU Vac tanker truck
