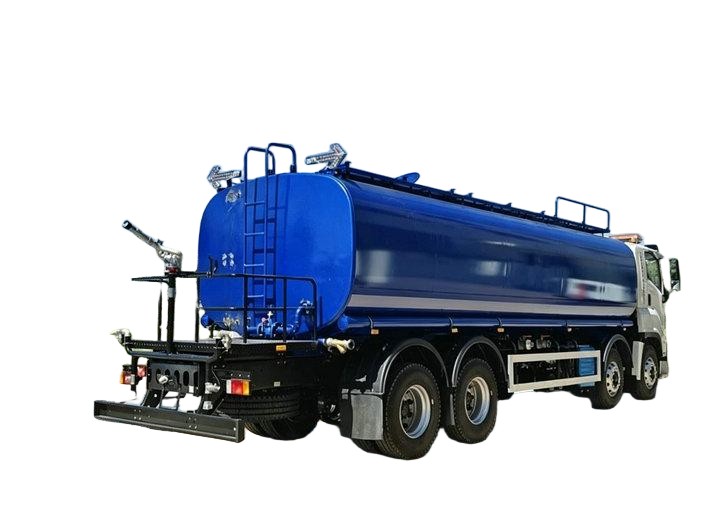

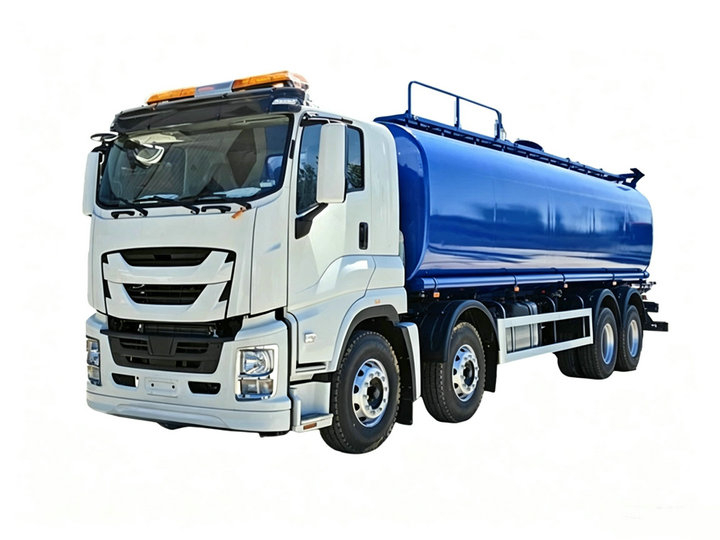

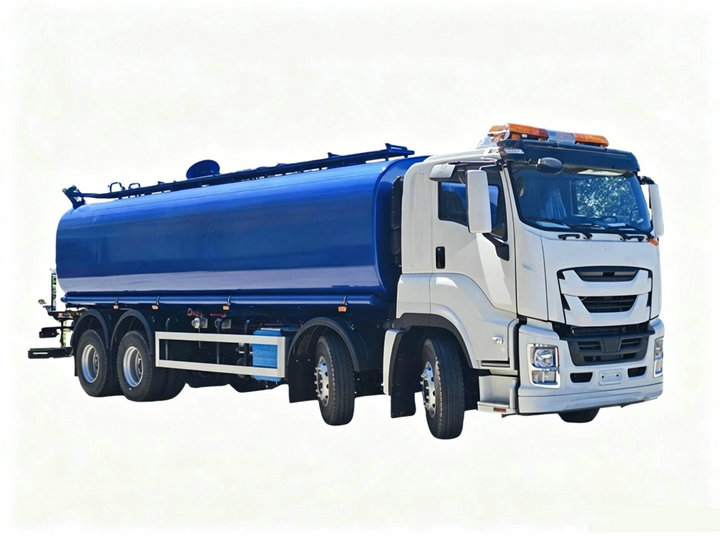

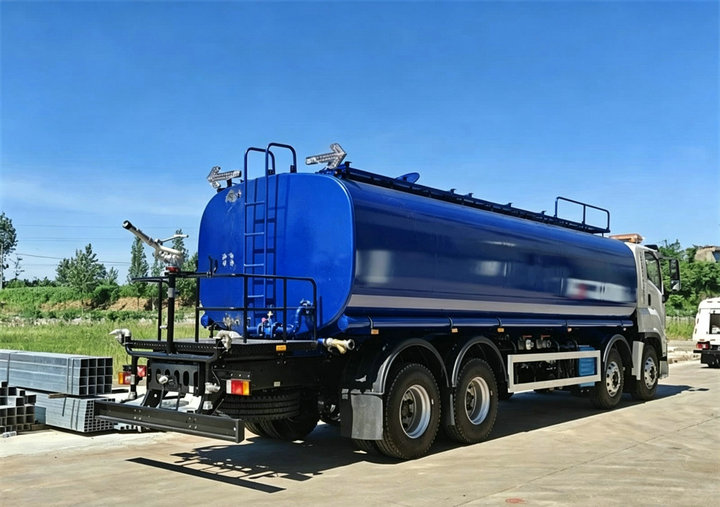

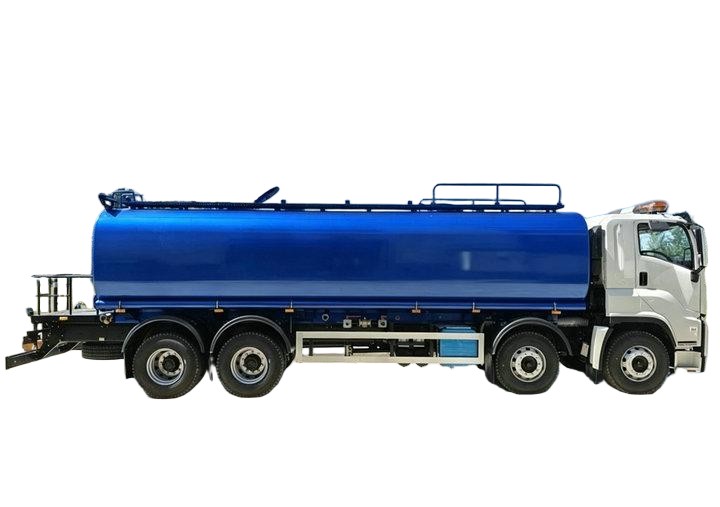

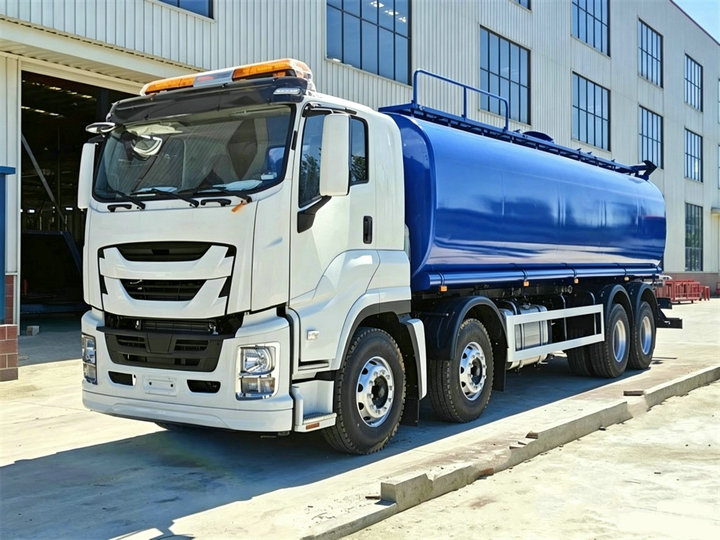

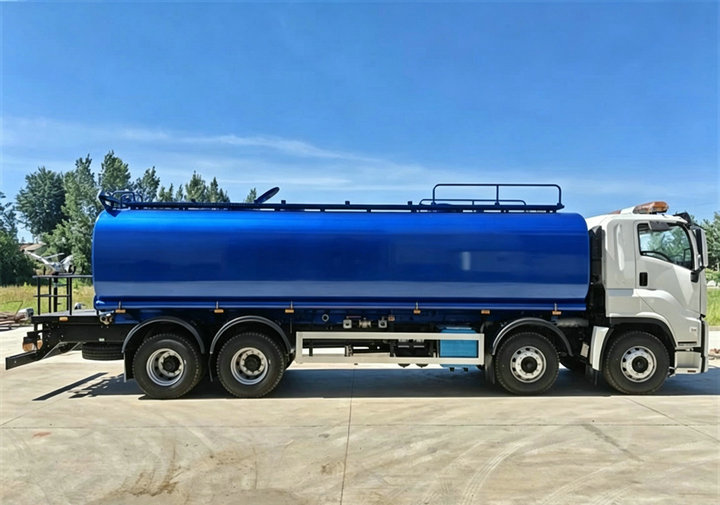

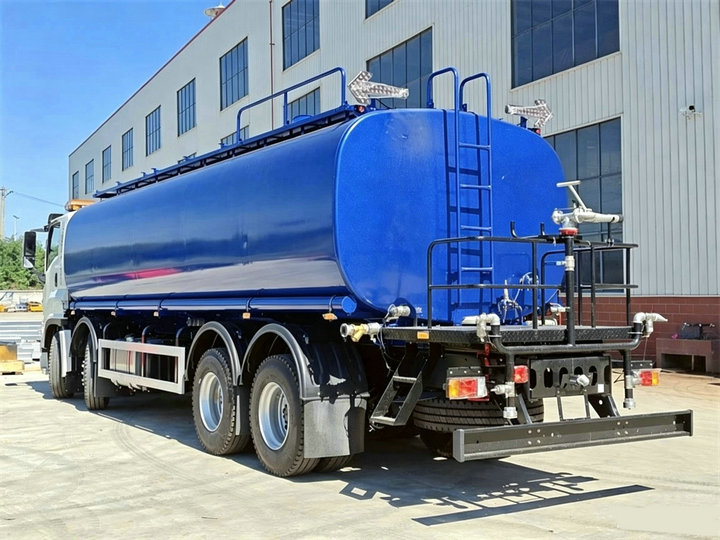

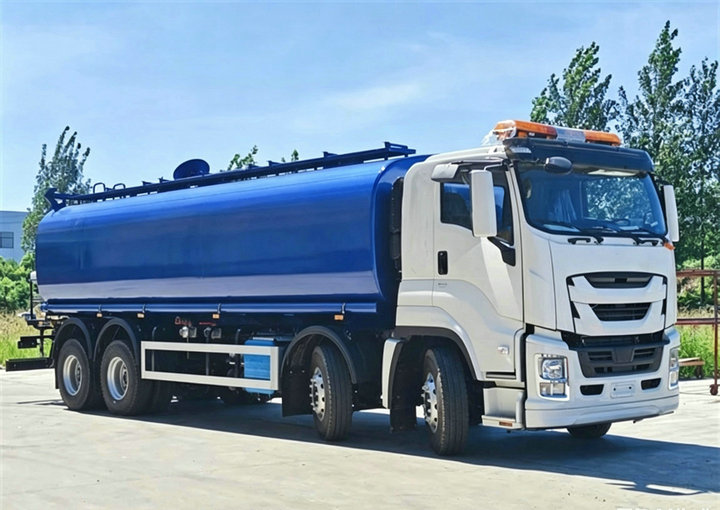

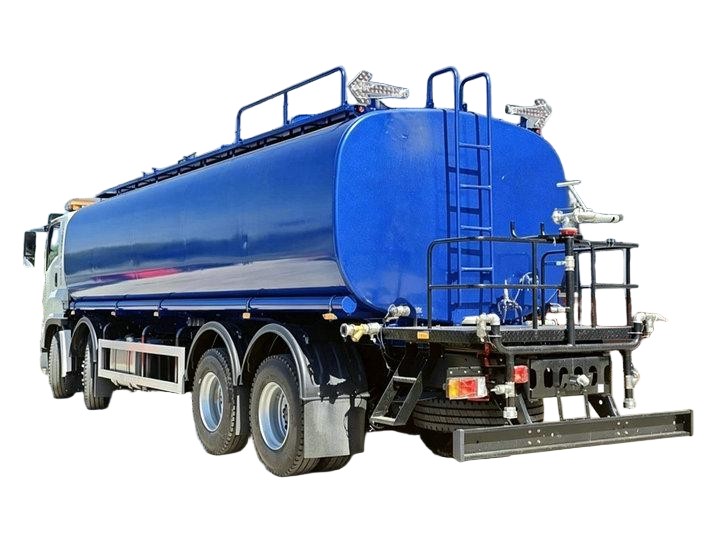

520HP Isuzu GIGA 30000L Dust Control Water Bowser Tanker Truck
| Isuzu GIGA heavy-duty 30000L water tanker | |||
| Main parameter | Overall dimension(LxWxH) | 11300*2580*3250mm | |
| Wheel base(mm) | 2100+4325+1370mm | ||
| Driving Type | 8×4,left hand drive | ||
| Color | White,blue,green,color can choose | ||
| Front/rear overhang | 1535/2215 | ||
| Max speed | 100 km/h | ||
| Weight in KGS | GVW | 33000 kg-44000kg | |
| Curb weight | 16500 kg | ||
| Loading capacity | 30T-35T | ||
| Front axles loading capacity | 7.5T*2 | ||
| Rear axles loading capacity | 16 T*2 | ||
| Engine | Engine model | Isuzu 6WG1-TCG62 | |
| Engine type | Inline 6-cylinder 6-stroke, supercharged, intercooled, water-cooled | ||
| Horsepower | 520HP | ||
| Max. output (kw) | 382Kw | ||
| Rated speed | 1800rpm | ||
| Maximum Torque | 2250N.m | ||
| Displacement(L) | 15.681L | ||
| Emission standard | Euro 6 | ||
| Transmission | Gear box 12 forward ,2 reserve | ||
| Tire | 295/80R22.5 standard tire,6 tires+1 spare tire | ||
| Brake | Air brake | ||
| Steering | Power steering | ||
| Body | Capacity | 30000L | |
| Structure | TANK MATERAIL | 6mm,Q235 steel or iner PE lined or Stainless steel | |
| Pipe | Galvanized pipe | ||
| Discharge nozzle | SS,at side bottom of tank,quick coupling | ||
| Discharge nozzle option | Stainless steel faucet | ||
| Water pump | Model | WEILONG 80QZF-60/90S pump | |
| Flow rate(L/m): | 60m3/h | ||
| Head of delivery(m) | 90m | ||
| Self-priming function(min/4m) | 1.5 | ||
| Efficiency(%) | 95% | ||
| Related rotate speed(r/min) | 1180 | ||
| Matched power(kw) | 22 | ||
| Water sprinkler system | Front sprinkler jet | 14m | |
| Rear sprinkler jet | 13m | ||
| Rear sprinkler nozzle range | 12m | ||
| Water cannon range | 45m | ||
| Water time | ＞5 minutes | ||
| Working condition | Flow≥60L/m, 1.55Mpa | ||
| Max working pressure | ≥0.9Mpa | ||
Isuzu GIGA water tanker
30000L water sprinkle truck
8x4 water truck
fire fighting water truck road sprinkler truck
1. Optional Tanker Body Material
Our Isuzu GIGA 30000L water tanker supports multiple tank body material customization to fit different working media and usage environments:
Carbon steel
Stainless steel
Aluminum alloy
PE Lined anti-corrosion plastic material
2. Customizable Water Pump & Full Optional Accessories
Water Pump Configuration
We match water pumps according to tank volume and required jetting distance, with world-famous imported pump brands optional for the Isuzu GIGA water sprinkle truck.
Optional Fittings & Pipeline Kits
Complete spraying pipeline system
Hose reel for pipe storage
Anti-slip aluminum access ladder
Multi-type quick couplings: Chinese standard, European standard, American standard joints
3. Core Advantages of Isuzu GIGA 520HP 8x4 30000L Water Tank Truck
Advantage 1: Powerful All-Round Multi-Angle Spraying System
This Isuzu GIGA 30000L water tanker delivers outstanding spraying performance for municipal cleaning, dust suppression, green irrigation and haze reduction.
Max self-suction depth: ≥12m
Effective sprinkling width: ≥18m
Long-range water cannon shooting distance: ≥38m

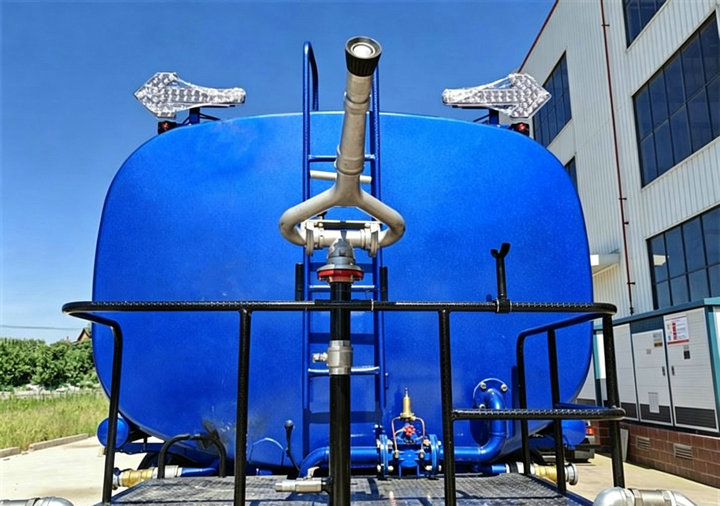

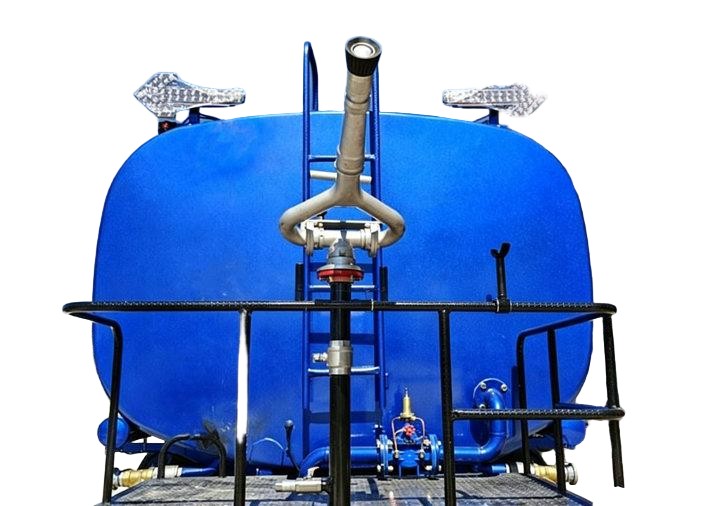

The truck is pre-installed with front spray nozzles, rear spray nozzles and a rotary water monitor to realize full-coverage multi-angle watering operations. A safe rear working platform with high-pressure adjustable spray gun is standard equipped. Operators can switch spray modes freely: heavy rain, moderate rain, drizzle, atomizing haze suppression to match different job scenarios.
Advantage 2: Emergency Firefighting Function & Humanized Structural Design
The Isuzu GIGA 520HP water sprinkle truck comes with a portable fire pump set, enabling rapid emergency fire rescue besides daily sprinkling work.

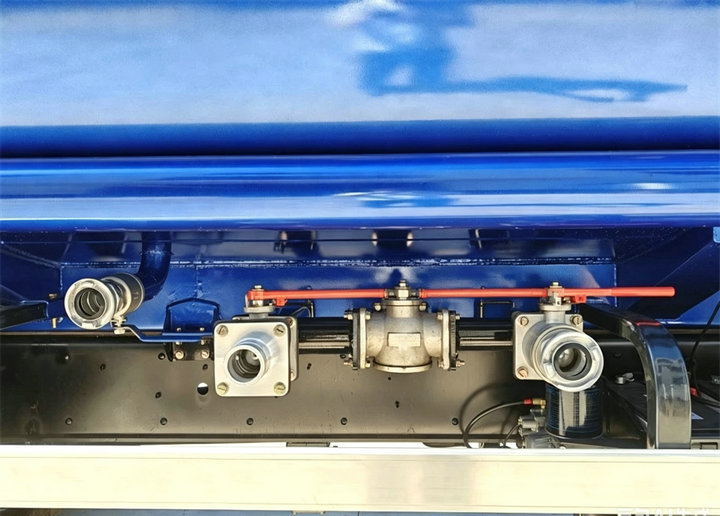

Independent water inlet & outlet control valves for easy flow regulation
Side pipeline storage cabinet to hold hoses and maintenance tools
DN500mm large manhole on tank top for convenient internal inspection & tank cleaning
Double side hose reels (2 hoses per side) for quick pipeline deployment in construction, irrigation and fire rescue
Advantage 3: WEILONG High Efficiency Water Pump System
Our standard matched pump for the Isuzu GIGA 30000L heavy water truck is WEILONG 80QZF-60/90S self-priming sprinkler pump with stable high-efficiency performance:
Rated flow rate: 60m³/h
Delivery head: 90m
4m height self-priming time: only 1.5 mins
Working efficiency: up to 95%
Rated rotating speed: 1180r/min
Matching power: 22kw
This high-performance pump system allows fast water absorption and rapid large-area spraying, greatly cutting working time and boosting overall construction efficiency.
Optional Water Pump Model:
| Model | Rate of flow | Throw of pump |
| 80QSB-60/90 | 60 | 90 |
| 65QSB-30/45 | 30 | 45 |
| 65QSB-50/110 | 50 | 110 |
