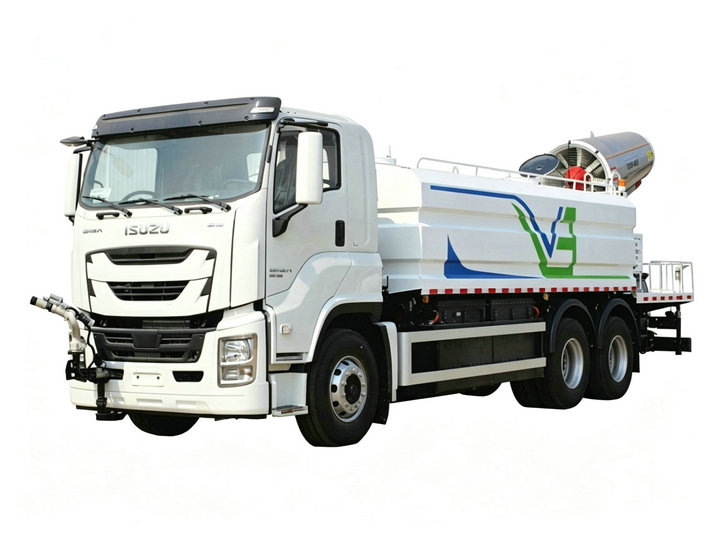

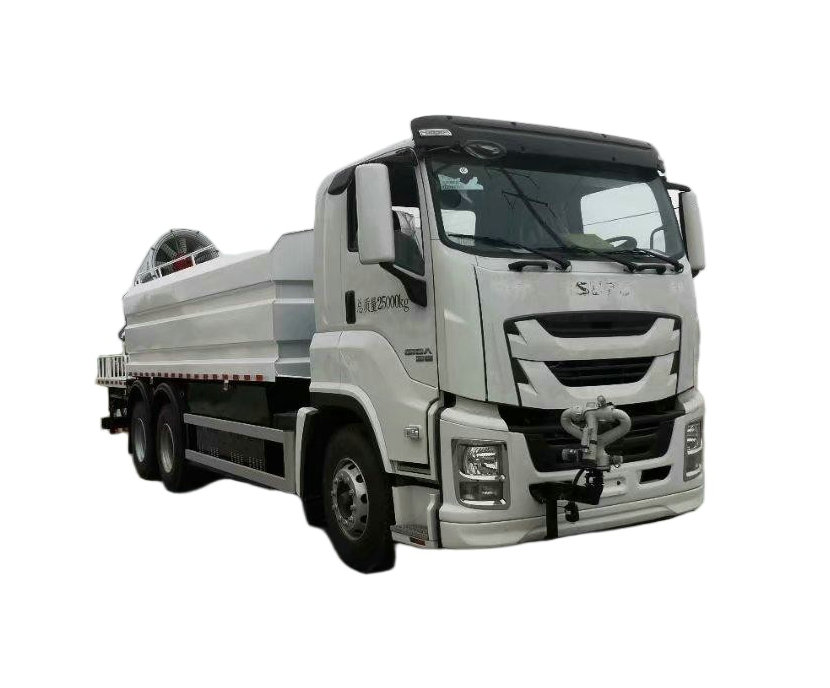

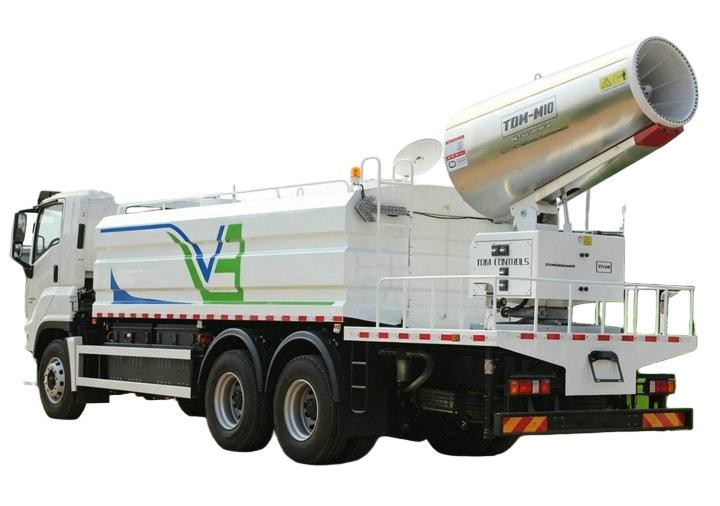

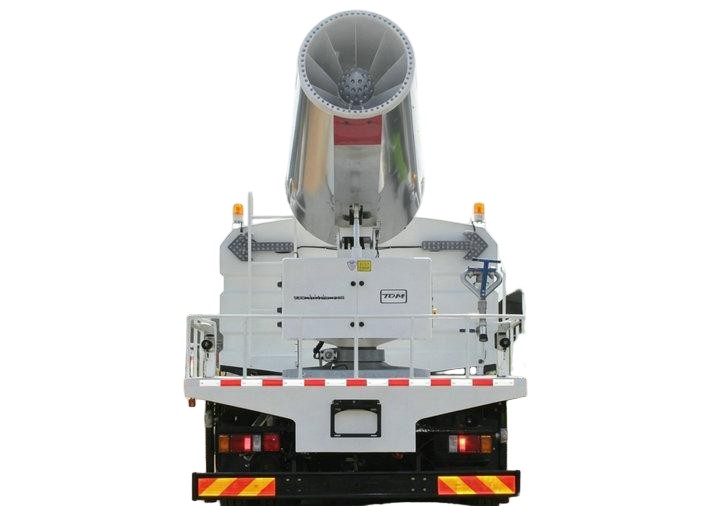

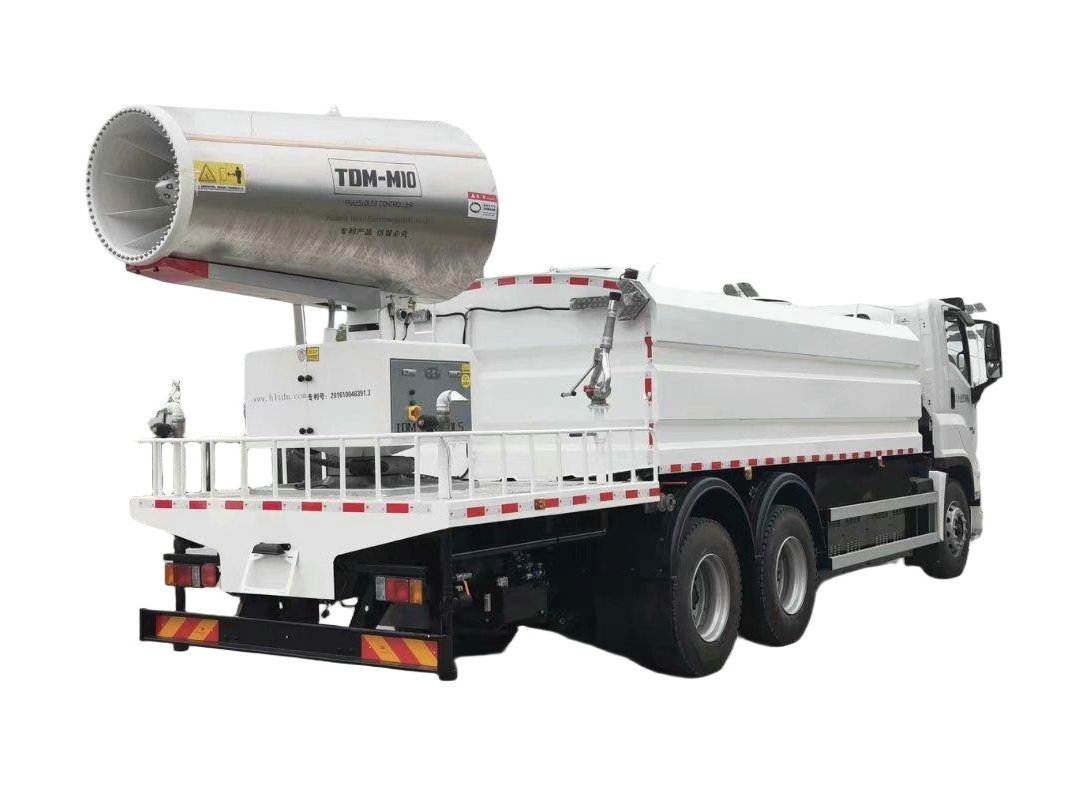

ISUZU GIGA Dust Control Water Tanker Mounted Dust Suppression Electric Water Cannon Fogging 100m

ISUZU GIGA Dust Control Water Tanker Mounted Dust Suppression Electric Water Cannon Fogging 100m
Remarks: Water tank capacity can be customized 14KL- 16KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 99800
Discount Price: $ 98000
Availability:
Quantity:

  • GIGA 380HP

  • DONG RUN ZE

  • 8705909990

  • Shanghai, China

  • 1000

  • T/T, Western Union

  • Nil

  • 1

ISUZU GIGA Dust Control Water Tanker Mounted Dust Suppression Electric Water Cannon Fogging 100m


Disinfection Sterilization, Epidemic Prevention, Pesticide Spray,

Spray Mist Fog Cannon,

Dust Supression,

Water Sprinkle,

Emergence Electric Power Supply.


ISUZU GIGA Water Cannon Truck(16,000L)

General

Chassis Brand

ISUZU

Overall Dimension

10100 * 2500 * 3650 mm

12100 * 2550 * 3850 mm

GVW / Kerb Weight

25,000kg / 12,600kg

44,000kg / 13,600kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

380 HP,420HP,460HP,520HP

Displacement

9839 ml

Emission Standard

Euro  5/6

Chassis

Drive Type

6X4 (left hand drive)

Transmission

16 speed levers with 2 reverse

Wheelbase

3900+1370

3985+1370

4600+1370

4800+1370

5200+1370

5400+1370

1850+3000+1370

1850+2980+1370

1850+4575+1370

2100+4325+1370

Tire Specification

295/80R22,12R22.5,385/65R22.5

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

16,000 Liters

Tank shape

Ellipse

Material

Carbon steel, 4mm

Optional Stainless Steel

Body Material

Whether resisting steel

Water pump

China famous brand

Loading type

Self loading

Front spray bar

YES

Rear spray bar

YES

Water Canon

28m,40m,50m,60m,80,100m,120m

Fire coupling

Standard

Control

Manual (Optional air operated)

Control panel

English or Your language

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.

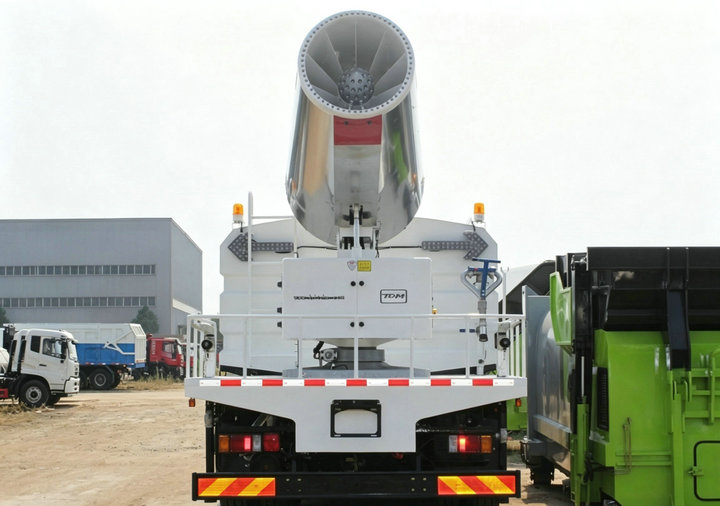

ISUZU GIGA Dust Control Water Cannon Truck (1)

specification of fog sprayer , pump and generator:


Serial

Parameter item

Parameter index

Remarks

1

Sprayer type

TDM-M10 type


2

Static wind range ( M )

100


3

Coverage area

20900/31400m2


4

Total power ( Kw )

38.6


5

Power of fan ( Kw )

30


6

Pump power ( Kw )

7.5


7

Power supply

AC380V , 50Hz Three phase four wire


8

Number of sprinklers (part)

110


9

Water consumption ( M 3 /h )

10


10

Pump pressure ( Mpa )

Centrifugal type 1.5-2.0Mpa


11

Water droplet diameter ( µm )

20-200


12

Rotation angle (electric)

±120°/±180°


13

Pitch angle ( Hydraulic pressure)

-10°~60°


14

control mode

Wireless remote control and touch screen / Cloud services


15

Fixed mode

Vehicle mounted, high platform, platform type


16

Protection level

IP55


17

Noise standard ( DB )

65dB @20m


18

Using ambient temperature (Temperature )

0-50


19

Outline size ( Mm )

2435x1155x2360


20

Weight ( Kg )

1540


21

Number of fans (unit)

2


22

Noise type

Double wall noise reduction


23

Spray ring type

International double spray form


24

Generating set ( Kw )

50 ( YUCHAI or Cummins EURO3 )

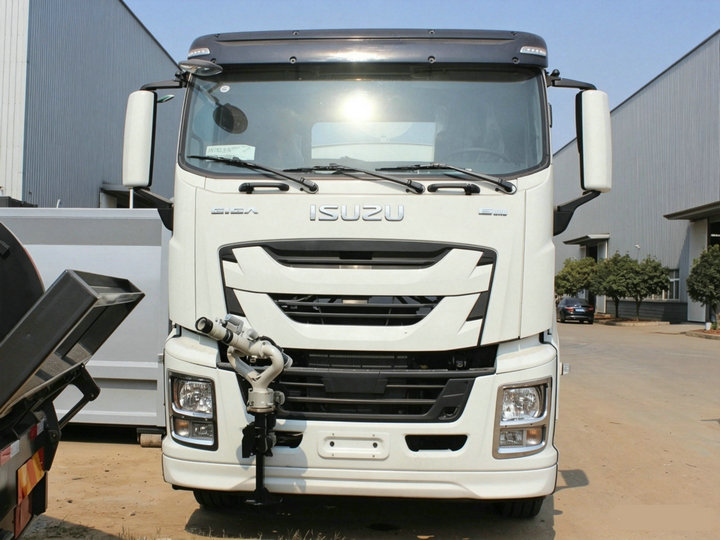

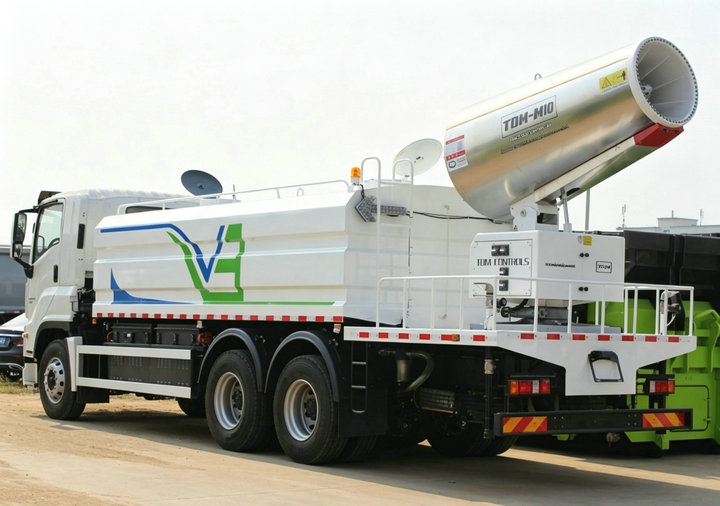

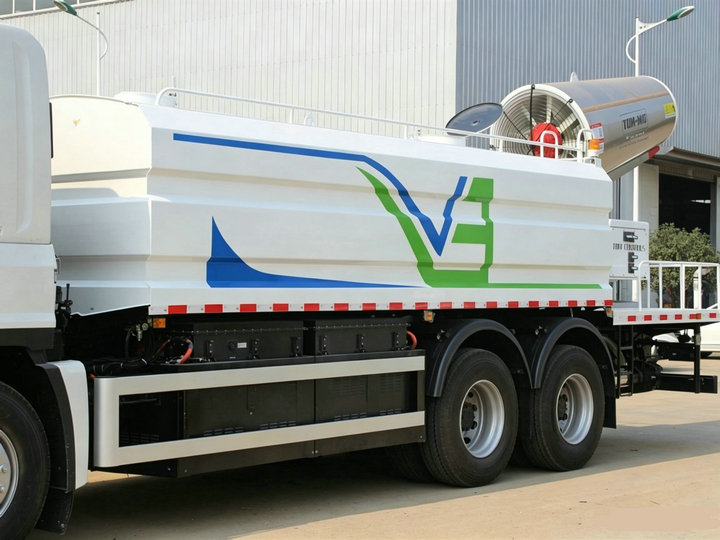

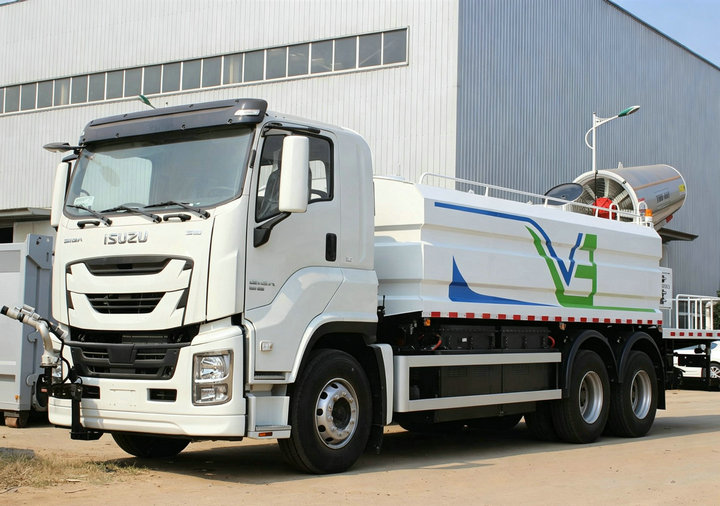

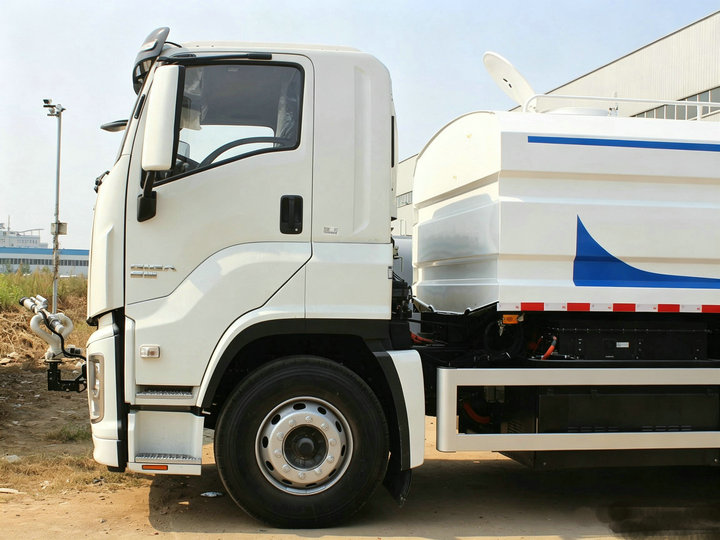

ISUZU GIGA Dust Control Water Cannon Truck (2)ISUZU GIGA Dust Control Water Cannon Truck (4)ISUZU GIGA Dust Control Water Cannon Truck (3)ISUZU GIGA Dust Control Water Cannon Truck (7)ISUZU GIGA Dust Control Water Cannon Truck (8)

ISUZU GIGA 16CBM Water Tanker Truck

Also named ISUZU GIGA water bowser truck, ISUZU GIGA water sprinkling truck, ISUZU GIGA water delivery truck and portable ISUZU GIGA water tanker, this multi-functional water sprinkler truck is widely applied in municipal road flushing, garden tree & lawn greening, high-rise building cleaning, construction site dust suppression and factory water transportation. It integrates four core functions: road washing, garden watering, bulk water transportation and emergency fire fighting.

Core Advantages & Key Features

  • Original ISUZU heavy-duty chassis with stable, reliable overall performance

  • Genuine ISUZU diesel engine, strong power output, maintenance-free within 100,000 kilometers

  • Streamlined elegant appearance, scientific and reasonable tank body structural design

  • High-flow powerful water pump from top Chinese brand, fast water suction & discharge efficiency

  • Robust anti-corrosion tank body, long service life and stable working performance

Primary Core Tags 16000L water tanker truck, ISUZU GIGA water bowser truck, 380HP water sprinkler truck, 16CBM ISUZU water delivery truck
