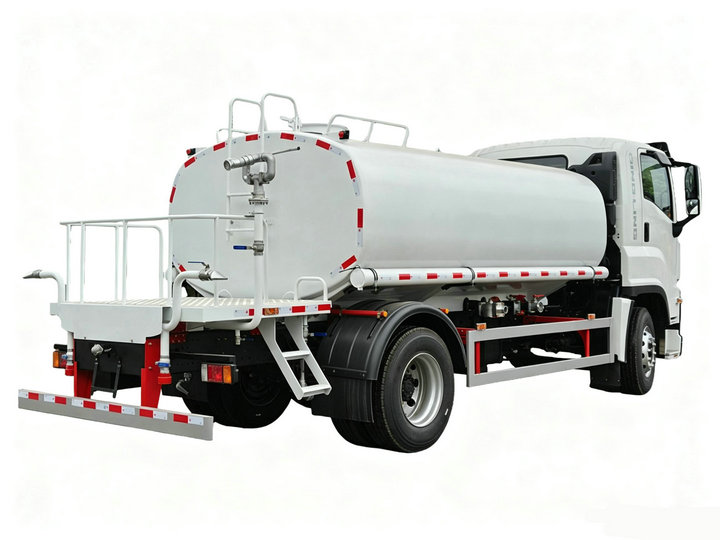

ISUZU GIGA 5X 12000Liters Stainless Steel Dust Control Water Tanker Bowser Truck

Share to:

ISUZU GIGA 5X 12000Liters Stainless Steel Dust Control Water Tanker Bowser Truck

ISUZU GIGA 5X 12000Liters Stainless Steel Dust Control Water Tanker Bowser Truck
Remarks: Water tank capacity can be customized 10KL- 12KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675

Price: $ 59900

Discount Price: $ 58800

Availability:

Quantity:

Model:
GIGA 5X
Brand:
DONG RUN ZE
Code:
8705909990
Port:
Shanghai, China
Production Capacity:
1000
Payment Terms:
T/T, Western Union
Transport Package:
Nil
Min. Order:
1

Product Description

ISUZU GIGA 5X 12000Liters Stainless Steel Dust Control Water Tanker Bowser Truck

ISUZU GIGA 5X 12000L Water Sprinkler Truck 240HP | SS304 Water Bowser for Port Sanitation

ISUZU 12ton 12 m3 SS304 Stainless Steel Water tanker truck

ISUZU GIGA 5X Chassis

Chassis model	QL1180EQFRY

Overall dimensions(mm)	8120×2550×3140

Wheel base(mm)	4500

Driving type	4×2

Total weight(Kg)	18000

Cabin	FVR, GIGA 5X, Row half cab

Number of axes	2

Tires No.	6

Steering	Left drive hand

Approach/departure angle	15/12(°)

Front /rear overhang(mm)	1335/2415

Axle (front/rear)	6.3t/ 13t

Wheel track(front/rear)(mm)	1990/1855

Tyre size	295/80R22.5

Tyre number	(6+1) one spare tire

Max driving speed(km/h)	105

Brake	Air brake type

Engine Model	6HK1-TCG61

Engine Type	Diesel

Engine horse power	240hp

Engine displacement	7.79L

Engine emission	Euro 6

Engine Type	In-line six cylinder, water cooled, four stroke, supercharged medium cooled, direct injection

Transmission model	FAST 8JS95TE-C, 6F+1R

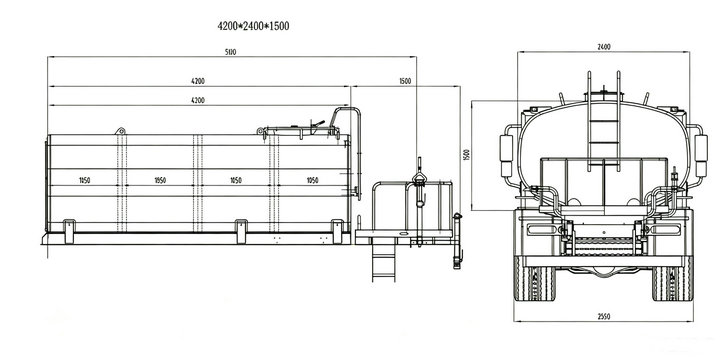

Tank Body

Water Tanker Capcity	12000Liters / 3200Gallons

Tank Color & Logo	Customized

Tanker body material	Stainless Steel SS304

Water Tank Thickness	5mm

Shape of tank	Elliptic / Oval

Sprinkler System	Front Flush Nozzles	Sprinkling width≥14m

	Rear Sprinklers	Sprinkling width≥12m

	Water Cannon	360 degree rotation, Shooting range ≥28m

	Working Platform	an operator standing there to operate the water cannon

Compartment No.	1 (Can be divided according to customer requirements)

Baffle	1 No, 3 mm stainless steel SS304

Standard Configuration	Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. Seat Belts, Side Door Lock Mirror, Heavy-duty Air Compressor, Front Shaft Stabilizer, Room Lamp Key Lock Fuel Tank Cap, Bottom Mounted Spare Wheel Carrier, Halogen Headlamps, Radiator Protector.






Selective Configuration	Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights.






Water pump	Brand	Chinese famous pump WEILONG water pump 80QZF-60/90 model

	Vertical suction height	7m

	Water intake time for full tank	About 10 min

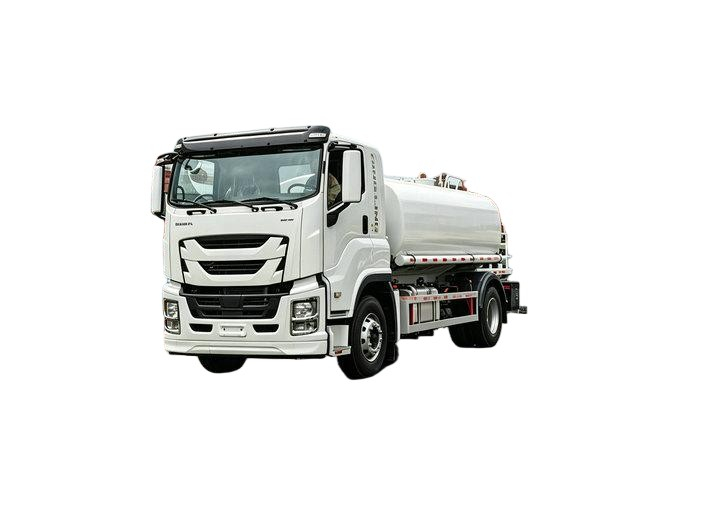

1. Reliable ISUZU GIGA 5X Chassis & Power Performance

This water sprinkler truck adopts the original ISUZU GIGA 5X heavy-duty truck chassis, available in 4×2 standard driving and 4×4 off-road driving modes, supporting left-hand drive (LHD) and optional right-hand drive (RHD) to adapt to global road standards. The gross vehicle weight reaches 18,000kg, meeting heavy-duty continuous operation requirements for ports, municipal roads and large-scale sanitation projects.

It is equipped with a Japan-originated 6HK1-TCG61 inline six-cylinder diesel engine, delivering a rated power of 240HP (300HP high-power version optional +$3030). With 7790cc displacement and Euro 6 emission standards, the engine features strong power output, low fuel consumption and high durability, ensuring stable long-term operation in complex working conditions.

2. Premium SS304 Stainless Steel Water Tank Body

The tanker body adopts an integral fully-welded oval structure, manufactured from high-quality SS304 food-grade stainless steel. Both the tank body and protective covers are 5mm thick, with excellent corrosion resistance, rust resistance and leak-proof performance, suitable for storing and transporting clean water.

The standard tank capacity is 12,000 liters (3200 gallons / 12CBM), with overall dimensions of 4200×2400×1500mm. A 1500mm wide rear operating platform is reserved for safe and convenient manual operation. The interior is equipped with customized anti-shake baffles to reduce water turbulence during driving and improve driving stability. The tank compartment can be divided into multiple independent cabins according to customer demands, and body painting and brand logos support full personalized customization.

3. High-Efficiency WEILONG Water Pump System

Matched with China top-brand WEILONG 80QZF-60/90 professional water pump, the system achieves efficient water absorption and drainage with stable and durable performance. The rated flow rate reaches 60m³/h, with a maximum water jetting distance of 90m, 6.5m super self-suction height, 1180rpm rated rotating speed and 22.5KW working power. The full 12-ton water tank can be completely filled within 10 minutes, greatly improving operational efficiency.

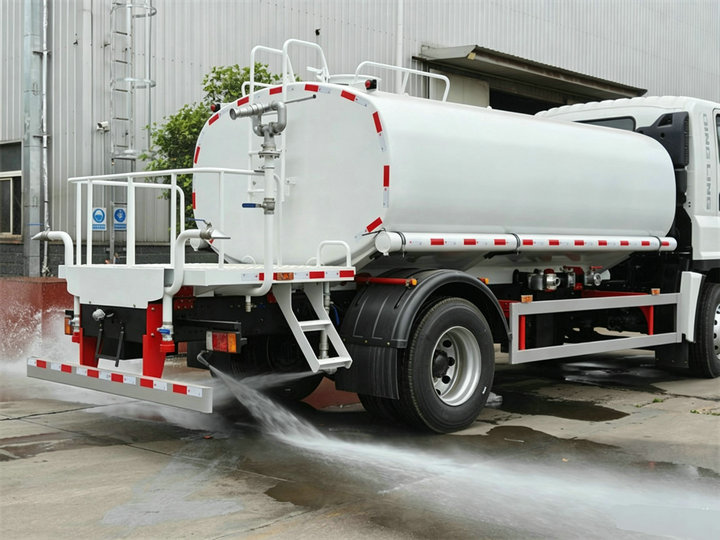

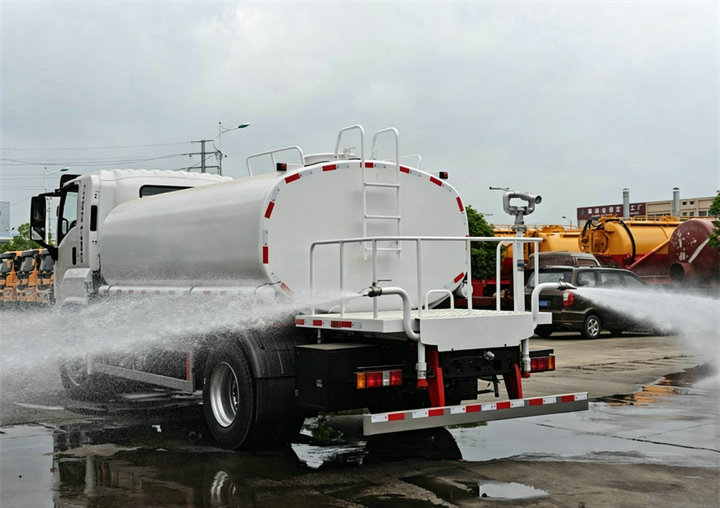

4. Multifunctional Sprinkler & Professional Operating Equipment

The truck is fitted with a full set of multi-scene sprinkling equipment with independent control valves, realizing diversified sanitation operations:

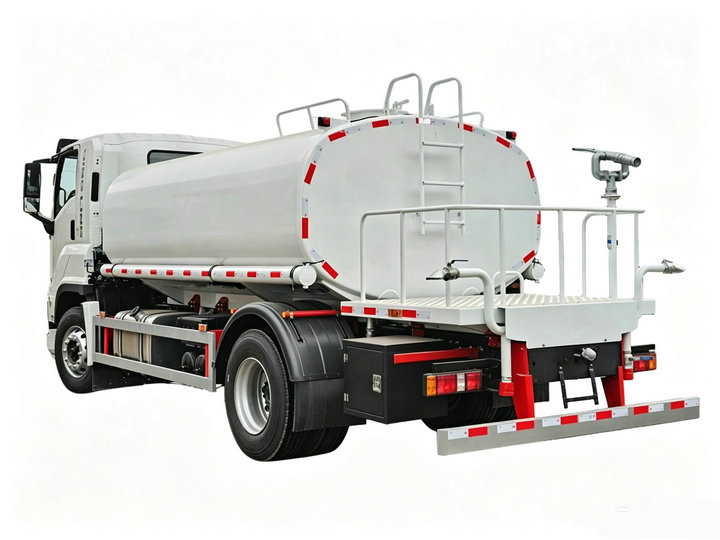

360° Rotatable Water Cannon: Installed on the rear platform, supports omnidirectional angle adjustment, applicable for high-altitude dust removal, large-area watering and emergency fire sprinkling
High-Pressure Jet Nozzles: Specialized in high-pressure flushing for road surface dirt and sediment cleaning
Upper Spraying Nozzles: Used for road green belt watering and regional dust suppression
Lower Spraying Nozzles: Suitable for ground dust reduction and daily road maintenance

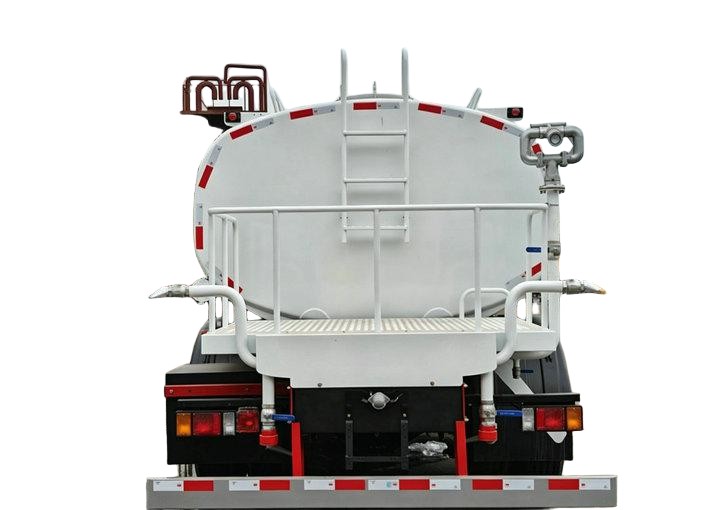

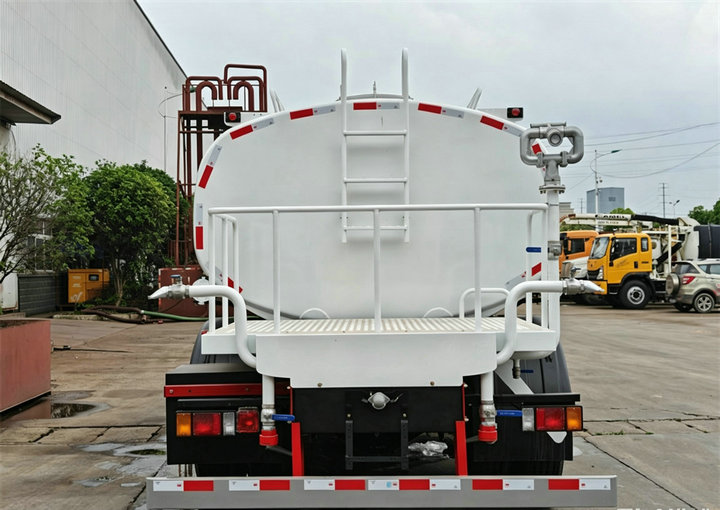

Equipped with a reinforced rear working platform, safety guardrails and anti-slip climbing ladders, the truck guarantees safe and efficient manual operation. Standard configurations such as water injection ports, discharge outlets, liquid level gauges, filter screens and hose reels fully meet daily water collection, transportation and sprinkling work needs.

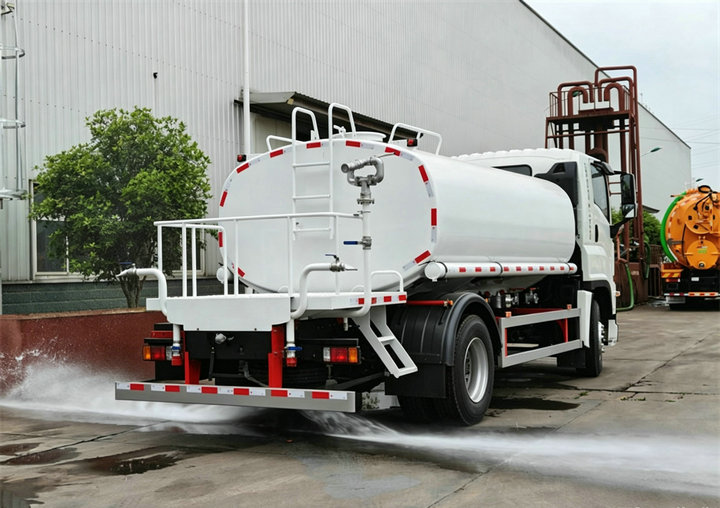

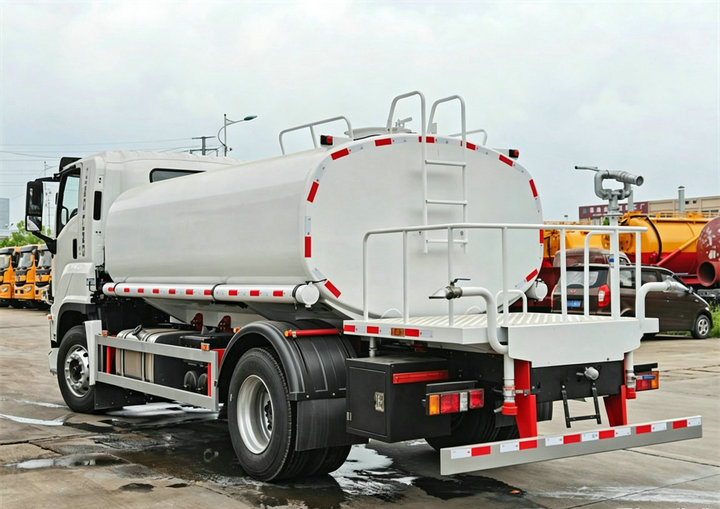

ISUZU GIGA 5X 12000Liters water tanker truck (3)

Basic Vehicle Configuration

Product Name: ISUZU GIGA 5X 12000L Water Sprinkler Truck
Cabin: GIGA 5X half-row cabin, customized color and painting available
Driving Mode: LHD/RHD optional, 4×2 / 4×4 off-road optional
Engine Model: 6HK1-TCG61 diesel engine, 240HP, 7.79L displacement, Euro 6 emission
Transmission: FAST 8-speed manual transmission (8 forward + 1 reverse gears)
Wheelbase: 4500mm
Tire Specification: 295/80R22.5, 6 tires + 1 spare tire

Detailed Chassis Parameters

Chassis Model: QL1180EQFRY
Overall Dimensions: 8120×2550×3140mm
GVW: 18000kg
Number of Axles: 2
Approach/Departure Angle: 15° / 12°
Front/Rear Overhang: 1335mm / 2415mm
Front/Rear Axle Load: 6.3T / 13T
Front/Rear Wheel Track: 1990mm / 1855mm
Max Driving Speed: 105km/h
Brake System: Full air brake system

Tank & Sprinkler System Parameters

Tank Capacity: 12000L / 3200Gallons / 12CBM
Tank Material: SS304 stainless steel, 5mm thickness
Tank Shape: Oval / Elliptic
Front Flushing Width: ≥14m
Rear Sprinkling Width: ≥12m
Water Cannon Jetting Range: ≥28m
Anti-shake Baffle: 3mm SS304 stainless steel baffle (standard)
Hose Reel: Customized side storage box, length customized according to tank size

Water Pump Core Parameters

Pump Brand & Model: WEILONG 80QZF-60/90
Rated Flow Rate: 60m³/h (1000L/min)
Max Jetting Distance: 90m
Rated Rotation Speed: 1180rpm
Working Power: 22.5kW
Max Self-Suction Height: 7m
Full Tank Filling Time: About 10 minutes

Standard & Optional Configuration

Standard Full Configuration

Original ISUZU chassis, subframe, high-strength tank body, manhole cover, professional water pump, full-set front/side/rear sprinkler nozzles, rear working platform, 360° rotating water cannon, fire valve, control water valve, filter gauze, water hose, climbing ladder, safety seat belt, door lock & rearview mirror, heavy-duty air compressor, front axle stabilizer, interior lamp, key-locked fuel tank cap, bottom spare tire carrier, halogen headlamps, radiator protector.

Custom Optional Configuration

SS304/aluminum alloy water tank, tank insulation layer, stainless steel water pump, fire-fighting pump, high-pressure fire gun, pesticide spraying plate, cabin pneumatic control system, Honda power pump, warning lights, truck crane, hanging basket, special rear spraying device, barrel pesticide spraying equipment, gasoline/diesel pesticide sprayer, LED arrow warning lights.

Production & Working Principle

The ISUZU GIGA 5X 12000L multifunctional water truck is assembled based on authentic Japanese ISUZU chassis technology. It adopts a high-quality PTO power take-off device to obtain power from the 6HK1 diesel engine, and transmits power to the supporting WEILONG water pump through the transmission shaft, realizing automatic water suction, drainage and multi-angle sprinkling functions.

Widely applicable for road cleaning, dust suppression, landscape greening, port sanitation and emergency fire fighting, this water bowser is popular in Southeast Asia, Central America, South America and Caribbean regions, including the Philippines, Honduras, Belize, Salvador, Nicaragua, Peru and other countries.

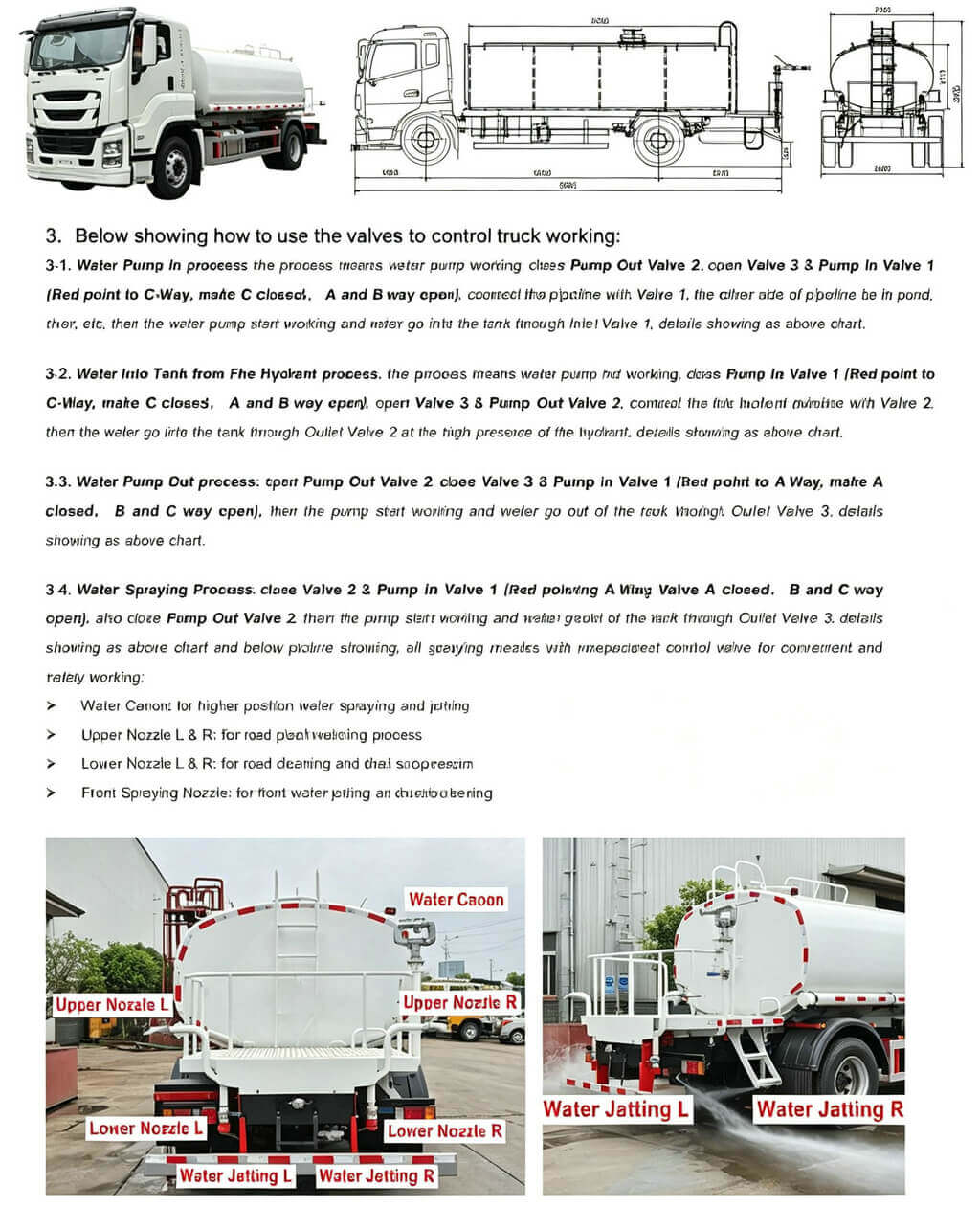

Standard Operation Steps

1. Water Pumping (Water Intake)

Close the pump-out valve, open the water inlet valve and auxiliary valve, connect the pipeline with natural water sources such as rivers and ponds, start the water pump, and the clean water will be automatically injected into the tank quickly. ISUZU GIGA 5X 12000Liters water tanker truck

ISUZU GIGA 5X 12000Liters water tanker truck

2. Hydrant Water Filling (Passive Water Intake)

Turn off the water pump, close the water inlet valve, open the water outlet valve and auxiliary valve, connect the fire hydrant pipeline, and use hydrant pressure to fill the tank with water.

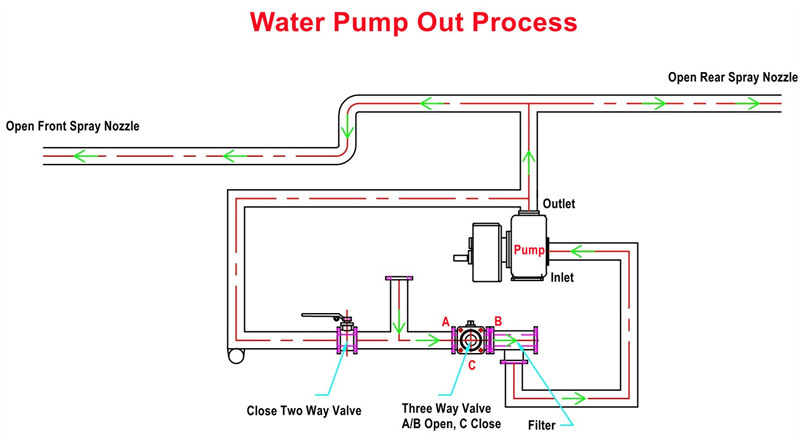

3. Water Pumping Out

Open the pump-out valve, close the water inlet valve and auxiliary valve, start the pump to discharge water through the professional water outlet for water transportation and emergency water supply.

4. Multi-Functional Sprinkling Operation

Close the water inlet valve, pump-out valve and auxiliary valve, start the water pump, and independently control each nozzle group to realize different functions: water cannon for high-altitude jetting, upper nozzles for greening watering, lower nozzles for dust suppression, and front nozzles for road flushing. ISUZU GIGA 5X Water Sprinkler Truck
