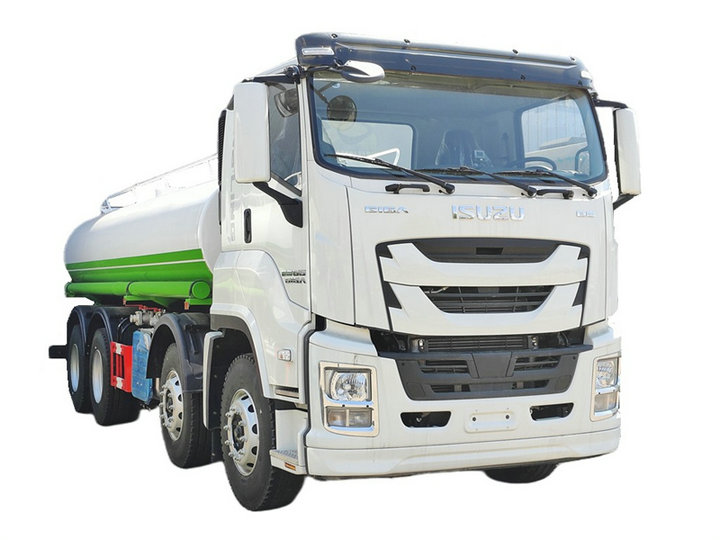

520HP Isuzu GIGA 20000L -25000L Stainless Steel Dust Control Water Bowser Tanker Truck
Remarks: Water tank capacity can be customized 20KL- 25KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
GIGA 520HP
-
DONG RUN ZE
-
8705909990
-
Shanghai, China
-
1000
-
T/T, Western Union
-
Nil
-
1
Isuzu GIGA 20000L -25000L Stainless Steel Dust Control Water Bowser Tanker Truck
| Work Capacity: | 20000 L |
| Dimension ( Mm ): | 11300*2580*3250mm |
| Wheelbase ( Mm ): | 2100+4325+1370mm |
| Engine Power: | 520HP |
| Engine Type: | 6WC1-TC C62 |
| Axle Drive: | 8X4, LHD |
| Gear Box: | Fast12- speed,manual |
Isuzu GIGA 20000L Heavy-Duty Water Sprinkler TruckProduct Overview
Our 20,000-liter Isuzu GIGA water tanker is powered by the reliable Isuzu 6WG1-TCG62 engine, a high-performance industrial powertrain. Built as an inline 6-cylinder 4-stroke unit with turbocharging, intercooling and full water cooling, it delivers a robust 520 HP (382 kW) output to handle all complex road conditions and heavy-duty watering tasks effortlessly. It generates a peak torque of 2,250 N·m at 1,800 rpm, delivering instant strong power for startup, steep climbing and continuous field operations.

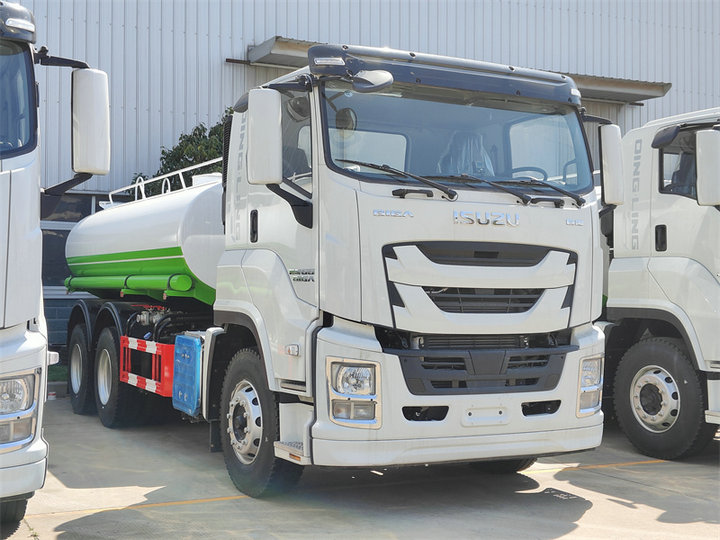

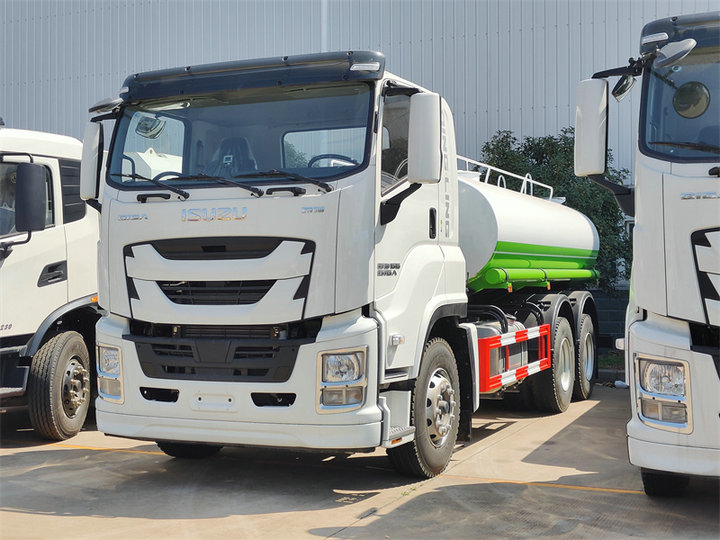

This Isuzu GIGA 8×4 520HP water truck features left-hand drive, matching mainstream global driving habits. The one-and-a-half-row GIGA 5X cabin chassis delivers spacious, comfortable driving room and convenient operation space for crews.
Isuzu GIGA heavy-duty 20000L-30000L water tanker Truck | |||
Main parameter | Overall dimension(LxWxH) | 11300*2580*3250mm | |
Wheel base(mm) | 2100+4325+1370mm | ||
Driving Type | 8×4,left hand drive | ||
Color | White,blue,green,color can choose | ||
Front/rear overhang | 1535/2215 | ||
Max speed | 100 km/h | ||
Weight in KGS | GVW | 33000 kg | |
Curb weight | 16500 kg | ||
Loading capacity | 20000kg,22000kg,24000kg,25000kg, 26000kg,27000kg,28000kg,30000kg | ||
Front axles loading capacity | 7.5T*2 | ||
Rear axles loading capacity | 16 T*2 | ||
Engine | Engine model | Isuzu 6WG1-TCG62 | |
Engine type | Inline 6-cylinder 6-stroke, supercharged, intercooled, water-cooled | ||
Horsepower | 520HP | ||
Max. output (kw) | 382Kw | ||
Rated speed | 1800rpm | ||
Maximum Torque | 2250N.m | ||
Displacement(L) | 15.681L | ||
Emission standard | Euro 6 | ||
Transmission | Gear box 12 forward ,2 reserve | ||
Tire | 295/80R22.5 standard tire,6 tires+1 spare tire | ||
Brake | Air brake | ||
Steering | Power steering | ||
Body | Capacity | 20000L,22000L,24000L,25000L, 26000L,27000L,28000L,30000L | |
Structure | TANK MATERAIL | 5mm,6mm, Stainless Steel | |
Pipe | Galvanized pipe or Stainless Steel | ||
Discharge nozzle | SS,at side bottom of tank,quick coupling | ||
Discharge nozzle option | Stainless steel faucet | ||
Water pump | Model | WEILONG 80QZF-60/90S pump | |
Flow rate(L/m): | 60m3/h | ||
Head of delivery(m) | 90m | ||
Self-priming function(min/4m) | 1.5 | ||
Efficiency(%) | 95% | ||
Related rotate speed(r/min) | 1180 | ||
Matched power(kw) | 22 | ||
Water sprinkler system | Front sprinkler jet | 14m | |
Rear sprinkler jet | 13m | ||
Rear sprinkler nozzle range | 12m | ||
Water cannon range | 45m | ||
Water time | ＞5 minutes | ||
Working condition | Flow≥60L/m, 1.55Mpa | ||
Max working pressure | ≥0.9Mpa | ||

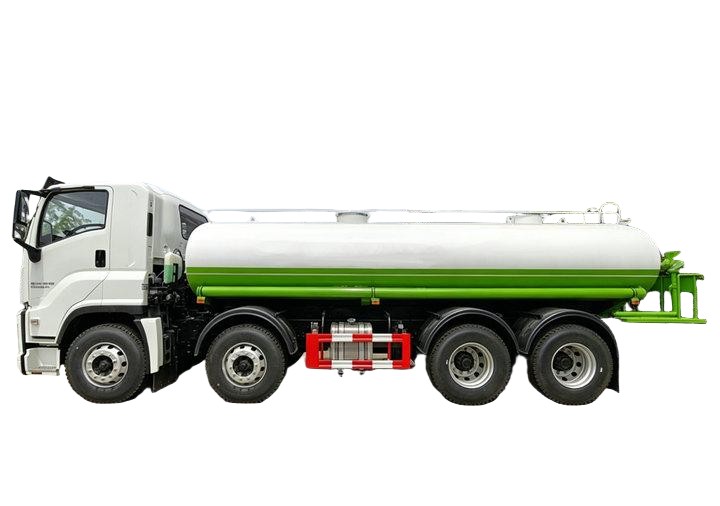

Chassis Dimension Layout
Wheelbase: 2100+4325+1370 mm
Front/rear overhang: 1535 mm / 2215 mm
Front/rear track width: 1960 mm / 1855 mm The well-balanced chassis layout delivers outstanding vehicle stability and outstanding off-road passability.
Total Gross Vehicle Weight (GVW): 33,000 kg
Curb Weight: 13,500 kg
Max Design Speed: 105 km/h, enabling fast transit to job sites.
Full Vehicle Drivetrain & Control System
Transmission SystemFitted with a Fast 12-speed manual gearbox: 12 forward gears + 2 reverse gears. Crisp, precise shifting allows flexible speed adjustment for diverse terrain and watering workflows.
Steering SystemHydraulic power steering cuts driver fatigue and guarantees light, responsive maneuvering.
Brake SystemFull air brake system delivers powerful, instant stopping performance to secure driving and on-site operation safety.
Our Factory Advantages
Top-tier professional water tanker manufacturer in China
Over 30 years of special vehicle production experience
Custom design & manufacturing tailored to your technical requirements
Rigorous full-process QC team for strict quality control
Complete global after-sales service support
Core Product Advantages
1. Large-Capacity Anti-Corrosion Stainless Steel Tank

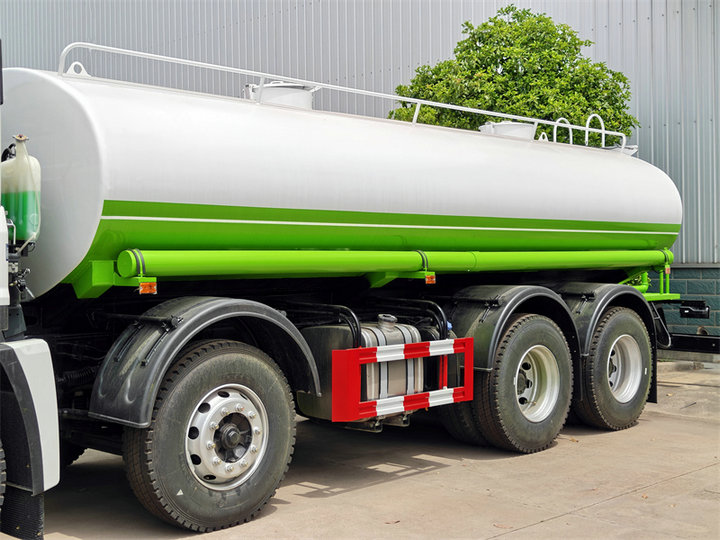

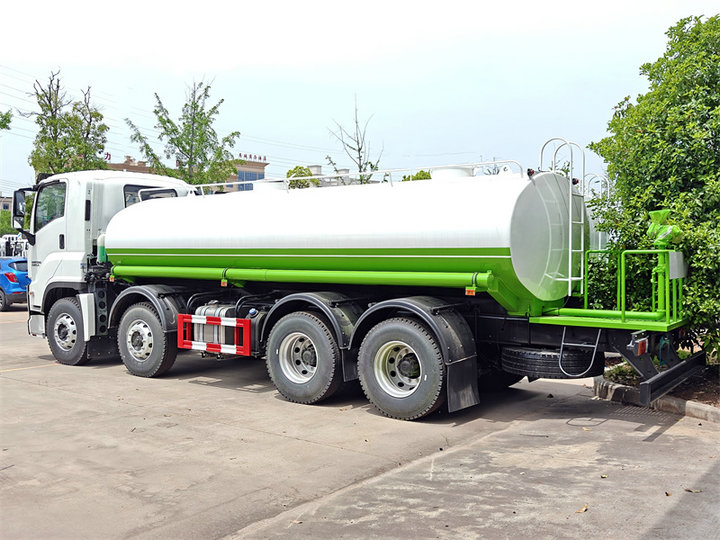

This Isuzu GIGA 8×4 water sprinkler truck comes with a 20,000-liter elliptical Stainless steel tank with 6mm thick panels. High structural strength and excellent rust resistance extend tank service life drastically. The large water storage volume reduces frequent water refilling trips and drastically boosts large-area watering efficiency for road maintenance, greening and dust suppression.
2. Multi-Functional All-Round Spraying Performance
Powerful integrated sprinkler system with multi-angle spraying configurations: front spray bars, rear side nozzles and a rotatable high-pressure water monitor.
Max suction depth: ≥ 18 m
Max sprinkling width: ≥ 14 m

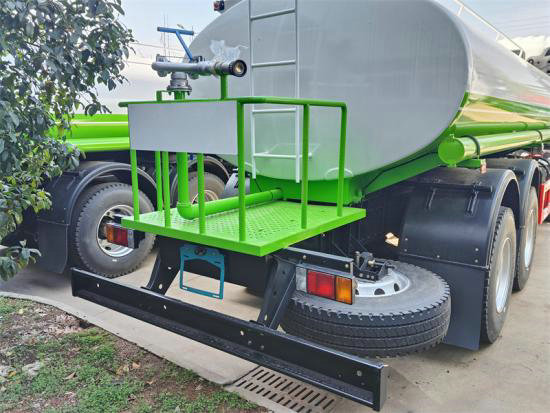

Horizontal spray range: ≥ 28 m A rear operating platform is equipped with an adjustable high-pressure water gun, supporting multiple spray modes: heavy rain, moderate spray, fine mist and anti-haze atomization, fully adaptable to landscaping, dust control, road washing and disinfection jobs.
3. Emergency Firefighting & Humanized Auxiliary Design

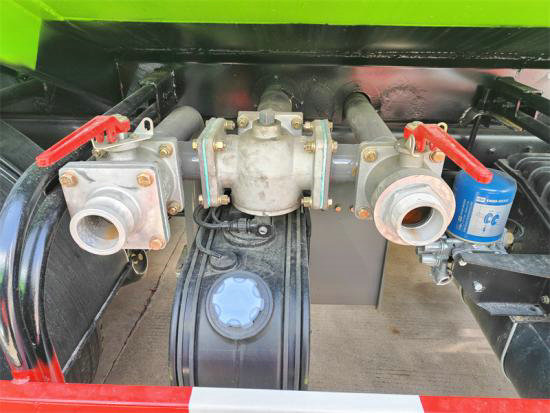

Equipped with a portable fire pump assembly for emergency fire suppression and rescue operations. Independent water inlet & outlet control valves allow easy flow regulation for operators.
Side pipeline storage compartment to store hoses and maintenance tools

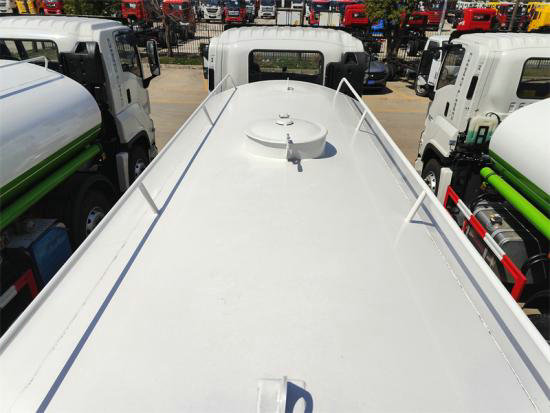

DN500mm manhole access on tank top for internal inspection & cleaning
Two side hose reels on both tank sides for quick hose storage and deployment
4. High-Efficiency Weilong Self-Priming Water Pump
The matched WEILONG 80QZF-60/90S pump delivers stable high flow and lift head, with 95% high working efficiency. Fast 1.5-minute self-priming at 4m depth enables rapid water intake and continuous high-pressure spraying, cutting down working downtime and improving overall operational productivity.
