ISUZU 2KL 3KL 4KL Sewer Septic Sewage Vacuum Tank Truck

ISUZU 2KL 3KL 4KL Sewer Septic Sewage Vacuum Tank Truck
Tank capacity can be customized 2KL- 4KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 23300
Discount Price: $ 21800
Availability:
Quantity:

  • DRZ5040GXWQL

  • DRZ

  • 8705909990

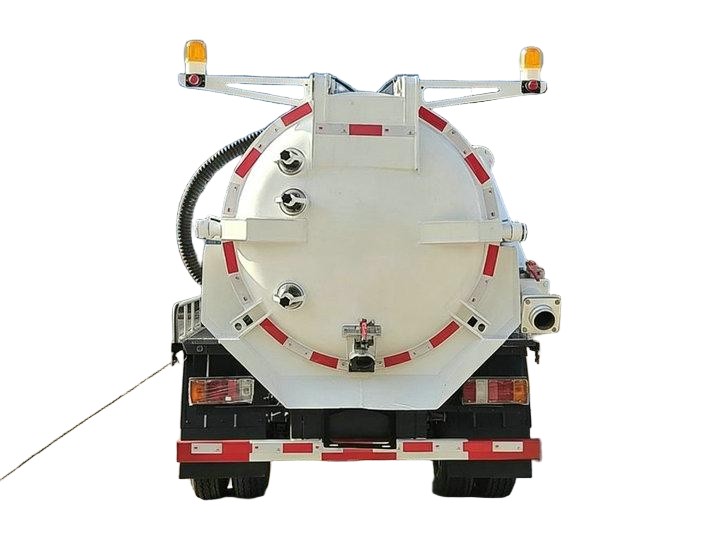

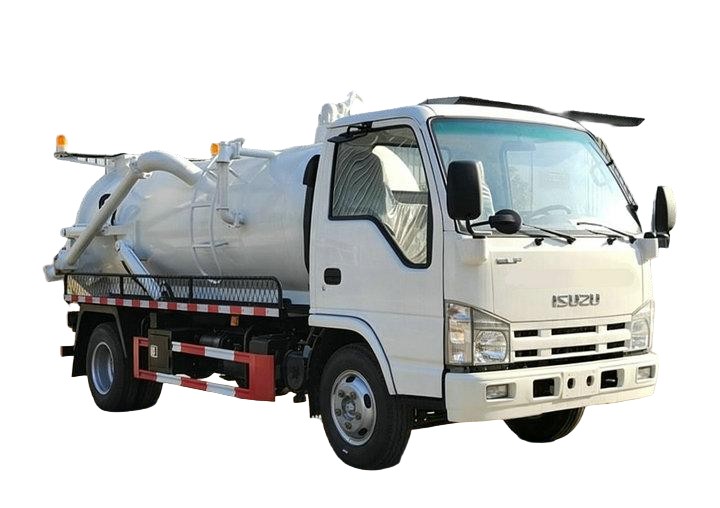

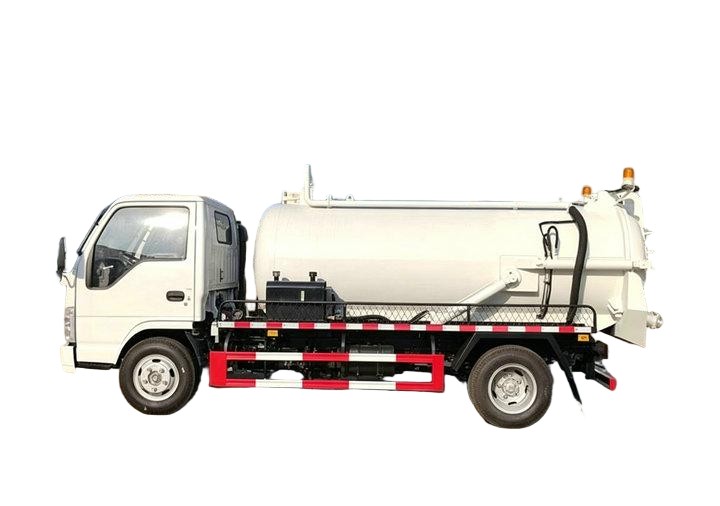

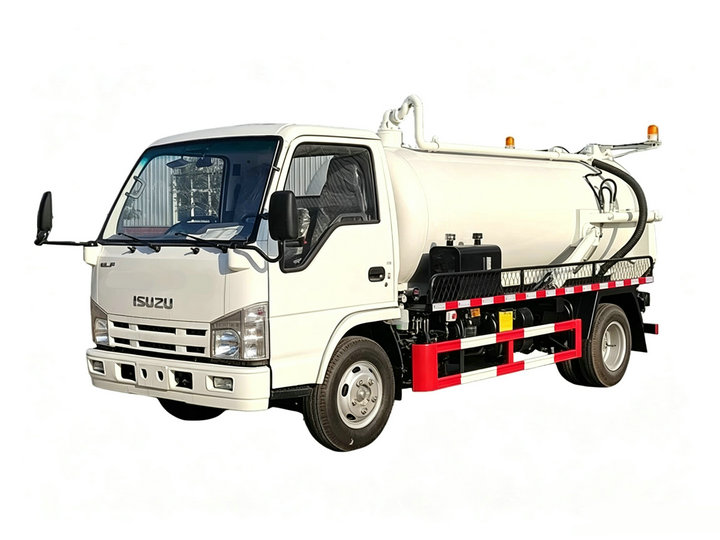

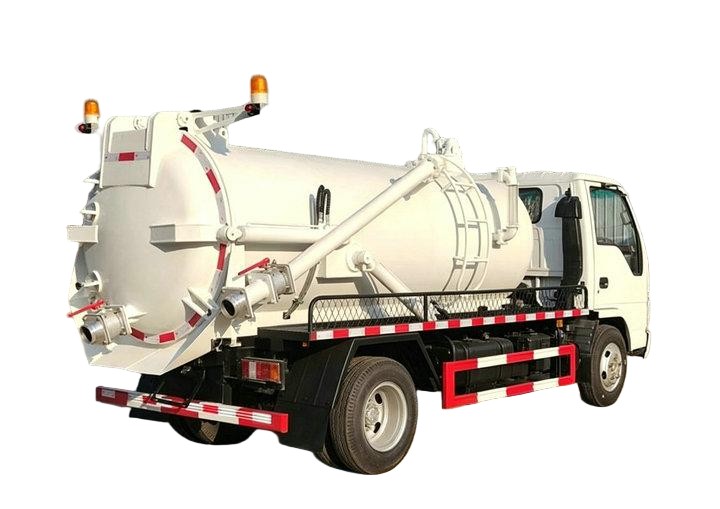

 ISUZU 3KL Sewer Septic Sewage Vacuum Tank Truck

Technical Specifications of ISUZU mini sewage tank truck

Main specification

Chassis brand

ISUZU

Tank capacity

2000 liters,3000 liters,4000 liters

Drive type

4x2, left hand drive

Chassis

Cabin

Single row, 2 seats, with AC

Frame

Q235B carbon steel, staight through reinforced beam

Wheel base


2490mm

2765mm

2795mm

3360mm

Wheel track (front/rear)

1504/1425 (mm)

Leaf spring

8/6+5 pcs

Axles (front/rear)

2500kg/4800kg

Tire

7.00R16

Engine

Engine brand

ISUZU

Model

4KH1CN6LB

Power

120hp (88KW)

Displacement

2999 ml

Emission standard

Euro 6

Sewage Suction System

Tank Volume(L)

2,000~4,000

Tank shape

Cylindrical

Tank Material

Q235 carbon steel /6mm thickness

Vacuum pump

China famous brand Wloong

Pump model

68/7000

Flow

68L/s

Max. vacuum

93%

Suction Depth(m)

7 meters

Tank Tipping angle(°)

More than 45

Rear door

Open and closed by hydraulic cylinders

Suction hose

8 meters wire reinforced hose

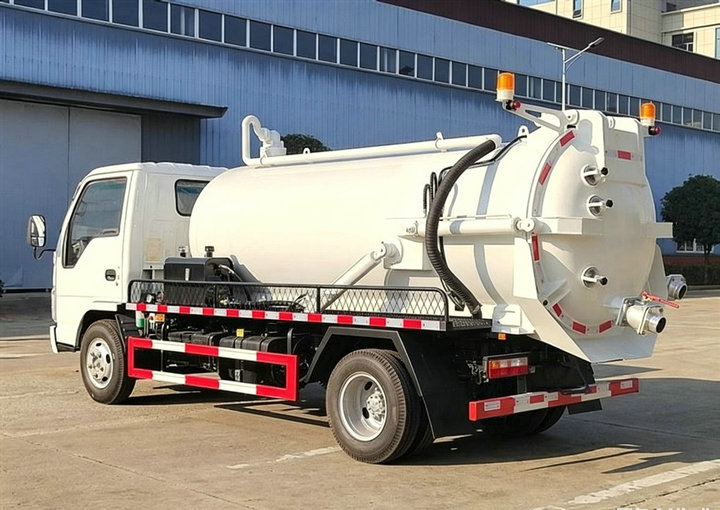

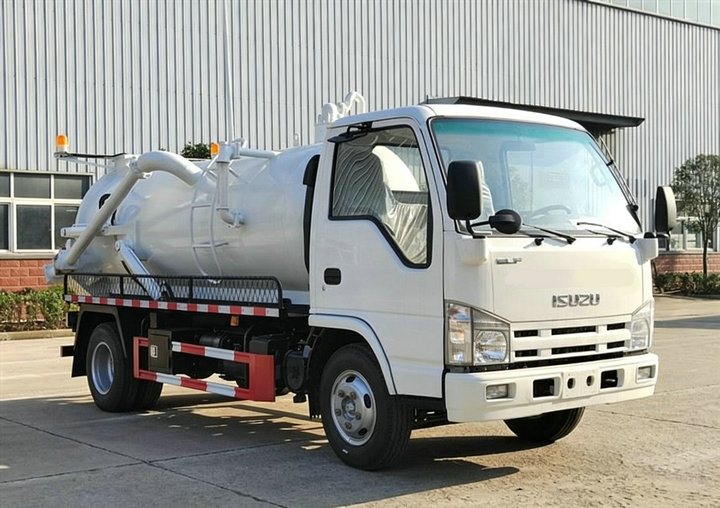

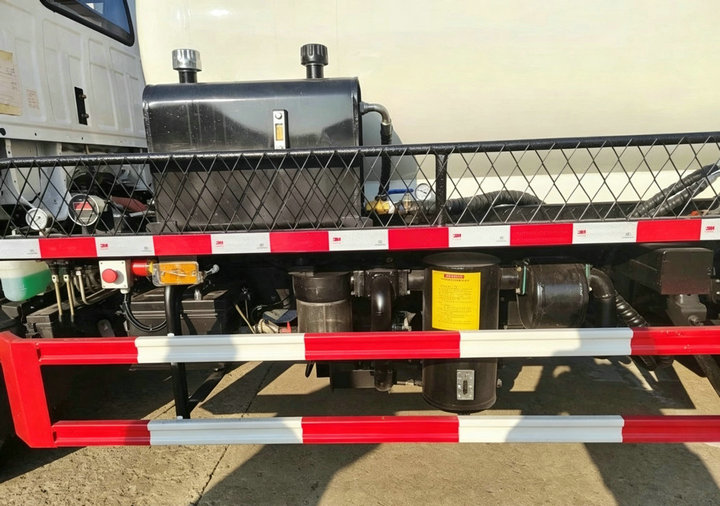

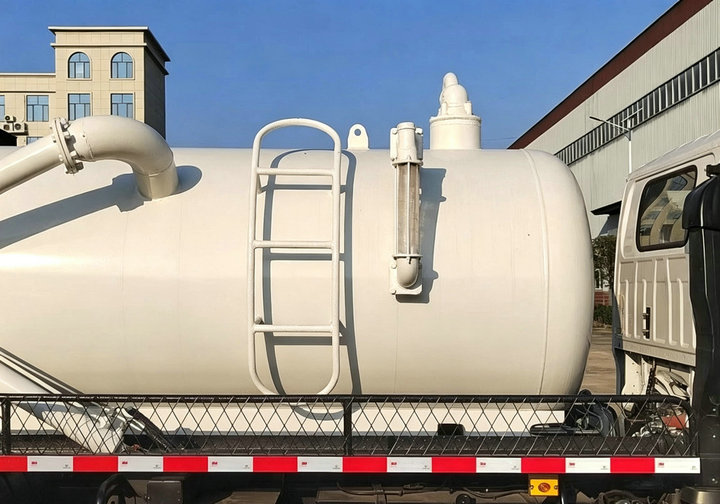

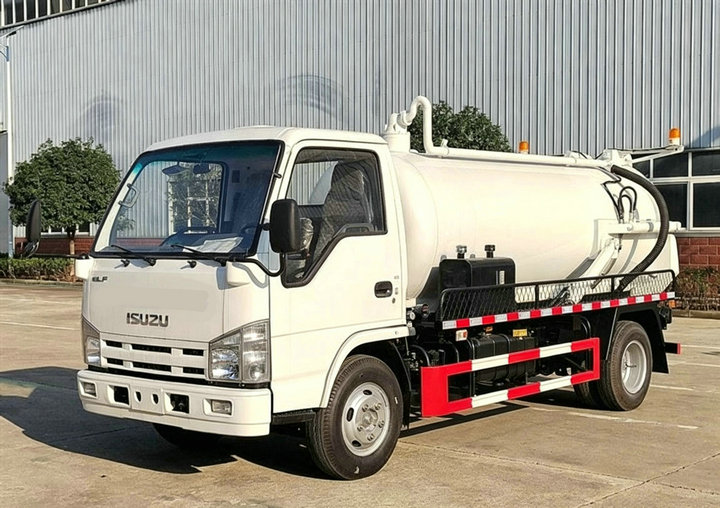

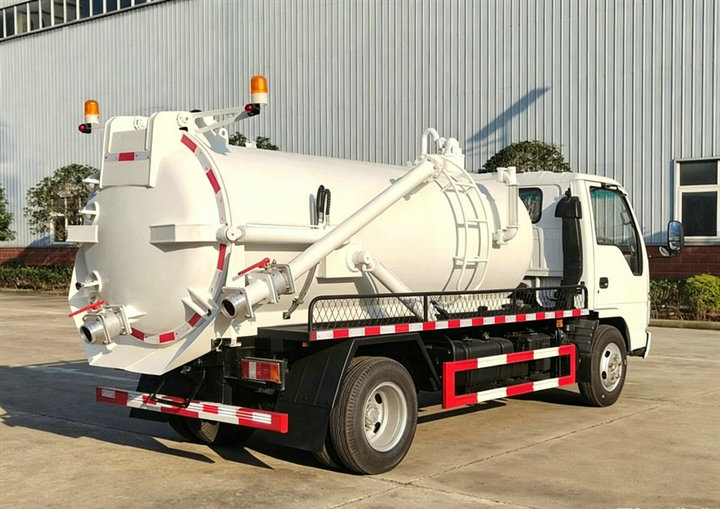

ISUZU mini sewage vacuum tank truck (9)ISUZU mini sewage vacuum tank truck (5)ISUZU mini sewage vacuum tank truck (6)ISUZU mini sewage vacuum tank truck (2)ISUZU mini sewage vacuum tank truck (12)ISUZU mini sewage vacuum tank truck (4)ISUZU mini sewage vacuum tank truck (8)ISUZU mini sewage vacuum tank truck (13)ISUZU mini sewage vacuum tank truck (14)ISUZU mini sewage vacuum tank truck (11)ISUZU mini sewage vacuum tank truck (7)

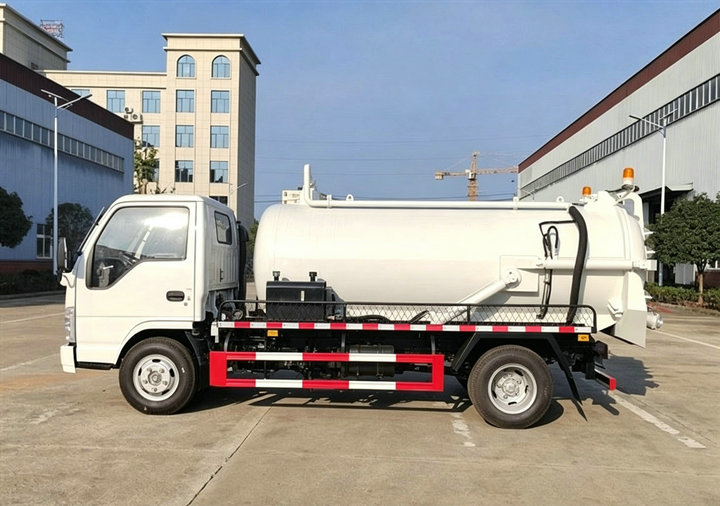

ISUZU NKR mini sewer vacuum truck is a high-efficiency urban sanitation vehicle customized based on the mature and reliable ISUZU NKR light-duty chassis. Equipped with Euro 6 emission standards, powerful suction performance and durable carbon steel sewage tank, this ISUZU small sewage suction truck is widely used for sewer cleaning, septic tank pumping, wastewater collection and urban road sewage treatment. Featuring stable driving, low fuel consumption and low noise, it is the ideal sanitation equipment for municipal engineering, property cleaning and environmental protection projects.

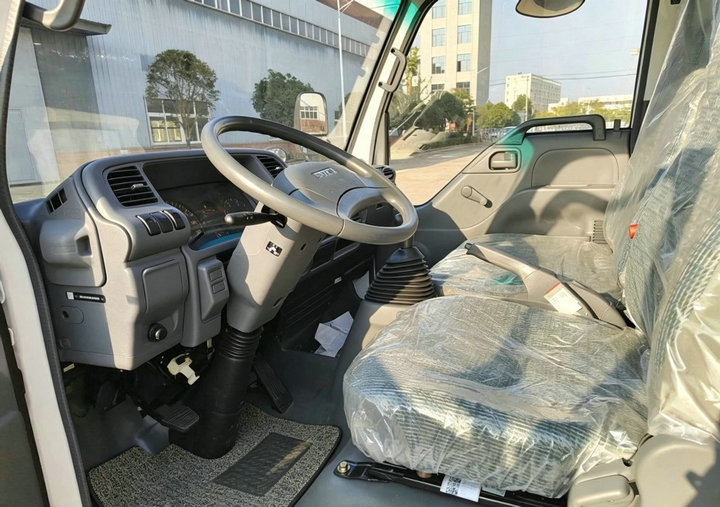

Built on the heavy-duty ISUZU NKR light chassis, this ISUZU sewer pump truck boasts outstanding stability and load-bearing capacity. Optimized chassis structure design ensures steady driving at high speeds and reliable passage on bumpy, complex road conditions. The whole vehicle adopts 4×2 left-hand drive configuration, matched with a single-row air-conditioned cab, bringing comfortable and safe driving experience for long-time operation.
Powered by the original ISUZU 4KH1CN6LB diesel engine, the ISUZU mini septic tank truck meets strict Euro 6 emission standards, realizing low emission and environmental protection. The engine delivers 120HP (88KW) maximum power and 2999ml displacement, with sufficient and stable power output in various complex working scenarios. Paired with an MSB 5-speed manual gearbox, the vehicle achieves smooth and flexible gear shifting, effectively improving overall driving efficiency and reducing operation difficulty.

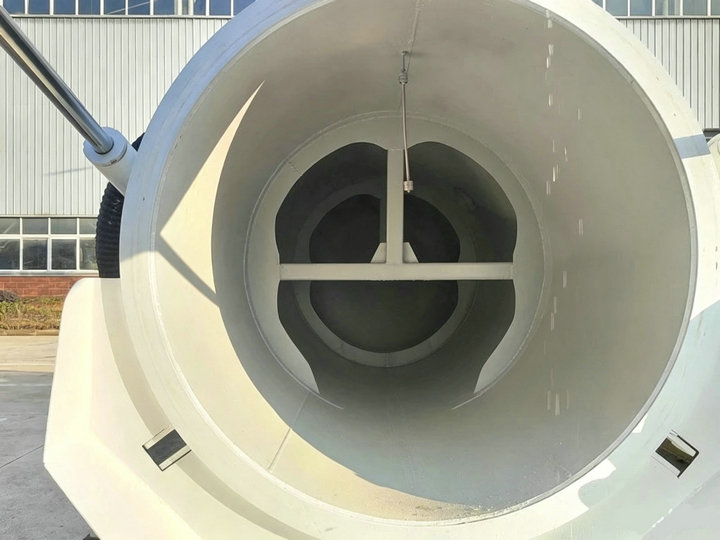

The core part of this 4000L ISUZU sewage tank truck is a 6mm thick high-grade Q235B carbon steel cylindrical vacuum tank. The thickened steel plate design greatly enhances corrosion resistance, impact resistance and service life, adapting to long-term contact with sewage, sludge and corrosive wastewater. Internal anti-shake baffle plates are professionally installed to effectively reduce sewage turbulence and splashing during transportation, avoiding secondary pollution and improving transportation safety.
Equipped with a high-performance Wolong brand vacuum pump, the ISUZU wastewater suction truck features low-speed operation, low fuel consumption and ultra-low noise. The pump model 68/7000 provides a stable 68L/s large flow rate and up to 93% high vacuum degree, with a maximum suction depth of 7 meters. It can quickly and thoroughly suck up sludge, sewage, sediment and sundries in sewers, septic tanks and underground pipelines, efficiently completing daily urban cleaning and dredging work.

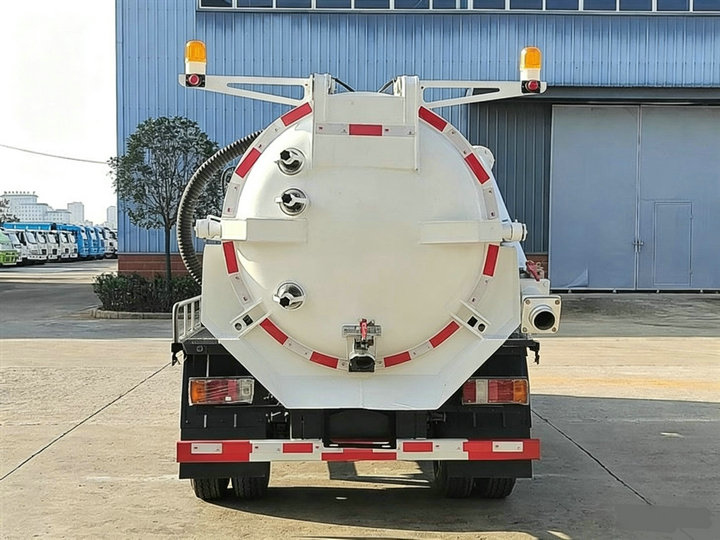

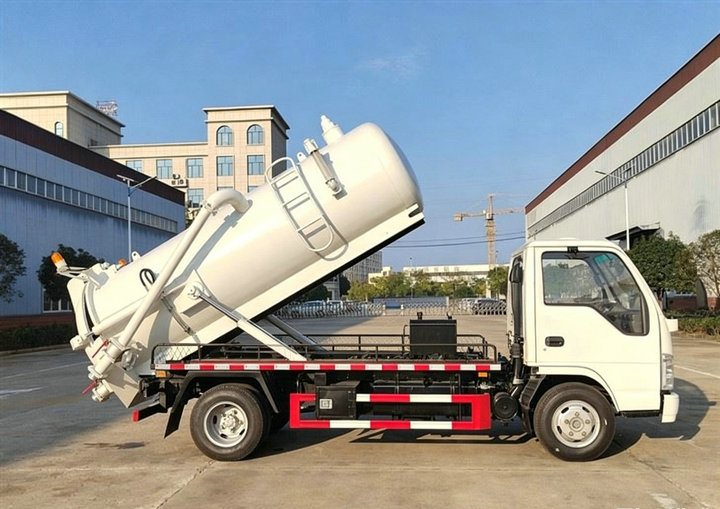

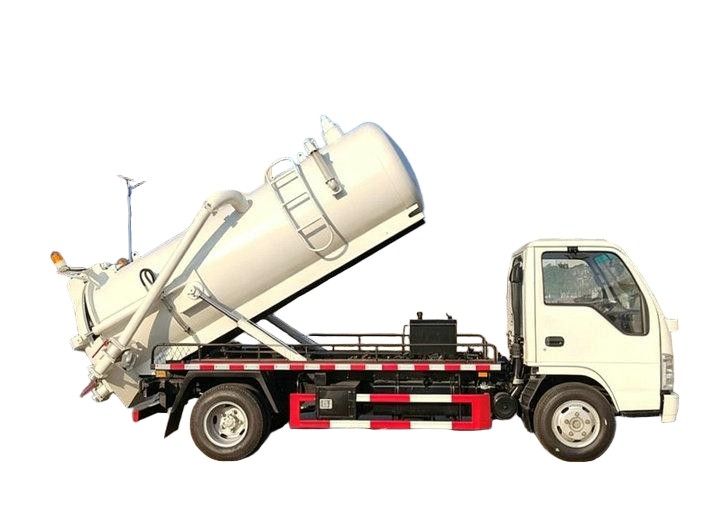

In terms of structural design, the sewage tank supports a tipping angle of more than 45°, realizing fast and thorough material unloading. The rear door adopts full hydraulic opening and closing structure, which is convenient for quick discharge of sludge and dirt and easy daily maintenance. The vehicle is equipped with an 8-meter wire-reinforced suction hose, which is wear-resistant, pressure-resistant and flexible, covering a wide working range to meet diverse construction needs.

Technical Specifications of ISUZU NKR Mini Sewage Vacuum Truck

Chassis Parameters

  • Chassis Brand: ISUZU

  • Drive Type: 4×2, Left Hand Drive

  • Cab: Single row, 2 seats, equipped with air conditioner

  • Frame: Q235B carbon steel straight-through reinforced beam

  • Wheelbase: 3360mm

  • Wheel Track (Front/Rear): 1504mm / 1425mm

  • Leaf Spring: 8/6+5 pieces

  • Axle Load (Front/Rear): 2500kg / 4800kg

  • Tire Specification: 7.00R16

Engine Parameters

  • Engine Brand: ISUZU

  • Engine Model: 4KH1CN6LB

  • Power: 120HP (88KW)

  • Displacement: 2999ml

  • Emission Standard: Euro 6

Sewage Suction System Parameters

  • Tank Volume: 4000L

  • Tank Shape: Cylindrical

  • Tank Material: Q235 carbon steel, 6mm thick

  • Vacuum Pump Brand: Wolong (China Famous Brand)

  • Pump Model: 68/7000

  • Flow Rate: 68L/s

  • Max Vacuum Degree: 93%

  • Max Suction Depth: 7m

  • Tank Tipping Angle: ≥45°

  • Rear Door Control: Hydraulic cylinder automatic opening and closing

  • Suction Hose: 8m wire reinforced wear-resistant hose

Product Advantages

  • Reliable Power & Environmental Protection: Original ISUZU Euro 6 engine, sufficient power, low fuel consumption, no environmental pressure, suitable for global urban environmental protection projects.

  • Durable Vacuum Tank: Thickened carbon steel tank with anti-corrosion treatment, long service life, no leakage, safe and stable operation.

  • High-Efficiency Suction: High-vacuum large-flow pump, 7m deep suction capacity, suitable for various complex sewer and sewage cleaning scenarios.

  • Humanized Design: Air-conditioned cab, smooth gear shift, hydraulic unloading system, simple operation, low working noise.

Application Scenarios

This ISUZU sewer vacuum tanker is widely applicable for municipal sewer dredging, septic tank cleaning, residential community sewage treatment, factory wastewater suction, road sludge cleaning and other sanitation work, being a multi-functional and high-efficiency environmental protection sanitation vehicle.

Optional VAC Pump :WL  Series Septic Tank Vacuum Pump

Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump

vacuum pump 65QZXDH-110/7000

50QZXDF-98/8500 1000 8500Pa(91.5%) 98 5.5  For 3-5 Ton Vacuum tanker
50QZXDH-45/7000 800 7000Pa(93%) 45 4  For 1-3 Ton Vacuum tanker
50QZXDG-30/400 500 400Pa(99.6%) 30 3
50QZXDH-68/7000 800 7000Pa(93%) 68 5    For 5-10 Ton Vacuum tanker
50QZXDG-45/400 500 400Pa(99.6%) 45

65QZXDG-68/400 500 400Pa(99.6%) 68   For 8 -20Ton Vacuum tanker

WY Series Septic Tank Vacuum Pump

YF Septic Tank Vacuum Pump

Jurop Vacpump PN84D Liquid Waste Vacuum pumps
