Jurop Vacpump PN84D Liquid Waste Vacuum pumps

Jurop Vacpump PN84D Liquid Waste Vacuum pumps
Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump, Vacpump
Email us for Discount Price
Price: $ 3000
Discount Price: $ 2800
Availability:
Quantity:

  • Jurop PN84D

  • Jurop

  • 8708996000

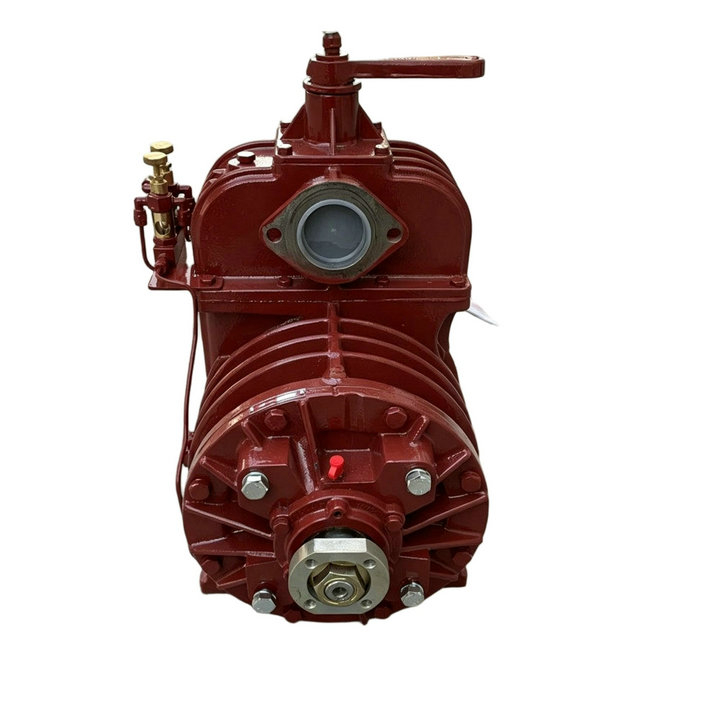

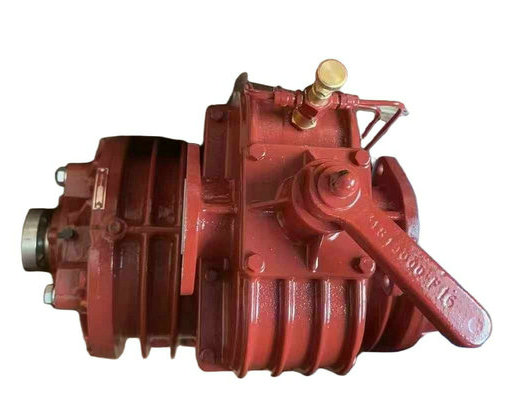

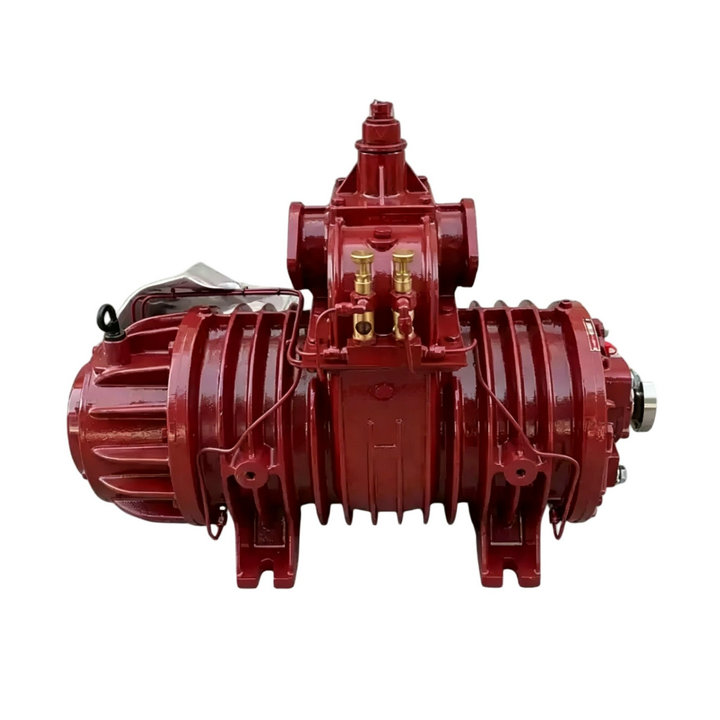

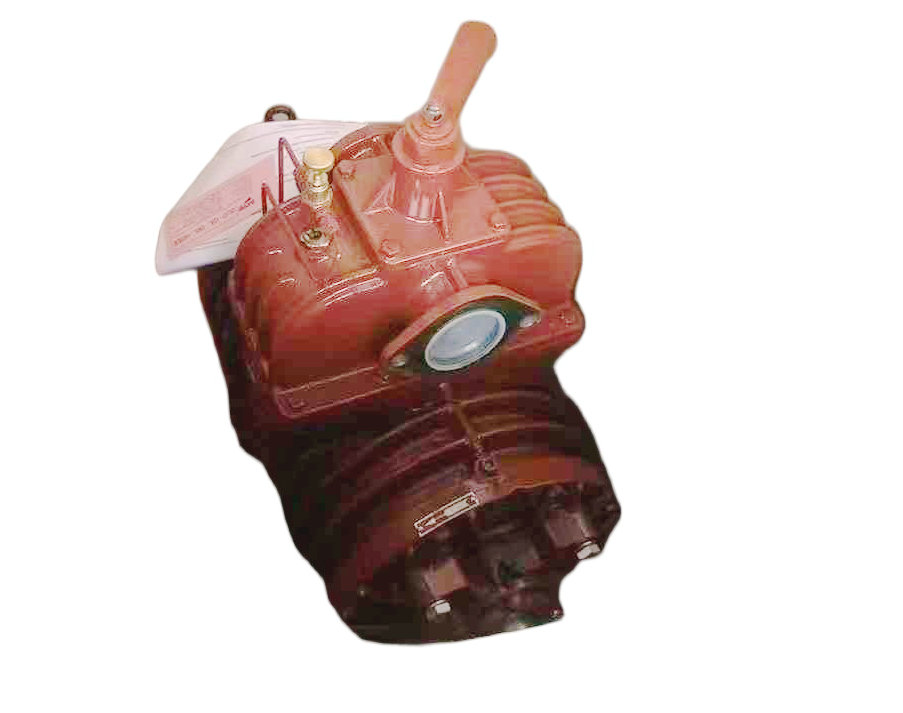

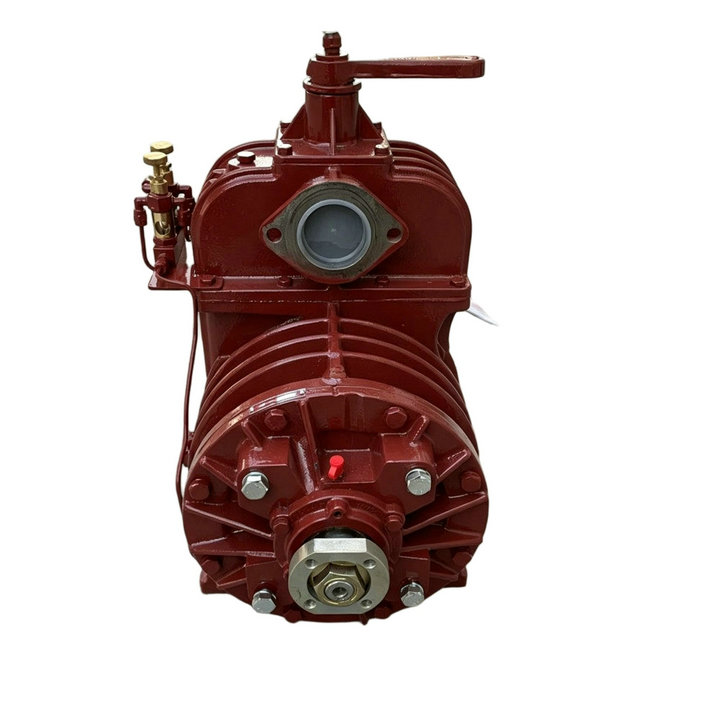

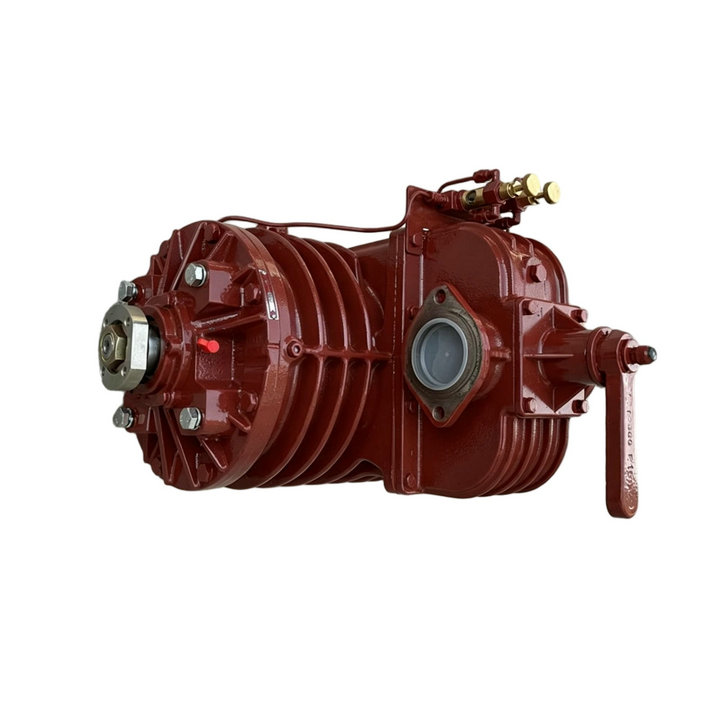

Jurop Vacpump PN84D Liquid Waste Vacuum pumps

Jurop PN84 Vacuum Pump

This is the official parameter sheet of the Italian Jurop PN84 rotary vane vacuum pump, which is a core accessory for sanitation vehicles such as sewage suction trucks and fecal suction trucks. Jurop PN84 Vacuum Pump
Parameter ItemSpecification ValueDescription
Speed Range900-1300 RPMMatches the conventional working range of power take-off (PTO) for sanitation vehicles
Continuous Working Vacuum18" HgEquivalent to about 60% vacuum degree, meeting conventional sewage suction requirements
Free Air Displacement317 CFM (≈9 m³/min)Maximum pumping efficiency under no-load condition
Flow at 18" Vacuum252 CFM (≈7.1 m³/min)Stable flow under actual operating conditions
Maximum Pressure21 PSI (≈1.45 bar)Can be used reversibly as a blower
Driving Power15 HP (≈11 kW)Matches power output above 15 horsepower
Operating Noise81 dBCompliant with industrial equipment noise standards
Net Weight254 lbs (≈115 kg)Net weight with lubricating oil filled
Oil Tank Capacity2.44 qt (≈2.3 L)Volume of single filling of lubricating oil
Recommended LubricantISO VG 150Special lubricant grade suitable for rotary vane pumps
Output Shaft Specification1 3/8" Solid ShaftStandard connection size, compatible with most PTO interfaces

 Key Supplementary Notes

  1. Working Condition AdaptationDesigned specifically for sanitation vehicles with an air-cooled rotary vane structure. It supports both vacuum suction and pressure blowing, serving as the core component of sewage and fecal suction trucks.
  2. Vacuum Degree Conversion18" Hg equals approximately 60% vacuum degree. The ultimate vacuum of this pump can reach 27.6" Hg (92%). 18" Hg is the recommended continuous working range to prevent overheating caused by long-term operation under high vacuum.
  3. Maintenance TipsRegularly replace ISO VG 150 grade vacuum pump oil. The oil tank capacity is about 2.3L to ensure lubrication and sealing performance of the pump body.
  4. Shaft Diameter DescriptionThe 1 3/8" solid shaft is a common specification in the North American market. Attention shall be paid to coupling matching during domestic refitting.

Italian JUROP Vacuum Pumps

To operate a vacuum pump, it is essential to first understand its working principle, with a key focus on the power source and stability considerations. The vacuum pump derives its power from the chassis engine, which transmits power to the vacuum pump through the gearbox, power take-off (PTO), and drive shaft.
During suction operations, the vacuum pump extracts air from the sealed tank, creating negative pressure. The atmospheric pressure outside the tank then forces waste into the tank through the suction hose. For discharge operations, the vacuum pump pumps atmospheric air into the tank, using air pressure to expel waste out of the tank.

About JUROP

Since 1976, JUROP has specialized in the design and manufacturing of various vacuum pumps. Its products are widely used in work equipment across more than 50 countries and regions worldwide. JUROP enjoys an excellent reputation not only for its vacuum pumps but also for its advanced vacuum system technology, making it highly recognized in municipal, environmental protection, and industrial vacuum treatment equipment sectors through its comprehensive and reliable product offerings.

Vacuum Pump Spare Parts Supply

Vacuum pumps for sewage suction trucks, vacuum pumps for fecal suction trucks, oil-gas separators, anti-overflow valves, water-gas separators, four-way ball valves, suspension rods, suspension rod seats, vacuum gauges, check valves, high-pressure oil hoses.

Product Range

Italian JUROP pumps, JUROP vacuum pumps, JUROP pressure pumps, JUROP fluid transfer pumps, JUROP centrifugal pumps, JUROP hose reels, JUROP spray nozzles, JUROP valves, JUROP directional control valves.

Main Models

LC 300, LC 420, LC 580, LC 300 D, LC 420 D, LC 580 D, LC 300 HDR, LC 420 HDR, LC 580 HDR, PR150, PR200, PR250, PR330, PR530, PN23, PN33, PN45, PN58, PN106, PN130, PN140, PN155, C84, PNE102, PNE122, PNR260R, PNR72, PNR82, PNR155R, RV360, RV520, RVC210, RVC360, DL60, DL80, DL100, DL200, PVT200, PVT280, JULIA3000, JULIA5000, JULIA8000, VL2, VL4, VL7, VL50, VL35, SI 1, SI 2, SI 3, SI 4, SI 5, VJ30, VJ60.



PN23 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 92

  • CFM @ 18″: 74

  • Max Pressure: 21 PSI

  • Horsepower: 4.5

  • Noise @ 18″: 77 dB

  • Oil Tank Capacity: 1.27 quarts

  • Net Weight: 117 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Suggested Tank Size (gallons): 0 – 1000

PN33 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 127

  • CFM @ 18″: 102

  • Max Pressure: 21 PSI

  • Horsepower: 6

  • Noise @ 18″: 77 dB

  • Oil Tank Capacity: 1.27 quarts

  • Net Weight: 139 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Suggested Tank Size (gallons): 0 – 1000

PN58 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 230

  • CFM @ 18″: 205

  • Max Pressure: 21 PSI

  • Horsepower: 9

  • Noise @ 18″: 77 dB

  • Oil Tank Capacity: 2.44 quarts

  • Net Weight: 225 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Two 2″ or 3″ Swivel Elbows (must specify when ordering)

  • Suggested Tank Size (gallons): 1000 – 2500

PN84 Pumps Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 317

  • CFM @ 18″: 252

  • Max Pressure: 21 PSI

  • Horsepower: 15

  • Noise @ 18″: 81 dB

  • Oil Tank Capacity: 2.44 quarts

  • Net Weight: 254 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Two 3″ Swivel Elbows (must specify when ordering)

  • Suggested Tank Size (gallons): 1000 – 2500

PN106 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 388

  • CFM @ 18″: 324

  • Max Pressure: 21 PSI

  • Horsepower: 18.5

  • Noise @ 18″: 84 dB

  • Oil Tank Capacity: 2.44 quarts

  • Net Weight: 419 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Two 3″ Swivel Elbows (must specify when ordering)

  • Suggested Tank Size (gallons): 2000 – 5000

PN155R Pump Specs

  • RPM Range: 900-1100

  • Max Vacuum: 28″ / 92%

  • CFM @ Free Air: 538

  • CFM @ 18″: 477

  • Max Pressure: 30 PSI

  • Horsepower: 126

  • Noise @ 18″: 79 dB

  • Oil Tank Capacity: 4.23 quarts

  • Net Weight: 485 lbs

  • Recommended Oil: ISO 150

  • 40 mm Smooth Shaft

  • Two 4″ Swivel Elbows (must specify when ordering)

  • Price includes Filter

  • Suggested Tank Size (gallons): 2000 – 5000
