Jurop Vacpump PN106D Liquid Waste Vacuum pumps

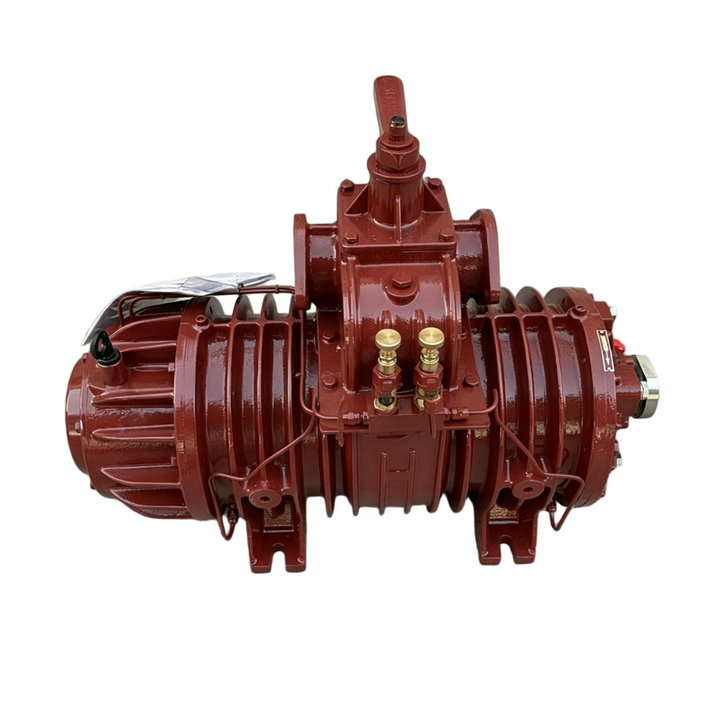

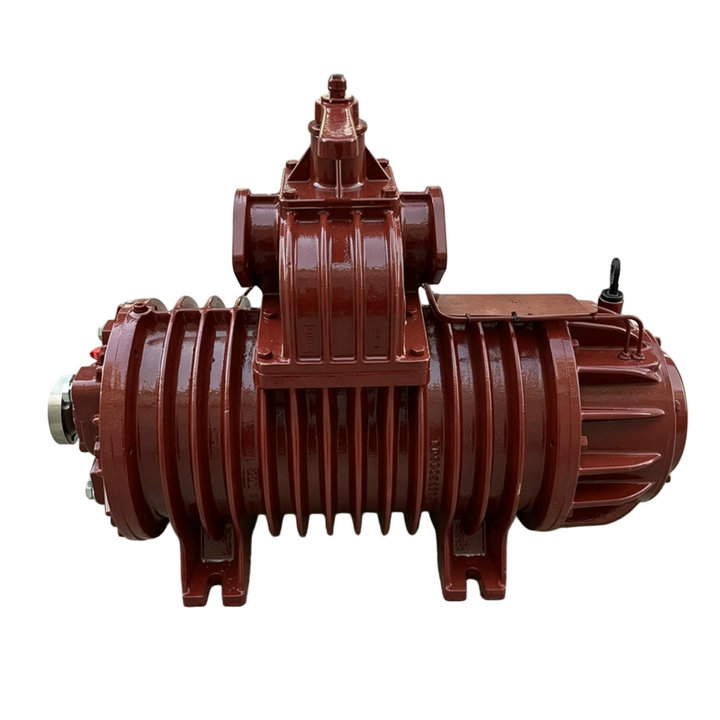

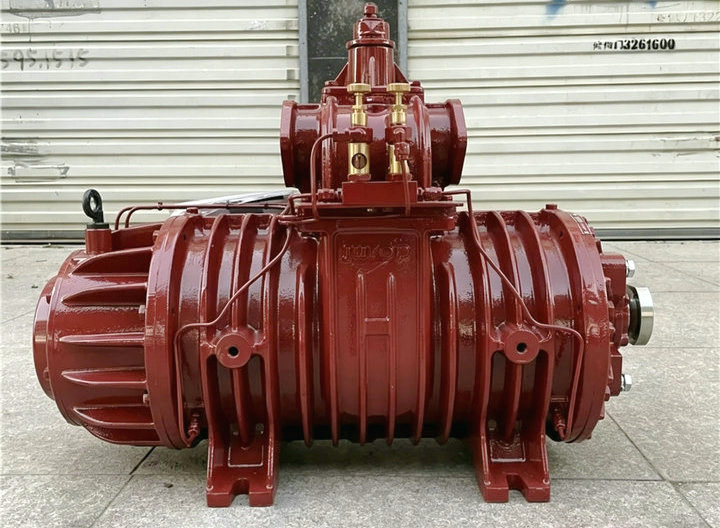

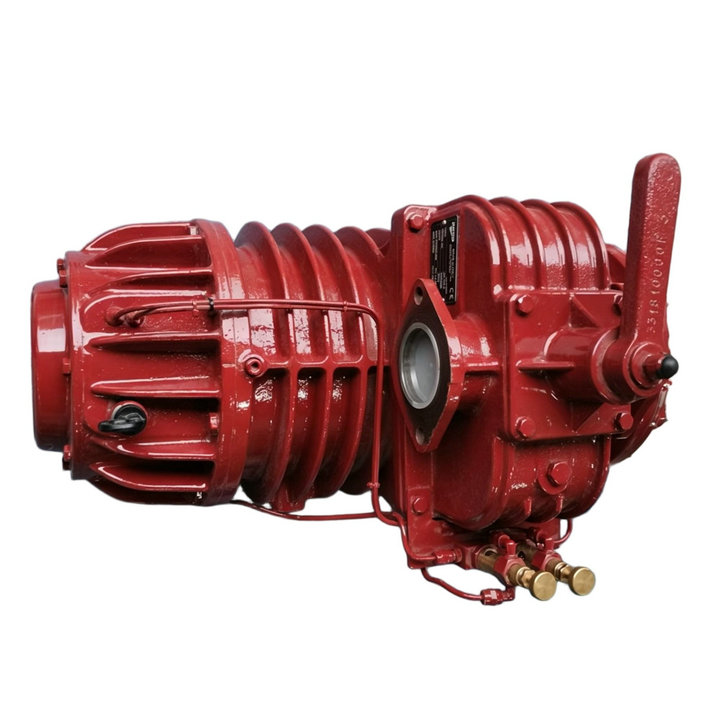

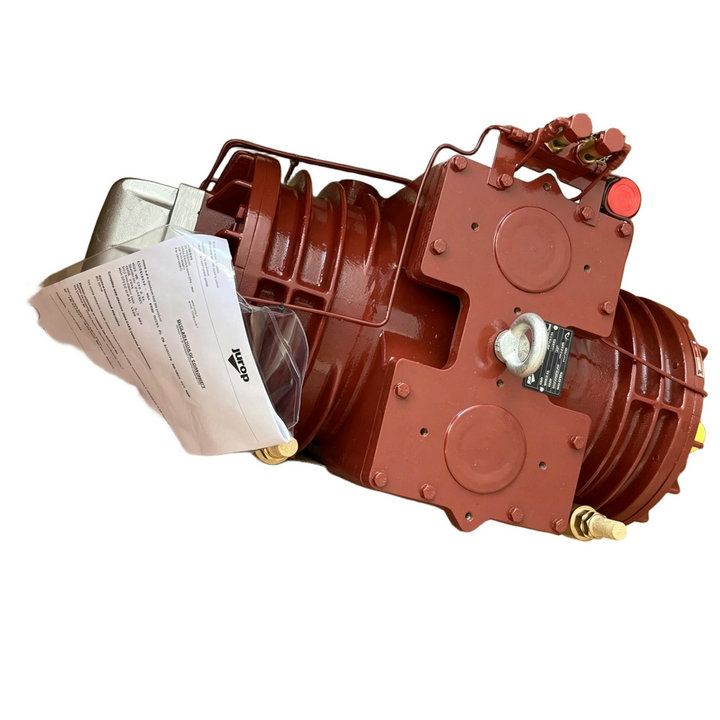

Jurop PN106 Vacuum Pump
| Parameter Item | Specification Value | Description |
|---|---|---|
| RPM Range | 900-1300 RPM | Matches the conventional working range of PTO (Power Take-Off) for sanitation vehicles |
| Max Vacuum | 27.6" Hg / 92% | Peak vacuum level under extreme conditions, higher than continuous working value |
| CFM @ Free Air | 388 CFM (≈11.0 m³/min) | Maximum pumping efficiency under no-load condition |
| CFM @ 18" | 324 CFM (≈9.2 m³/min) | Stable flow rate under continuous working conditions |
| Max Pressure | 21 PSI (≈1.45 bar) | Can be reversely used as a blower |
| Horsepower | 18.5 HP (≈13.8 kW) | Matches power output above 18.5 horsepower |
| Noise @ 18" | 84 dB | Within the noise standard range for industrial equipment |
| Oil Tank Cap. | 2.44 qt (≈2.3 L) | Volume of a single lubricating oil filling |
| Net Weight | 419 lbs (≈190 kg) | Net weight including lubricating oil |
| Rec. Oil | ISO VG 150 | Special lubricant grade suitable for rotary vane pumps |
| Shaft Specification | 1 3/8" Smooth Shaft | Standard connection size, compatible with most PTO interfaces |
| Accessories | Two 3" Swivel Elbows | For pipe connection, convenient for on-site installation |
Core Features
Continuous Duty Capability: Supports continuous operation at 18" Hg (≈60% vacuum), meeting the long-duration suction needs of sanitation vehicles.
Cooling Method: Air-cooled design, eliminating the need for an additional water cooling system and simplifying vehicle modification.
Lubrication System: Forced oil lubrication design to ensure pump lubrication and sealing under high load conditions.
Wear-Resistant Structure: Heat-resistant Kevlar vanes are used to significantly extend the service life of wearing parts and reduce maintenance costs.
Key Supplementary Notes
Working Condition Comparison: Compared with the PN84 model in the same series, the PN106 offers a ~22% increase in flow rate and ~23% increase in power, making it more suitable for high-flow, high-load operations of large sewage/fecal suction trucks.
Vacuum Degree Explanation: 92% ultimate vacuum is the peak capability of this pump. It is recommended to keep continuous operation within 18" Hg (60% vacuum) to avoid pump overheating and accelerated vane wear caused by long-term high-vacuum operation.
Maintenance Tips: ISO VG 150 grade vacuum pump oil should be replaced regularly. The oil tank capacity is approximately 2.3L. The forced lubrication system requires unobstructed oil passages to prevent dry burning due to oil starvation.
Installation Adaptation: The 1 3/8" smooth shaft is a common specification in the North American market. Attention should be paid to coupling and PTO matching during domestic modification. At the same time, use the included 3" swivel elbows to optimize pipe routing and reduce pressure loss.
Italian JUROP Vacuum Pumps
About JUROP
Vacuum Pump Spare Parts Supply
Product Range
Main Models
PN23 Pump Specs
RPM Range: 900-1300
Max Vacuum: 27.6″ / 92%
CFM @ Free Air: 92
CFM @ 18″: 74
Max Pressure: 21 PSI
Horsepower: 4.5
Noise @ 18″: 77 dB
Oil Tank Capacity: 1.27 quarts
Net Weight: 117 lbs
Recommended Oil: ISO 150
1 3/8 inch Smooth Shaft
Suggested Tank Size (gallons): 0 – 1000
PN33 Pump Specs
RPM Range: 900-1300
Max Vacuum: 27.6″ / 92%
CFM @ Free Air: 127
CFM @ 18″: 102
Max Pressure: 21 PSI
Horsepower: 6
Noise @ 18″: 77 dB
Oil Tank Capacity: 1.27 quarts
Net Weight: 139 lbs
Recommended Oil: ISO 150
1 3/8 inch Smooth Shaft
Suggested Tank Size (gallons): 0 – 1000
PN58 Pump Specs
RPM Range: 900-1300
Max Vacuum: 27.6″ / 92%
CFM @ Free Air: 230
CFM @ 18″: 205
Max Pressure: 21 PSI
Horsepower: 9
Noise @ 18″: 77 dB
Oil Tank Capacity: 2.44 quarts
Net Weight: 225 lbs
Recommended Oil: ISO 150
1 3/8 inch Smooth Shaft
Two 2″ or 3″ Swivel Elbows (must specify when ordering)
Suggested Tank Size (gallons): 1000 – 2500
PN84 Pumps Specs
RPM Range: 900-1300
Max Vacuum: 27.6″ / 92%
CFM @ Free Air: 317
CFM @ 18″: 252
Max Pressure: 21 PSI
Horsepower: 15
Noise @ 18″: 81 dB
Oil Tank Capacity: 2.44 quarts
Net Weight: 254 lbs
Recommended Oil: ISO 150
1 3/8 inch Smooth Shaft
Two 3″ Swivel Elbows (must specify when ordering)
Suggested Tank Size (gallons): 1000 – 2500
PN106 Pump Specs
RPM Range: 900-1300
Max Vacuum: 27.6″ / 92%
CFM @ Free Air: 388
CFM @ 18″: 324
Max Pressure: 21 PSI
Horsepower: 18.5
Noise @ 18″: 84 dB
Oil Tank Capacity: 2.44 quarts
Net Weight: 419 lbs
Recommended Oil: ISO 150
1 3/8 inch Smooth Shaft
Two 3″ Swivel Elbows (must specify when ordering)
Suggested Tank Size (gallons): 2000 – 5000
PN155R Pump Specs
RPM Range: 900-1100
Max Vacuum: 28″ / 92%
CFM @ Free Air: 538
CFM @ 18″: 477
Max Pressure: 30 PSI
Horsepower: 126
Noise @ 18″: 79 dB
Oil Tank Capacity: 4.23 quarts
Net Weight: 485 lbs
Recommended Oil: ISO 150
40 mm Smooth Shaft
Two 4″ Swivel Elbows (must specify when ordering)
Price includes Filter
Suggested Tank Size (gallons): 2000 – 5000
