Jurop PN155D Vacuum pump

Jurop PN 155 D FL vacuum pump
PN 155 PN 155 R - Vacpump
Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump
Email us for Discount Price
Price: $ 5000
Discount Price: $ 4800
Availability:
Quantity:

  • PN 155 PN 155 R

  • SZW

  • 8708996000

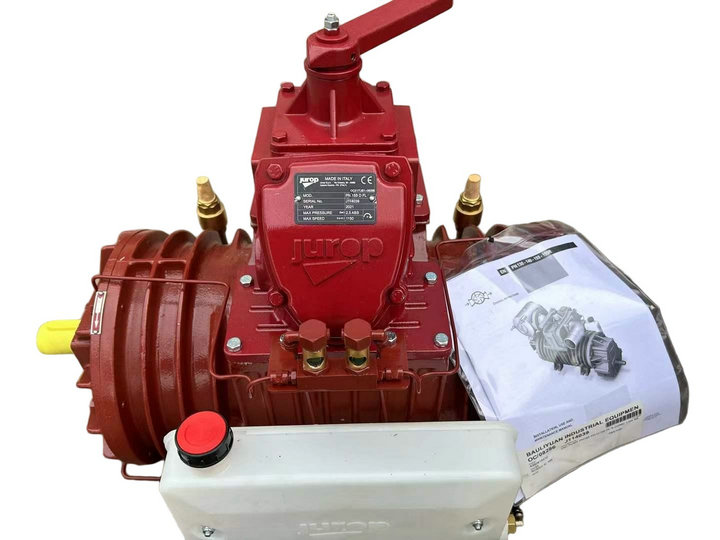

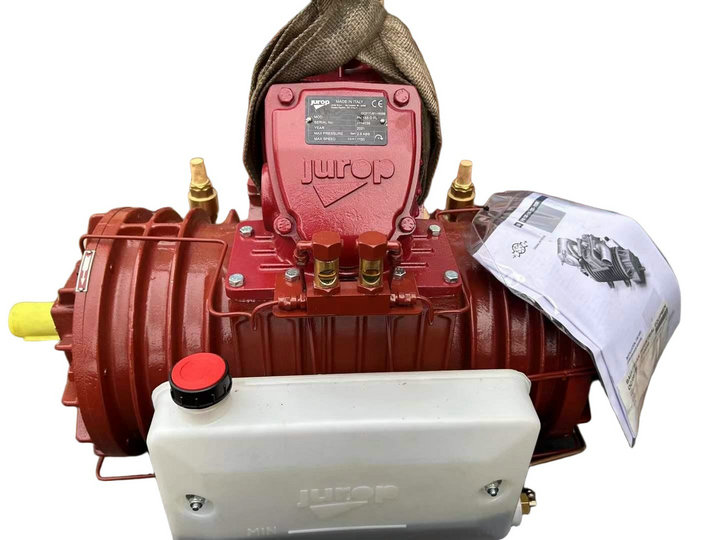

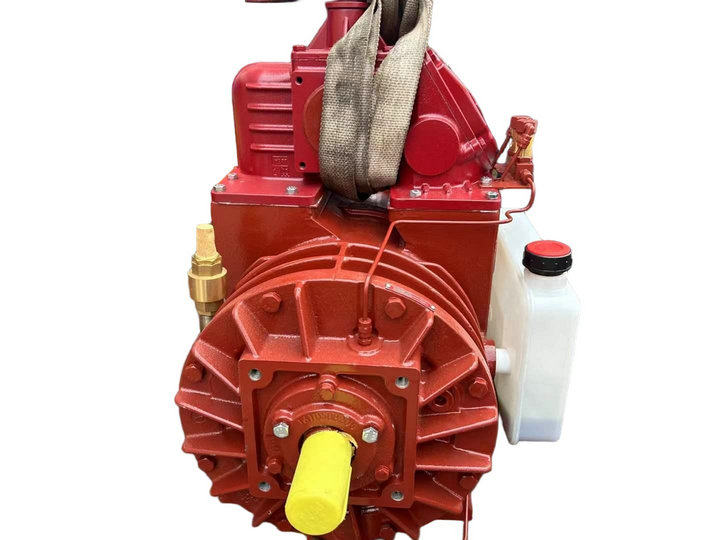

  Jurop PN 155 D FL vacuum pump

The Jurop Vacuum Pump is high quality!
Flow:15200 l/min
Vacuum:27.5 Hg
Pressure max abs:2 bar
Max Power vacuum:19 kW

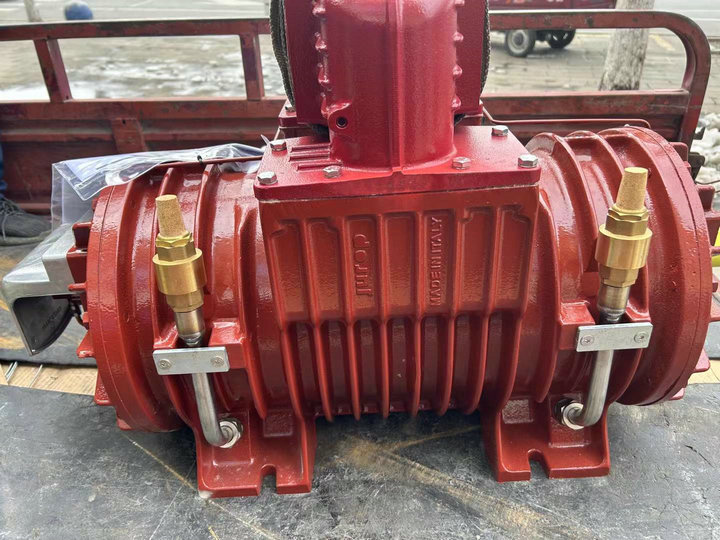

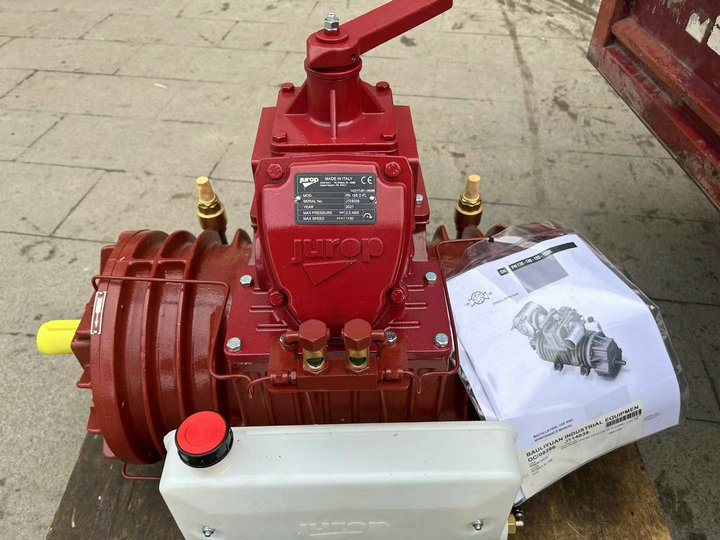

PN155D Vacuum pump (5)PN155D Vacuum pump (4)

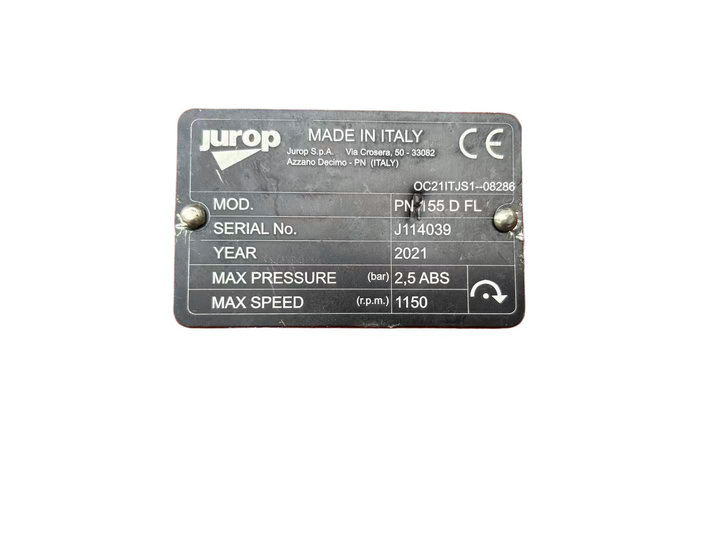

Item Content Notes
Manufacturer Jurop S.p.A. Specialized Italian vacuum pump manufacturer, located at Via Crosera, 50 - 33082 Azzano Decimo - PN (ITALY)
Origin MADE IN ITALY Produced in Italy
Model PN 155 D FL Belongs to Jurop's PN series liquid ring vacuum pumps, commonly used in vacuum sewage trucks and industrial vacuum suction applications
Serial No. J114039 Unique identification number for the unit
Certification CE Compliant with EU safety standards

2. Key Technical Specifications

  • MAX PRESSURE: 2.5 bar ABS (absolute pressure), the maximum allowable absolute working pressure of the pump

  • MAX SPEED: 1150 r.p.m., the maximum permitted rotational speed of the pump shaft

  • Rotation Direction: The arrow on the right of the nameplate indicates the correct rotational direction of the pump shaft, which must match the drive end direction to avoid damage from reverse rotation


3. Additional Background Information

  • The Jurop PN series is a classic pump model for sanitation vacuum sewage trucks. The PN155 typically delivers a suction flow rate of around 15,000 L/min, with an ultimate vacuum of -0.9 bar (≈27.5 inHg), widely used for suction operations involving sewage, sludge and other media.

  • "D" in the model stands for direct drive (without gearbox), while "FL" refers to a specific configuration (e.g., flange connection, specific shaft type, etc.).

Italian JUROP Vacuum Pumps

To operate a vacuum pump, it is essential to first understand its working principle, with a key focus on the power source and stability considerations. The vacuum pump derives its power from the chassis engine, which transmits power to the vacuum pump through the gearbox, power take-off (PTO), and drive shaft.
During suction operations, the vacuum pump extracts air from the sealed tank, creating negative pressure. The atmospheric pressure outside the tank then forces waste into the tank through the suction hose. For discharge operations, the vacuum pump pumps atmospheric air into the tank, using air pressure to expel waste out of the tank.

About JUROP

Since 1976, JUROP has specialized in the design and manufacturing of various vacuum pumps. Its products are widely used in work equipment across more than 50 countries and regions worldwide. JUROP enjoys an excellent reputation not only for its vacuum pumps but also for its advanced vacuum system technology, making it highly recognized in municipal, environmental protection, and industrial vacuum treatment equipment sectors through its comprehensive and reliable product offerings.

Vacuum Pump Spare Parts Supply

Vacuum pumps for sewage suction trucks, vacuum pumps for fecal suction trucks, oil-gas separators, anti-overflow valves, water-gas separators, four-way ball valves, suspension rods, suspension rod seats, vacuum gauges, check valves, high-pressure oil hoses.

Product Range

Italian JUROP pumps, JUROP vacuum pumps, JUROP pressure pumps, JUROP fluid transfer pumps, JUROP centrifugal pumps, JUROP hose reels, JUROP spray nozzles, JUROP valves, JUROP directional control valves.

Main Models

LC 300, LC 420, LC 580, LC 300 D, LC 420 D, LC 580 D, LC 300 HDR, LC 420 HDR, LC 580 HDR, PR150, PR200, PR250, PR330, PR530, PN23, PN33, PN45, PN58, PN106, PN130, PN140, PN155, C84, PNE102, PNE122, PNR260R, PNR72, PNR82, PNR155R, RV360, RV520, RVC210, RVC360, DL60, DL80, DL100, DL200, PVT200, PVT280, JULIA3000, JULIA5000, JULIA8000, VL2, VL4, VL7, VL50, VL35, SI 1, SI 2, SI 3, SI 4, SI 5, VJ30, VJ60.



PN23 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 92

  • CFM @ 18″: 74

  • Max Pressure: 21 PSI

  • Horsepower: 4.5

  • Noise @ 18″: 77 dB

  • Oil Tank Capacity: 1.27 quarts

  • Net Weight: 117 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Suggested Tank Size (gallons): 0 – 1000

PN33 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 127

  • CFM @ 18″: 102

  • Max Pressure: 21 PSI

  • Horsepower: 6

  • Noise @ 18″: 77 dB

  • Oil Tank Capacity: 1.27 quarts

  • Net Weight: 139 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Suggested Tank Size (gallons): 0 – 1000

PN58 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 230

  • CFM @ 18″: 205

  • Max Pressure: 21 PSI

  • Horsepower: 9

  • Noise @ 18″: 77 dB

  • Oil Tank Capacity: 2.44 quarts

  • Net Weight: 225 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Two 2″ or 3″ Swivel Elbows (must specify when ordering)

  • Suggested Tank Size (gallons): 1000 – 2500

PN84 Pumps Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 317

  • CFM @ 18″: 252

  • Max Pressure: 21 PSI

  • Horsepower: 15

  • Noise @ 18″: 81 dB

  • Oil Tank Capacity: 2.44 quarts

  • Net Weight: 254 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Two 3″ Swivel Elbows (must specify when ordering)

  • Suggested Tank Size (gallons): 1000 – 2500

PN106 Pump Specs

  • RPM Range: 900-1300

  • Max Vacuum: 27.6″ / 92%

  • CFM @ Free Air: 388

  • CFM @ 18″: 324

  • Max Pressure: 21 PSI

  • Horsepower: 18.5

  • Noise @ 18″: 84 dB

  • Oil Tank Capacity: 2.44 quarts

  • Net Weight: 419 lbs

  • Recommended Oil: ISO 150

  • 1 3/8 inch Smooth Shaft

  • Two 3″ Swivel Elbows (must specify when ordering)

  • Suggested Tank Size (gallons): 2000 – 5000

PN155R Pump Specs

  • RPM Range: 900-1100

  • Max Vacuum: 28″ / 92%

  • CFM @ Free Air: 538

  • CFM @ 18″: 477

  • Max Pressure: 30 PSI

  • Horsepower: 126

  • Noise @ 18″: 79 dB

  • Oil Tank Capacity: 4.23 quarts

  • Net Weight: 485 lbs

  • Recommended Oil: ISO 150

  • 40 mm Smooth Shaft

  • Two 4″ Swivel Elbows (must specify when ordering)

  • Price includes Filter

  • Suggested Tank Size (gallons): 2000 – 5000
