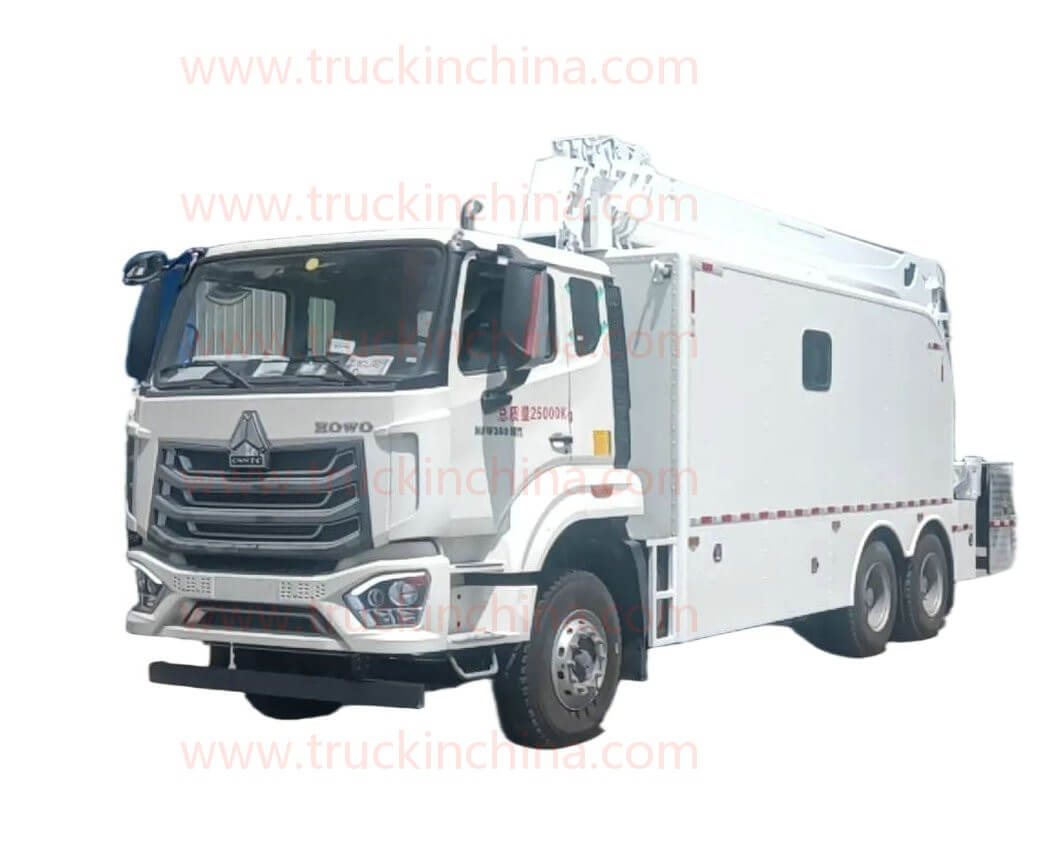

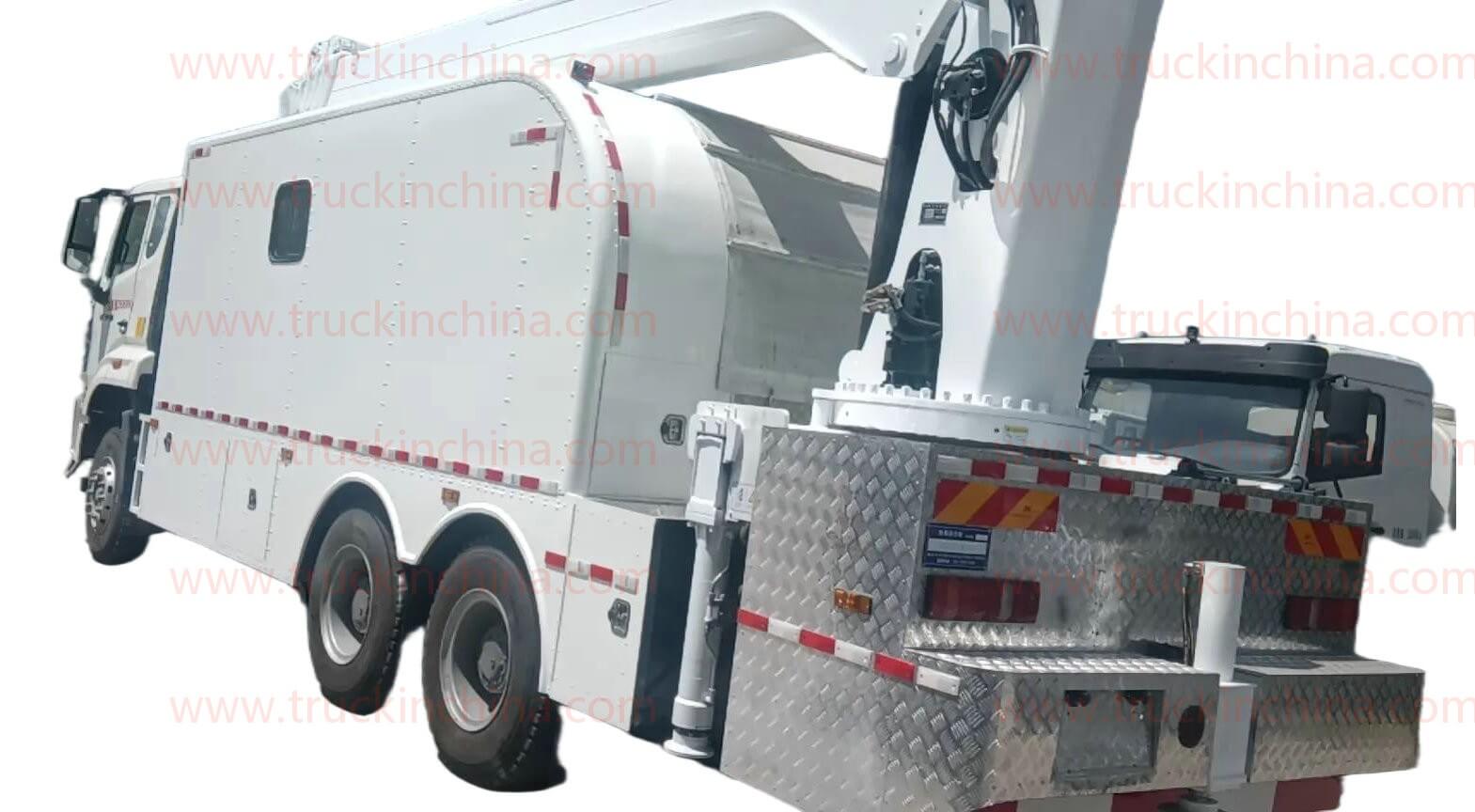

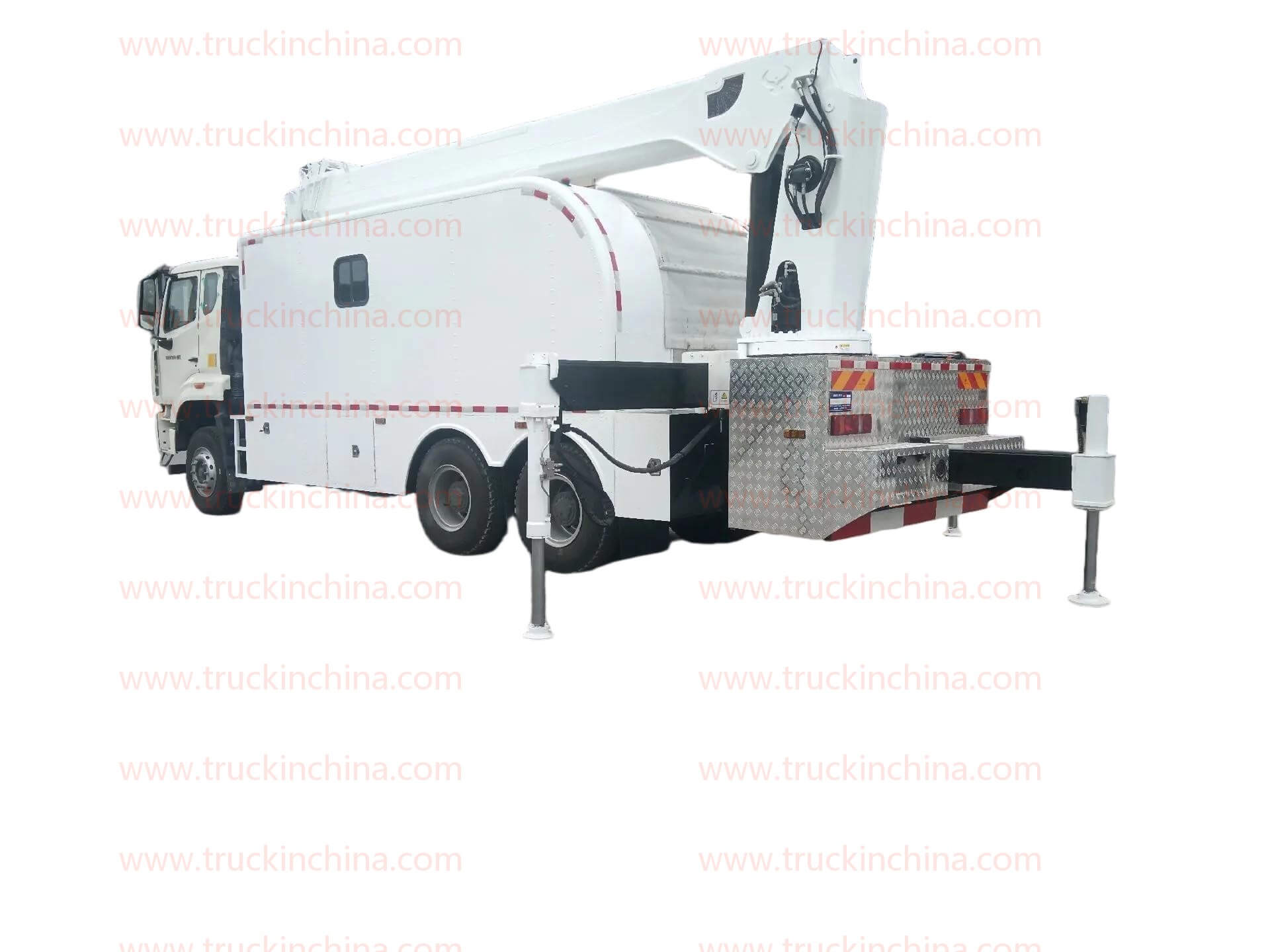

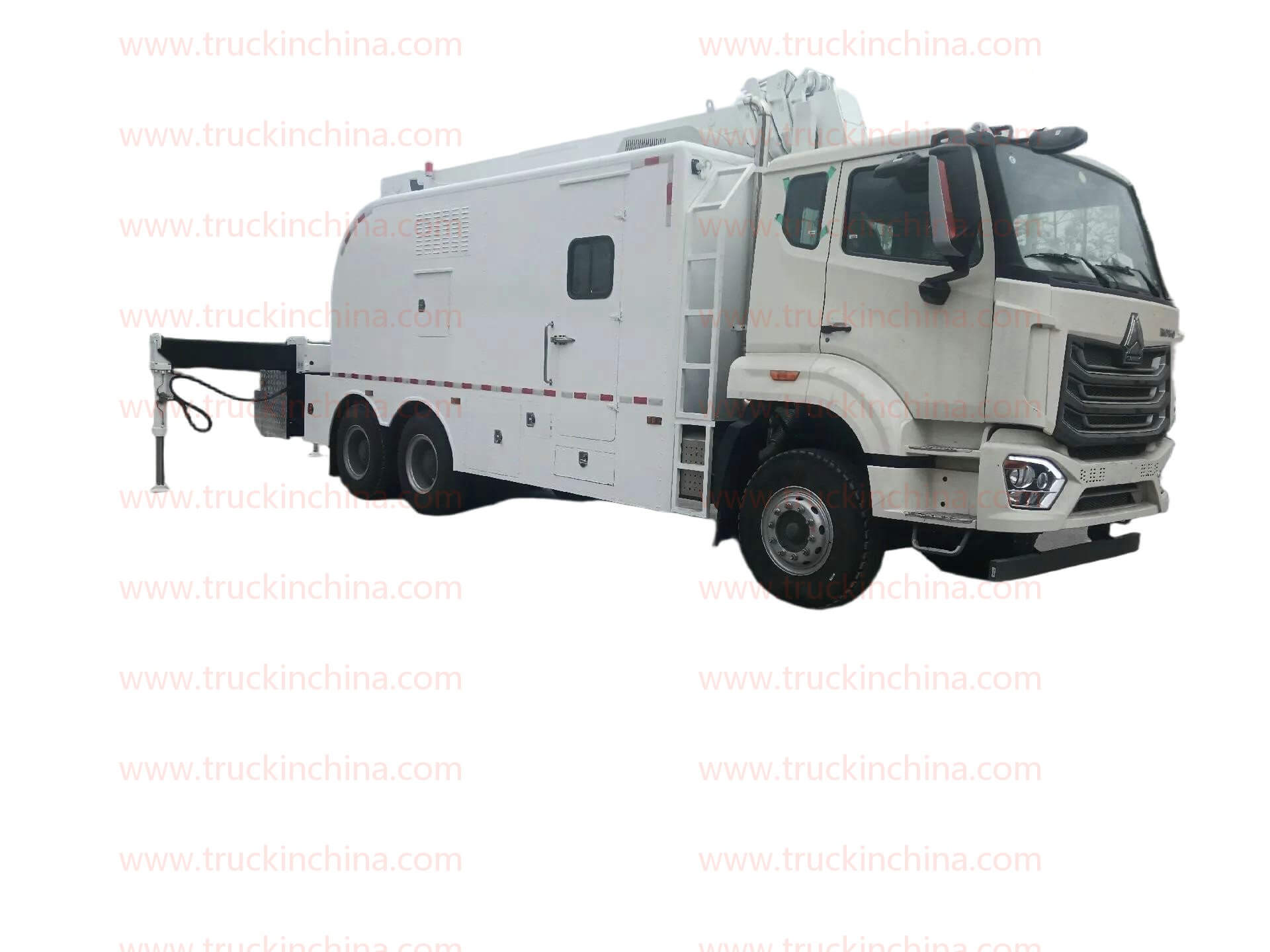

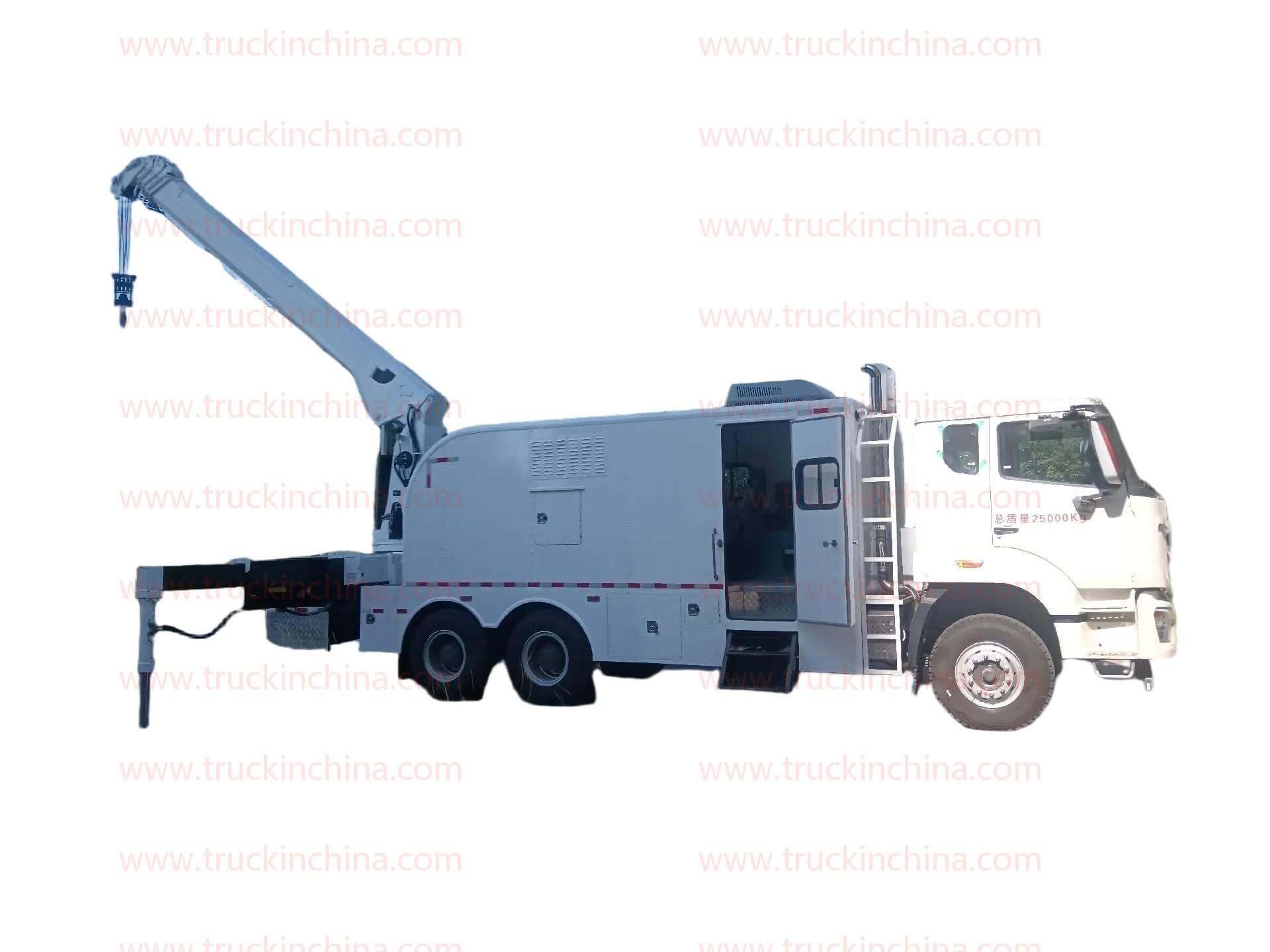

Oilfield Petroleum Multi-Functional Well Logging Truck Mounted 14T Crane Slickline Unit 7500m
Category | Item | Specification |
Basic Parameters | Model | 5250TCJNS |
Drive Form | 6×4 | |
Chassis Model | ZZ1257V464 | |
Gross Mass | 25000 kg | |
Dimension Parameters | Overall Dimensions (Length×Width×Height) | 10220×2500×3800 mm |
Operation Room Dimensions | 2600×2400×1810 mm | |
Front Overhang | 1525 mm | |
Rear Overhang | 2400 mm | |
Wheelbase | 4575+1400 mm | |
Front Track | 2015 mm | |
Rear Track | 1850/1850 mm | |
Performance Parameters | Engine | WP8.350E61 |
Engine Power | 257 KW | |
Maximum Speed | 89 km/h | |
Minimum Turning Diameter | ≤18 m | |
Braking Distance (Emergency braking at initial speed of 30 km/h) | ≤9 m | |
Fuel Consumption | ≤32 L/100 km | |
Fuel Tank Capacity | 400 L | |
Minimum Ground Clearance | 248 mm | |
Approach Angle | 19° | |
Departure Angle | 15° | |
Winch | Capacity | 7500 m (Φ3 steel wire) / 6800 m (Φ5 mm cable) / 4500 m (Φ11.8 mm cable) |
Lifting Capacity | 6 KN/35 kN/35 kN | |
Lifting Speed | 6—300 m/min; 3.8—300 m/min; 1.5—151 m/min | |
Transmission Form | Power Take-off - Hydraulic System - Reducer - Chain - Winch | |
On-board Crane | Maximum Working Range of Fully Extended Boom | 19.8 m |
Maximum Lifting Torque | 30 T·M | |
Rated Maximum Lifting Capacity of Fully Extended Boom | 700 kg | |
Maximum Lifting Height | 22 m | |
Maximum Lifting Capacity | 14000 kg | |
Crane Self-weight | 4485 kg | |
Maximum Working Pressure of Crane | 26 mpa | |
Operation Mode | Manual | |
Slewing Range | 360° Full Slewing |
YCGB600 type reducer has three forward and reverse gears: high, medium and low. Shifting is performed manually and pneumatically. The pneumatic directional valve control handle is installed on the operation panel, and the relationship between the handle position and the gear is displayed on the panel. The pneumatic directional valve control handle has three positions. When shifting gears, the winch must be completely stationary, and the drum brake handle should be tightened to prevent the cable and instruments from sliding down. When shifting gears beyond the position, do not push (pull) the handle in place at one time; stop at the middle position for a moment before pushing (pulling) to the desired upper (lower) position.
Winch Working System
It is mainly composed of a winch drum and a bracket. Its main function is to wind the logging cable and steel wire. Through the forward and reverse rotation of the hydraulic motor and the deceleration and torque increase of the three-speed reducer, the forward and reverse rotation of the drum is realized to ensure that the logging truck lifts and lowers the cable at different speeds; the drum is made of non-magnetic steel to ensure that the logging and perforation curves are not disturbed.
Engine Speed | 1600 r/min | 1800 r/min | 1800 r/min |
Upper-mounted Gearbox | First Gear | Second Gear | Third Gear |
Applicable Rope Diameter | φ3 mm | φ6 mm | φ11.8 mm |
Winch Lifting Capacity | 6 KN-25 KN (600 kgf—2500 kgf) | 35 KN (3500 kgf) | 35 KN (3500 kgf) |
Rope Winding Capacity | 7500 m | 6800 m | 4500 m |
Winch Speed | 5.87-220 r/min | 3.6-152 r/min | 1.23-52 r/min |
Lifting Speed | 6—300 m/min | 3.8—300 m/min | 1.5—151 m/min |

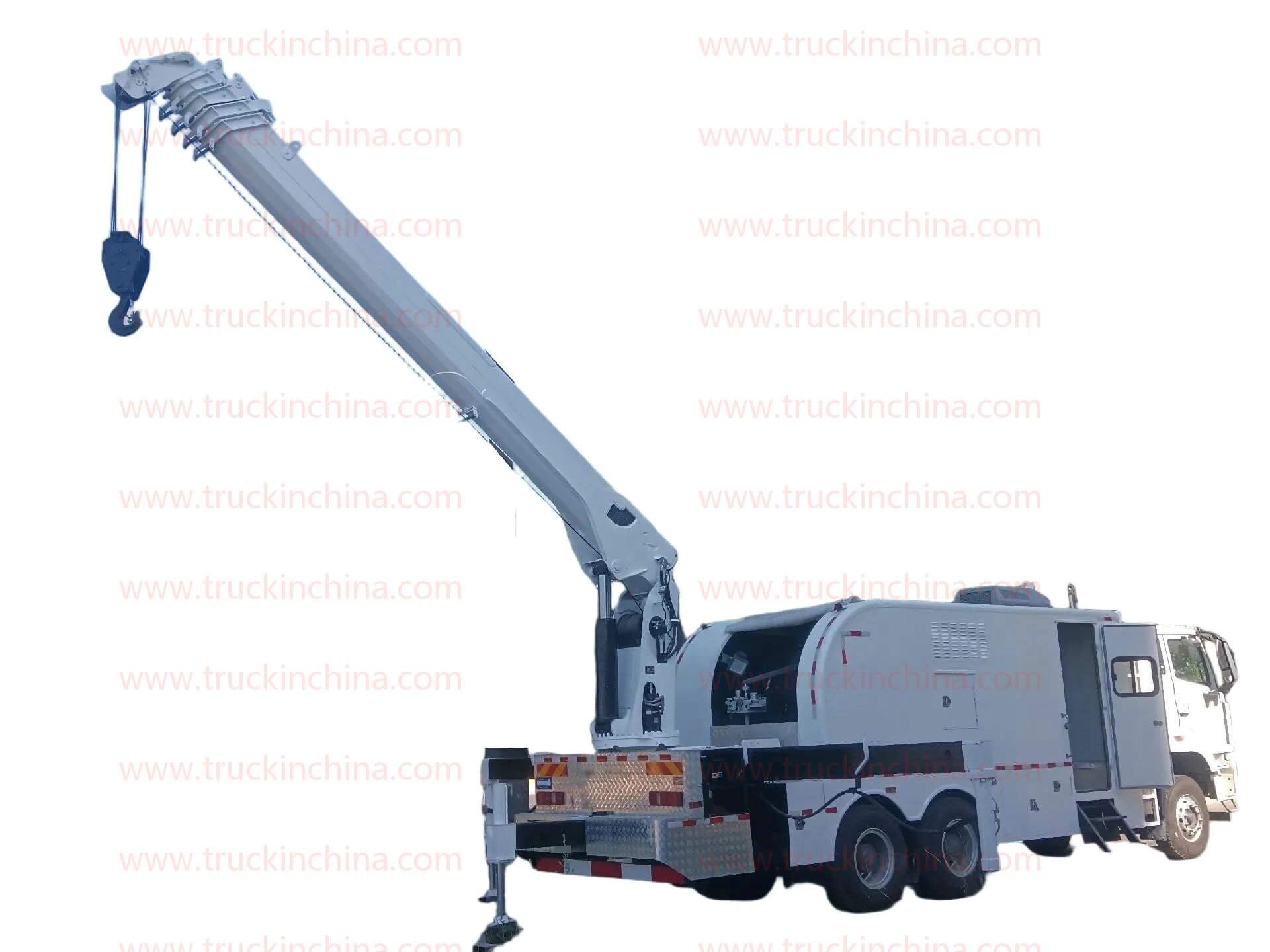

Crane
For the operation, maintenance and upkeep of the on-board crane, please refer to the "Straight Boom Crane Manual". The parameters are as follows:
Model | SQ14S5 |
Maximum Lifting Torque (KN·m) | 350 |
Maximum Lifting Capacity (t) | 14 |
Maximum Lifting Height (m) | 20 |
Maximum Working Range (m) | 19.5 |
Number of Telescopic Boom Sections | 4 |
Slewing Angle (°) | 360° Full Slewing |
Rated Working Pressure (Mpa) | 20 |
Rated System Flow (L/min) | 80 |
Outrigger Span (m) | 2290-7700 |
Crane Height (mm) | 2700 |
Figure: Lifting Height vs. Working Range Curve
Area A: Operation can be carried out at 100% of the value on the lifting performance curve plate;
Area B: Operation can be carried out at 90% of the value on the lifting performance curve plate;
Area C: Operation can be carried out at 80% of the value on the lifting performance curve plate;
Area D: Operation can be carried out at 70% of the value on the lifting performance curve plate;
Area E: Operation can be carried out at 60% of the value on the lifting performance curve plate.
Note: ① Maximum lifting height (m): The vertical distance from the base mounting surface to the boom head hook mounting hole (excluding the chassis height);
② Maximum working range (m): The straight-line distance from the slewing center to the boom head hook mounting hole.
