DRZ5120GXWZZ
-
DRZ
-
8705909990

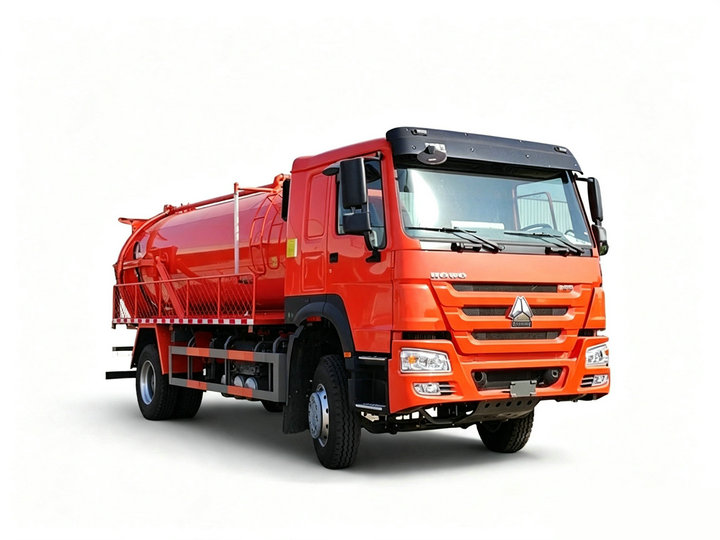

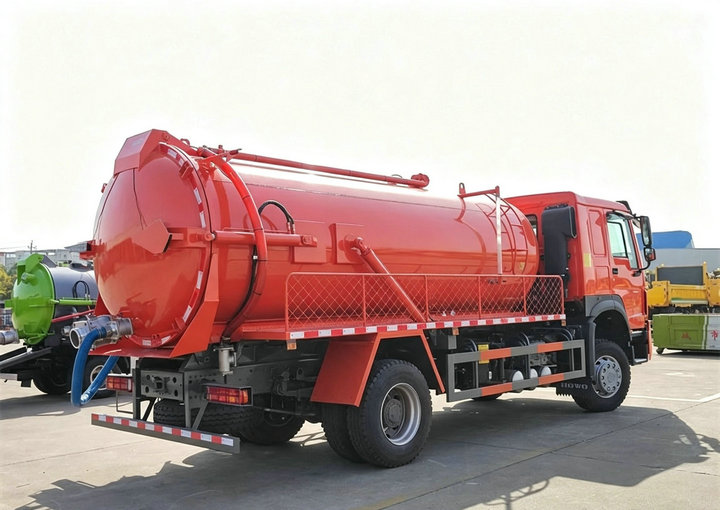

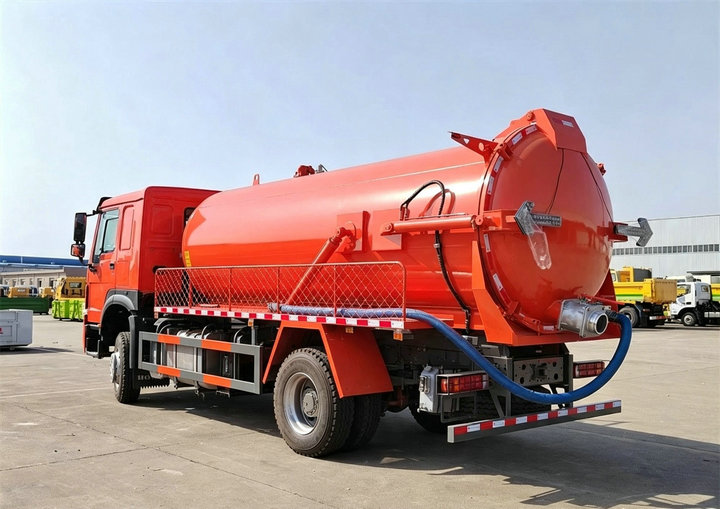

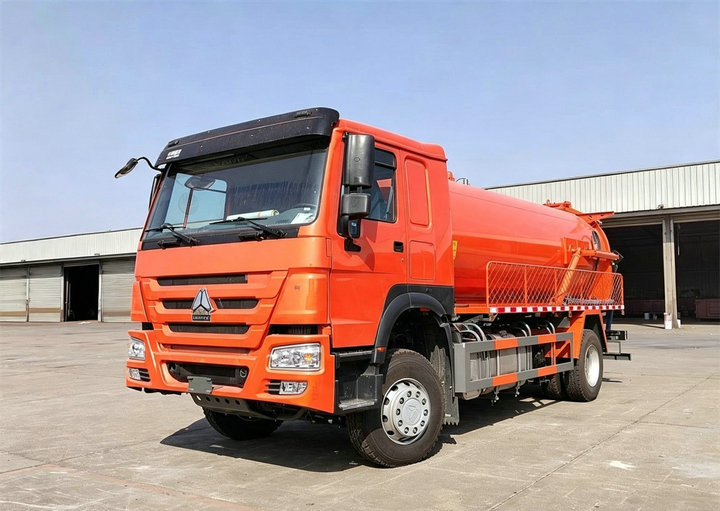

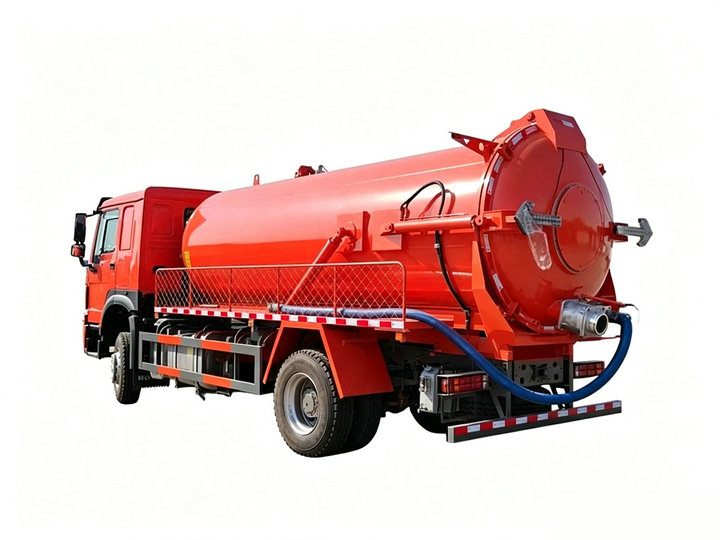

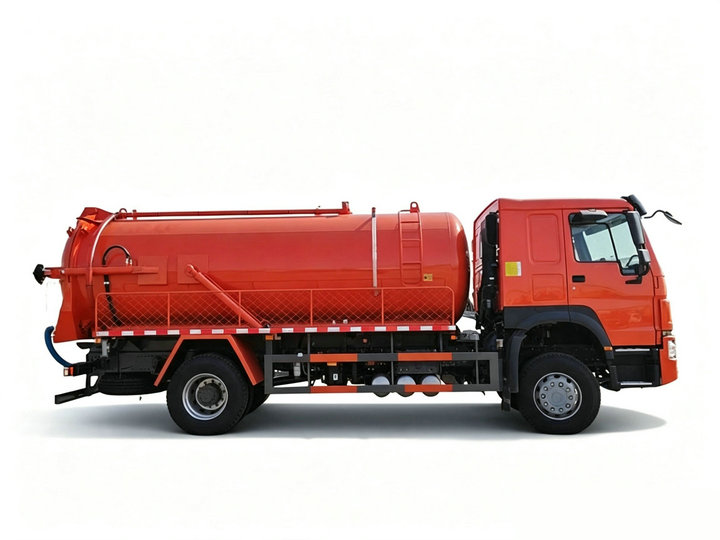

HOWO 10T Sewage Vacuum Suction Septic Tanker Truck
1. Product Overview Howo Vactor Camion / Howo Vacuum Sewage Suction Truck
2. Core Advantages
Fast Loading & Unloading: Powerful vacuum suction system, full tank suction within ≤5 minutes, high working efficiency
Complete Discharge: Hydraulic tipping tank + rear quick-opening cover, no residual sludge left inside tank
Durable Tank Body: 6mm thick high-quality carbon steel cylindrical tank, anti-corrosion welding structure
Low-Consumption Vacuum Pump: Original Hangzhou Weilong vacuum pump, low noise, low fuel consumption, stable high vacuum degree
Flexible Configuration: Single-and-a-half row cab with optional air conditioner, LHD/RHD steering for global market
Reliable Chassis: Sino Howo heavy-duty chassis, 300HP Weichai 6-cylinder diesel engine, strong climbing performance
3. Complete Technical Parameters
Basic Vehicle Information
| Item | HOWO 10T Sewage Vacuum Suction Septic Tanker Truck Specification |
|---|---|
| Official Model | DRZ5120GXWZZ |
| Full Name | Sino Howo 10CBM Sewage Suction Vacuum Truck |
| Chassis Model | ZZ1190 |
| Drive Form | 4×2 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2 |
| Cabin Type | HW16 Single-and-a-half row cab, A/C optional |
| Steering Mode | Left Hand Drive / Right Hand Drive Optional |
| Overall Dimension (L×W×H) | 9500×2400×3300 (mm) |
| Wheel Base | Customizable |
| Minimum Ground Clearance | 480 mm |
| Gross Vehicle Weight (GVW) | 20000 kg |
| Curb Weight | 1200 kg |
| Max Payload | 16000 kg |
| Max Speed | 95 km/h |
| Max Climbing Gradient | 30% |
| Electrical System Rated Voltage | 24V |
| Tire Spec & Quantity | 10.00-20, 6+1 tires |
Engine & Transmission
| Item | Parameter |
|---|---|
| Engine Brand & Model | Weichai WD615 47 |
| Max Power | 300 HP |
| Cylinder Number | 6 cylinders |
| Displacement | 9726 ml |
| Gearbox | 9-speed manual transmission (9 forward + 1 reverse gear) |
| Front Axle Load Capacity | 7 Ton |
| Rear Axle Load Capacity | 18 Ton |
| Brake System | Full air service brake |
Special Vacuum Tank & Pump Assembly
| Tank Configuration | Details |
|---|---|
| Tank Material | High-quality carbon steel |
| Tank Structure | All-sealed cylindrical vacuum tank, full welding anti-leak design |
| Effective Tank Capacity | 10000 L (10 CBM) |
| Tank Plate Thickness | 6 mm |
| Discharge Mode | Hydraulic lifting tank + hydraulic lock rear cover, dump angle ≥45° |
| Vacuum Pump Parameters | Details |
|---|---|
| Pump Brand & Model | Hangzhou Weilong 65QZ-40/45N |
| Flow Rate | 65 L/S |
| Rated Rotating Speed | 500 r/min |
| Shaft Power | 4 kW |
| Max Vacuum Degree | ≤15 Kpa |
| Effective Suction Range | ≥8 Meters |
| Full Suction Time | ≤5 Minutes |
| Pump Features | Low rotating speed, low fuel consumption, low running noise, high vacuum, high working efficiency |

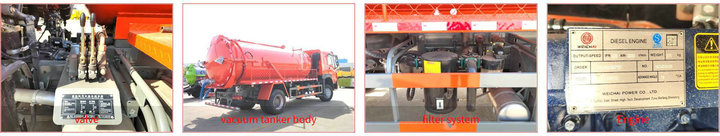

| Matching Accessories | Power take-off (PTO), transmission shaft, 65-100mm suction & discharge hoses, observation manhole, filter system, control valves, cleaning pipeline kit; WL / WY Vacuum Pump VAC Pump :WL Series Septic Tank Vacuum Pump Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump vacuum pump 65QZXDH-110/7000 50QZXDF-98/8500 1000 8500Pa(91.5%) For 3-5 Ton Vacuum tanker 65QZXDG-68/400 500 400Pa(99.6%) For 8 -20Ton Vacuum tanker WY Series Septic Tank Vacuum Pump Optional Italy Original MORO PM70A Rotary Vane Vacuum Pump |
4. Standard Operation Guide for Howo Vactor Camion
Step 1: Pre-Work Preparation
Connect the truck’s auxiliary water supply pipeline to municipal water source to guarantee sufficient flushing water
Operators must wear full protective gear: waterproof gloves, protective overalls, safety goggles
Check all control valves, vacuum pump, filter system and hydraulic lifting equipment to confirm no leakage or malfunction
Step 2: Pipeline High-Pressure Flushing
Step 3: Vacuum Waste Suction
Step 4: Waste Discharge
5. Main Application Scenarios
Municipal urban sewer pipeline dredging & cleaning
Septic tank, biogas tank, sewage pool desludging & emptying
Catch basin, rainwater well sediment cleaning
Industrial factory sludge, waste liquid collection & transportation
Hydro excavation, underground pipeline maintenance
Property community sewage & waste treatment
-
Sewage Suction Vacuum Truck Technical Specification Product Name Sino howo SEWAGE SUCTION TRUCK Chassis Model ZZ1190 Fuel type Diesel Emission Standard Euro 2 Cabin HW16 Whole Vehicle Overall dimensions (LxWxH) 9500*2400*3300 main dimensions (mm) Wheel base optional Min. ground clearance 480 Weight data (kg) G.V.W 20000 Curb weight 1200 Max payload 16000 Whole vehicle Max. speed (km/h) 95 main performance Max. slope of climb (%) 30 Engine Model WD615 47，WP10. 300E22 Maximum power 300 HP Number of cylinders 6 Displacement (ml) 9.726 Gear box Model 9 Number of gears 9 forward gears &1 reverse Axle Front Load capacity (ton) 7 Rear Load capacity (ton) 18 Steering Wheel left/right hand drive LHD,RHD Brake system Service brake Air braking Electric device Rated voltage 24V Tyres&Quantity 10.00-20& 6+1 Sewage Suction Vacuum Truck Special Tank Description Tank Material:high quality carbon steel Structure:welding,vacuum tank,Cylindrical capacity(L) 10000 thickness of material 6mm pump type vacuum pump model 65QZ-40/45N flux(L/S) 65 rating speed(r/min) 500 shaft power(kw) 4 features Low speed,low fuel consumption,low noise,high vacuum,high efficiency manufacture Hangzhou Weilong Pump Co.,Ltd,(Famous in China) pipe 65-100mm suction and discharge pipe special function suction time ≤ 5min, effective suction range ≥ 8, max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 equipment Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment Time for full suction less than 5min hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc
