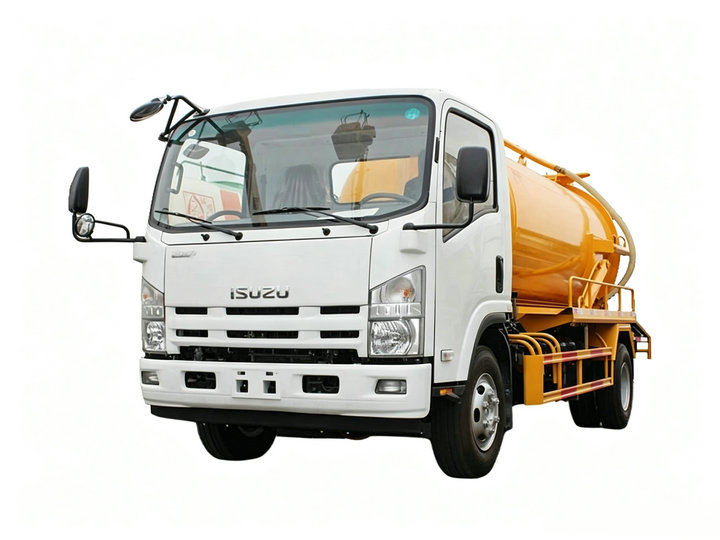

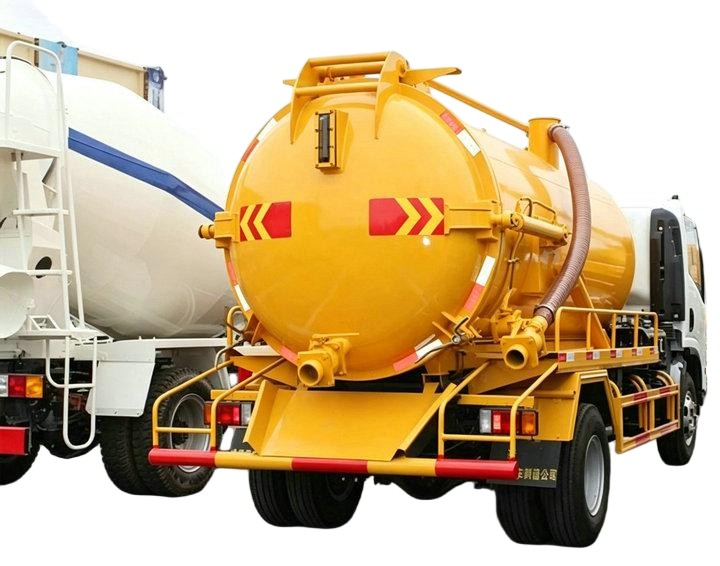

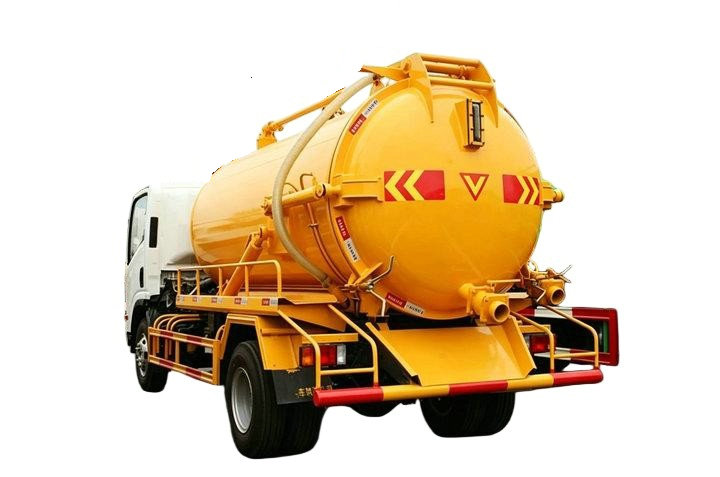

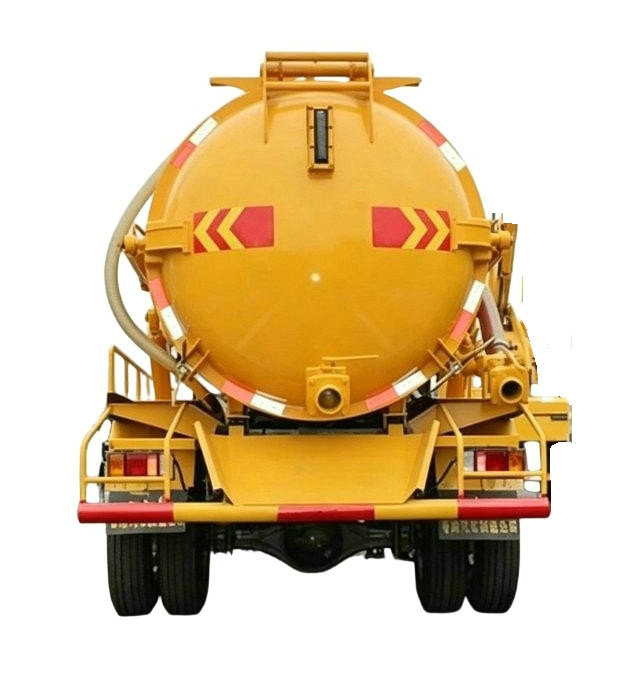

ISUZU 10KL Sewage Suction Vacuum Trucks

ISUZU 10KL Sewage Suction Vacuum Trucks
Tank capacity can be customized 8KL- 10KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 38800
Discount Price: $ 36800
Availability:
Quantity:

  • DRZ5110XWQL

  • DRZ

  • 8705909990

 ISUZU 10KL Sewage Suction Vacuum Trucks

Isuzu 10000 Liters Sewage Suction Truck | 10 CBM Isuzu NPR 190HP Vacuum Suction Truck

Factory supply Isuzu 10000 liters sewage suction truck, 190HP 4HK1 engine, 10cbm vacuum tanker on Isuzu NPR chassis. 4x2 sewage suction truck for municipal sewer cleaning, sludge & wastewater collection. Optional Italy vacuum pump & stainless steel tank.

Isuzu 10000 Liters Sewage Suction Truck

10 CBM Isuzu 190HP Vacuum Suction Truck

The Isuzu 10,000 liters sewage suction truck is a heavy-duty high-performance vacuum cleaning vehicle. Featuring reliable suction performance and flexible customized configurations, the Isuzu NPR sewage suction truck serves as essential equipment for municipal sanitation and environmental maintenance. Whether operating on urban roadways, public parks or industrial zones, the Isuzu ELF vacuum suction truck delivers stable, efficient support for sewage cleaning and waste disposal.
Model: DRZ5110XWQL| Tank Capacity: 10 CBM | Drive Mode: 4×2 | Engine: 4HK1-TCG61 190 HP

Products Description

This Isuzu 10,000 liters sewage suction truck is built on proven Isuzu NPR light-duty chassis with outstanding durability and powerful vacuum cleaning performance.The vacuum tank has an effective volume of 8000L, capable of transporting large volumes of sewage, sludge and liquid waste. Equipped with 4×2 rear-wheel drive layout and 6-speed overdrive transmission, it delivers reliable traction and excellent road adaptability. The maximum travelling speed reaches 90km/h, suitable for highway and urban complex road conditions.

 Technical Specification

Item Parameters
Vehicle Model DRZ5110XWQL Sewage Suction Trucks
Chassis Model Isuzu NPR Light Duty Chassis
Overall Dimensions(L×W×H)(mm) 8050x2450x2550
Effective Tank Volume(L) 8000
GVW(kg) Approx 16000
Rated Loading Capacity(kg) Approx 12000
Curb Weight(kg) Approx 14000
Tank Inner Dimension(mm) 450022001370
Wheel Base(mm) 3815
Front/Rear Wheel Track(mm) 1250 / 2450
Approach / Departure Angle(°) 34 / 18
Engine Displacement & Max Power 9726ml / 136kW(190HP)
Max Driving Speed(km/h) 90
Tyre Size 235/75R17.5
Engine Model Isuzu 4HK1-TCG61
Drive Type 4×2
Transmission 6-speed gearbox with overdrive
Axle Quantity 2
Electrical System 24V
Control System Electro-hydraulic control
Cab Seating Capacity 3 persons
Vacuum System Equipment Special industrial vacuum pumpRated speed:1400r/mMinimum rotating speed>800r/mMax suction lift>6m, Vacuum>500mmHg, clockwise rotationComplete set including PTO, transmission shaft, sewage tank, pipeline network, observation pipe and cleaning fittingsFull suction time<5min
Optional Configuration 1. Rear working camera & back-up alarm2. Tank material: standard carbon steel, stainless steel optional3. Pump option: standard Weilong vacuum pump, imported Italy vacuum pump optional

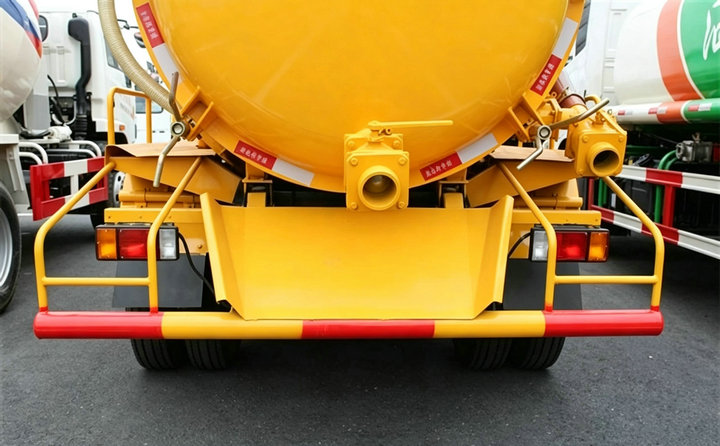

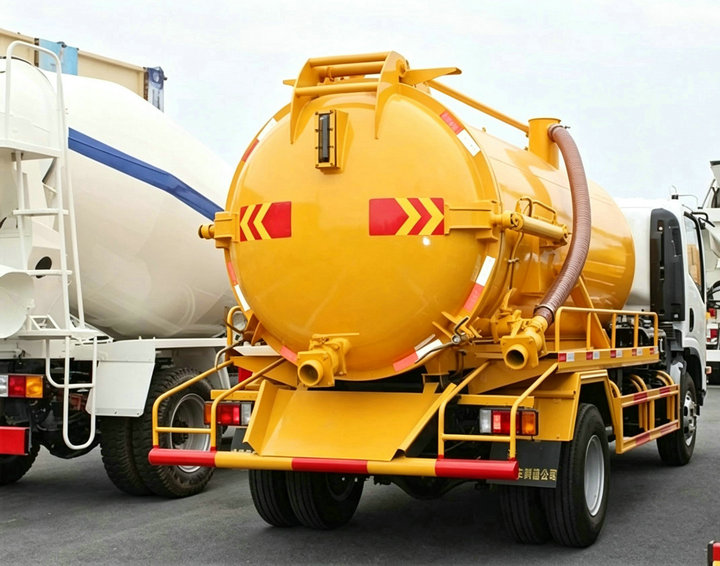

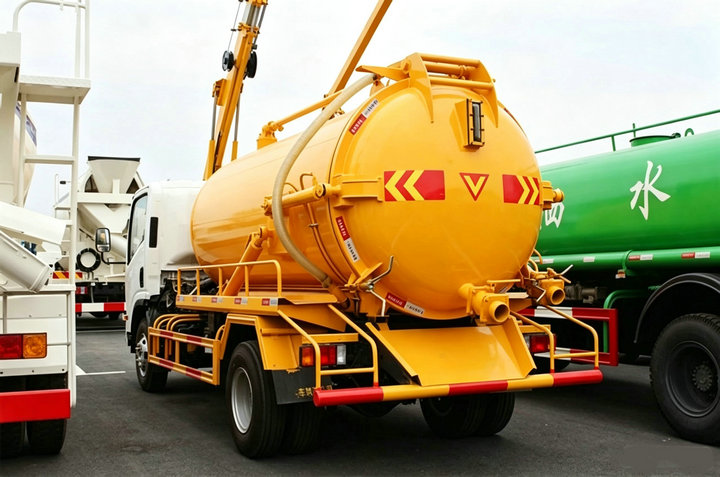

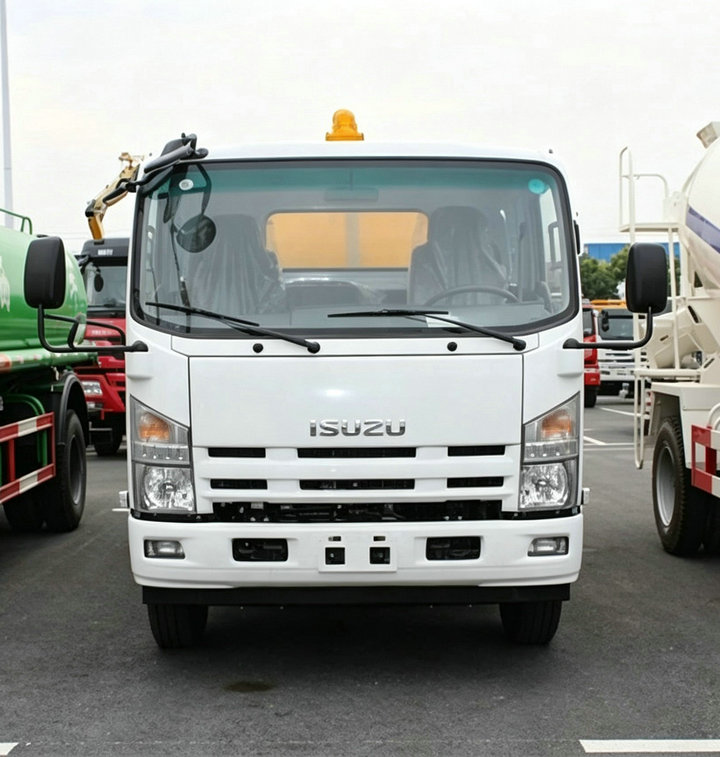

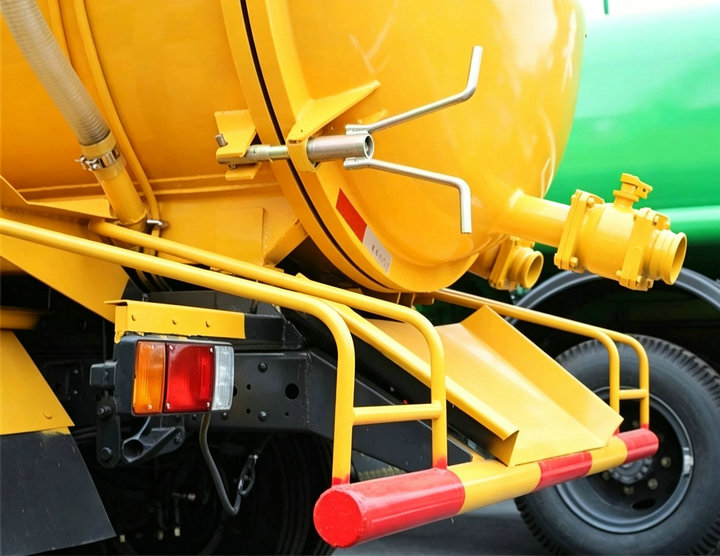

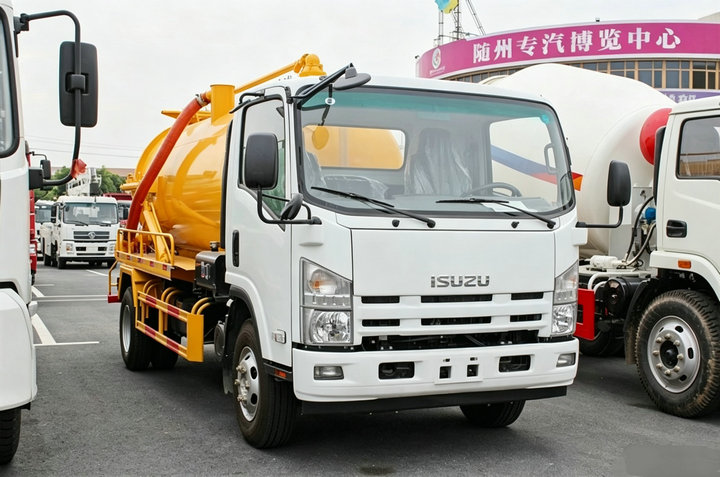

ISUZU 10KL Sewage Suction vacuum Trucks (4)ISUZU 10KL Sewage Suction vacuum Trucks (8)ISUZU 10KL Sewage Suction vacuum Trucks (2)ISUZU 10KL Sewage Suction vacuum Trucks (1)ISUZU 10KL Sewage Suction vacuum Trucks (3)ISUZU 10KL Sewage Suction vacuum Trucks (5)Main Applications of Isuzu Sewage Suction Truck

  1. Urban Road Sanitation CleaningFor municipal management, road cleanliness is a priority task. The Isuzu ELF sewage suction truck rapidly collects standing water, oil stains and liquid waste on pavements. Powerful vacuum suction handles large quantities of sewage and sludge in short time, lowering environmental pollution risks.
  2. Industrial Park Waste TreatmentIndustrial areas commonly accumulate oily wastewater, sludge and industrial pollutants. The Isuzu ELF vacuum suction truck provides rapid response to clean up industrial sewage, maintaining tidy working conditions and guaranteeing workplace safety.
  3. Park & Scenic Area MaintenanceParks and tourist attractions require constant sanitation to enhance visitor experience and protect ecological environment. The Isuzu ELF sewage suction truck efficiently removes sewage, silt and litter wastewater to keep landscapes clean.
  4. Emergency Disaster RescueWhen flood disasters, liquid leakage and other accidents occur, the Isuzu ELF sewage suction truck can be quickly deployed to clear flood sewage and contaminated waste, minimizing environmental damage. Flexible layout and high working efficiency make it indispensable emergency rescue equipment.

Send Inquiry

Contact us to get factory direct price and tailored configuration plan for Isuzu 10000 liters sewage suction truck.
