Isuzu High Pressure Jetting Combined Vacuum Tanker Truck 4KL Sewage+3KL Clean Water

Share to:

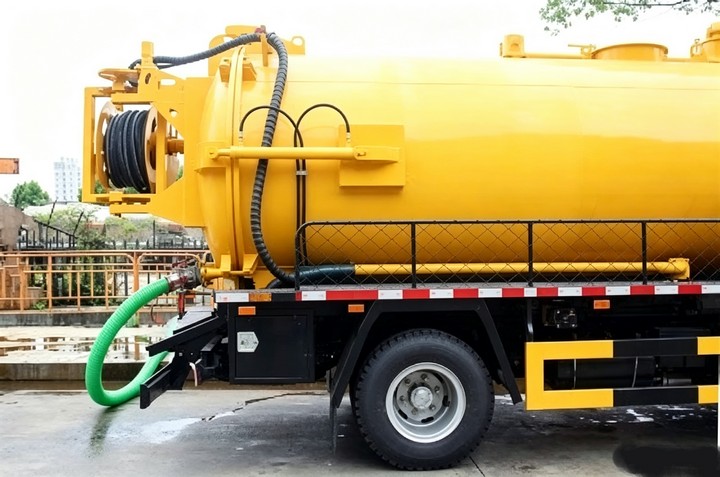

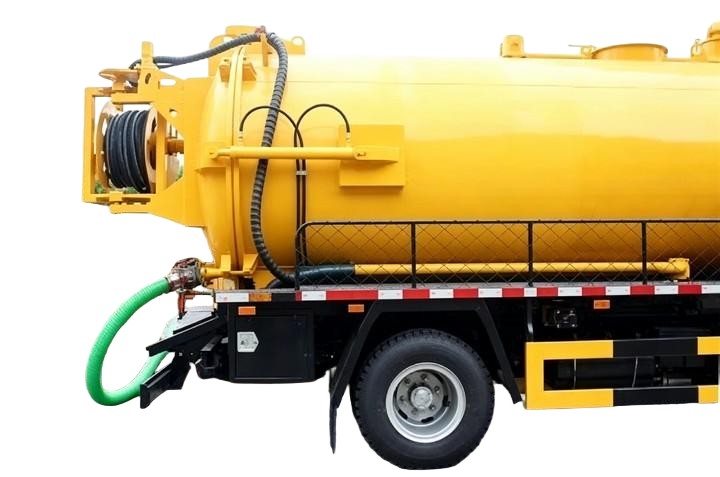

Isuzu High Pressure Jetting Combined Vacuum Tanker Truck 4KL Sewage+3KL Clean Water

Isuzu High Pressure Jetting Combined Vacuum Tanker Truck 4KL Sewage+3KL Clean Water
Tank capacity can be customized 3KL- 5KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675

Price: $ 40800

Discount Price: $ 38800

Availability:

Quantity:



Buy at Aliexpress

Model:
DRZ5110GXWQL
Brand:
Dong Run Ze
Code:
8705909990

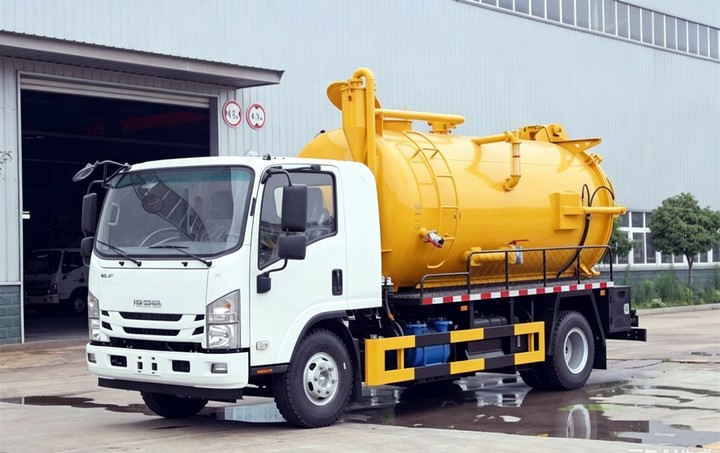

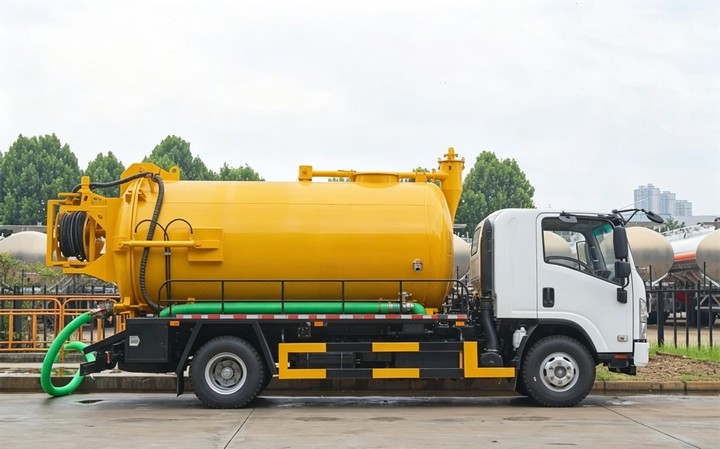

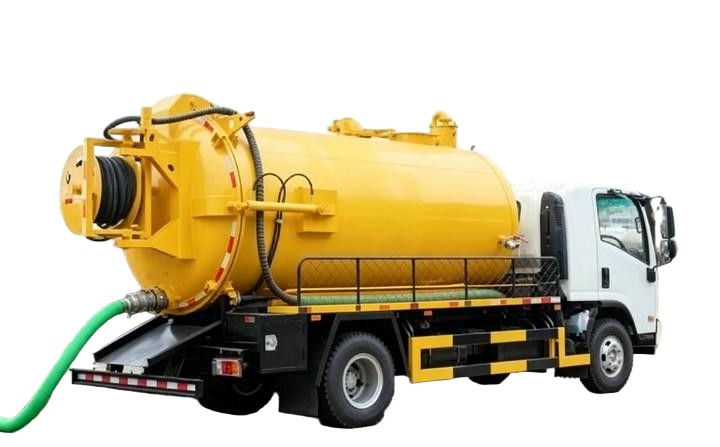

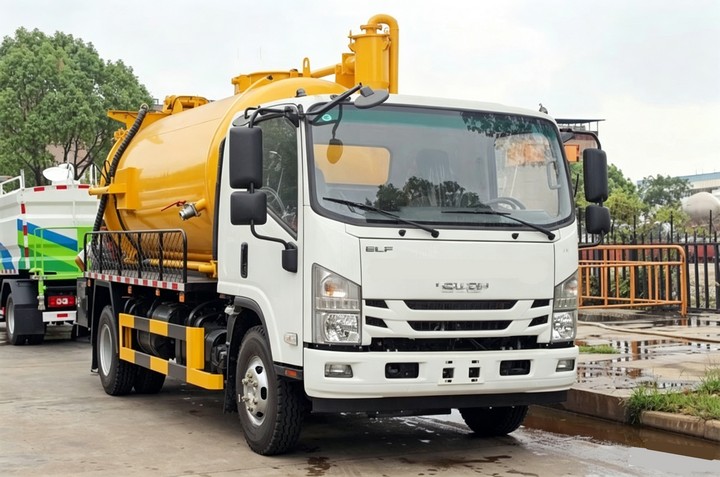

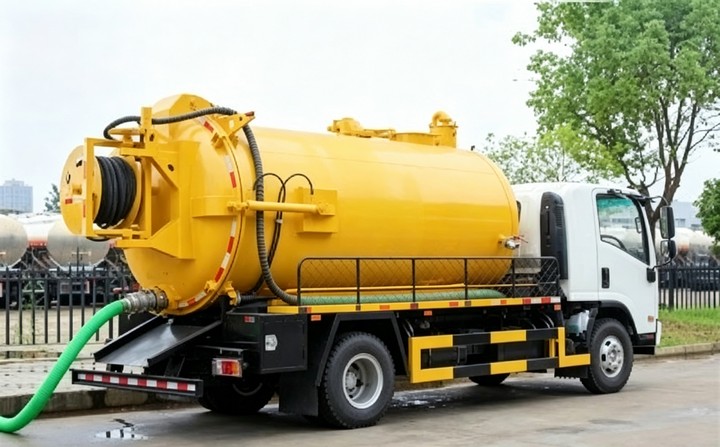

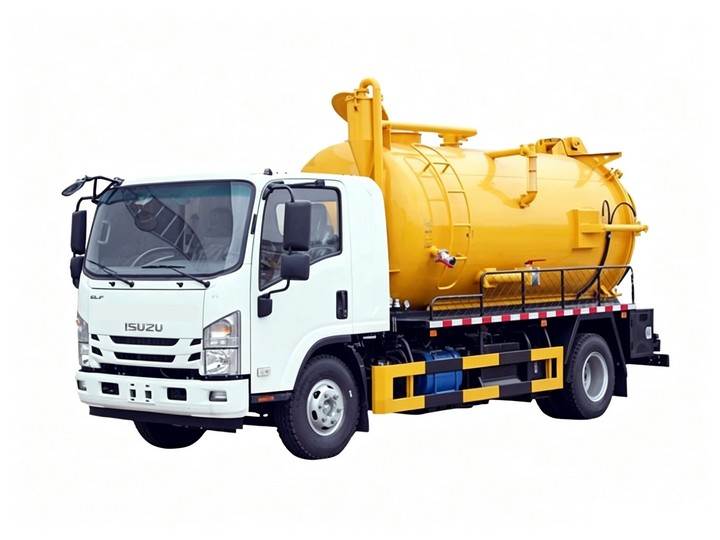

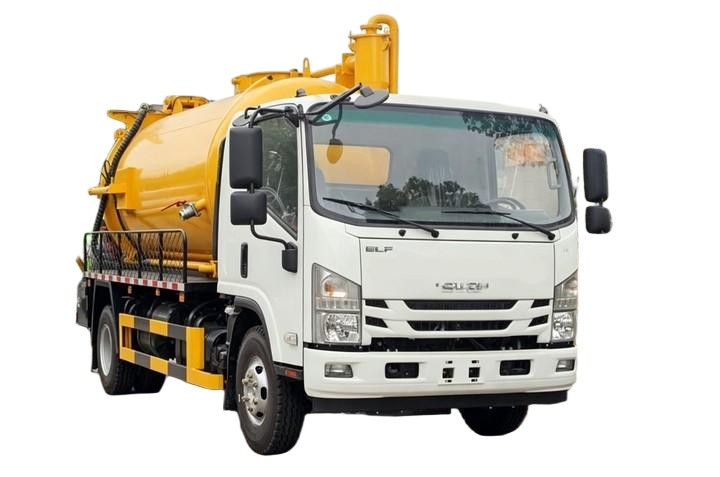

truck view

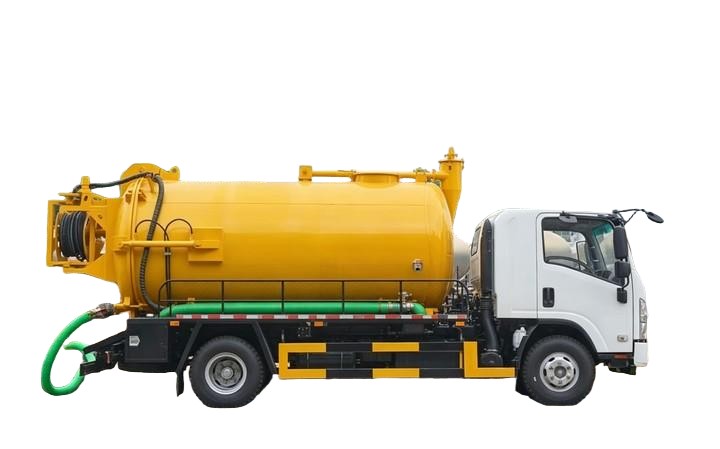

Isuzu High Pressure Jetting Combined Vacuum Tanker 4000L Sewage+3000L Clean Water )

IsuzuHigh Pressure Jetting Combined Vacuum Tanker Truck
Vehicle Description
Overall dimensions	7200x2300x2700mm
GVW	12000kg;14000kg;16000kg
Curb weight	3400kg;4000kg,4500kg
Sewage tank (m3)	4+2,5+2,4+3,5+3
Traction type	4x2
Chassis Description
Chassis brand	ISUZU
Steering	LHD
Cab	700P,single row, 3 seats,with A/C
Wheelbase	4175mm
Tire specification	235/75R17.5
Tire quantity	6 tires and 1 spare tire
Engine	Engine model	4HK1-TCG61
	Emission level	EURO 6
	Displacement/output	5193ml/138kw
	Horse power	190HP/2600rpm
	Weight	456Kg
	Fuel	Diesel
Gear box	Model	ISUZU MLD
	Number of gears	6-speed
Brake system	Air break
Axle	Front	4T
	Rear	7T
Fuel tanker	Type	Stainless steel
	Capacity	200L
Tanker Description
Tanker	Capacity	Vac tank 4000 ~5000 Liters + Jetter tank 2000L~3000 Liters
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical

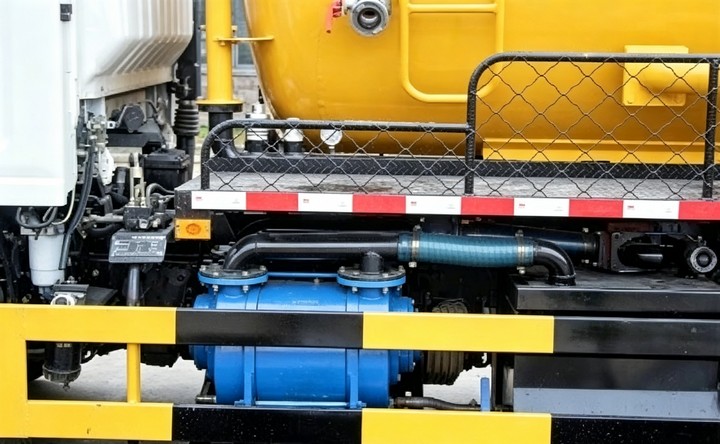

Pump	Type	SK Series Liquid Ring Vacuum Pumps or Jurop vacuum pump MORO PM70A vacuum pump
	Flux	68(L/S)
	Rating speed	800~1000(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45°






Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.






Optional configuration	Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank

SY132 High Pressure Plunger Pump			1480 RPM
800 min-RPM	Power		63KW 85Hp	90KW 122Hp	104KW 142Hp	132KW 180Hp
Pump type	Flow L/min		Pressure MPa
SY132-35	135	8.1m3/h	21MPa
SY132-40	170	10.2m3/h		24MPa
SY132-45	215	12.9m3/h			22MPa
SY132-50	265	15.9m3/h				20MPa
SY132-55	315	19.2m3/h				19MPa
weight: 260 kg import:G2" export:ZG 1¼"

Isuzu NPR Septic Tanker Truck with vac jettting Pump | 5000L Euro 6 Vacuum Sewage Truck

Isuzu NPR Septic Tanker Truck Equipped with SK9 Pump | 5000L High-Efficiency Sewage Vacuum Truck

Technical Specifications of SK Series Liquid Ring Vacuum Pumps & Compressors

Model	Pumping Capacity (m³/min)		Ultimate Vacuum		Power (kW)		Rotational Speed (r.p.m.)	Operating Pressure (kg/cm²)	Port Diameter (mm)		Water Consumption (L/min)
	Max.	At -450mmHg Vacuum	mmHg	MPa	Vacuum Pump Mode	Compressor Mode			Inlet	Outlet
SK-3	3	2.8	-700	-0.093	5.5	7.5	1450	0~0.1	70	70	15~20
SK-6	6	5.4	-710	-0.093	11	15	1450	0~0.1	80	80	20~30
SK-9	9	8.1	-710	-0.093	15	22	1450	0~0.1	80	80	30~40
SK-12	12	11	-710	-0.093	18.5	30	970	0~0.1	80	80	40~50
SK-15	15	13.5	-710	-0.093	30	37	970	0~0.1	80	80	50~60

Isuzu NPR septic tanker truck with VAC pump is a compact, high-performance vacuum sewage suction vehicle engineered for confined-space operation. Featuring a 5000L (5m³) main sewage tank plus a 3m³ auxiliary tank, this Euro 6 compliant Isuzu septic tank cleaning truck excels in low-clearance and narrow working areas, including residential communities, shopping malls, underground parking lots, and commercial zones. Ideal for septic tank pumping, sewage collection, sludge suction, and municipal sanitation cleaning tasks, it serves as a reliable solution for environmental companies, municipal sanitation departments, and engineering contractors worldwide.

Isuzu Chassis Brand Advantage

As a world-class commercial vehicle manufacturer, Isuzu is widely recognized for solid build quality, outstanding fuel economy, and low maintenance costs. Isuzu light-duty chassis features high structural rigidity, strong load-bearing capacity, and ultra-long service life. Adopting a professional sanitation vehicle chassis configuration, it adapts to frequent start-stop and high-intensity operation of sewage cleaning work, ensuring stable performance in long-term harsh working conditions.

Complete Technical Parameters

Overall Vehicle Parameters

Product Model: DRZ5110GXWQL
Total Tank Capacity: 4000L 、5000L + 2000L、3000L (4，5+3，2m³)
Overall Dimension: 7200*2300*2700mm
Gross Vehicle Weight (GVW): 12000kg~16000kg
Curb Weight: 3400kg
Drive Type: 4×2

Chassis Configuration

Chassis Brand: ISUZU NPR
Steering Mode: Left Hand Drive (LHD)
Cab: 700P single-row 3-seater cab with air conditioner
Wheelbase: 4175mm
Tire Specification: 235/75R17.5
Tire Quantity: 6 main tires + 1 spare tire
Front Axle Load: 4T
Rear Axle Load: 7T
Brake System: Air brake
Fuel Tank: 200L stainless steel fuel tank

Engine & Gearbox

Engine Model: 4HK1-TCG61
Emission Standard: Euro 6
Displacement: 5193ml
Rated Power: 138KW (190HP) / 2600rpm
Engine Weight: 456Kg
Fuel Type: Diesel
Gearbox Model: ISUZU MLD 6-speed manual transmission

Vacuum Tank & Pump System

Tank Capacity: 4000-5000L main tank + 2000-3000L auxiliary tank
Tank Material: 6mm thick high-quality carbon steel, integral welding forming
Tank Structure: Cylindrical fully sealed vacuum tank
Vacuum Pump Brand & Model:SK9， or Imported MORO PM70A
50QZXDH-68/7000 800 7000Pa(93%) 68 5 For 5-10 Ton Vacuum tanker
50QZXDG-45/400 500 400Pa(99.6%) 45
65QZXDG-68/400 500 400Pa(99.6%) 68 For 8 -20Ton Vacuum tanker
WY Series Septic Tank Vacuum Pump
YF Septic Tank Vacuum Pump
Jurop Vacpump PN84D Liquid Waste Vacuum pumps
Working Features: Low speed, low fuel consumption, low noise, ultra-high vacuum, high working efficiency
Working Performance: Suction time ≤ 5 minutes, effective suction depth ≥ 8 meters
Max Vacuum Degree: ≤15KPa
Hydraulic Tipping Angle: ≥45°
Suction Pipe: 5-meter professional suction and discharge pipeline

Standard & Optional Configuration

Standard Accessories: Observation window, discharge valve, cleaning device, 5m suction hose, oil-water separator, overflow safety valve, full hydraulic rear door opening & closing system, hydraulic tank tipping system (40-45° dumping angle).

Optional Upgrades: Full stainless steel tank body, China/Spain imported alternative vacuum pumps, internal tank anti-rust coating, high-pressure cleaning system.

Optional Superstructure High Pressure Jetting Combined Vacuum Tanker Truck 4KL Sewage+3KL Clean Water

Superstructure +$ 4,000
Tank	Tank Capacity	4000L sewage tank,2000L cleaning water tank
	Tank Material	5mm carbon steel with antiseptic treatment
	Tank lifting angle	≥45°
Vacuum Pump	Vacuum Pump	Jurop PN155D $ 4,800
	Pumping rate	910m³/h,15200L/min
	Rotation speed	1150r/min
	Vacuum	27.8Hg,93%
	Continuous vacuum	18Hg,60%
	Max Pressure	2 bar
	Power Vacuum Max.	Vacuum pump 19kW, 25.5HP
High cleaning water pump	Water pump brand	PINFL (German brand)
	Model	PF36
	Flow rate	122 L/min
	Rated pressure	16 Mpa
	Speed	800 r/min
	Power	50kw

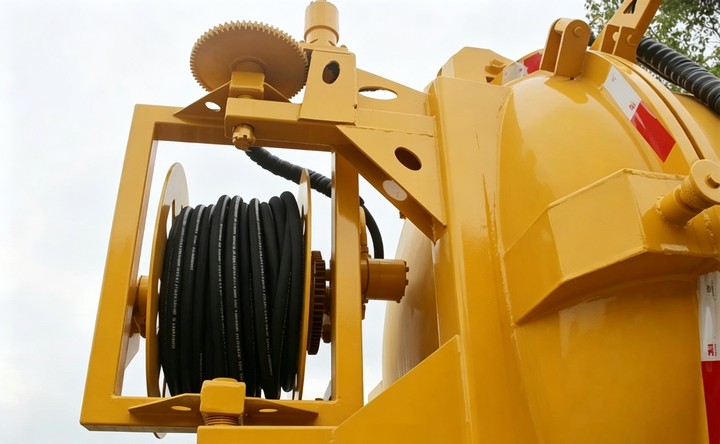

	Hose reel	Rear-mounted hose reel with 60m φ19 high pressure hose
	Jetting spraying nozzles	10 pcs carbon steel spraying nozzles
